Toyota Tacoma (2024 – 2025) Fuse Box Location and Diagrams
Own a 2024 or 2025 Toyota Tacoma? Troubleshooting electrical issues can be daunting, but our expert guide makes it simple. Locate your fuse box instantly and access clear, accurate diagrams designed for the latest 4th-generation models. Resolve your truck’s electrical challenges quickly and get back on the road with confidence.
Fuse Box Location

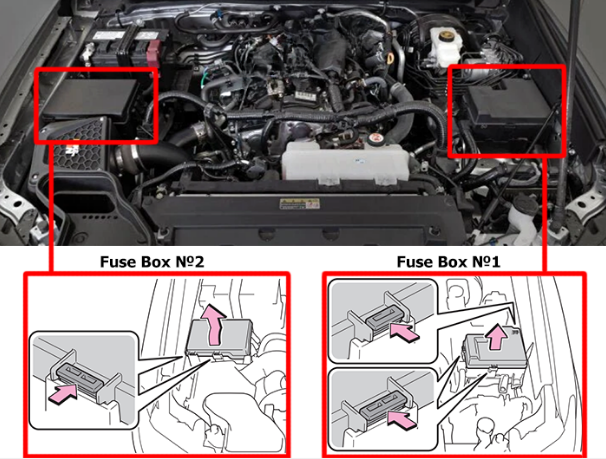

Engine Compartment Fuse Boxes
Push the tabs in and lift the lid off.
Passenger Compartment Fuse Box

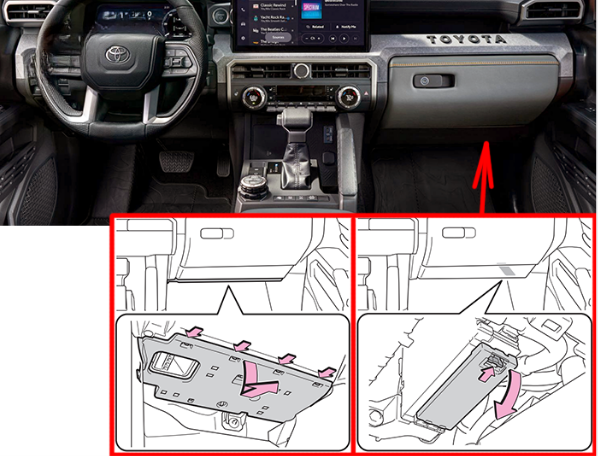

The fuse box is located under the glove compartment. Remove the cover to access, and remove the lid.
Fuse Box Diagrams

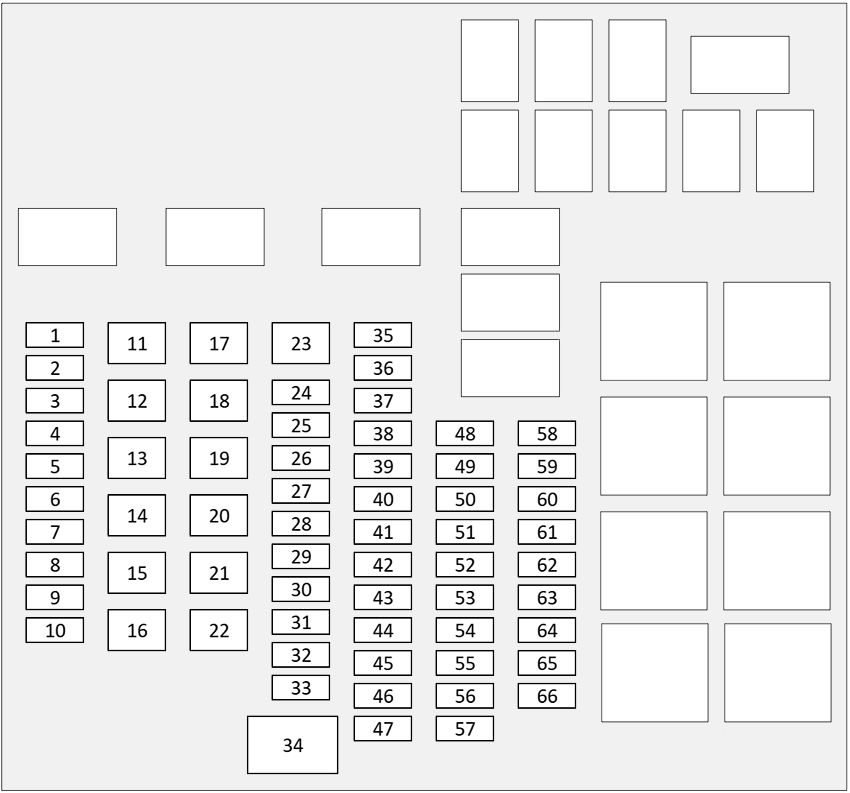

Engine Compartment Fuse Boxes Type 1
Toyota Tacoma (2024 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| F1 | 5A | ECU-IGP NO.4 | ECU-IGP NO.4 |
| F2 | 5A | ECU-IGP NO.3 | ECU-IGP NO.3 |
| F3 | 7.5A | EFI-IGP | EFI-IGP |
| F4 | 5A | ECU-IGP NO.5 | ECU-IGP NO.5 |
| F5 | 7.5A | ECI-IGP | ECI-IGP |
| F6 | 5A | ECU-IGP NO.6 | ECU-IGP NO.6 |
| F8 | 7.5A | EFI NO.2 | Multiport fuel injection system |
| F11 | 50A | TIRE INFL | TIRE INFL |
| F13 | 30A | ABS-MAIN NO.1 | (Anti-lock braking system |
| F14 | 50A | ABS NO.2 | Anti-lock braking system |
| F15 | 50A | ABS NO.1 | Anti-lock braking system |
| F16 | 50A | EDU-MAIN | Emissions control system |
| F17 | 30A | ST | Starter system |
| F19 | 30A | EFI-MAIN NO.2 | Multiport fuel injection system |
| F20 | 50A | ABS MTR | Anti-lock braking system |
| F21 | 50A | EFI-MAIN NO.1 | Multiport fuel injection system |
| F22 | 50A | OIL PMP | OIL PMP |
| F26 | 10A | STAB | STAB |
| F28 | 20A | IGN/INJ-MAIN | Ignition; Fuel injectors |
| F30 | 10A | S-HORN | Horn / anti-theft deterrent |
| F31 | 15A | AUX NO.1 | AUX NO.1 |
| F32 | 7.5A | ABS-MAIN NO.2 | Anti-lock braking system |
| F33 | 20A | EFI-MAIN NO.3 | Multiport fuel injection system |
| F36 | 30A | 4WD-IGR | 4WD-IGR |
| F40 | 7.5A | ENG-IGR NO.2 | ENG-IGR NO.2 |
| F43 | 15A | STRG ECU | STRG ECU |
| F44 | 7.5A | ECT-B | ECT-B |
| F45 | 7.5A | 4WD-B | All wheel drive system |
| F46 | 5A | AUX NO.3 | AUX NO.3 |
| F47 | 10A | AUX NO.2 | AUX NO.2 |
| F50 | 10A | INJ | Fuel injectors |
| F51 | 10A | IGN | Ignition |
| F52 | 10A | A/F NO.2 | Air fuel ratio sensor |
| F53 | 10A | A/F NO.1 | Air fuel ratio sensor |
| F54 | 20A | EDU NO.4 | Emissions control system |
| F55 | 20A | EDU NO.3 | Emissions control system |
| F56 | 20A | EDU NO.2 | Emissions control system |
| F57 | 20A | EDU NO.1 | Emissions control system |
| F58 | 7.5A | EFI NO.1 | Multiport fuel injection system |
| F59 | 20A | EFI-B NO.2 | Multiport fuel injection system |
| F60 | 20A | EFI-B NO.1 | Multiport fuel injection system |
| F61 | 7.5A | ACM | ACM |
| F62 | 7.5A | FAN | Electric cooling fan |
| F63 | 15A | ECT | ECT |
| F65 | 10A | EFI NO.3 | Multiport fuel injection system |
| F66 | 7.5A | G/SHUTTER | G/SHUTTER |

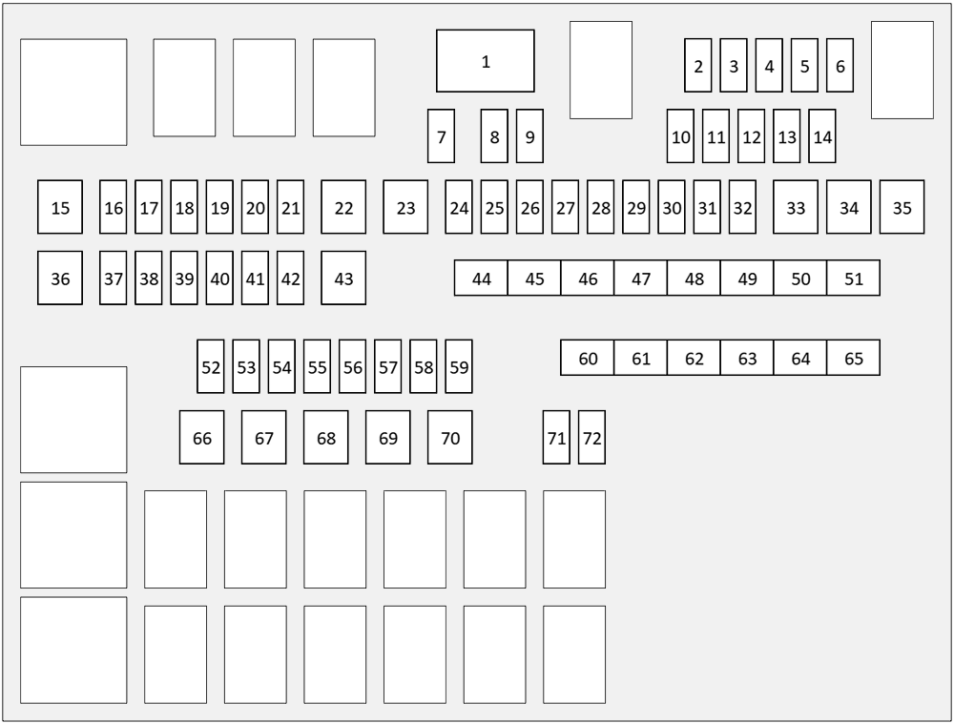

Engine Compartment Fuse Boxes Type 2
Toyota Tacoma (2024 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| F2 | 20A | WASHER | Windshield washer |
| F4 | 5A | ECU-IGP NO.2 | ECU-IGP NO.2 |
| F5 | 5A | ECU-IGP NO.1 | ECU-IGP NO.1 |
| F7 | 30A | BBC NO.4 | Stop & Start system |
| F10 | 5A | ENG-IGR NO.1 | ENG-IGR NO.1 |
| F12 | 7.5A | TOWING-IGR | TOWING-IGR |
| F14 | 15A | AVS | AVS |
| F16 | 30A | TOWING TAIL | Trailer lights |
| F17 | 10A | A/C COMP | Air conditioning compressor |
| F19 | 10A | TOWING BK/UP | TOWING BK/UP |
| F21 | 30A | P/W BACK NO.1 | P/W BACK NO.1 |
| F23 | 30A | WIPER | Wipers |
| F24 | 7.5A | BATT-S NO.2 | Battery and charging system |
| F25 | 7.5A | BATT-S NO.1 | Battery and charging system |
| F26 | 20A | P/I NO.1 | P/I NO.1 |
| F28 | 30A | PTG | PTG |
| F29 | 15A | HORN | Horn |
| F30 | 30A | P/I NO.2 | P/I NO.2 |
| F31 | 30A | D/C CUT | D/C CUT |
| F32 | 15A | TAIL GATE | TAIL GATE |
| F33 | 40A | BBC NO.1 | Stop & Start system |
| F34 | 40A | BBC NO.2 | Stop & Start system |
| F35 | 50A | BBC NO.3 | Stop & Start system |
| F43 | 50A | PTC HTR NO.1 | Additional heater |
| F44 | 80A | J/B-B | Junction box bus |
| F45 | 80A | EPS | Electric power steering |
| F46 | 30A | TOWING | Trailer lights |
| F50 | 200A | ALT | Battery and charging system |
| F51 | 200A | SUB R/B | SUB R/B |
| F55 | 15A | DEICER | Deicer or defroster |
| F60 | 120A | J/B-ALT NO.2 | J/B-ALT NO.2 |
| F61 | 80A | J/B-ALT NO.1 | J/B-ALT NO.1 |
| F62 | 100A | RDI | Electric cooling fan |
| F63 | 80A | INV | Power outlet (DC/AC inverter) |
| F64 | 30A | TOWING BRK | Trailer brakes |
| F65 | 30A | PRB | PRB |
| F66 | 50A | HTR | Air conditioning system |
| F67 | 50A | PTC HTR NO.2 | Additional heater |
| F69 | 40A | SUB BATT | SUB BATT |

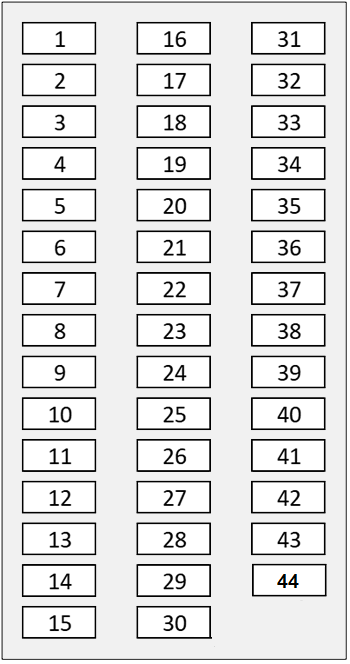

Passenger Compartment Fuse Box
Toyota Tacoma (2024 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| F1 | 10A | +BA NO.1 | +BA NO.1 |
| F3 | 20A | DOOR R/R | Rear right door |
| F4 | 20A | DOOR R/L | Rear left door |
| F5 | 10A | ECU-B NO.3 | Engine control unit |
| F6 | 10A | DOOR BACK | DOOR BACK |
| F7 | 7.5A | OBD | On-board diagnostics |
| F8 | 20A | DOOR F/R | Front right door |
| F9 | 20A | DOOR F/L | Front left door lock |
| F10 | 25A | D/L | Power door lock system |
| F11 | 10A | ECU-DCC NO.2 | Engine control unit |
| F12 | 10A | ECU-DCC NO.1 | Engine control unit |
| F13 | 20A | RADIO | Radio and audio system |
| F14 | 10A | HAZ | Hazard light |
| F15 | 10A | FUEL OPN | Fuel lid opener |
| F16 | 10A | TAIL | Tail lights |
| F17 | 5A | PANEL | Instrument panel lights |
| F18 | 10A | ECU-IGR NO.2 | Engine control unit |
| F20 | 5A | EPS-IGR | Electric power steering |
| F21 | 10A | ECU-IGR NO.1 | Engine control unit |
| F22 | 10A | A/BAG-IGR | Airbag |
| F23 | 10A | ECU-IGR NO.3 | Engine control unit |
| F24 | 5A | ECU-B NO.1 | Engine control unit |
| F25 | 10A | ECU-B NO.2 | Engine control unit |
| F26 | 10A | STOP | Stop lights |
| F27 | 5A | ECU-ACC | Engine control unit |
| F28 | 15A | STRG LOCK | Steering lock |
| F29 | 7.5A | AM2 | Starter system |
| F30 | 10A | DCM | Data communication module (telematics system) |
| F31 | 15A | MIR HTR | Mirror heater |
| F33 | 10A | BKUP LP | Backup lights |
| F34 | 10A | WIRELESS CHG | WIRELESS CHG |
| F35 | 30A | AMP NO.1 | Audio system |
| F36 | 5A | ECU-IGR NO.4 | Engine control unit |
| F37 | 15A | METER-IGR | Instrument cluster |
| F38 | 15A | P/OUTLET NO.1 | Cigar lighter / power outlet |
| F39 | 10A | DOME | Dome light and interior light |
| F40 | 25A | DOOR DBL/L | Door double locking |
| F41 | 10A | USB NO.1 | USB charger |
| F42 | 10A | USB NO.2 | USB charger |
| F43 | 15A | S/HTR F/L | Front seat heater |
| F44 | 15A | S/HTR F/R | Seat heater |
