Toyota RAV4 (2019 – 2025) Fuse Box Location & Diagrams
This guide provides detailed fuse box locations and easy-to-follow fuse diagrams for the Toyota RAV4 models from 2019 to 2025. Whether troubleshooting an electrical issue or replacing a fuse, you’ll find clear information to identify fuse functions, relay positions, and circuit protection components quickly.
Fuse Box Location
Passenger Compartment Fuse Box
The fuse panel is located below the dashboard.
Engine Compartment Fuse Box
Push claws A and B to completely release the lock, and then lift up the cover.
Fuse Box Diagrams

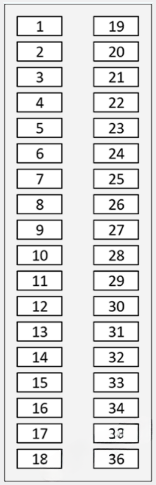

Passenger Compartment Fuse Box
Toyota RAV4 (2019 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 7.5A | FOG RR | Rear fog lights |
| 2 | 7.5A | OBD | On-board diagnostics |
| 3 | 10A | DOME | Dome light and interior light |
| 4 | 7.5A | TRUNK OPN | Power trunk lid opener |
| 6 | 10A | ECU-DCC NO.2 | Engine control unit |
| 7 | 5A | ECU-DCC NO.1 | Engine control unit |
| 8 | 15A | RADIO | Radio and audio system |
| 9 | 20A | DOOR R/R | Rear right door |
| 10 | 7.5A | S-HORN | Horn / anti-theft deterrent |
| 11 | 10A | STRG LOCK | Steering lock |
| 12 | 7.5A | DCM | Data communication module (telematics system) |
| 13 | 5A | ECU-ACC | Engine control unit |
| 14 | 7.5A | ECU-IG1 NO.3 | Engine control unit |
| 15 | 5A | EPS-IG1 | Electric power steering |
| 16 | 10A | A/BAG-IG2 | Airbag |
| 17 | 5A | METER-IG2 | Instrument cluster |
| 18 | 5A | ECU-IG2 NO.3 | Engine control unit |
| 19 | 10A | ECU-B NO.2 | Engine control unit |
| 20 | 5A | ECU-B NO.1 | Engine control unit |
| 21 | 15A | D/L | Power door lock system |
| 22 | 7.5A | STOP | Stop lights |
| 23 | 7.5A | AM2 | Starter system |
| 24 | 10A | HAZ | Hazard light |
| 25 | 5A | PANEL | Instrument panel lights |
| 26 | 10A | TAIL | Tail lights |
| 27 | 20A | DOOR F/L | Front left door lock |
| 28 | 20A | DOOR F/R | Front right door |
| 29 | 15A | P/OUTLET NO.1 | Cigar lighter / power outlet |
| 30 | 5A | SFT LOCK-ACC | AT Shift lock control system |
| 31 | 20A | WASHER | Windshield washer |
| 33 | 10A | ECU-IG1 NO.4 | Engine control unit |
| 34 | 5A | BKUP LP | Backup lights |
| 35 | 7.5A | ECU-IG1 NO.2 | Engine control unit |
| 36 | 5A | ECU-IG1 NO.1 | Engine control unit |
Engine Compartment Fuse Box #1
Toyota RAV4 (2019 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 7.5A | USB2 | USB charger |
| 2 | 10A | H-LP HI LH | Left-hand headlight high beam |
| 5A | Left-hand headlight high beam (A25A-FKS Engine) | ||
| 3 | 10A | H-LP HI RH | Right-hand headlight high beam |
| 5A | Right-hand headlight high beam (A25A-FKS Engine) | ||
| 4 | 30A | DEF | Rear window defogger |
| 5 | 30A | PBD | Power back door |
| 6 | 15A | NOISE FILTER | NOISE FILTER |
| 7 | 20A | D-DBL LCK | Door double locking |
| 8 | 30A | S/HTR MAIN | Seat heater |
| 9 | 30A | 4WD | All wheel drive system |
| 10 | 20A | FOG FR | Front fog lights |
| 10A | Front fog lights (A25A-FKS Engine) | ||
| 11 | 20A | P/OUTLET NO.2 | Cigar lighter / power outlet |
| 12 | 10A | DRL | Daytime running lights |
| 13 | 30A | TOWING | Trailer lights |
| 14 | 30A | H-LP CLN | Headlight cleaner |
| 15 | 50A | HTR | Air conditioning system |
| 16 | 20A | AMP. NO.2 | Audio system |
| 30A | Audio system (A25A-FKS Engine) | ||
| 17 | 20A | H-LP RH | Right-hand headlight |
| 10A | Right-hand headlight (A25A-FKS Engine) | ||
| 18 | 10A | AMP NO.1 | Audio system |
| 30A | Audio system (A25A-FKS Engine) | ||
| 19 | 10A | EFI-MAIN NO.4 | Multiport fuel injection system |
| 20 | 20A | H-LP LH | Left-hand headlight |
| 10A | Left-hand headlight (A25A-FKS Engine) | ||
| 21 | 20A | VVT | VVT |
| 22 | 7.5A | BATT-S | Battery and charging system |
| 23 | 20A | D INJ | D INJ |
| 25 | 20A | EFI-MAIN NO.2 | Multiport fuel injection system |
| 26 | 10A | HORN | Horn |
| 27 | 20A | EFI-MAIN NO.1 | Multiport fuel injection system |
| 28 | 20A | IG2 MAIN | Protects several circuits |
| 29 | 30A | DC CUT | DC CUT |
| 30 | 30A | TOWING-B | Trailer lights |
| 31 | 30A | ST NO.2 | Starter system |
| 32 | 30A | EFI-MAIN NO.3 | Multiport fuel injection system |
| 33 | 30A | ST NO.1 | Starter system |
| 34 | 10A | MIR HTR | Mirror heater |
| 35 | 50A | BBC NO.1 | Stop & Start system |
| 36 | 30A | WIPER | Wipers |
| 37 | 50A | BBC NO.2 | Stop & Start system |
| 38 | 50A | ABS NO.1 | Anti-lock braking system |
| 39 | 50A | ABS NO.2 | Anti-lock braking system |
| 40 | 50A | J/B-B | Junction box bus |
| 41 | 80A | EPS | Electric power steering |
| 42 | 60A | R/B NO.1 | R/B NO.1 |
| 43 | 120A | ALT (100A) | Battery and charging system |
| 140A | ALT (130A/150A) | ||
| 44 | 60A | FAN NO.1 | Electric cooling fan |
| 47 | 10A | INJ | Fuel injectors |
| 48 | 10A | ECU IG2 NO.2 | Engine control unit |
| 49 | 10A | ECU IG2 NO.1 | Engine control unit |
| 50 | 10A | EFI2 NO.2 | Multiport fuel injection system |
| 51 | 10A | EFI NO.1 | Multiport fuel injection system |
| 52 | 7.5A | EFI NO.2 | Multiport fuel injection system |
| 53 | 7.5A | USB1 | USB charger |

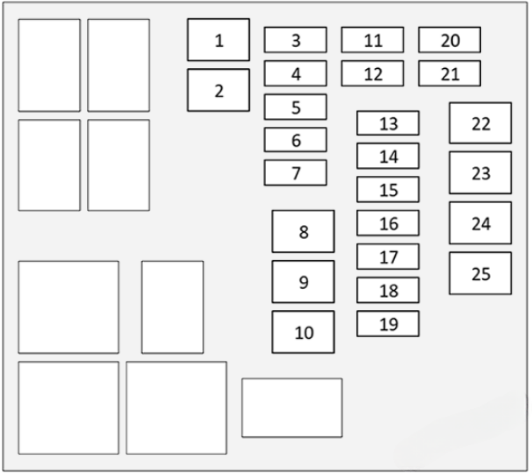

Engine Compartment Fuse Box #2
Toyota RAV4 (2019 – 2025)
| № | Amps | Name | Description |
|---|---|---|---|
| 2 | 30A | BBC NO.3 | Stop & Start system (A25A-FKS Engine) |
| 5 | 5A | MIR HTR | Mirror heater |
| 7 | 30A | TOWING-B | Trailer lights |
| 11 | 30A | BBC NO.4 | Stop & Start system (A25A-FKS Engine) |
| 12 | 5A | GRILL SHUTTER | GRILL SHUTTER (A25A-FKS Engine) |
| 13 | 10A | STRG HTR | Heated steering wheel |
| 14 | 30A | S/HTR MAIN | Seat heater |
| 15A | INV | DC/AC inverter (A25A-FKS Engine) | |
| 15 | 5A | WASH NZL HTR | WASH NZL HTR |
| 16 | 30A | TOWING | Trailer lights |
| 17 | 25A | S-HTR RR | S-HTR RR |
| 19 | 15A | DEICER | Deicer or defroster |
| 20 | 15A | S/HTR F/R | Seat heater |
| 21 | 15A | S/HTR F/L | Front seat heater |
| 22 | 30A | H-LP CLN | Headlight cleaner |
| 23 | 50A | HWD NO.2 | HWD NO.2 |
| 24 | 30A | PBD | Power back door |
| 25 | 50A | HWD NO.1 | HWD NO.1 |
