Toyota Land Cruiser (2022 – 2024) Fuse Box Location & Diagrams
This article provides detailed fuse box locations and diagram information for the Toyota Land Cruiser (2022–2024). Find fuse assignments, relay layouts, and electrical system references to help identify circuits, troubleshoot issues, and safely maintain your vehicle’s electrical components with confidence and accuracy.
Fuse Box Location

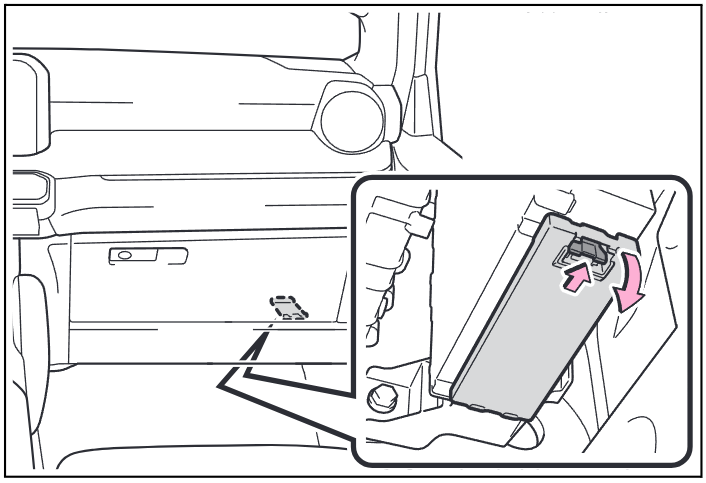

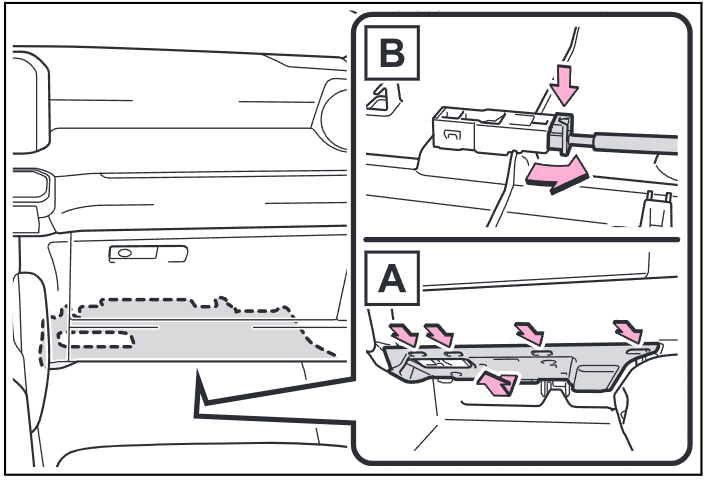

Passenger Compartment Fuse Box

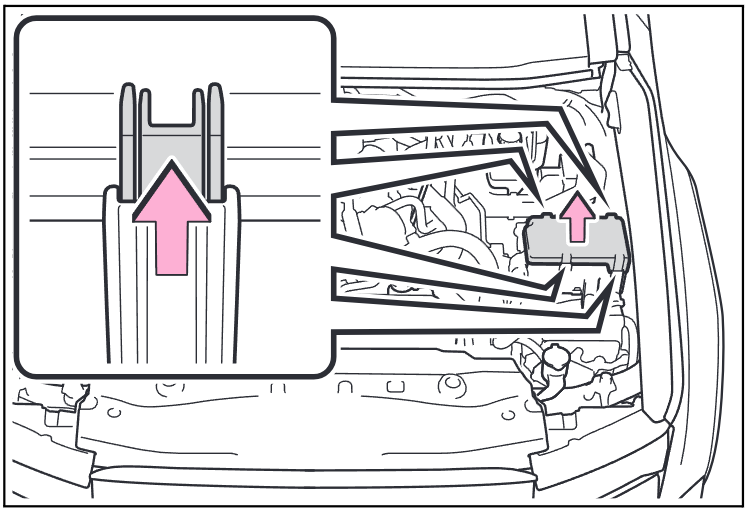

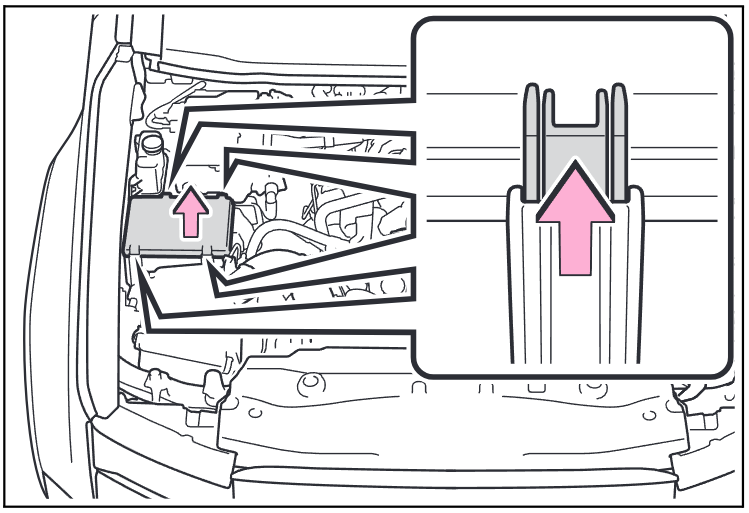

Engine Compartment Fuse Box
Fuse Box Diagrams

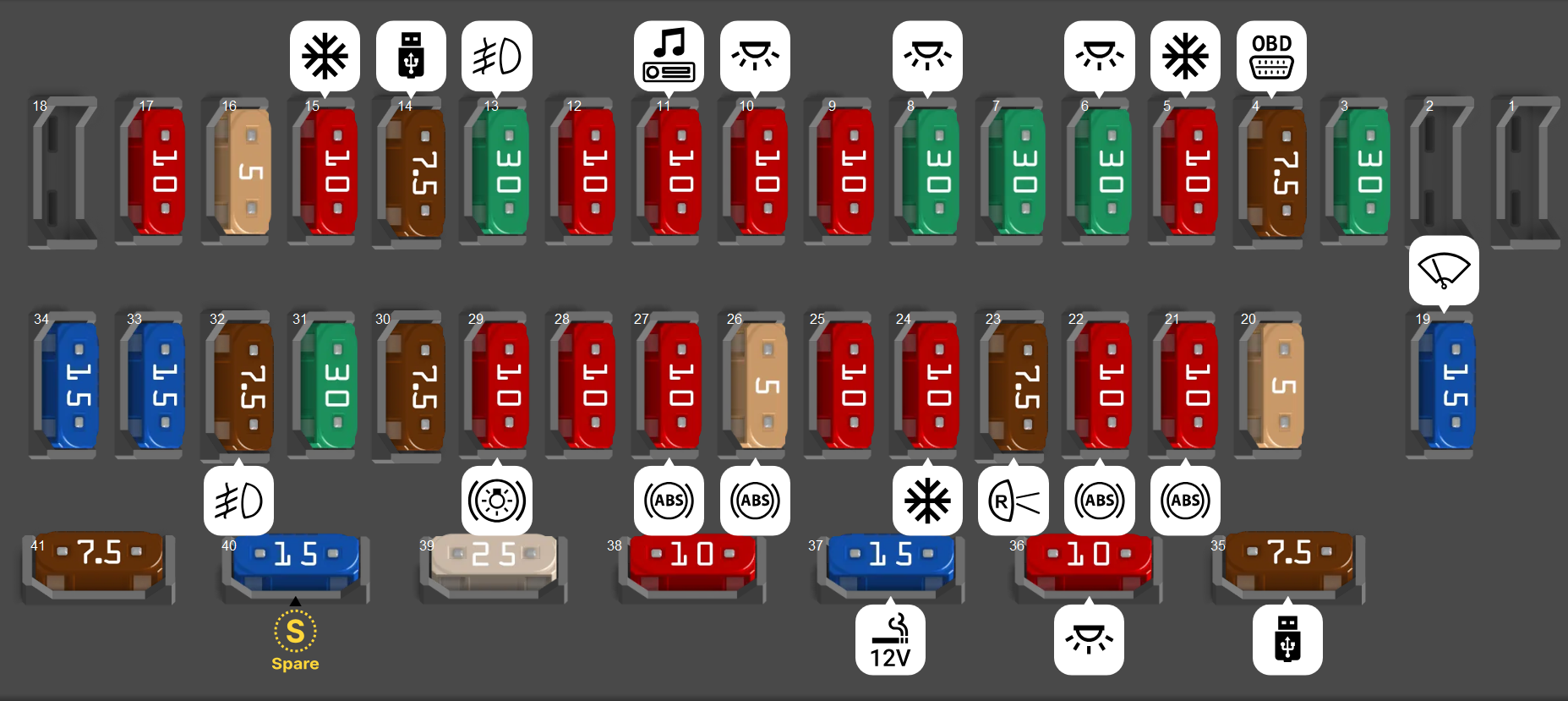

Passenger Compartment Fuse Box (LHD)
Toyota Land Cruiser (2022 – 2024)
| Type | No. | Description |
| Fuse MINI 30A | 3 | (DOOR R/R) Power windows |
| Fuse MINI 7.5A | 4 | (OBD) DLC3, Diagnostic Connector |
| Fuse MINI 10A | 5 | (ECU-B NO.3) Adaptive high beam system, air conditioning, audio system, automatic high beam system, automatic light control, reversing warning system, climate control seats, headlights, headlight beam level control, heated steering wheel, heated windshield, automatic light off system, light reminder, heated mirrors, multichannel monitor, navigation system, option socket, panoramic view system, electric glass, rear window defogger, heated seats, heated washer nozzles, windshield wiper, wireless charging system |
| Fuse MINI 30A | 6 | (DOOR F/R) Rear door opener, door lock control, entry and start system, immobiliser, interior light, heated mirrors, power windows, rear window defroster, remote control mirror, start, steering wheel lock, theft protection, washer nozzle heater, wireless door lock control |
| Fuse MINI 30A | 7 | (DOOR R/L) Electric window |
| Fuse MINI 30A | 8 | (DOOR F/L) Rear door opener, door lock control, start and entry system, immobiliser, interior light, heated mirrors, power windows, rear window defogger, remote control mirror, start, steering wheel lock, theft protection, washer nozzle heater, wireless door lock control |
| Fuse MINI 10A | 9 | (DOME CUT) Interior Light |
| Fuse MINI 10A | 10 | (ECU-DCC NO.1) Rear lid release, Blind spot monitoring system, Combination meter, Door lock control, Entry and start system, Immobilizer, Interior light, Heated mirrors, Multi-track monitor, Panoramic view system, Parking assist braking system, Power seats, Power tilt and telescopic, Rear window defroster, Remote control mirror, Start, Steering wheel lock, Theft deterrent, TOYOTA parking sensor system, Washer nozzle defroster, Wireless door lock control |
| Fuse MINI 10A | 11 | (ECU-DCC NO.2) Adaptive high beam system, Audio system, Automatic high beam system, Automatic light control, Rear lid release, Rear view monitor system, Cool box, Door lock control, Double Locking, Entry & Start System, Front Fog Light, Front Wiper & Washer, Headlight, Headlight Beam Leveling Control, Headlight Cleaner, Lighting, Immobilizer System, Interior Light, Automatic Light Off System, Light Reminder, Navigation System, Option Socket, Option Socket (Rear Seat Entertainment), Electric Tailgate, Electric Tilt & Telescope, Electric Window, Rear Fog Light, Reversing Monitor System, Rear Wiper & Washer, Remote Control Mirror, Sliding Roof, Start, Steering Lock, Stop & Start System, Tail Light, Theft Deterrent, Tire Pressure Warning System, Wireless Door Lock Control |
| Fuse MINI 10A | 12 | (RADIO-DCC) Active noise isolator |
| Fuse MINI 30A | 13 | (D/L) Adaptive high beam system, Automatic high beam, Automatic light control, Rear door opener, Door lock control, Dual locking, Entry and start system, Front fog lights, Front wiper and washer, Headlamps, Headlamp level control, Headlamp cleaner, Lighting, Immobiliser system, Interior lighting, Automatic light switch-off system, Light reminder, Option connector, Electric tailgate, Electric tilt and telescopic actuator, Electric ste |
| Fuse MINI 7.5A | 14 | (USB NO.1) Power outlet |
| Fuse MINI 10A | 15 | (ECU-ACC) Active noise isolator, air conditioning, audio system, rear view monitoring system, heated steering wheel, heated windscreen, heated mirrors, multifunction monitor, multiplex communication system (CAN), navigation system, auxiliary connector (rear seat entertainment), panoramic view monitoring system, power outlet, rear view monitoring system, rear window defroster, remote control mirror, stop and start system, washer nozzle heater, windscreen wiper, wireless charging system |
| Fuse MINI 5A | 16 | (SFT LOCK-ACC) Power supply |
| Fuse MINI 10A | 17 | (DOOR BACK) Power Supply |
| Fuse MINI 15A | 19 | (WIPER RR) Front wiper and washer, Rear wiper and washer |
| Fuse MINI 5A | 20 | (EPS-IGR) Power steering |
| Fuse MINI 10A | 21 | (ECU-IGR NO.1) 4WD, A-TRC, ABS, Adaptive adjustable suspensión, Air conditioning, Crawl, Cruise control, Downhill assist, Dynamic radar cruise control, ECT and A/T indicator, Electric parking brake, Electric tension reducer, Electronic kinetic dynamic suspensión system, Engine management, Front wiper and washer, Heated steering wheel, Hill start assist, Lane Departure Warning System, Lane Keeping Assist, Lane Keeping Assist System, Lane Keeping Control System, Lane Keeping Select System, Panoramic View Control System, Electric tailgate, Electric seats, Electric steering wheel, Collision Avoidance System, Rear wiper and washer, Gearshift lock, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 10A | 22 | (ECU-IGR NO.4) A-TRC, ABS, Adaptive High Beam System, Automatic High Beam System, Automatic Light Control, Crawl, Downhill Assist Control, Dynamic Radar Cruise Control, Electric Parking Brake, Front Fog Light, Front Wiper and Washer, Headlight, Headlight Level Control, Headlight Cleaner, Hill Start Assist Control, Lighting, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Multi-Road Select, Collision Avoidance System, Rear Fog Light, Rear Wiper and Washer, Rear Light, Trailer Towing, Turn Signal Indicator and Danger Warning, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 7.5A | 23 | (BKUP LP) Audio system, reversing monitoring system, reversing light, Cruise control, ECT and A/T indicator, Engine management, Navigation system, Rear view monitoring system, Gearshift lock, Stop and start system, Trailer towing |
| Fuse MINI 10A | 24 | (ECU-IGR NO.2) Adaptive High Beam System, Air Conditioning, Audio System, EC Automatic Anti-glare Mirror, Automatic High Beam System, Automatic Light Control, Rear Door Opener, Rear Cross Traffic Control, Blind Spot Monitor, Seat Climate Control, Combination Meter, Cooling Fan, Cruise Control, Door Lock Control, Dual Locking, ECT and A/T indicator, Engine management, Entry and start system, Front fog lamps, Front wiper and washer, Headlamps, Headlamp level control, Headlamp cleaner, Heated steering wheel, Heated windscreen, Lighting, Immobiliser, Interior lighting, Auto light-off system, Light reminder, Heated mirrors, Multifunction monitor, Multiplex Communication System (CAN), Navigation System, Option Connector, Panoramic View System, Parking Assist Braking System, Power Rear Door, Power Tilt and Telescopic, Power Windows, Rear Fog Light, Rear View Monitoring System, Rear Window Defogger, Rear Wiper and Washer, Remote Control Mirror, Seat Heating, Gearshift Lock, Sliding Roof, Engine Start, Steering Wheel Lock, Stop & Start, Headlight Illumination System, Telematics System, Anti-theft, Tyre Pressure Warning System, TOYOTA Parking Assist-Sensor System, Washer Nozzle Heater, Windshield Defroster, Wireless Door Locking Controls |
| Fuse MINI 10A | 25 | (A/BAG-IGR) SRS |
| Fuse MINI 5A | 26 | (METER-IGR) 4WD, A-TRC, ABS, Adaptive High Beam System, Adaptive Variable Suspensión, Air Conditioning, Audio System, Automatic High Beam System, Automatic Light Control, Rear Door Opener, Rear Cross Traffic Control, Blind Spot Monitor, Charging, Combination Meter, Cooling Fan, Slider, Cruise Control, Door Lock Control, Hill Descent Control, Dynamic Radar Cruise Control, ECT and A/T indicator, Electric Parking Brake, Electronic Kinetic Dynamic Suspensión, Engine Control, Entry and Start System, Front Fog Lights, Headlights, Headlight Level Control, Heated Steering Wheel, Hill Start Assist, Lighting, Immobiliser, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Drive Mode Select, Navigation System, Parking Assist Braking System, Power Steering, Collision Avoidance System, Rear Fog Light, Rear View Monitor, Seatbelt Warning, Gearshift Interlock, Sliding Roof, SRS, Starting, Steering Wheel Lock, Headlights, Theft Prevention, Tyre Pressure Warning System, TOYOTA Sensor Parking Assist System, Trailer Towing, Turn Signal and Hazard Warning, Integrated Vehicle Dynamics Control, VSC, Wireless Door Locking Control, and Vehicle Dynamics Control. |
| Fuse MINI 10A | 27 | (ECU-IGR NO.3) A-TRC, ABS, Adaptive High Beam System, Automatic High Beam System, Automatic Light Control, Crawl, Downhill Assist Control, Dynamic Radar Cruise Control, Electric Parking Brake, Front Fog Light, Front Wiper and Washer, Headlight, Headlight Level Control, Headlight Cleaner, Hill Start Assist Control, Lighting, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Multi-Road Select, Collision Avoidance System, Rear Fog Light, Rear Wiper and Washer, Rear Light. Trailer Towing, Turn Signal Indicator and Danger Warning, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 10A | 28 | (ECU-B NO.2) Rear door opener, door lock control, entry and start system, immobiliser, multiplex communication system (CAN), electric tailgate, start, steering lock, anti-theft protection, tyre pressure warning system, wireless door lock control |
| Fuse MINI 10A | 29 | (STOP) Cooling fan, Cruise control, Dynamic radar cruise control, ECT and A/T indicator, Engine management, Lane departure warning, Lane keeping assist, Collision avoidance system, Gear shift lock, Engine stop and start system, Stop lamp, Trailer towing |
| Fuse MINI 7.5A | 30 | (ECU-B NO.1) Rear door opener, door lock control, entry and start system, immobiliser, start, steering wheel lock, anti-theft, wireless door lock control |
| Fuse MINI 30A | 31 | (TI&TE) Tilt and telescopic booster |
| Fuse MINI 7.5A | 32 | (ECU-B NO.4) Adaptive high beam system, automatic high beam system, automatic light control, dynamic radar cruise control, front fog lights, front wiper and washer, headlights, headlight beam level control, headlight cleaner, lighting, lane departure warning, lane keeping assist system, automatic light off system, Light reminder, Pre-collision system, Rear fog lamps, Rear wiper and washer, Tail lamp, Trailer tow, Direction indicator and hazard warning lamp |
| Fuse MINI 15A | 33 | (STRG LOCK) Rear door opener, Door lock control, Entry and start system, Immobiliser, Start, Steering wheel lock, Theft protection, Wireless door lock control |
| Fuse MINI 15A | 34 | (HAZ) Rear door opener, combination meter, door lock control, entry and start system, immobiliser system, start, steering wheel lock, anti-theft protection, trailer towing, direction indicators and hazard warning lights, wireless door lock control |
| Fuse MINI 7.5A | 35 | (USB NO.4) Power socket |
| Fuse MINI 10A | 36 | (DOME) Interior Light |
| Fuse MINI 15A | 37 | (P/OUTLET NO.1) Socket, Cigarette Lighter |
| Fuse MINI 10A | 38 | (ECU-IGR NO.5) Stop and start system |
| Fuse MINI 25A | 39 | (DOOR DBL/L) Double locking |
| Fuse MINI 15A | 40 | (SPARE NO.1) Spare |
| Fuse MINI 7.5A | 41 | (SMART) Rear door opener, Door lock control, Entry and start system, Immobiliser, Start, Steering wheel lock, Theft protection, Wireless door lock control |

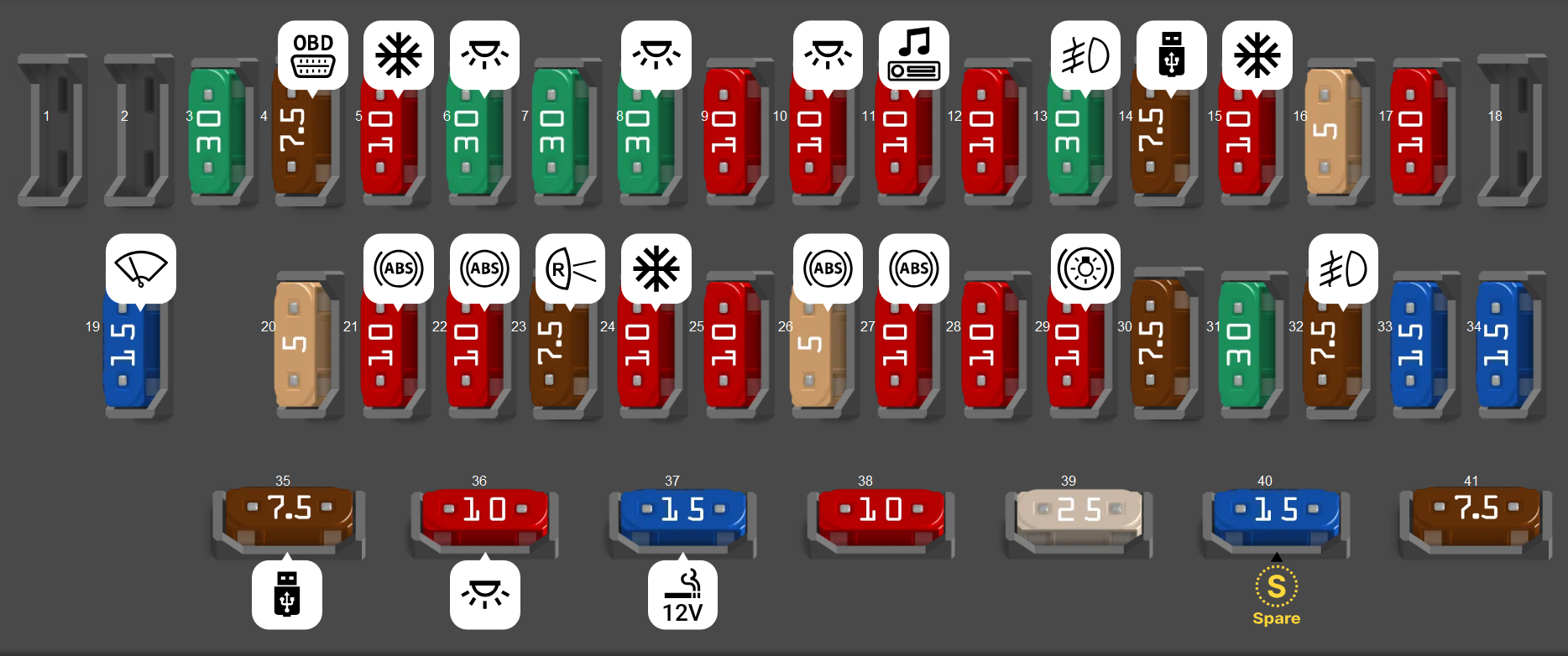

Passenger Compartment Fuse Box (RHD)
Toyota Land Cruiser (2022 – 2024)
| Type | No. | Description |
| Fuse MINI 30A | 3 | (DOOR R/R) Power windows |
| Fuse MINI 7.5A | 4 | (OBD) DLC3, Diagnostic Connector |
| Fuse MINI 10A | 5 | (ECU-B NO.3) Adaptive high beam system, air conditioning, audio system, automatic high beam system, automatic light control, reversing warning system, climate control seats, headlights, headlight beam level control, heated steering wheel, heated windshield, automatic light off system, light reminder, heated mirrors, multichannel monitor, navigation system, option socket, panoramic view system, electric glass, rear window defogger, heated seats, heated washer nozzles, windshield wiper, wireless charging system |
| Fuse MINI 30A | 6 | (DOOR F/R) Rear door opener, door lock control, entry and start system, immobiliser, interior light, heated mirrors, power windows, rear window defroster, remote control mirror, start, steering wheel lock, theft protection, washer nozzle heater, wireless door lock control |
| Fuse MINI 30A | 7 | (DOOR R/L) Electric window |
| Fuse MINI 30A | 8 | (DOOR F/L) Rear door opener, door lock control, start and entry system, immobiliser, interior light, heated mirrors, power windows, rear window defogger, remote control mirror, start, steering wheel lock, theft protection, washer nozzle heater, wireless door lock control |
| Fuse MINI 10A | 9 | (DOME CUT) Interior Light |
| Fuse MINI 10A | 10 | (ECU-DCC NO.1) Rear lid release, Blind spot monitoring system, Combination meter, Door lock control, Entry and start system, Immobilizer, Interior light, Heated mirrors, Multi-track monitor, Panoramic view system, Parking assist braking system, Power seats, Power tilt and telescopic, Rear window defroster, Remote control mirror, Start, Steering wheel lock, Theft deterrent, TOYOTA parking sensor system, Washer nozzle defroster, Wireless door lock control |
| Fuse MINI 10A | 11 | (ECU-DCC NO.2) Adaptive high beam system, Audio system, Automatic high beam system, Automatic light control, Rear lid release, Rear view monitor system, Cool box, Door lock control, Double Locking, Entry & Start System, Front Fog Light, Front Wiper & Washer, Headlight, Headlight Beam Leveling Control, Headlight Cleaner, Lighting, Immobilizer System, Interior Light, Automatic Light Off System, Light Reminder, Navigation System, Option Socket, Option Socket (Rear Seat Entertainment), Electric Tailgate, Electric Tilt & Telescope, Electric Window, Rear Fog Light, Reversing Monitor System, Rear Wiper & Washer, Remote Control Mirror, Sliding Roof, Start, Steering Lock, Stop & Start System, Tail Light, Theft Deterrent, Tire Pressure Warning System, Wireless Door Lock Control |
| Fuse MINI 10A | 12 | (RADIO-DCC) Active noise isolator |
| Fuse MINI 30A | 13 | (D/L) Adaptive high beam system, Automatic high beam, Automatic light control, Rear door opener, Door lock control, Dual locking, Entry and start system, Front fog lights, Front wiper and washer, Headlamps, Headlamp level control, Headlamp cleaner, Lighting, Immobiliser system, Interior lighting, Automatic light switch-off system, Light reminder, Option connector, Electric tailgate, Electric tilt and telescopic actuator, Electric ste |
| Fuse MINI 7.5A | 14 | (USB NO.1) Power outlet |
| Fuse MINI 10A | 15 | (ECU-ACC) Active noise isolator, air conditioning, audio system, rear view monitoring system, heated steering wheel, heated windscreen, heated mirrors, multifunction monitor, multiplex communication system (CAN), navigation system, auxiliary connector (rear seat entertainment), panoramic view monitoring system, power outlet, rear view monitoring system, rear window defroster, remote control mirror, stop and start system, washer nozzle heater, windscreen wiper, wireless charging system |
| Fuse MINI 5A | 16 | (SFT LOCK-ACC) Power supply |
| Fuse MINI 10A | 17 | (DOOR BACK) Power Supply |
| Fuse MINI 15A | 19 | (WIPER RR) Front wiper and washer, Rear wiper and washer |
| Fuse MINI 5A | 20 | (EPS-IGR) Power steering |
| Fuse MINI 10A | 21 | (ECU-IGR NO.1) 4WD, A-TRC, ABS, Adaptive adjustable suspensión, Air conditioning, Crawl, Cruise control, Downhill assist, Dynamic radar cruise control, ECT and A/T indicator, Electric parking brake, Electric tension reducer, Electronic kinetic dynamic suspensión system, Engine management, Front wiper and washer, Heated steering wheel, Hill start assist, Lane Departure Warning System, Lane Keeping Assist, Lane Keeping Assist System, Lane Keeping Control System, Lane Keeping Select System, Panoramic View Control System, Electric tailgate, Electric seats, Electric steering wheel, Collision Avoidance System, Rear wiper and washer, Gearshift lock, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 10A | 22 | (ECU-IGR NO.4) A-TRC, ABS, Adaptive High Beam System, Automatic High Beam System, Automatic Light Control, Crawl, Downhill Assist Control, Dynamic Radar Cruise Control, Electric Parking Brake, Front Fog Light, Front Wiper and Washer, Headlight, Headlight Level Control, Headlight Cleaner, Hill Start Assist Control, Lighting, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Multi-Road Select, Collision Avoidance System, Rear Fog Light, Rear Wiper and Washer, Rear Light, Trailer Towing, Turn Signal Indicator and Danger Warning, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 7.5A | 23 | (BKUP LP) Audio system, reversing monitoring system, reversing light, Cruise control, ECT and A/T indicator, Engine management, Navigation system, Rear view monitoring system, Gearshift lock, Stop and start system, Trailer towing |
| Fuse MINI 10A | 24 | (ECU-IGR NO.2) Adaptive High Beam System, Air Conditioning, Audio System, EC Automatic Anti-glare Mirror, Automatic High Beam System, Automatic Light Control, Rear Door Opener, Rear Cross Traffic Control, Blind Spot Monitor, Seat Climate Control, Combination Meter, Cooling Fan, Cruise Control, Door Lock Control, Dual Locking, ECT and A/T indicator, Engine management, Entry and start system, Front fog lamps, Front wiper and washer, Headlamps, Headlamp level control, Headlamp cleaner, Heated steering wheel, Heated windscreen, Lighting, Immobiliser, Interior lighting, Auto light-off system, Light reminder, Heated mirrors, Multifunction monitor, Multiplex Communication System (CAN), Navigation System, Option Connector, Panoramic View System, Parking Assist Braking System, Power Rear Door, Power Tilt and Telescopic, Power Windows, Rear Fog Light, Rear View Monitoring System, Rear Window Defogger, Rear Wiper and Washer, Remote Control Mirror, Seat Heating, Gearshift Lock, Sliding Roof, Engine Start, Steering Wheel Lock, Stop & Start, Headlight Illumination System, Telematics System, Anti-theft, Tyre Pressure Warning System, TOYOTA Parking Assist-Sensor System, Washer Nozzle Heater, Windshield Defroster, Wireless Door Locking Controls |
| Fuse MINI 10A | 25 | (A/BAG-IGR) SRS |
| Fuse MINI 5A | 26 | (METER-IGR) 4WD, A-TRC, ABS, Adaptive High Beam System, Adaptive Variable Suspensión, Air Conditioning, Audio System, Automatic High Beam System, Automatic Light Control, Rear Door Opener, Rear Cross Traffic Control, Blind Spot Monitor, Charging, Combination Meter, Cooling Fan, Slider, Cruise Control, Door Lock Control, Hill Descent Control, Dynamic Radar Cruise Control, ECT and A/T indicator, Electric Parking Brake, Electronic Kinetic Dynamic Suspensión, Engine Control, Entry and Start System, Front Fog Lights, Headlights, Headlight Level Control, Heated Steering Wheel, Hill Start Assist, Lighting, Immobiliser, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Drive Mode Select, Navigation System, Parking Assist Braking System, Power Steering, Collision Avoidance System, Rear Fog Light, Rear View Monitor, Seatbelt Warning, Gearshift Interlock, Sliding Roof, SRS, Starting, Steering Wheel Lock, Headlights, Theft Prevention, Tyre Pressure Warning System, TOYOTA Sensor Parking Assist System, Trailer Towing, Turn Signal and Hazard Warning, Integrated Vehicle Dynamics Control, VSC, Wireless Door Locking Control, and Vehicle Dynamics Control. |
| Fuse MINI 10A | 27 | (ECU-IGR NO.3) A-TRC, ABS, Adaptive High Beam System, Automatic High Beam System, Automatic Light Control, Crawl, Downhill Assist Control, Dynamic Radar Cruise Control, Electric Parking Brake, Front Fog Light, Front Wiper and Washer, Headlight, Headlight Level Control, Headlight Cleaner, Hill Start Assist Control, Lighting, Lane Departure Warning, Lane Keeping Assist, Automatic Light Off System, Light Reminder, Multi-Road Select, Collision Avoidance System, Rear Fog Light, Rear Wiper and Washer, Rear Light. Trailer Towing, Turn Signal Indicator and Danger Warning, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 10A | 28 | (ECU-B NO.2) Rear door opener, door lock control, entry and start system, immobiliser, multiplex communication system (CAN), electric tailgate, start, steering lock, anti-theft protection, tyre pressure warning system, wireless door lock control |
| Fuse MINI 10A | 29 | (STOP) Cooling fan, Cruise control, Dynamic radar cruise control, ECT and A/T indicator, Engine management, Lane departure warning, Lane keeping assist, Collision avoidance system, Gear shift lock, Engine stop and start system, Stop lamp, Trailer towing |
| Fuse MINI 7.5A | 30 | (ECU-B NO.1) Rear door opener, door lock control, entry and start system, immobiliser, start, steering wheel lock, anti-theft, wireless door lock control |
| Fuse MINI 30A | 31 | (TI&TE) Tilt and telescopic booster |
| Fuse MINI 7.5A | 32 | (ECU-B NO.4) Adaptive high beam system, automatic high beam system, automatic light control, dynamic radar cruise control, front fog lights, front wiper and washer, headlights, headlight beam level control, headlight cleaner, lighting, lane departure warning, lane keeping assist system, automatic light off system, Light reminder, Pre-collision system, Rear fog lamps, Rear wiper and washer, Tail lamp, Trailer tow, Direction indicator and hazard warning lamp |
| Fuse MINI 15A | 33 | (STRG LOCK) Rear door opener, Door lock control, Entry and start system, Immobiliser, Start, Steering wheel lock, Theft protection, Wireless door lock control |
| Fuse MINI 15A | 34 | (HAZ) Rear door opener, combination meter, door lock control, entry and start system, immobiliser system, start, steering wheel lock, anti-theft protection, trailer towing, direction indicators and hazard warning lights, wireless door lock control |
| Fuse MINI 7.5A | 35 | (USB NO.4) Power socket |
| Fuse MINI 10A | 36 | (DOME) Interior Light |
| Fuse MINI 15A | 37 | (P/OUTLET NO.1) Socket, Cigarette Lighter |
| Fuse MINI 10A | 38 | (ECU-IGR NO.5) Stop and start system |
| Fuse MINI 25A | 39 | (DOOR DBL/L) Double locking |
| Fuse MINI 15A | 40 | (SPARE NO.1) Spare |
| Fuse MINI 7.5A | 41 | (SMART) Rear door opener, Door lock control, Entry and start system, Immobiliser, Start, Steering wheel lock, Theft protection, Wireless door lock control |

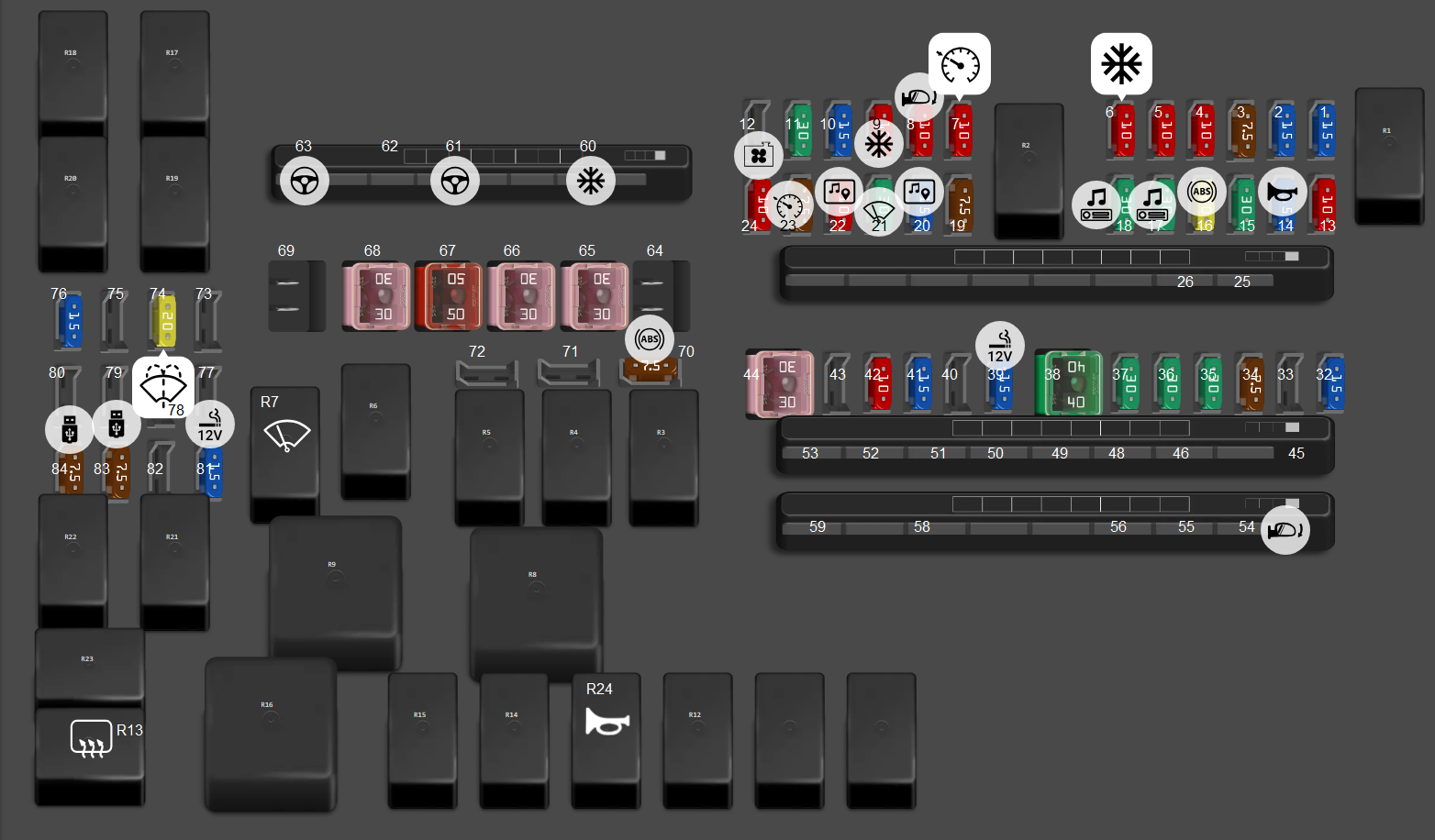

Engine Compartment Fuse Box No 1
Toyota Land Cruiser (2022 – 2024)
| Type | No. | Description |
| Fuse MINI 15A | 1 | (S/HTR FL) Climate control seat, seat heating |
| Fuse MINI 15A | 2 | (S/HTR FR) Seat climate control, seat heating |
| Fuse MINI 7.5A | 3 | (WINCH-IGP) Winch |
| Fuse MINI 10A | 4 | (ECU-IGP NO.1) Power supply |
| Fuse MINI 10A | 5 | (ECU-IGP NO.2) Air conditioner, ECT and A/T indicator, Heated steering wheel, Gear shift lock |
| Fuse MINI 10A | 6 | (ECU-IGP NO.3) Active noise control, air conditioning, seat climate control, refrigerator, cooling fan, cruise control, dynamic radar cruise control, ECT and A/T indicator, engine management, heated steering wheel, lane departure warning, lane keep assist, multiplexed communication system (CAN), collision avoidance system, heated seats, shift lock, stop & start system |
| Fuse MINI 10A | 7 | (ENG-IGR NO.1) Cooling fan, Cruise control, ECT and A/T indicator, Engine management, Gear shift lock |
| Fuse MINI 10A | 8 | (ENG-IGR NO.2) Dynamic radar cruise control, Heated windscreen defroster, Lane departure warning system, Lane keeping assist, Heated mirrors, Power outlet, Collision avoidance system, Rear window defogger, Heated washer nozzles, Windscreen de-icer |
| Fuse MINI 10A | 9 | (ENG-IGR NO.3) Adaptive high beam system, air conditioning, automatic high beam, automatic light control, front fog lights, front wiper and washer, headlights, headlight level control, headlight cleaner, heated steering wheel, automatic light switch-off system, light reminder, rear fog lights, rear wiper and washer, trailer towing, turn signal indicator and hazard warning light |
| Fuse MINI 15A | 10 | (AVS-IGR) Adaptive adjustable suspensión |
| Fuse MINI 30A | 11 | (4WD-IGR) 4WD |
| Fuse MINI 10A | 13 | (S-HORN) Rear door opener, door lock control, entry and start system, immobiliser, start, steering wheel lock, anti-theft protection, wireless door lock control |
| Fuse MINI 15A | 14 | (HORN) Horn, tailgate opener, door lock control, entry and start system, klaxon, immobiliser, start, steering wheel lock, anti-theft, wireless door lock control |
| Fuse MINI 30A | 15 | (D/C CUT) Power supply |
| Fuse MINI 20A | 16 | (ABS MAIN NO.1 (Gasoline)) A-TRC, ABS, Crawl, Downhill Assist Control, Electric Parking Brake, Hill-Start Assist Control, Multi-Terrain Select, Vehicle Dynamics Integrated Management, VSC |
| Fuse MINI 30A | 17 | AMP NO.2 |
| Fuse MINI 30A | 18 | (AMP NO.1) Audio system, rear view monitoring system, navigation system |
| Fuse MINI 7.5A | 19 | (DCM) Telematics system |
| Fuse MINI 15A | 20 | (RADIO) Air conditioning Audio system, Rear view monitoring system, Steering wheel heating system, Multicontrol, Navigation system, Panoramic view monitoring system, Rear view monitoring system |
| Fuse MINI 30A | 21 | (WIPER) Front wiper and washer, rear wiper and washer |
| Fuse MINI 10A | 22 | (RSE DISP) Audio system, reversing monitoring system, navigation system |
| Fuse MINI 7.5A | 23 | (BATT-S NO.1) Cooling fan, cruise control, engine management |
| Fuse MINI 10A | 24 | (BATT-S NO.2) Charging, Cooling fan, Cruise control, Engine management |
| Multi fuse block MUSB | 25 | (PDB-ALT NO.2) Interior light [1GR-FE] |
| Multi fuse block MUSB | 25 | (PDB-ALT NO.2) Interior light [V35A-FTS, F33A-FTV] |
| Multi fuse block MUSB | 26 | (ALT) Charging [1GR-FE] |
| Multi fuse block MUSB | 26 | (ALT) Charging [V35A-FTS, F33A-FTV] |
| Fuse MINI 15A | 32 | (STRG HTR) Air conditioning steering wheel heating system |
| Fuse MINI 7.5A | 34 | (TOW BK/UP) Trailer towing |
| Fuse MINI 30A | 35 | (RFS RH) Power source |
| Fuse MINI 30A | 36 | (RFS LH) Power seat |
| Fuse MINI 30A | 37 | (TOW STOP) Trailer towing |
| Fuse FMX/JCase 40A | 38 | (ACC NO.2) Power supply |
| Fuse MINI 15A | 39 | (AC INV) Socket |
| Fuse MINI 15A | 41 | (DEICER) Heated windscreen defroster, windscreen defroster |
| Fuse MINI 10A | 42 | (ALT CDS) Charging |
| Fuse FMX/JCase 30A | 44 | (TOW BRK) Trailer towing |
| Multi fuse block MUSB | 45 | (CDS FAN) Air conditioning steering wheel heating system |
| Multi fuse block MUSB | 46 | (TOW TAIL) Trailer towing |
| Multi fuse block MUSB | 48 | (SUB BATT) Trailer towing |
| Multi fuse block MUSB | 49 | (HWD NO.1) Heated windscreen defroster, windscreen defroster |
| Multi fuse block MUSB | 50 | (HWD NO.2) Heated windscreen defroster, heated windscreen defroster, windscreen defroster |
| Multi fuse block MUSB | 51 | (PTC NO.1) Air conditioning, steering wheel heating system |
| Multi fuse block MUSB | 52 | (PTC NO.2) Air conditioning, steering wheel heating system |
| Multi fuse block MUSB | 53 | (PTC NO.3) Air conditioner, steering wheel heating system |
| Multi fuse block MUSB | 54 | (PDB-ALT NO.1) Illumination, Heated mirrors, Rear window defroster, reversing light, Trailer towing, Heated washer nozzles |
| Multi fuse block MUSB | 55 | (AHC) Power supply |
| Multi fuse block MUSB | 56 | (RR R/B-ALT) Climate control seat, power tailgate, seat heating |
| Multi fuse block MUSB | 58 | (A/C RR) Air conditioning, steering wheel heating system |
| Multi fuse block MUSB | 59 | (H-LP CLN) Headlight cleaner |
| Multi fuse block MUSB | 60 | (ENG P/I-B) Adaptive high beam system, Air conditioning, Automatic high beam system, Automatic light control, Front fog lights, Front wiper and washer, Headlights, Headlight level control, Headlight cleaner, Steering wheel heating system, Automatic light switch-off system, Light reminder, Rear fog lights, Rear wiper and washer |
| Multi fuse block MUSB | 61 | (EPS NO.1) Power steering |
| Multi fuse block MUSB | 62 | (PDB-B) Power supply |
| Multi fuse block MUSB | 63 | (EPS NO.2) Power supply |
| Fuse FMX/JCase 30A | 65 | (TOWING) Trailer towing |
| Fuse FMX/JCase 30A | 66 | (IGR NO.2) Power source |
| Fuse FMX/JCase 50A | 67 | (PA-BBC) Active noise isolator, Stop & Start system |
| Fuse FMX/JCase 30A | 68 | (ECU-B NO.7) Power supply |
| Fuse MINI 7.5A | 70 | (METER) 4WD, A-TRC, ABS, Adaptive High Beam System, Adaptive Variable Suspensión, Air Conditioning, Audio System, Automatic High Beam System, Automatic Light Control, Rear Door Opener, Rear Cross Traffic Control, Blind Spot Monitor, Charging, Combination Meter, Cooling Fan, Crawler, Cruise Control, Door Lock Control, Hill Descent Control, Dynamic Radar Cruise Control, ECT and A/T indicator, Electric Parking Brake, Electronic-Kinetic Dynamic Suspensión, Engine Management, Entry and Start System, Front Fog Light, Headlight, Headlight Level Control, Heated Steering Wheel, Hill Start Assist, Backlight, Immobiliser, Lane Departure Warning System, Lane Keeping Assist, Automatic Light Off System, Light On Reminder, Multi Steering Wheel, Navigation System, Parking Assist Braking System, Power Steering, Collision Avoidance System, Rear Fog Light, Rear View Monitor System, Seatbelt Warning, Shift lock, Sliding sunroof, SRS, Starting, Steering lock, Stop and start system, Reverse headlights, Theft protection, Tyre pressure warning system, TOYOTA touch-screen parking assist system, Trailer towing, Turn signals and hazard warning, Integrated vehicle dynamics control, VSC, Wireless door lock control |
| Fuse MINI 20A | 74 | (WASHER) Front wiper and washer, rear wiper and washer |
| Fuse MINI 15A | 76 | (STB-IGR) Electronic-kinetic dynamic suspensión system |
| Fuse MINI 15A | 81 | (P/OUTLET NO.2) Power outlet |
| Fuse MINI 7.5A | 83 | USB NO.3 |
| Fuse MINI 7.5A | 84 | (USB NO.2) Power outlet |
| Relay | R1 | IGP NO.1 |
| Relay | R2 | IGR NO.3 |
| Relay | R3 | PTC NO.1 |
| Relay | R4 | PTC NO.2 |
| Relay | R5 | PTC NO.3 |
| Relay | R6 | TOW STOP LP |
| Relay | R7 | WIPER |
| Relay | R8 | AHC |
| Relay | R9 | HWD NO.2 |
| Relay | R12 | TOW TAIL |
| Relay | R13 | HORN |
| Relay | R14 | S-HORN |
| Relay | R15 | SUB BATT |
| Relay | R16 | HWD NO.1 |
| Relay | R17 | WSH NZL HTR |
| Relay | R18 | AC INV |
| Relay | R19 | CDS FAN |
| Relay | R20 | IGR NO.4 |
| Relay | R21 | TOW BK/UP |
| Relay | R22 | ACC NO.2 |
| Relay | R23 | H-LP CLN |
| Relay | R24 | DEICER |

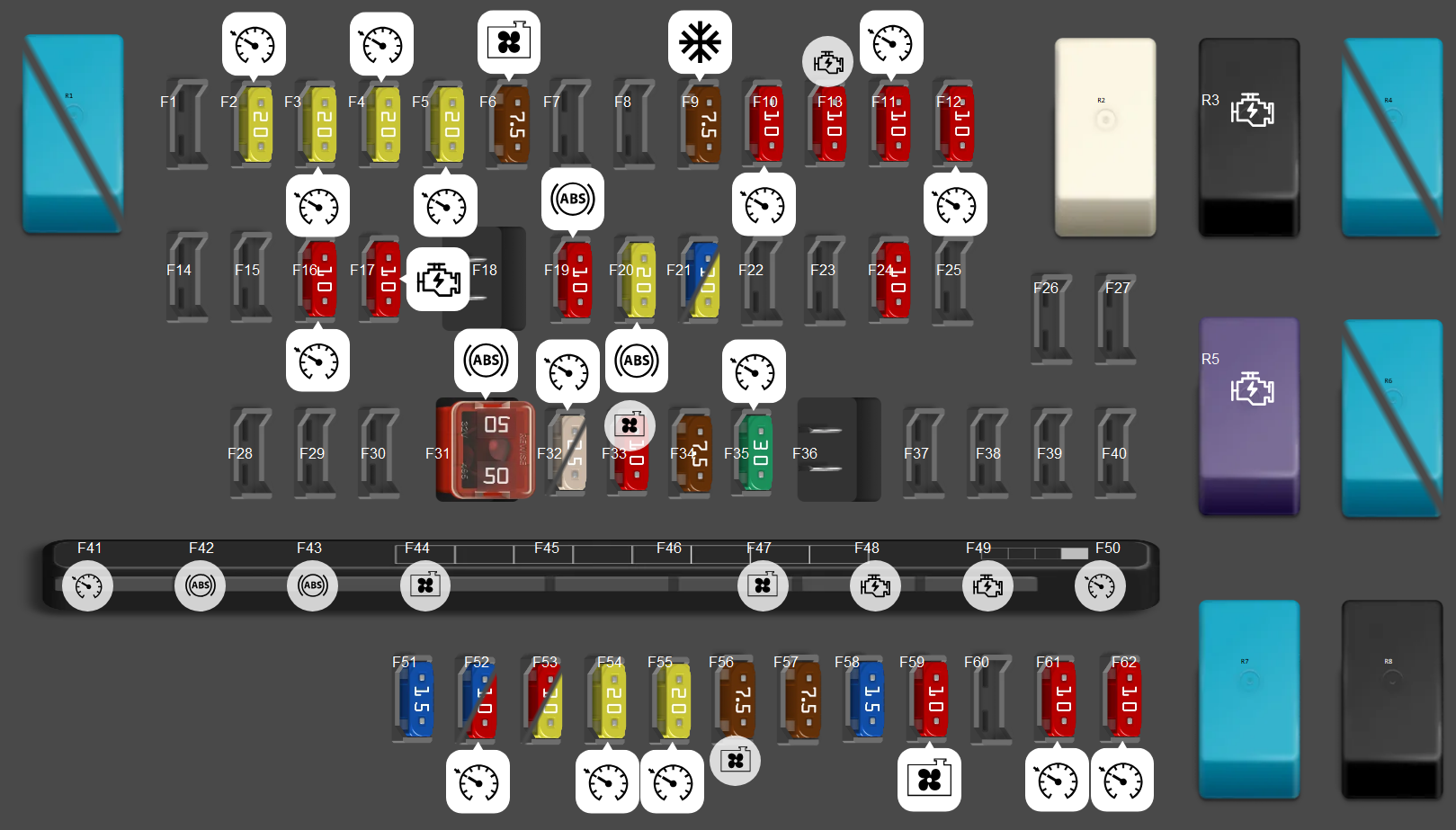

Engine Compartment Fuse Box No 2
Toyota Land Cruiser (2022 – 2024)
| Type | No. | Description |
| Fuse MINI 20A | F2 | (EDU NO.4) Cooling fan, cruise control, engine management |
| Fuse MINI 20A | F3 | (EDU NO.3) Cooling fan, cruise control, engine management |
| Fuse MINI 20A | F4 | (EDU NO.2) Cooling fan, cruise control, engine management |
| Fuse MINI 20A | F5 | (EDU NO.1) Cooling fan, cruise control, engine management |
| Fuse MINI 7.5A | F6 | (EFI NO.2) Cooling fan, cruise control, ECT and A/T indicator, engine management. gearshift interlocking |
| Fuse MINI 7.5A | F9 | (A/C NO.1) Air conditioning, seat climate control, heated steering wheel, heated windscreen, heated seat, windscreen defroster |
| Fuse MINI 10A | F10 | (INJ) [1GR-FE motor]: Cooling fan, cruise control, engine management, ignition switch |
| Fuse MINI 10A | F11 | (ENG-IGP NO.2) Cooling fan, cruise control, engine management |
| Fuse MINI 10A | F12 | (ENG-IGP NO.1) Cooling fan, cruise control, engine management |
| Fuse MINI 10A | F13 | (IGN) [1GR-FE motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 10A | F16 | (INJ) [V35A-FTS motor]: Cooling fan, cruise control, engine management, ignition switch |
| Fuse MINI 10A | F17 | (IGN) [V35A-FTS motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 10A | F19 | (ABS MAIN NO.2) A-TRC, ABS, Crawl, hill descent assist, electric parking brake, hill start assist, Multi-Terrain mode selection, integrated vehicle dynamics control, VSC |
| Fuse MINI 20A | F20 | (ABS MAIN NO.1) [LHD]: A-TRC, ABS, Crawl, hill descent assist, electric parking brake, hill start assist, Multi-Terrain mode selection, integrated vehicle dynamics control, VSC |
| Fuse MINI 15A | F21 | (A/F HTR) [1GR-FE motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 20A | F21 | (IGT/INJ) [V35A-FTS motor]: Flap grille |
| Fuse MINI 10A | F24 | (AIR PMP HTR) Cruise control, ECT and automatic transmission indicator, engine management, gearshift lock |
| Fuse FMX/JCase 50A | F31 | (ABS NO.2) [LHD]:A-TRC, ABS, Crawl, Downhill Assist Control, Electric Parking Brake, Hill-Start Assist Control, Multi-Terrain Select, Integrated Vehicle Dynamics Control, VSC |
| Fuse MINI 25A | F32 | (EFI MAIN NO.1) [1GR-FE motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 25A | F32 | (EFI MAIN NO.3) [V35A-FTS motor]: Cruise control, ECT and A/T indicator, engine management gearshift interlock |
| Fuse MINI 10A | F33 | (ETCS) Air conditioning, cooling fan, cruise control, ECT and A/T indicator, engine management, heated steering wheel, gearshift lock |
| Fuse MINI 7.5A | F34 | (4WD-B) 4WD |
| Fuse MINI 30A | F35 | (FUEL PMP) Cooling fan, cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Multi fuse block MUSB | F41 | (EDU) Cooling fan, cruise control, engine management |
| Multi fuse block MUSB | F42 | (ABS MTR NO.1) A-TRC, ABS, Crawl, Downhill Assist Control, Electric Parking Brake, Hill-Start Assist Control, Multi-Terrain Select, Integrated Vehicle Dynamics Control, VSC |
| Multi fuse block MUSB | F43 | (ABS NO.1) A-TRC, ABS, Crawl, Downhill Assist Control, Electric Parking Brake, Hill-Start Assist Control, Multi-Terrain Select, Integrated Vehicle Dynamics Control, VSC |
| Multi fuse block MUSB | F44 | (AIR PMP) [1GR-FE motor]: Cruise control, ECT and automatic transmission indicator, engine management, gearshift interlock |
| Multi fuse block MUSB | F44 | (EFI MAIN NO.1) [V35A-FTS motor]: Cooling fan, cruise control, engine management |
| Multi fuse block MUSB | F45 | (BBC NO.2) Stop-start system |
| Multi fuse block MUSB | F46 | (BBC NO.1) Stop-start system |
| Multi fuse block MUSB | F47 | (EFI MAIN NO.2) Cooling fan, cruise control, engine management |
| Multi fuse block MUSB | F48 | (ST NO.2) Cooling fan, cruise control, ECT and A/T indicator, engine management, gearshift interlock Interlocking Interlocking |
| Multi fuse block MUSB | F49 | (ST NO.1) Cooling fan, cruise control, engine management, engine control |
| Multi fuse block MUSB | F50 | (A/F) Cooling fan, cruise control, engine management |
| Fuse MINI 15A | F51 | (ECT-B) ECT and A/T indicator, gearshift interlock |
| Fuse MINI 15A | F52 | (EFI-B NO.1) [1GR-FE motor]: Cooling fan, cruise control, engine management |
| Fuse MINI 10A | F52 | (EFI-B NO.4) [V35A-FTS motor]: Cooling fan, cruise control, engine management |
| Fuse MINI 10A | F53 | (EFI-B NO.2) [1GR-FE motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 20A | F53 | (EFI-B NO.3) [V35A-FTS motor]: Cruise control, ECT and A/T indicator, engine management, gearshift interlock |
| Fuse MINI 20A | F54 | (EFI-B NO.2) Cooling fan, cruise control, engine management |
| Fuse MINI 20A | F55 | (EFI-B NO.1) Cooling fan, cruise control, engine management |
| Fuse MINI 7.5A | F56 | (EFI NO.1) Cooling fan, cruise control, engine management |
| Fuse MINI 7.5A | F57 | (GRILLE SHUTT) Engine management power supply. power supply |
| Fuse MINI 15A | F58 | (EFI NO.4) Engine management, power supply |
| Fuse MINI 10A | F59 | (EFI NO.3) Cooling fan, cruise control, ECT and A/T indicator, engine management gearshift interlocking |
| Fuse MINI 10A | F61 | (A/F NO.2) Cooling fan, cruise control, engine management |
| Fuse MINI 10A | F62 | (A/F NO.1) Cooling fan, cruise control, engine management |
| Relay | R1 | AIR PMP HTR [1GR-FE motor] |
| Relay | R1 | IGT/INJ [V35A-FTS motor] |
| Relay | R2 | IGP NO.2 |
| Relay | R3 | ST NO.2 |
| Relay | R4 | EFI MAIN NO.1 [1GR-FE motor] |
| Relay | R4 | EFI MAIN NO.3 [V35A-FTS motor] |
| Relay | R5 | ST NO.1 |
| Relay | R6 | FUEL PMP [1GR-FE motor] |
| Relay | R6 | EFI MAIN NO.2 [V35A-FTS motor] |
| Relay | R7 | A/F |
| Relay | R8 | AI VLV |
