Haval H6 (2015 & 2016) Fuse Box Location & Diagrams
The Haval H6 fuse box protects the vehicle’s electrical systems from overloads and faults. This blog covers the fuse box location and diagrams for Haval H6 models from 2015 and 2016, helping you identify fuse positions, ratings, and protected components for easier electrical troubleshooting and maintenance.
Fuse Box Location

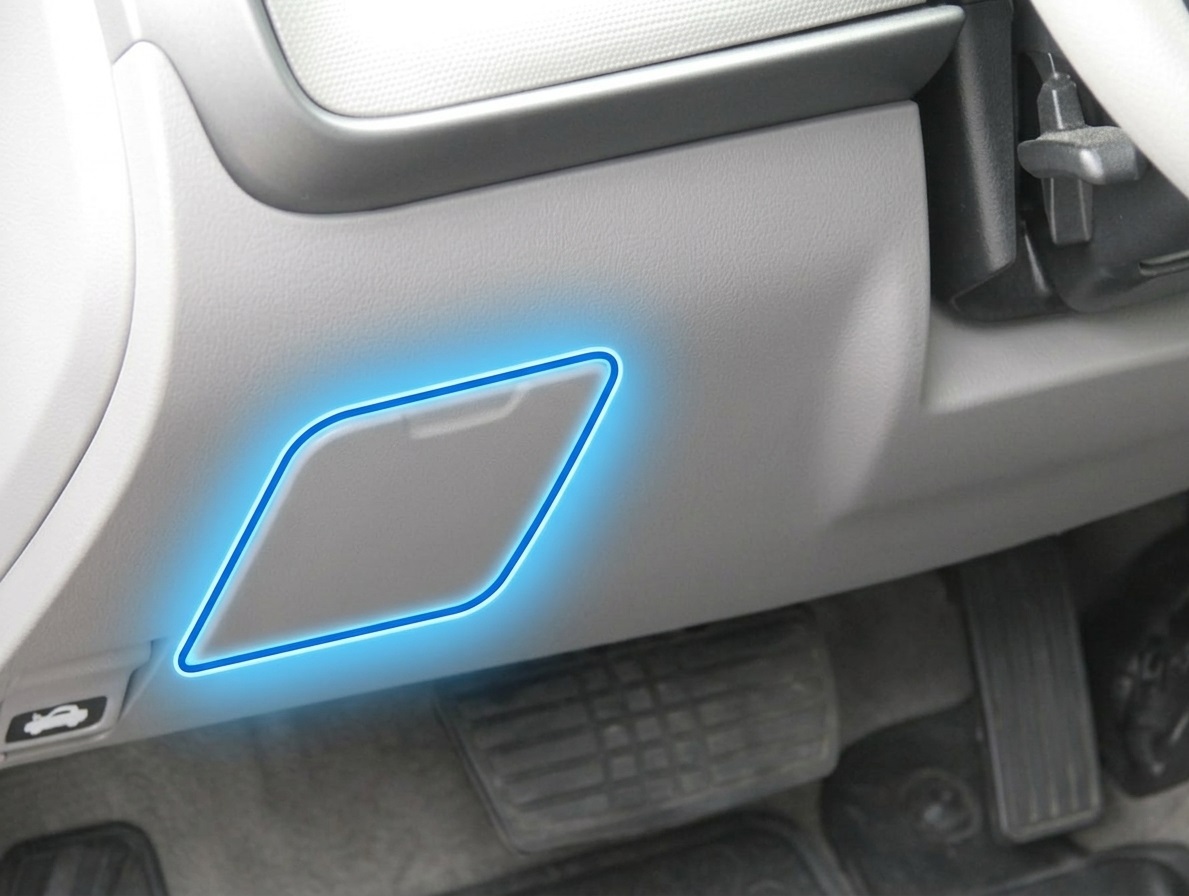

Passenger Compartment Fuse Box
Located inside the cabin, typically on the driver’s side under the lower dashboard panel (near the steering wheel column or engine hood release handle).

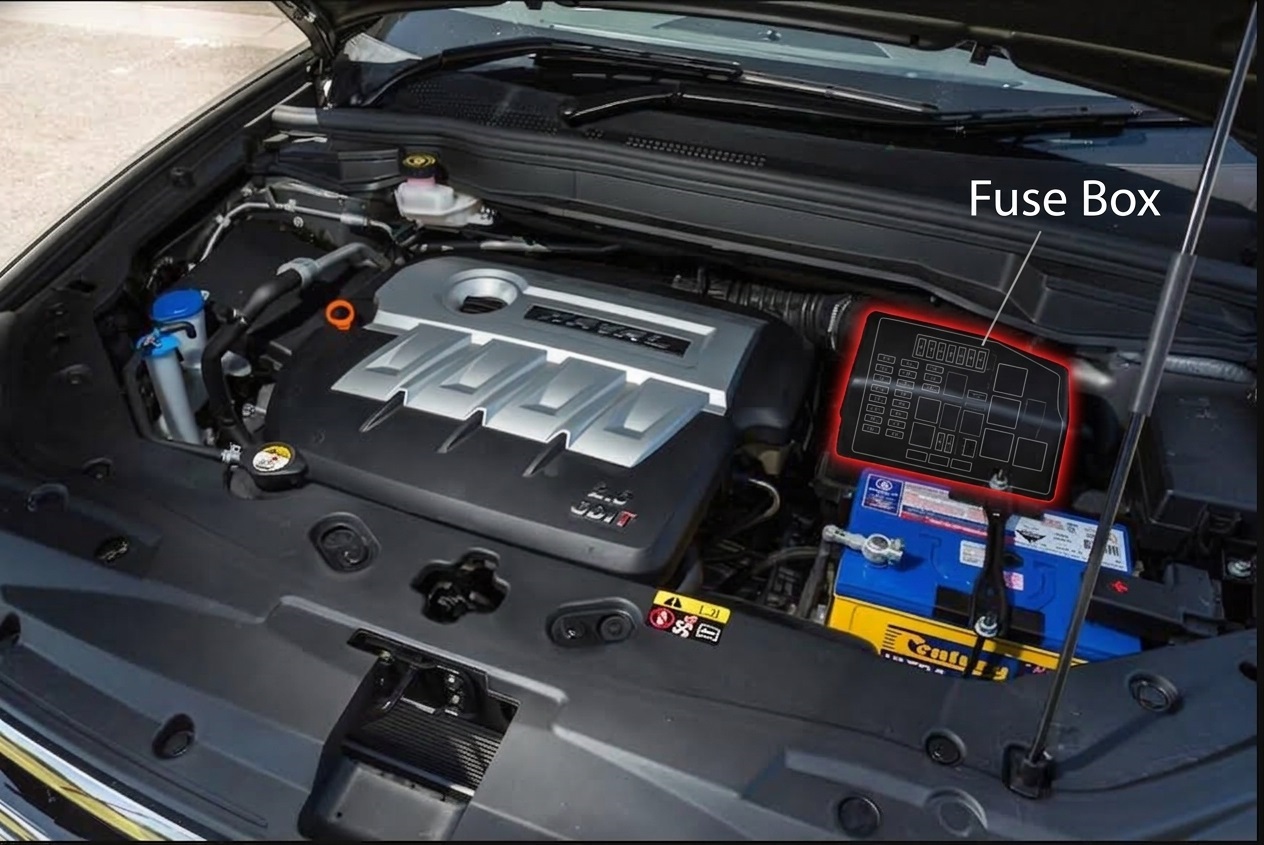

Engine Compartment Fuse Box
Located under the hood on the side of the engine bay.
Fuse Box Diagrams

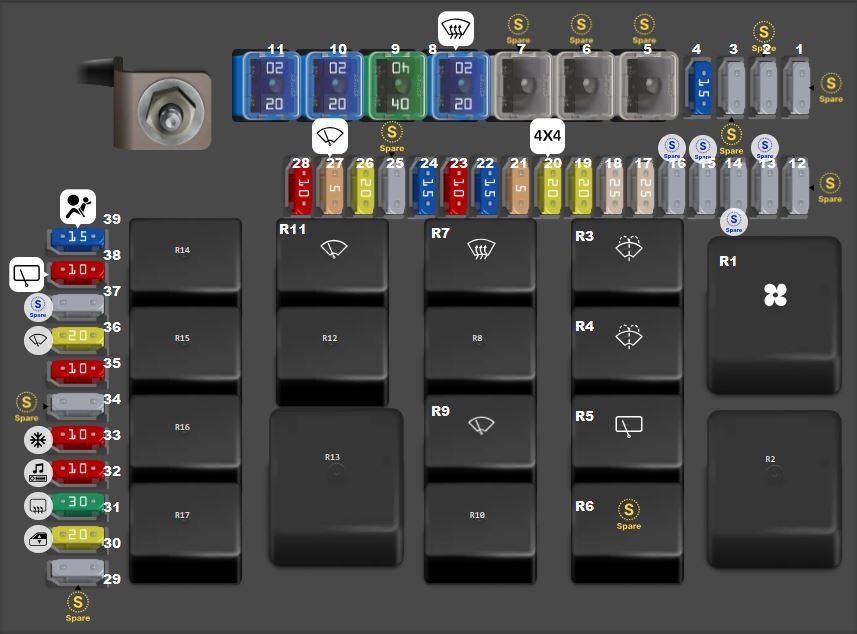

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI | 1 | Spare |
| Fuse MINI | 2 | Spare |
| Fuse MINI | 3 | Spare |
| Fuse MINI 15A | 4 | Tailgate lock |
| Fuse FMX/JCase | 5 | Spare |
| Fuse FMX/JCase | 6 | Spare |
| Fuse FMX/JCase | 7 | Spare |
| Fuse FMX/JCase 20A | 8 | DEF |
| Fuse FMX/JCase 40A | 9 | IG2 |
| Fuse FMX/JCase 20A | 10 | IG1 |
| Fuse FMX/JCase 20A | 11 | ACC |
| Fuse MINI | 12 | Spare |
| Fuse MINI | 13 | Spare |
| Fuse MINI | 14 | Spare |
| Fuse MINI | 15 | Spare |
| Fuse MINI | 16 | Spare |
| Fuse MINI 25A | 17 | BCM3 |
| Fuse MINI 25A | 18 | BCM2 |
| Fuse MINI 20A | 19 | Central Lock |
| Fuse MINI 20A | 20 | 4WD [subject to real vehicle configuration] |
| Fuse MINI 5A | 21 | Door Lamp |
| Fuse MINI 15A | 22 | BCM1 |
| Fuse MINI 10A | 23 | DEF RR View Mirror |
| Fuse MINI 15A | 24 | PEPS |
| Fuse MINI | 25 | Spare |
| Fuse MINI 20A | 26 | Sunroof [subject to real vehicle configuration] |
| Fuse MINI 5A | 27 | FR Wiper 2 |
| Fuse MINI 10A | 28 | Braking Lamp |
| Fuse MINI 15A | 29 | Airbag |
| Fuse MINI 10A | 30 | RR Wiper |
| Fuse MINI | 31 | Spare |
| Fuse MINI 20A | 32 | FR Wiper |
| Fuse MINI 10A | 33 | Instruments |
| Fuse MINI | 34 | Spare |
| Fuse MINI 10A | 35 | A/C |
| Fuse MINI 10A | 36 | Audio |
| Fuse MINI 30A | 37 | RR Window |
| Fuse MINI 20A | 38 | FR Window |
| Fuse MINI | 39 | Spare |
| Relay | R1 | Blower Relay |
| Relay | R2 | Blower Relay HI |
| Relay | R3 | FR Washer Relay |
| Relay | R4 | RR Washer Relay |
| Relay | R5 | RR Wiper Relay |
| Relay | R6 | Spare |
| Relay | R7 | DEF Relay |
| Relay | R8 | DEF RR View Mirror Relay |
| Relay | R9 | FR Wiper HI Relay |
| Relay | R10 | Tail Gate Lock Relay |
| Relay | R11 | FR Wiper Relay |
| Relay | R12 | Door Lamp Relay |
| Relay | R13 | IG2 Relay |
| Relay | R14 | ACC Relay |
| Relay | R15 | Unlock Relay |
| Relay | R16 | Lock Relay |
| Relay | R17 | IG1 Relay |

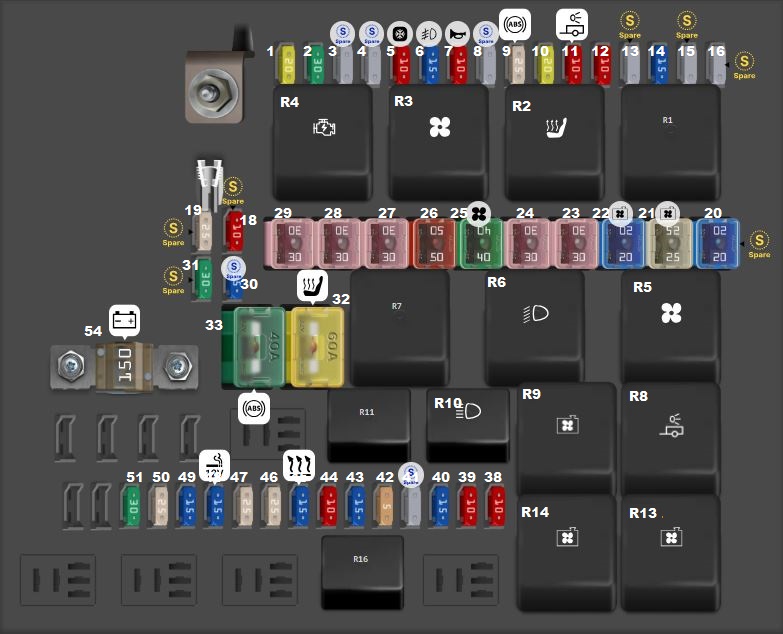

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI | 1 | Spare |
| Fuse MINI | 2 | Spare |
| Fuse MINI 15A | 3 | ECU-B |
| Fuse MINI | 4 | Spare |
| Fuse MINI 10A | 5 | Trailer brake lamp |
| Fuse MINI 10A | 6 | Trailer lamp |
| Fuse MINI 20A | 7 | Sunroof |
| Fuse MINI 25A | 8 | ABS 2 |
| Fuse MINI | 9 | Spare |
| Fuse MINI 10A | 10 | Horn |
| Fuse MINI 15A | 11 | Front Fog Lamps |
| Fuse MINI 10A | 12 | A/C Compressor |
| Fuse MINI | 13 | Spare |
| Fuse MINI | 14 | Spare |
| Fuse MINI 30A | 15 | Fuel heater |
| Fuse MINI 20A | 16 | ELEC, FR Seat LH |
| Fuse puller | 17 | Extraction tool for fuse replacement. |
| Fuse MINI 10A | 18 | Spare |
| Fuse MINI 25A | 19 | Spare |
| Fuse FMX/JCase 20A | 20 | Spare |
| Fuse FMX/JCase 25A | 21 | Fan 1 |
| Fuse FMX/JCase 20A | 22 | Fan 2 |
| Fuse FMX/JCase 30A | 23 | Trailer B+ |
| Fuse FMX/JCase 30A | 24 | F/Box Start |
| Fuse FMX/JCase 40A | 25 | Blower |
| Fuse FMX/JCase 50A | 26 | PMU relay power |
| Fuse FMX/JCase 30A | 27 | ELEC, FR Seat RH |
| Fuse FMX/JCase 30A | 28 | F/Box A |
| Fuse FMX/JCase 30A | 29 | F/Box B |
| Fuse MINI 15A | 30 | Spare |
| Fuse MINI 30A | 31 | Spare |
| Fuse FLF/PAL 293 60A | 32 | Heated fuse |
| Fuse FLF/PAL 293 40A | 33 | ABS / ESP |
| Fuse MINI 10A | 38 | Left low beam headlight |
| Fuse MINI 10A | 39 | Right low beam headlight |
| Fuse MINI 15A | 40 | Left/Right High Beam Headlight |
| Fuse MINI | 41 | Spare |
| Fuse MINI 5A | 42 | Reading light, middle top light, glove box light, rear top light, left/right rearview mirror downlight |
| Fuse MINI 15A | 43 | Cruise Control Switch, Engine ECU, Brake Switch, ABS Anti-Lock Brake Module, SAS, ESC Switch, 4/LHD Controller |
| Fuse MINI 10A | 44 | Reversing lamp switch, left/right reversing lamp, parking assist switch, ECU parking assist |
| Fuse MINI 15A | 45 | Driver/Front Passenger Seat Heating Switch, Heater |
| Fuse MINI 25A | 46 | Body electronics unit (BCM) |
| Fuse MINI 25A | 47 | Body electronics unit (BCM) |
| Fuse MINI 15A | 48 | cigarette lighter |
| Fuse MINI 15A | 49 | Vehicle power supply |
| Fuse MINI 25A | 50 | 220V Inverter |
| Fuse MINI 30A | 51 | Air mass meter, VGT, cruise control switch, electronic choke, water/oil separator, high-pressure oil pump, Engine ECU |
| Fuse MIDI 150A | 54 | ALT |
| Relay | R1 | PMU |
| Relay | R2 | Heated |
| Relay | R3 | Blower Hi |
| Relay | R4 | Starter |
| Relay | R5 | Blower |
| Relay | R6 | H/LP LO |
| Relay | R7 | EFI |
| Relay | R8 | Trailer lamp |
| Relay | R9 | Fan 2 |
| Relay | R10 | H/LP HI |
| Relay | R11 | Fuel heater |
| Relay | R13 | Fan |
| Relay | R14 | Fan 1 |
| Relay | R16 | COMP |
