Dacia Bigster (2025 – 2027) Fuse Box Location & Diagrams
The Dacia Bigster (2025–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Bigster.
Fuse Box Location

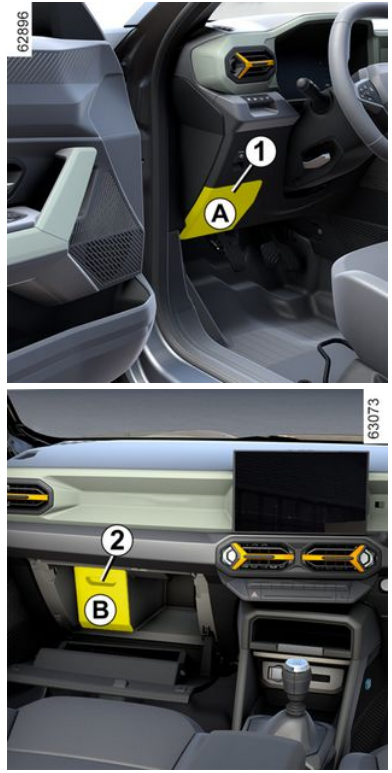

Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Unclip the flap A using the notch 1 or, depending on the vehicle, unclip the flap B using the notch 2.

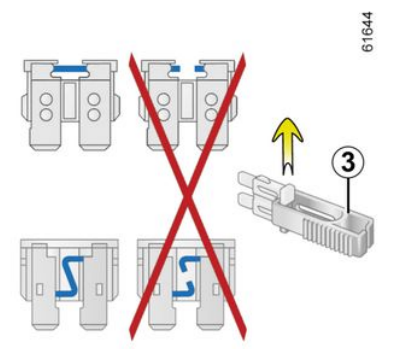

Tweezers 3
- Detach the fuse using the tweezers 3 , located on the back of flap A or B .
- To remove the fuse from the tweezers, slide the fuse to the side.
- It is not advisable to use the free fuse locations.
Fuse Box Diagrams

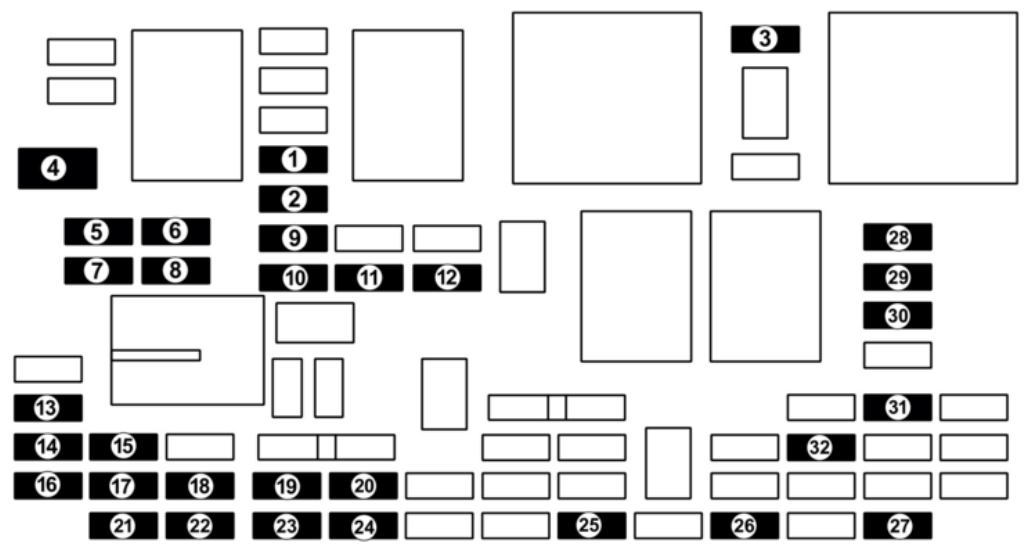

Passenger Compartment Fuse Box
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)
| No. | Function |
|---|---|
| 1 | Heated rear view mirrors |
| 2 | Driver’s and passenger’s heated seats |
| 3 | Trailer traction |
| 4 | Automatic tailgate |
| 5 | Driver’s seat electrical adjustment, right-hand drive |
| 6 | Driver’s seat electrical adjustment, left-hand drive |
| 7 | Rear wiper and rear fog lights |
| 8 | Hazard warning lights without MCB |
| 9 | Brake lights without MCB |
| 10 | Radio |
| 11 | Rear screen de-icer |
| 12 | 4×4 button, manual air conditioning, radio, ECU gateway, interior rear view mirror, seat belt, heated windscreen |
| 13 | USB |
| 14 | Luggage compartment accessories socket, towing device |
| 15 | Hazard warning lights with MCB |
| 16 | Heated seats (depending on vehicle) |
| 17 | Brake lights with MCB |
| 18 | One-touch windows for front passenger seat |
| 19 | USB |
| 20 | Rear view mirror control |
| 21 | One-touch windows for rear right-hand seat |
| 22 | One-touch electric windows for driver’s seat |
| 23 | One-touch windows for rear left-hand seat |
| 24 | External and internal welcome sound |
| 25 | Courtesy light |
| 26 | Pre-equipment for accessories |
| 27 | Pre-equipment for accessories |
| 28 | 12 V socket, cigarette lighter |
| 29 | Heated steering wheel |
| 30 | Windscreen washer liquid pump switch |
| 31 | Electric sunroof |
| 32 | Assisted parking button |
Engine Compartment Fuse Box
