The Dacia Duster (2024–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Duster.
Fuse Box Location

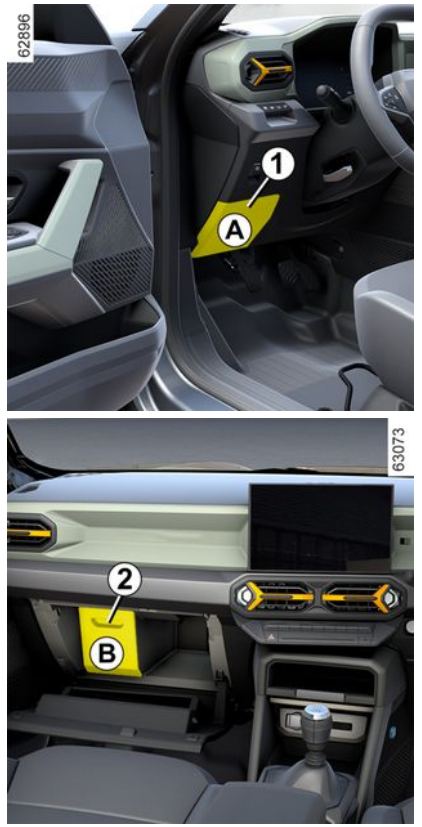

Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Unclip the flap A using the notch 1 or, depending on the vehicle, unclip the flap B using the notch 2 .

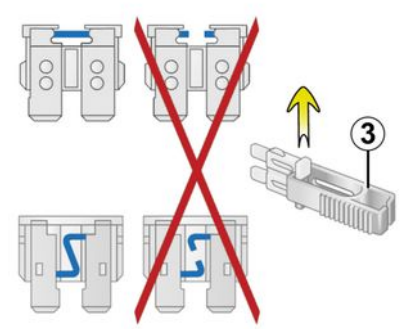

Tweezers 3
Detach the fuse using the tweezers 3 , located on the back of flap A or B .To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.
Fuse Box Diagrams

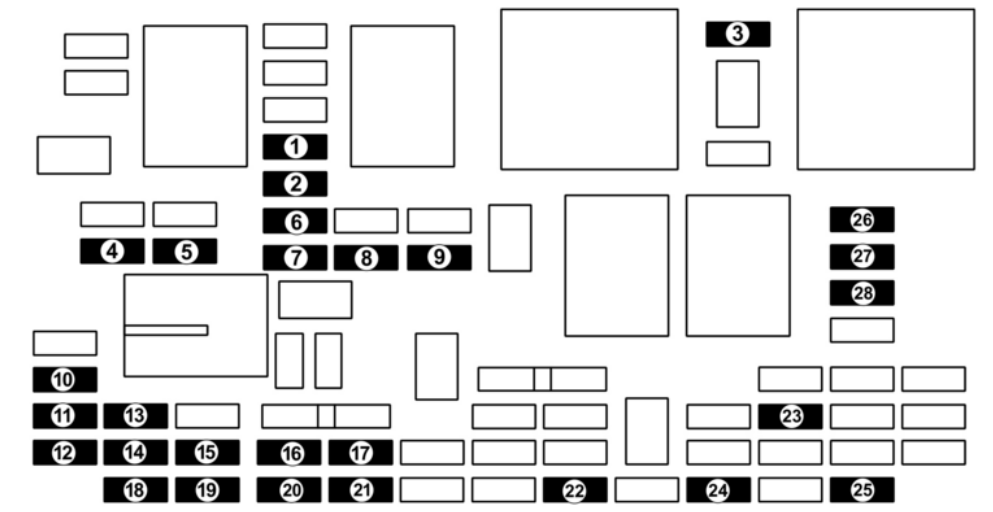

Passenger Compartment Fuse Box
(the presence of certain fuse depends on the vehicle equipment level)
| No. | Description |
|---|---|
| 1 | Heated rear view mirrors |
| 2 | Driver’s and passenger’s heated seats |
| 3 | Trailer traction |
| 4 | Rear wiper and rear fog lights |
| 5 | Hazard warning lights without MCB |
| 6 | Brake lights without MCB |
| 7 | Radio |
| 8 | Rear screen de-icing |
| 9 | 4×4 button, manual air conditioning, radio, ECU gateway, interior rear view mirror, seat belt, heated windscreen |
| 10 | USB socket |
| 11 | Luggage compartment accessories socket and towing device |
| 12 | Heated seats (depending on vehicle equipment) |
| 13 | Hazard warning lights with MCB |
| 14 | Brake lights with MCB |
| 15 | One-touch front passenger window |
| 16 | USB socket |
| 17 | Rear view mirror control |
| 18 | One-touch rear right window |
| 19 | One-touch windows |
| 20 | One-touch rear left window |
| 21 | External and internal welcome sound |
| 22 | Courtesy light |
| 23 | Assisted parking button |
| 24 | Pre-equipment for accessories |
| 25 | Pre-equipment for accessories |
| 26 | 12V socket and cigarette lighter |
| 27 | Heated steering wheel |
| 28 | Windscreen washer fluid pump switch |
Engine Compartment Fuse Box
However, because they are less accessible, we recommend having an approved dealer replace your fuses.
