Dacia Jogger (2021 – 2027) Fuse Box Location & Diagrams
The Dacia Jogger (2021–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Jogger.
Fuse Box Location
Passenger Compartment Fuse Box

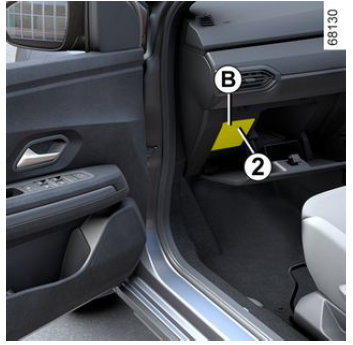

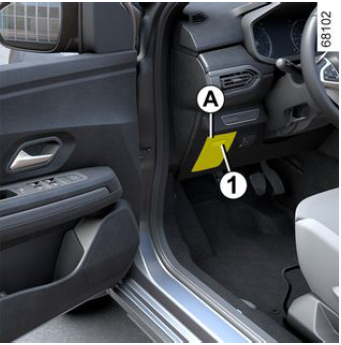

If any electrical component does not work, check the condition of the fuses. Unclip the A flap using the 1 notch or, depending on the vehicle, unclip the B flap using the 2 notch. Depending on the vehicle, to identify the fuses, refer to the fuse allocation label located at the back of the A or B flap and shown on the following pages.
Tweezers 3
Remove the fuse using the tweezers 3 located on the back of flap A or B. To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.
The LPG fuse in the fuse box A or B
LPG fuse: LPG circuit shut-off or LPG circuit and petrol circuit shut-off.
Engine Compartment Fuse Box

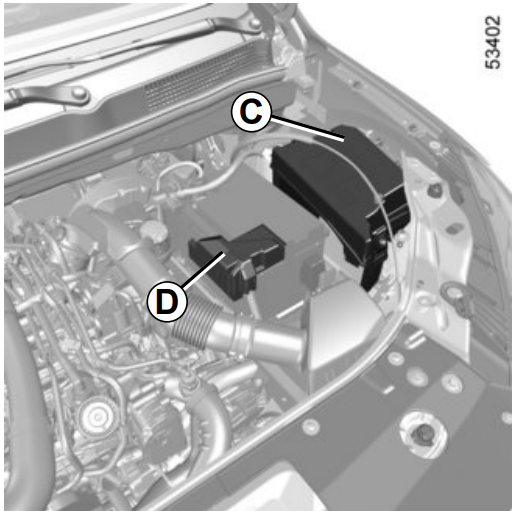

Fuses in the engine compartment C and D
Some functions are protected by fuses located in the engine compartment in units C and D.
Fuse Box Diagrams
Passenger Compartment Fuse Box
Allocation of fuses
(The presence of certain fuse depends on the vehicle equipment level)
| Icon | Function |
|---|---|
 | Horn |
 | Front window winder, electric front windows |
 | Rear electric windows |
 | Brake lights, UCH |
 | Courtesy light, luggage compartment light |
 | Multimedia socket |
 | Towbar socket |
 | Windscreen washer pump, steering column controls |
 | Direction indicator lights, UCH |
 | Cigarette lighter, accessories socket |
 | Heated rear view mirrors |
 | Rear view electric mirrors control |
 | LPG |
Engine Compartment Fuse Box
However, because they are less accessible, we recommend having an approved dealer replace your fuses.
Find an Approved Dealer: Click here to access our official service network and contact support.
