Dacia Logan (2025 – 2027) Fuse Box Location & Diagrams
The Dacia Logan (2025–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Logan.
Fuse Box Location
Passenger Compartment Fuse Box

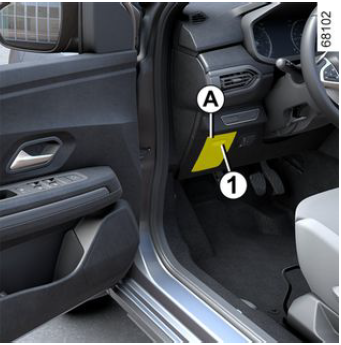

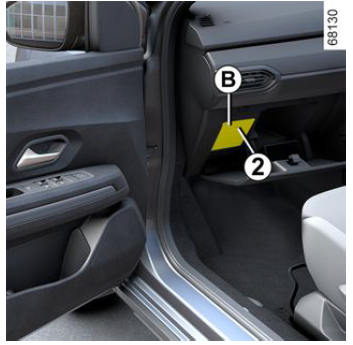

If any electrical component does not work, check the condition of the fuses. Unclip flap A using the notch as a guide 1, or, depending on the vehicle, unclip flap B using the notch as a guide 2.
Tweezers 3
Detach the fuse using the tweezers 3, located on the back of flap A or B. To remove the fuse with the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.
Fuse Box Diagrams
Passenger Compartment Fuse Box
(The presence of certain fuses depends on the vehicle equipment level)
| Icon | Description |
|---|---|
 | Horn |
 | Front window winder / Electric front windows |
 | Rear electric windows |
 | Brake lights / UCH |
 | Courtesy light / Luggage compartment light |
 | Multimedia socket |
 | Towbar socket |
 | Windscreen washer pump / Steering column controls |
 | Direction indicator lights / UCH |
 | Cigarette lighter / Accessories socket |
 | Heated rear-view mirrors |
 | Rear-view electric mirror controls |
 | LPG |
