Dacia Lodgy (2012 – 2022) Fuse Box Location & Diagrams
The Dacia Lodgy (2012–2022) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Lodgy.
Fuse Box Location
Passenger Compartment Fuse Box

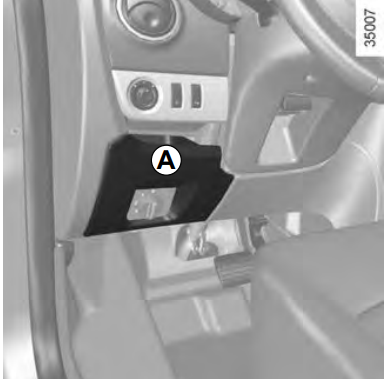

If any electrical component does not work, check the condition of the fuses. Unclip the access flap A.

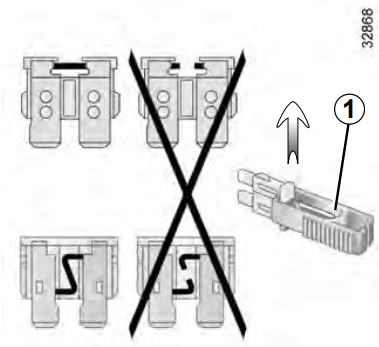

Clip 1
Remove the fuse using tweezers 1, located at the back of flap A. To remove the fuse from the tweezers,slide the fuse to the side. It is not advisable to use the free fuse locations.
Engine Compartment Fuse Box

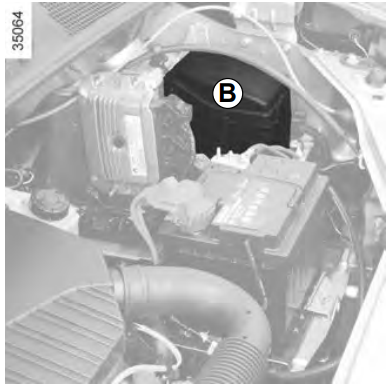

Some functions are protected by fuses located in the engine compartment (unit B). However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer.
Special features of LPG versions

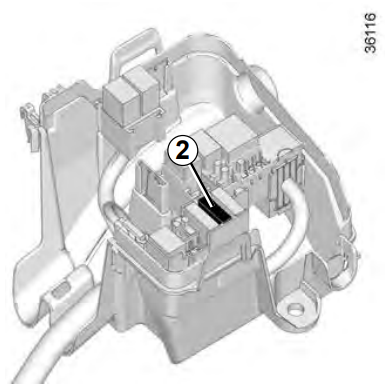

The specific LPG circuit shut-off fuse 2 is located in the box B.
Fuse Box Diagrams
Passenger Compartment Fuse Box

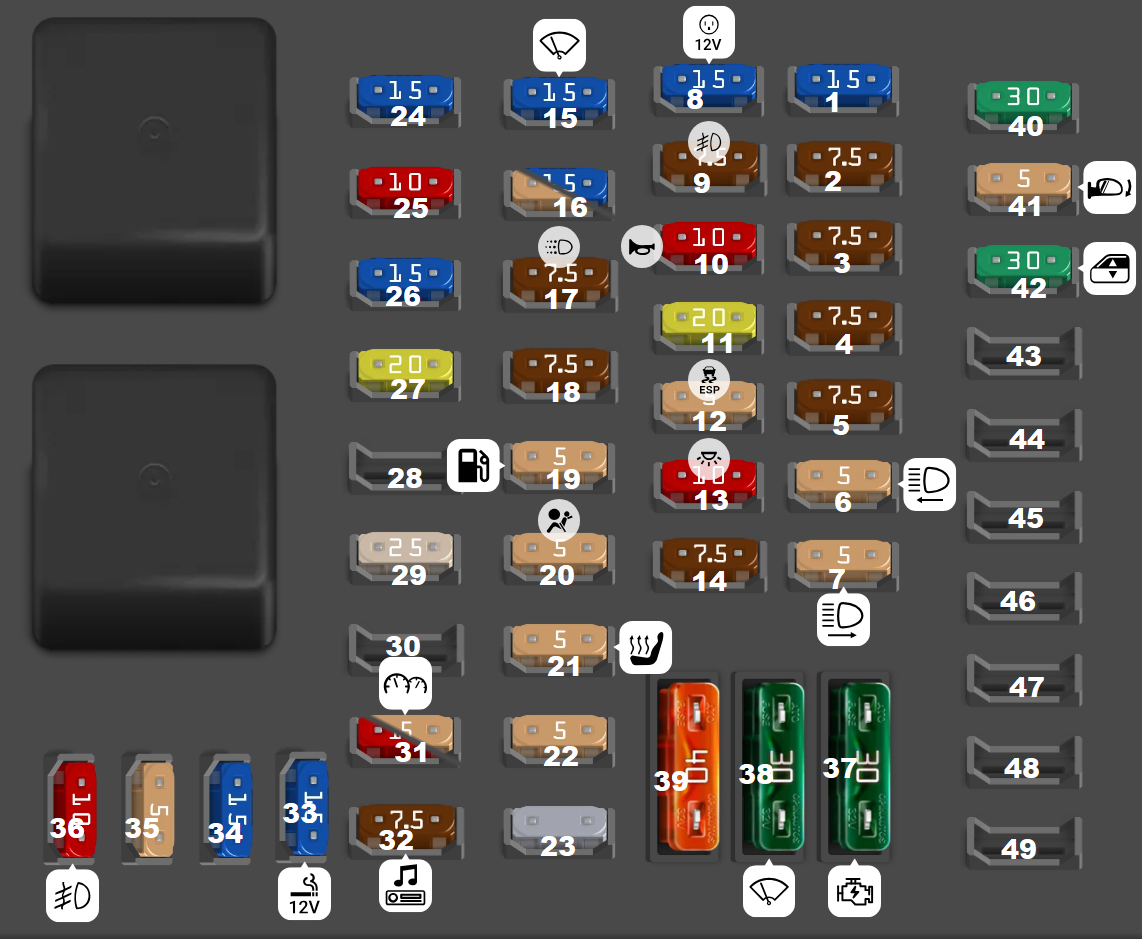

Dacia Lodgy (2012-2015)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 15A | 1 | LPG |
| Fuse MINI 7.5A | 2 | Left-hand main beam headlight |
| Fuse MINI 7.5A | 3 | Right-hand main beam headlight |
| Fuse MINI 7.5A | 4 | Left-hand dipped beam headlight |
| Fuse MINI 7.5A | 5 | Right-hand dipped beam headlight |
| Fuse MINI 5A | 6 | Left-hand side lights |
| Fuse MINI 5A | 7 | Right-hand side lights |
| Fuse MINI 15A | 8 | Rear accessories socket |
| Fuse MINI 7.5A | 9 | Rear fog lights |
| Fuse MINI 10A | 10 | Horn |
| Fuse MINI 20A | 11 | Automatic door locking |
| Fuse MINI 5A | 12 | ESC |
| Fuse MINI 10A | 13 | Courtesy light |
| Fuse MINI 7.5A | 14 | ABS-ESC |
| Fuse MINI 15A | 15 | Reverse gear, windscreen wiper |
| Fuse MINI 5A | 16 | Cruise control-Speed limiter, rear windscreen, unfastened seatbelt warning, parking distance control |
| Fuse MINI 15A | 16 | Cruise control-Speed limiter, rear windscreen, unfastened seatbelt warning, parking distance control |
| Fuse MINI 7.5A | 17 | Daytime running lights |
| Fuse MINI 7.5A | 18 | Brake lights |
| Fuse MINI 5A | 19 | Fuel pump, Injection |
| Fuse MINI 5A | 20 | Airbag |
| Fuse MINI 5A | 21 | Heated seats |
| Fuse MINI 5A | 22 | Power-assisted steering |
| Fuse MINI | 23 | Location reserved for additional equipment |
| Fuse MINI 15A | 24 | Direction indicator light |
| Fuse MINI 10A | 25 | Passenger compartment ECU |
| Fuse MINI 15A | 26 | Passenger compartment ECU |
| Fuse MINI 20A | 27 | Steering column control |
| Fuse MINI 25A | 29 | Steering column control |
| Fuse MINI | 30 | Location reserved for additional equipment |
| Fuse MINI 10A | 31 | Instrument panel |
| Fuse MINI 5A | 31 | Instrument panel |
| Fuse MINI 7.5A | 32 | Radio |
| Fuse MINI 15A | 33 | Cigar lighter |
| Fuse MINI 15A | 34 | Diagnostic socket |
| Fuse MINI 5A | 35 | Defrosting rearview mirror |
| Fuse MINI 10A | 36 | Front fog lights |
| Fuse ATO 30A | 37 | Starter |
| Fuse ATO 30A | 38 | Windscreen wiper |
| Fuse ATO 40A | 39 | Passenger compartment ventilation |
| Fuse MINI 30A | 40 | Electric rear window |
| Fuse MINI 5A | 41 | Electric door mirrors |
| Fuse MINI 30A | 42 | Front electric window |

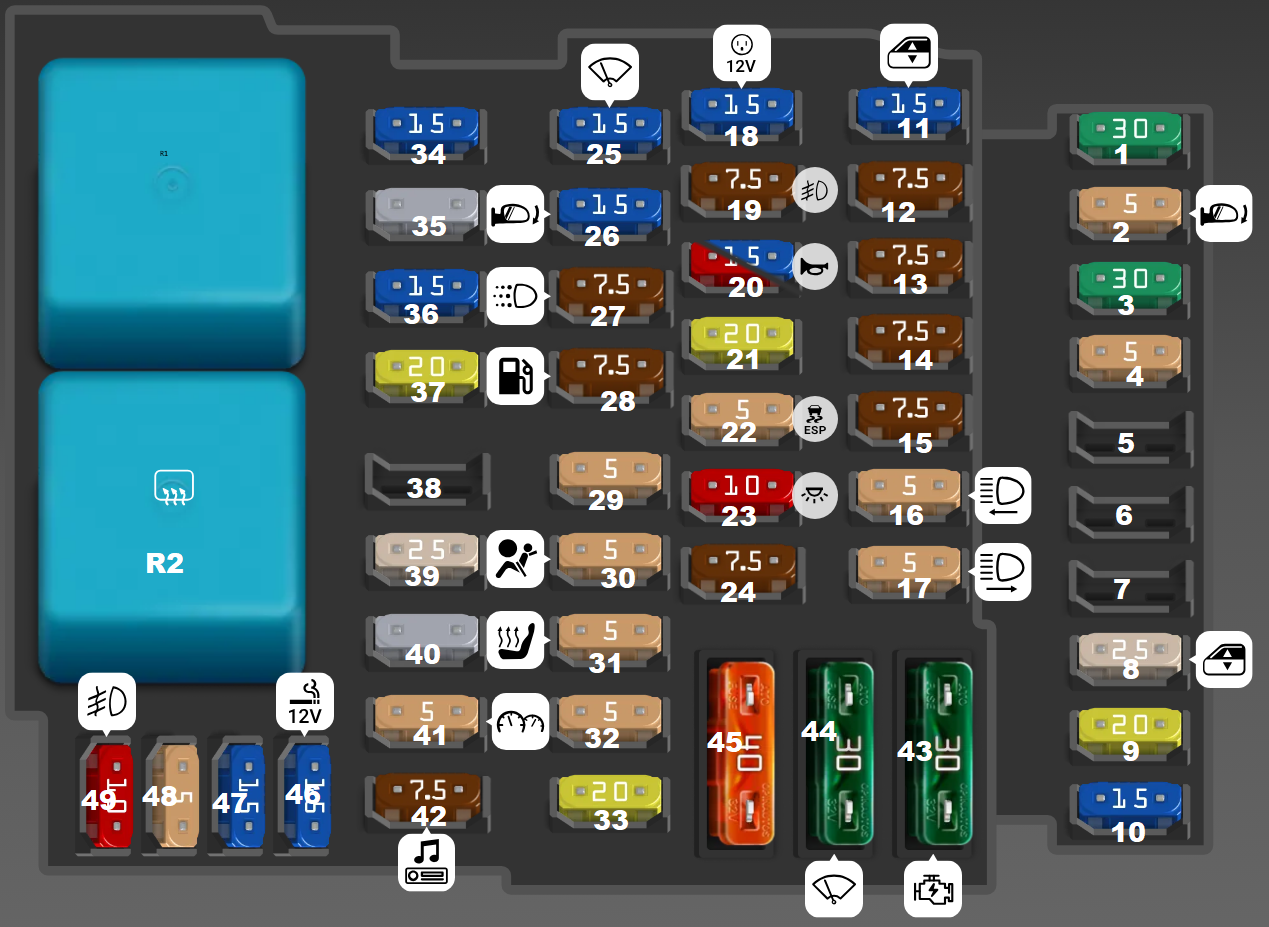

Dacia Lodgy(2016-2022)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 30A | 1 | Electric rear window |
| Fuse MINI 5A | 2 | Electric door mirrors |
| Fuse MINI 30A | 3 | LPG circuit shut-off or LPG circuit and petrol fuel circuit shut-off |
| Fuse MINI 5A | 4 | BCM |
| Fuse MINI 25A | 8 | Power windows |
| Fuse MINI 20A | 9 | Climate control |
| Fuse MINI 15A | 10 | Additional socket |
| Fuse MINI 15A | 11 | Front electric window |
| Fuse MINI 7.5A | 12 | Left-hand main beam headlight |
| Fuse MINI 7.5A | 13 | Right-hand main beam headlight |
| Fuse MINI 7.5A | 14 | Left-hand dipped beam headlight |
| Fuse MINI 7.5A | 15 | Right-hand dipped beam headlight |
| Fuse MINI 5A | 16 | Left-hand side lights |
| Fuse MINI 5A | 17 | Right-hand side lights |
| Fuse MINI 15A | 18 | Rear accessories socket |
| Fuse MINI 7.5A | 19 | Rear fog lights |
| Fuse MINI 10A | 20 | Horn |
| Fuse MINI 15A | 20 | Audible warnings |
| Fuse MINI 20A | 21 | Automatic door locking |
| Fuse MINI 5A | 22 | ESC |
| Fuse MINI 10A | 23 | Courtesy light |
| Fuse MINI 7.5A | 24 | ABS-ESC |
| Fuse MINI 15A | 25 | Reverse gear, windscreen wiper |
| Fuse MINI 15A | 26 | Cruise control/Speed limiter, rear-view mirror, unfastened seat belt warning, parking distance control |
| Fuse MINI 7.5A | 27 | Daytime running lights |
| Fuse MINI 7.5A | 28 | Fuel pump |
| Fuse MINI 5A | 29 | Injection |
| Fuse MINI 5A | 30 | Airbag |
| Fuse MINI 5A | 31 | Heated seats |
| Fuse MINI 5A | 32 | Power-assisted steering |
| Fuse MINI 20A | 33 | Location reserved for additional equipment |
| Fuse MINI 15A | 34 | Direction indicator light |
| Fuse MINI | 35 | Passenger compartment ECU |
| Fuse MINI 15A | 36 | Passenger compartment ECU |
| Fuse MINI 20A | 37 | Steering column control |
| Fuse MINI 25A | 39 | Steering column control |
| Fuse MINI | 40 | Location reserved for additional equipment |
| Fuse MINI 5A | 41 | Instrument panel |
| Fuse MINI 7.5A | 42 | Radio |
| Fuse ATO 30A | 43 | Starter |
| Fuse ATO 30A | 44 | Windscreen wiper |
| Fuse ATO 40A | 45 | Passenger compartment ventilation |
| Fuse MINI 15A | 46 | Cigar lighter |
| Fuse MINI 15A | 47 | Diagnostic socket |
| Fuse MINI 5A | 48 | Defrosting rearview mirror |
| Fuse MINI 10A | 49 | Front fog lights |
| Relay | R1 | Cold air blower |
| Relay | R2 | Heated rear window |
Engine Compartment Fuse Box

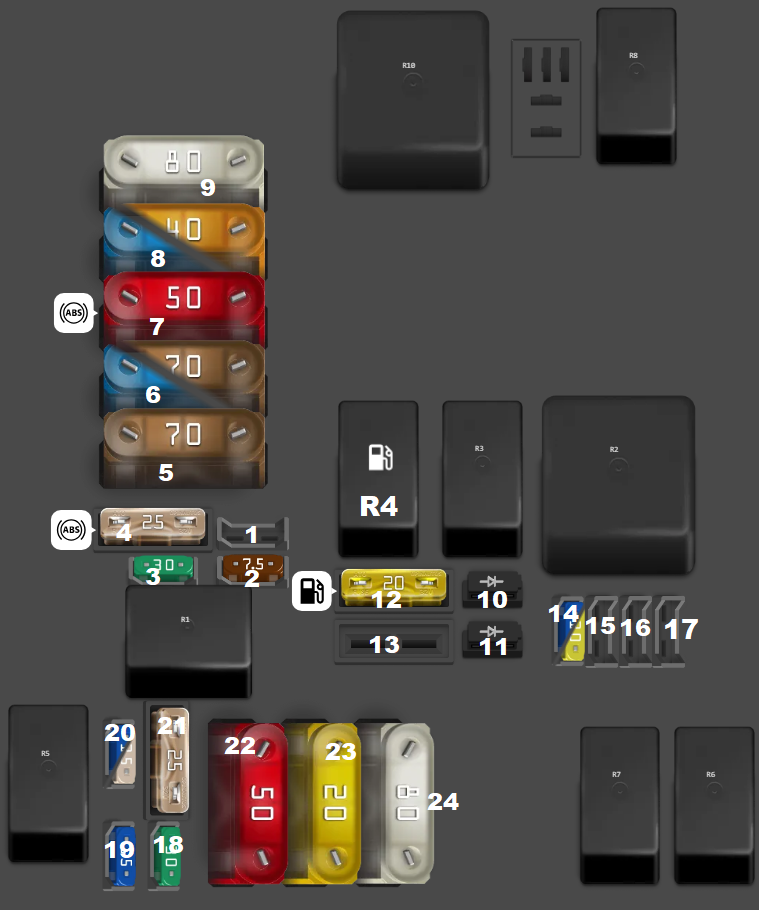

Dacia Lodgy(2016-2022)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 7.5A | 2 | Battery current sensor (928) |
| Fuse MINI 30A | 3 | Heated rear window |
| Fuse ATO 25A | 4 | ABS/ESP (1094) |
| Fuse MAXI 70A | 5 | Fuse supply circuits (F11-F23-F24-F25-F26-F27-F34-F39) in the cabin |
| Fuse MAXI 60A | 6 | Fuse supply circuits (F1-F14-F15-F16-F17-F18-F19-F20-F21-F22-F32-F33-F37-F38), power windows |
| Fuse MAXI 70A | 6 | Fuse supply circuits (F1-F14-F15-F16-F17-F18-F19-F20-F21-F22-F32-F33-F37-F38), power windows |
| Fuse MAXI 50A | 7 | ABS/ESP (1094) |
| Fuse MAXI 60A | 8 | Fuse supply circuits (F9-F10) in the cabin |
| Fuse MAXI 40A | 8 | Fuse supply circuits (F9-F10) in the cabin |
| Fuse MAXI 80A | 9 | Additional interior heater |
| Diode MINI | 10 | Air Conditioner Magnetic Clutch Diode (171) |
| Diode MINI | 11 | Fan motor diode (188) |
| Fuse ATO 20A | 12 | Fuel pump |
| Fuse MINI 15A | 14 | Engine circuit protection, starter, air conditioning compressor |
| Fuse MINI 20A | 14 | Engine circuit protection, starter, air conditioning compressor |
| Fuse MINI 30A | 18 | Starter |
| Fuse MINI 15A | 19 | ECU automatic transmission |
| Fuse MINI 15A | 20 | Air conditioning compressor clutch |
| Fuse MINI 25A | 20 | Electric fan |
| Fuse ATO 25A | 21 | Fuel pump and fuel injection |
| Fuse MAXI 50A | 22 | Relay for controlling the electric fan of the engine cooling system |
| Fuse MAXI 20A | 23 | Power supply for engine/injection wiring connector (R24) |
| Fuse MAXI 80A | 24 | Power steering pump assembly (186) |
| Relay | R1 | Backup relay |
| Relay | R2 | Fuel Injection ECU Power Relay |
| Relay | R3 | A/C compressor or 1st fan speed relay |
| Relay | R4 | Fuel pump relay |
| Relay | R5 | Starter relay |
| Relay | R6 | Fuel pump shutdown relay |
| Relay | R7 | Starter relay |
| Relay | R8 | Backup relay |
| Relay | R10 | Backup relay |
