Dacia Logan MCV (2013-2020) Fuse Box Location & Diagrams
The Dacia Logan MCV (2013–2020) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Logan MCV.
Fuse Box Location

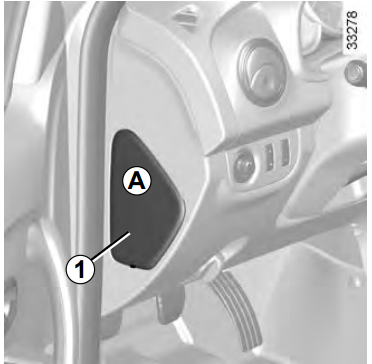

Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Unclip flap A using notch 1 to help you.

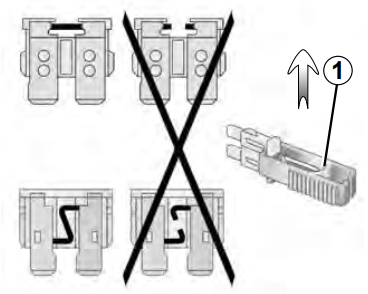

Clip 1
Remove the fuse using tweezers 1, located at the back of flap A. To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.

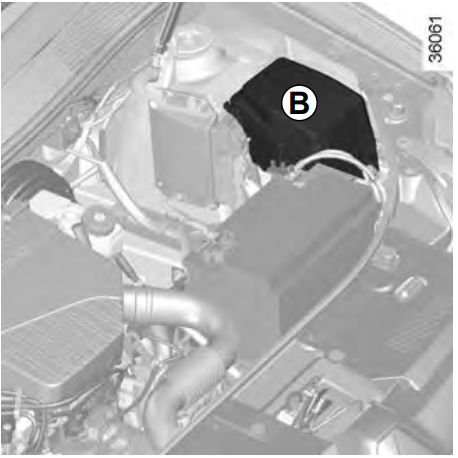

Engine Compartment Fuse Box
Some functions are protected by fuses located in the engine compartment (unit B). However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer.
Fuse Box Diagrams

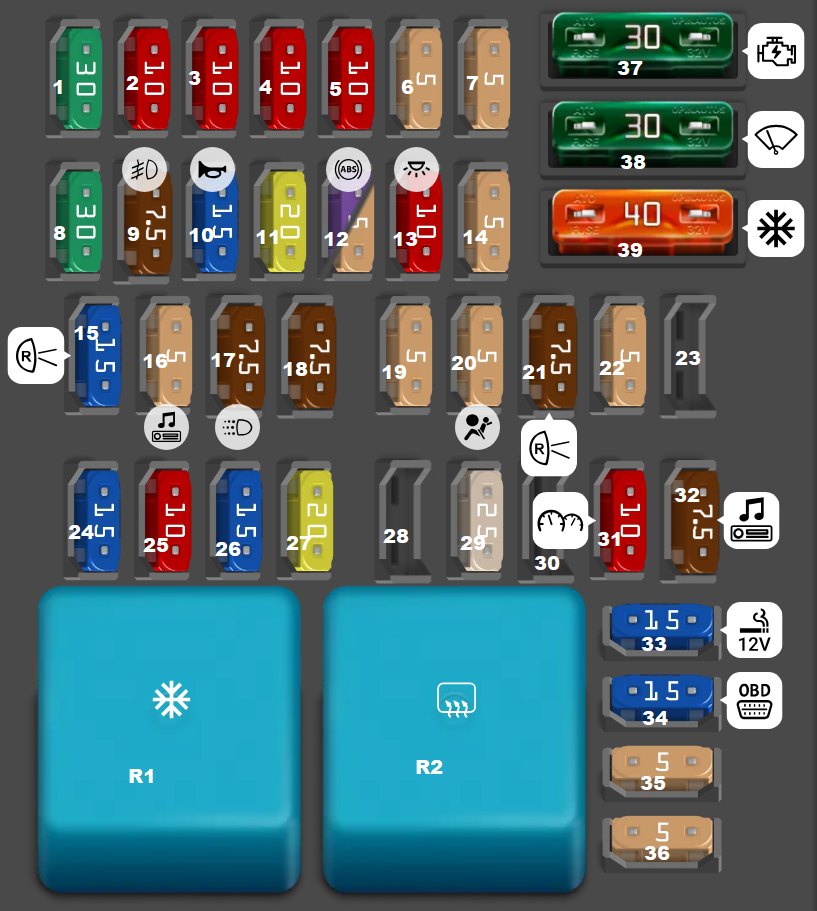

Passenger Compartment Fuse Box
| Type | No. | Description | Fuse Rating |
|---|---|---|---|
| Fuse MINI | 1 | Electric glass front lifts | 30A |
| Fuse MINI | 2 | High beam left headlight | 10A |
| Fuse MINI | 3 | High beam right headlight | 10A |
| Fuse MINI | 4 | Low beam left headlight | 10A |
| Fuse MINI | 5 | High beam right headlight | 10A |
| Fuse MINI | 6 | Rear dimensions, number illumination, illumination | 5A |
| Fuse MINI | 7 | Front dimensions | 5A |
| Fuse MINI | 8 | Electric glass rear lifts | 30A |
| Fuse MINI | 9 | Rear fog lamp | 7.5A |
| Fuse MINI | 10 | Horn | 15A |
| Fuse MINI | 11 | Central locking | 20A |
| Fuse MINI | 12 | ABS/ESP | 3A |
| Fuse MINI | 12 | ABS/ESP | 5A |
| Fuse MINI | 13 | Interior lighting, air conditioning | 10A |
| Fuse MINI | 14 | Steering angle sensor | 5A |
| Fuse MINI | 15 | Glass washer, parking radar, reversing light | 15A |
| Fuse MINI | 16 | Audio system, heated glass, speed limiter | 5A |
| Fuse MINI | 17 | DRL | 7.5A |
| Fuse MINI | 18 | Brake light | 7.5A |
| Fuse MINI | 19 | Control system | 5A |
| Fuse MINI | 20 | Airbags | 5A |
| Fuse MINI | 21 | Reversing lamp, AMT control unit | 7.5A |
| Fuse MINI | 22 | Electric power steering pump | 5A |
| Fuse MINI | 24 | Direction indicator | 15A |
| Fuse MINI | 25 | Anti-theft system | 10A |
| Fuse MINI | 26 | Electrical control unit | 15A |
| Fuse MINI | 27 | Steering column switches (low beam input) | 20A |
| Fuse MINI | 29 | Steering column switches (high beam input) | 25A |
| Fuse MINI | 31 | Instrument cluster | 10A |
| Fuse MINI | 32 | Audio system | 7.5A |
| Fuse MINI | 33 | Cigarette lighter | 15A |
| Fuse MINI | 34 | Diagnostic connector | 15A |
| Fuse MINI | 35 | Heated exterior mirrors | 5A |
| Fuse MINI | 36 | Mirror drive | 5A |
| Fuse ATO | 37 | Starter | 30A |
| Fuse ATO | 38 | Wiper | 30A |
| Fuse ATO | 39 | Air conditioner | 40A |
| Relay | R1 | Air conditioner relay | — |
| Relay | R2 | Rear defogger relay | — |

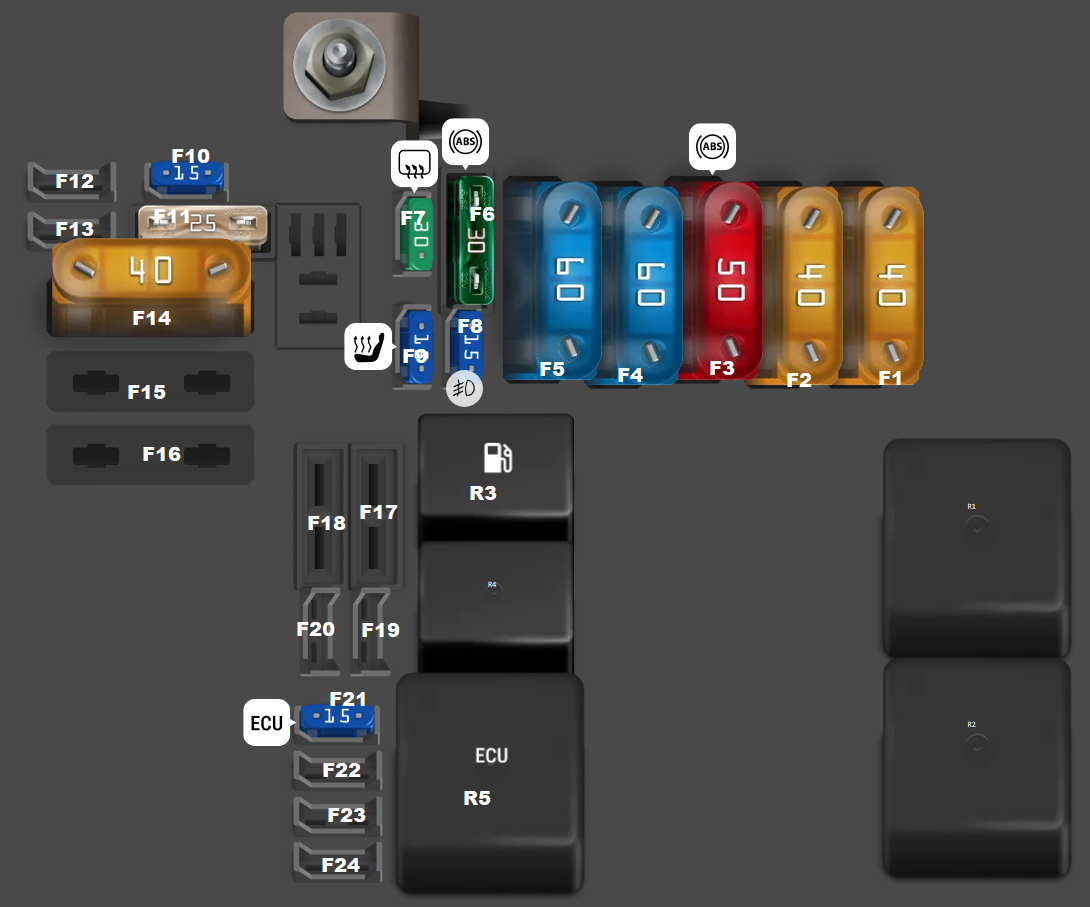

Engine Compartment Fuse Box
| Type | No. | Description | Fuse Rating |
|---|---|---|---|
| Fuse MAXI | F1 | Right windscreen heating element | 40A |
| Fuse MAXI | F2 | Left windshield heating element | 40A |
| Fuse MAXI | F3 | ABS/ESP | 50A |
| Fuse MAXI | F4 | Immobilizer, passenger compartment fuse supply circuit F28-F31 | 60A |
| Fuse MAXI | F5 | Power supply for passenger compartment fuses F11, F23-F27, F34 and F39 | 60A |
| Fuse ATO | F6 | ABS/ESP | 30A |
| Fuse MINI | F7 | Heated rear window and mirrors | 30A |
| Fuse MINI | F8 | Front fog lights | 15A |
| Fuse MINI | F9 | Heated seats | 15A |
| Fuse MINI | F10 | Air conditioner clutch (equipment with air conditioning) / First speed of electric fan (equipment without air conditioning) | 15A |
| Fuse ATO | F11 | Fuse for the relay of the engine management system | 25A |
| Fuse MAXI | F14 | Electro cooling fan | 40A |
| Fuse MINI | F21 | Engine management system | 15A |
| Relay | R1 | Relay for left glass heating | — |
| Relay | R2 | Relay for the right glass heating | — |
| Relay | R3 | Fuel pump relay | — |
| Relay | R4 | Relay for the air conditioner compressor or the first speed of the electric fan (depending on the configuration) | — |
| Relay | R5 | Engine control relay | — |
