Dacia Spring (2024 – 2027) Fuse Box Location & Diagrams
The Dacia Spring (2024–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Spring.
Fuse Box Location

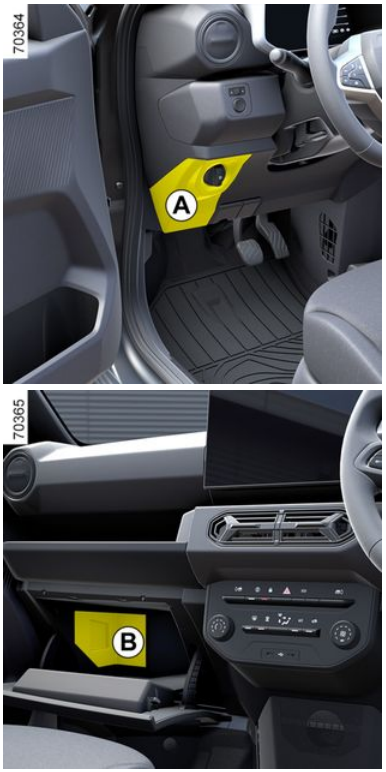

Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Pull the flap A from the lower edge or, depending on the vehicle, pull the B flap to remove it to access the fuses.

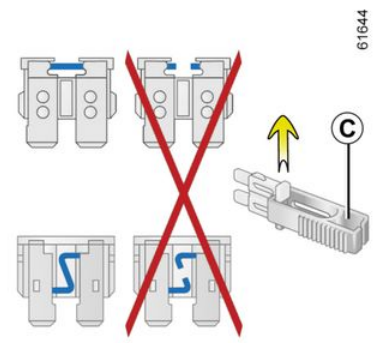

Clamp C
Remove the fuse using tweezers C located at the back of flap A or B . To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.
Fuse Box Diagrams
Passenger Compartment Fuse Box
(The presence and location of fuses depends on the vehicle equipment level)
| Symbol | Allocation |
|---|---|
 | Child safety relay / Automatic light sensor |
 | EVC fuse |
 | Car sharing telematic box |
 | Front wiper |
 | Backup light relay (Rear lights / Ultra low cost navigation / BCM) |
 | Daylight running lamp / Right Tail Lamp / High Beam / Low Beam |
 | Radio / BCM / Energy management ECU |
 | Accessory socket |
 | Blower motor / AC control |
 | Front power window |
 | BCM |
 | Roof lamp / Window lift control relay coil |
 | Cluster |
 | Energy management ECU |
 | Horn |
 | Turn signal lights control |
 | Door locking |
 | Air conditioning compressor / Powertrain control relay coil |
 | Outside rear view mirror |
 | BCM / Gear shift lever / Cluster / Energy management ECU |
 | Stoplight switch |
 | Rear wiper/washer / backup light relay |
 | Electronic power steering |
 | Airbag |
 | Defogger |
 | Transponder / Electronic stability program / Stop lamp switch |
 | Rear power window |
 | Inverter |
 | Parking Aid switch / Speed limiter |
Engine Compartment Fuse Box
However, because they are less accessible, we recommend having an approved dealer replace your fuses.
