Dacia Logan (2005 – 2012) Fuse Box Location & Diagrams
The Dacia Logan (2005–2012) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Logan.
Fuse Box Location
Passenger Compartment Fuse Box

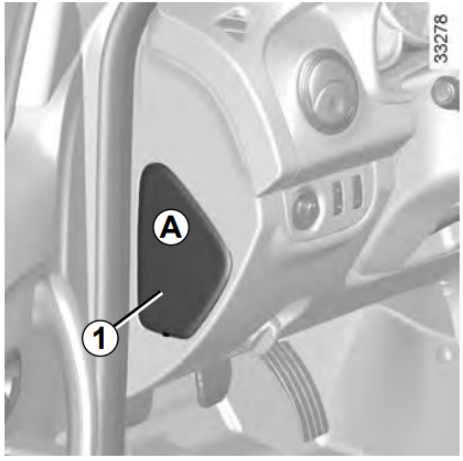

If any electrical component does not work, check the condition of the fuses. Unclip flap A using notch 1 to help you.
Engine Compartment Fuse Box

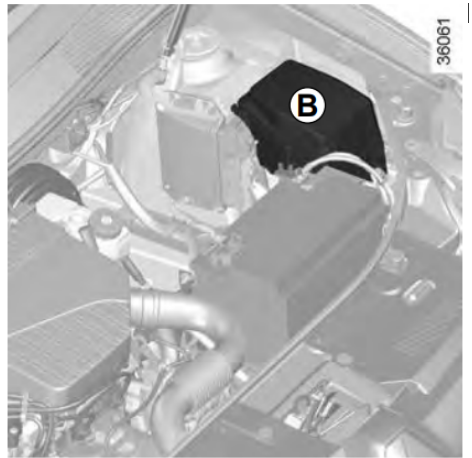

Fuses in engine compartment B Some functions are protected by fuses located in the engine compartment (unit B).

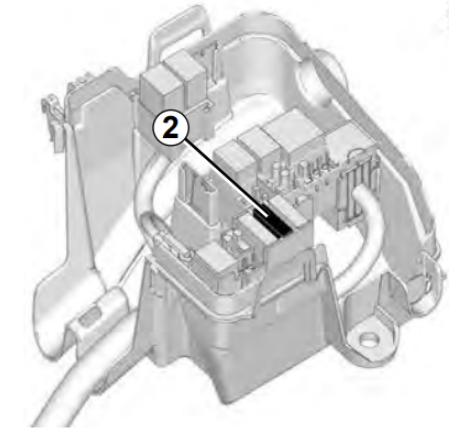

Special features of LPG versions The specific LPG 2 circuit shut-off fuseis located in the box B.
Fuse Box Diagrams

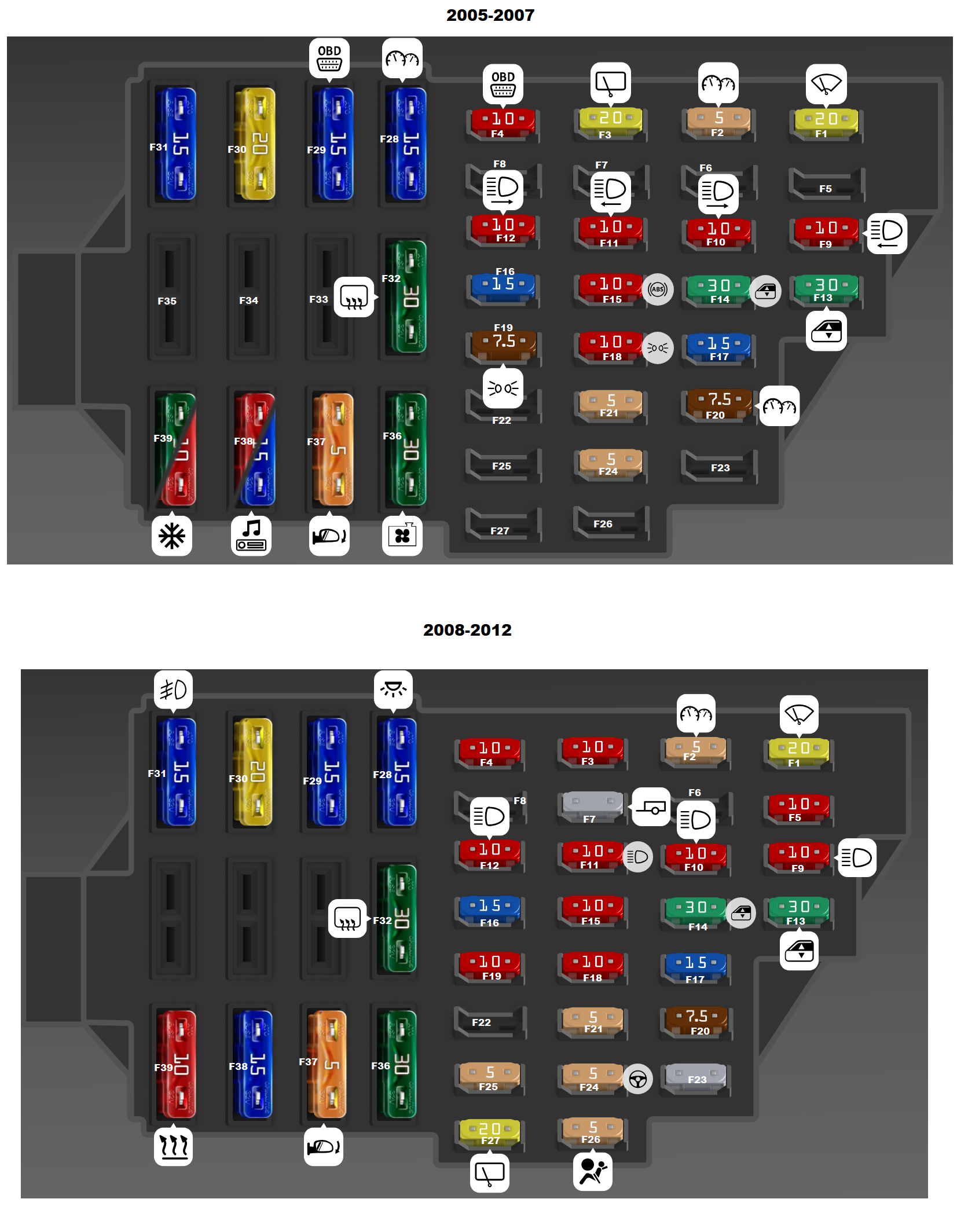

Passenger Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F1 | 20A MINI | 2005–2007: Windshield wiper motor, Wash/wipe switch, UHC computer. 2008–2012: Windshield wiper motor only. |
| F2 | 5A MINI | 2005–2007: Instrument cluster, Injection relay, Injection control unit. 2008–2012: Instrument cluster, ECU. |
| F3 | 20A MINI / 10A MINI | 2005–2007: Brake pedal switch, Wash/wipe switch, Headlight washer pump, Reverse light switch, Rear wiper motor. 2008–2012: Brake light switch, Reversing light switch. |
| F4 | 10A MINI | 2005–2007: Airbags, Pretensioners, UHC computer, Diagnostic socket, Transponder control unit, Daytime running light relay. 2008–2012: Electronic engine start blocking system, Airbag and seat belt pretensioner control unit. |
| F5 | — / 10A MINI | 2005–2007: Not used. 2008–2012: Automatic transmission. |
| F7 | — / MINI | 2005–2007: Not used. 2008–2012: Trailer electrical system. |
| F9 | 10A MINI | 2005–2007: Left headlight, Instrument cluster, Headlight washer pump. 2008–2012: Left headlight low beam. |
| F10 | 10A MINI | 2005–2007: Right headlight. 2008–2012: Right headlight low beam. |
| F11 | 10A MINI | 2005–2007: Left headlight, Instrument cluster. 2008–2012: Left headlight high beam. |
| F12 | 10A MINI | 2005–2007: Right headlight. 2008–2012: Right headlight high beam. |
| F13 | 30A MINI | 2005–2007: Rear right and rear left power windows. 2008–2012: Rear power windows. |
| F14 | 30A MINI | 2005–2007: Front one-touch power windows, Driver power window. 2008–2012: Front power windows. |
| F15 | 10A MINI | 2005–2007 & 2008–2012: ABS control unit. |
| F16 | 15A MINI | 2005–2007: Driver and passenger seat heating control units. 2008–2012: Heated front seats. |
| F17 | 15A MINI | 2005–2007: Buzzer / acoustic warning device. 2008–2012: Sound signal (horn). |
| F18 | 10A MINI | 2005–2007: Left position lights, rear lights, license plate lighting, instrument cluster, UHC, hazard illumination, climate control, audio, central locking, cigarette lighter, heated rear window, power windows. 2008–2012: Left side light, alarm switch, cigarette lighter. |
| F19 | 7.5A MINI / 10A MINI | 2005–2007: Right position lights, rear right position light. 2008–2012: Right side light. |
| F20 | 7.5A MINI | 2005–2007: Rear fog lights, Instrument cluster. 2008–2012: Rear fog lamp switch. |
| F21 | 5A MINI | 2005–2007 & 2008–2012: Heated exterior mirrors. |
| F23 | — / MINI | 2005–2007: Not used. 2008–2012: Security alarm installation position. |
| F24 | 5A MINI | 2005–2007: Power steering pump or unused. 2008–2012: Power steering. |
| F25 | — / 5A MINI | 2005–2007: Not used. 2008–2012: Gas equipment system. |
| F26 | — / 5A MINI | 2005–2007: Not used. 2008–2012: Airbag and seat belt pretensioner control unit. |
| F27 | — / 20A MINI | 2005–2007: Not used. 2008–2012: Rear wiper and reversing light switch. |
| F28 | 15A ATO | 2005–2007: Electrical cut-off, instrument cluster, audio system, UHC, interior and trunk lighting. 2008–2012: Interior lighting. |
| F29 | 15A ATO | 2005–2007: UHC computer, diagnostic socket. 2008–2012: General power supply. |
| F30 | 20A ATO | 2005–2007: UHC computer. 2008–2012: Central locking/body opening elements locking. |
| F31 | 15A ATO | 2005–2007: Power supply relay. 2008–2012: Fog lights. |
| F32 | 30A ATO | 2005–2007 & 2008–2012: Heated rear window. |
| F36 | 30A ATO | 2005–2007: Blower motor. 2008–2012: Heating, air conditioning and interior ventilation blower motor. |
| F37 | 5A ATO | 2005–2007 & 2008–2012: Electric door mirror controls. |
| F38 | 10A/15A ATO | 2005–2007: Audio system, cigarette lighter, daytime running light relay. 2008–2012: Car radio/audio system. |
| F39 | 30A/10A ATO | 2005–2007: Climate control system, blower motor, relay control unit. 2008–2012: Heating, air conditioning and ventilation systems. |
| F1R | Relay | 2008–2012: Burglar alarm, exterior light switch, daytime running light relay / Relay board supply. |
| F2R | Relay | 2008–2012: Ambient light switch, passenger compartment fuse mounting block. |
| F3R | Relay | 2008–2012: Injection system relay power supply, engine management ECU. |
Engine Compartment Fuse Box

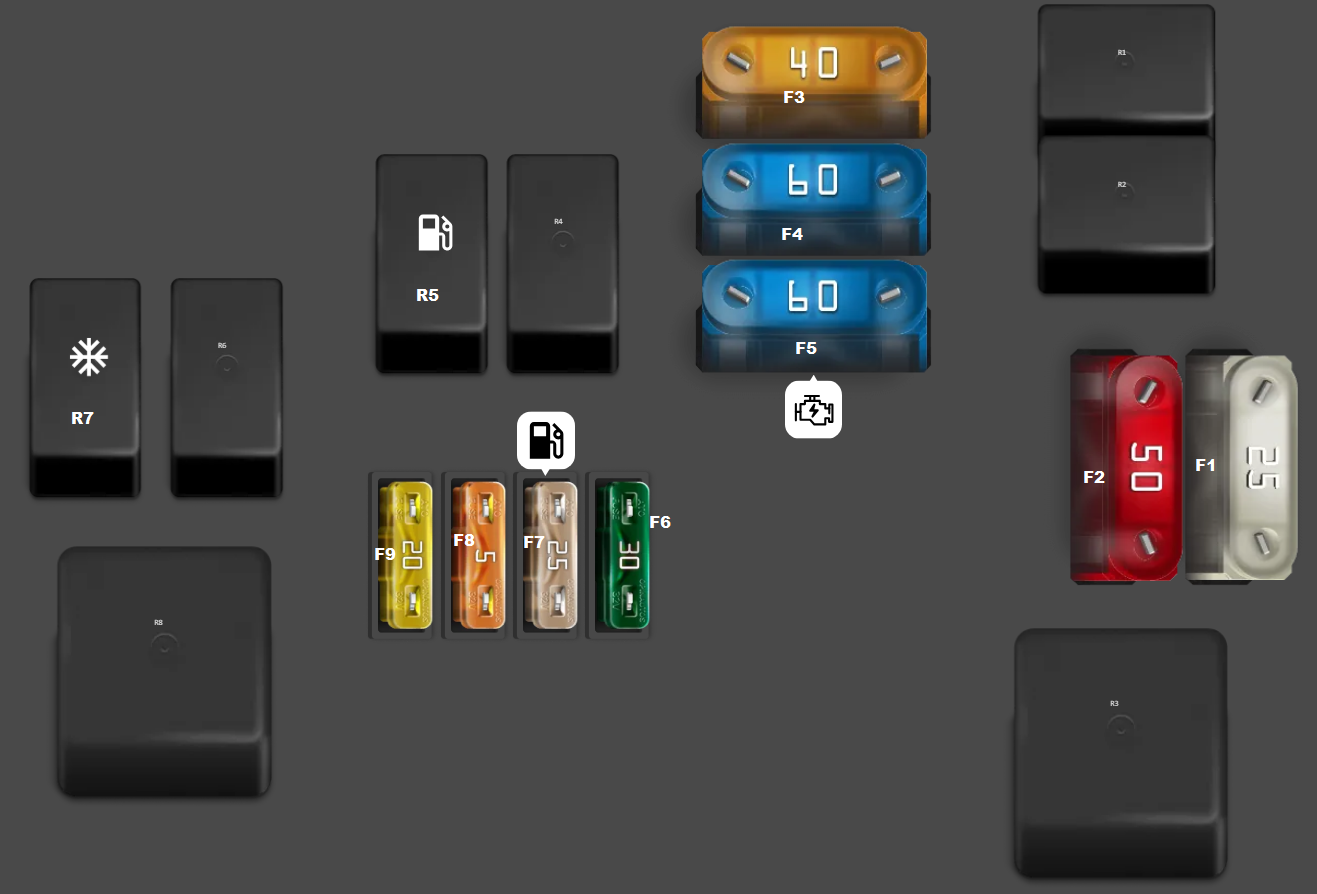

Type 1
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 25A | F1 | Anti-lock braking system electrical control unit |
| Fuse MAXI 50A | F2 | Anti-lock braking system electrical control unit |
| Fuse MAXI 40A | F3 | Power supply for the engine cooling fan high-speed relay, relay board, engine cooling fan relay, air conditioning compressor control relay |
| Fuse MAXI 60A | F4 | Multi-function control, passenger compartment fuse box |
| Fuse MAXI 60A | F5 | Ignition switch, multi-function control, daytime running lights relay, passenger compartment fuse box |
| Fuse ATO 30A | F6 | Relay board power supply |
| Fuse ATO 25A | F7 | Fuel pump relay, injection lockout relay |
| Fuse ATO 5A | F8 | Injection electrical control unit, injection lockout relay |
| Fuse ATO 20A | F9 | Automatic gearbox central electrical unit (K4M engine only) |
| Relay | R1 | Front fog lights |
| Relay | R2 | Horn relay |
| Relay | R3 | Cold air blower system device relay |
| Relay | R4 | Injection lockout relay |
| Relay | R5 | Fuel pump relay |
| Relay | R6 | Engine cooling fan low-speed relay |
| Relay | R7 | Air conditioning clutch relay |
| Relay | R8 | Engine cooling fan high-speed relay |
Type 2

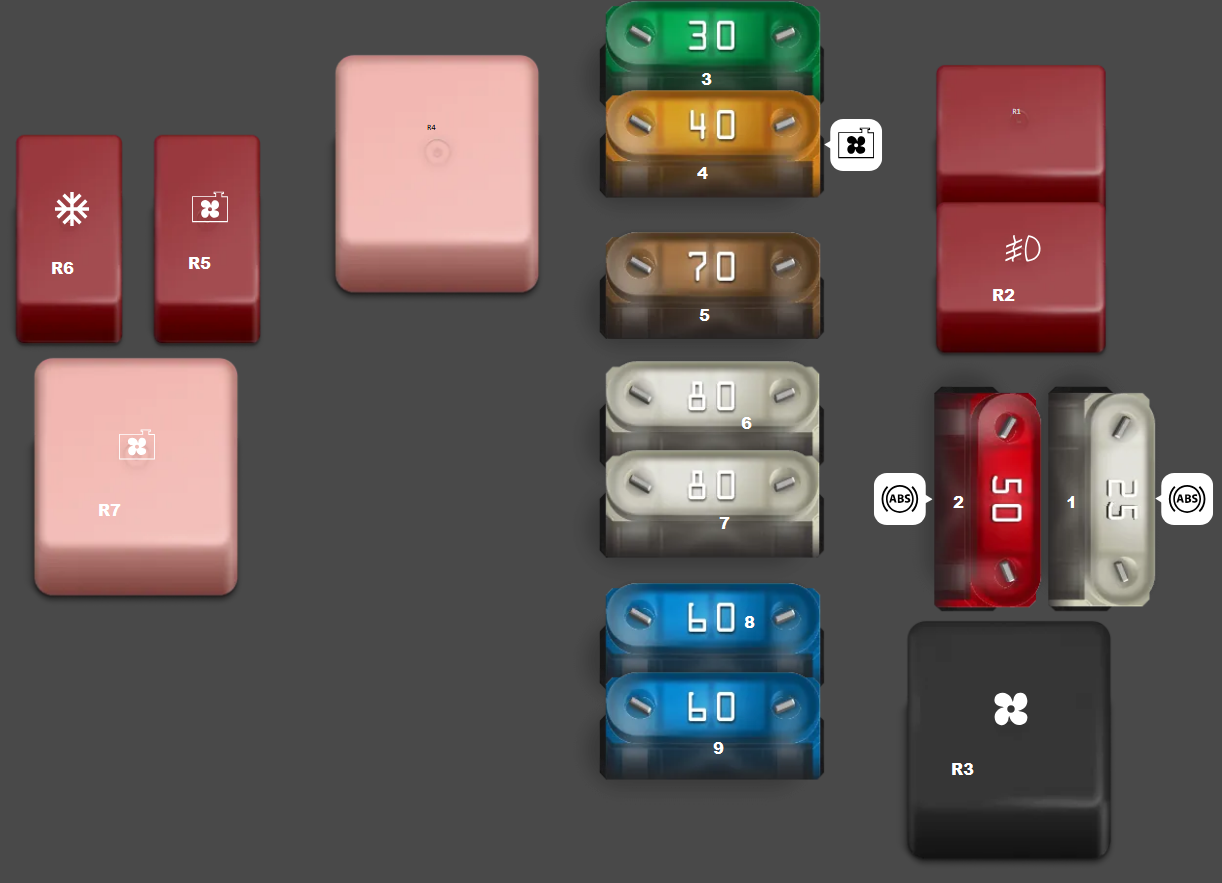

(2005-2007)
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 25A | 1 | ABS control unit |
| Fuse MAXI 50A | 2 | ABS control unit |
| Fuse MAXI 30A | 3 | Injection relay |
| Fuse MAXI 40A | 4 | Cooling fan, high speed |
| Fuse MAXI 70A | 5 | Preheating control unit |
| Fuse MAXI 80A | 6 | Power steering pump |
| Fuse MAXI 80A | 7 | Supplementary heating relay 1, Supplementary heating relay 2 |
| Fuse MAXI 60A | 8 | Passenger compartment fuse box |
| Fuse MAXI 60A | 9 | Ignition switch, Active daytime running light system |
| Relay | R1 | Headlight washer pump relay |
| Relay | R2 | Front fog light relay |
| Relay | R3 | Climate control blower motor |
| Relay | R4 | Diesel injection control unit or Not used |
| Relay | R5 | Cooling fan, low speed relay |
| Relay | R6 | Air conditioning compressor clutch relay |
| Relay | R7 | Cooling fan, fast action relay |

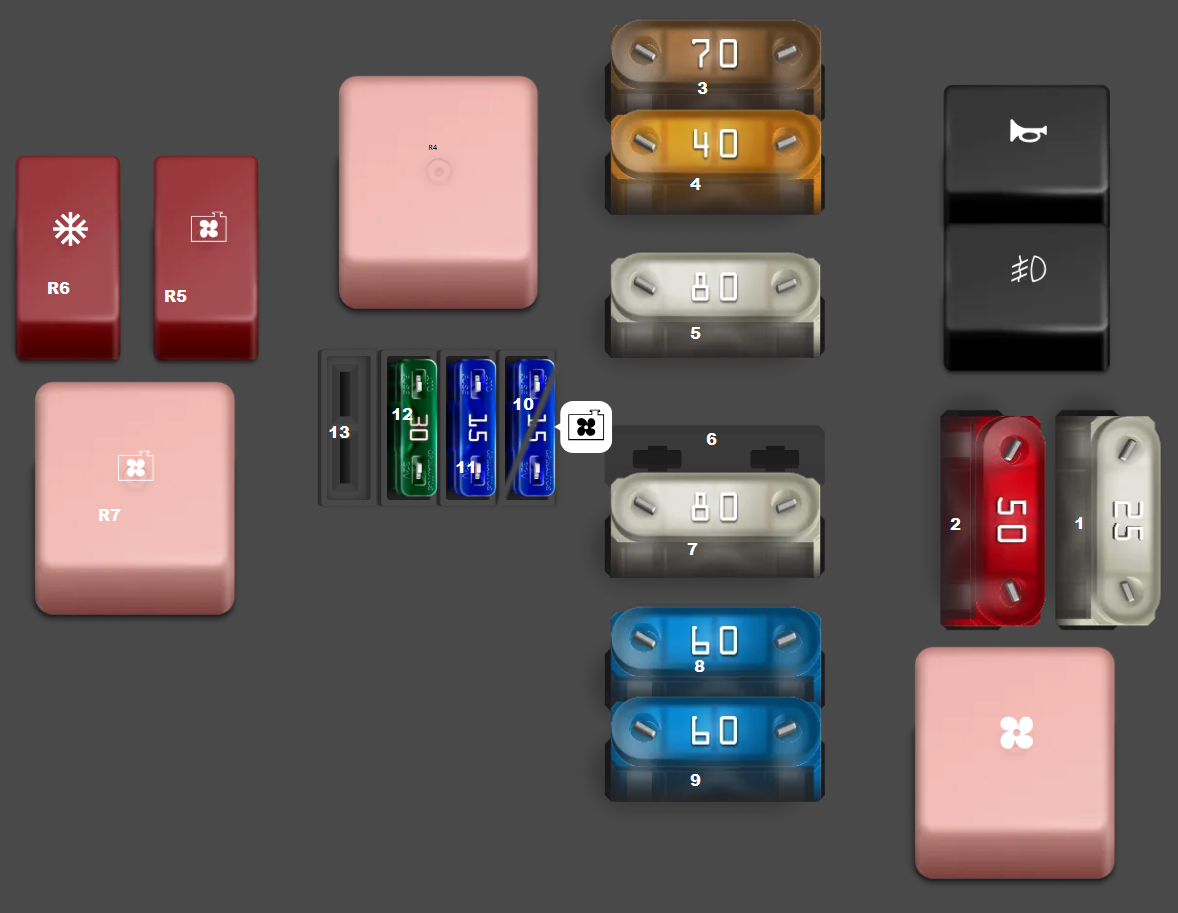

(2008-2012)
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 25A | 1 | ABS control unit |
| Fuse MAXI 50A | 2 | ABS control unit |
| Fuse MAXI 70A | 3 | Glow plug control unit |
| Fuse MAXI 40A | 4 | A/C compressor relay; Cooling fan, high speed relay; Cooling fan, low speed relay |
| Fuse MAXI 80A | 5 | Power steering pump |
| Fuse MAXI 80A | 7 | Additional heater relay 1; Additional heater relay 2 |
| Fuse MAXI 60A | 8 | Passenger compartment fuse box |
| Fuse MAXI 60A | 9 | Ignition switch, Daytime running light system active |
| Fuse ATO 15A | 10 | Cooling fan, low speed (30A is also used) |
| Fuse ATO 15A | 11 | Mass air flow sensor, Fuel in water sensor |
| Fuse ATO 30A | 12 | Injection control unit |
| Relay | R1 | Horn relay |
| Relay | R2 | Front fog light relay |
| Relay | R3 | A/C blower motor |
| Relay | R4 | Diesel injection control unit relay |
| Relay | R5 | Cooling fan, low speed relay |
| Relay | R6 | A/C compressor clutch relay |
| Relay | R7 | Cooling fan, high speed relay |
