Haval H6 HEV/PHEV (2021 – 2025) Fuse Box Location & Diagrams
The Haval H6 HEV/PHEV fuse box protects the vehicle’s electrical systems and components. This blog covers the fuse box location and diagrams for Haval H6 HEV/PHEV models from 2021 to 2025, helping you identify fuse positions, ratings, and protected circuits quickly and accurately.
Fuse Box Location

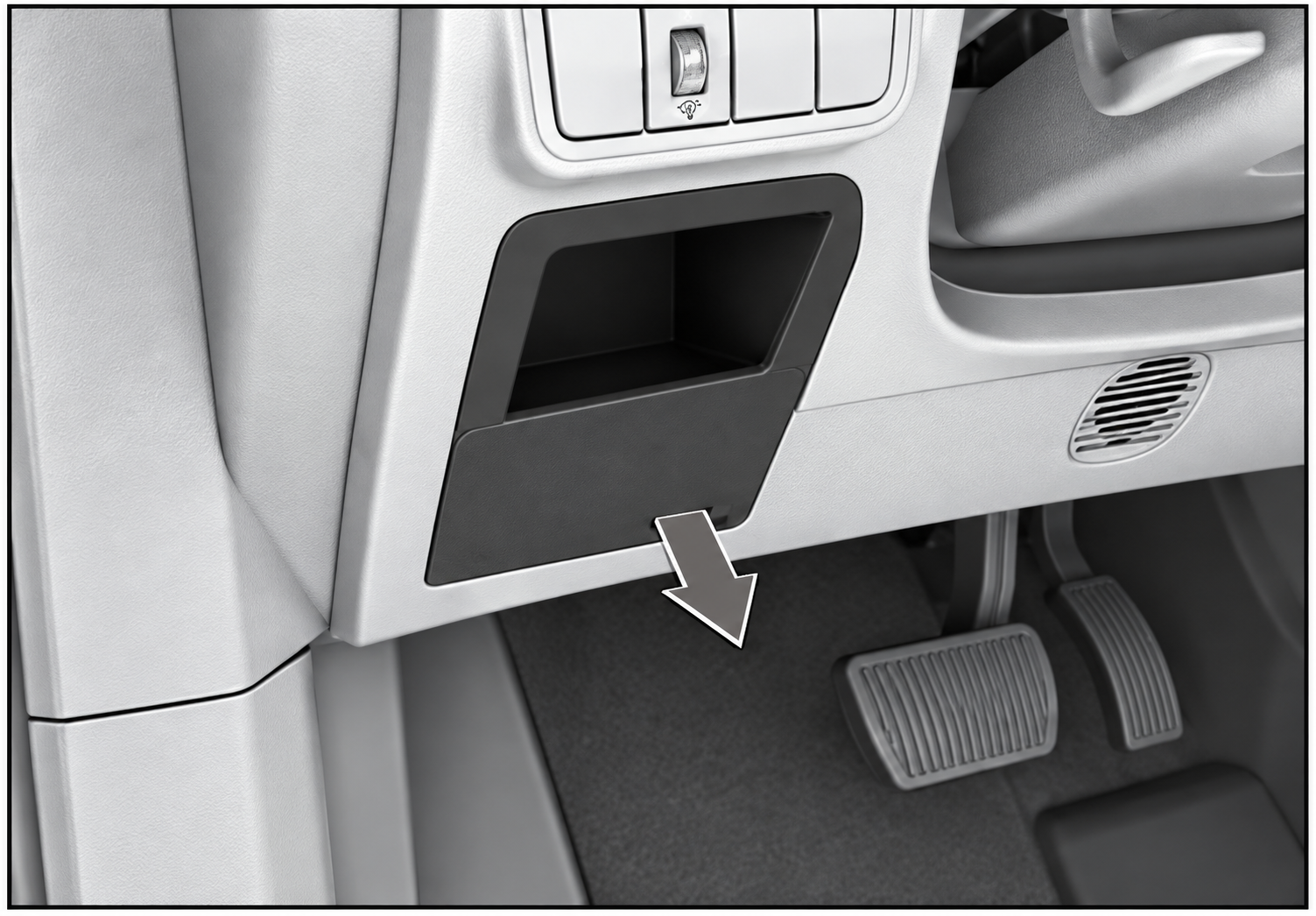

Passenger Compartment Fuse Box
Located in the instrument panel near the steering wheel.

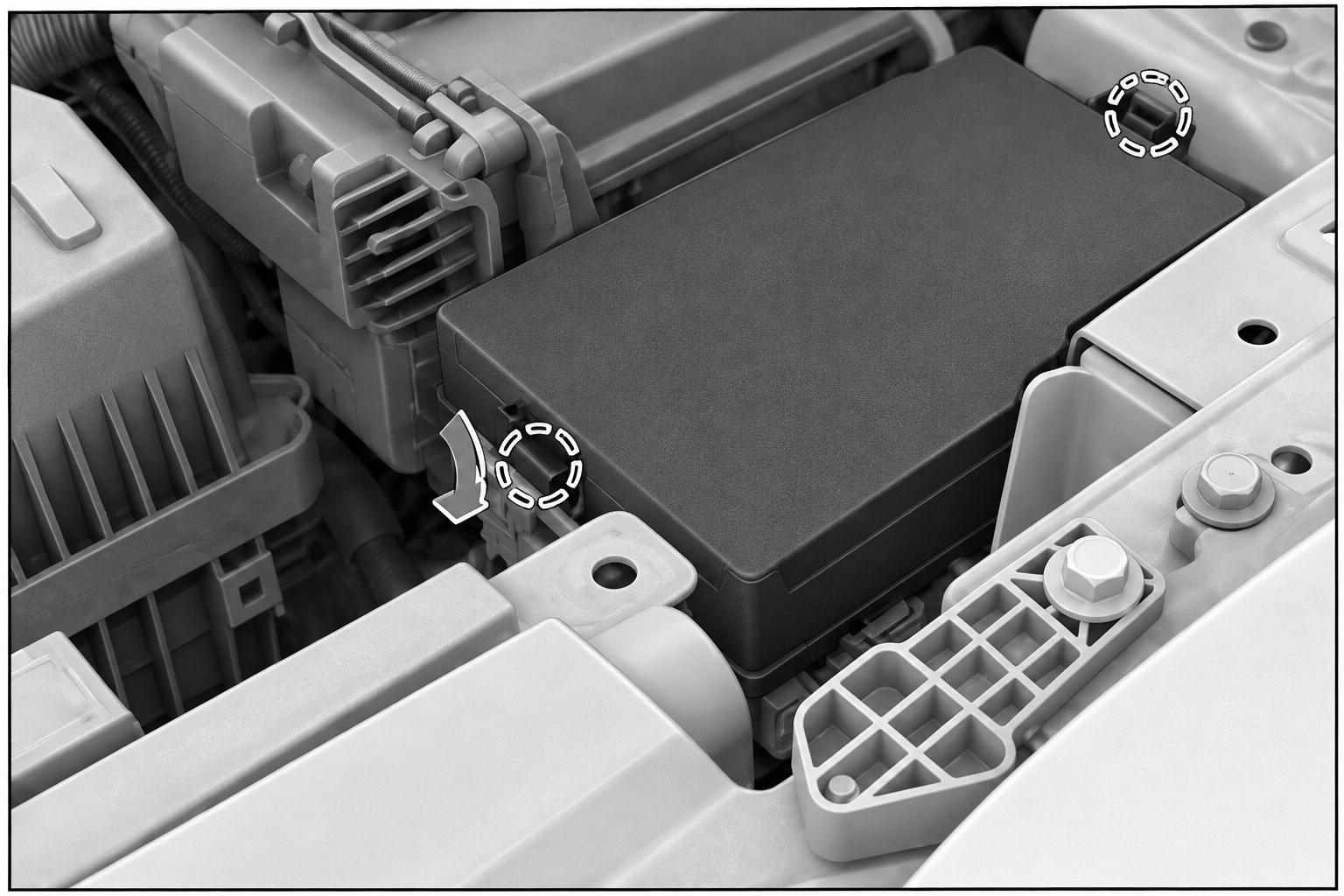

Engine Compartment Fuse Box
Located in the engine room fuse box.
Fuse Box Diagrams

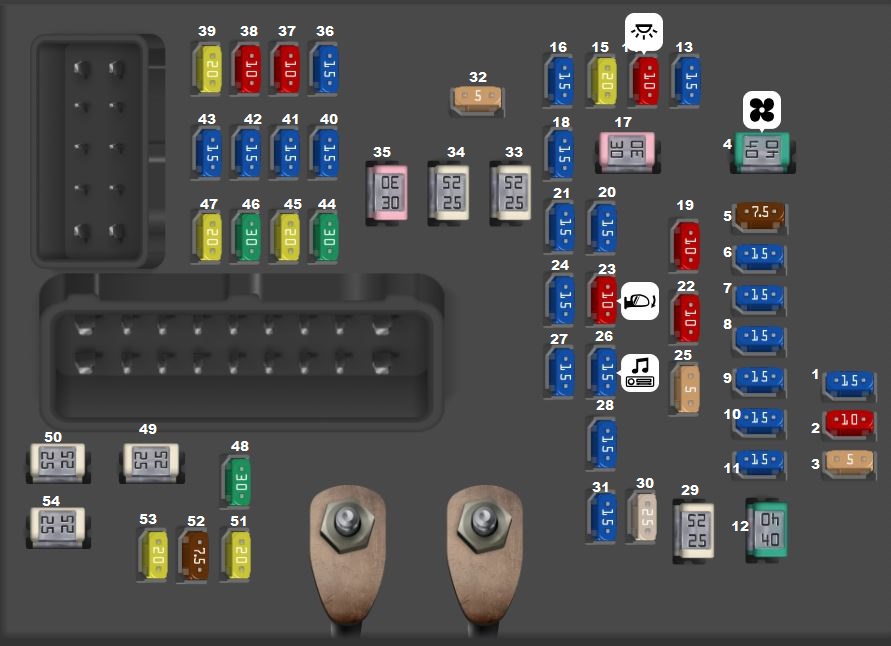

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MICRO2 15A | 1 | HCU-BAT |
| Fuse MICRO2 10A | 2 | Driving recorder DVR |
| Fuse MICRO2 5A | 3 | Gateway |
| Fuse FMM/MCase 40A | 4 | Blower |
| Fuse MICRO2 7.5A | 5 | USB Charging Port |
| Fuse MICRO2 15A | 6 | Steering Wheel Heating |
| Fuse MICRO2 15A | 7 | Front Backup Power |
| Fuse MICRO2 15A | 8 | IG1 |
| Fuse MICRO2 15A | 9 | Reserve Space |
| Fuse MICRO2 15A | 10 | KBCM 1 |
| Fuse MICRO2 15A | 11 | KBCM 2 |
| Fuse FMM/MCase 40A | 12 | 400W DC/DC |
| Fuse MICRO2 15A | 13 | Cold/Warm Cup Holder |
| Fuse MICRO2 10A | 14 | Interior Light |
| Fuse MICRO2 20A | 15 | Super Lock |
| Fuse MICRO2 15A | 16 | Driver Door Unlocked |
| Fuse FMM/MCase 30A | 17 | 200W DC/DC |
| Fuse MICRO2 15A | 18 | Back Row Power |
| Fuse MICRO2 10A | 19 | Diagnostic port OBD |
| Fuse MICRO2 15A | 20 | Radar RSDS |
| Fuse MICRO2 15A | 21 | Air bag controller ABM |
| Fuse MICRO2 10A | 22 | T-BOX ADAS AC |
| Fuse MICRO2 10A | 23 | Exterior Mirror |
| Fuse MICRO2 15A | 24 | Central Control Lock |
| Fuse MICRO2 5A | 25 | Electronic gearbox IG SBWA |
| Fuse MICRO2 15A | 26 | Amplifier 1 |
| Fuse MICRO2 15A | 27 | Amplifier2 |
| Fuse MICRO2 15A | 28 | T-BOX IP |
| Fuse FMM/MCase 25A | 29 | Sun Roof |
| Fuse MICRO2 25A | 30 | Multimedia host HUT |
| Fuse MICRO2 15A | 31 | Reserve Spare |
| Fuse MICRO2 5A | 32 | High-pressure – Fuel Tank Lock |
| Fuse FMM/MCase 25A | 33 | Driver’s side door module DDCM |
| Fuse FMM/MCase 25A | 34 | Passenger side door module PDGM |
| Fuse FMM/MCase 30A | 35 | ACU |
| Fuse MICRO2 15A | 36 | Electronic Child Lock |
| Fuse MICRO2 10A | 37 | HCU high-pressure water pump |
| Fuse MICRO2 10A | 38 | Reserved Spare |
| Fuse MICRO2 20A | 39 | HCU1 |
| Fuse MICRO2 15A | 40 | Trailer Controller 1 |
| Fuse MICRO2 15A | 41 | BMS DCDC |
| Fuse MICRO2 15A | 42 | Charger |
| Fuse MICRO2 15A | 43 | Trailer controller 2 |
| Fuse MICRO2 30A | 44 | Seat Control |
| Fuse MICRO2 20A | 45 | Heated front seats HWSM |
| Fuse MICRO2 30A | 46 | Side controller CP |
| Fuse MICRO2 20A | 47 | Trailer power outlet |
| Fuse MICRO2 30A | 48 | Power liftgate PLG |
| Fuse FMM/MCase 25A | 49 | Doors and Windows WND Motor |
| Fuse FMM/MCase 25A | 50 | Differential lock 1 ELD1 |
| Fuse MICRO2 20A | 51 | Heated rear seats |
| Fuse MICRO2 7.5A | 52 | Tire pressure TPMS |
| Fuse MICRO2 20A | 53 | Four-wheel drive controller Haldex |
| Fuse FMM/MCase 25A | 54 | Differential lock 2 ELD2 |

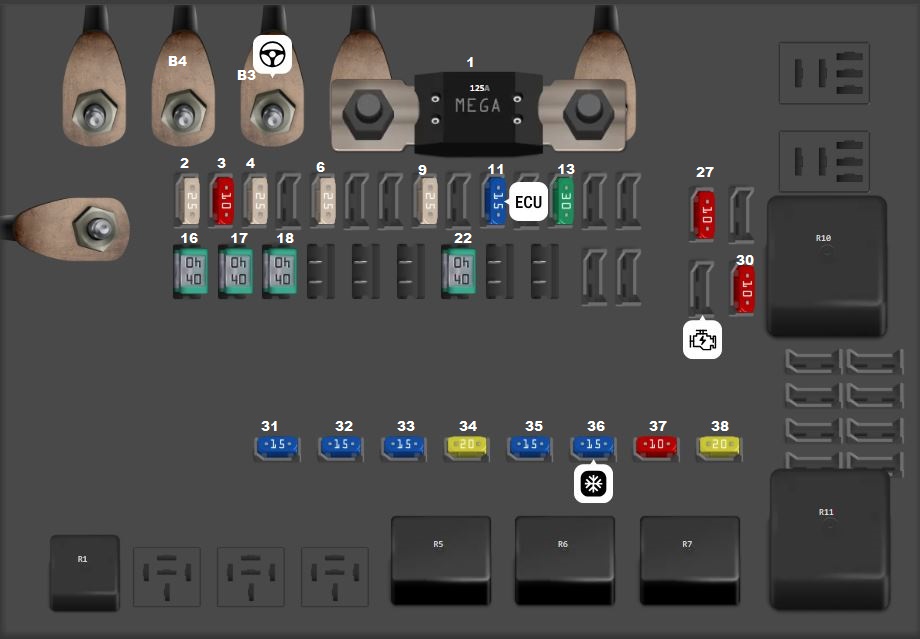

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse MEGA 125A | 1 | IP fuse box |
| Fuse MINI 25A | 2 | Intelligent control unit 2 |
| Fuse MINI 10A | 3 | Water Pump TCU |
| Fuse MINI 25A | 4 | TCU1 |
| Fuse MINI 25A | 6 | TCU2 |
| Fuse MINI 25A | 9 | Intelligent control unit 4 |
| Fuse MINI 15A | 11 | ECU |
| Fuse MINI 30A | 13 | Start |
| Fuse FMM/MCase 40A | 16 | ESP1 |
| Fuse FMM/MCase 40A | 17 | ESP2 |
| Fuse FMM/MCase 40A | 18 | Heated windshield 1 |
| Fuse FMM/MCase 40A | 22 | Heated windshield 2 |
| Fuse FMM/MCase | 24 | Intelligent control unit 3 |
| Fuse MINI 10A | 27 | ECU IG1 |
| Fuse MINI | 28 | Spare reserved |
| Fuse MINI | 29 | Starter |
| Fuse MINI 10A | 30 | Heated nozzle Wiper front windshield wiper |
| Fuse MICRO2 15A | 31 | Main relay 2 M-RLY2 |
| Fuse MICRO2 15A | 32 | Main relay 3 M-RLY3 |
| Fuse MICRO2 15A | 33 | HONER |
| Fuse MICRO2 20A | 34 | Front wiper blades |
| Fuse MICRO2 15A | 35 | Washing motor |
| Fuse MICRO2 15A | 36 | AC COMPRESSOR |
| Fuse MICRO2 10A | 37 | Main relay 1 |
| Fuse MICRO2 20A | 38 | Main relay 4 |
| Battery terminal | B2 | Air conditioning fan COND_FAN |
| Battery terminal | B3 | EPS |
| Battery terminal | B4 | Electric motor pump |
| Relay | R1 | TCU water pump |
| Relay | R5 | Drive chain relay |
| Relay | R6 | Status relay |
| Relay | R7 | Start relay |
| Relay | R10 | Heated windshield relay 2 |
| Relay | R11 | Heated windshield relay 1 |
