Holden Apollo (1993 – 1997) Fuse Box Location & Diagrams

Holden Apollo (1993–1997) fuse box diagrams help you locate the vehicle’s fuse panels and identify the fuses protecting important electrical systems. This guide covers fuse box locations, fuse assignments, and diagrams for the 1993–1997 Holden Apollo.

Fuse Box Location

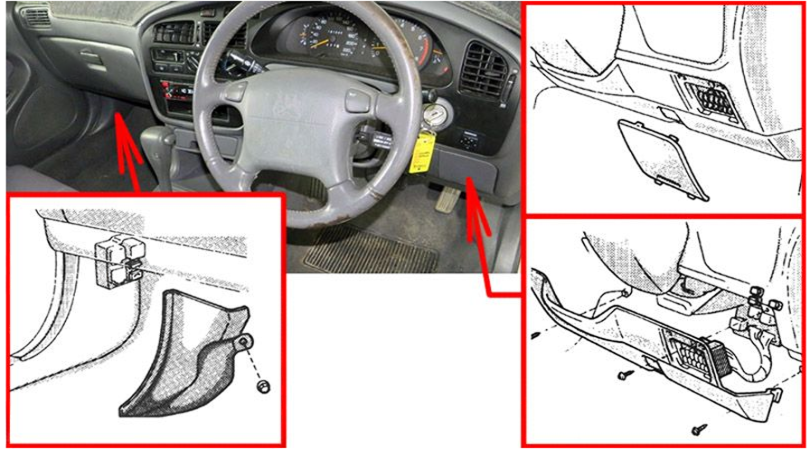

Passenger Compartment Fuse Box

There are two fuse boxes here, the first is behind the cover on the driver’s side instrument panel and the second is in the passenger’s side kick panel.

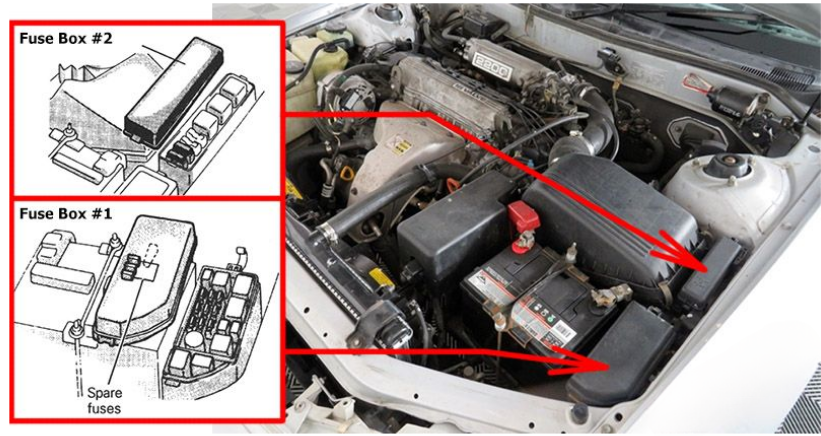

Engine Compartment Fuse Box

Fuse Box Diagrams

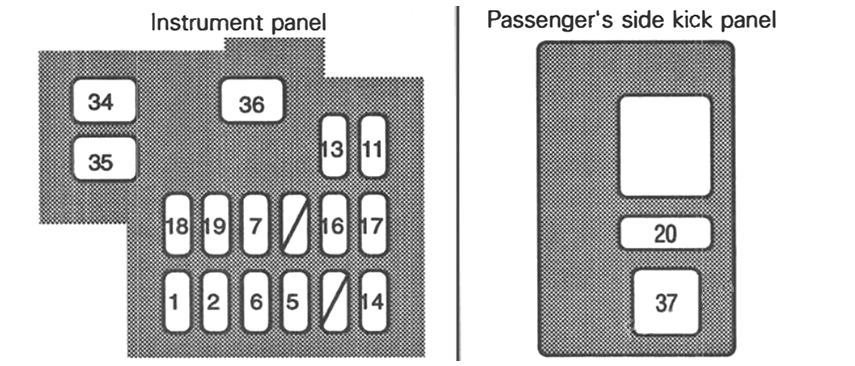

Passenger Compartment Fuse Box

№	Fuse Name	Amps	Function
1	ECU-IG	15A	Electronically controlled automatic transmission system, cruise control system, anti-lock brake system, security system
2	GAUGE	10A	Gauges and meters, backup light, air conditioning control system, rear window defogger, warning lights, engine and ECT ECU
5	WIPER	20A	Windshield wipers and washers
6	TURN	7.5A	Turn signal lights and emergency flashers
7	IGN	7.5A	Engine and ECT ECU, charging system
11	ECU-B	15A	Anti-lock brake system, engine and ECT ECU
13	STOP	20A	Stop lights, cruise control system, anti-lock brake system, engine and ECT ECU
14	CIG	15A	Audio system, clock, cigarette lighter, exterior mirror
15	–	–	Not used
16	TAIL	15A	Tail lights, parking lights, licence plate lights, instrument panel light
17	–	–	Not used
18	SPARE		Spare fuse
19	SPARE		Spare fuse
20	A/C	10A	Air conditioning control system
34	P/W	30A	Power windows, power door lock control system, security system
35	DEFOG	40A	Rear window defogger
36	AM 1	40A	Starting system, cigarette lighter, wipers, gauges, turning lights, engine ECT ECU
37	HTR	40A	Air conditioning control system

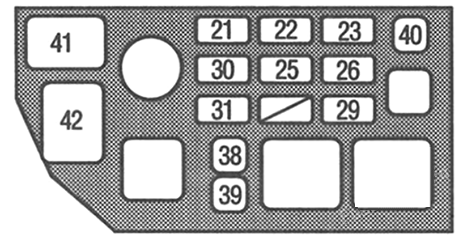

Engine Compartment Fuse Box

№	Fuse Name	Amps	Function
21	STARTER	10A	Starter system, engine and ECT ECU
22	ALT-S	7.5A	Charging system
23	EFI	15A	Engine and ECT ECU, fuel pump, security system
25	DOME	20A	Audio system, interior light, clock, ignition switch light, trunk room light, security system
26	HAZ-HORN	15A	Turn signal lights, emergency flasher, horn, security system
29	AM2	30A	Igniter
30	HEAD (RH)	15A	Right-hand headlight
31	HEAD (LH)	15A	Left-hand headlight
34	P/W	30A	Power windows, power door lock control system, security system
35	DEFOG	40A	Rear window defogger
38	CDS	30A	Condenser cooling fan
39	FAN	30A	Radiator cooling fan
40	ST MAIN	30A	Starting system, engine and ECT ECU
41	ALT	100A	Charging systEJm, stop lights, heater, defogger, anti-lock braket system
42	A.B.S.	60A	Anti-lock brake system
