Holden Caprice (2000 – 2006) Fuse Box Location & Diagrams
The Holden Caprice (2000–2006) fuse box protects essential electrical systems and helps prevent damage from electrical faults. Knowing the fuse box location, fuse assignments, and diagrams makes it easier to identify the correct fuse for lighting, accessories, safety systems, and other vehicle functions.
Fuse Box Location

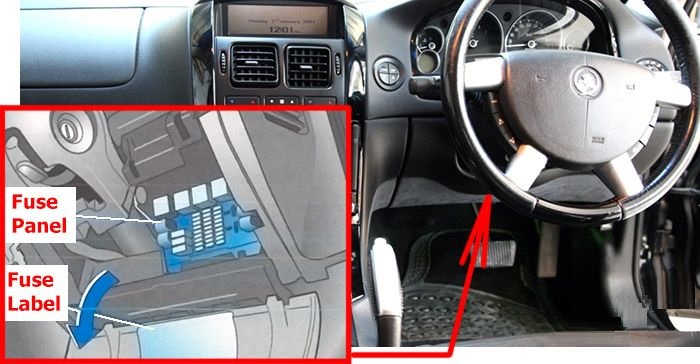

Passenger Compartment Fuse Box
The main fuse panel is in the instrument panel, below the steering column. Pull the hinged fuse panel down to reveal the fuses.

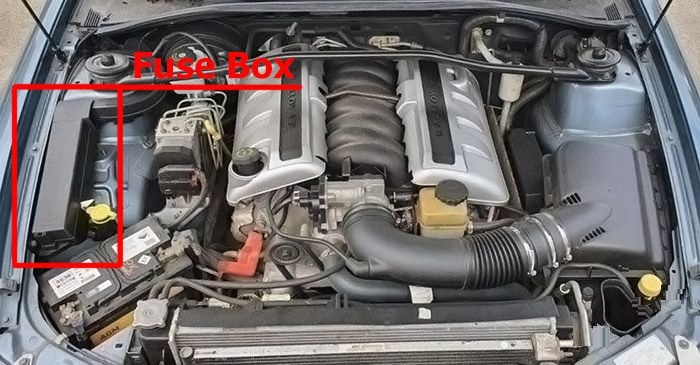

Engine Compartment Fuse Box
Access to these fuses is gained by removing the snap-on cover.
Fuse Box Diagrams

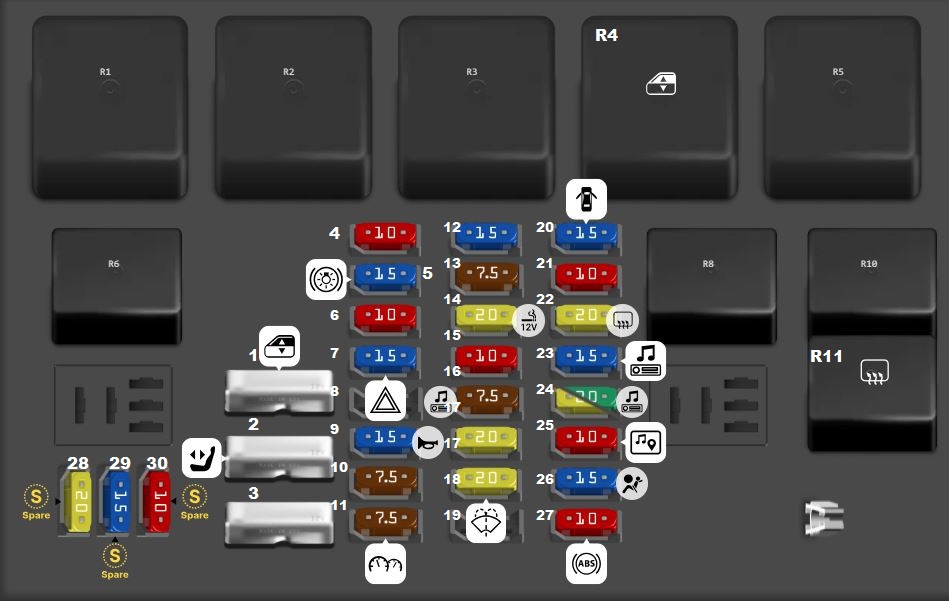

Passenger Compartment Fuse Box
| Type | Description |
| Circuit breaker ATO | 1 POWER WINDOWS |
| Circuit breaker ATO | 2 POWER SEATS |
| Circuit breaker ATO | 3 SUNROOF |
| Fuse MINI 10A | 4 PARK LAMPS |
| Fuse MINI 15A | 5 STOP LAMPS |
| Fuse MINI 10A | 6 INTERIOR ILLUMINATION |
| Fuse MINI 15A | 7 HAZARD LAMPS / ANTENNA DRIVE VIA BCM |
| Fuse MINI 15A | 9 HORN |
| Fuse MINI 7.5A | 10 IGNITION SWITCH |
| Fuse MINI 7.5A | 11 INSTRUMENT ILLUMINATION |
| Fuse MINI 15A | 12 TURN SIGNALS & BACK UP LAMPS |
| Fuse MINI 7.5A | 13 ECC, TRIP COMPUTER INSTRUMENTS & TELEMATICS |
| Fuse MINI 20A | 14 CIGAR LIGHTER |
| Fuse MINI 10A | 15 CRUISE, POWER MIRRORS & LEVEL RIDE |
| Fuse MINI 7.5A | 16 RADIO, MDF, NAVIGATION & CELL PHONE |
| Fuse MINI 20A | 17 ACCESORY SOCKET |
| Fuse MINI 20A | 18 FRONT WIPER WASHER |
| Fuse MINI 15A | 20 POWER LOCKS, POWER WINDOWS & THEFT HORN |
| Fuse MINI 10A | 21 INSTRUMENTS & CLIMATE CONTROL |
| Fuse MINI 20A | 22 HEATED REAR WINDOW |
| Fuse MINI 15A | 23 RADIO, CELL PHONE & NAVIGATION |
| Fuse MINI 20A | 24 SUB WOOFER |
| Fuse MINI 30A | 24 AMPLIFIER |
| Fuse MINI 10A | 25 ENTERTAINMENT SYSTEM |
| Fuse MINI 15A | 26 SRS |
| Fuse MINI 10A | 27 ANTI LOCK BRAKES |
| Fuse MINI 20A | 28 SPARE |
| Fuse MINI 15A | 29 SPARE |
| Fuse MINI 10A | 30 SPARE |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Relay | R1 FLASHER UNIT |
| Relay | R2 ACCESORY CONTROL RELAY |
| Relay | R3 IGNITION CONTROL RELAY |
| Relay | R4 POWER WINDOW RELAY |
| Relay | R5 BLOWER INHIBIT RELAY |
| Relay | R6 PARK LAMPS RELAY |
| Relay | R8 Hazard illumination Relay |
| Relay | R10 INTERIOR ILLUMINATION RELAY |
| Relay | R11 DEFOG RELAY |
Engine Compartment Fuse Box

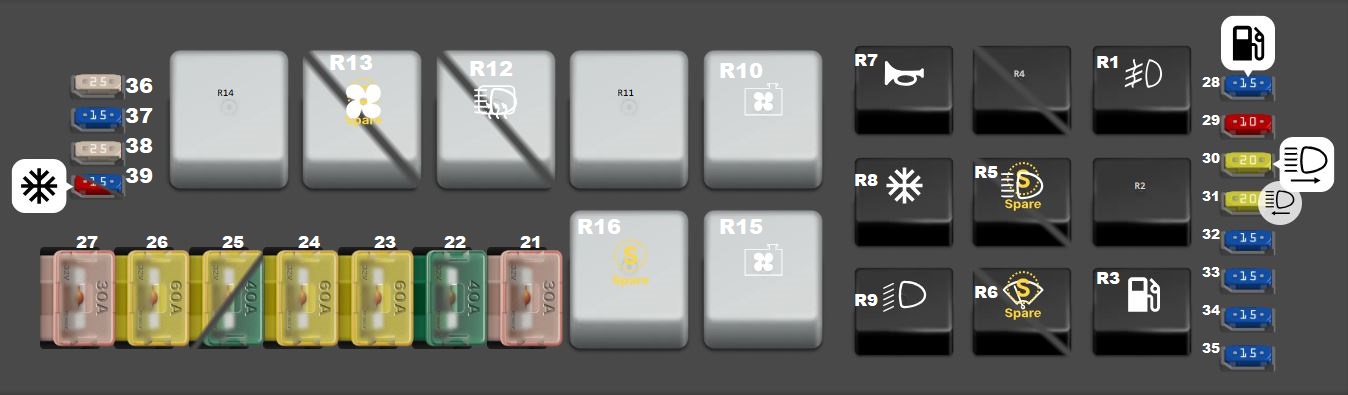

Type 1
| Type | No. | Description |
| Fuse FLF/PAL 293 30A | 21 | RAD FAN 1 F/L |
| Fuse FLF/PAL 293 40A | 22 | BLOWER F/L |
| Fuse FLF/PAL 293 60A | 23 | MAIN F/L |
| Fuse FLF/PAL 293 60A | 24 | ENGINE F/L |
| Fuse FLF/PAL 293 60A | 25 | ABS F/L [V8] |
| Fuse FLF/PAL 293 40A | 25 | ABS F/L [V6] |
| Fuse FLF/PAL 293 60A | 26 | LIGHTING F/L |
| Fuse FLF/PAL 293 30A | 27 | RAD FAN 2 F/L |
| Fuse MINI 15A | 28 | FUEL PUMP |
| Fuse MINI 10A | 29 | ENG CONT BCM |
| Fuse MINI 20A | 30 | RH HEADLAMP |
| Fuse MINI 20A | 31 | LH HEADLAMP |
| Fuse MINI 15A | 32 | AUTO TRANS |
| Fuse MINI 15A | 33 | ENG SENSOR |
| Fuse MINI 15A | 34 | INJ IGN |
| Fuse MINI 15A | 35 | INJ IGN |
| Fuse MINI 25A | 36 | T. RELAY |
| Fuse MINI 15A | 37 | ENG SSR 2 [Morano] |
| Fuse MINI 25A | 38 | Level Ride [Morano] |
| Fuse MINI 10A | 39 | AC Clutch [V6 Morano] |
| Fuse MINI 15A | 39 | TAC CM [V8 Morano] |
| Relay | R1 | FOG LAMP RELAY |
| Relay | R2 | LEVEL RIDE RELAY |
| Relay | R3 | FUEL PUMP RELAY |
| Relay | R4 | LEFT HORN RELAY |
| Relay | R4 | BTSI / BRAKE LP RELAY [Morano] |
| Relay | R5 | SPARE |
| Relay | R5 | HEADLAMP HI [Morano] |
| Relay | R6 | FRONT WIPER RELAY |
| Relay | R6 | SPARE [Morano] |
| Relay | R7 | HORN RELAY |
| Relay | R8 | A/C RELAY |
| Relay | R9 | LOW BEAM RELAY |
| Relay | R10 | RAD FAN HIGH SPEED RELAY |
| Relay | R11 | ENGINE CONT. RELAY |
| Relay | R12 | HIGH BEAM RELAY |
| Relay | R12 | HEATED REAR WINDOW [Morano] |
| Relay | R13 | SPARE |
| Relay | R13 | BLOWER FAN RELAY [Morano] |
| Relay | R14 | START RELAY |
| Relay | R15 | RAD FAN LOW SPEED RELAY |
| Relay | R16 | SPARE |

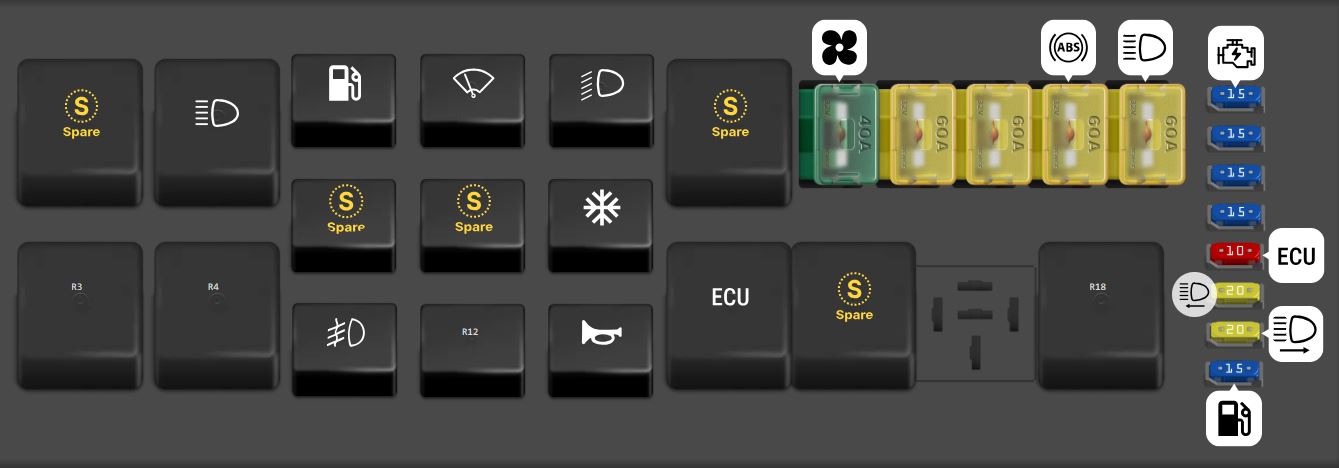

Type 2
| Type | No. | Description |
| Fuse FLF/PAL 293 40A | 1 | Blower |
| Fuse FLF/PAL 293 60A | 2 | Main |
| Fuse FLF/PAL 293 60A | 3 | Engine |
| Fuse FLF/PAL 293 60A | 4 | ABS |
| Fuse FLF/PAL 293 60A | 5 | Lighting |
| Fuse MINI 15A | 6 | Ignition |
| Fuse MINI 15A | 7 | Injectors |
| Fuse MINI 15A | 8 | Engine Sensors |
| Fuse MINI 15A | 9 | Atuomatic Transmission |
| Fuse MINI 10A | 10 | Engine Control |
| Fuse MINI 20A | 11 | LH Headlamps |
| Fuse MINI 20A | 12 | RH Headlamps |
| Fuse MINI 15A | 13 | Fuel Pump |
| Relay | R1 | Spare |
| Relay | R2 | High Beam |
| Relay | R3 | Start |
| Relay | R4 | Engine Fan High Speed |
| Relay | R5 | Fuel Pump |
| Relay | R6 | Front Wiper |
| Relay | R7 | Low Beam |
| Relay | R8 | Spare |
| Relay | R9 | Spare |
| Relay | R10 | Air Conditioner |
| Relay | R11 | Fog Lamp |
| Relay | R12 | Theft Horn |
| Relay | R13 | Horn |
| Relay | R14 | Spare |
| Relay | R15 | Engine Control |
| Relay | R16 | Spare |
| Relay | R18 | Engine Fan Low Speed |
