Holden Statesman WM (2006 – 2010) Fuse Box Location & Diagrams
The Holden Statesman WM (2006–2010) features several fuses that protect its electrical systems and components. Knowing the fuse box locations and understanding the fuse diagrams can help you quickly identify the correct fuse when troubleshooting electrical problems, replacing a blown fuse, or maintaining your vehicle’s electrical system.
Fuse Box Location

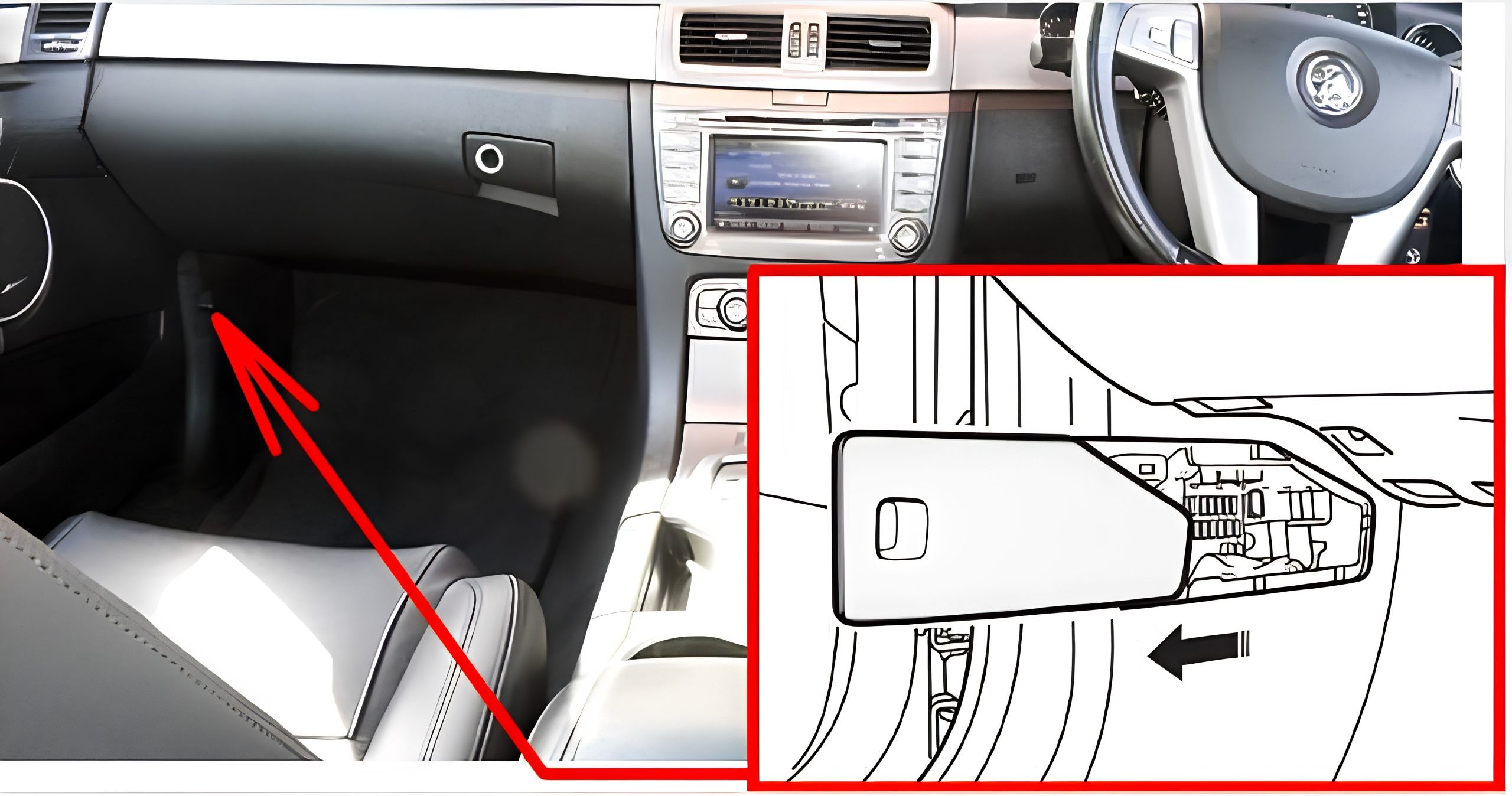

Passenger Compartment Fuse Box
The fuse panel is located in the left hand side kick panel. Use the slot in the fuse panel cover and slide rearwards to reveal the fuse panel.

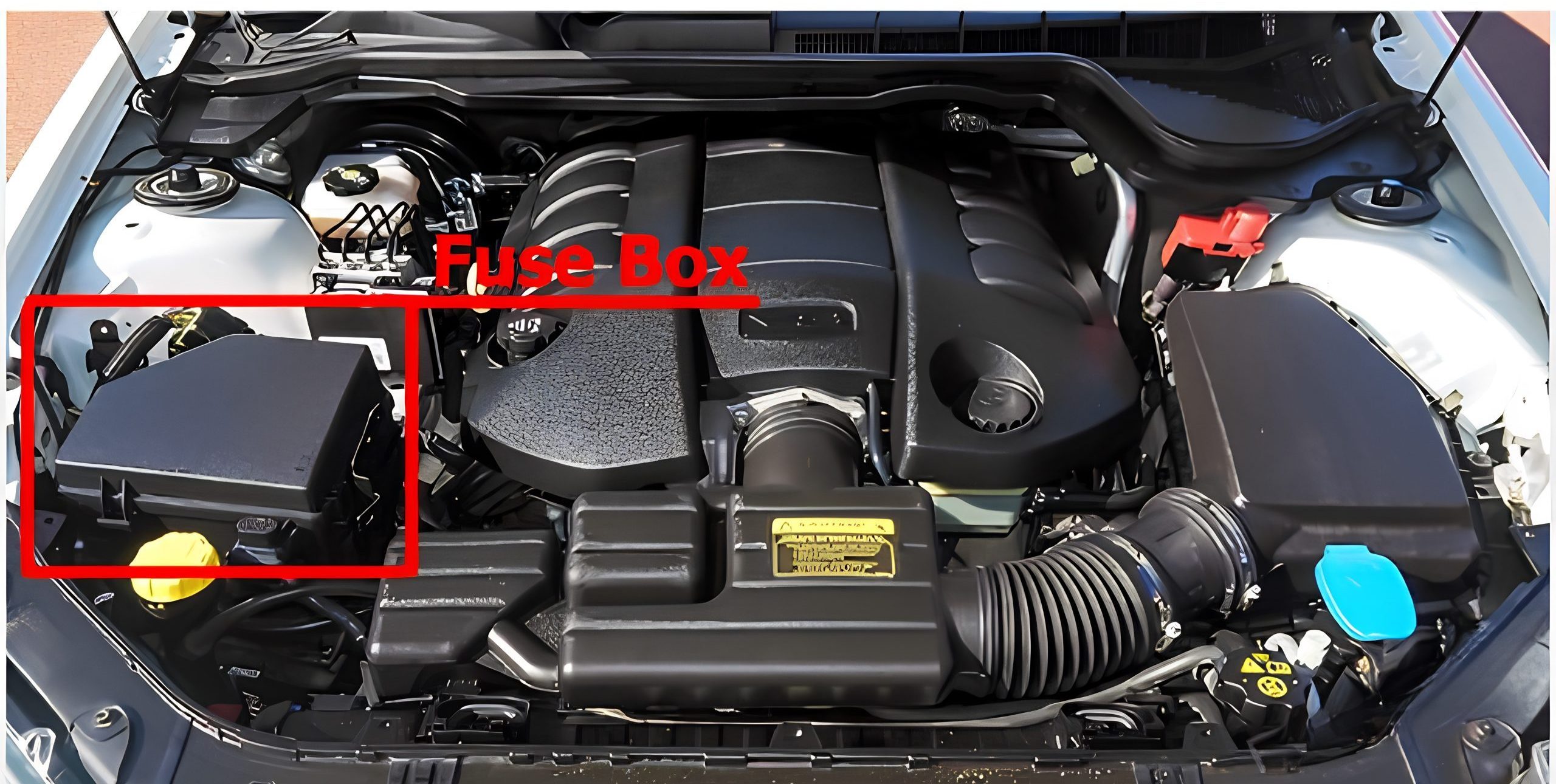

Engine Compartment Fuse Box
This is the main fuse/relay box. Remove the clip-on cover to gain access.

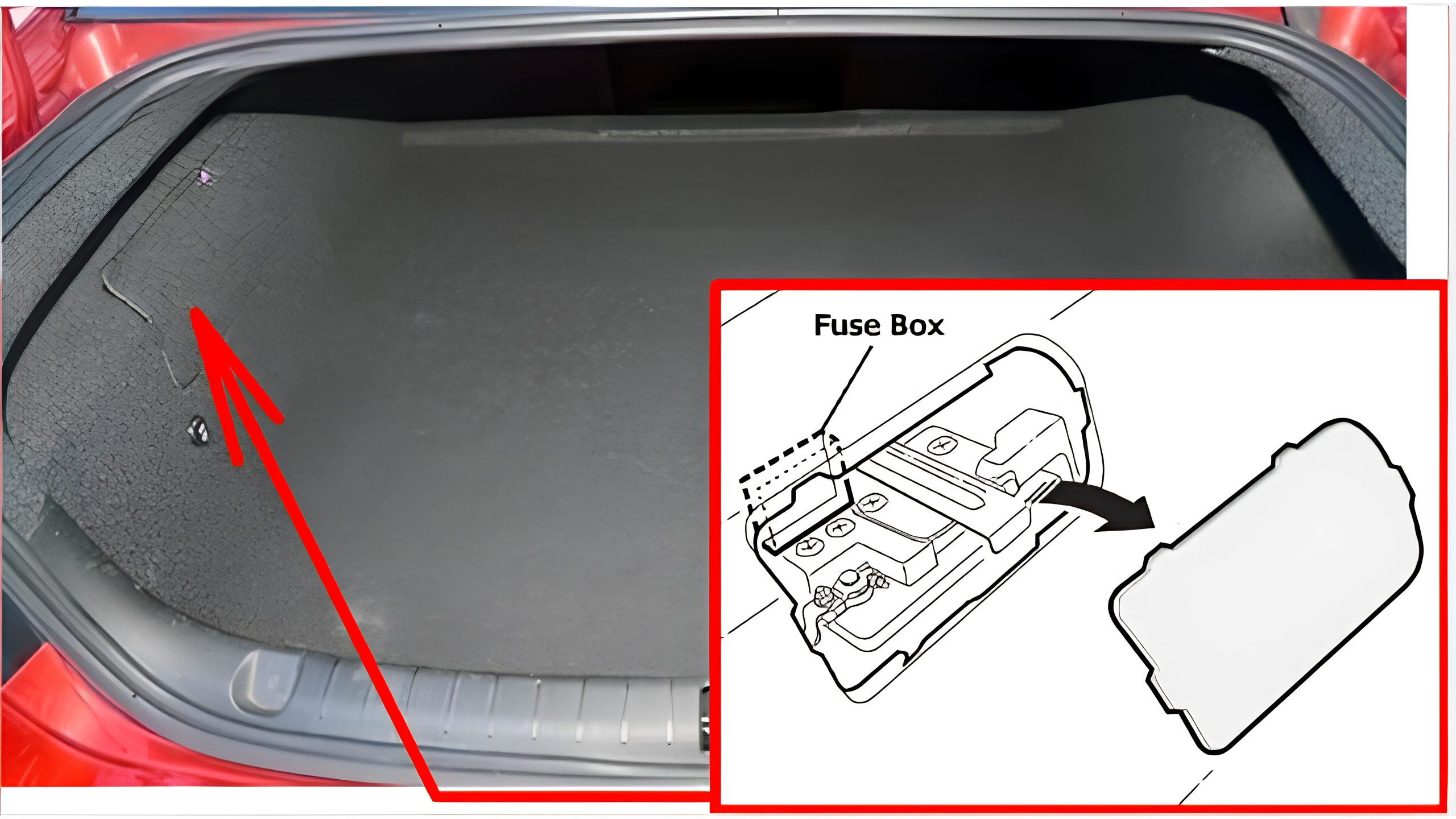

Luggage Compartment Fuse Box
The fuse panel is located on the left-hand side of the boot, above the battery. Remove the battery compartment cover to gain access.
Fuse Box Diagrams

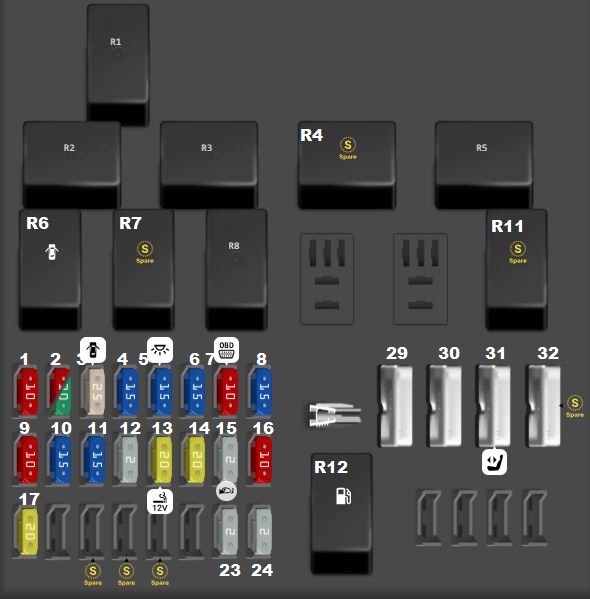

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 10A | 1 | SIR (SRS) |
| Fuse MINI 10A | 2 | REAR END RELEASE |
| Fuse MINI 30A | 2 | REAR END RELEASE |
| Fuse MINI 25A | 3 | (DOOR LOCKS) Power door lock system |
| Fuse MINI 15A | 4 | INADVERT POWER / LED DIM |
| Fuse MINI 15A | 5 | COURTESY LIGHTS / RT FT TURN LIGHT |
| Fuse MINI 15A | 6 | RT RR TURN LIGHT / RT SIDE INDICATOR |
| Fuse MINI 10A | 7 | INST / CNTR DISP / RFA / DLC |
| Fuse MINI 15A | 8 | LT FT TURN LIGHT / LT SIDE INDICATOR |
| Fuse MINI 10A | 9 | BCM LOGIC |
| Fuse MINI 15A | 10 | STOP LIGHTS / PARKING ASSIST |
| Fuse MINI 15A | 11 | CONSOLE LIGHTING |
| Fuse MINI 2A | 12 | IGN SW / THEFT DETERRENT |
| Fuse MINI 20A | 13 | (CIGAR LIGHTER) Cigar lighter / power outlet |
| Fuse MINI 20A | 14 | FRONT APO (AUXILIARY POWER OUTLET) |
| Fuse MINI 2A | 15 | OUTSIDE MIRROR / RPA OPTION / OSRM |
| Fuse MINI 10A | 16 | PHONE / KEY LK / ISRVM/RAIN SENSOR |
| Fuse MINI 20A | 17 | (SUNROOF) Sunroof |
| Fuse MINI – | 19 | (SPARE) Spare fuse |
| Fuse MINI – | 20 | (SPARE) Spare fuse |
| Fuse MINI – | 21 | (SPARE) Spare fuse |
| Fuse MINI 2A | 23 | STRG WHEEL ILLUMINATION |
| Fuse MINI 2A | 24 | RAP CONTROL PWR WDO |
| Circuit breaker ATO | 29 | POWER WINDOWS BATTERY |
| Circuit breaker ATO | 30 | POWER WINDOWS RAP |
| Circuit breaker ATO | 31 | (POWER SEATS) Power seats |
| Circuit breaker ATO | 32 | (SPARE) Spare fuse |
| Fuse puller | FP | Extraction tool for fuse replacement. |
| Relay | R1 | RAP-RETAIN ACCESSORY POWER |
| Relay | R2 | ALL DOOR LOCK |
| Relay | R3 | PASS DOOR UNLOCK |
| Relay | R4 | (SPARE) Spare fuse |
| Relay | R5 | REAR END RELEASE |
| Relay | R6 | DRIVER DOOR UNLOCK |
| Relay | R7 | (SPARE) Spare fuse |
| Relay | R8 | ACCESSORY POWER |
| Relay | R11 | (SPARE) Spare fuse |
| Relay | R12 | (FUEL PUMP) Fuel pump |

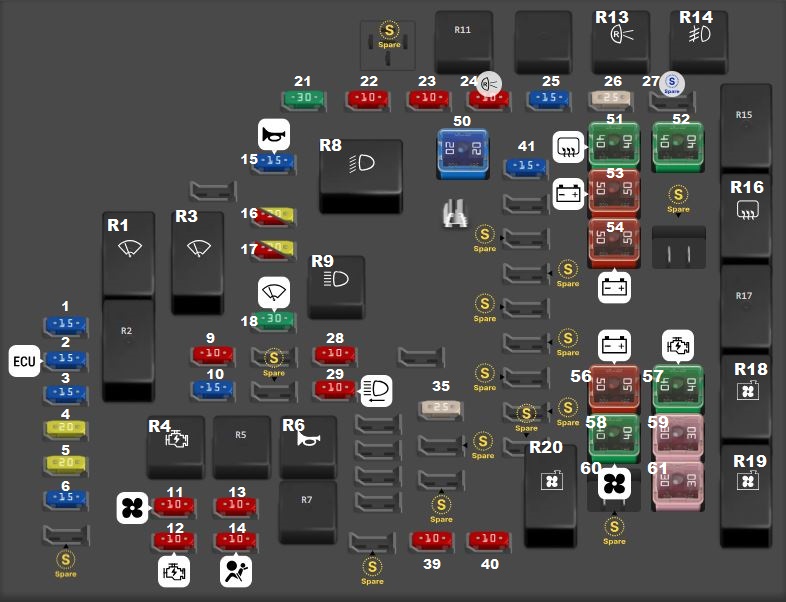

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 15A | 1 | REVERSE LOCKOUT |
| Fuse MINI 15A | 2 | (ECM 1) Engine control unit |
| Fuse MINI 15A | 3 | EMISSION 2 |
| Fuse MINI 20A | 4 | ODD COILS / INJECTORS |
| Fuse MINI 20A | 5 | EVEN COILS / INJECTORS |
| Fuse MINI 15A | 6 | EMISSION 1 |
| Fuse MINI – | 7 | (SPARE) Spare fuse |
| Fuse MINI 10A | 9 | THEFT HORN |
| Fuse MINI 15A | 10 | FRONT WASHER (WSW) |
| Fuse MINI 10A | 11 | (HVAC IGN) AC blower motor |
| Fuse MINI 10A | 12 | IGNITION ENGINE |
| Fuse MINI 10A | 13 | PHONE CRUISE |
| Fuse MINI 10A | 14 | (AIRBAGS) Airbag |
| Fuse MINI 15A | 15 | (HORN) Horn |
| Fuse MINI 10A | 16 | LEFT LOW BEAM (BASE/HID) |
| Fuse MINI 20A | 16 | LEFT LOW BEAM (BASE/HID) |
| Fuse MINI 10A | 17 | RIGHT LOW BEAM (BASE/HID) |
| Fuse MINI 20A | 17 | RIGHT LOW BEAM (BASE/HID) |
| Fuse MINI 30A | 18 | (FRONT WIPER) Front wipers |
| Fuse MINI – | 20 | (SPARE) Spare fuse |
| Fuse MINI 30A | 21 | HEADLIGHT WASH |
| Fuse MINI 10A | 22 | COMM ENABLE |
| Fuse MINI 10A | 23 | A/C CONTROL – HVAC CONTROL MODULE |
| Fuse MINI 10A | 24 | (REVERSE LIGHT) Backup lights |
| Fuse MINI 15A | 25 | FOG LIGHTS (FRONT) |
| Fuse MINI 25A | 26 | ABS VALVES |
| Fuse MINI – | 27 | (SPARE) Spare fuse |
| Fuse MINI 10A | 28 | (RIGHT HIGH BEAM) Right-hand headlight high beam |
| Fuse MINI 10A | 29 | LEFT HI BEAM |
| Fuse MINI 25A | 35 | REALTIME DAMPING |
| Fuse MINI – | 36 | (SPARE) Spare fuse |
| Fuse MINI – | 37 | (SPARE) Spare fuse |
| Fuse MINI – | 38 | (SPARE) Spare fuse |
| Fuse MINI 10A | 39 | RIGHT PARKING LIGHT |
| Fuse MINI 10A | 40 | LEFT PARKING LIGHT |
| Fuse MINI 15A | 41 | (TCM) Transmission control unit |
| Fuse MINI – | 43 | (SPARE) Spare fuse |
| Fuse MINI – | 44 | (SPARE) Spare fuse |
| Fuse MINI – | 45 | (SPARE) Spare fuse |
| Fuse MINI – | 46 | (SPARE) Spare fuse |
| Fuse MINI – | 47 | (SPARE) Spare fuse |
| Fuse MINI – | 48 | (SPARE) Spare fuse |
| Fuse MINI – | 49 | (SPARE) Spare fuse |
| Fuse FMX/JCase 20A | 50 | BRAKE VACUUM PUMP |
| Fuse FMX/JCase 40A | 51 | (REAR DEFOG) Rear window defogger |
| Fuse FMX/JCase 40A | 52 | (ABS MOTOR) Anti-lock braking system |
| Fuse FMX/JCase 50A | 53 | (BATT MAIN 1) Battery and charging system |
| Fuse FMX/JCase 50A | 54 | (BATT MAIN 1) Battery and charging system |
| Fuse FMX/JCase – | 55 | (SPARE) Spare fuse |
| Fuse FMX/JCase 50A | 56 | (BATT MAIN 2) Battery and charging system |
| Fuse FMX/JCase 40A | 57 | (STARTER) Starter system |
| Relay | R1 | FRONT WIPER HIGH |
| Relay | R2 | POWERTRAIN |
| Relay | R3 | FRONT WIPER LOW |
| Relay | R4 | (IGNITION MAIN) Ignition |
| Relay | R5 | FRONT WINDSCREEN WASH |
| Relay | R6 | (HORN) Horn |
| Relay | R7 | PARKING LIGHTS |
| Relay | R8 | HEADLIGHT LO BEAM |
| Relay | R9 | HEADLIGHT HI BEAM |
| Relay | R10 | (SPARE) Spare fuse |
| Relay | R11 | COMM ENABLE |
| Relay | R13 | REVERSE LIGHTS |
| Relay | R14 | FOG LIGHT FRONT |
| Relay | R15 | HEADLIGHT WASHER |
| Relay | R16 | (RR DEFOG) Rear window defogger |
| Relay | R17 | CRANK |
| Relay | R18 | ENGINE COOLING FAN 1 |
| Relay | R19 | ENGINE COOLING FAN 3 |
| Relay | R20 | ENGINE COOLING FAN 2 |
| Fuse FMX/JCase 40A | 58 | HVAC BLOWER MOTOR |
| Fuse FMX/JCase 30A | 59 | FAN 1 ENGINE COOLING (RIGHT) |
| Fuse FMX/JCase – | 60 | (SPARE) Spare fuse |
| Fuse FMX/JCase 30A | 61 | FAN 2 ENGINE COOLING (LEFT) |
| Fuse puller | FP | Extraction tool for fuse replacement. |
| R21 | For MY2010 & 2012: VACUUM PUMP |

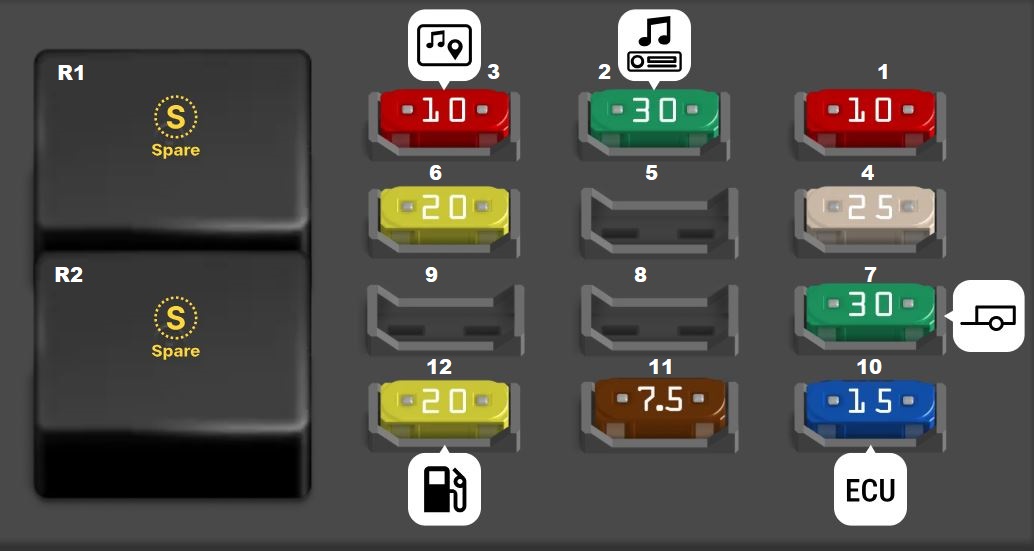

Luggage Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 10A | 1 | REAR SEAT ENTERTAINMENT |
| Fuse MINI 30A | 2 | (AMPLIFIER) Audio system |
| Fuse MINI 10A | 3 | NAVIGATION / TELEMATICS / PHONE |
| Fuse MINI 25A | 4 | RADIO & INFOTAINMENT |
| Fuse MINI 20A | 6 | REAR ACCESSORY POWER OUTLET (APO) |
| Fuse MINI 30A | 7 | (TRAILER) Trailer |
| Fuse MINI 15A | 10 | (ECM BATT) Engine control unit |
| Fuse MINI 7.5A | 11 | RVC SENSE |
| Fuse MINI 20A | 12 | (FUEL PUMP) Fuel pump |
| Relay | R1 | (SPARE) Spare fuse |
| Relay | R2 | (SPARE) Spare fuse |
