Holden Barina TK (2009-2011) Fuse Box Location & Diagrams
The Holden Barina TK (2009–2011) fuse box diagrams help you locate the fuse panels and identify the fuses protecting the vehicle’s electrical systems. Find fuse box locations, fuse assignments, and circuit details for the 2009–2011 Holden Barina TK.
Fuse Box Location
Passenger Compartment Fuse Box

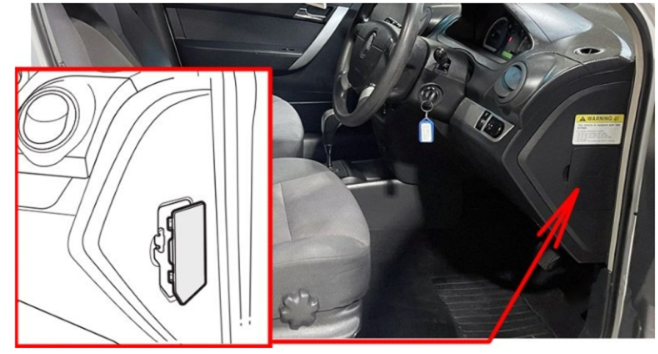

The fuses are located on the driver’s side wall of the instrument panel. To open the fuse cover, open the driver’s side door, pull the top of the cover out.
Engine Compartment Fuse Box

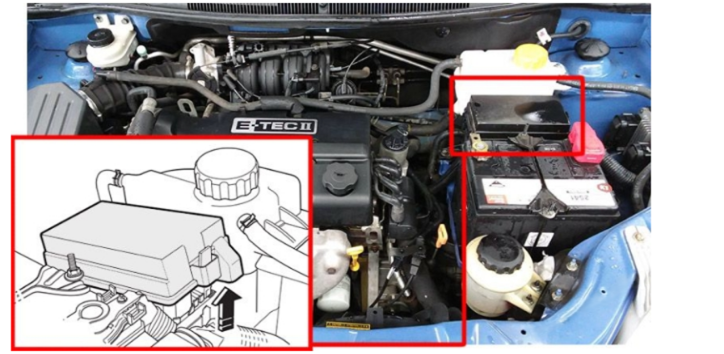

This fuse box is located on the passenger side of the engine compartment. It contains circuit fuses, main fuses and relays. To remove the cover, release the catch on the side of the fuse box nearest the engine and release the two tabs on the opposite side.
Fuse Box Diagrams

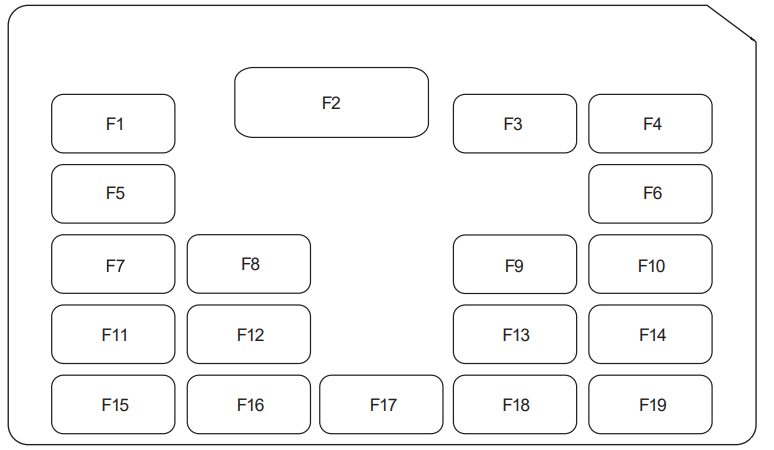

Passenger Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| F1 | 10A | Defog mirror |
| F2 | 15A | Audio / RKE |
| F3 | 15A | Mirror / sunroof |
| F4 | 15A | Horn |
| F5 | 10A | Backup lamp |
| F6 | 15A | Door lock |
| F7 | 15A | Socket |
| F8 | 10A | Cluster room lamp |
| F9 | 25A | RR defog |
| F10 | 10A | OBD |
| F11 | 10A | Audio |
| F12 | 15A | Cigar |
| F13 | 15A | Stop lamp |
| F14 | 15A | EMS1 |
| F15 | 10A | EMS2 |
| F16 | 10A | T/SIG |
| F17 | 10A | Cluster |
| F18 | 25A | Wiper |
| F19 | 10A | SDM |

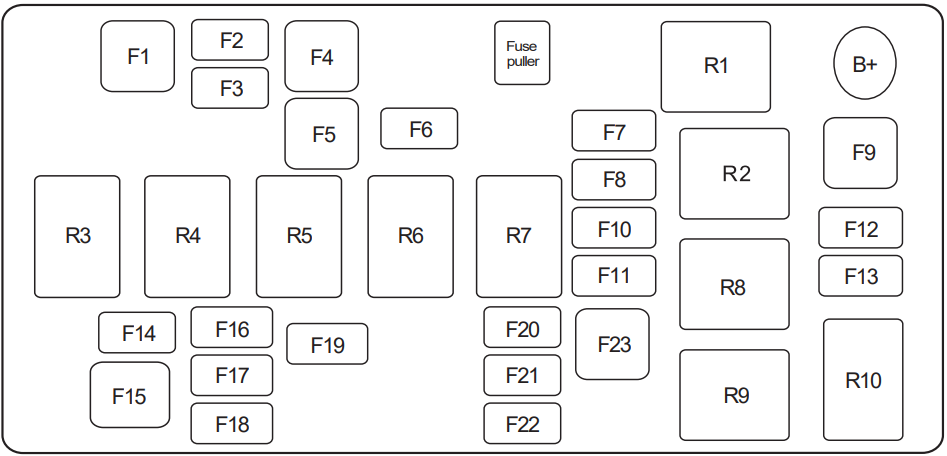

Engine Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| F1 | 50A | Battery |
| F2 | 10A | Park lamp L/H |
| F3 | 10A | Park lamp R/H |
| F4 | 30A | Ignition2 / ST |
| F5 | 30A | Ignition1 / ACC |
| F6 | 15A | Hazard |
| F7 | 10A | Headlight low R/H |
| F8 | 10A | Headlight low L/H |
| F9 | 30A | Fan Hi |
| F10 | 15A | Front fog lights |
| F11 | 15A | Headlight Hi |
| F12 | 20A | Fan low |
| F13 | 10A | A/C compressor |
| F14 | 10A | Power window 2 |
| F15 | 20A/30A | Power window 1 |
| F16 | 15A | Fuel pump |
| F17 | 10A | ECU |
| F18 | 15A | EMS1 |
| F19 | 15A | EMS2 |
| F20 | 20A | Spare |
| F21 | 15A | Spare |
| F22 | 10A | Spare |
| F23 | 50A | ABS |
| Relays | ||
| R1 | Headlight low | |
| R2 | Fan Hi | |
| R3 | Fuel pump | |
| R4 | Power window | |
| R5 | Park lamp | |
| R6 | Front fog lamps | |
| R7 | Headlight hi | |
| R8 | Fan low | |
| R9 | A/C | |
| R10 | Main relay |
