Holden Adventra (2003 – 2005) Fuse Box Location & Diagrams
The Holden Adventra (2003–2006) Fuse Box Location & Diagrams guide helps you quickly find the interior and engine compartment fuse boxes. It includes detailed fuse diagrams and assignments to make diagnosing electrical problems and replacing blown fuses simple.
Fuse Box Location

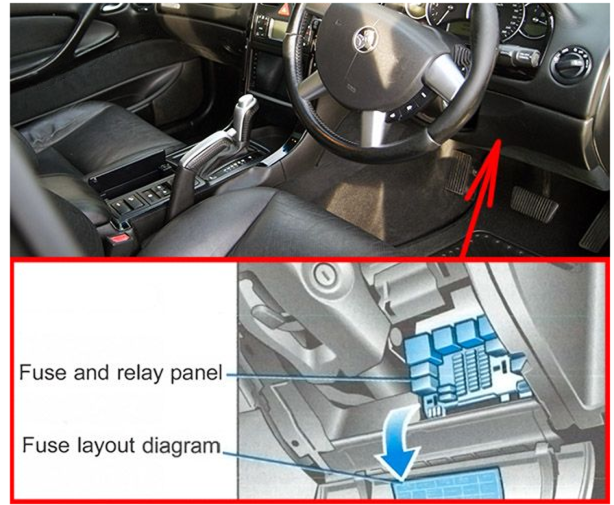

Passenger Compartment Fuse Box
The main fuse panel is in the instrument panel, below the steering column. Pull the hinged fuse panel down to reveal the fuses.

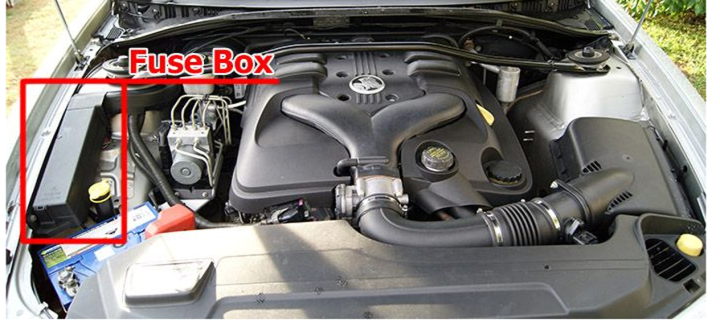

Engine Compartment Fuse Box
Access to these fuses is gained by removing the snap-on cover.
Fuse Box Diagrams

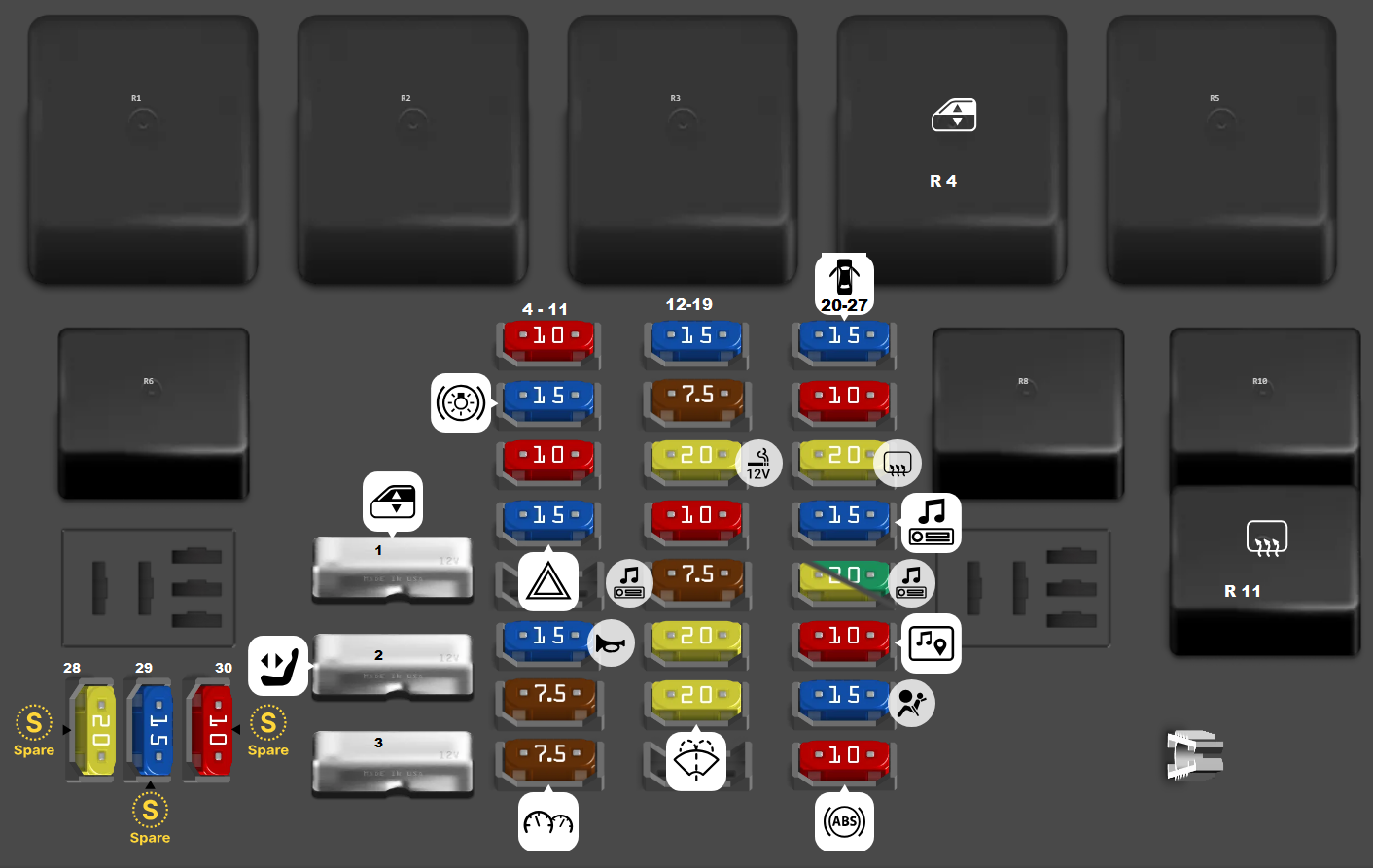

Passenger Compartment Fuse Box
| Fuse No. / Rating | Description (Year Differences Included) |
|---|---|
| 1 – 20A | Power Windows (2003–2004) / Power Windows, Rear Wiper (AWD) (2005) |
| 2 – 20A | Power Seats (2003–2005) |
| 3 – 20A | Sunroof (2003–2005) |
| 4 – 10A | Park Lamps (2003–2005) |
| 5 – 15A | Stop Lamps (2003–2005) |
| 6 – 10A | Interior Illumination (2003–2005) |
| 7 – 15A | Hazard Lamps / Antenna Drive Via BCM (2003–2004) / Antenna Drive & Hazard Warning (2005) |
| 8 – — | Spare (2003–2005) |
| 9 – 15A | Horn (2003–2005) |
| 10 – 7.5A | Ignition (2003 & 2005) / Ignition Switch (2004) |
| 11 – 7.5A | Instrument Illumination (2003–2005) |
| 12 – 15A | Turn Signals & Back-Up Lamps (2003–2004) / Turn Signal (2005) |
| 13 – 7.5A | ECC, Trip Computer, Instruments & Telematics (2003–2004) / ECC, Instrument Cluster & Trip Computer (2005) |
| 14 – 20A | Cigar Lighter (2003–2005) |
| 15 – 10A | Cruise Control, Power Mirrors & Memory Seats (2003) / Cruise, Power Mirrors & Level Ride (2004) / Cruise Control & Power Mirrors (2005) |
| 16 – 7.5A | Radio, Navigation & Cell Phone (2003) / Radio, MDF, Navigation & Cell Phone (2004) / Radio, Navigation & Phone (2005) |
| 17 – 20A | Accessory Socket (2003–2005) |
| 18 – 20A | Front & Rear Wiper Washer (2003) / Front Wiper Washer (2004) / Wiper & Washer (2005) |
| 19 – — | Spare (2003–2005) |
| 20 – 15A | Power Locks, Power Windows & Theft Horn (2003–2004) / Theft Horn, Power Door Lock & Power Window (2005) |
| 21 – 10A | Instruments & Climate Control (2003–2004) / Climate Control (ECC) (2005) |
| 22 – 20A | Heated Rear Window (2003–2005) |
| 23 – 15A | Radio, Cell Phone & Navigation (2003–2004) / Radio, Navigation & Phone (2005) |
| 24 – 20A | Sub-Woofer Amplifier (2003 & 2005) / Sub Woofer (20A) + Amplifier (30A) (2004) |
| 25 – — | Spare (2003 & 2005) / Entertainment System 10A (2004) |
| 26 – 15A | SRS (2003–2004) / Airbag (2005) |
| 27 – 10A | Anti-Lock Brakes (2003–2004) / ABS (2005) |
| 28 – 20A | Spare (2004 only) |
| 29 – 15A | Spare (2004 only) |
| 30 – 10A | Spare (2004 only) |

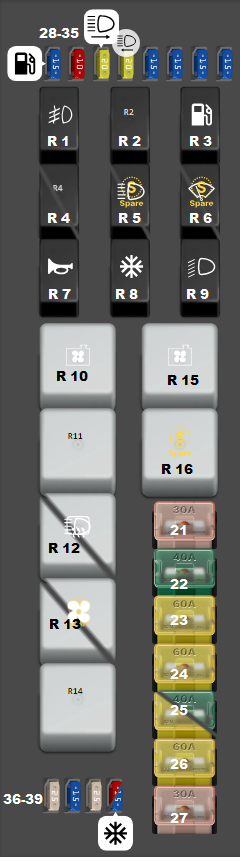

Engine Compartment Fuse Box
| No. | Type | Description |
|---|---|---|
| 21 | Fuse FLF/PAL 293 30A | RAD FAN 1 F/L |
| 22 | Fuse FLF/PAL 293 40A | BLOWER F/L |
| 23 | Fuse FLF/PAL 293 60A | MAIN F/L |
| 24 | Fuse FLF/PAL 293 60A | ENGINE F/L |
| 25 | Fuse FLF/PAL 293 60A V8 / 40A V6 | ABS F/L |
| 26 | Fuse FLF/PAL 293 60A | LIGHTING F/L |
| 27 | Fuse FLF/PAL 293 30A | RAD FAN 2 F/L |
| 28 | Fuse MINI 15A | FUEL PUMP |
| 29 | Fuse MINI 10A | ENG CONT BCM |
| 30 | Fuse MINI 20A | RH HEADLAMP |
| 31 | Fuse MINI 20A | LH HEADLAMP |
| 32 | Fuse MINI 15A | AUTO TRANS |
| 33 | Fuse MINI 15A | ENG SENSOR |
| 34 | Fuse MINI 15A | INJ IGN |
| 35 | Fuse MINI 15A | INJ IGN |
| 36 | Fuse MINI 25A | T. RELAY |
| 37 | Fuse MINI 15A | 2004–2005: ENG SSR 2 [Morano] |
| 38 | Fuse MINI 25A | 2003: LEVEL RIDE / 2004–2005: LEVEL RIDE [Morano] |
| 39 | Fuse MINI 10A V6 / 15A V8 | 2004–2005: AC Clutch [V6 Morano] / TAC CM [V8 Morano] |
| R1 | Relay | FOG LAMP RELAY |
| R2 | Relay | LEVEL RIDE RELAY |
| R3 | Relay | FUEL PUMP RELAY |
| R4 | Relay | 2003: LEFT HORN RELAY / 2004–2005: LEFT HORN RELAY / BTSI-BRAKE LP RELAY [Morano] |
| R5 | Relay | 2003: SPARE / 2004–2005: SPARE / HEADLAMP HI [Morano] |
| R6 | Relay | 2003: FRONT WIPER RELAY / 2004–2005: FRONT WIPER RELAY / SPARE [Morano] |
| R7 | Relay | HORN RELAY |
| R8 | Relay | A/C RELAY |
| R9 | Relay | LOW BEAM RELAY |
| R10 | Relay | RAD FAN HIGH SPEED RELAY |
| R11 | Relay | ENGINE CONT. RELAY |
| R12 | Relay | 2003: HIGH BEAM RELAY / 2004–2005: HIGH BEAM RELAY / HEATED REAR WINDOW [Morano] |
| R13 | Relay | 2003: SPARE / 2004–2005: SPARE / BLOWER FAN RELAY [Morano] |
| R14 | Relay | START RELAY |
| R15 | Relay | RAD FAN LOW SPEED RELAY |
| R16 | Relay | SPARE |
