Holden Caprice WN (2013 – 2017) Fuse Box Location & Diagrams
The Holden Caprice WN (2013–2017) fuse box protects essential electrical circuits throughout the vehicle. Knowing the fuse box locations, fuse assignments, and diagrams makes it easier to identify electrical faults, check blown fuses, and replace the correct fuse safely during routine maintenance or troubleshooting.
Fuse Box Location

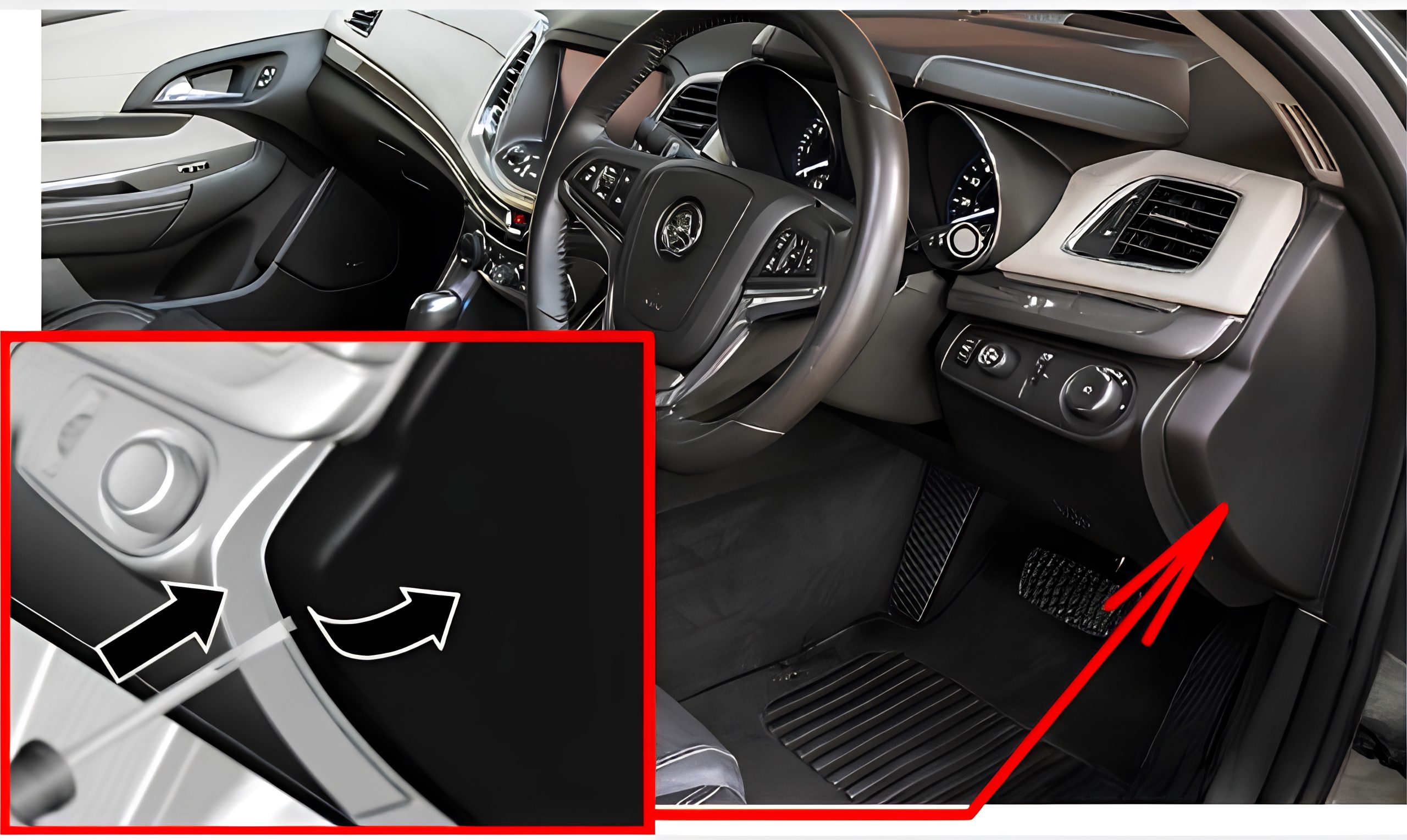

Passenger Compartment Fuse Box
Insert a screwdriver in the slot indicated and lever off the fuse panel cover.

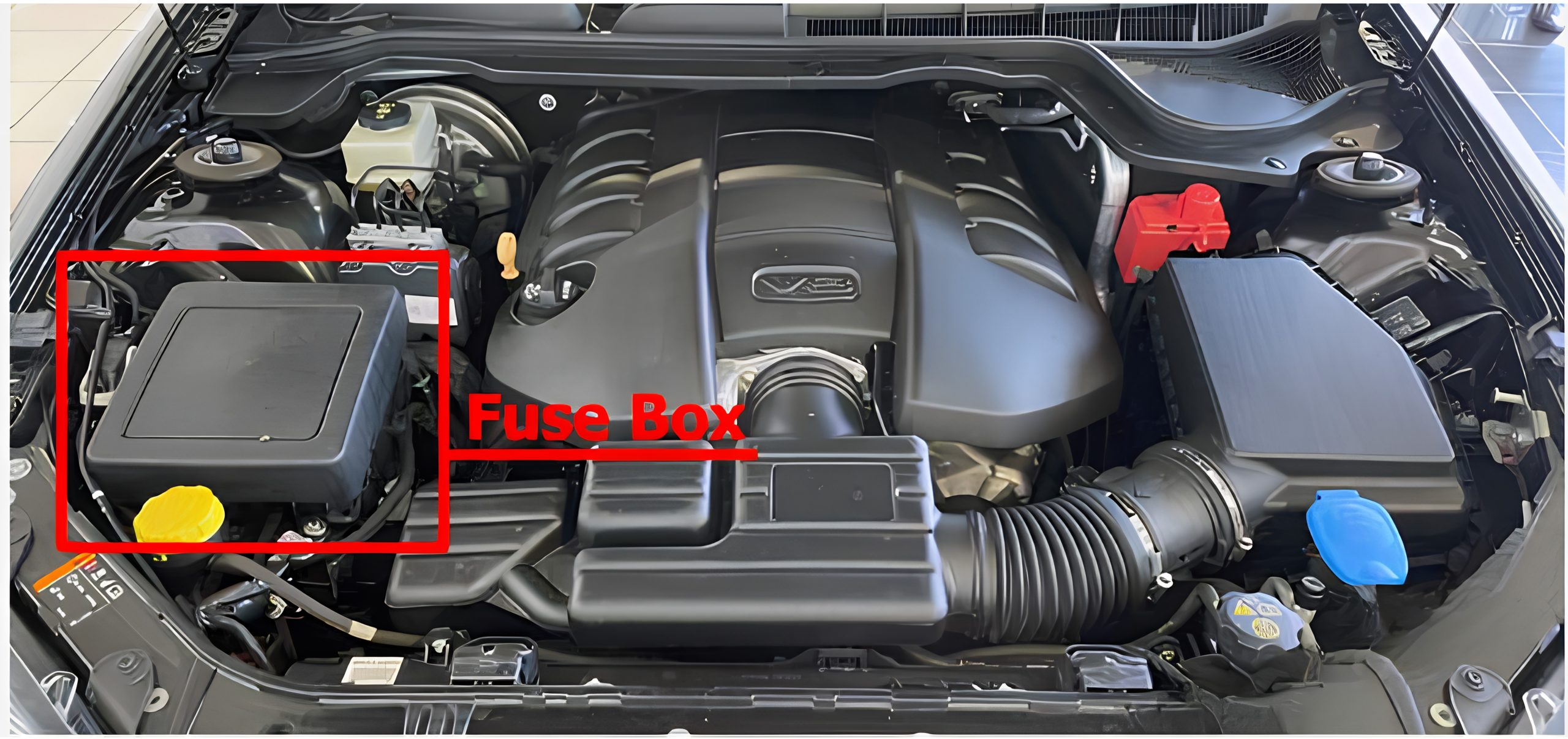

Engine Compartment Fuse Box
Remove the clip-on cover to access.

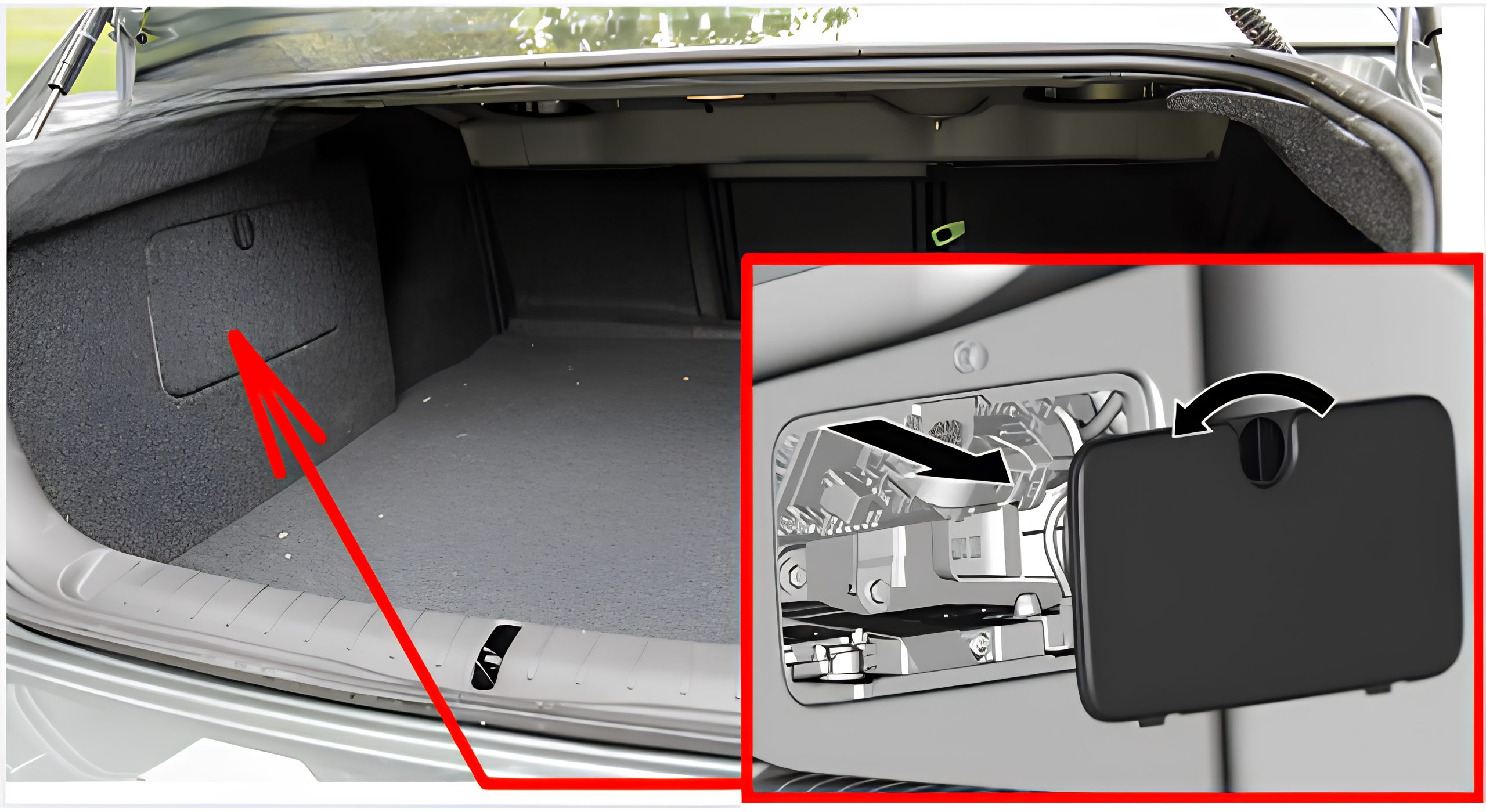

Luggage Compartment Fuse Box
The fuse panel is located on the left side of the boot, above the battery. Rotate the catch anticlockwise to unlatch the cover.
Fuse Box Diagrams

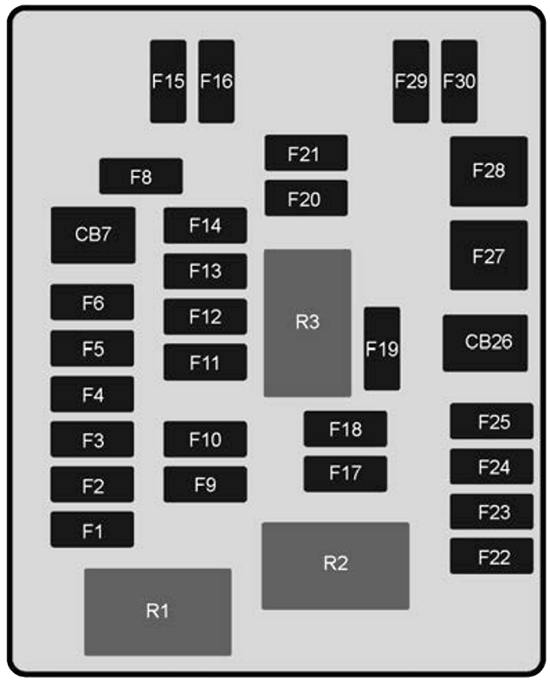

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F1 | 15A | BODY CONTROL MODULE 1 |
| F2 | 10A | DIAGNOSTIC LINK CONNECTOR |
| F3 | 30A | 2013-2015: LPG SHUT-OFF SOLENOID |
| F4 | 15A | BODY CONTROL MODULE 2 |
| F5 | 2A | IGNITION SWITCH |
| F6 | 15A | ELECTRIC STEERING CONTROL LOCK |
| CB7 | – | – |
| F8 | – | – |
| F9 | – | – |
| F10 | – | – |
| F11 | 30A | SHUNT 1 |
| F12 | 10A | AIRBAG / AOS |
| F13 | 15A | INSTRUMENT CLUSTER |
| F14 | 15A | HVAC CONTROL MODULE |
| F15 | 10A | RAIN SENSOR |
| F16 | 15A | BODY CONTROL MODULE 3 |
| F17 | 15A | 2013-2015: LPG SHUT-OFF SOLENOID |
| F18 | – | – |
| F19 | 2A | SWC BACKLIGHT |
| F20 | – | – |
| F21 | – | – |
| F22 | 30A | SHUNT 2 |
| F23 | 15A | BODY CONTROL MODULE 4 |
| F24 | 15A | BODY CONTROL MODULE 5 |
| F25 | 10A | BODY CONTROL MODULE 6 |
| CB26 | – | – |
| F27 | 30A | BODY CONTROL MODULE 8 |
| F28 | 40A | BLOWER FAN |
| F29 | 15A | ACCESSORIES |
| F30 | 15A | BODY CONTROL MODULE 7 |
| Relays | ||
| R1 | LOGISTICS MODE | |
| R2 | 2013-2015: LPG SHUT-OFF SOLENOID | |
| R3 | 2013-2015: LPG SHUT-OFF SOLENOID |

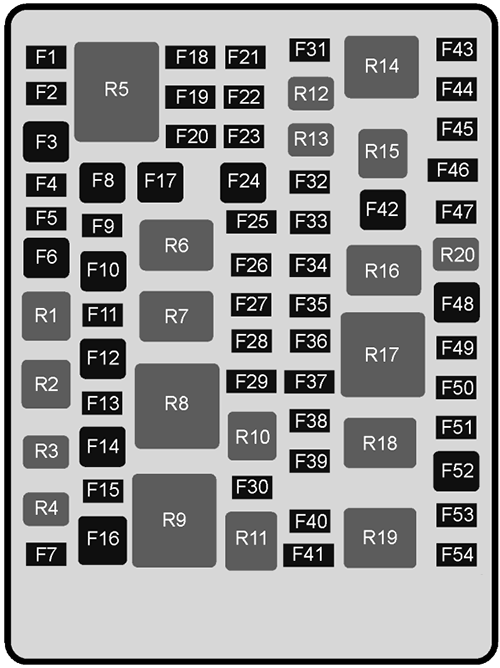

Engine Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F1 | 10A | HEATED MIRRORS |
| F2 | – | – |
| F3 | 30A | REAR DEMISTER |
| F4 | – | – |
| F5 | 15A | SPOT LAMP RH |
| F6 | 30A | DRIVER POWER SEAT |
| F7 | 20A | WASHER PUMP |
| F8 | 30A | PASSENGER POWER SEAT |
| F9 | 15A | EMER / VEH / FT / LP |
| F10 | – | – |
| F11 | 20A | DRIVING LAMPS |
| F12 | 25A | HEADLAMP WASHER |
| F13 | 15A | SPOT LAMP LH |
| F14 | 60A | ABS PUMP |
| F15 | 30A | ABS VALVES |
| F16 | – | – |
| F17 | – | – |
| F18 | 15A | HEATED FRONT SEATS |
| F19 | – | – |
| F20 | – | – |
| F21 | 7.5A | FRONT PASSENGER WINDOW SWITCH |
| F22 | 20A | REAR WIPER |
| F23 | 20A | SUNROOF |
| F24 | 30A | FRONT WIPERS |
| F25 | 5A | AOS IGN / IPC IGN |
| F26 | 20A | LRBEC IGN |
| F27 | – | – |
| F28 | 20A | IGN / INJ EVEN (V8) |
| F29 | 15A | ECM (V8), IGN ODD (V6) / EMIS 1 |
| F30 | – | – |
| F31 | – | – |
| F32 | 15A | FOG LAMPS |
| F33 | 10A | IGNITION-IP / BODY |
| F34 | 10A | FUEL SYSTEM CONTROL MODULE IGNITION |
| F35 | – | – |
| F36 | 5A | ESCL |
| F37 | 15A | EMIS 2 / IGN EVEN (V6) |
| F38 | 20A | ECM (V6), INJ / IGN ODD (V8) |
| F39 | 10A | INCLR PUMP |
| F40 | – | – |
| F41 | 15A | TRANSMISSION CONTROL MODULE / ELECTRIC POWER STEERING |
| F42 | 30A | STARTER MOTOR |
| F43 | – | – |
| F44 | 15A | LH HID HEADLAMP |
| F45 | 15A | RH HID HEADLAMP |
| F46 | 10A | LH & RH HI BEAM HEADLAMP |
| F47 | 15A | HORN |
| F48 | 60A | ENGINE COOLING FAN |
| F49 | 10A | AUTOMATIC HEADLAMP LEVELLING |
| F50 | 15A | TRANSMISSION CONTROL MODULE IGN |
| F51 | 15A | ENGINE CONTROL MODULE IGN |
| F52 | 30A | BRAKE VACUUM PUMP |
| F53 | 10A | AIR CONDITIONING COMPRESSOR CLUTCH |
| F54 | 10A | VAPORISER CONTROL MODULE |
| Relays | ||
| R1 | DRIVING LAMPS | |
| R2 | HEADLAMP WASHER | |
| R3 | REAR WASHER PUMP | |
| R4 | FRONT WASHER PUMP | |
| R5 | REAR DEMISTER | |
| R6 | FRONT WIPER CONTROL | |
| R7 | WIPER SPEED | |
| R8 | ENGINE CONTROL MODULE | |
| R9 | – | |
| R10 | INCLR PUMP | |
| R11 | – | |
| R12 | REAR WIPER CONTROL | |
| R13 | FOG LAMPS | |
| R14 | LOW BEAM HEADLAMPS | |
| R15 | HIGH BEAM HEADLAMPS | |
| R16 | STARTER | |
| R17 | RUN / CRANK | |
| R18 | BRAKE VACUUM PUMP | |
| R19 | AIR-CONDITIONING CONTROL | |
| R20 | HORN |

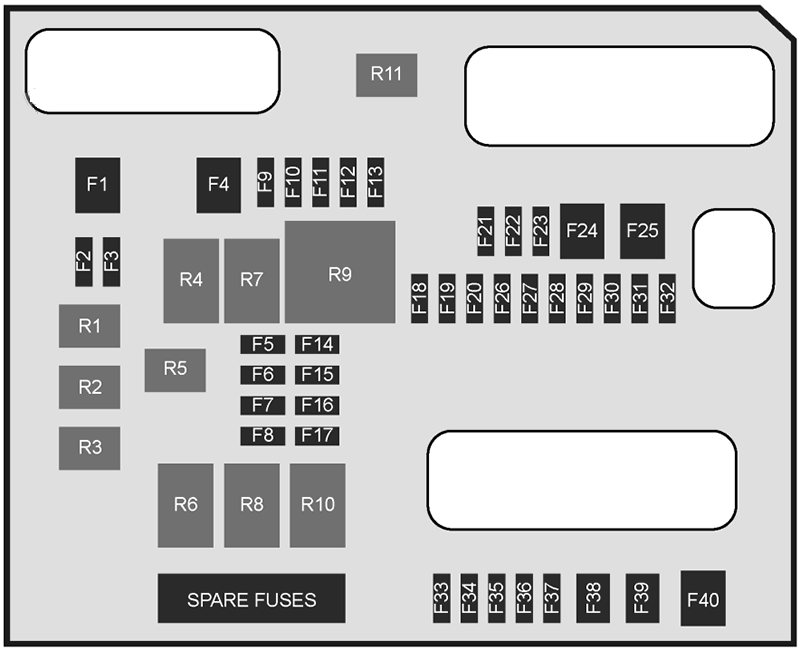

Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F1 | 30A | DRIVER FRONT / LH REAR WINDOW |
| F2 | 10A | EMER / VEH / ACCY |
| F3 | 15A | BOOT RELEASE |
| F4 | 30A | PASSIVE ENTRY PASSIVE START-BATT 2 |
| F5 | 15A | RADIO |
| F6 | – | – |
| F7 | – | – |
| F8 | 20A | FUEL SYSTEM CONTROL MODULE |
| F9 | 30A | MRTD |
| F10 | 20A | DECKLID FLASHING LAMPS / EDI MODULE |
| F11 | 10A | AUXILIARY BATTERY |
| F12 | – | – |
| F13 | – | – |
| F14 | 10A | REAR SEAT ENTERTAINMENT |
| F15 | 15A | AUTOMATIC HEADLAMP LEVELLING |
| F16 | – | – |
| F17 | 20A | 2015-2017: EXHAUST VALVE |
| F18 | 10A | ONSTAR |
| F19 | 5A | MIRROR / WINDOW MODULE |
| F20 | 10A | CANISTER VENT SOLENOID |
| F21 | 5A | PASSIVE ENTRY PASSIVE START – BATT 1 |
| F22 | 10A | MEMORY SEAT MODULE |
| F23 | 30A | AMPLIFIER |
| F24 | 30A | PASSENGER FRONT / RH REAR WINDOW |
| F25 | 30A | ELECTRIC PARK BRAKE |
| F26 | 10A | TAILGATE MODULE |
| F27 | 10A | CAMERA IGN |
| F28 | 15A | FRT VENT SEAT IGN |
| F29 | 10A | TRAILER MODULE IGN |
| F30 | 15A | ADVANCED PARK ASSIST / SIDE BLIND ZONE ALERT |
| F31 | 10A | ENGINE CONTROL MODULE |
| F32 | 10A | AUXILIARY GAUGES |
| F33 | 10A | RETAINED ACCESSORY POWER |
| F34 | 5A | BATTERY VOLTAGE SENSING |
| F35 | 30A | TAILGATE MOTOR |
| F36 | 20A | REAR ACCESSORY POWER OUTLET |
| F37 | 20A | INTERIOR ACCESSORY POWER OUTLET |
| F38 | 20A | FRT / LTR |
| F39 | – | – |
| F40 | 40A | TRAILER MODULE |
| Relays | ||
| R1 | BOOT RELEASE | |
| R2 | ACCESSORY | |
| R3 | – | |
| R4 | RUN | |
| R5 | – | |
| R6 | RETAINED ACCESSORY POWER | |
| R7 | LOGISTICS MODE | |
| R8 | – | |
| R9 | – | |
| R10 | 2015-2017: EXHAUST VALVE | |
| R11 | 2013-2014: CHILD LOCKS |
