Hyundai Equus (2010 – 2016) Fuse Box Location & Diagrams
The Hyundai Equus (2010–2016) fuse box location and diagrams help quickly identify fuses and relays for electrical components. This blog provides clear fuse box locations, detailed fuse layout diagrams, and fuse functions to simplify troubleshooting, maintenance, and safe replacement of blown fuses.
Fuse Box Location

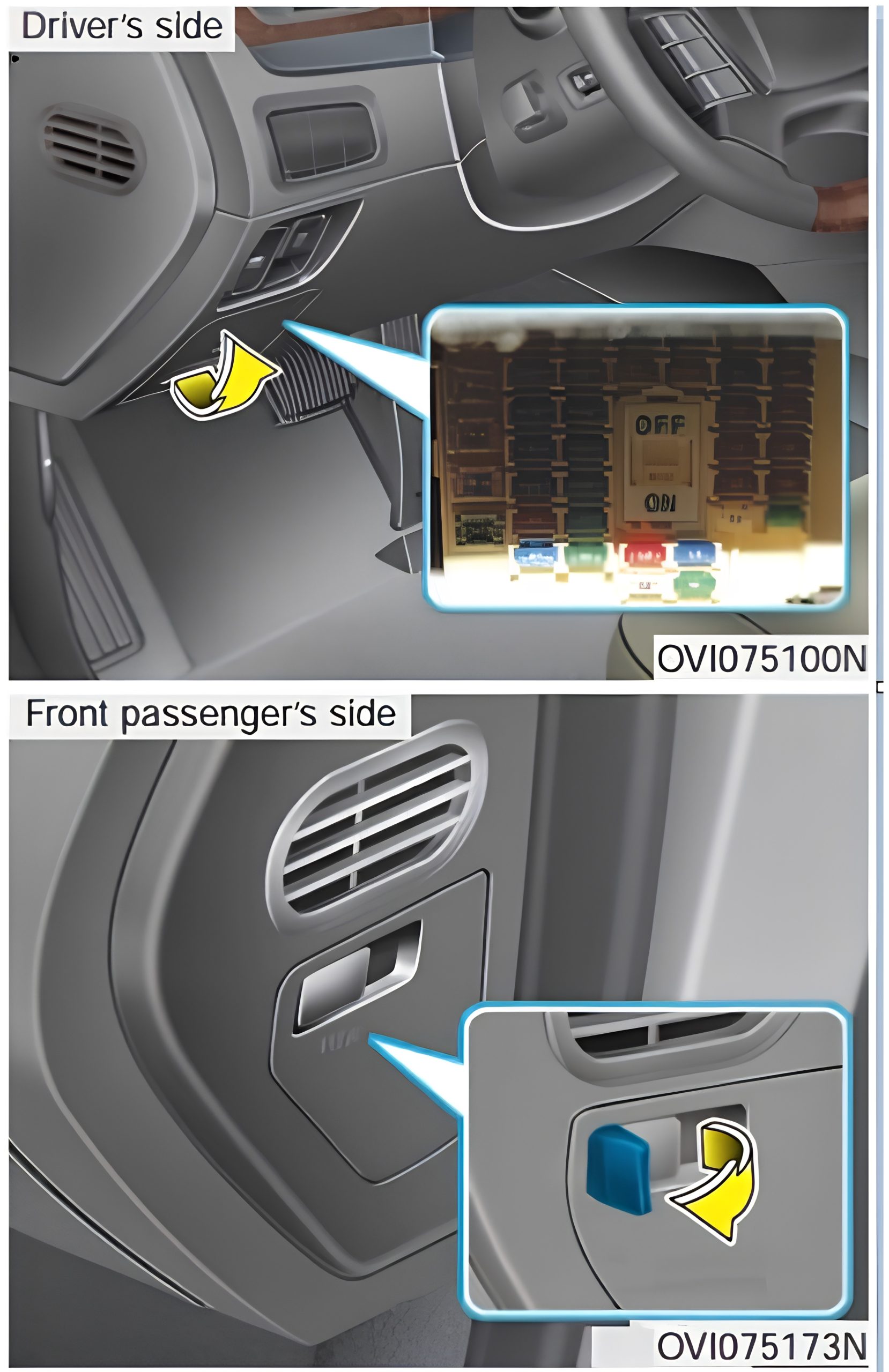

Passenger Compartment Fuse Box

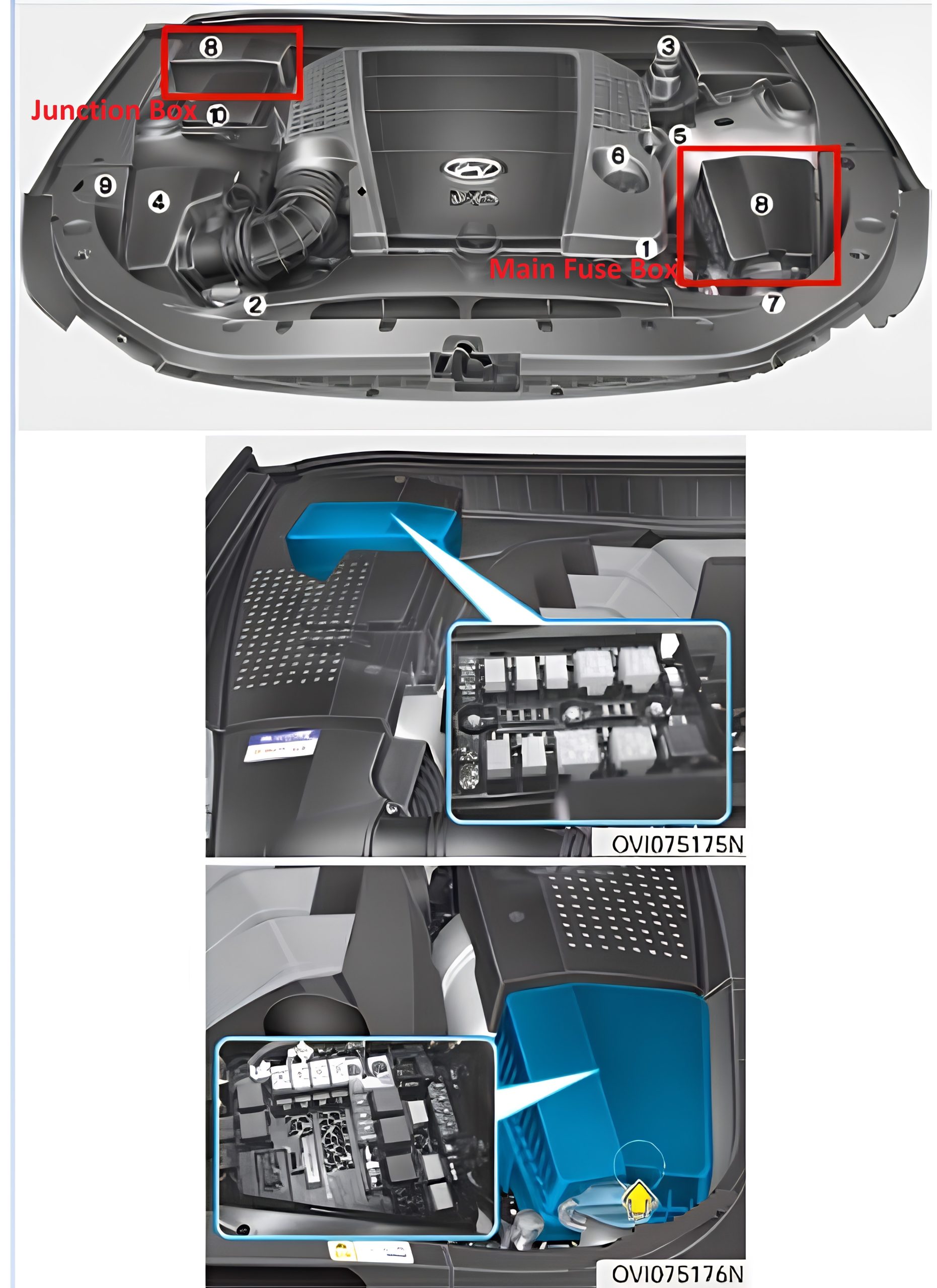

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box
Hyundai Equus (2010 – 2013)

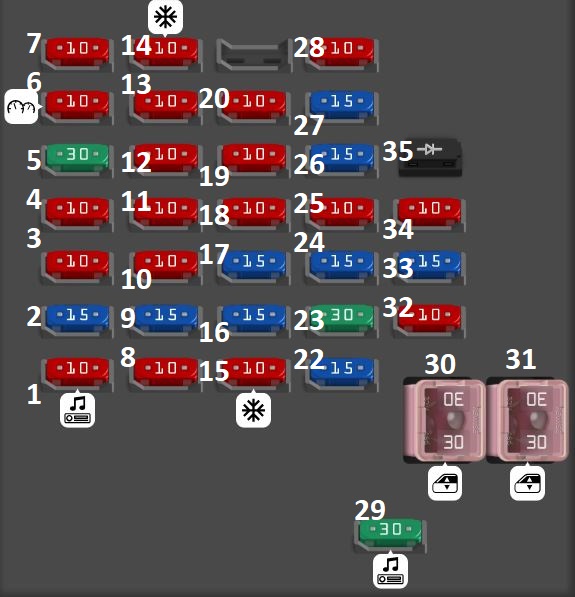

Driver Side Fuse Box
| Type | No. | Description |
| Fuse MINI 10A | 1 | (AUDIO(IG1)) AV head module, audio, active headrest sensor module, camera module |
| Fuse MINI 15A | 2 | (A/BAG) SRS control module |
| Fuse MINI 10A | 3 | (BODY UNIT-2) Multifunction switch, tilt & telescopic module, driver/passenger door module, power trunk lid control module electro chromic mirror, LDWS camera, front & rear parking assist control module, EPB control module driver/passenger IMS control module, E/R junction box (FAM) |
| Fuse MINI 10A | 4 | (A/BAG IND) Instrument cluster (A/Bag IND.) |
| Fuse MINI 30A | 5 | (IG KEY SUPPLY(IG1)) E/R junction box (fuse EHPS 10A. ECU(IG1) 10A. TCU 15A. ESP 10A, STOP LP 10A, AFLS 10A, INHIBITOR SW 10A, CRUISE 10A) |
| Fuse MINI 10A | 6 | (CLUSTER) Instrument cluster |
| Fuse MINI 10A | 7 | (CHASSIS UNIT) Steering angle sensor, console switch LH/RH, ECS control module, pre-safe seat belt LH/RH, tire pressure monitoring module |
| Fuse MINI 10A | 8 | RR RECEIVER |
| Fuse MINI 15A | 9 | (AUDIO(B+)) Audio, front/rear monitor, AV head module, rear audio switch, media module, rear console switch |
| Fuse MINI 10A | 10 | (BODY UNIT-1) Multifunction switch, instrument cluster (IND.), power trunk lid control module, driver/passenger door module, rear curtain module E/R junction box (FAM), front smart outside handle LH/RH, front door lamp RH, passenger IMS control module front door mood lamp RH |
| Fuse MINI 10A | 11 | (AFLS) Auto head lamp leveling device sensor (W/O AFLS), adaptive front lighting module (with AFLS), head lamp LH/RH |
| Fuse MINI 10A | 12 | (ESCL-2) IPM, PDM |
| Fuse MINI 10A | 13 | (A/CON(IG1)) A/C control module |
| Fuse MINI 10A | 14 | (CRUISE SW) Multifunction switch (Remocon), crash pad switch, A/C control module, alternator, instrument cluster, vibrator module rear seat warmer module LH/RH, rear CCS control module LH/RH, driver/passenger CCS control module (with CCS) driver/passenger seat warmer module (W/O CCS), massage module, center facia switch |
| Fuse MINI 10A | 15 | (A/CON(B+)) Auto light sensor & security indicator, RF receiver, A/C control module, analog clock |
| Fuse MINI 15A | 16 | (S/HTD ECU(FL)) Driver CCS control module (with CCS), driver seat warmer module (with CCS), rear curtain module |
| Fuse MINI 15A | 17 | (P/HANDLE) Tilt & telescopic module |
| Fuse MINI 10A | 18 | (ESCL-1) PDM |
| Fuse MINI 10A | 19 | (DR LOCK(LH)) Driver door module |
| Fuse MINI 10A | 20 | (KEY ILLUMINATION) Start stop button switch, FOB holder |
| Fuse MINI 15A | 22 | (S/HTD ECU(RL)) Rear CCS control module LH (with CCS), rear seat warmer module LH (W/O CCS) |
| Fuse MINI 30A | 23 | (P/TRUNK) Power trunk lid control module |
| Fuse MINI 15A | 24 | (DR LOCK(RH)) Passenger door module |
| Fuse MINI 10A | 25 | (RR DOOR MDL) Data link connector, rear smart outside handle LH/RH, rear door lamp LH/RH, rear door module LH/RH |
| Fuse MINI 15A | 26 | (P/DOOR(FL)) Front door mood lamp LH, driver power seat switch, driver power door latch, front door lamp LH |
| Fuse MINI 15A | 27 | (P/DOOR(RL)) Rear power door latch LH, rear door window curtain LH |
| Fuse MINI 10A | 28 | (ESCL SW) FOB holder, start stop button switch |
| Fuse MINI 30A | 29 | (P/CONN) Fuse A/CON (B+) 10A, AUDIO (B+) 15A, BODY UNIT-1 10A |
| Fuse FMX/JCase 30A | 30 | (P/WDW(RH)) Rear power window module RH, passenger power window module |
| Fuse FMX/JCase 30A | 31 | (P/WDW(LH)) Rear power window module LH, driver power window module |
| Fuse MINI 10A | 32 | (F/LID OPEN) Fuel filler switch |
| Fuse MINI 15A | 33 | (ECS) ECS control module |
| Fuse MINI 10A | 34 | (RR CURTAIN MTR) Rear curtain module |
| Diode MINI | 35 | (DIODE) Stop lamps (SD927-1) |

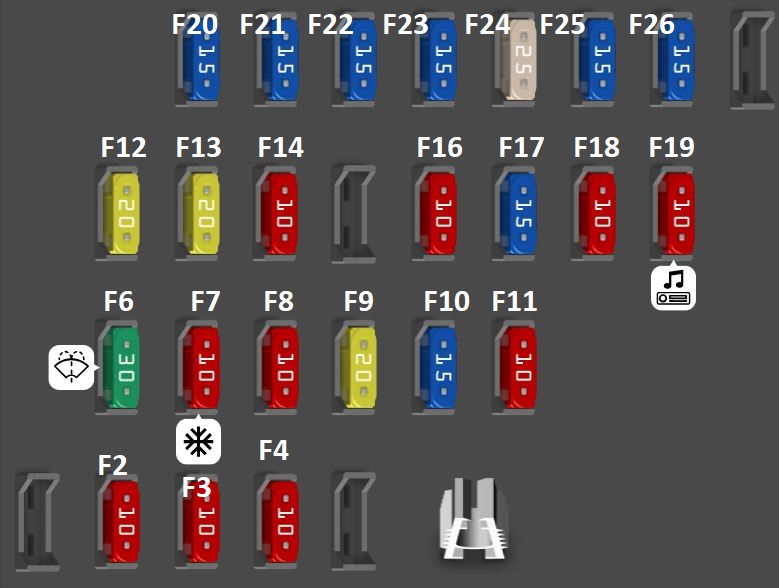

Passenger Side Fuse Box
| Type | Description |
| Fuse MINI 10A | F2 (MIRROR) Driver/passenger door module |
| Fuse MINI 10A | F3 (CONSOLE SW) Console switch LH/RH, massage module, vibrator module |
| Fuse MINI 10A | F4 (TPMS) Rear CCS control module RH (with CCS), rear seat warmer module RH (W/O CCS) |
| Fuse MINI 30A | F6 (IG KEY SUPPLY(IG2)) E/R junction box (fuse : AQS 10A, WASHER 15A) |
| Fuse MINI 10A | F7 (A/CON(IG2)) Active incar sensor, ionizer, center facia switch, A/C control module, rear console switch console vent temperature actuator & switch |
| Fuse MINI 10A | F8 (BODY UNIT) Instrument cluster (MICOM), rheostat, driver/passenger CCS control module, passenger receiver rear CCS control module LH/RH, PDM, IPM |
| Fuse MINI 20A | F9 (P/SEAT(RR)) Rear power seat relay box LH |
| Fuse MINI 15A | F10 (P/OUTLET(RR)) Rear accessory socket |
| Fuse MINI 10A | F11 (A/CON(ACC)) A/C control module, IPM, PDM, center facia switch |
| Fuse MINI 20A | F12 (S/ROOF) Overhead console assembly (sunroof motor) |
| Fuse MINI 20A | F13 (P/SEAT(FR)) Passenger IMS control module (with IMS), passenger power seat relay box (W/O IMS) |
| Fuse MINI 10A | F14 (ECM) Overhead console assembly (sunroof motor), rain sensor, rear curtain module |
| Fuse MINI 10A | F16 (P/OUTLET(FR)) Overhead console assembly (front room lamp), E/R fuse & relay box (front power outlet relay) |
| Fuse MINI 15A | F17 (P/DOOR(RR)) Rear power door latch RH, rear door window curtain RH |
| Fuse MINI 10A | F18 (H/REST(FR)) Passenger power seat switch |
| Fuse MINI 10A | F19 (AUDIO(ACC)) Camera module, rear audio switch, audio, front monitor, media module, AV head module |
| Fuse MINI 15A | F20 (LEG SUPPORT(RR)) Rear power seat relay box RH |
| Fuse MINI 15A | F21 (S/HTD ECU(FR)) Passenger CCS control module (with CCS), passenger seat warmer module (W/O CCS) |
| Fuse MINI 15A | F22 (HTD STRG) Steering wheel heated |
| Fuse MINI 15A | F23 (ICE BOX) Rear console switch, cool box |
| Fuse MINI 25A | F24 (ESCL) PDM |
| Fuse MINI 15A | F25 (P/DOOR(FR)) Passenger power door latch |
| Fuse MINI 15A | F26 (S/HTD ECU(RR)) Tire pressure monitoring module, electro chromic mirror |
| Fuse puller | FusePuller Extraction tool for fuse replacement. |
Hyundai Equus (2014 – 2016)

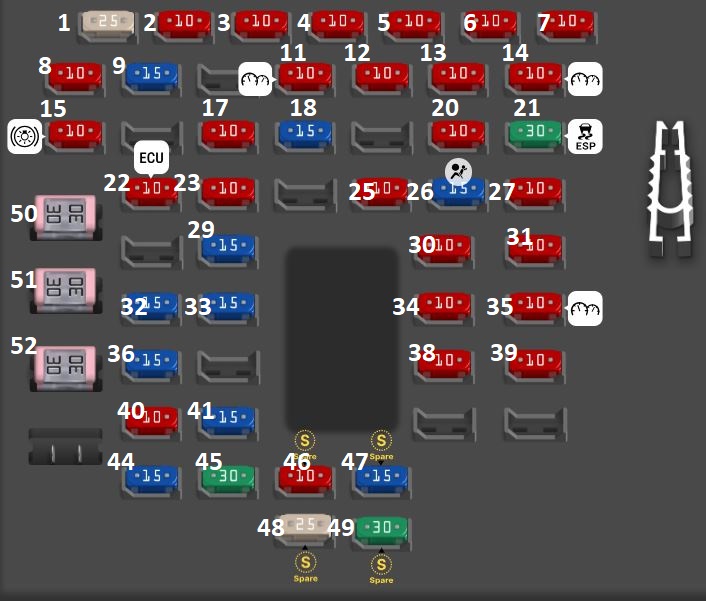

Driver Side Fuse Box
| Type | Description |
| Fuse MICRO2 25A | 1 (PDM B+) Smart Key Control Module |
| Fuse MICRO2 10A | 2 (Hazard) Center Facia Switch |
| Fuse MICRO2 10A | 3 (EPB) Electric Parking Brake Switch, Crash Pad Switch |
| Fuse MICRO2 10A | 4 (RF Receiver) RF Receiver, Security Indicator |
| Fuse MICRO2 10A | 5 (PDM IG1) Smart Key Control Module |
| Fuse MICRO2 10A | 6 (Shift Lever IG1) Electric ATM Shift Lever, ATM Shift Lever IND. |
| Fuse MICRO2 10A | 7 (Air Bag IND.) Instrument Cluster |
| Fuse MICRO2 10A | 8 (Smart Key) Start/Stop Button Switch |
| Fuse MICRO2 15A | 9 (Power Handle) Steering Tilt & Telescopic Module |
| Fuse MICRO2 10A | 11 (Memory) Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH, Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector |
| Fuse MICRO2 10A | 12 (TPMS) Tire Pressure Monitoring Module |
| Fuse MICRO2 10A | 13 (Active Head Rest) Active Head Rest Sensor Module |
| Fuse MICRO2 10A | 14 (Cluster) Instrument Cluster, Head-Up Display |
| Fuse MICRO2 10A | 15 (Stop Lamp) Stop Lamp Switch, Smart Key Control Module |
| Fuse MICRO2 10A | 17 (Shift Lever B+) Electric ATM Shift Lever, Sport Mode Switch |
| Fuse MICRO2 15A | 18 (Multi Media) A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch |
| Fuse MICRO2 10A | 20 (BCM) BCM |
| Fuse MICRO2 30A | 21 (IG1) E/R Junction Box (Fuse – B/UP LAMP, ESC, EHPS, AFLS, INJECTOR (IG1), CRUISE (IG1), ECU (IG1), TCU) |
| Fuse MICRO2 10A | 22 (Module 1) Head-Up Display, Rain Sensor, Rear Power Seat Switch RH |
| Fuse MICRO2 10A | 23 (Fuel Lid) Fuel Filler Door Switch, Front Console Switch |
| Fuse MICRO2 10A | 25 (Folding Mirror) Driver/Passenger Door Module |
| Fuse MICRO2 15A | 26 (Air Bag) SRS Control Module, Driver/Passenger Pre-Safe Seat Belt |
| Fuse MICRO2 10A | 27 (Module 4) E/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module |
| Fuse MICRO2 15A | 29 (ECS) ECS Control Module |
| Fuse MICRO2 10A | 30 (Audio (IG1)) A/V & Navigation Head Unit, MTS Module |
| Fuse MICRO2 10A | 31 (AFLS) Head Lamp LH/RH, Adaptive Front Lighting Module, Auto Head Lamp Leveling Device Module |
| Fuse MICRO2 15A | 32 (P/Door Driver) Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle |
| Fuse MICRO2 15A | 33 (Rear LH S/Heater) Rear CCS Control Module LH, Rear Seat Warmer Module LH |
| Fuse MICRO2 10A | 34 (Module 2) Power Trunk Lid Control Module, Electro Chromic Mirror, Electric Parking Brake Switch, A/T Console Switch |
| Fuse MICRO2 10A | 35 (A/CON) A/C Control Module, AQS Sensor, Driver IMS Control Module, Relax Module, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, Rear CCS Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Driver/Passenger CCS Control Module, Rear Console Switch, Driver/Passenger Seat Warmer Module, Rear CCS Control Module LH/RH, Rear Seat Warmer Module LH/RH) |
| Fuse MICRO2 15A | 36 (P/Door Rear LH) Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH |
| Fuse MICRO2 10A | 38 (Module 3) ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH, Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module, Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor LH/RH (Center) |
| Fuse MICRO2 10A | 39 (IAP) Active Accel Pedal Module |
| Fuse MICRO2 10A | 40 (Driver D/Lock) Driver Door Module |
| Fuse MICRO2 15A | 41 (Driver S/Heater) Driver CCS Control Module, Driver Seat Warmer Module |
| Fuse MICRO2 15A | 44 (Passenger D/Lock) Passenger Door Module |
| Fuse MICRO2 30A | 45 (Power Trunk Lid) Power Trunk Lid Control Module |
| Fuse MICRO2 10A | 46 Spare |
| Fuse MICRO2 15A | 47 Spare |
| Fuse MICRO2 25A | 48 Spare |
| Fuse MICRO2 30A | 49 Spare |
| Fuse FMM/MCase 30A | 50 (Passenger P/Seat) Relax Module |
| Fuse FMM/MCase 30A | 51 (Safety Window RH) Passenger Power Window Module, Rear Power Window Module RH |
| Fuse FMM/MCase 30A | 52 (Safety Window LH) Driver Power Window Module, Rear Power Window Module LH |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |

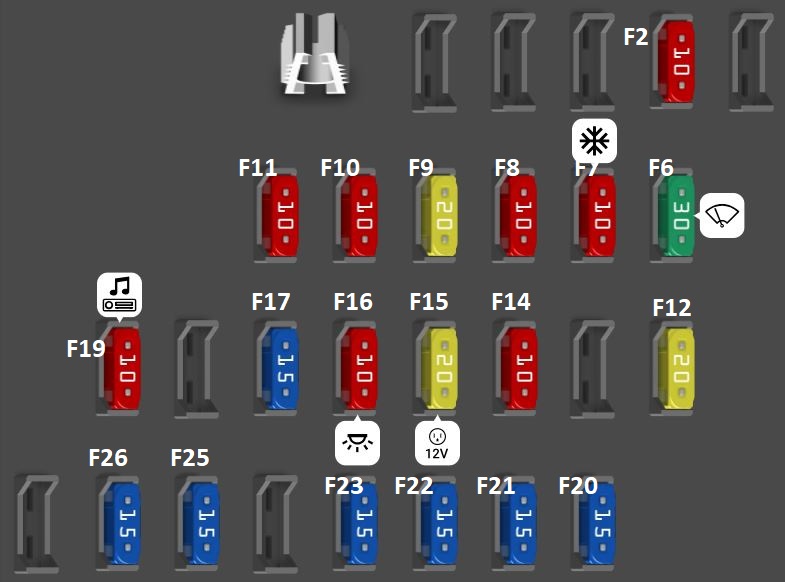

Passenger Side Fuse Box
| Type | Description |
| Fuse MINI 10A | F2 (USB Charge) USB Jack (6:4 Seat) |
| Fuse MINI 30A | F6 (IG2) E/R Junction Box (Fuse – WIPER (IG2), WASHER) |
| Fuse MINI 10A | F7 (A/CON) E/R Junction Box (Blower Relay), A/C Control Module, lonizer, Active Incar Sensor, LCD Panel Switch |
| Fuse MINI 10A | F8 (Module) Smart Junction Box LH (IG2 Power), Around View Unit, Camera Module |
| Fuse MINI 20A | F9 (Rear P/Seat) Rear Power Seat Relay Box LH, Rear Seat Lumbar Support Control Module LH |
| Fuse MINI 10A | F10 (E-Shifter) USB Jack (6:4 Seat), Electric ATM Shift Lever |
| Fuse MINI 10A | F11 (PDM ACC) Smart Key Control Module, BCM |
| Fuse MINI 20A | F12 (Sunroof) Sunroof Motor |
| Fuse MINI 10A | F14 (PDM IG2) Smart Key Control Module, BCM |
| Fuse MINI 20A | F15 (Rear P/Outlet) 6:4 Seat – Rear Power Outlet #1/#2, 5:5 Seat – – Rear Power Outlet, Rear Accessory Socket |
| Fuse MINI 10A | F16 (Room Lamp) E/R Fuse & Relay Box (Power Outlet FRT Relay), Front Room Lamp |
| Fuse MINI 15A | F17 (Rear P/Door) Rear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle RH |
| Fuse MINI 10A | F19 (Audio) A/V & Navigation Head Unit, Analogue Clock, Split Unit, Front Monitor, AMP, MTS Module, Front DIS Switch, Camera Module, Around View Unit, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch (6:4 Seat) |
| Fuse MINI 15A | F20 (Rear L/Support) Rear Power Seat Relay Box RH, Rear Seat Lumbar Support Control Module RH |
| Fuse MINI 15A | F21 (Passenger S/Heat) Passenger CCS Control Module, Passenger Seat Warmer Module |
| Fuse MINI 15A | F22 (Steering W/Heated) Clock Spring (Steering Wheel Remote Control – Steering Wheel Heated Module) |
| Fuse MINI 15A | F23 (Cool Box) Cool Box, Rear Console Swtich, Rear Seat Lumbar Support Control Module RH |
| Fuse MINI 15A | F25 (Passenger P/Door) Passenger Power Door Latch, Passenger Power Seat Switch, Passenger Smart Key Outside Handle |
| Fuse MINI 15A | F26 (Rear RH S/Heat) Rear CCS Control Module RH, Rear Seat Warmer Module RH |
| Fuse puller | FusePuller Extraction tool for fuse replacement. |

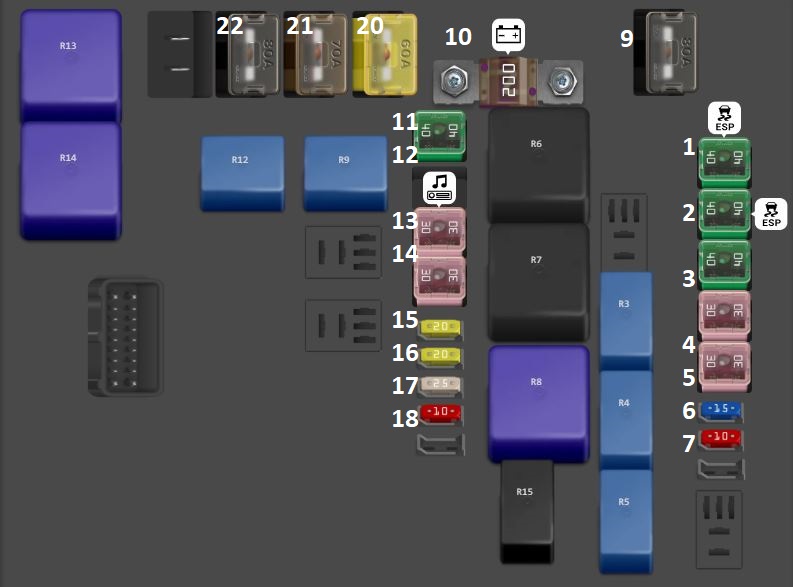

Engine Compartment Fuse Box
Hyundai Equus (2010 – 2013)

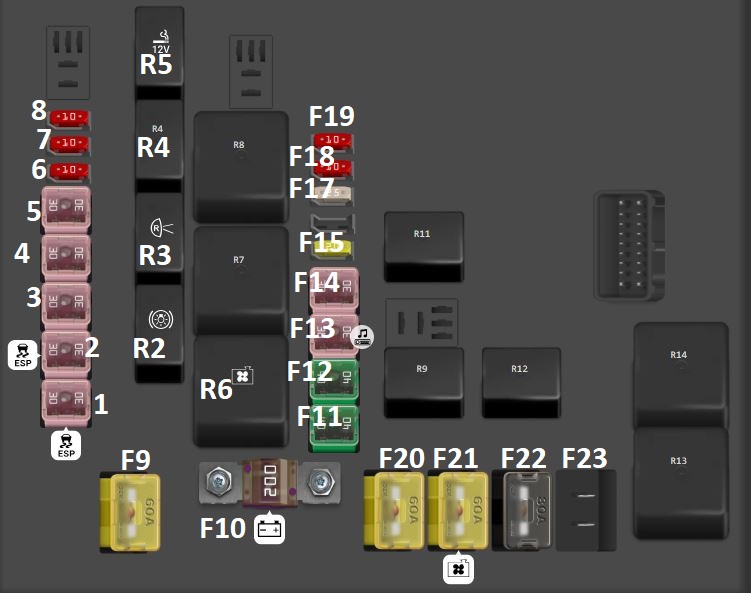

Main Fuse Box
| Type | No. | Description |
| Fuse FMX/JCase 30A | F1 | (ESP-1) ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 30A | F2 | (ESP-2) ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 30A | F3 | (ESCL(IGN1)) ESCL (IGN1) Relay |
| Fuse FMX/JCase 30A | F4 | (ESCL(IGN2)) ESCL (IGN2) Relay |
| Fuse FMX/JCase 30A | F5 | (P/SEAT(FR-LH)) Driver Lumbar Support Valve, Driver IMS Control Module, Driver Lumbar Support Switch |
| Fuse MINI 10A | F6 | (STOP LP) Stop Lamp Relay, Stop Lamp Switch, IPM |
| Fuse MINI 10A | F7 | (B/UP LP-1 (G8BA)) Back Up Lamp Relay |
| Fuse MINI 10A | F8 | (B/UP LP-2 (G6DA)) Rear Combination Lamp LH/RH, Electro Chromic Mirror, Rear Curtain Module Audio, AV Head Module |
| Fuse FLF/PAL 293 60A | F9 | (I/P POWER(LH)) I/P Junction Box LH |
| Fuse MIDI 200A | F10 | (ALT) Alternator |
| Fuse FMX/JCase 40A | F11 | (ECS) ECS Compressor Relay |
| Fuse FMX/JCase 40A | F12 | (AMP-1) AV JBL AMP |
| Fuse FMX/JCase 30A | F13 | (AMP-2) AMP |
| Fuse FMX/JCase 30A | F14 | (ESCL(ACC)) ESCL (ACC) Relay |
| Fuse MINI 20A | F15 | (H/LP WASHER) Head Lamp Washer Relay |
| Fuse MINI 25A | F17 | (P/OUTLET(FR)) Front Power Outlet Relay |
| Fuse MINI 10A | F18 | (TRUNK OPEN) Trunk Lid Open Relay |
| Fuse MINI 10A | F19 | (IMS) IMS Relay |
| Fuse FLF/PAL 293 60A | F20 | (I/P POWER(RH)) I/P Junction Box RH |
| Fuse FLF/PAL 293 60A | F21 | (COOLING FAN) Cooling Fan Relay |
| Fuse FLF/PAL 293 80A | F22 | (EHPS) EHPS Motor |
| Relay | R2 | STOP LAMP RELAY |
| Relay | R3 | BACK UP LAMP RELAY |
| Relay | R4 | TRUNK LID OPEN RELAY |
| Relay | R5 | FRONT POWER OUTLET RELAY |
| Relay | R6 | COOLING FAN RELAY |
| Relay | R7 | ECS COMPRESSOR RELAY |
| Relay | R8 | ESCL(ACC) RELAY |
| Relay | R9 | SUB START RELAY |
| Relay | R11 | IMS RELAY |
| Relay | R12 | HEAD LAMP WASHER RELAY |
| Relay | R13 | ESCL(IGN1) RELAY |
| Relay | R14 | ESCL(IGN2) RELAY |

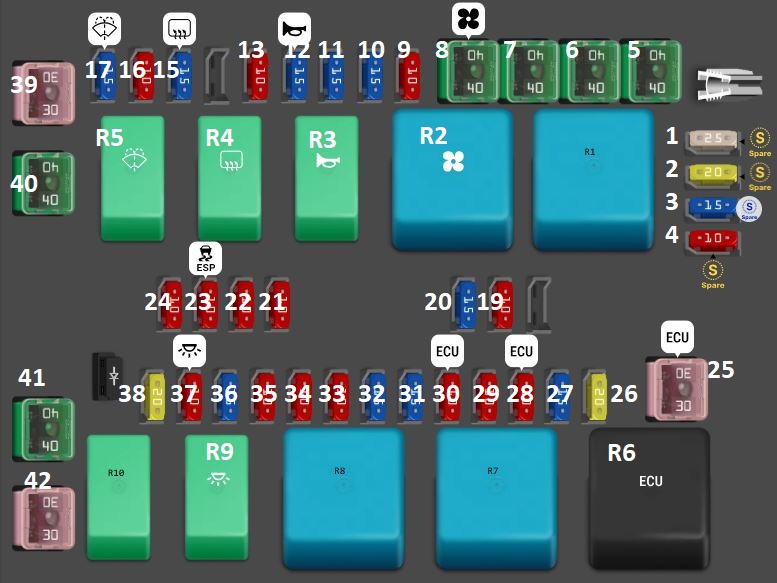

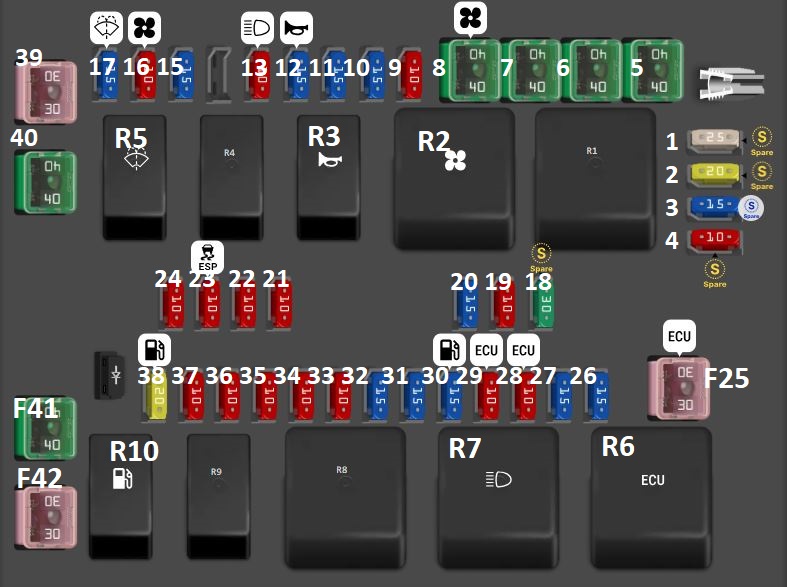

Junction Box
| Type | Description |
| Diode MINI | DIODE (DIODE) Courtesy & trunk lamps (SD929-2) |
| Fuse MINI 25A | F1 SPARE |
| Fuse MINI 20A | F2 SPARE |
| Fuse MINI 15A | F3 SPARE |
| Fuse MINI 10A | F4 SPARE |
| Fuse FMX/JCase 40A | F5 (PRESAFETY(RH)) Pre-safe seat belt RH |
| Fuse FMX/JCase 40A | F6 (HTD GLASS(RR)) HTD glass (RR) relay |
| Fuse FMX/JCase 40A | F7 (PRESAFETY(LH)) Pre-safe seat belt LH |
| Fuse FMX/JCase 40A | F8 (BLOWER MOTOR) Blower relay |
| Fuse MINI 10A | F9 (A/CON) A/C control module |
| Fuse MINI 15A | F10 (EPB-1) EPB control module |
| Fuse MINI 15A | F11 (EPB-2) EPB control module |
| Fuse MINI 15A | F12 (HORN) Horn relay |
| Fuse MINI 10A | F13 (IPM) IPM, H/LP (Low) relay |
| Fuse MINI 15A | F15 (HTD GLASS(FR)) HTD glass (FR) relay |
| Fuse MINI 10A | F16 (AQS) AQS sensor, blower relay, electronic control wiper module |
| Fuse MINI 15A | F17 (WASHER) Washer relay |
| Fuse MINI 30A | F18 SPARE |
| Fuse MINI 10A | F19 (MIRROR HTD) A/C control module, power outside mirror LH/RH |
| Fuse MINI 15A | F20 (TCU) TCM |
| Fuse MINI 10A | F21 (AFLS) Head lamp LH/RH |
| Fuse MINI 10A | F22 (EHPS) EHPS module |
| Fuse MINI 10A | F23 (ESP) ESP control module, E/R fuse & relay box (multipurpose check connector) |
| Fuse MINI 10A | F24 (ECU(IG1)) ECM |
| Fuse FMX/JCase 30A | F25 (ECU) Engine control relay |
| Fuse MINI 15A | F26 (IGN COIL-1) Ignition coil #2/4/6, ignition coil #8 (G8BA), condenser #2 (G8BA) |
| Fuse MINI 15A | F27 (IGN COIL-2) Condenser #1, condenser #2(G6DA), ignition coil #1/3/5, ignition coil #7(G8BA) |
| Fuse MINI 10A | F28 (ENG SNSR-1) Mass air flow sensor (G6DA), oxygen sensor #1 – 4, ECM, camshaft position sensor (G8BA) |
| Fuse MINI 10A | F29 (ENG SNSR-2) Canister purge control solenoid valve, oil control valve #1~4, variable intake manifold valve E/R fuse & relay box (cooling fan relay), ECM, mass air flow sensor (G8BA) |
| Fuse MINI 15A | F30 (ENG SNSR-3) ECM (G6DA), injector #1~ 6 (G6DA), fuel pump relay, injector #1~ 8 (G8BA) |
| Fuse MINI 15A | F31 (H/LP(LO-RH)) Head lamp RH |
| Fuse MINI 15A | F32 (H/LP(LO-LH)) Head lamp LH |
| Fuse MINI 10A | F33 (INHIBITOR SW) Alternator (G8BA), transmission range switch (G6DA) |
| Fuse MINI 10A | F34 (CRUISE) Smart cruise control module |
| Fuse MINI 10A | F35 (STOP LP) Stop lamp switch, alternator (G6DA), E/R fuse & relay box (stop lamp relay) |
| Fuse MINI 10A | F36 (ECU(B+)) ECM, TCM |
| Fuse MINI 10A | F37 (ROOM LP) Room LP relay |
| Fuse MINI 20A | F38 (FUEL PUMP) Fuel pump relay |
| Fuse FMX/JCase 30A | F39 (WIPER) Electronic control wiper module |
| Fuse FMX/JCase 40A | F40 (FAM POWER-2) FAM |
| Fuse FMX/JCase 40A | F41 (FAM POWER-1) FAM |
| Fuse FMX/JCase 30A | F42 (START) Start relay |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Relay | R1 Heated glass (RR) relay |
| Relay | R2 Blower relay |
| Relay | R3 Horn relay |
| Relay | R4 Heated glass (FR) relay |
| Relay | R5 Washer relay |
| Relay | R6 Engine control relay |
| Relay | R7 Headlamp (low) relay |
| Relay | R8 Start relay |
| Relay | R9 Room LP relay |
| Relay | R10 Fuel pump relay |
Hyundai Equus (2014 – 2016)
Main Fuse Box
| Type (Rating) | No. | Description |
|---|---|---|
| Fuse (FMX/JCase, 40A) | F1 | ESC 1 – ESC Module, Multipurpose Check Connector |
| Fuse (FMX/JCase, 40A) | F2 | ESC 2 – ESC Module, Multipurpose Check Connector |
| Fuse (FMX/JCase, 40A) | F3 | PDM (IG1) – PDM (IG1) Relay |
| Fuse (FMX/JCase, 30A) | F4 | PDM (IG2) – PDM (IG2) Relay |
| Fuse (FMX/JCase, 30A) | F5 | P/SEAT (DRV) – Driver IMS Control Module, Driver Lumbar Support Valve |
| Fuse (MINI, 15A) | F6 | STOP LAMP – Stop Signal Electronic Module |
| Fuse (MINI, 10A) | F7 | B/UP LAMP – B/UP LAMP Relay |
| Fuse (FLF/PAL 293, 80A) | F9 | I/P POWER LH – Smart Junction Box LH (Fuse: F1, F2, F3, F4, F8, F9, F12, F15, F17, F18, F22, F23, F29, F32, F33, F36, F40, F41, F44, F45, F46, F47, F48, Leak Current Autocut Device) |
| Fuse (MIDI, 200A) | F10 | ALT – Alternator, E/R Fuse & Relay Box (Fuse: I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT) |
| Fuse (FMX/JCase, 40A) | F11 | ECS – ECS Relay |
| Fuse (FMX/JCase, 30A) | F13 | AMP – Amplifier |
| Fuse (FMX/JCase, 30A) | F14 | PDM (ACC) – PDM (ACC) Relay |
| Fuse (MINI, 20A) | F15 | H/LAMP WASHER – Headlamp Washer Relay |
| Fuse (MINI, 20A) | F16 | VACUUM PUMP – Vacuum Pump Relay |
| Fuse (MINI, 25A) | F17 | POWER OUTLET FRT – Front Power Outlet Relay |
| Fuse (MINI, 10A) | F18 | TRUNK – Trunk Relay |
| Fuse (FLF/PAL 293, 60A) | F20 | I/P POWER RH – I/P Junction Box RH (Fuse: F2, F9, F12, F17, F20, F21, F25, F26) |
| Fuse (FLF/PAL 293, 70A) | F21 | C/FAN – Cooling Fan Relay |
| Fuse (FLF/PAL 293, 80A) | F22 | EHPS – EHPS Module |
| Relay | R3 | B/UP LAMP |
| Relay | R4 | TRUNK |
| Relay | R5 | POWER OUTLET FRT |
| Relay | R6 | C/FAN |
| Relay | R7 | ECS |
| Relay | R8 | PDM (ACC) |
| Relay | R9 | P/N RELAY |
| Relay | R12 | H/LAMP WASHER |
| Relay | R13 | PDM (IG1) |
| Relay | R14 | PDM (IG2) |
| Relay | R15 | VACUUM PUMP |
Junction Box
| Type | Description |
| Fuse MINI 25A | F1 SPARE |
| Fuse MINI 20A | F2 SPARE |
| Fuse MINI 15A | F3 SPARE |
| Fuse MINI 10A | F4 SPARE |
| Fuse FMX/JCase 40A | F5 (PRESAFETY SEAT BELT RH) Passenger Pre-Safe Seat Belt |
| Fuse FMX/JCase 40A | F6 (RR HTD) RR HTD Relay |
| Fuse FMX/JCase 40A | F7 (PRESAFETY SEAT BELT LH) Driver Pre-Safe Seat Belt |
| Fuse FMX/JCase 40A | F8 (BLOWER) Blower Relay |
| Fuse MINI 10A | F9 (A/CON) A/C Control Module |
| Fuse MINI 15A | F10 (EPB 1) Electric Parking Brake Module |
| Fuse MINI 15A | F11 (EPB 2) Electric Parking Brake Module |
| Fuse MINI 15A | F12 (HORN) Horn Relay |
| Fuse MINI 10A | F13 (CRUISE (B+)) H/Lamp Relay, Smart Cruise Control Module |
| Fuse MINI 15A | F15 (DEICER) Deicer Relay |
| Fuse MINI 10A | F16 (WIPER (IG2)) Electronic Control Wiper Module |
| Fuse MINI 15A | F17 (WASHER) Washer Relay |
| Fuse MINI 10A | F19 (HTD MIRR) Driver/Passenger Power Outside Mirror |
| Fuse MINI 15A | F20 (TCU) TCM, Transmission Range Switch, Transmission Park Position Sensor & Switch |
| Fuse MINI 10A | F21 (AFLS) Head Lamp LH/RH |
| Fuse MINI 10A | F22 (EHPS) EHPS Module |
| Fuse MINI 10A | F23 (ESC) ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| Fuse MINI 10A | F24 (ECU (IG1)) ECM, Alternator (G8BE) |
| Fuse FMX/JCase 30A | F25 (ECU) ECU Relay |
| Fuse MINI 20A | F26 (IGN COIL) Condenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE) |
| Fuse MINI 15A | F27 (INJECTOR (B+)) Injector Drive Box |
| Fuse MINI 10A | F28 (SENSOR 1) ECM, Oxygen Sensor #1 ~ #4 |
| Fuse MINI 10A | F29 (SENSOR 2) ECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE) |
| Fuse MINI 10A | F30 (SENSOR 3) ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE) |
| Fuse MINI 15A | F31 (H/LAMP RH) Head Lamp RH |
| Fuse MINI 15A | F32 (H/LAMP LH) Head Lamp LH |
| Fuse MINI 10A | F33 (INJECTOR (IG1)) Injector Drive Box |
| Fuse MINI 10A | F34 (CRUISE (IG1)) Smart Cruise Control Module |
| Fuse MINI 10A | F35 (B/UP LAMP) Alternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay), Steering Angle Sensor, Brake Vacuum Switch (G6DJ) |
| Fuse MINI 15A | F36 (ECU (B+)) ECM/TCM, Injector Drive Box (G6DJ) |
| Fuse MINI 10A | F37 (ROOM LAMP) Room Lamp Relay |
| Fuse MINI 20A | F38 (F/PUMP) F/Pump Relay |
| Fuse FMX/JCase 30A | F39 (WIPER (B+)) Electronic Control Wiper Module |
| Fuse FMX/JCase 40A | F40 (FAM 2 (B+)) FAM |
| Fuse FMX/JCase 40A | F41 (FAM 1 (B+)) FAM |
| Fuse FMX/JCase 30A | F42 (START) Start Relay |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Relay | R1 RR HTD |
| Relay | R2 BLOWER |
| Relay | R3 HORN |
| Relay | R4 DEICER |
| Relay | R5 WASHER |
| Relay | R6 ECU |
| Relay | R7 H/LAMP |
| Relay | R8 START |
| Relay | R9 ROOM LAMP |
| Relay | R10 F/PUMP |
Related Posts:
