Hyundai Genesis BH (2008 – 2014) Fuse Box Location & Diagrams
Locate the fuse boxes and explore detailed fuse diagrams for the Hyundai Genesis BH (2008–2014) with this easy-to-follow blog. Find the correct fuse for electrical components, understand fuse functions, and simplify troubleshooting, maintenance, and replacement to keep your vehicle’s electrical system operating safely and efficiently.
Fuse Box Location

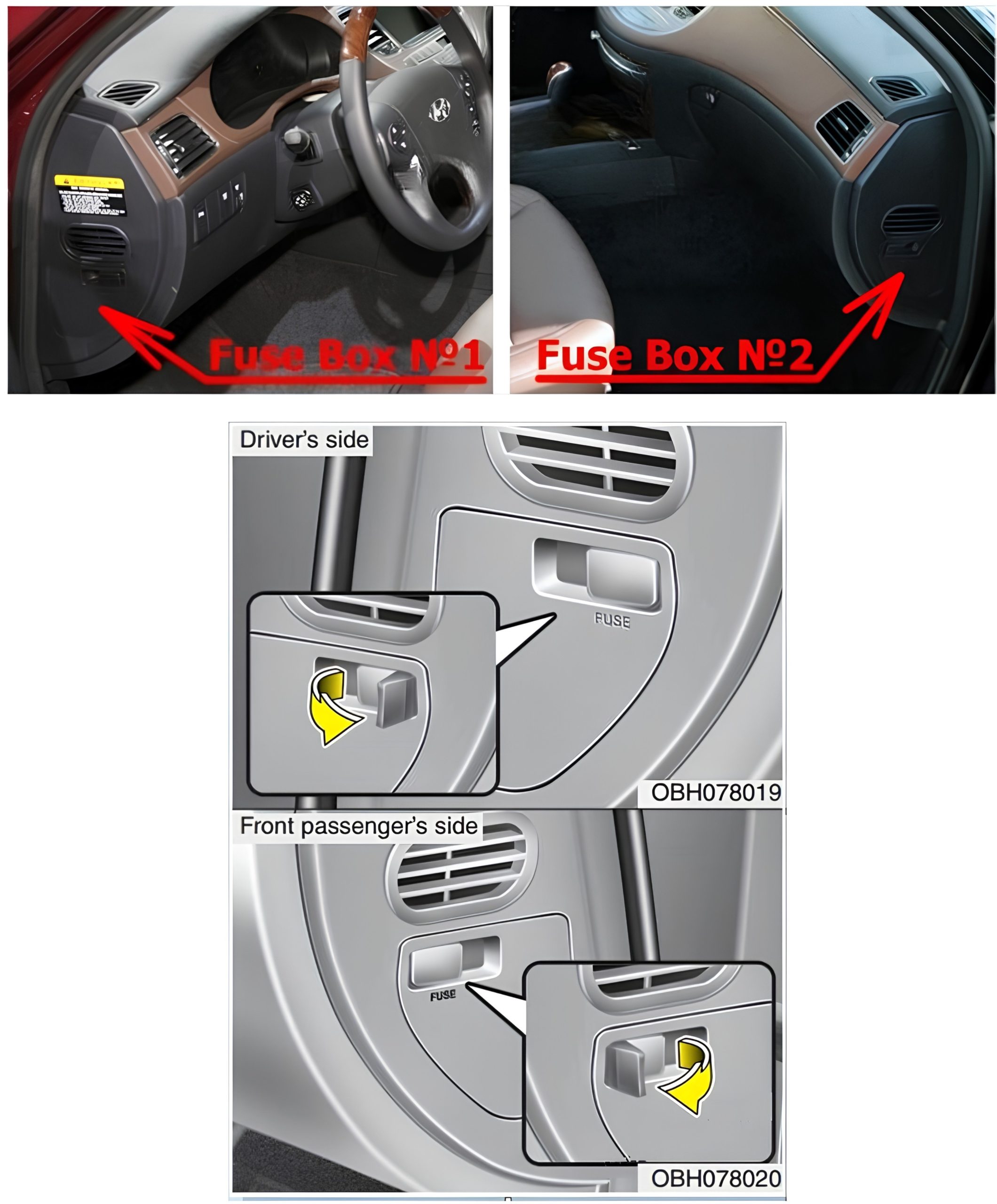

Passenger Compartment Fuse Box
There are two fuse boxes on each side of the dashboard.

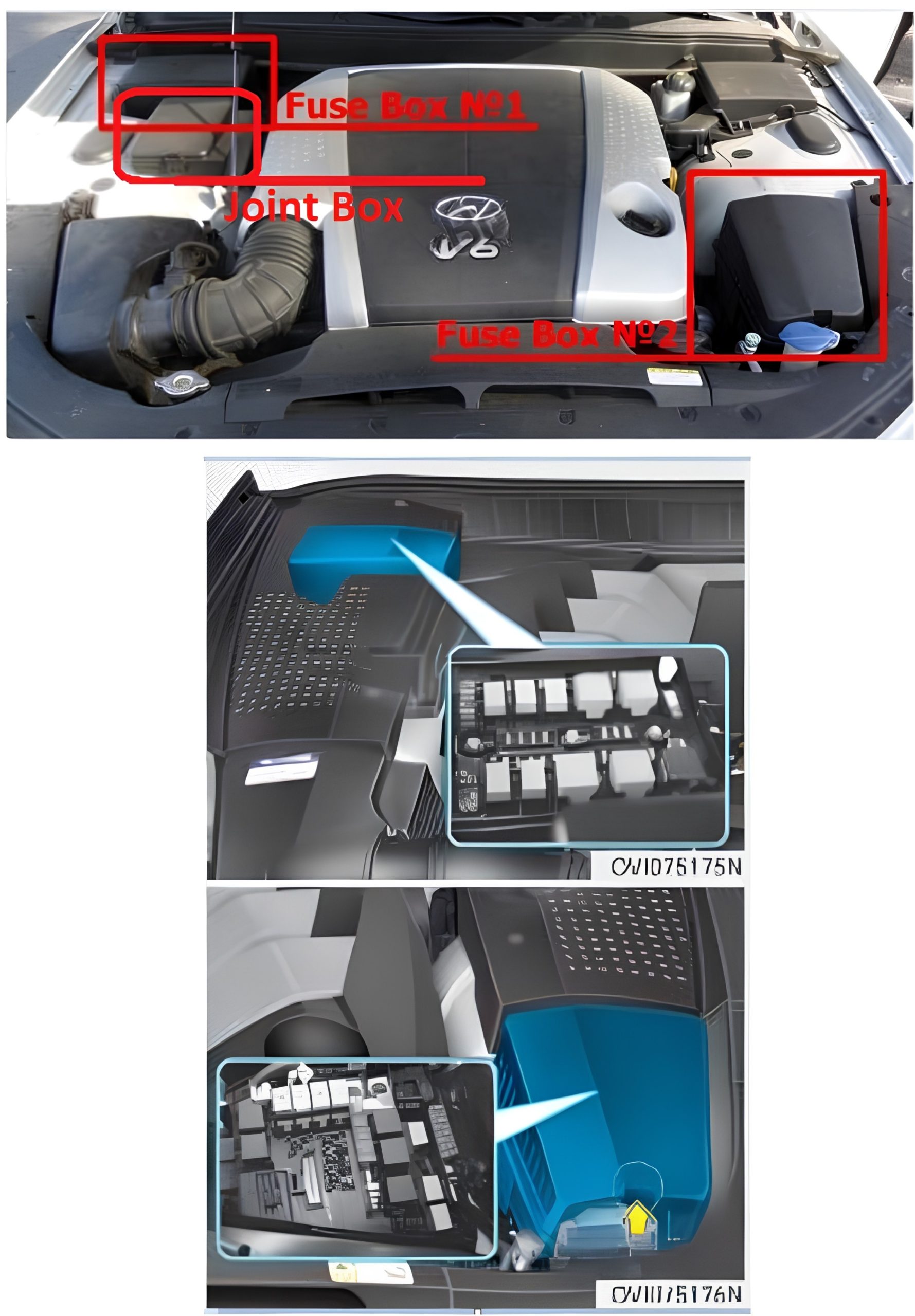

Engine Compartment Fuse Box

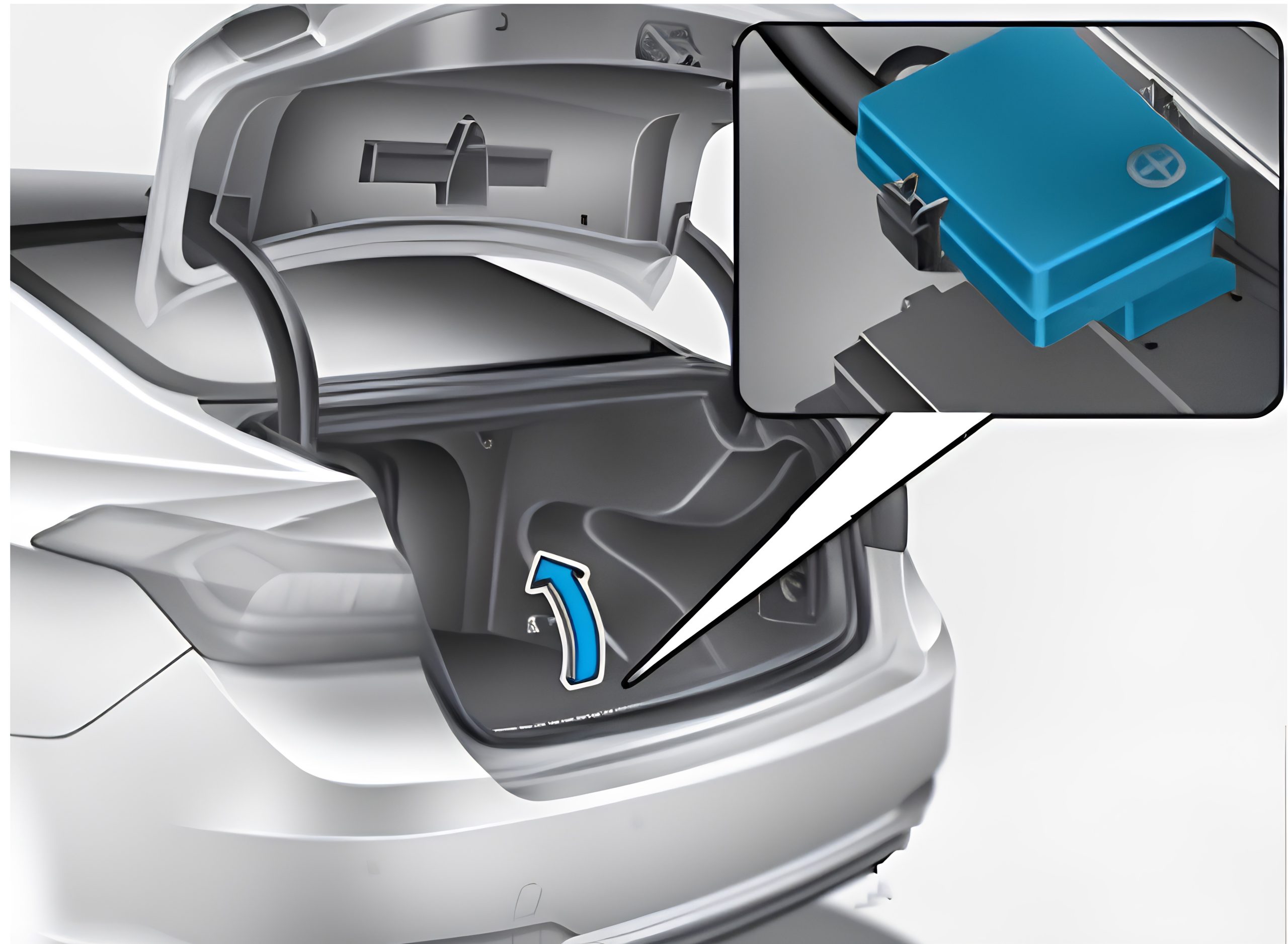

Luggage Compartment Fuse Box
Located in the trunk (luggage compartment) where the battery is housed on the Genesis BH.
Fuse Box Diagrams
Passenger Compartment Fuse Box

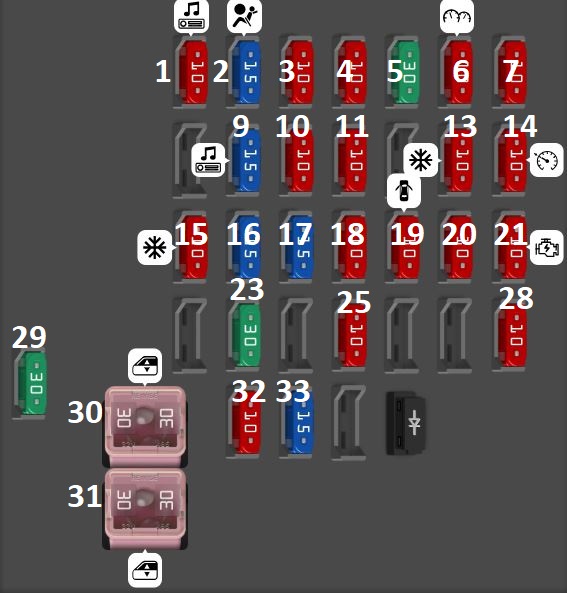

Driver Side Fuse Box
| Type | No. | Description |
| Fuse MINI 10A | 1 | (AUDIO) Audio system |
| Fuse MINI 15A | 2 | (A/BAG) Airbag |
| Fuse MINI 10A | 3 | BODY UNIT |
| Fuse MINI 10A | 4 | (A/BAG IND) Airbag indicator |
| Fuse MINI 30A | 5 | IG KEY SUPPLY 2013: E/R Junction Box Fuse (INHIBITOR SW 15A, ECU-2 10A, EHPS 10A, CRUISE 10A, TCU 15A, ESP 10A,STOP LP 10A, AFLS 10A) |
| Fuse MINI 10A | 6 | (CLUSTER) Instrument cluster |
| Fuse MINI 10A | 7
8 | CHASSIS UNIT
RF Receiver |
| Fuse MINI 15A | 9 | (AUDIO) Audio system 2013: Audio, Front Monitor, AV Head Module, Rear Monitor (With AV), Rear Audio Switch, Media Module (With AV) |
| Fuse MINI 10A | 10 | BODY UNIT 2013: FAM, Multifunction Switch, Tilt & Telescopic Module, Instrument Cluster, Driver Door Module, Passenger Door Module, Power Trunk Lid Control Module, IMS Control Module, Rear Curtain Module |
| Fuse MINI 10A | 11
12 | AFLS 2013: Auto Head Lamp Leveling Device Sensor, Adaptive Front Lighting Module, Head Lamp LH, Head Lamp RH 2013: Intelligent Accel Pedal Unit |
| Fuse MINI 10A | 13 | (A/CON) Air conditioning 2013: A/C Control Module |
| Fuse MINI 10A | 14 | (CRUISE SWITCH) Cruise control |
| Fuse MINI 10A | 15 | (A/CON) Air conditioning |
| Fuse MINI 15A | 16 | ECU (RH-LH) |
| Fuse MINI 15A | 17 | P/HANDLE |
| Fuse MINI 10A | 18 | (ESCL) Steering lock |
| Fuse MINI 10A | 19 | (DR LOCK (LH)) Power door lock system |
| Fuse MINI 10A | 20 | KEY ILLUMINATION |
| Fuse MINI 10A | 21 | (START) Starter system 2013: Transmission Range Switch |
| Fuse MINI 30A | 23 | (P/TRUNK) Power trunk lid opener |
| Fuse MINI 10A | 25
26 | (SECURITY LP) Anti-theft system
2013: Stop Lamp Switch |
| Fuse MINI 10A | 28 | ESCL SW |
| Fuse MINI 30A | 29 | P/CONN 2013: I/P Junction Box LH Fuse (MODULE 3 10A, AUDIO(B+) 15A ,Rf Receiver 10A, A/CON(IG1) 15A) |
| Fuse FMX/JCase 30A | 30 | (P/WDW (RH)) Power windows |
| Fuse FMX/JCase 30A | 31 | (P/WDW (LH)) Power windows |
| Fuse MINI 10A | 32 | (F/LID OPEN) Fuel lid opener |
| Fuse MINI 15A | 33 | ECS |
| Diode MINI | 35 | (DIODE) Diode |

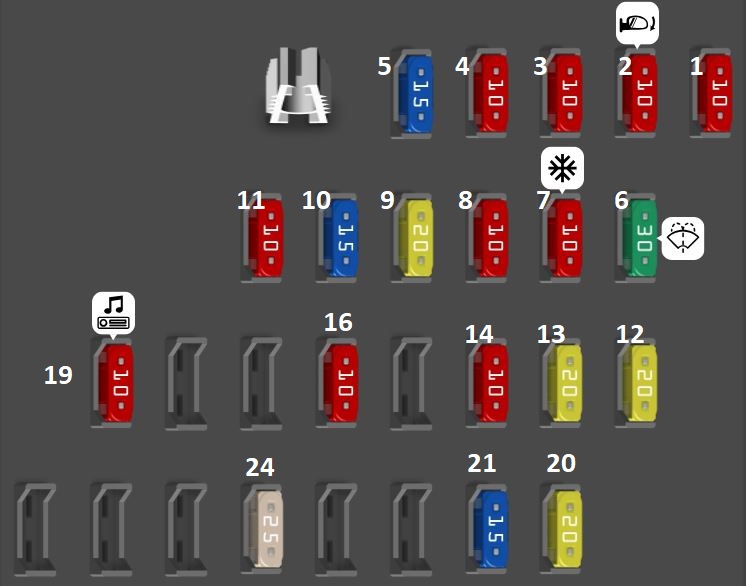

Passenger Side Fuse Box
| Type | Description |
| Fuse MINI 10A | F1 (CURTAIN (RR)) Rear Curtain Module |
| Fuse MINI 10A | F2 (MIRROR) Driver Door Module, Passenger Door Module |
| Fuse MINI 10A | F3 (CONSOLE SW) Console Switch LH/RH, Buzzer |
| Fuse MINI 10A | F4 (TPMS) Tire Pressure Monitoring Module, Electro Chromic Mirror |
| Fuse MINI 15A | F5 (DR LOCK (RH)) Passenger Door Module |
| Fuse MINI 30A | F6 (IG KEY SUPPLY 2) E/R Junction Box Fuse (AQS 10A, WASHER 15A) |
| Fuse MINI 10A | F7 (A/CON 1) Active Incar Sensor, A/C Control Module |
| Fuse MINI 10A | F8 (BODY UNIT 1) Instrument Cluster, Driver CCS Control Module, PDM, IPM, Rheostat 2013: Instrument Cluster, Rheostat, Driver CCS Control Module, Passenger CCS Control Module, PDM, IPM |
| Fuse MINI 20A | F9 (P/SEAT (RR)) – |
| Fuse MINI 15A | F10 (P/OUTLET (RR)) – |
| Fuse MINI 10A | F11 (A/CON 2) A/C Control Module, IPM, PDM, Key Lock Module |
| Fuse MINI 20A | F12 (S/ROOF) Overhead Console Lamp |
| Fuse MINI 20A | F13 (P/SEAT (FR-RH)) Passenger Power Seat Relay Box |
| Fuse MINI 10A | F14 (ECM) Electro Chromic Mirror, Overhead Console Lamp, Rain Sensor, Rear Curtain Module, Camera Module |
| Fuse MINI 10A | F16 (P/OUTLET (FR)) P/Outlet (FR) Relay 2013: ACC Socket Relay |
| Fuse MINI 10A | F19 (AUDIO 1) Audio, Camera Module, Front Monitor, Media Module, AV Head Module |
| Fuse MINI 20A | F20 (S/HTD ECU (RR)) – |
| Fuse MINI 15A | F21 (S/HTD ECU (FR-RH)) Passenger Seat Warmer Module F22 2013: Steering Wheel Heater |
| Fuse MINI 25A | F24 (ESCL 1) PDM |
| Fuse puller | FusePuller Extraction tool for fuse replacement. |
Engine Compartment Fuse Box

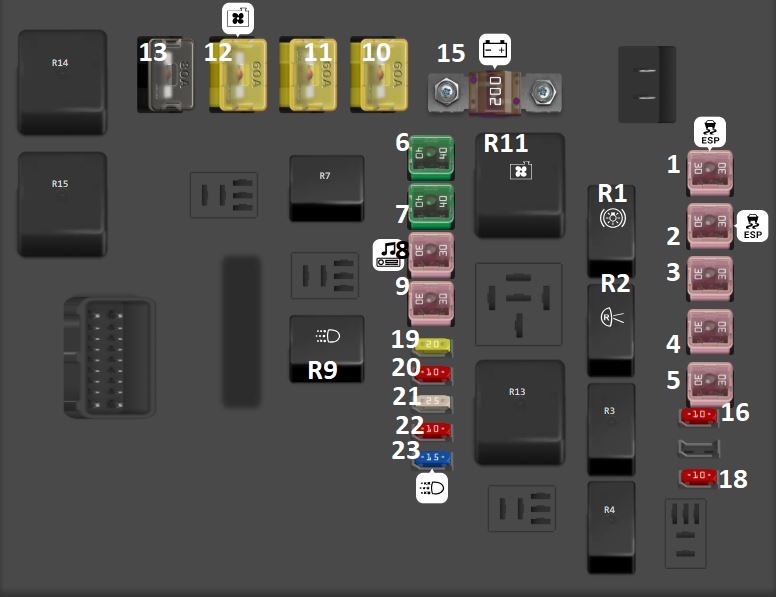

Driver Side Fuse Box
| Type | No. | Description | |
|---|---|---|---|
Fuse FMX/JCase 30A | F1 | (ESP-1) ESC Module, Multipurpose Check Connector | |
Fuse FMX/JCase 30A | F2 | (ESP-2) ESC Module, Multipurpose Check Connector | |
Fuse FMX/JCase 30A | F3 | (ESCL (IGN1)) ESCL (IGN1) Relay | |
Fuse FMX/JCase 30A | F4 | (ESCL (IGN2)) ESCL (IGN2) Relay | |
Fuse FMX/JCase 30A | F5 | (P/SEAT (FR-LH)) Driver Power Seat Relay Box, IMS Control Module, Front Lumbar Support Switch | |
Fuse FMX/JCase 40A | F6 | (ECS) – | |
Fuse FMX/JCase 40A | F7 | (AMP-1) AV JBL AMP | |
Fuse FMX/JCase 30A | F8 | (AMP-2) AMP | |
Fuse FMX/JCase 30A | F9 | (ESCL (ACC)) ESCL (ACC) Relay | |
Fuse FLF/PAL 293 60A | F10 | (I/P POWER (LH)) I/P Junction Box LH | |
Fuse FLF/PAL 293 60A | F11 | (I/P POWER (RH)) I/P Junction Box RH | |
Fuse FLF/PAL 293 60A 80A | F12 | (COOLING FAN) Cooling Fan Relay 2013: EHPS Module | |
Fuse FLF/PAL 293 80A 60A | F13
F14 | (EHPS) EHPS Module I/P Junction Box LH | |
Fuse MIDI 200A | F15 | (ALT) Alternator | |
Fuse MINI 10A | F16 | (STOP LP) Stop Lamp Relay, Stop Lamp Switch, IPM | |
Fuse MINI 10A | F18 | (B/UP LP (G6DA/G6DB)) Rear Combination Lamp LH/RH (IN), Electro Chromic Mirror, Camera Module, Rear Curtain Module | |
Fuse MINI 20A | F19 | (H/LP WASHER) – | |
Fuse MINI 10A | F20 | (B/UP LP (G8BA)) Back-up Lamp Relay | |
Fuse MINI 25A | F21 | (P/OUTLET (FR)) P/Outlet (FR) Relay | |
Fuse MINI 10A | F22 | (TRUNK OPEN) Trunk Open Relay | |
Fuse MINI 15A | F23 | (DRL) DRL Relay | |
Relay | R1 | Stop Lamp Relay | |
Relay | R2 | Back-Up Lamp Relay | |
Relay | R3 | Trunk Open Relay | |
Relay | R4 | P/Outlet (FR) Relay | |
Relay | R7 | Sub Start Relay | |
Relay | R9 | DRL Relay | |
Relay | R11 | Cooling Fan Relay | |
Relay | R13 | ESCL (ACC) Relay | |
Relay | R14 | ESCL (IGN1) Relay | |
Relay | R15 | ESCL (IGN2) Relay |

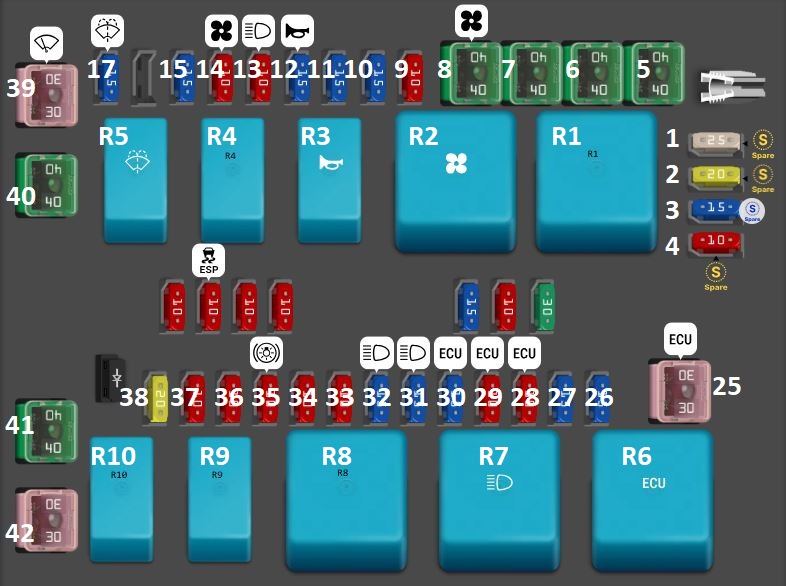

Passenger Side Fuse Box
| Type | Description |
| Fuse MINI 25A | F1 SPARE |
| Fuse MINI 20A | F2 SPARE |
| Fuse MINI 15A | F3 SPARE |
| Fuse MINI 10A | F4 SPARE |
| Fuse FMX/JCase 40A | F5 (IGN SW 2 (PRESAFETY PASS)) Ignition Switch (IG 2, START), Presafety Seat Belt Passenger |
| Fuse FMX/JCase 40A | F6 (RR HTC) RRHTC |
| Fuse FMX/JCase 40A | F7 (IGN SW 1 (PRESAFETY DRV)) Ignition Switch (IG 1, ACC), Presafety Seat Belt Driver |
| Fuse FMX/JCase 40A | F8 (BLOWER) Blower Relay |
| Fuse MINI 10A | F9 (A/CON) A/C Control Module |
| Fuse MINI 15A | F10 (EPB 1) Electric Parking Brake Module |
| Fuse MINI 15A | F11 (EPB 2) Electric Parking Brake Module |
| Fuse MINI 15A | F12 (HORN) Horn Relay |
| Fuse MINI 10A | F13 (IPM) IPM, Head Lamp (Low) Relay |
| Fuse MINI 10A | F14 (AQS) AQS Sensor, Electronic Control Wiper Module, Blower Relay |
| Fuse MINI 15A 10A | F15 (DEICER) Heated Glass (FR) Relay F16 2013: AQS Sensor, Electronic Control Wiper Module, Blower Relay |
| Fuse MINI 15A | F17 (WASHER) Washer Relay |
| Fuse MINI 30A | F18 (SPARE 5) SAPRE |
| Fuse MINI 10A | F19 (HTD MIRR) A/C Control Module, Power Outside Mirror & Mirror Folding Motor LH/RH |
| Fuse MINI 15A | F20 (TCU) TCM |
| Fuse MINI 10A | F21 (AFLS) Head Lamp LH/RH |
| Fuse MINI 10A | F22 (EHPS2) EHPS Module |
| Fuse MINI 10A | F23 (VDC/ESC) ESC Control Module, Multipurpose Check Connector |
| Fuse MINI 10A | F24 (ECU(IG1)) ECM |
| Fuse FMX/JCase 30A | F25 (ECU) Engine Control Relay |
| Fuse MINI 15A | F26 (IGN COIL) Ignition Coil #1,2,3,4,5,6 |
| Fuse MINI 15A | F27 (INJECTOR(B+)) Injector Drive Box |
| Fuse MINI 10A | F28 (SENSOR 1) ECM, Mass Air Flow Sensor, Oxygen Sensor #1,2,3,4 |
| Fuse MINI 10A | F29 (SENSOR 2) Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve, Oil Control Valve, ECM, Cooling Fan Relay, Immobilizer Module |
| Fuse MINI 15A | F30 (SENSOR 3) ECM, Injector #1~#6, Fuel Pump Relay |
| Fuse MINI 15A | F31 (H/LP RH) Head Lamp RH |
| Fuse MINI 15A | F32 (H/LP LH) Head Lamp LH |
| Fuse MINI 10A | F33 (INJECTOR(IG1)) Injector Drive Box |
| Fuse MINI 10A | F34 (CRUSIE) Smart Cruise Control Module |
| Fuse MINI 10A | F35 (STOP LP_R) Stop Lamp Switch, Stop Lamp Relay, Generator, Vacuum Switch |
| Fuse MINI 10A | F36 (ECU(B+)) ECM,TCM,Injector Drive Box |
| Fuse MINI 10A | F37 (ROOM LP) Room Lamp Relay |
| Fuse MINI 20A | F38 (F/PUMP) Fuel Pump Relay, Fuel Pump Resistor |
| Fuse FMX/JCase 30A | F39 (WIPER) Wiper Motor |
| Fuse FMX/JCase 40A | F40 (FAN 2 (B+)) FAN 2 |
| Fuse FMX/JCase 40A | F41 (FAN 1 (B+)) FAN 1 |
| Fuse FMX/JCase 30A | F42 (START) Start Solenoid |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Relay | R1 HTD GLASS (RR) 2013: E/R Junction Box Fuse (AQS 10A, WASHER 15A) |
| Relay | R2 BLOWER |
| Relay | R3 HORN |
| Relay | R4 HTD GLASS (FR) 2013: DEICER |
| Relay | R5 WASHER |
| Relay | R6 ECU |
| Relay | R7 H/LP |
| Relay | R8 START |
| Relay | R9 ROOM LP |
| Relay | R10 F/PUMP |

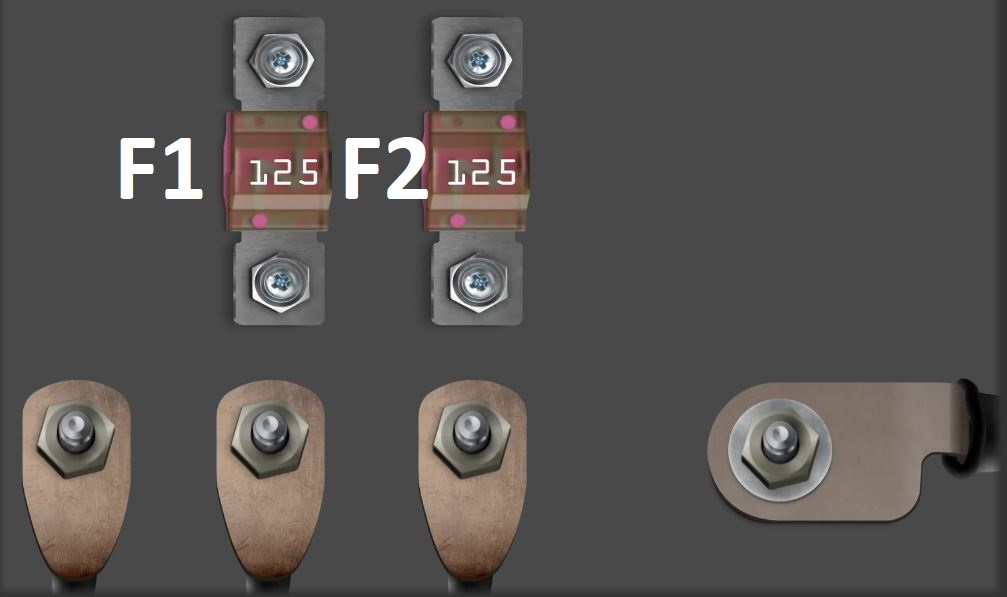

Joint Box (2008-2012)
| Type | No. | Description |
| Fuse MIDI 125A | F1 | ER BATT #2 |
| Fuse MIDI 125A | F2 | ER BATT #1 |

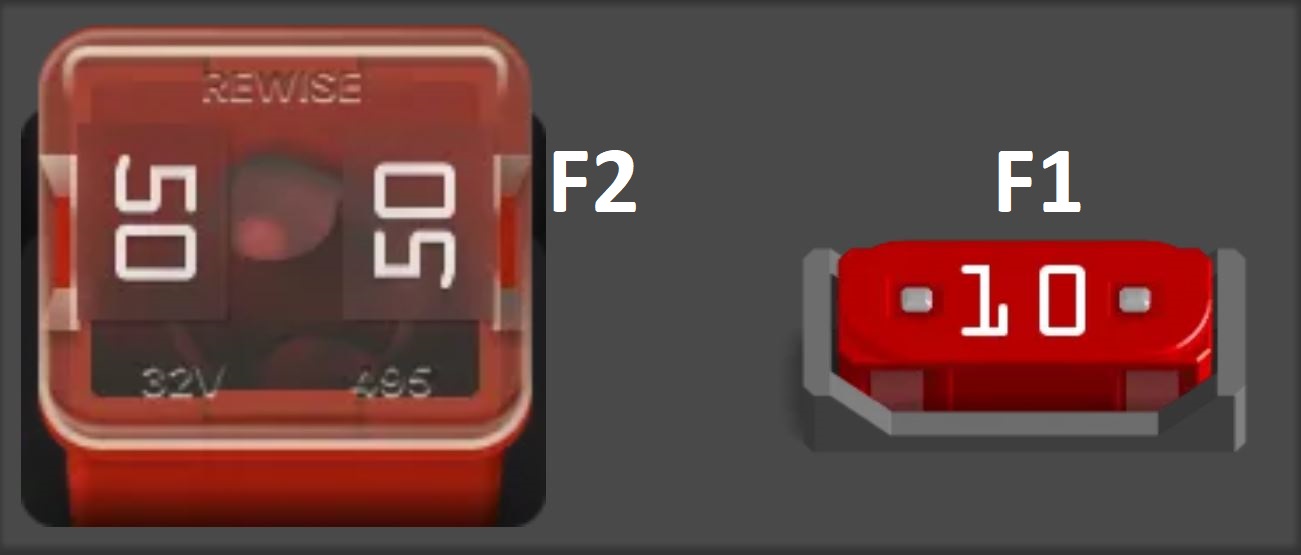

Luggage Compartment Fuse Box
Battery Fuse Box (2008-2012)
| Type | No. | Description |
| Fuse MINI 10A | F1 | BS |
| Fuse FMX/JCase 50A | F2 | START |
