Hyundai Genesis DH (2014 – 2016) Fuse Box Location & Diagrams
Locate and understand the fuse boxes in the Hyundai Genesis DH (2014–2016) with this easy-to-follow blog. Explore fuse box locations, detailed fuse diagrams, relay layouts, and fuse assignments to quickly identify electrical components, troubleshoot common issues, and safely replace blown fuses for reliable vehicle operation.
Fuse Box Location

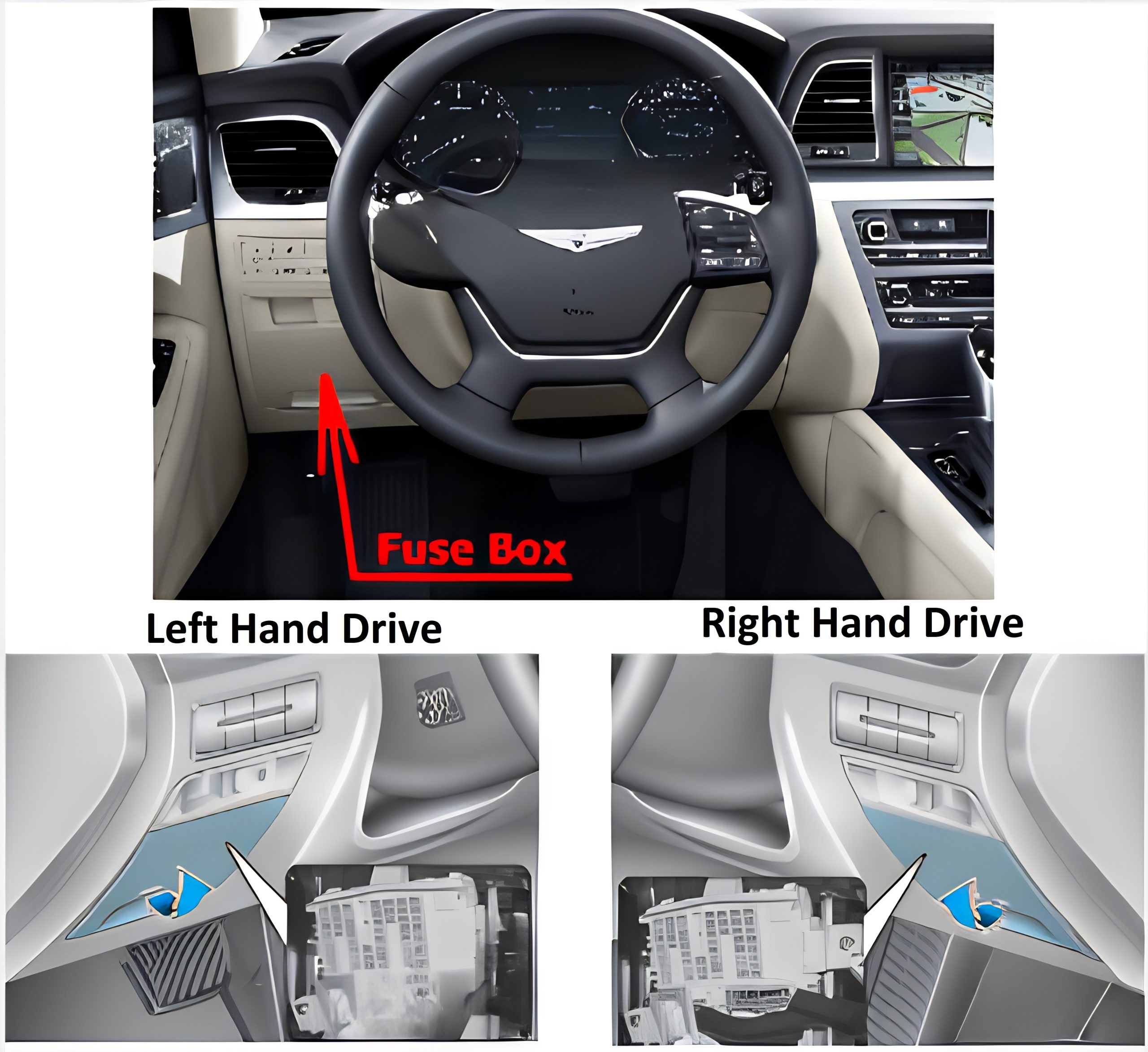

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

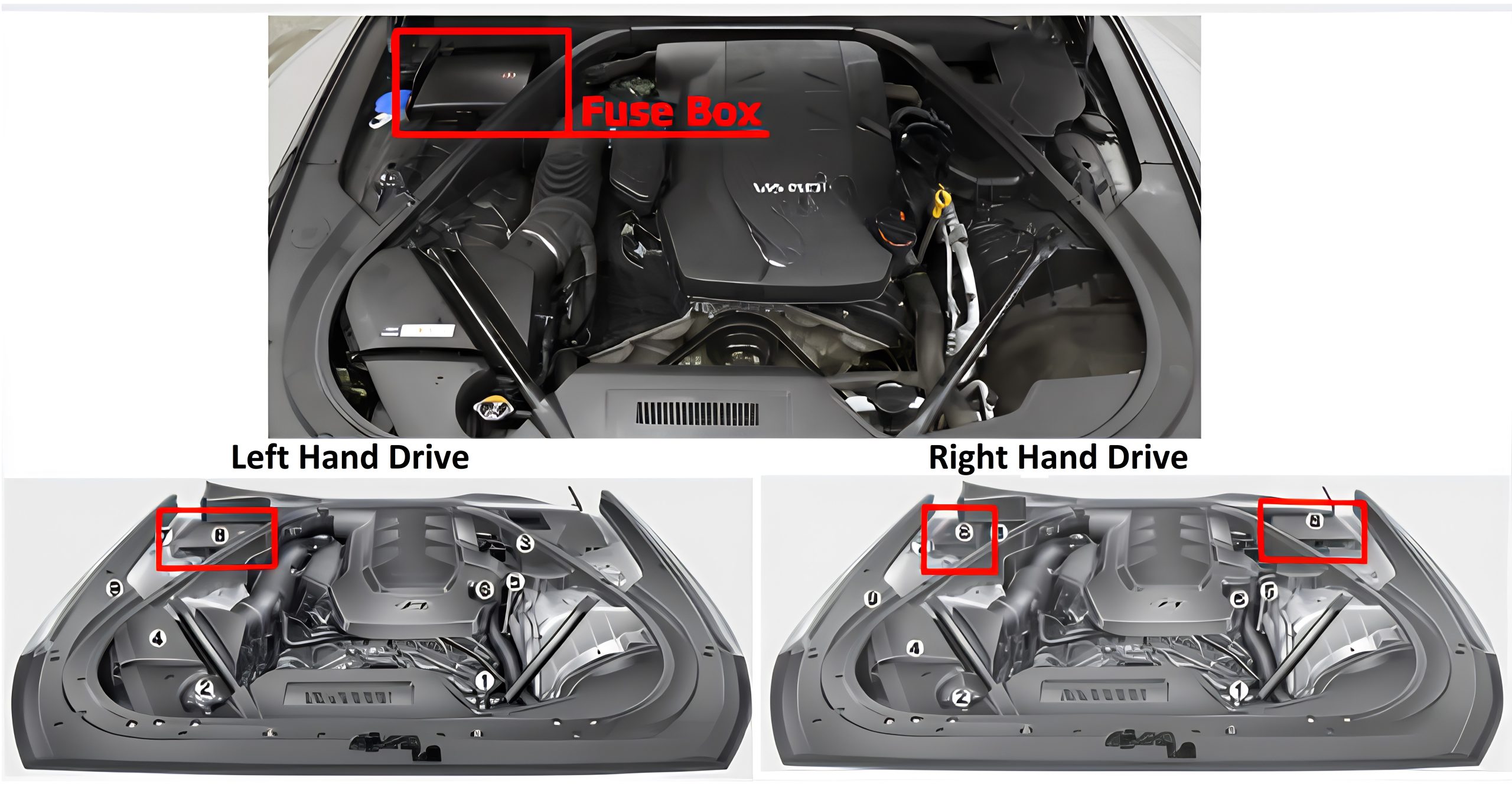

Engine Compartment Fuse Box

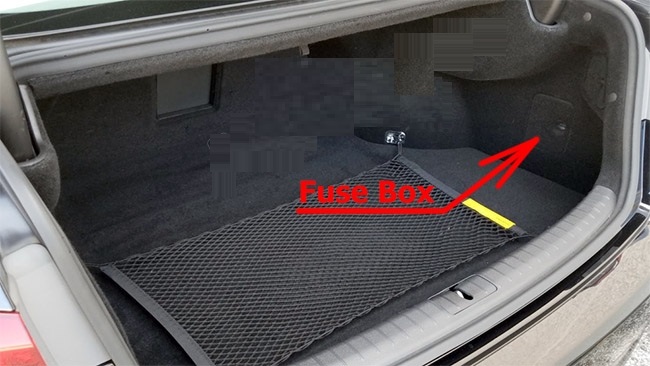

Luggage Compartment Fuse Box
Rear Fuse Box

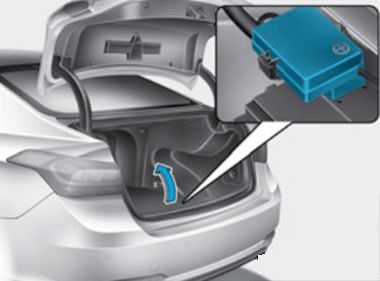

Battery Fuse Box
Fuse Box Diagrams

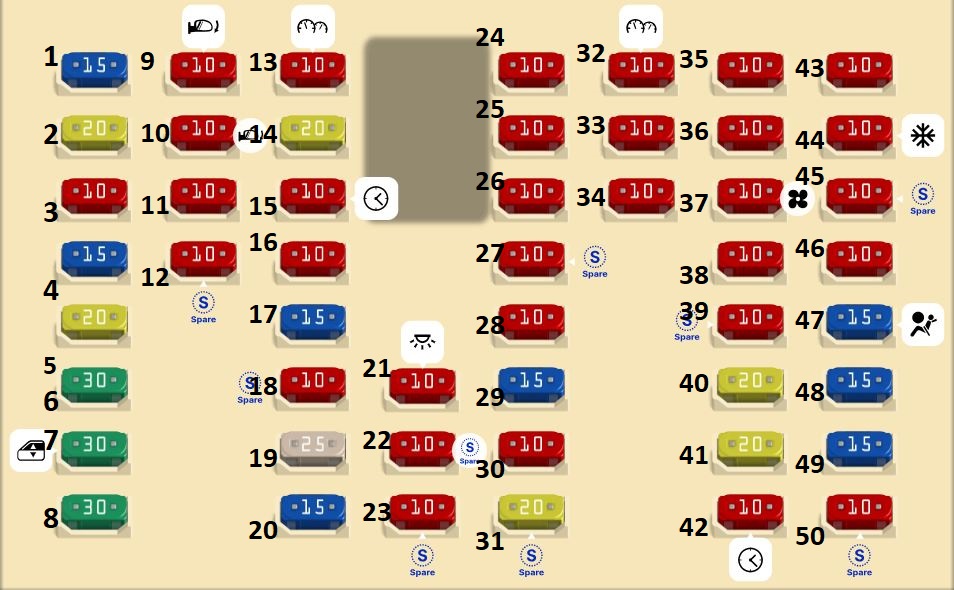

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MICRO2 15A | 1 | Steering Tilt & Telescopic Module |
| Fuse MICRO2 20A | 2 | Passenger CCS Module, Passenger Seat Warmer Control Module |
| Fuse MICRO2 10A | 3 | BCM |
| Fuse MICRO2 15A | 4 | Passenger Door Latch |
| Fuse MICRO2 20A | 5 | Not Used |
| Fuse MICRO2 30A | 6 | Passenger Power Seat Relay Box |
| Fuse MICRO2 30A | 7 | Driver Power Window Module, Rear Door Module LH, Rear Power Window Module LH |
| Fuse MICRO2 30A | 8 | Driver IMS Control Module, Driver Power Seat Relay Box |
| Fuse MICRO2 10A | 9 | Passenger Power Outside Mirror |
| Fuse MICRO2 10A | 10 | Driver Power Outside Mirror |
| Fuse MICRO2 10A | 11 | Keyboard, I-Box, Front Monitor |
| Fuse MICRO2 10A | 12 | SPARE |
| Fuse MICRO2 10A | 13 | Instrument Cluster, Head-Up Display |
| Fuse MICRO2 20A | 14 | Fuse – MULTIMEDIA 2, A/V & Navigation Head Unit |
| Fuse MICRO2 10A | 15 | Steering Tilt & Telescopic Module, External Buzzer, BCM, Analog Clock, A/C Control Module, Tire Pressure Monitoring Module, Security Indicator, Head-Up Display, Instrument Cluster, Driver/Passenger Door Module, Rear Door Module LH/RH, Power Trunk Lid Control Module |
| Fuse MICRO2 10A | 16 | Driver/Passenger Door Module, Rear Door Module LH/RH |
| Fuse MICRO2 15A | 17 | Stop Signal Electronic Module |
| Fuse MICRO2 10A | 18 | SPARE |
| Fuse MICRO2 25A | 19 | Sunroof Motor |
| Fuse MICRO2 15A | 20 | Driver Door Latch |
| Fuse MICRO2 10A | 21 | Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Glove Box, Front Vanity Lamp LH/RH, Driver/Passenger Foot Lamp, Trunk Room Lamp LH/RH |
| Fuse MICRO2 10A | 22 | SPARE |
| Fuse MICRO2 10A | 23 | SPARE |
| Fuse MICRO2 10A | 24 | Gateway (IG1 (MCU)) |
| Fuse MICRO2 10A | 25 | Burglar Alarm Horn Relay |
| Fuse MICRO2 10A | 26 | Start/Stop Button Switch |
| Fuse MICRO2 10A | 27 | SPARE |
| Fuse MICRO2 10A | 28 | Gateway (B+ (MCU)), Rain Sensor, Hazard Switch Trunk Lid Main Switch, Electric Parking Brake Switch |
| Fuse MICRO2 15A | 29 | Smart Key Control Module |
| Fuse MICRO2 10A | 30 | Stop Lamp Switch, Smart Key Control Module |
| Fuse MICRO2 20A | 31 | SPARE |
| Fuse MICRO2 10A | 32 | Instrument Cluster, A/C Control Module |
| Fuse MICRO2 10A | 33 | Multifunction Switch |
| Fuse MICRO2 10A | 34 | BCM, Smart Key Control Module |
| Fuse MICRO2 10A | 35 | Smart Key Control Module |
| Fuse MICRO2 10A | 36 | Steering Tilt & Telescopic Module, Blind Spot Detection Radar LH/RH Crash Pad Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor (Center), ECS Unit, Electric Parking Brake Switch, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor (Center), LKAS Module |
| Fuse MICRO2 10A | 37 | Metal Core Block (PCB #1 – Blower Relay), lonizer Co2 Sensor, A/C Control Module |
| Fuse MICRO2 10A | 38 | Parking Guide Unit, Head-Up Display Sunroof, Passenger Lumbar Support Unit, Clock Spring (Steering Wheel Remote Control Switch) |
| Fuse MICRO2 10A | 39 | SPARE |
| Fuse MICRO2 20A | 40 | Front Power Outlet & Cigarette Lighter |
| Fuse MICRO2 20A | 41 | Front Power Outlet & Cigarette Lighter |
| Fuse MICRO2 10A | 42 | BCM, Smart Key Control Module, Overhead Console Lamp, Analog Clock, A/V & Navigation Head Unit, Keyboard, I-B ox, Front Monitor, Parking Guide Unit |
| Fuse MICRO2 10A | 43 | BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH |
| Fuse MICRO2 10A | 44 | Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module, I-B ox, AMP, Driver/Passenger CCS Module, Driver Power Seat Switch, Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module |
| Fuse MICRO2 10A | 45 | SPARE |
| Fuse MICRO2 10A | 46 | Pre-Safe Seat Belt Module |
| Fuse MICRO2 15A | 47 | SRS Control Module |
| Fuse MICRO2 15A | 48 | Head Lamp LH/RH, Auto Hold & Drive Mode Switch, Auto Head Lamp Leveling Device Module, A/T Shift Lever IND. |
| Fuse MICRO2 15A | 49 | Clock Spring (Steering Wheel Heated Module) |
| Fuse MICRO2 10A | 50 | SPARE |

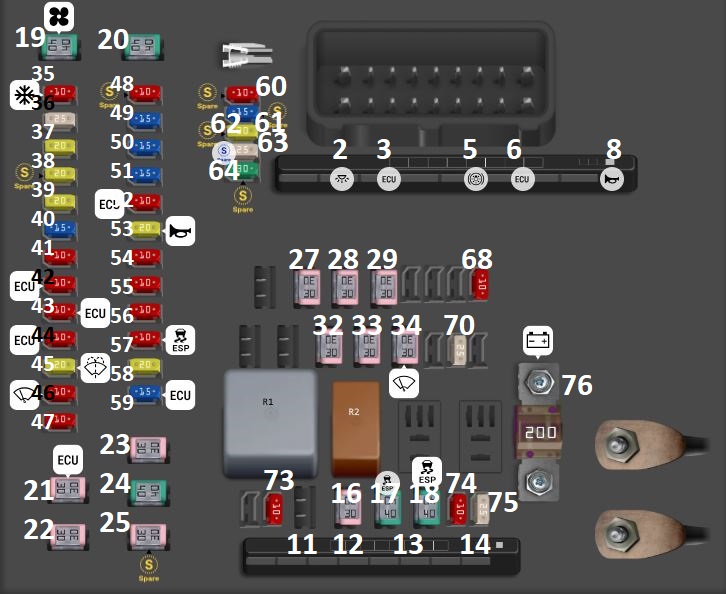

Engine Compartment Fuse Box
| Type | Description |
| Multi fuse block MUSB | 2 IGPM (Fuse – BRAKE SWITCH, Leak Current Autocut Device (Fuse – INTERIOR LAMP/ MULTI MEDIA 1/ MEMORY 1/ MEMORY 2/ MEMORY 3), IPS 1) |
| Multi fuse block MUSB | 3 IGPI M (Fuse – SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7) |
| Multi fuse block MUSB | 5 IGPM (Fuse – DOOR LAMP/ STOP LAMP, IPS 4/IPS 6) |
| Multi fuse block MUSB | 6 Metal Core Block (PCB #1 Fuse – ECU 3/IG2/ MODULE 1) |
| Multi fuse block MUSB | 8 Metal Core Block (PCB #2 Fuse – HORN/ACC/EPB 1/ EPB 2) |
| Multi fuse block MUSB | 11 IGPM (Fuse – P/HANDLE/P/WDW LH/P/SEAT PASS 1/S/HEATER PASS/ MODULE 10/ SUNROOF/ P/DOOR DRV/P/DOOR PASS) |
| Multi fuse block MUSB | 12 RLY. 1 (C/Fan Relay) |
| Multi fuse block MUSB | 13 Metal Core Block (PCB #1 Fuse – BLOWER/DEICER/H/LAMP WASHER) |
| Multi fuse block MUSB | 14 MDPS Unit |
| Fuse FMM/MCase 30A | 16 Not Used |
| Fuse FMM/MCase 40A | 17 ESC Module, Multipurpose Check Connector |
| Fuse FMM/MCase 40A | 18 ESC Module, Multipurpose Check Connector |
| Fuse FMM/MCase 40A | 19 Blower Relay |
| Fuse FMM/MCase 40A | 20 ACC Relay |
| Fuse FMM/MCase 30A | 21 Engine Control Relay |
| Fuse FMM/MCase 30A | 22 IG 2 Relay |
| Fuse FMM/MCase 30A | 23 E/R J unction Block (RLY. 2 – Start Relay) |
| Fuse FMM/MCase 40A | 24 IG1 Relay |
| Fuse FMM/MCase 30A | 25 SPARE |
| Fuse FMM/MCase 30A | 27 4WD ECM |
| Fuse FMM/MCase 30A | 28 Pre-Safe Seat Belt Module |
| Fuse FMM/MCase 30A | 29 Pre-Safe Seat Belt Module |
| Fuse FMM/MCase 30A | 32 Not Used |
| Fuse FMM/MCase 30A | 33 Not Used |
| Fuse FMM/MCase 30A | 34 Wiper Motor |
| Fuse MICRO2 10A | 35 A/C Control Module |
| Fuse MICRO2 25A | 36 Head Lamp Washer Relay |
| Fuse MICRO2 20A | 37 Metal Core Block (PCB #2 – Front Deicer Relay) |
| Fuse MICRO2 20A | 38 SPARE |
| Fuse MICRO2 20A | 39 G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6, G8BE : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8 |
| Fuse MICRO2 15A | 40 Injector Drive Box |
| Fuse MICRO2 10A | 41 C/Fan Relay, Camshaft Position Valve (G8BE) |
| Fuse MICRO2 10A | 42 ECM, Rear J unction Block (Fuel Pump Relay) |
| Fuse MICRO2 10A | 43 ECM, Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2 |
| Fuse MICRO2 10A | 44 ECM, Oxygen Sensor #1/#2/#3/#4 |
| Fuse MICRO2 20A | 45 Washer Relay |
| Fuse MICRO2 10A | 46 Metal Core Block (PCB #2 – Wiper Relay) |
| Fuse MICRO2 10A | 47 4WD ECM, Smart Cruise Control Radar, Active Air Flap |
| Fuse MICRO2 10A | 48 SPARE |
| Fuse MICRO2 15A | 49 Electric Parking Brake Module |
| Fuse MICRO2 15A | 50 Electric Parking Brake Module |
| Fuse MICRO2 15A | 51 TCM, Transmission Range Switch, 4WD ECM |
| Fuse MICRO2 10A | 52 ECM, Injector Drive Box, Alternator (G8BE) |
| Fuse MICRO2 20A | 53 Horn Relay |
| Fuse MICRO2 10A | 54 G6DJ : Oil Pressure Solenoid Velve |
| Fuse MICRO2 10A | 55 MDPS Unit |
| Fuse MICRO2 10A | 56 Smart Cruise Control Radar, Active Air Flap |
| Fuse MICRO2 10A | 57 ESC Module, Steering Angle Sensor |
| Fuse MICRO2 20A | 58 TCM |
| Fuse MICRO2 15A | 59 ECM, Injector Drive Box |
| Fuse MICRO2 10A | 60 SPARE |
| Fuse MICRO2 15A | 61 SPARE |
| Fuse MICRO2 20A | 62 SPARE |
| Fuse MICRO2 25A | 63 SPARE |
| Fuse MICRO2 30A | 64 SPARE |
| Fuse MICRO2 10A | 68 Metal Core Block (PCB #2 – Head Lamp High Solenoid Relay) |
| Fuse MICRO2 25A | 70 Driver CCS Module, Driver Seat Warmer Control Module |
| Fuse MICRO2 10A | 73 TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit |
| Fuse MICRO2 10A | 74 Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit |
| Fuse MICRO2 25A | 75 Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| Fuse MIDI 200A | 76 Alternator, Multifuse (BATT) – B+2/B+5/ MDPS 1/ C/FAN, Fuse – P/SEAT DRV 2/ P/SEAT R R/ SEAT LUMBAR/ESC 1/ESC 2 |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 C/FAN_R |
| Relay | R2 START_R |
Luggage Compartment Fuse Box

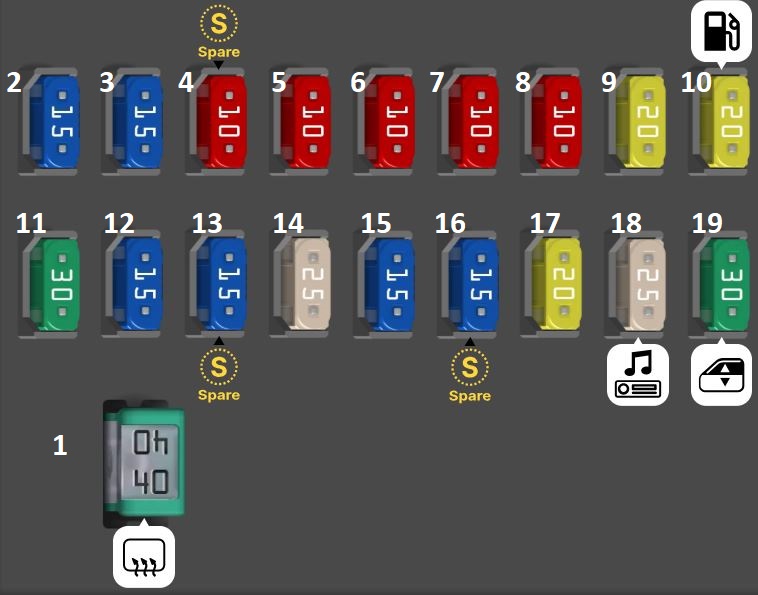

Rear Fuse Box
| Type | No. | Description |
| Fuse FMM/MCase 40A | 1 | Rear Defogger Relay |
| Fuse MICRO2 15A | 2 | Rear Door Latch RH |
| Fuse MICRO2 15A | 3 | Rear Door Latch LH |
| Fuse MICRO2 10A | 4 | Spare Fuse |
| Fuse MICRO2 10A | 5 | Fuel Lid Open Relay, Crash Pad Switch |
| Fuse MICRO2 10A | 6 | Driver Door Module |
| Fuse MICRO2 10A | 7 | Trunk Lid Relay, Power Trunk Module Buzzer |
| Fuse MICRO2 10A | 8 | Not Used |
| Fuse MICRO2 20A | 9 | Rear Seat Warmer Control Module LH |
| Fuse MICRO2 20A | 10 | Fuel Pump Relay |
| Fuse MICRO2 30A | 11 | Power Trunk Lid Control Module |
| Fuse MICRO2 15A | 12 | Passenger Door Module |
| Fuse MICRO2 15A | 13 | Spare Fuse |
| Fuse MICRO2 25A | 14 | Passenger Power Seat Relay Box |
| Fuse MICRO2 15A | 15 | ECS Unit |
| Fuse MICRO2 15A | 16 | Spare Fuse |
| Fuse MICRO2 20A | 17 | Rear Seat Warmer Control Module RH |
| Fuse MICRO2 25A | 18 | AMP |
| Fuse MICRO2 30A | 19 | Passenger Power Window Module, Rear Power Window Module RH |

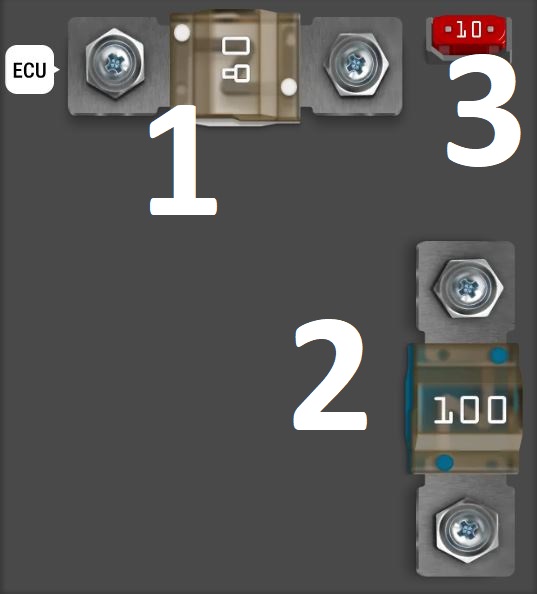

Battery Fuse Box
| Type | No. | Description |
| Fuse MIDI 80A | 1 | Metal Core Block (PCB #2 Fuse – TCU/ECU 1/ START/ IG 1) |
| Fuse MIDI 100A | 2 | Rear J unction Block (Fuse – RR HTD/ P/TRUNK/ECS/F/LID/P/DOOR RR RH/DR LOCK 2/ P/DOOR RR LH/AMP/P/SEAT PASS 2/ DR LOCK 1/ TRUNK/S/HEATER RR RH/S/HEATER RR LH/P/WDW RH/ F/PUMP) |
| Fuse MICRO2 10A | 3 | Battery Sensor |
