Hyundai i10 (2007 – 2013) Fuse Box Location & Diagrams
The Hyundai i10 (2007–2013) fuse box blog helps you quickly locate interior and engine compartment fuse boxes with detailed diagrams. Find fuse assignments for electrical components, making it easier to diagnose blown fuses, troubleshoot electrical issues, and safely replace faulty fuses to keep your vehicle operating properly.
Fuse Box Location

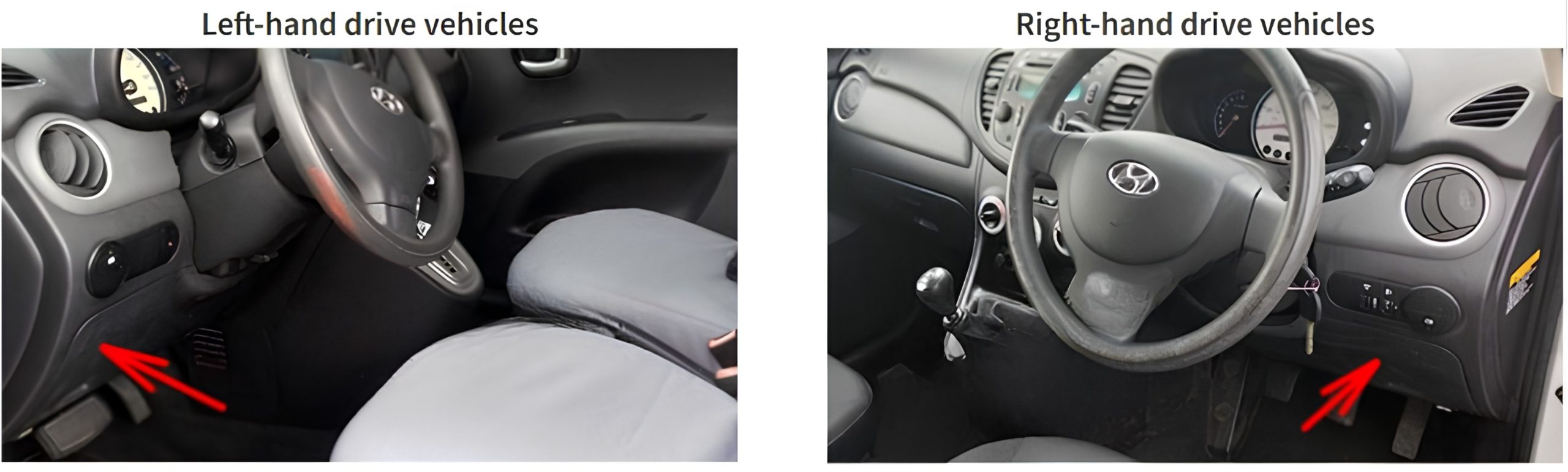

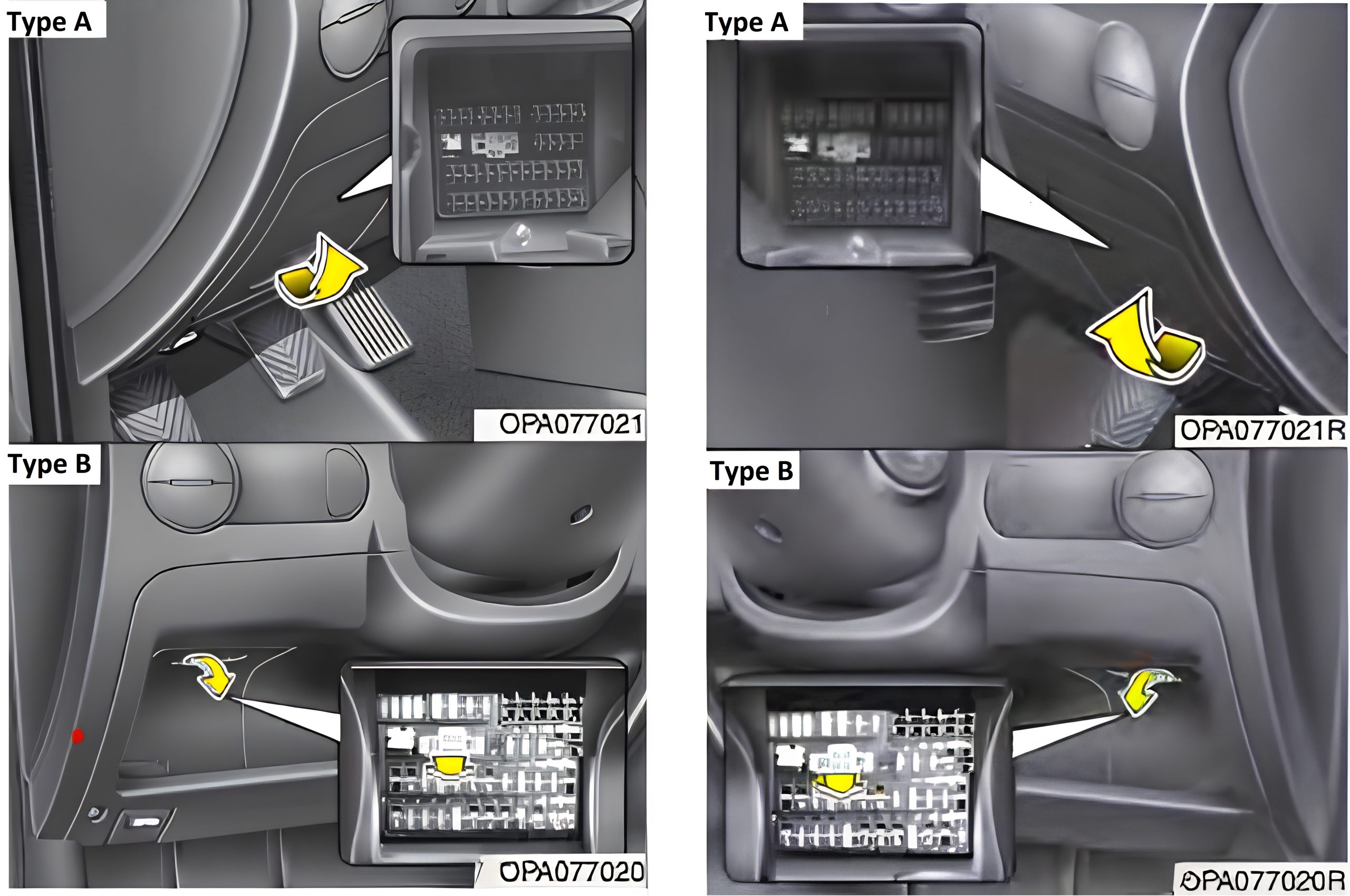

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

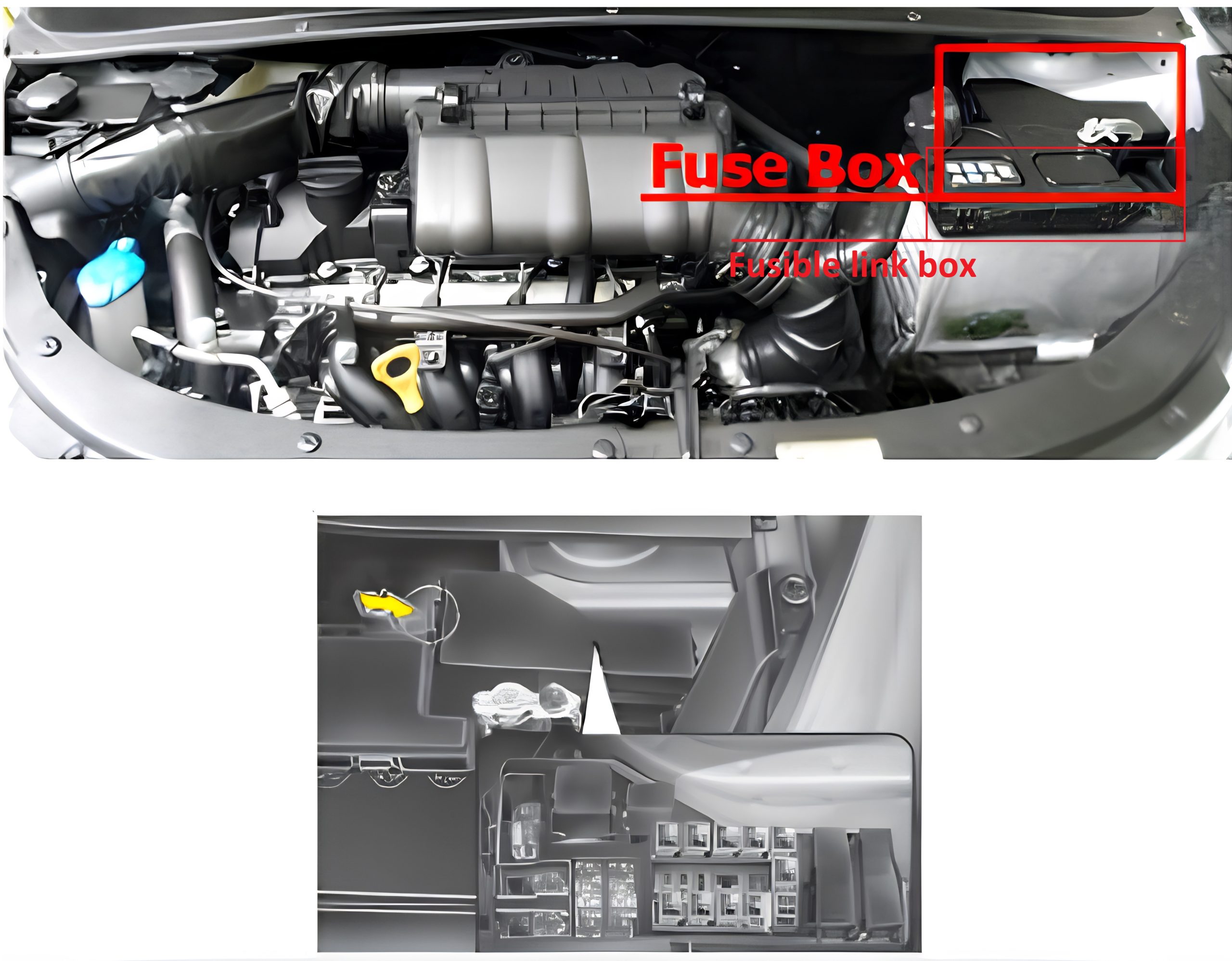

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams
Passenger Compartment Fuse Box

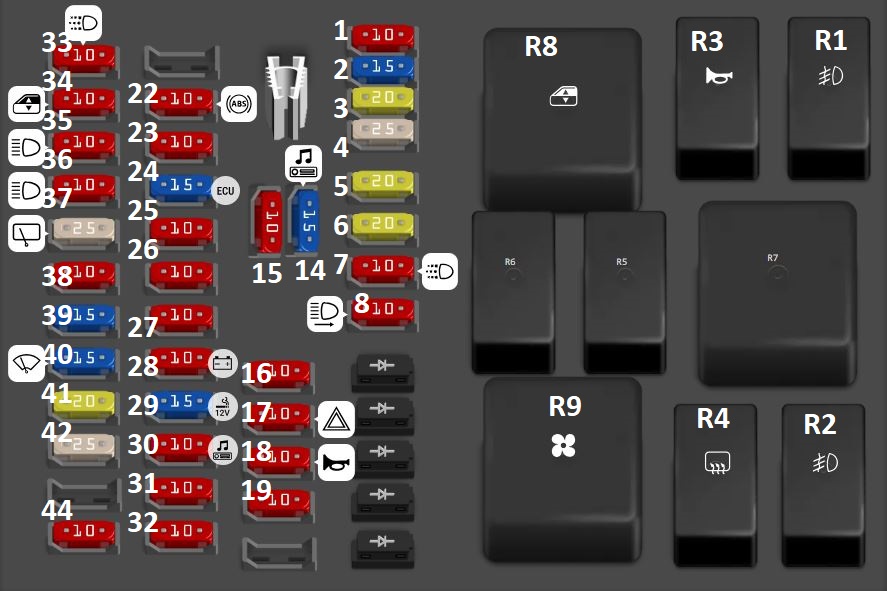

Hyundai i10 (2007 – 2011)
| Type | Description |
| Fuse MINI 10A | 1 (SPARE) Spare fuse |
| Fuse MINI 15A | 2 (SPARE) Spare fuse |
| Fuse MINI 20A | 3 (SPARE) Spare fuse |
| Fuse MINI 25A | 4 (SPARE) Spare fuse |
| Fuse MINI 20A | 5 (P/WDWI LH) Power Window Main Switch |
| Fuse MINI 20A | 6 (P/WDWRH) Power Window Main Switch, Passenger Power Window switch |
| Fuse MINI 10A | 7 (TAIL LP LH) Rear Combination Lamp LH, DRL Control Module, Head Lamp LH, License Lamp |
| Fuse MINI 10A | 8 (TAIL LP RH) Rear Combination Lamp RH, Head Lamp RH |
| Fuse MINI 15A | 14 (AUDIO B+) Audio |
| Fuse MINI 10A | 15 (ROOMLP) SRS Control Module, Room Lamp Switch, Instrument Cluster(IND.), PTC Heater Control Module, Rear Fog Lamp Switch, Digital Clock, Door Warning Switch, Luggage Lamp, Overhead Console Lamp |
| Fuse MINI 10A | 16 (STOP LP) Stop Lamp Switch |
| Fuse MINI 10A | 17 (HAZARD) Hazard Switch, Hazard Relay |
| Fuse MINI 10A | 18 (HORN) Horn Relay, Horn, Dual Horn |
| Fuse MINI 10A | 19 (F/FOG LP) Front Fog Lamp Relay, Front Fog Lamp Switch, Front Fog Lamp LH/RH |
| Fuse MINI 10A | 22 (ABS) ABS/ESP Control Module, Multipurpose Check Connector, ESP Switch |
| Fuse MINI 10A | 23 (T/SIG LP) Hazard Switch |
| Fuse MINI 15A | 24 (IG COIL) Vehicle Speed Sensor, Air Flow Sensor, Ignition Coil, ECM/PCM, Pulse Generator ‘A’, Fuel Filter Warning Switch, Fuel Heater Relay |
| Fuse MINI 10A | 25 (B/UP LP) Back-up Lamp Switch, ATM Shift Lever, Transaxle Range Switch, Pulse Generator ‘B’ |
| Fuse MINI 10A | 26 (A/BAG IND) Instrument Cluster(SRS/PAB IND.) |
| Fuse MINI 10A | 27 (A/BAG) SRS Control Module |
| Fuse MINI 10A | 28 (CLUSTER) Instrument Cluster(IND.), ETACM, TACM, Generator, EPS Control Module |
| Fuse MINI 15A | 29 (CIGAR LIGHTER) Cigarette Lighter |
| Fuse MINI 10A | 30 (AUDIO ACC) Digital Clock, Audio, Power Outside Mirror Switch |
| Fuse MINI 10A | 31 (A/CON SW) A/C Switch |
| Fuse MINI 10A | 32 (HTD IND) ECM, PCM Rear Defogger Switch |
| Fuse MINI 10A | 33 (DRL) DRL Control Module |
| Fuse MINI 10A | 34 (IG 2) Rear Defogger Relay, Power Window Relay, Head Lamp LH/RH, Head Lamp Leveling Switch, Intake Switch, ETACM, PTC Heater Control Module, PTC Heater Relay #2,#3, SRS Control Module, PTC Module, Blower Relay, Blower Switch |
| Fuse MINI 10A | 35 (H/LP LH) Head Lamp LH, Instrument Cluster(High Beam) |
| Fuse MINI 10A | 36 (H/LP RH) Head Lamp RH |
| Fuse MINI 25A | 37 (FRT WIPER) Multifunction Switch(Wiper), Rear Wiper Motor, Sunroof Motor |
| Fuse MINI 10A | 38 (RR FOG LP) Rear Fog Lamp Relay, Rear Fog Lamp Switch |
| Fuse MINI 15A | 39 (SEAT HTD) Driver/Passenger Seat Heater Warmer Switch |
| Fuse MINI 15A | 40 (RR WIPER) Multifunction Switch(Wiper). Rear Wiper Motor, Sunroof Motor |
| Fuse MINI 20A | 41 (D/LOCK & S/ROOF) Door Lock Relay, Door Unlock Relay, ETACM, TACM, Driver Door Lock Actuator |
| Fuse MINI 25A | 42 (HTD GLASS) Rear Defogger Relay, Rear Defoggger (+) |
| Fuse MINI 10A | 44 (START) Start Relay, Burglar Alarm Relay |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 (Front Fog Lamp Relay) Front fog lights |
| Relay | R2 (Rear Fog Lamp Relay) Rear fog lights |
| Relay | R3 (Horn Relay) Horn |
| Relay | R4 (Rear Defogger Relay) Rear window defogger |
| Relay | R5 (Tail Lamp Relay) Tail lights |
| Relay | R6 Head Lamp High Relay (India) |
| Relay | R7 Flasher Unit |
| Relay | R8 (Power Window Relay) Power windows |
| Relay | R9 (Blower Relay) AC blower motor |

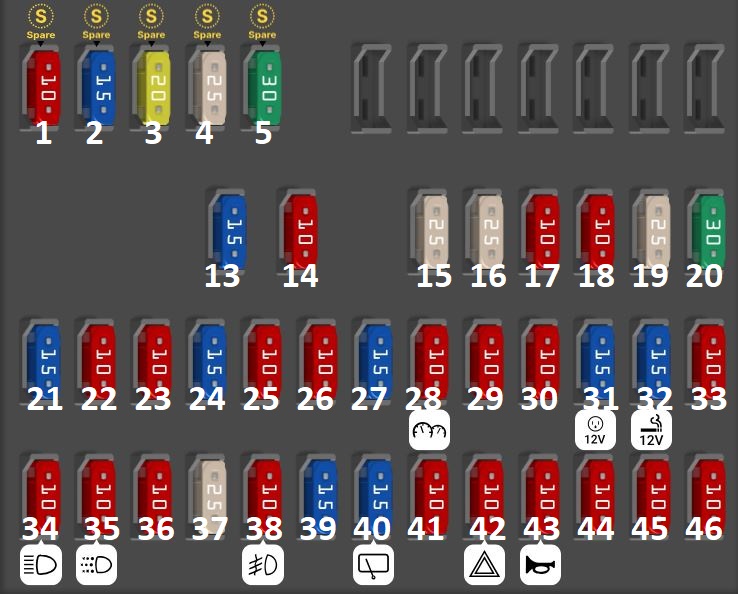

Hyundai i10 (2011 – 2013)
| Type | No. | Description |
| Fuse MINI 10A | 1 | (SPARE) Spare fuse |
| Fuse MINI 15A | 2 | (SPARE) Spare fuse |
| Fuse MINI 20A | 3 | (SPARE) Spare fuse |
| Fuse MINI 25A | 4 | (SPARE) Spare fuse |
| Fuse MINI 30A | 5 | (SPARE) Spare fuse |
| Fuse MINI 15A | 13 | (AUDIO B+) Audio system |
| Fuse MINI 10A | 14 | (ROOM LP) Interior lights |
| Fuse MINI 25A | 15 | (P/WDW L) Power windows |
| Fuse MINI 25A | 16 | (P/WDW R) Power windows |
| Fuse MINI 10A | 17 | (TAIL LP L) Tail light left-hand |
| Fuse MINI 10A | 18 | (TAIL LP R) Tail light right-hand |
| Fuse MINI 25A | 19 | (D/LOCK S/ROOF) Power door lock system |
| Fuse MINI 30A | 20 | (RR HTD) Rear window defogger |
| Fuse MINI 15A | 21 | (WPR SIG) Wipers |
| Fuse MINI 10A | 22 | (ABS STOP/SW) Anti-lock braking system |
| Fuse MINI 10A | 23 | (T/SIG) Turn signal |
| Fuse MINI 15A | 24 | (IG COIL) Ignition coil |
| Fuse MINI 10A | 25 | (B/UP LP) Backup lights |
| Fuse MINI 10A | 26 | (A/BAG IND) Airbag indicator |
| Fuse MINI 15A | 27 | (A/BAG) Airbag |
| Fuse MINI 10A | 28 | (CLUSTER) Instrument cluster |
| Fuse MINI 10A | 29 | (MDPS) Motor Driven Power Steering or EPS |
| Fuse MINI 10A | 30 | (AUDIO ACC) Audio system |
| Fuse MINI 15A | 31 | (RR P/OUTLET) Auxiliary power outlet |
| Fuse MINI 15A | 32 | (CIGAR LIGHTER) Cigar lighter / power outlet |
| Fuse MINI 10A | 33 | (START) Starter system |
| Fuse MINI 10A | 34 | (H/LP) Headlamps |
| Fuse MINI 10A | 35 | (DRL) Daytime running lights |
| Fuse MINI 10A | 36 | (IG2) Protects several circuits |
| Fuse MINI 25A | 37 | (FRT WIPER) Front wipers |
| Fuse MINI 10A | 38 | (RR FOG) Rear fog lights |
| Fuse MINI 15A | 39 | (SEAT HTD) Seat heater |
| Fuse MINI 15A | 40 | (RR WIPER) Rear wiper |
| Fuse MINI 10A | 41 | (STOP LP) Stop lights |
| Fuse MINI 10A | 42 | (HAZARD) Hazard light |
| Fuse MINI 10A | 43 | (HORN) Horn |
| Fuse MINI 10A | 44 | (FRT FOG) Front fog lights |
| Fuse MINI 10A | 45 | HTD IND |
| Fuse MINI 10A | 46 | (B/UP LP2) Backup lights |
Engine Compartment Fuse Box

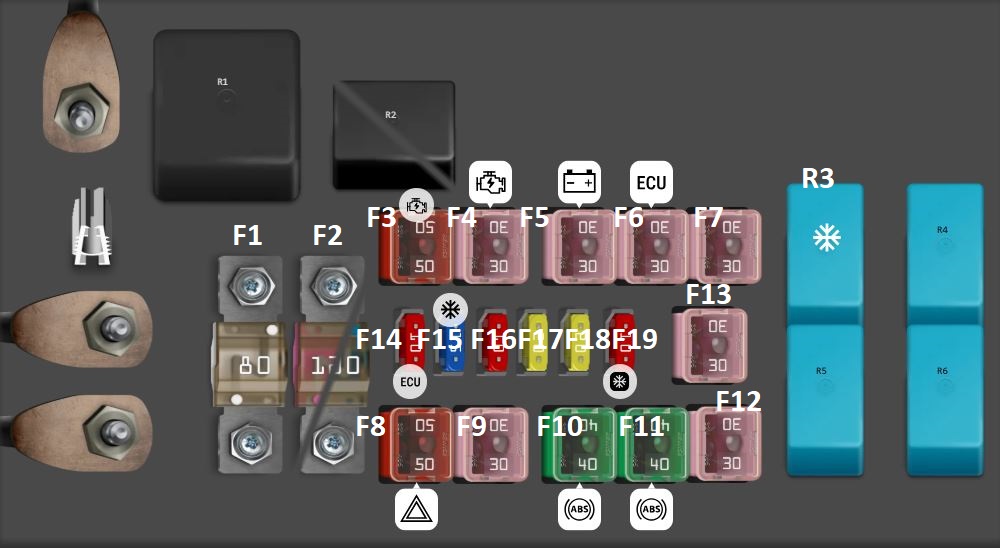

Hyundai i10 (2007 – 2011)
Main Fuse Box
| Type | Description |
| Fuse MIDI 80A | F1 (MDPS) EPS Control Module |
| Fuse MIDI 125A | F2 (MAIN) Generator (DSL) |
| Fuse MIDI 100A | F2 (MAIN) Generator (GSL) |
| Fuse FMX/JCase 50A | F3 (IGN 2) Ignition Switch, Start Relay |
| Fuse FMX/JCase 30A | F4 (IGN 1) Ignition Switch |
| Fuse FMX/JCase 30A | F5 (BATT 1) Tail Lamp Relay, Power Connector (ROOM LP 10A, AUDIO B+ 15A), A/CON 10A |
| Fuse FMX/JCase 30A | F6 (ECU) Main Relay, ECM/PCM, Fuel Pump Relay |
| Fuse FMX/JCase 30A | F7 (R/FAN) Radiator Fan #1 Relay, Radiator Fan #2 Relay |
| Fuse FMX/JCase 50A | F8 (BATT 2) HTD GLASS 25A, D/LOCK & S/ROOF 20A, HAZARD 10A, HORN 10A, F/FOG LP 10A, STOP LP 10A |
| Fuse FMX/JCase 30A | F9 (P/WDW) Power Window Relay |
| Fuse FMX/JCase 40A | F10 (ABS 2) ABS/ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 40A | F11 (ABS 1) ABS/ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 30A | F12 (BLWR) Blower Relay |
| Fuse FMX/JCase 30A | F13 (F_HTR(DSL)) Fuel Filter Heater Relay |
| Fuse MINI 10A | F14 (ECU 2) ECM, PCM |
| Fuse MINI 15A | F15 (INJ) Radiator Fan #1, #2 Relay, A/C Relay, Fuel Pump Relay (GSL), ECM/PCM, Idle Speed Actuator, VGT Actuator, Throttle Flap Actuator, EGR Actuator, Glow Plug Relay, PTC Heater Relay #1, Variable Swirl Control Actuator, Camshaft Position Sensor, Immobilizer Control Module, Injector #1~#4 |
| Fuse MINI 10A | F16 (SNSR) PCM, Purge Control Solenoid Valve, Crankshaft Position Sensor, Oxygen Sensor (Down)(Up), Camshaft Position Sensor, Immobilizer Control Module, Stop Lamp Switch, Lambda Sensor |
| Fuse MINI 20A | F17 (ECU(DSL)) ECM |
| Fuse MINI 20A | F18 (F_PUMP(GSL)) Fuel Pump Relay, Fuel Pump Check Connector, Fuel Sender & Fuel Pump Motor |
| Fuse MINI 10A | F19 (A/CON) A/C Relay, A/C Compressor |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 MAIN RELAY |
| Relay | R2 FUEL PUMP R (GSL) |
| Relay | R2 FUEL FILTER HEATER R (DSL) |
| Relay | R3 A/C RELAY |
| Relay | R4 RADIATOR FAN#1 RELAY |
| Relay | R5 START RELAY |
| Relay | R6 RADIATOR FAN#2 RELAY |

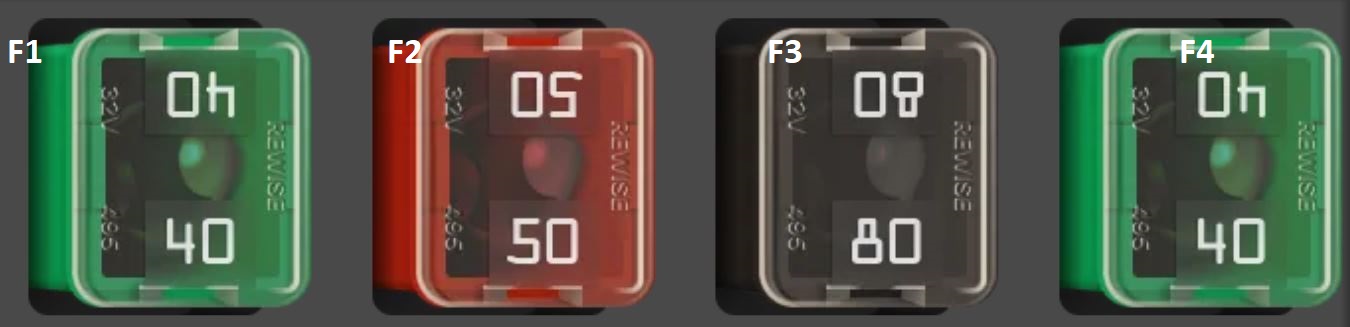

Fusible link box
| Type | No. | Description |
| Fuse FMX/JCase 40A | F1 | PTC HEATER 1 |
| Fuse FMX/JCase 50A | F2 | PTC HEATER 2 |
| Fuse FMX/JCase 80A | F3 | GLOW PLUG |
| Fuse FMX/JCase 40A | F4 | PTC HEATER 3 |

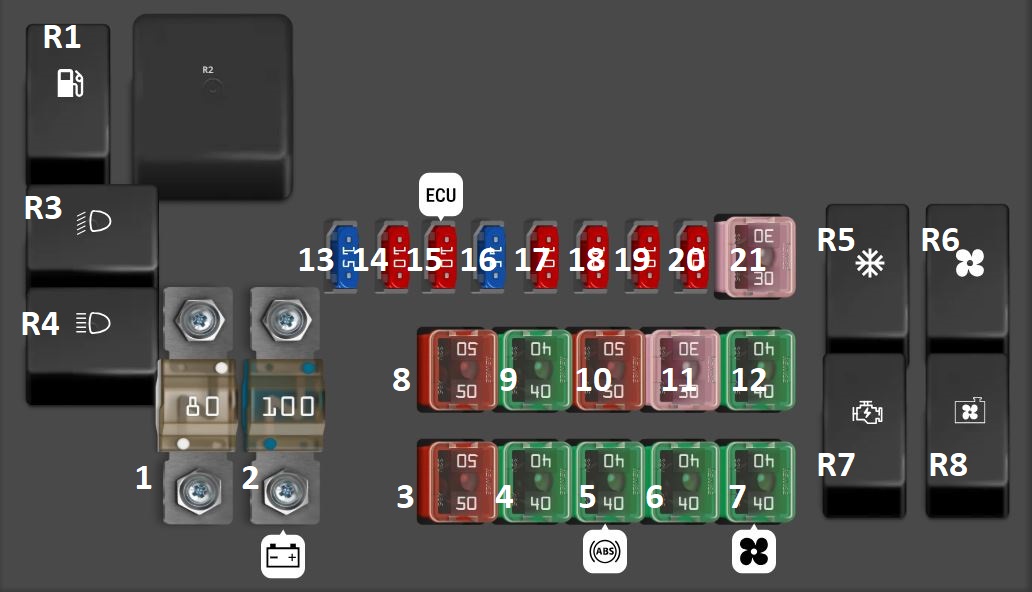

Hyundai i10 (2011 – 2013)
1.0L, 1.1L and 1.2L
| Type | No. | Description |
| Fuse MIDI 80A | 1 | EPS control unit |
| Fuse MIDI 100A | 2 | Alternator |
| Fuse FMX/JCase 50A | 3 | Passenger compartment fuse and relay box, fuses 7, 8 |
| Fuse FMX/JCase 40A | 4 | Passenger compartment fuse and relay box, relay R2 |
| Fuse FMX/JCase 40A | 5 | ABS, ESP diagnostic connector |
| Fuse FMX/JCase 40A | 6 | ABS; EPS. |
| Fuse FMX/JCase 40A | 7 | Blower Relay |
| Fuse FMX/JCase 50A | 8 | Ignition switch |
| Fuse FMX/JCase 40A | 9 | Ignition switch |
| Fuse FMX/JCase 50A | 10 | Fuse and relay box in engine compartment, fuse 18; Fuse and relay box in engine compartment relay R7; Passenger compartment fuse and relay box, fuses 1. 2, 29 – 32. |
| Fuse FMX/JCase 30A | 11 | Fuse and relay box in engine compartment, fuse 15; Fuse and relay box in engine compartment, relay R2. |
| Fuse FMX/JCase 40A | 12 | Fuse and relay box in engine compartment relay R6 |
| Fuse MINI 15A | 13 | Fuse and relay box in engine compartment relay R1 |
| Fuse MINI 10A | 14 | Heating controller; Air conditioning switch |
| Fuse MINI 10A | 15 | Engine control unit 1.1L & 1.2L: PCM |
| Fuse MINI 15A | 16 | Fuse and relay box in engine compartment relays R1, R6; Fuel injectors; Stepper motor at idle speed; Engine controller; Fuse and relay box in engine compartment, relays R1, R6; Intake Camshaft Timing Solenoid: Exhaust Camshaft Timing Solenoid; Idle speed control motor Fuel injectors; Tank purge solenoid valve. |
| Fuse MINI 10A | 17 | Engine controller; Immobilizer control unit; Oxygen sensor before catalytic converter; Lambda probe after the catalyst; Electromagnet absorber purges; Hall sensor / MRE on the camshaft Hall sensor / MRE on crankshaft; Engine controller; Hall sensor / MRE on the intake camshaft; Hall sensor/MRE on the exhaust camshaft Immobilizer controller; Lambda probe before the catalyst; Lambda probe after the catalyst. |
| Fuse MINI 10A | 18 | Fuse and relay box in engine compartment, relay R5 |
| Fuse MINI 10A | 19 | Left front headlights |
| Fuse MINI 10A | 20 | Right front headlights |
| Fuse FMX/JCase 30A | 21 | Fuse and relay box in engine compartment, fuses 13, 15, 20 |
| Relay | R1 | 1.0L: Fuel pump relay |
| Relay | R2 | 1.0L: Main relay |
| Relay | R3 | 1.0L: Low beam relay |
| Relay | R4 | 1.0L: High beam relay |
| Relay | R5 | 1.0L: Air conditioning relay |
| Relay | R6 | 1.0L: Blower Relay |
| Relay | R7 | 1.0L: Starter relay |
| Relay | R8 | 1.0L: Radiator fan relay |
