Hyundai i10 (2013 – 2019) Fuse Box Location & Diagrams
Finding the correct fuse box on your Hyundai i10 (2013 –2019) is essential for diagnosing electrical issues and replacing blown fuses safely. This blog provides fuse box locations, detailed fuse diagrams, and relay information to help you quickly identify the correct fuse for each electrical component.
Fuse Box Location

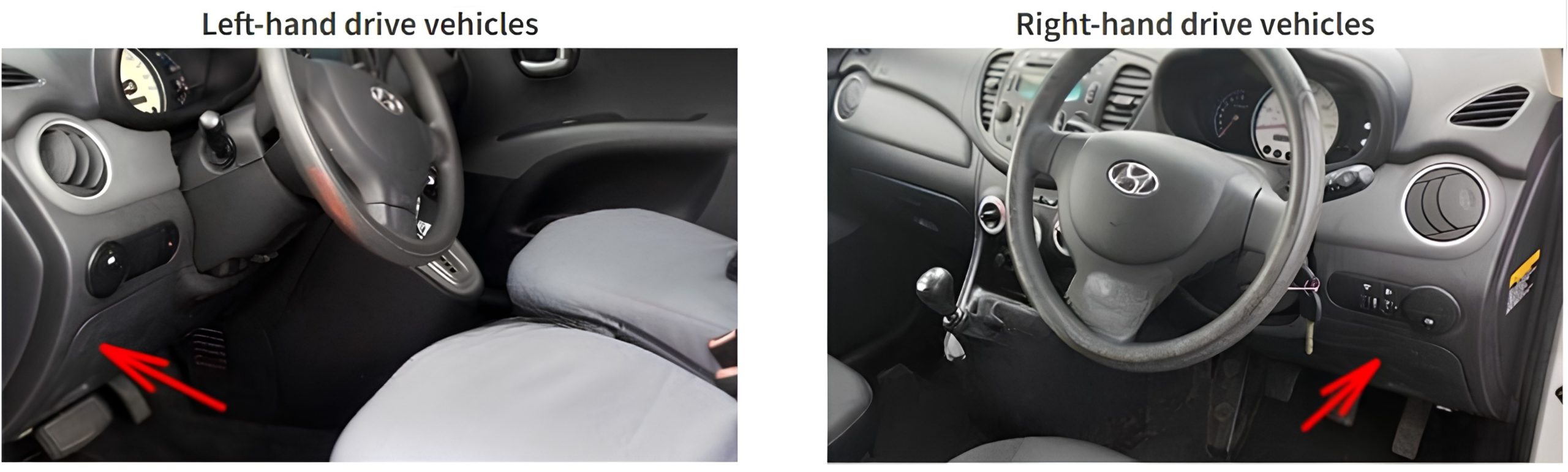

Passenger Compartment Fuse Box
Inside the cabin, built into the lower dashboard panel on the driver’s side.

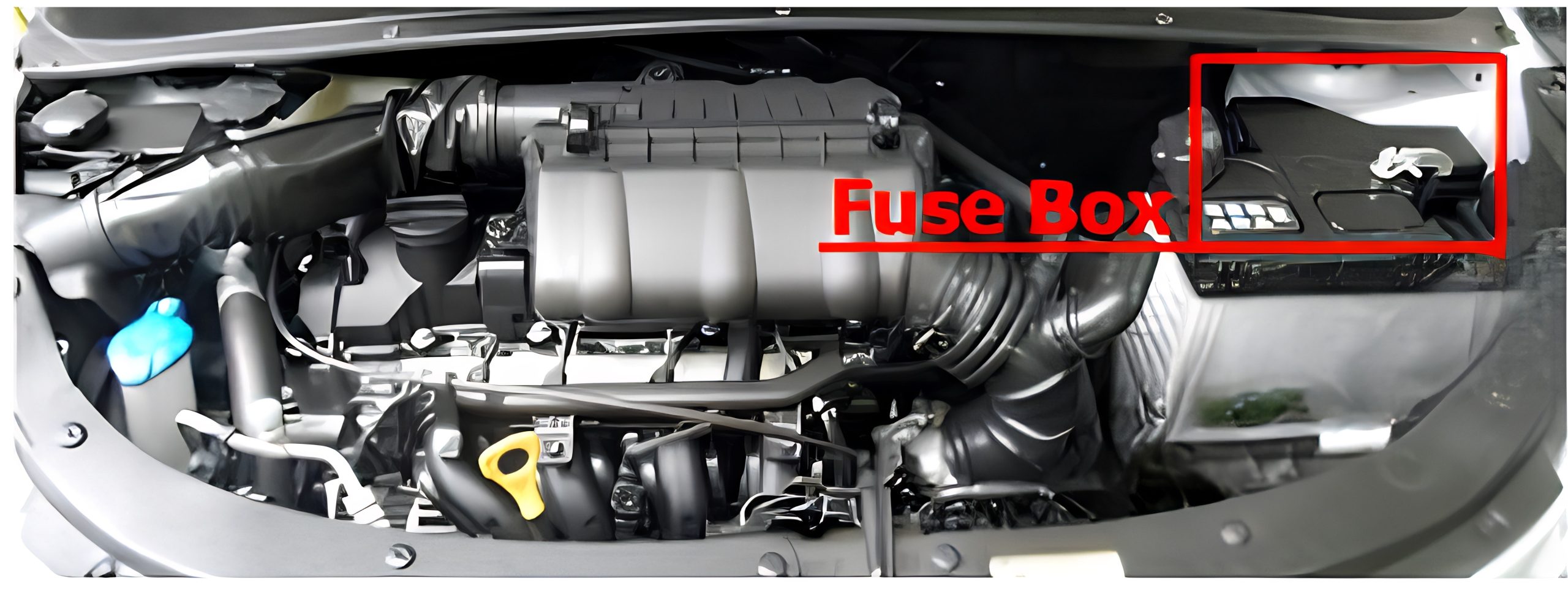

Engine Compartment Fuse Box
Under the bonnet, positioned inside the engine bay right next to the car battery. It is enclosed inside a black plastic protective case with locking clips.
Fuse Box Diagrams

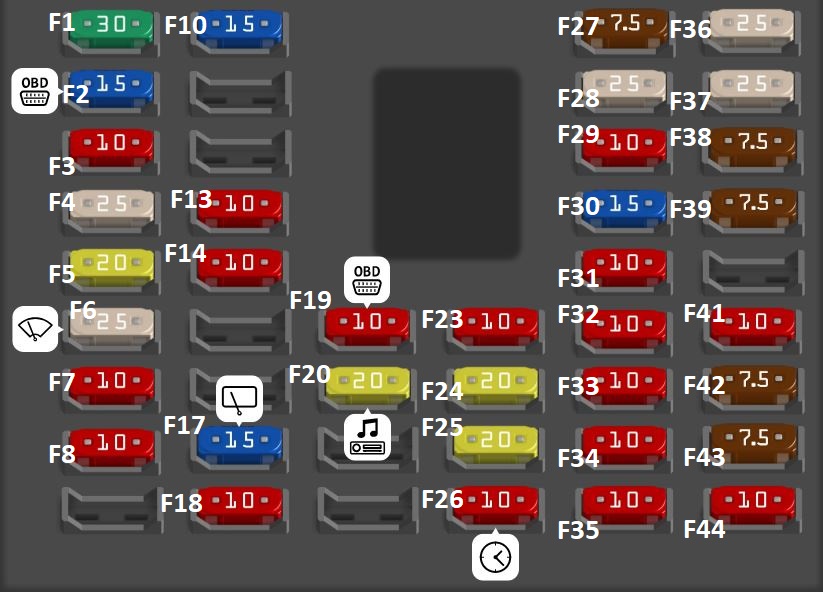

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 30A | F1 | RR HTD Relay |
| Fuse MINI 15A | F2 | Stop Signal of Electronic Module, Data Link Connector |
| Fuse MINI 10A | F3 | Smart Key Control Module, Start/Stop Button Switch |
| Fuse MINI 25A | F4 | Smart Key Control Module |
| Fuse MINI 20A | F5 | Door Lock/Unlock Relay, Rear Door Unlock Relay, Door Unlock Unit |
| Fuse MINI 25A | F6 | Front Wiper Motor, Multi-Function Switch |
| Fuse MINI 10A | F7 | Printed Circuit Board Fuse and Relay Box (Fan Relay), A/C Control Module |
| Fuse MINI 10A | F8 | – |
| Fuse MINI 15A | F10 | Left/Right Seat Heater |
| Fuse MINI 10A | F13 | Smart Key Control Module, Stop Light Switch |
| Fuse MINI 10A | F14 | PCM, A/C Control Module, Driver/Passenger Electric Mirror |
| Fuse MINI 15A | F17 | Rear Wiper Motor, Multi-Function Switch |
| Fuse MINI 10A | F18 | BCM, Smart Key Control Module |
| Fuse MINI 10A | F19 | Data Link Connector, Digital Clock, Instrument Cluster, BCM, Tire Pressure Monitoring Module, A/C Control Module, Door Unlock Unit, Audio |
| Fuse MINI 20A | F20 | Audio |
| Fuse MINI 10A | F23 | Trunk Light, Compartment Light |
| Fuse MINI 20A | F24 | Rear Power Outlet |
| Fuse MINI 20A | F25 | Power Outlet |
| Fuse MINI 10A | F26 | BCM, Smart Key Control Module, Digital Clock, Audio, External Mirror Power Switch |
| Fuse MINI 7.5A | F27 | A/C Control Module (Auto) |
| Fuse MINI 25A | F28 | Main Power Window Switch, Driver’s Power Window Safety Module (Left-Hand Drive), Passenger Power Window Switch (Right-Hand Drive) |
| Fuse MINI 10A | F29 | Printed Circuit Board Fuse and Relay Box (Vacuum Pump Relay). |
| Fuse MINI 15A | F30 | AT: Transmission Range Switch, Pulse Generator ‘A’/’B’ M/T: Vehicle Speed Sensor, Printed Circuit Board Fuse and Relay Box (F34) |
| Fuse MINI 10A | F31 | Stop Light Switch, Crash Pad Switch, Reverse Parking Assist, Reverse Parking Assist Sensor (Center) Left/Right Sensor Left/Right |
| Fuse MINI 10A | F32 | E/R Fuse and Relay Box (Multi-Function Test Connector), A/C Control Module |
| Fuse MINI 10A | F33 | Instrument Panel |
| Fuse MINI 10A | F34 | SRS Control Module |
| Fuse MINI 10A | F35 | Instrument Panel |
| Fuse MINI 25A | F36 | Driver’s Power Window Safety Module |
| Fuse MINI 25A | F37 | Main Power Window Switch, Driver’s Power Window Safety Module (Right-Hand Drive), Passenger Power Window Switch (Left-Hand Drive) |
| Fuse MINI 7.5A | F38 | Anti-Theft Alarm Relay Printed Circuit Board Fuse and Relay Box (Starter Relay), PCM, Smart Key Control Module, Transmission Range Switch |
| Fuse MINI 7.5A | F39 | A/C Control Module, Electronic A/C Compressor, Fan Switch, Fan Resistor |
| Fuse MINI 10A | F41 | PCM, Smart Key Control Module, Alternator (G3LA/G4LA) |
| Fuse MINI 7.5A | F42 | ESP Control Module |
| Fuse MINI 7.5A | F43 | MDPS Unit |
| Fuse MINI 10A | F44 | BCM, SBR Indicator |

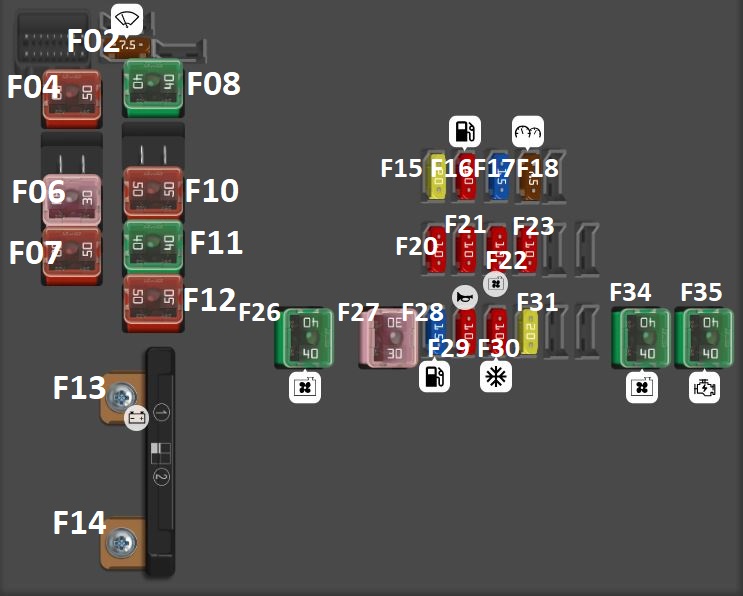

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 7.5A | F02 | (FRT WIPER) PCM, Front Wiper Motor, Multifunction Switch |
| Fuse FMX/JCase 50A | F04 | (ESP 1) ESP Control Module |
| Fuse FMX/JCase 30A | F06 | (ESP 2) ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 50A | F07 | (B+4) Smart Fuse Box (Fuse: F1 / F2) |
| Fuse FMX/JCase 40A | F08 | (IG1) Without start button: Ignition switch. With start button: PDM Relay Box (Relay IG1 / ACC) |
| Fuse FMX/JCase 50A | F10 | (B+2) Smart Fuse Box (Fuse: F5/F9/F13 /F14 /F17, Automatic Leakage Current Cut-off Device Fuse: F23 / F24 / F29) |
| Fuse FMX/JCase 40A | F11 | (B+3) Smart Fuse Box (Power Window Relay, Fuse: F4, ARISU-LT2, IPS 5) |
| Fuse FMX/JCase 50A | F12 | (B+1) Smart Fuse Box (Turn Signal Relay, Fuse: F10, ARISU-LT1, IPS 3) |
| Multi fuse block MUSB | F13 | (ALT) Alternator, Fuse – F3 / F4 / F6, PCB Relay and Fuse Box |
| Multi fuse block MUSB | F14 | (MDPS) Electric Power Steering Unit |
| Fuse MINI 20A | F15 | (ECU4) Not used |
| Fuse MINI 10A | F16 | (INJECTOR) PCM, Immobilizer Module, Fuel Pump Relay 1, Injector G3LA #1/#2/#3, Injector G4LA #1/#2/#3/#4, Injector B3LA #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Dashboard Switch |
| Fuse MINI 15A | F17 | (IGN COIL) Ignition Coil G3LA/B3LA #1/#2/#3, Capacitor, Ignition Coil G4LA |
| Fuse MINI 7.5A | F18 | (B/UP LAMP) Automatic Transmission PCM, Transaxle Range Switch, BCM, Instrument Cluster, Left/Right Rear Combination Lamp. Manual Transmission: Backup Light Switch, Smart Fuse Box (Fuse F15) |
| Fuse MINI 10A | F20 | (ECU3) PCM |
| Fuse MINI 10A | F21 | (ECU2) PCM B3LA, Shut-off Valve #1/#2 |
| Fuse MINI 10A | F22 | (SENSOR) Low Speed Engine Fan Relay, High Speed Engine Fan Relay, Air Conditioning Relay, Starter Relay (G3LA, with ISG), PCM, Oil Control Valve #1/#2 (Inlet/Outlet), Purge Control Solenoid Valve, Camshaft Position Sensor #1/#2 (Inlet/Outlet) |
| Fuse MINI 10A | F23 | (SENSOR2) PCM G3LA/G4LA |
| Fuse FMX/JCase 40A | F26 | (BLOWER) Fan Relay |
| Fuse FMX/JCase 30A | F27 | (ECU1) Engine Control Relay, Fuse: F25 / F26 |
| Fuse MINI 15A | F28 | (F/PUMP) Fuel Pump Relay 1 |
| Fuse MINI 10A | F29 | (HORN) Horn Relay, Alarm Horn Relay |
| Fuse MINI 10A | F30 | (A/CON) Air Conditioning Relay |
| Fuse MINI 20A | F31 | (VACUUM PUMP) Vacuum Pump Relay |
| Fuse FMX/JCase 40A | F34 | (C/FAN) Low Speed Engine Fan Relay, High Speed Engine Fan Relay |
| Fuse FMX/JCase 40A | F35 | (IG2) Starter Relay, Ignition Switch (without start button), PDM Relay Box (Relay IG2) (with start button) |
