Hyundai Grand i10 (2013 – 2018) Fuse Box Location & Diagrams
Locate the fuse boxes and identify every fuse in the Hyundai Grand i10 (2013–2018) with this detailed reference. Explore fuse box locations, complete fuse diagrams, relay information, and fuse assignments to quickly diagnose electrical issues and safely replace blown fuses while keeping your vehicle operating properly.
Fuse Box Location

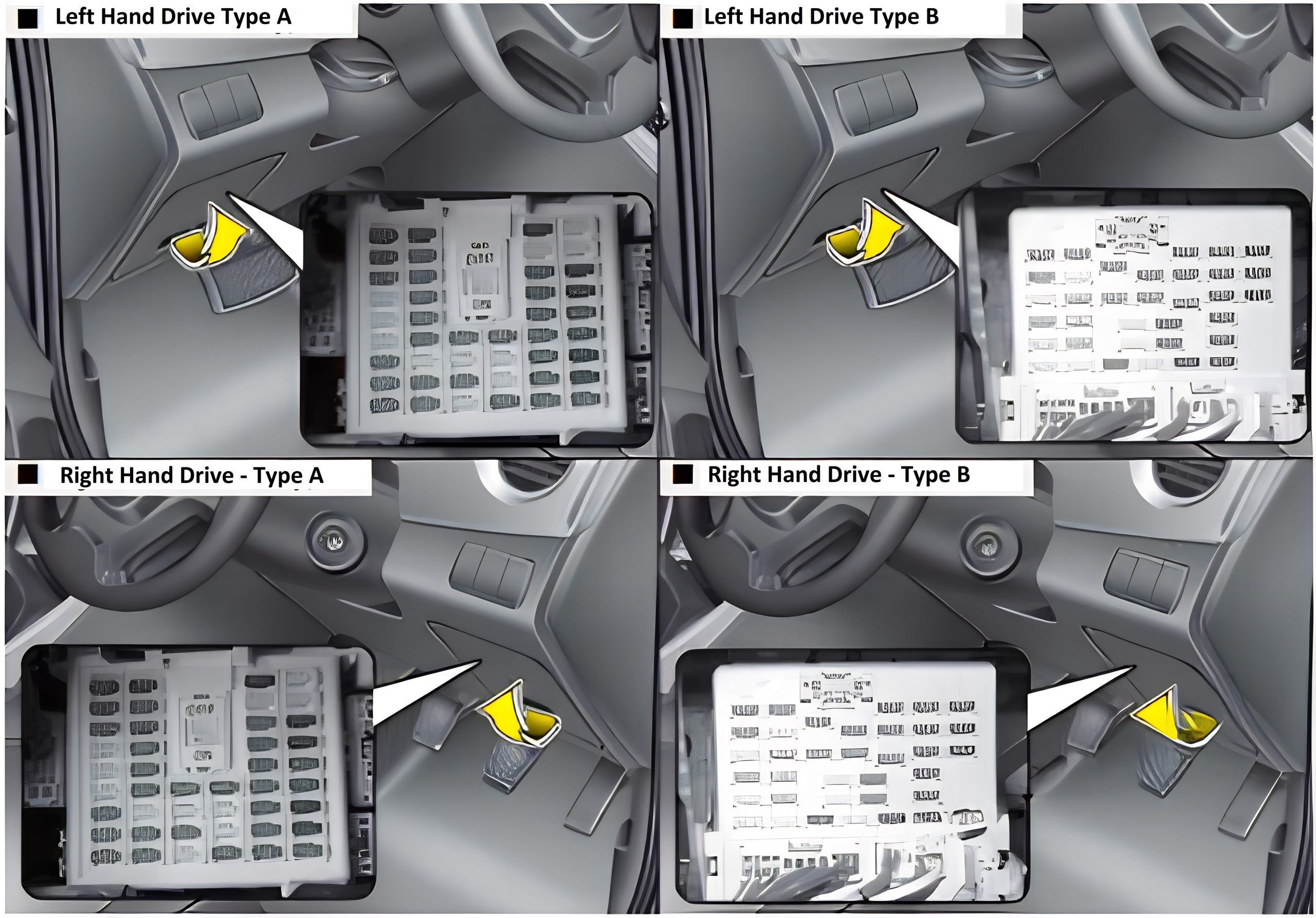

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

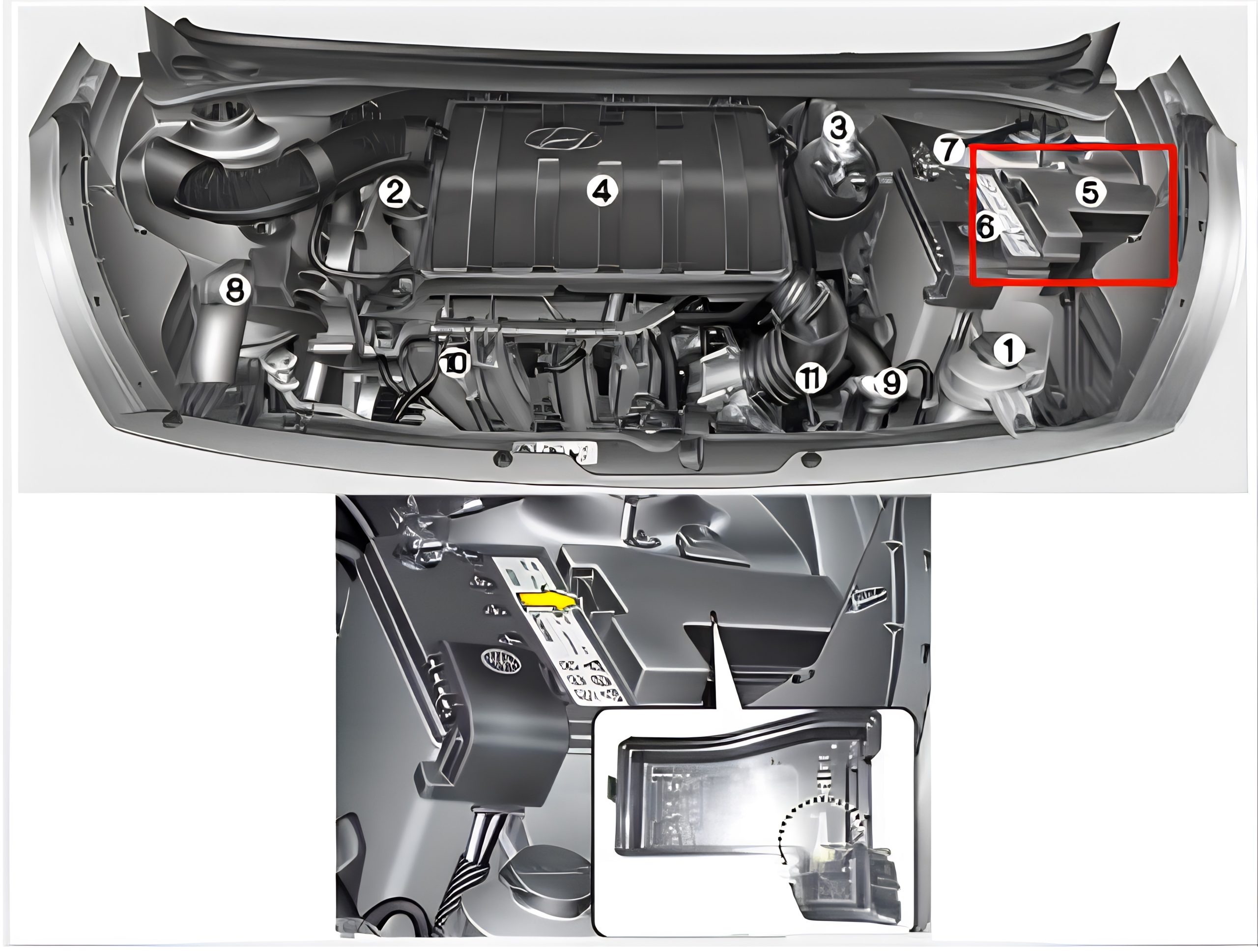

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left-side).
Fuse Box Diagrams
Passenger Compartment Fuse Box

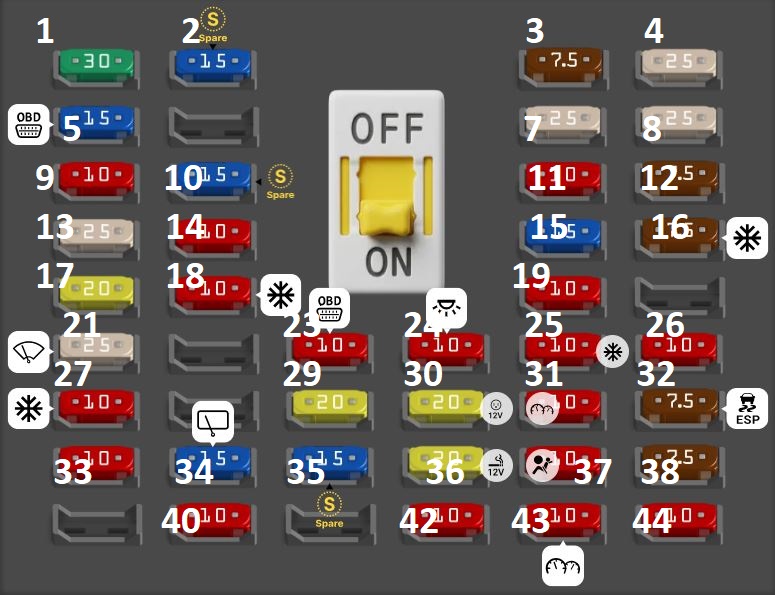

Type A
| Type | No. | Description |
| Fuse MINI 30A | 1 | RR HTD Relay |
| Fuse MINI 15A | 2 | Spare |
| Fuse MINI 7.5A | 3 | A/C Control Module (Auto) |
| Fuse MINI 25A | 4 | Driver Safety Power Window Module |
| Fuse MINI 15A | 5 | Stop Signal Electronic Module. Data Link Connector |
| Fuse MINI 25A | 7 | Power Window Main Switch. Driver Safety Power Window Module (LHD). Passenger Power Window Switch (RHD) |
| Fuse MINI 25A | 8 | Power Window Main Switch. Driver Safety Power Window Module (RHD). Passenger Power Window Switch (LHD) |
| Fuse MINI 10A | 9 | Smart Key Control Module, Start/Stop Button Switch |
| Fuse MINI 15A | 10 | Spare |
| Fuse MINI 10A | 11 | PCB Fuse & Relay Box (Vacuum Pump Relay) |
| Fuse MINI 7.5A | 12 | B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module, Transaxle Range Switch |
| Fuse MINI 25A | 13 | Smart Key Control Module |
| Fuse MINI 10A | 14 | Smart Key Control Module, Stop Lamp Switch |
| Fuse MINI 15A | 15 | A/T : Transaxie Range Switch, Pulse Generator ‘A/’B’ M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34) |
| Fuse MINI 7.5A | 16 | PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor |
| Fuse MINI 20A | 17 | Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit |
| Fuse MINI 10A | 18 | PCM, A/C Control Module, Driver/Passenger Power Outside Mirror |
| Fuse MINI 10A | 19 | Stop Lamp Switch. Crash Pad Switch. Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH |
| Fuse MINI 25A | 21 | Front Wiper Motor, Multifunction Switch |
| Fuse MINI 10A | 23 | Data Link Connector, Digital Clock, Instrument Cluster, BCM. Tire Pressure Motoring Module, A/C Control Module Crash Door Unlock Unit, Audio |
| Fuse MINI 10A | 24 | Luggage Lamp, Room Lamp |
| Fuse MINI 10A | 25 | E/R Junction Box (Multipurpose Check Connector), A/C Control Module |
| Fuse MINI 10A | 26 | PCM. Smart Key Control Module. Alternator (G3LA/G4LA) |
| Fuse MINI 10A | 27 | PCB Fuse & Relay Box (Blower Relay), A/C Control Module |
| Fuse MINI 20A | 29 | Auido |
| Fuse MINI 20A | 30 | Rear Power Outlet |
| Fuse MINI 10A | 31 | Instrument Cluster |
| Fuse MINI 7.5A | 32 | ESP Control Module |
| Fuse MINI 10A | 33 | – |
| Fuse MINI 15A | 34 | Rear Wiper Motor, Multifunction Switch |
| Fuse MINI 15A | 35 | Spare |
| Fuse MINI 20A | 36 | Power Outlet |
| Fuse MINI 10A | 37 | SRS Control Module |
| Fuse MINI 7.5A | 38 | MDPS Unit |
| Fuse MINI 10A | 40 | BCM, Smart Key Control Module |
| Fuse MINI 10A | 42 | BCM, Smart Key Control Module, Digital Clock Auido, Power Outside Mirror Switch |
| Fuse MINI 10A | 43 | Instrument Cluster |
| Fuse MINI 10A | 44 | BCM, SBR Indicator |

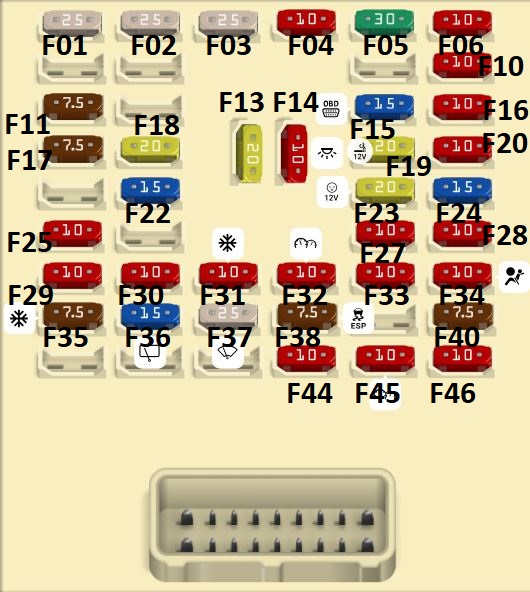

Type B
| Type | No. | Description |
| Fuse MINI 25A | F01 | Driver Safety Power Window Module |
| Fuse MINI 25A | F02 | Power Window Main Switch, Driver Safety Power Window Module (RHD). Passenger Power Window Switch (LHD) |
| Fuse MINI 25A | F03 | Power Window Main Switch, Driver Safety Power Window Module (LHD). Passenger Power Window Switch (RHD) |
| Fuse MINI 10A | F04 | PCM. A/C Control Module. Driver/Passenger Power Outside Mirror |
| Fuse MINI 30A | F05 | RR HTD Relay |
| Fuse MINI 7.5A | F11 | A/C Control Module (Auto) |
| Fuse MINI 20A | F13 | Auido |
| Fuse MINI 10A | F14 | Luggage Lamp, Room Lamp |
| Fuse MINI 15A | F15 | Stop Signal Electronic Module. Data Link Connector |
| Fuse MINI 10A | F16 | BCM. Smart Key Control Module, Digital Clock, Auido, Power Outside Mirror Switch |
| Fuse MINI 7.5A | F17 | B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module, Transaxle Range Switch |
| Fuse MINI 20A | F18 | Door Lock/Unlock Relay. T/Gate Unlock Relay, Crash Door Unlock Unit |
| Fuse MINI 20A | F19 | Power Outlet |
| Fuse MINI 10A | F20 | PCB Fuse & Relay Box (Vacuum Pump Relay) |
| Fuse MINI 20A | F23 | Rear Power Outlet |
| Fuse MINI 15A | F24 | A/T : Transaxle Range Switch, Pulse Generator ‘A”B’ M/T: Vehicle Speed Sensor, PCB Fuse & Relay Box (F34) |
| Fuse MINI 10A | F27 | Stop Lamp Switch. Crash Pad Switch. Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH |
| Fuse MINI 10A | F28 | PCM, Smart Key Control Module, Alternator (G3LA/G4LA) |
| Fuse MINI 10A | F30 | Smart Key Control Module, Stop Lamp Switch |
| Fuse MINI 10A | F31 | PCB Fuse & Relay Box (Blower Relay), A/C Control Module |
| Fuse MINI 10A | F32 | Instrument Cluster |
| Fuse MINI 10A | F33 | E/R Junction Box (Multipurpose Check Connector). A/C Control Module |
| Fuse MINI 10A | F34 | SRS Control Module |
| Fuse MINI 7.5A | F35 | PCM, A/C Control Module. Electronic A/C Compressor, Blower Switch. Blower Resistor |
| Fuse MINI 15A | F36 | Rear Wiper Motor. Multifunction Switch |
| Fuse MINI 25A | F37 | Front Wiper Motor, Multifunction Switch |
| Fuse MINI 7.5A | F38 | ESP Control Module |
| Fuse MINI 7.5A | F40 | MDPS Unit |
| Fuse MINI 10A | F44 | – |
| Fuse MINI 10A | F45 | Instrument Cluster |
| Fuse MINI 10A | F46 | Side Repeater Lamp (LH/RH), Rear Combination Lamp (LH/RH) |

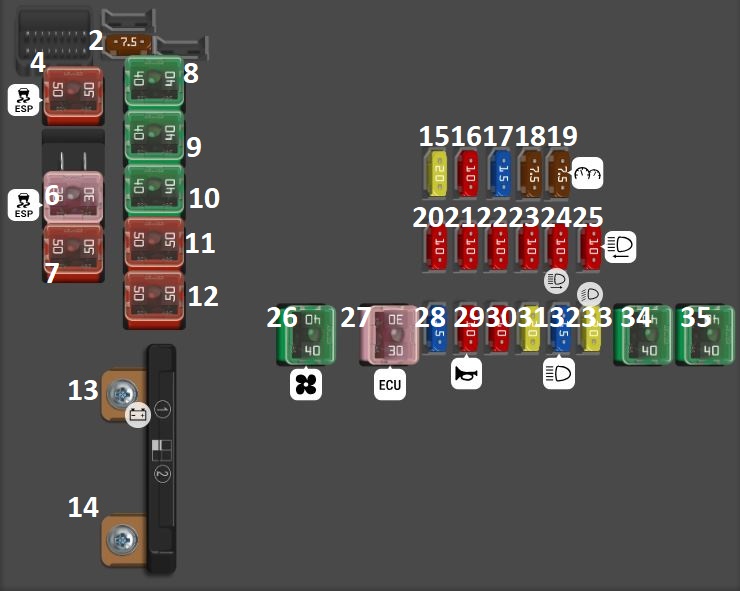

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 7.5A | F02 | PCM. Front Wiper Motor. Multifunction Switch |
| Fuse FMX/JCase 50A | F04 | ESP Control Module |
| Fuse FMX/JCase 30A | F06 | ESP Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 50A | F07 | Smart Junction Box (Fuse : F1/F2) |
| Fuse FMX/JCase 40A | F08 | W/O Button Start: Ignition Switch With Button Start: PDM Relay Box (IG1 / ACC Relay) |
| Fuse FMX/JCase 40A | F09 | POWER OULET |
| Fuse FMX/JCase 40A | F10 | Smart Junction Box (Power Window Relay, Fuse : F4, ARISU-LT2. IPS 5) |
| Fuse FMX/JCase 50A | F11 | Smart Junction Box (Fuse :F5/F9/F13/F14F17 Leak Current Autocut Device Fuse : F23 / F24 / F29) |
| Fuse FMX/JCase 50A | F12 | Smart Junction Box (T/Sig Sound Relay, Fuse : F10, ARISU-LT1. IPS 3) |
| Multi fuse block MUSB | F13 | Alternator. Fuse – F3/F4/F6 PCB Fuse & Relay Box |
| Multi fuse block MUSB | F13 | Alternator. Fuse – F3/F4/F6 PCB Fuse & Relay Box |
| Multi fuse block MUSB | F14 | MDPS Unit |
| Fuse MINI 20A | F15 | Not Used |
| Fuse MINI 10A | F16 | PCM. Immobilizer Module, F/Pump 1 Relay G3LA : Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4 B3LA : Injector #1/#2/#3 (GSL). Injector #1/#2/#3 (LPI), Crash Pad Switch |
| Fuse MINI 15A | F17 | G3LA/B3LA : Ignition Coil #1/#2/#3, Condenser G4LA : Ignition Coil |
| Fuse MINI 7.5A | F18 | A/T : PCM, Transaxle Range Switch, BCM. Instrument Cluster, Rear Combination Lamp LH/RH M/T : Back-Up Lamp Switch. Smart Junction Box (Fuse : F15) |
| Fuse MINI 7.5A | F19 | Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay) |
| Fuse MINI 10A | F20 | PCM |
| Fuse MINI 10A | F21 | B3LA : PCM, Shut Off Valve #1/#2 |
| Fuse MINI 10A | F22 | C/FAN LO Relay. C/FAN HI Relay. A/CON Relay. Start Relay (G3LA, With ISG), PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve. Camshaft Position Sensor #1/#2 (IN/EX) |
| Fuse MINI 10A | F23 | G3LA/G4LA PCM |
| Fuse MINI 10A | F24 | Head Lamp RH |
| Fuse MINI 10A | F25 | Head Lamp LH |
| Fuse FMX/JCase 40A | F26 | Blower Relay |
| Fuse FMX/JCase 30A | F27 | Engine Control Relay, Fuse : F25/F26 |
| Fuse MINI 15A | F28 | F/Pump 1 Relay |
| Fuse MINI 10A | F29 | Horn Relay. B/Alarm Horn Relay |
| Fuse MINI 10A | F30 | A/CON Relay |
| Fuse MINI 20A | F31 | Vacuum Pump Relay |
| Fuse MINI 15A | F32 | Headlamp High Beam |
| Fuse MINI 20A | F33 | Headlamp Low Beam |
| Fuse FMX/JCase 40A | F34 | C/FAN LO Relay, C/FAN HI Relay |
| Fuse FMX/JCase 40A | F35 | Start Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With Button Start) |
