Hyundai i20 (2008 – 2014) Fuse Box Location & Diagrams
Locate the fuse boxes in the Hyundai i20 (2008–2014) with clear diagrams and detailed fuse information. This blog helps you identify fuse locations, understand each fuse assignment, and troubleshoot common electrical issues, making maintenance and fuse replacement simpler for owners and DIY enthusiasts.
Fuse Box Location
Passenger Compartment Fuse Box

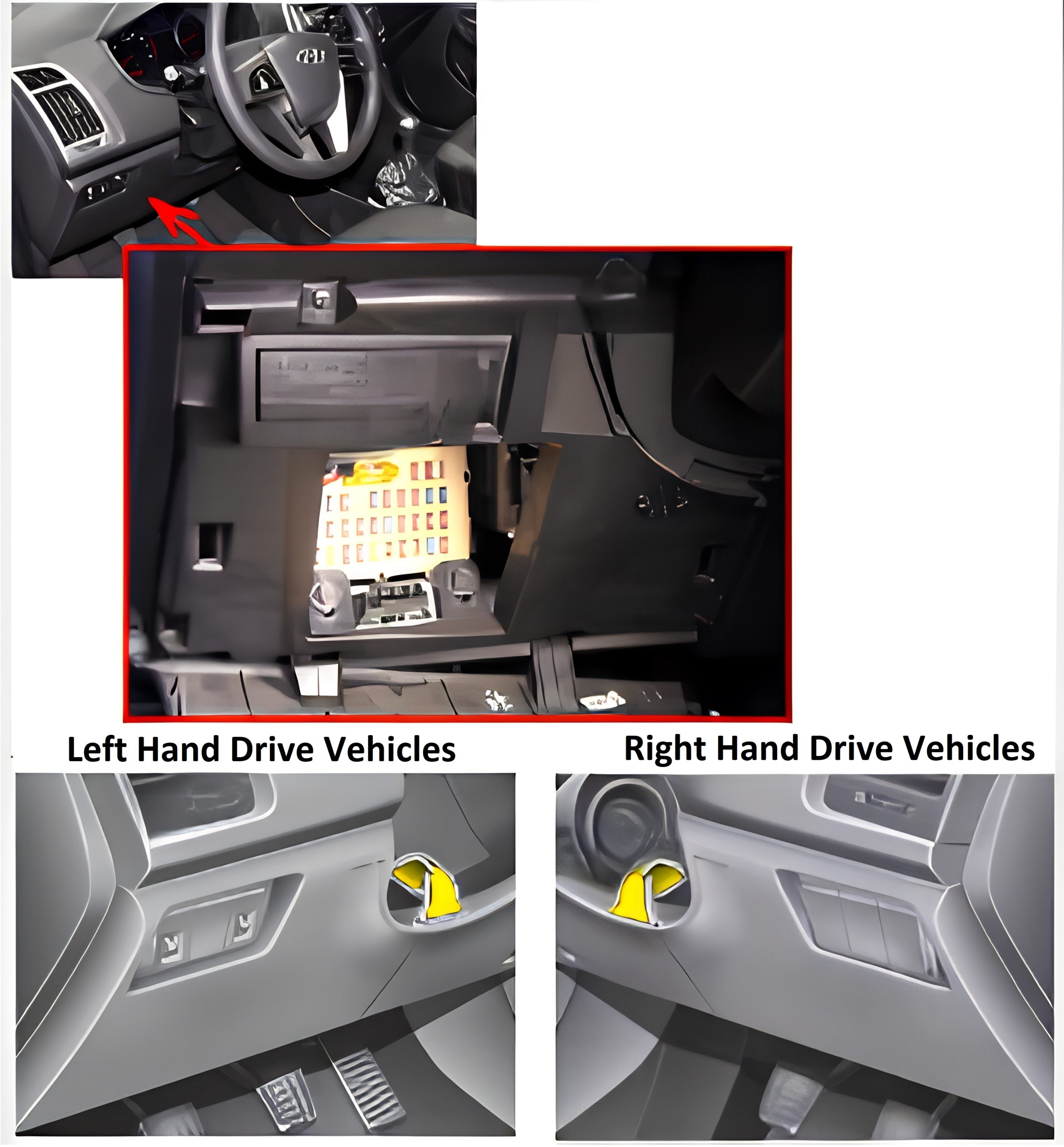

The fuse box is located at the bottom of the instrument panel (on the driver’s side), behind the cover.
Engine Compartment Fuse Box

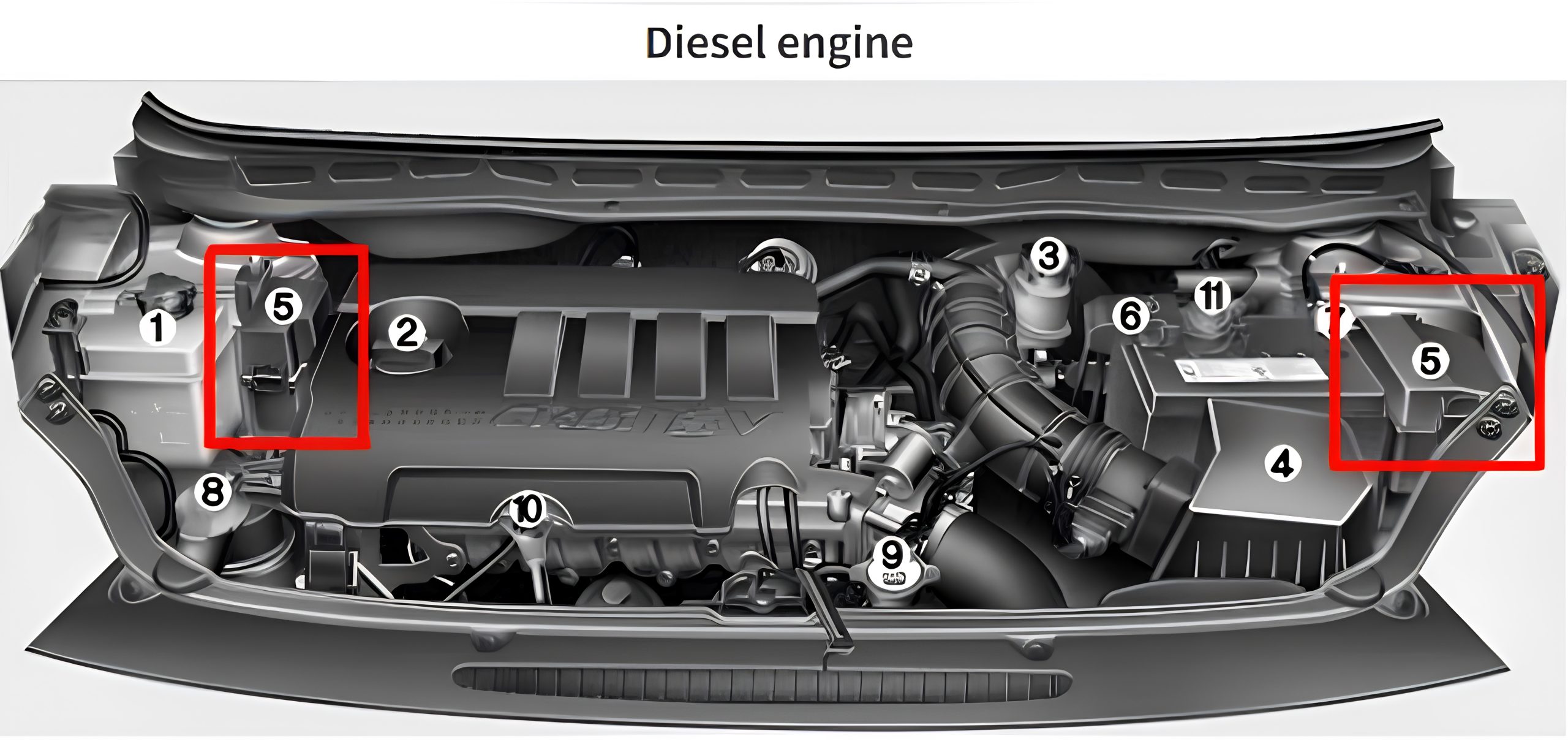

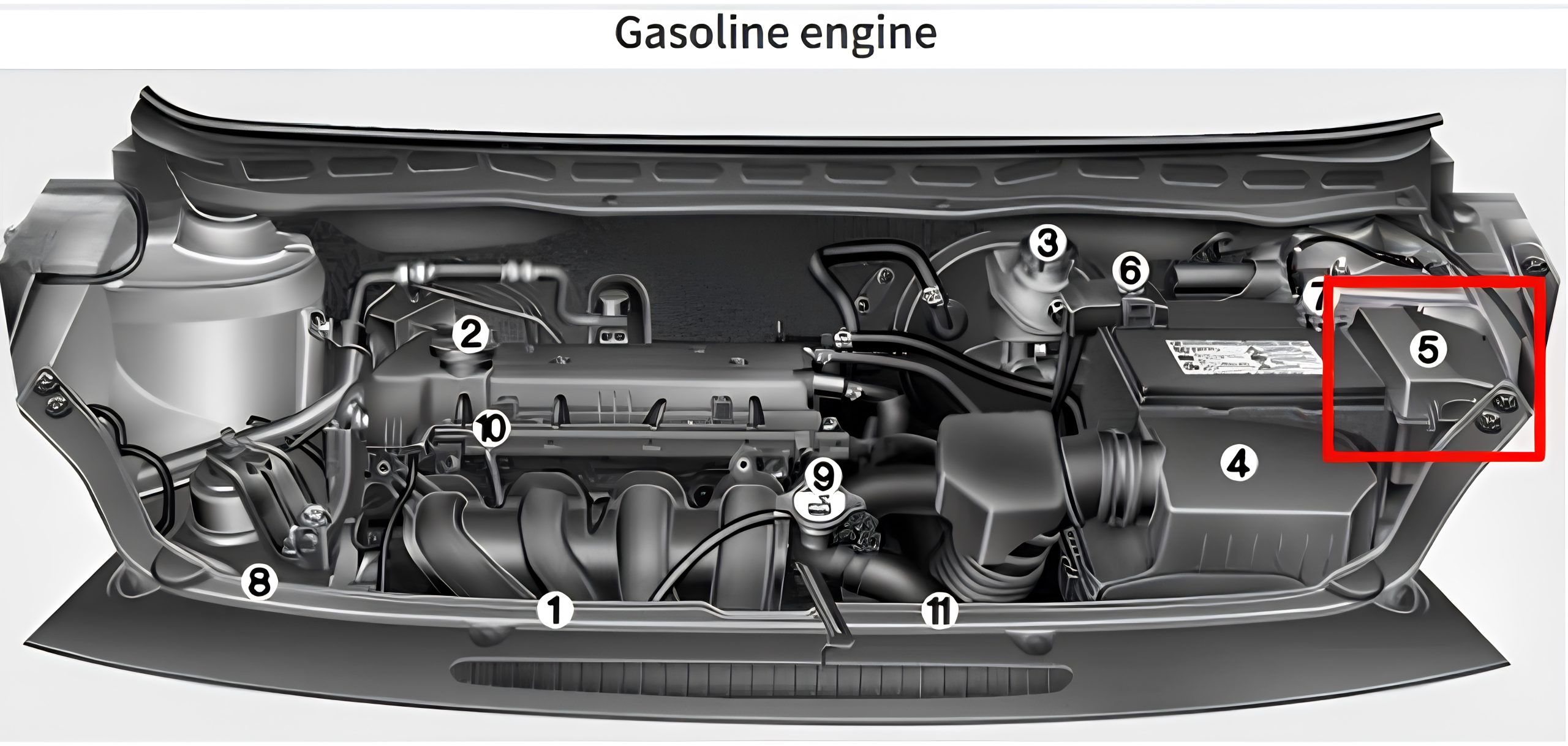

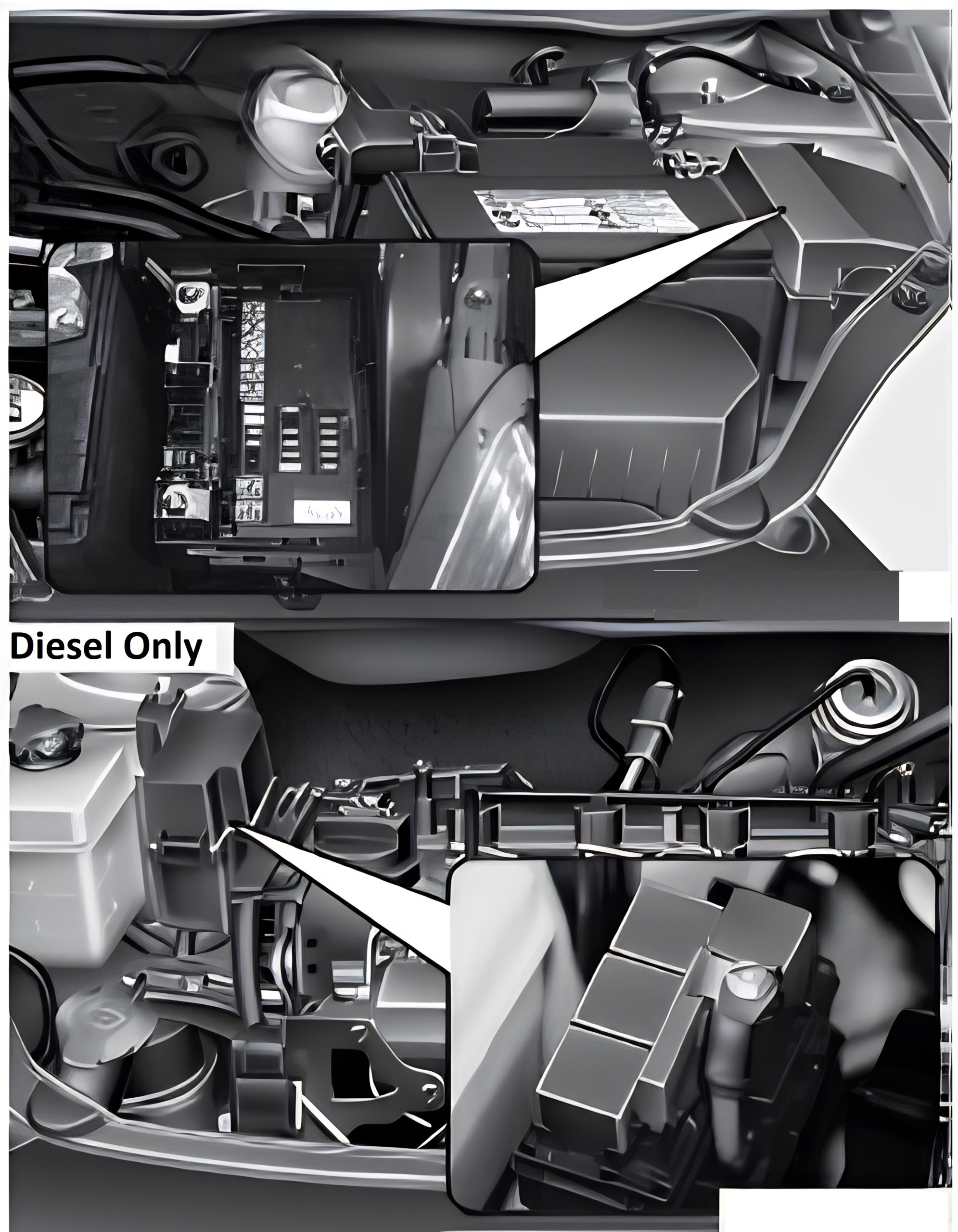

The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams
Passenger Compartment Fuse Box

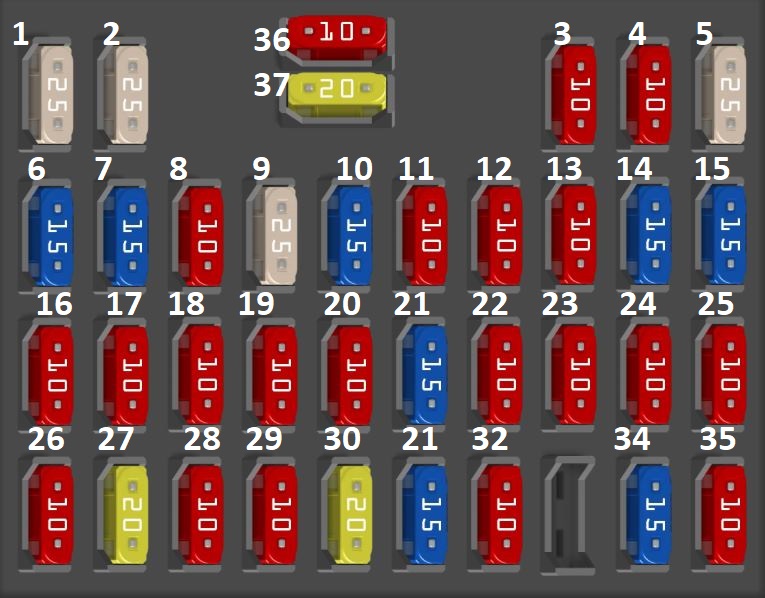

Hyundai i20 (2008 – 2012)
| Type | No. | Description |
| Fuse MINI 25A | 1 | (P/WDW LH) Power Window Main Switch, Driver Safety Power Window Module, Rear Power Window Switch RH, Passenger Power Window Switch(RHD) |
| Fuse MINI 25A | 2 | (P/WDW RH) Power Window Main Switch, Driver Safety Power Window Module. Rear Power Window Switch RH, Passenger Power Window Switch(LHD) |
| Fuse MINI 10A | 3 | (H/LP LH) Head Lamp LH |
| Fuse MINI 10A | 4 | (O/S MIR HTD) ECM(M/T), PCM(A/T), A/C Control Module, Driver Power Outside Mirror, Passenger Power Outside Mirror |
| Fuse MINI 25A | 5 | (FRT WIPER) Front Wiper Motor, Multifunction Switch (Wiper Switch) |
| Fuse MINI 15A | 6 | (SAFETY P/W) Driver Safety Power Window Module |
| Fuse MINI 15A | 7 | (HAZARD) Hazard Switch, Hazard Relay |
| Fuse MINI 10A | 8 | (A/BAG) Seat Belt Reminder Switch Module, SRS Control Module |
| Fuse MINI 25A | 9 | AMP |
| Fuse MINI 15A | 10 | (STOP LP) Stop Lamp Switch, Data Link Connector, P/WDW Relay |
| Fuse MINI 10A | 11 | (PCU) Fuel Filter Warning Sensor, Air Flow Sensor, ECM(M/T), PCM(A/T) |
| Fuse MINI 10A | 12 | (IGN 2) Head Lamp Leveling Switch, Incar Sensor, BCM. A/C Control Module, Sunroof Control Module, Head Lamp LH/RH, E/R Fuse & Relay Box(FFHS Relay, DRL Relay, Blower Relay), DSL Fuse & Relay Box(PTC 2 Relay, PTC 3 Relay) |
| Fuse MINI 10A | 13 | (H/LP RH) Head Lamp RH, Instrument Cluster (Head Lamp ILL.) |
| Fuse MINI 15A | 14 | (RR WIPER) Rear Wiper Motor, Multifunction Switch (Wiper Switch) |
| Fuse MINI 15A | 15 | (S/HTD) Passenger Seat Warmer Switch, Driver Seat Warmer Switch |
| Fuse MINI 10A | 16 | (TAIL LP RH) Head Lamp RH, Rear Combination Lamp RH, Illuminations |
| Fuse MINI 10A | 17 | (TAIL LP LH) DRL Relay, License Lamp, Rear Combination Lamp LH, Head Lamp |
| Fuse MINI 10A | 18 | (T/SIG LP) Hazard Switch |
| Fuse MINI 10A | 19 | (A/BAG IND) Instrument Cluster (A/BAG ILL) |
| Fuse MINI 10A | 20 | (B/UP LP) Transaxle Range Switch (GAMMA), Back-Up Lamp Switch |
| Fuse MINI 15A | 21 | (IGN COIL) Ignition Coil (KAPPA), Ignition Coil #1-#4(GAMMA), Condenser (GAMMA) |
| Fuse MINI 10A | 22 | (ABS) ESP Switch Steering Angle Sensor, ABS Control Module, ESP Control Module, Yaw Rate Sensor, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| Fuse MINI 10A | 23 | (IGN1) Generator (KAPPA), EPS Control Module, Tire Pressure Monitoring Module |
| Fuse MINI 10A | 24 | (TCU) Over Driver Switch, Pulse Generator “A”, Pulse Generator “B”, Vehicle Speed Sensor |
| Fuse MINI 10A | 25 | (CLUSTER) Trip Computer, Instrument Cluster (ILL). BCM |
| Fuse MINI 10A | 26 | (START) ECM(DSL), E/R Fuse & Relay Box (Start Relay, B/Alarm Relay) |
| Fuse MINI 20A | 27 | (S/ROOF) Sunroof Control Module |
| Fuse MINI 10A | 28 | (FOLDING) Power Outside Mirror Switch |
| Fuse MINI 10A | 29 | (FRT FOG LP) FRT Fog Relay |
| Fuse MINI 20A | 30 | (DR LOCK) T/Gate Unlock Relay, DR Lock/Unlock Relay, Dead Lock Relay |
| Fuse MINI 15A | 31 | (B/A HORN) B/A Relay |
| Fuse MINI 10A | 32 | (RR FOG LP) RR Fog Relay |
| Fuse MINI 15A | 34 | (C/LIGHT) Cigarette Lighter |
| Fuse MINI 10A | 35 | (ACC) Power Outside Mirror, Audio, Trip Computer |
| Fuse MINI 10A | 36 | (ROOM) RR HTD Relay, Door Warning Switch, Instrument Cluster, RR HTD Relay, Door Warning Switch, Instrument Cluster, Trip Computer, Tire Pressure Monitoring Module, BCM, A/C Control Module, Luggage Lamp, Overhead Console Assembly, Front Room Lamp, Center Room Lamp |
| Fuse MINI 20A | 37 | (AUDIO) Audio |

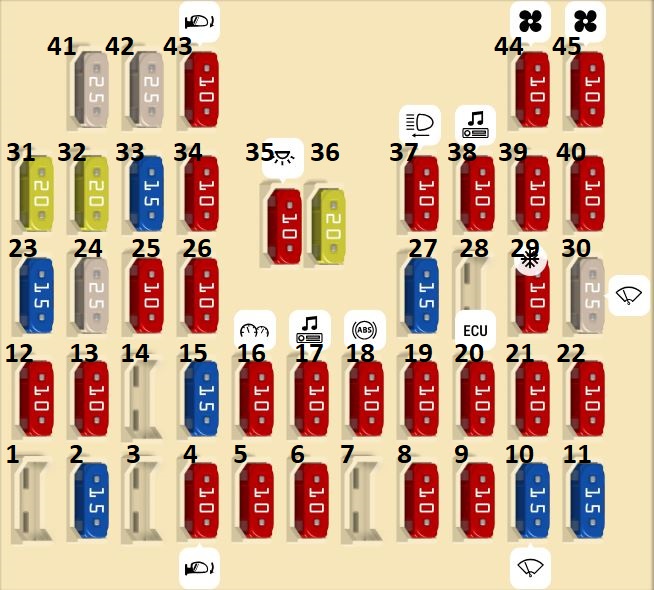

Hyundai i20 (2012 – 2014)
| Type | No. | Description |
| Fuse MINI 15A | 2 | (C/LIGHTER) Cigarette Lighter |
| Fuse MINI 10A | 4 | (ACC) Power Outside Mirror Switch. Audio. DC-DC Converter, BCM, Smart Key Control Module. Digital Clock Trip Computer |
| Fuse MINI 10A | 5 | (A/BAG IND) Instrument Cluster (Air Bag IND.) |
| Fuse MINI 10A | 6 | (A/BAG) SRS Control Module |
| Fuse MINI 10A | 8 | (MDPS 2) MDPS Unit |
| Fuse MINI 15A | 10 | (WIPER RR) Multifunction Switch, Rear Wiper Motor, PCB Fuse & Relay Box (Front Wiper Relay) |
| Fuse MINI 15A | 11 | (S/HEATER) Driver/Passenger Seat Warmer Switch |
| Fuse MINI 10A | 12 | (FOG LP RR) Rear Fog Lamp Relay |
| Fuse MINI 10A | 13 | (FOG LP FRT) Front Fog Lamp Relay |
| Fuse MINI 15A | 15 | (STOP LP) Stop Lamp Relay, Battery Sensor |
| Fuse MINI 10A | 16 | (CLUSTER) Instrument Cluster, BCM. Trip Computer |
| Fuse MINI 10A | 17 | (IGN1) Driver Center Facia Panel Switch, ISG OFF Switch, Rear Parking Assist Sensor, Fuel Filter Warning Sensor, Tire Pressure Monitoring Module, Audio, A/C Control Module |
| Fuse MINI 10A | 18 | (ABS) ESP OFF Switch, ABS Control Module, ESP Control Module, Yaw Rate Sensor, Steering Angle Sensor, E/R Fuse & Relay BOx (Multipurpose Check Connector) |
| Fuse MINI 10A | 19 | (B/UP LP) Back-Up Lamp Switch |
| Fuse MINI 10A | 20 | (ECU) Mass Air Flow Sensor, ECM, Smart Key Control Module. PCB Fuse & Relay Box (Start Relay) |
| Fuse MINI 15A | 23 | (HAZARD) Driver Center Facia Panel Switch |
| Fuse MINI 25A | 24 | (PDM 1) Smart Key Control Module |
| Fuse MINI 10A | 25 | (FOLD’G MIRR) Power Outside Mirror Switch |
| Fuse MINI 10A | 26 | (BRAKE SW) Smart Key Control Module, Stop Lamp Switch |
| Fuse MINI 15A | 27 | (TCU) Pulse Generator ‘A’/’B’, Vehicle Speed Sensor, Transaxle Range Switch, ATM Shift Lever Switch |
| Fuse MINI 10A | 29 | (G2) Head Lamp Leveling Device Switch, BCM, Rain Sensor, Head Lamp LH/RH, Electro Chromic Mirror, DRL Unit, Sunroof Motor, A/C Control Module, Cluster lonizer, PCB Fuse & Relay Box (Blower Relay) |
| Fuse MINI 25A | 30 | (WIPER FRT) Multifunction Switch. Front Wiper Motor. PCB Fuse & Relay Box (Front Wiper Relay, Rain Sensor Relay) |
| Fuse MINI 20A | 31 | (DR LOCK) I/P Junction Box (Door Lock/Unlock Relay, Dead Lock Relay, Tail Gate Unlock Relay) |
| Fuse MINI 20A | 32 | (SUNROOF) Sunroof Motor |
| Fuse MINI 15A | 33 | (SAFETY POWER WINDOW) Driver Safety Power Window Module |
| Fuse MINI 10A | 34 | (PDM3) Start Stop Button Switch. Smart Key Control Module |
| Fuse MINI 10A | 35 | (LUGGAGE LP POWER CONNECTOR) Instrument Cluster, Digital Clock, Front Room Lamp, A/C Control Module, Luggage Lamp. BCM. Trip Computer, Center Room, Overhead Console Assembly, Data Link Connector. Tire Pressure Monitoring Module |
| Fuse MINI 20A | 36 | (AUDIO POWER CONNECTOR) Audio, DC-DC Converter |
| Fuse MINI 10A | 37 | (TAIL LH) Rear Combination Lamp LH, Head Lamp LH, License Lamp LH |
| Fuse MINI 10A | 38 | (TAIL RH) Head Lamp RH, Rear Combination Lamp RH. Digital Clock, Glove Box Lamp, Driver Center Facia Panel Switch, Rheostat, Audio, Multifunction Switch, AUX & USB Jack, Trip Computer, Head Lamp Leveling Device Switch, Rear Power Window Switch. Instrument Cluster, A/C Control Module, ESP OFF Switch, ISG OFF Switch. Safety Power Window Main Switch, Power Window Main Switch, Driver/Passenger Seat Warmer Switch ATM Shift Lever Switch, Passenger Power Window Switch |
| Fuse MINI 10A | 39 | (START) ECM. Smart Key Control Module. Ignition Lock Switch. PCB Fuse & Relay Box (Start Relay), Transaxle Range Switch |
| Fuse MINI 25A | 41 | (P/WDW LH) Power Window Main Switch. Rear Power Window Switch LH, Passenger Power Window Switch. Driver Safety Power Window Module |
| Fuse MINI 25A | 42 | (P/WDW RH) Power Window Main Switch. Rear Power Window Switch RH, Passenger Power Window Switch. Driver Safety Power Window Module |
| Fuse MINI 10A | 43 | (HTD MIRR) A/C Control Module, ECM. Driver/ Passenger Power Outside Mirror |
| Fuse MINI 10A | 44 | (A/CON2) A/C Control Module, Blower Motor |
| Fuse MINI 10A | 40 | (H/LAMP) PCB Fuse & Relay Box (Head Lamp (Hi)/(Lo) Relay) |
| Fuse MINI 10A | 21 | (RAIN SENSOR <PTC>) PCB Fuse & Relay Box (Fuel Heater Relay), Diesel Box (PTC 2. 3 Relay) |
| Fuse MINI 10A | 9 | (DRL) DRL Lamp LH/RH |
| Fuse MINI 10A | 22 | (PDM 2) Smart Key Control Module |
| Fuse MINI 10A | 45 | (BLOWER 2) A/C Control Module. ECM. Blower Resistor. Blower Switch |
Engine Compartment Fuse Box

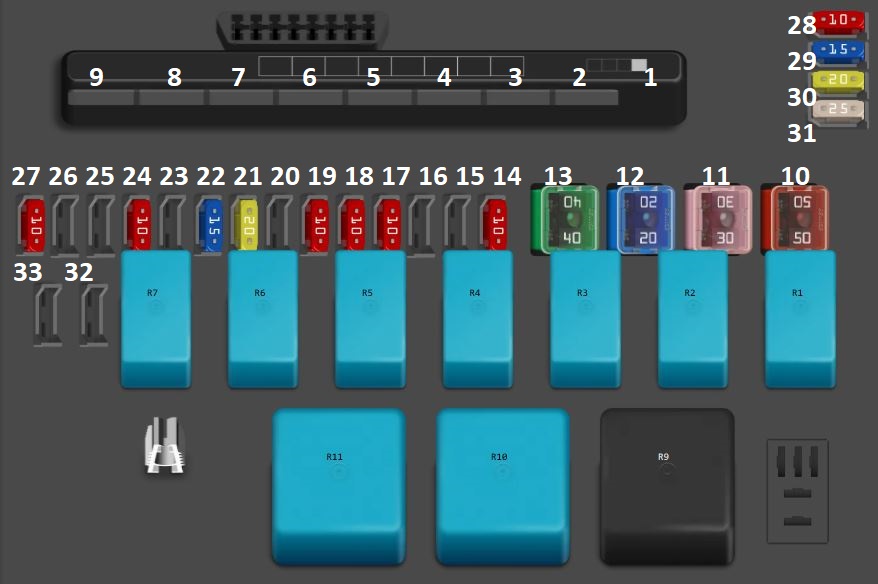

Hyundai i20 (2008 – 2012)
Gasoline & Diesel
| Type | Description |
| Multi fuse block MUSB | 1 (BATT 2) I/P Junction (P/WDW RELAY, Fuse (SAFETY P/W 15A, HAZARD 15A)) |
| Multi fuse block MUSB | 2 (BATT 1) I/P Junction (TAIL RELAY, Fuse (S/ROOF 20A, FOLDING 10A, DR LOCK 20A, STOP LP 15A B/A HORN 15A, RR FOG LP 10A, FRT FOG LP 10A. Power Connector (ROOM 10A, AUDIO 20A)) |
| Multi fuse block MUSB | 3 (C/FAN) C/FAN HI Relay, C/FAN LOW Relay |
| Multi fuse block MUSB | 4 (MAIN) Generator, Fuse (ABS 1 40A. ABS 2 40A, RR HTD 40A, BLOWER 40A, MDPS 80A, A/CON 1 10A) |
| Multi fuse block MUSB | 5 (ABS 2) Multipurpose Check Connector, ABS Control Module, ESP Control Module |
| Multi fuse block MUSB | 6 (ABS 1) Multipurpose Check Connector, ABS Control Module, ESP Control Module |
| Multi fuse block MUSB | 7 (RR HTD) RR HTD Relay |
| Multi fuse block MUSB | 8 (BLOWER) Blower Relay |
| Multi fuse block MUSB | 9 (MDPS) ESP Control Module |
| Fuse FMX/JCase 50A | 10 (IGN 2) Ignition Switch |
| Fuse FMX/JCase 30A | 11 (ECU A) ECM(M/T), PCM(A/T), Engine Control Relay(Main relay) |
| Fuse FMX/JCase 20A | 12 (F/PUMP) F/PUMP Relay |
| Fuse FMX/JCase 40A | 13 (IGN 1) Ignition Switch |
| Fuse MINI 10A | 14 (HORN) Horn Relay |
| Fuse MINI 10A | 17 (SNSR 1) Camshaft Position Sensor, Canister Purge Control Solenoid Valve, Oxygen Sensor(Up,Down), Immobilizer Control Module, C/FAN LOW Relay, C/FAN HI Relay |
| Fuse MINI 10A | 18 GASOLINE: (ECU B) ECM(M/T), PCM(A/T) |
| Fuse MINI 10A | 19 (DRL) Ground (BCM) 20 (Diesel): (ECU 2) Fuel Pressure Regulator Valve |
| Fuse MINI 20A | 21 (ECU 1) ECM(M/T). PCM(A/T) |
| Fuse MINI 15A | 22 (INJ) Injector #1~#4, Idle Speed Control Actuator, A/CON Relay, Oil Control Valve(GAMMA) |
| Fuse MINI 10A | 24 (A/CON 2) A/C Control Module |
| Fuse MINI 10A | 27 (A/CON 1) A/CON Relay |
| Fuse MINI 10A | 28 Spare |
| Fuse MINI 15A | 29 Spare |
| Fuse MINI 20A | 30 Spare |
| Fuse MINI 25A | 31 Spare |
| Fuse MINI – | 32 Spare |
| Fuse MINI – | 33 Spare |
| Relay | R1 DRL RLY |
| Relay | R2 A/CON RLY |
| Relay | R3 START RLY |
| Relay | R4 B/ALARM RLY |
| Relay | R5 HORN RLY |
| Relay | R6 C/FAN LOW RLY |
| Relay | R7 C/FAN HI RLY |
| Relay | R9 BLOWER RLY |
| Relay | R10 F /PUMP RLY |
| Relay | R11 MAIN RLY |
| Connector OBD1 | Connector On-board diagnostic port (OBD1) |
| Fuse puller | Fusepuller Extraction tool for fuse replacement. |

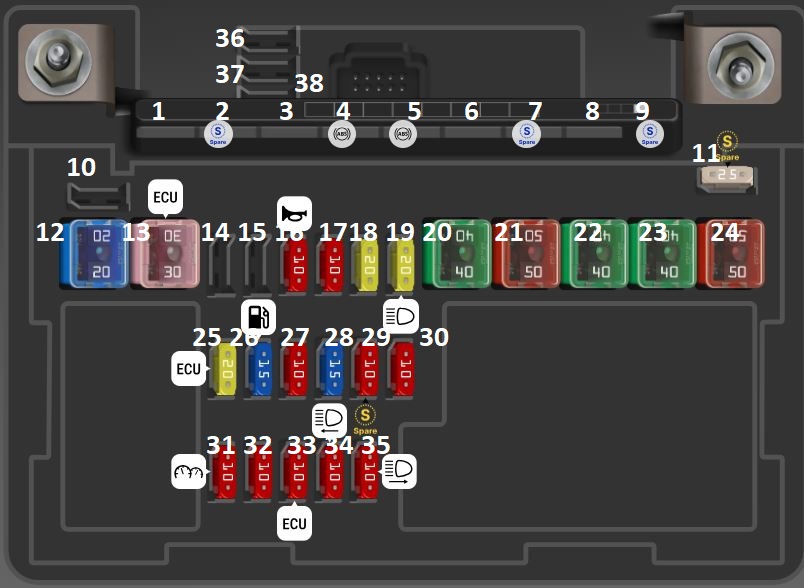

Hyundai i20 (2012 – 2014)
| Type | No. | Description |
| Multi fuse block MUSB | 1 | MDPS Unit |
| Multi fuse block MUSB | 2 | SPARE |
| Multi fuse block MUSB | 3 | I/P Junction Box (Rear Defogger Relay) |
| Multi fuse block MUSB | 4 | ABS Control Module. ESP Control Module, Multipurpose Check Connector |
| Multi fuse block MUSB | 5 | ABS Control Module. ESP Control Module |
| Multi fuse block MUSB | 6 | [Diesel Box] (F1 80A. PTC 1,2,3 50A). Alternator. E/R Fuse & Relay Box (F1 80A, F3 40A, F4 40A. F5 40A) (GSL) |
| Multi fuse block MUSB | 6 | [Diesel Box] (F1 80A. PTC 1,2,3 50A). Alternator. E/R Fuse & Relay Box (F1 80A, F3 40A, F4 40A. F5 40A) (DSL) |
| Multi fuse block MUSB | 7 | SPARE |
| Multi fuse block MUSB | 8 | I/P Junction Box (Tail Lamp Relay, Fuse (F12 10A. F13 10A, F15 15A, Power Connector (F35 10A. F36 20A)) |
| Multi fuse block MUSB | 9 | SPARE |
| Fuse MINI 25A | 11 | SPARE |
| Fuse FMX/JCase 20A | 12 | Fuel Pump Relay (GSL) |
| Fuse FMX/JCase 30A | 13 | Engine Control Relay |
| Fuse MINI 10A | 16 | Horn Relay, Burglar Alarm Horn Relay |
| Fuse MINI 10A | 17 | A/CON Relay |
| Fuse MINI 20A | 18 | Head Lamp (LO) Relay |
| Fuse MINI 20A | 19 | Head Lamp (HI) Relay |
| Fuse FMX/JCase 40A | 20 | Cooling Fan Motor (GSL) |
| Fuse FMX/JCase 50A | 21 | Blower Relay (DSL) |
| Fuse FMX/JCase 40A | 22 | PDM Relay Box (ESCL (IG2) Relay). Ignition Switch |
| Fuse FMX/JCase 40A | 23 | PDM Relay Box (ESCL (ACC)/(IG1) Relay), Ignition Switch |
| Fuse FMX/JCase 50A | 24 | I/P Junction Box (Power Window Relay, Fuse (F23 15A, F24 25A, F25 10A, F26 10A, F31 20A, F32 20A, F33 15A. F34 10A)) |
| Fuse MINI 20A | 25 | ECM, PCM (G4FA) |
| Fuse MINI 15A | 26 | Fuel Pump Relay, Start Relay, ECM, Injector #1. #2, #3. #4. WGT Vacuum (DSL), Camshaft Position Sensor (DSL), Electrical, EGR Control Valve (DSL), [Diesel Box] (Glow relay, PTC Relay) |
| Fuse MINI 10A | 27 | Cooling Fan (HI)/(LOW) Relay, A/CON Relay, Oil Control Valve, Immobilizer, ECM Oxygen Sensor (UP)/(DOWN), Purge Control Solenoid Valve #1/#2. Camshaft Position Sensor #1/#2 |
| Fuse MINI 15A | 28 | Condensor, Ignition Coil #1. #2, #3. #4, Inlet Metering Valve (DSL) (GSL) |
| Fuse MINI 10A | 29 | SPARE |
| Fuse MINI 10A | 30 | (DSL), PCM) (G4FA) |
| Fuse MINI 10A | 31 | Instrument Cluster. PCB Fuse & Relay Box (Head Lamp (H) Relay) |
| Fuse MINI 10A | 32 | Transaxle Range Switch, PCM, Rear Combination Lamp LH/RH. Electro Chromic Mirror. Instrument Cluster (G4FA) |
| Fuse MINI 10A | 33 | ECM, Rainsensor, Front Wiper Motor, Front Wiper Relay |
| Fuse MINI 10A | 34 | Head Lamp LH |
| Fuse MINI 10A | 35 | Head Lamp RH |
