Hyundai Accent (2023 – 2025) Fuse Box Location & Diagrams
Locating the correct fuse box in your Hyundai Accent is essential for diagnosing and fixing electrical issues. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments for 2023–2025 models, helping you quickly identify the right fuse for maintenance, troubleshooting, or replacement.
Fuse Box Location

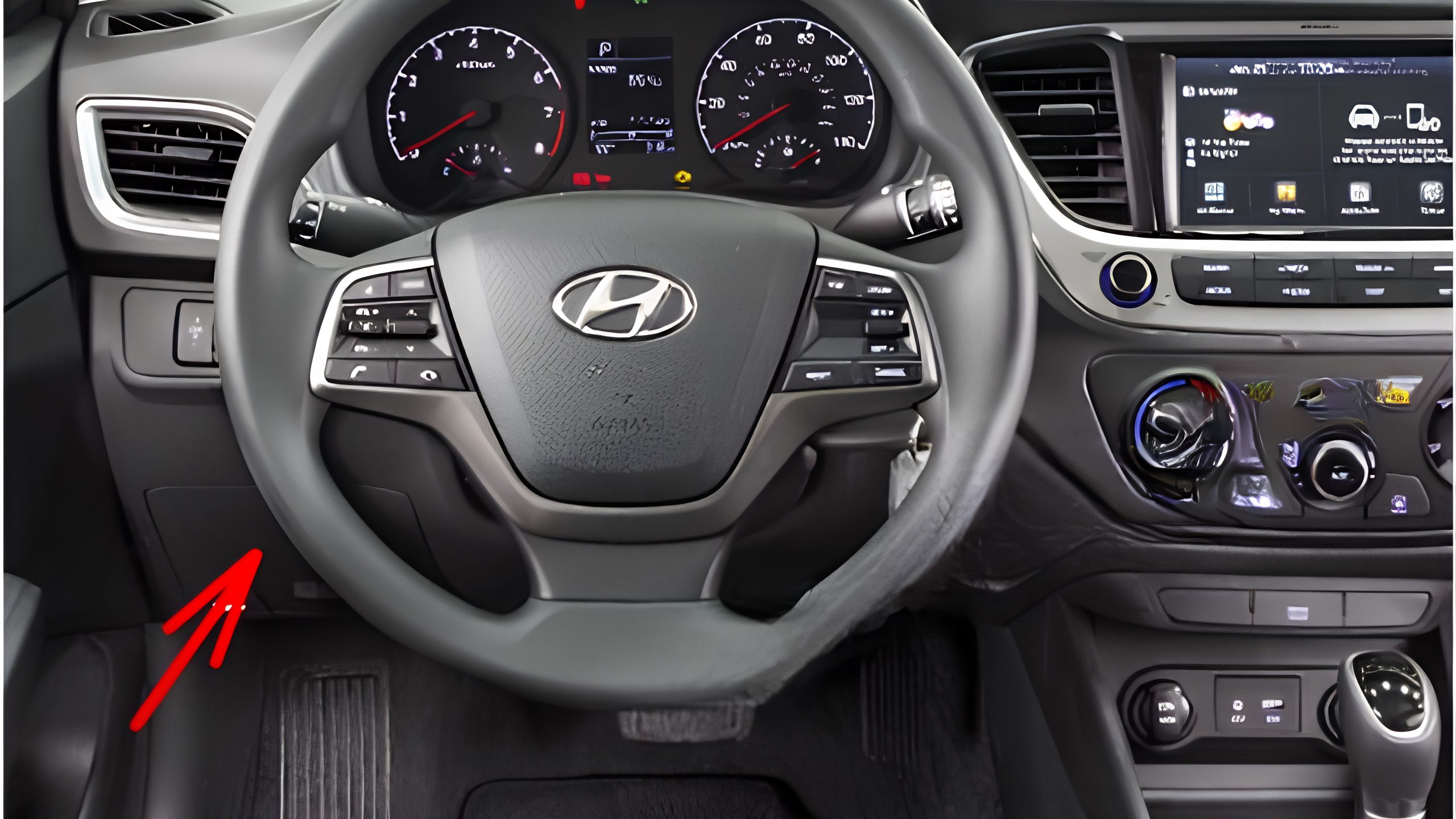

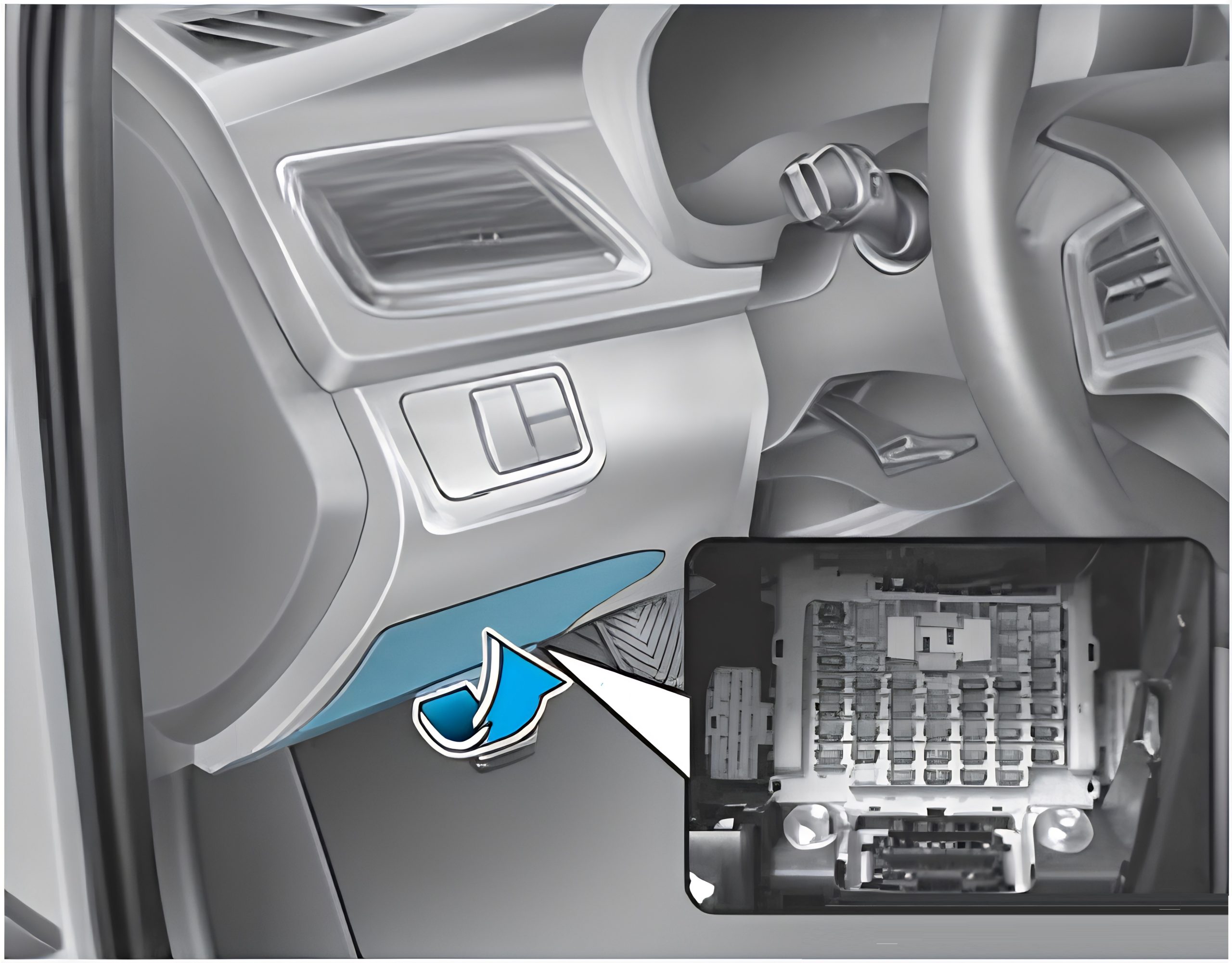

Passenger Compartment Fuse Box
Located inside the cabin, underneath the driver’s side dashboard.

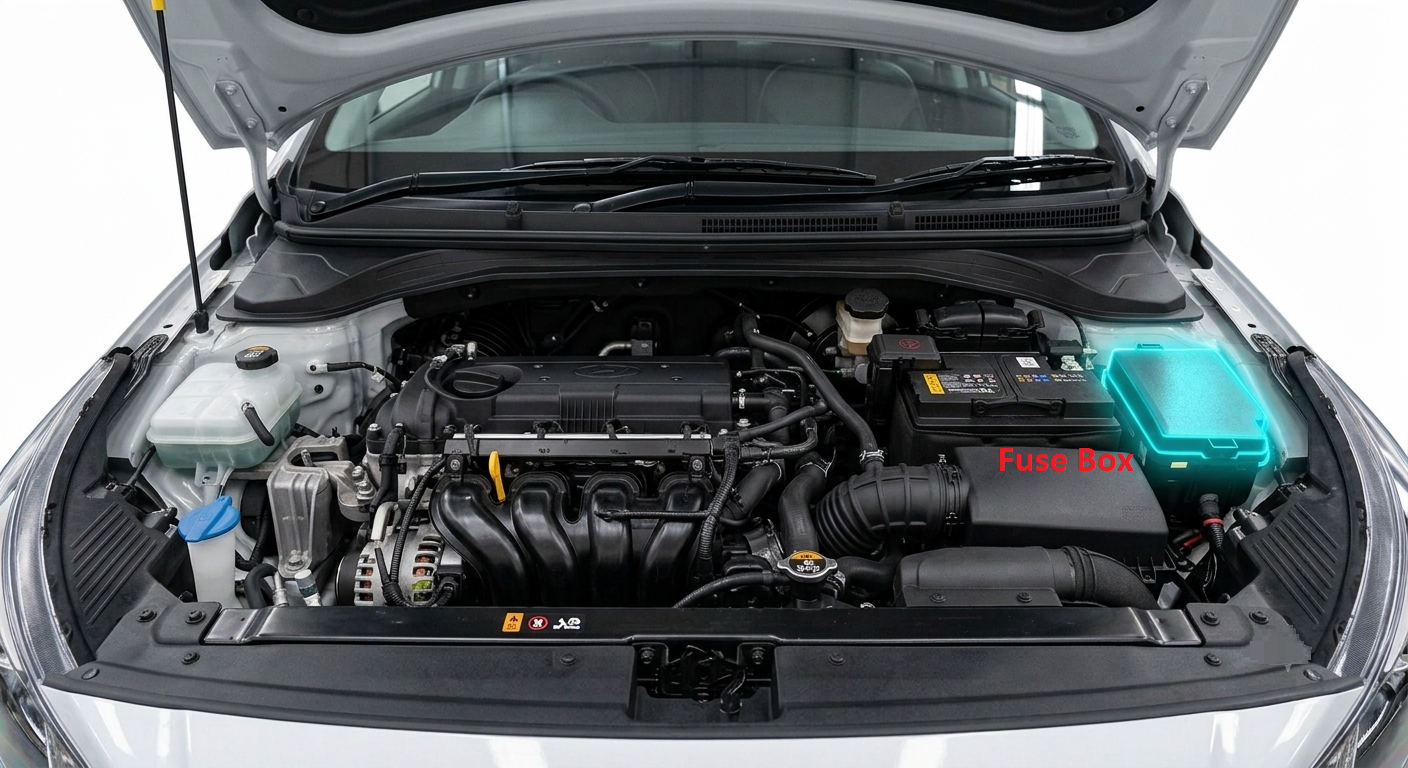

Engine Compartment Fuse Box
Located under the hood on the driver’s side of the engine bay, situated right next to the battery assembly.
Fuse Box Diagram

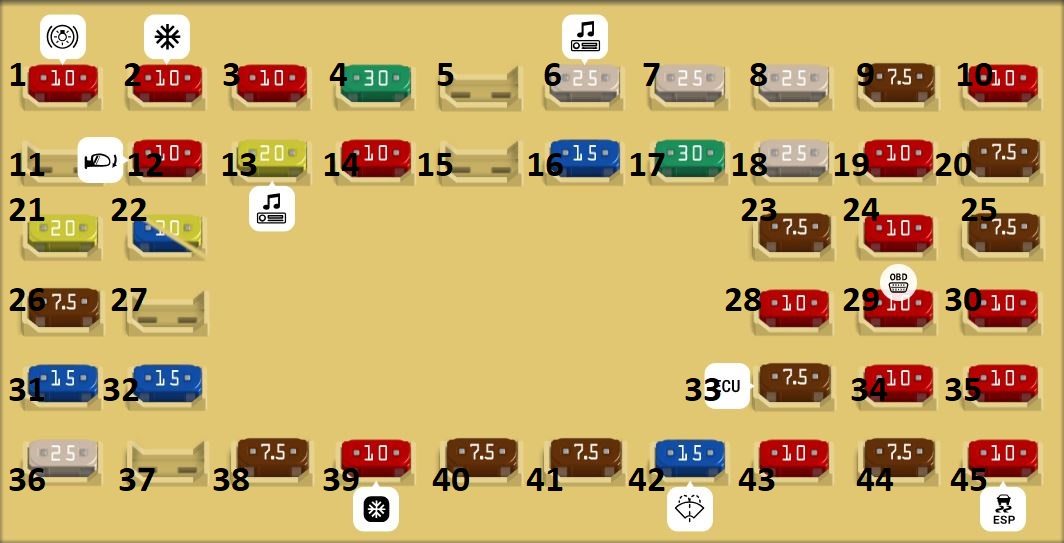

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MICRO2 10A | 1 | (Brake Switch) Stop Lamp Switch, IBU |
| Fuse MICRO2 10A | 2 | (Memory) Outside Mirror Folding/Unfolding Realy. Cluster Unit, DC-DC Converter, A/C Control Module |
| Fuse MICRO2 10A | 3 | (E-Call) E-Call Unit |
| Fuse MICRO2 30A | 4 | (P/Seat) Driver Power Seat Unit |
| Fuse MICRO2 25A | 6 | (AMP) AMP, DC-DC Converter |
| Fuse MICRO2 25A | 7 | (Safety WIN) Driver Safety Power Window Module |
| Fuse MICRO2 25A | 8 | (P/WIN LH) Driver Power Window Switch, Passenger Power Window Switch [RHD] |
| Fuse MICRO2 7.5A | 9 | (Module3) Stop Lamp Switch [G4FL/G4LH] |
| Fuse MICRO2 10A | 10 | (ECU6) ECM/PCM |
| Fuse MICRO2 10A | 12 | (ACC) Outside Mirror Switch, AMP. A/V & Navigation Head Unit. Audio, DC-DC Converter, E-Call Unit. IBU, Front USB Charger |
| Fuse MICRO2 20A | 13 | (Multimedia) A/V & Navigation Head Unit. Audio, DC-DC Converter |
| Fuse MICRO2 10A | 14 | (Trunk) Trunk Release Relay |
| Fuse MICRO2 15A | 16 | (S/Roof) Sunroof Motor |
| Fuse MICRO2 30A | 17 | (Seat/HTR) Front Seat Unit, Front Seat Heater Unit |
| Fuse MICRO2 25A | 18 | (P/WIN RH) Driver Power Window Switch, Passenger Power Window Switch [LHD] |
| Fuse MICRO2 10A | 19 | (Module4) Front Radar [G4FL/G4LH]. EPB Switch, Front View Camera, BSD Unit LH/RH, Crash Pad Switch, IBU |
| Fuse MICRO2 7.5A | 20 | (Cluster) Cluster Unit |
| Fuse MICRO2 20A | 21 | (DR/Lcok) Door Lock/Unlock Relay |
| Fuse MICRO2 15A | 22 | (P/Outlet) Front USB Charger (India) |
| Fuse MICRO2 20A | 22 | (P/Outlet) Front USB Charger (India Except) |
| Fuse MICRO2 7.5A | 23 | (A/BAG IND) Cluster Unit, Rear Seat Belt Indicator |
| Fuse MICRO2 10A | 24 | (Module2) Rear Seat Belt Indicator |
| Fuse MICRO2 7.5A | 25 | (MDPS) MDPS Unit |
| Fuse MICRO2 7.5A | 26 | (Module1) Data Link Connector, TSG Lever, Hazard Switch, Front Air Ventilation Seat Unit |
| Fuse MICRO2 10A | 28 | (Wiper2) Front Wiper Motor, E/R Junction Block (RLY.7) |
| Fuse MICRO2 10A | 29 | (Module5) A/C Control Module, DC-DC Converter, TSG Lever Indicator, Smart Phone Wireless Charger Unit, Electro Chromic Mirror, Crash Pad Switch, Data Link Connector, Audio, AMP, Head Lamp LH/RH, Front Seat Unit, Front Seat Heater Unit, Front Air Ventilation Seat Unit, E-Call Unit, DC-DC Converter, A/V & Navigation Head Unit |
| Fuse MICRO2 10A | 30 | (TCU2) Electronic Oil Pump [G4FL]. TCM [G4LH/D4FA]. Transaxle Range Switch, TSG Lever [G4LH] |
| Fuse MICRO2 15A | 31 | (IBU1) IBU |
| Fuse MICRO2 15A | 32 | (USB/CHR) Rear USB Charger |
| Fuse MICRO2 7.5A | 33 | (Start) Transaxle Range Switch, IBU, ECM, Ignition Lock & Clutch Switch [D4FA] |
| Fuse MICRO2 10A | 34 | (A/BAG) SRS Control Module |
| Fuse MICRO2 10A | 35 | (Sensor4) CVVD Actuator [G4LH]. Fuel Filter Warning Sensor [D4FA], Glow Relay Unit [D4FA] |
| Fuse MICRO2 25A | 36 | (Wiper1) Front Wiper Motor, E/R Junction Block (RLY.7) |
| Fuse MICRO2 7.5A | 38 | (A/C2) A/C Control Module, E/R Junction Block (RLY.12) |
| Fuse MICRO2 10A | 39 | (A/C4) Air Quality Sensor, A/C Compressor |
| Fuse MICRO2 7.5A | 40 | (Module7) Front Seat Unit, Front Seat Heater Unit, Front Air Ventilation Seat Unit |
| Fuse MICRO2 7.5A | 41 | (Module6) IBU |
| Fuse MICRO2 15A | 42 | (Washer) Multifunction Switch |
| Fuse MICRO2 10A | 43 | (A/C3) A/C Blower Motor, E/R Junction Block (RLY.12) |
| Fuse MICRO2 7.5A | 44 | (IBU2) IBU |
| Fuse MICRO2 10A | 45 | (ABS3) ABS Control Module, ESP Control Module |

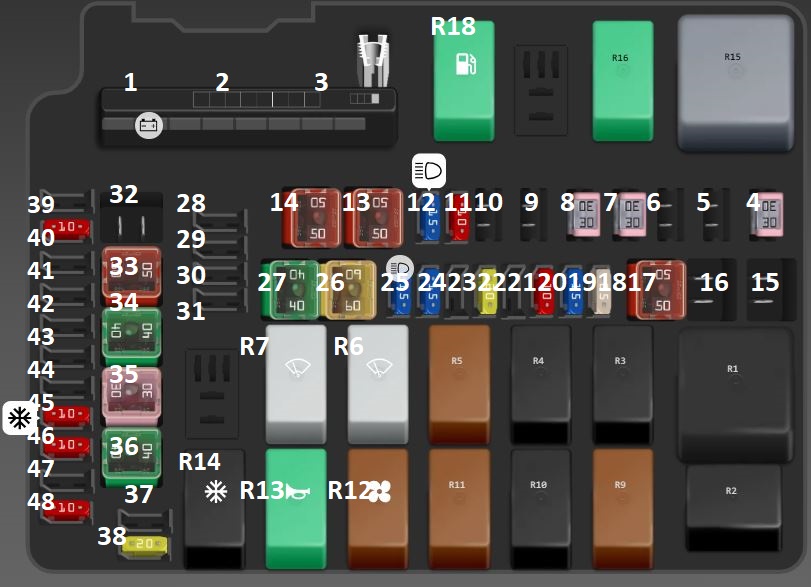

Engine Compartment Fuse Box
G4FL – G4FIII 1.5 MPI (GAMMA)
| Type | Description |
| Multi fuse block MUSB | F1 (ALT)Battery, (Fuse : F3A, F3C, F4, F5, F6A, F6B, F7A, F7C, F8, F9A, F11, F12, F13BC, F15, F16, F17, F23C, F24, F25AB, F25C, F26, F27, F29, F30A, F31, F32) |
| Multi fuse block MUSB | F2 (MDPS) MDPS Unit |
| Fuse FMM/MCase 30A | F4 (ECU1) RLY.1 |
| Fuse FMM/MCase 40A | F6 (EOP1) Electronic Oil Pump [With Smart Key] |
| Fuse FMM/MCase 30A | F8 (IG1) [With Smart Key]: RLY3, RLY. 10, [W/O Smart Key]: Ignition Switch |
| Fuse MINI 15A | F12 (H/LP LH) Head Lamp LH(LED) |
| Fuse FMX/JCase 50A | F13 (BATT1) ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6) |
| Fuse FMX/JCase 50A | F14 (BATT2) ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| Fuse FMX/JCase 50A | F15 (C/FAN2) RLY. 11 |
| Fuse FMX/JCase 50A | F17 (BATT3) ICU Junction Block (Long Term Load Latch Relay, Fuse(F1, F21, F26, F31)) |
| Fuse MINI 15A | F18 (ECU3) PCM/ECM |
| Fuse MINI 15A | F19 (ECU4) PCM/ECM |
| Fuse MINI 10A | F20 (AMS) Battery Sensor |
| Fuse MINI 20A | F22 (F/PUMP) RLY.18 |
| Fuse MINI 15A | F24 (HORN) RIY.13, RLY.15 [India Except] |
| Fuse MINI 15A | F25 (H/LP RH) Head Lamp RH(LED) |
| Fuse FMX/JCase 60A | F26 (BATT4) ICU Junction Block (Power Window Relay, Fuse(F4, F6, F7, F14, F16, F17)) |
| Fuse FMX/JCase 40A | F27 (IG2) [With Smart Key]: RLY.9, RLY2, [W/O Smart Key]: RLY.9, Ignition Switch |
| Fuse FMX/JCase 50A | F33 (RR) HTD1 |
| Fuse FMX/JCase 40A | F34 (ABS1) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 30A | F35 (ABS2) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 40A | F36 (BLOWER) RLY.1 |
| Fuse MINI 20A | F37 (ECU2) PCM/ECM |
| Fuse MINI 20A | F38 (ECU5) PCM/ECM |
| Fuse MINI 15A | F40 (Injector)Injector #1~#4 |
| Fuse MINI 20A | F41 (IGN COIL) Ignition Coil #1~#4 |
| Fuse MINI 10A | F46 (RR HTD2) ECM/PCM, A/C Control Module, Driver/Passenger Outside Mirror |
| Fuse MINI 10A | F47 (Sensor1) RLY.18 |
| Fuse MINI 10A | F48 (Sensor2) Oxygen Sensor (Up/Down) |
| Fuse MINI 10A | F49 (Sensor5) RLY.5, RLY.11, Oil Control Valve #1~#2, Purge Control Solenoid, Variable Intake Solenoid Valve |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 Main Relay Relay |
| Relay | R2 IG2 Relay |
| Relay | R3 IG1 Relay |
| Relay | R5 C/FAN-LO Relay |
| Relay | R6 Wiper-HI Relay |
| Relay | R7 Wiper-LO Relay |
| Relay | R9 Start Relay |
| Relay | R10 ACC Relay |
| Relay | R11 C/FAN-HI Relay |
| Relay | R12 Blower Relay |
| Relay | R13 Horn Relay |
| Relay | R15 RR HTD Relay |
| Relay | R16 B/Alarm Relay |
| Relay | R18 Fuel Pump Relay |
G4LH – G4LIII 1.5 T-GDi (KAPPA)
| Type | Description |
| Multi fuse block MUSB | F1 (ALT) Battery, (Fuse : F3A, F3C, F4, F5, F6A, F6B, F7A, F7C, F8, F9A, F11, F12, F13BC, F15, F16, F17, F23C, F24, F25AB, F25C, F26, F27, F29, F30A, F31, F32) |
| Multi fuse block MUSB | F2 (MDPS) MDPS Unit |
| Multi fuse block MUSB | F3 (C/FAN1) Cooling Fan Motor |
| Fuse FMM/MCase 30A | F4 (ECU1) RLY.1 |
| Fuse FMM/MCase 40A | F5 (DCT3) Smart Gear Actuator |
| Fuse FMM/MCase 40A | F6 (DCT1) DCT |
| Fuse FMM/MCase 40A | F7 (DCT2) DCT |
| Fuse FMM/MCase 30A | F8 (IG1) [With Smart Key]: RLY3, RLY. 10, [W/O Smart Key]: Ignition Switch |
| Fuse FMM/MCase 40A | F9 (CVVD) CVVD Actuator |
| Fuse MINI 15A | F12 (H/LP LH) Head Lamp LH(LED) |
| Fuse FMX/JCase 50A | F13 (BATT1) ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6) |
| Fuse FMX/JCase 50A | F14 (BATT2) ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| Fuse FMX/JCase 50A | F15 (C/FAN2) RLY. 11 |
| Fuse FMX/JCase 50A | F17 (BATT3) ICU Junction Block (Long Term Load Latch Relay, Fuse(F1, F21, F26, F31)) |
| Fuse MINI 15A | F18 (ECU3) ECM |
| Fuse MINI 15A | F19 (ECU4) PCM/ECM |
| Fuse MINI 10A | F20 (AMS) Battery Sensor |
| Fuse MINI 20A | F22 (F/PUMP) RLY.18 |
| Fuse MINI 15A | F23 (DCT4) DCT |
| Fuse MINI 15A | F25 (H/LP RH) Head Lamp RH(LED) |
| Fuse FMX/JCase 60A | F26 (BATT4) ICU Junction Block (Power Window Relay, Fuse(F4, F6, F7, F14, F16, F17)) |
| Fuse FMX/JCase 40A | F27 (IG2) [With Smart Key]: RLY.9, RLY2, [W/O Smart Key]: RLY.9, Ignition Switch |
| Fuse FMX/JCase 50A | F33 (RR) HTD1 |
| Fuse FMX/JCase 40A | F34 (ABS1) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 40A | F34 (EPS1) ESP Control Module [With EPB] |
| Fuse FMX/JCase 30A | F35 (ABS2) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 60A | F35 (EPS2) ESP Control Module [With EPB] |
| Fuse FMX/JCase 40A | F36 (BLOWER) RLY.1 |
| Fuse MINI 20A | F37 (ECU2) ECM |
| Fuse MINI 20A | F38 (ECU5) PCM/ECM |
| Fuse MINI 20A | F41 (IGN COIL) Ignition Coil #1~#4 |
| Fuse MINI 10A | F46 (RR HTD2) ECM/PCM, A/C Control Module, Driver/Passenger Outside Mirror |
| Fuse MINI 10A | F47 (Sensor1) RLY.18, Cooling Fan Motor |
| Fuse MINI 10A | F48 (Sensor2) Oxygen Sensor (Up/Down) |
| Fuse MINI 10A | F49 (Sensor5) Oil Control Valve #1~#2, RCV Control Solenoid Valve, Purge Control Solenoid, Variable Oil Pump |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 Main Relay Relay |
| Relay | R2 IG2 Relay |
| Relay | R3 IG1 Relay |
| Relay | R6 Wiper-HI Relay |
| Relay | R7 Wiper-LO Relay |
| Relay | R9 Start Relay |
| Relay | R10 ACC Relay |
| Relay | R12 Blower Relay |
| Relay | R13 Horn Relay |
| Relay | R15 RR HTD Relay |
| Relay | R18 Fuel Pump Relay |
D4FA – U-II 1.5 TCI (U2)
| Type | Description |
| Multi fuse block MUSB | F1 Battery, (Fuse : F3A, F3C, F4, F5, F6A, F6B, F7A, F7C, F8, F9A, F11, F12, F13BC, F15, F16, F17, F23C, F24, F25AB, F25C, F26, F27, F29, F30A, F31, F32) |
| Multi fuse block MUSB | F2 (MDPS) MDPS Unit |
| Multi fuse block MUSB | F3 (GLOW) Glower Relay Unit |
| Fuse FMM/MCase 30A | F4 (ECU1) RLY.1 |
| Fuse FMM/MCase 30A | F7 (F/HTR) RLY.4 |
| Fuse FMM/MCase 30A | F8 (IG1) [With Smart Key]: RLY3, RLY. 10, [W/O Smart Key]: Ignition Switch |
| Fuse MINI 10A | F11 (A/C) RLY.14 |
| Fuse MINI 15A | F12 (H/LP LH) Head Lamp LH(LED) |
| Fuse FMX/JCase 50A | F13 (BATT1) ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6) |
| Fuse FMX/JCase 50A | F14 (BATT2) ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| Fuse FMX/JCase 50A | F17 (BATT3) ICU Junction Block (Long Term Load Latch Relay, Fuse(F1, F21, F26, F31)) |
| Fuse MINI 25A | F18 (TCU1) TCM |
| Fuse MINI 15A | F19 (ECU4) PCM/ECM |
| Fuse MINI 10A | F20 (AMS) Battery Sensor |
| Fuse MINI 20A | F22 (F/PUMP) RLY.18 |
| Fuse MINI 15A | F24 (HORN) RIY.13, RLY.15 [India Except] |
| Fuse MINI 15A | F25 (H/LP RH) Head Lamp RH(LED) |
| Fuse FMX/JCase 60A | F26 (BATT4) ICU Junction Block (Power Window Relay, Fuse(F4, F6, F7, F14, F16, F17)) |
| Fuse FMX/JCase 40A | F27 (IG2) [With Smart Key]: RLY.9, RLY2, [W/O Smart Key]: RLY.9, Ignition Switch |
| Fuse FMX/JCase 50A | F33 (RR) HTD1 |
| Fuse FMX/JCase 40A | F34 (ABS1) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 30A | F35 (ABS2) ABS/ESP Control Module [W/O EPB] |
| Fuse FMX/JCase 40A | F36 (BLOWER) RLY.1 |
| Fuse MINI 20A | F38 (ECU5) PCM/ECM |
| Fuse MINI 10A | F40 (Sensor4) Mass Air Flow Sensor, EGR Cooling Bypass Solenoid, Electronic VGT Actuator |
| Fuse MINI 10A | F46 (RR HTD2) ECM/PCM, A/C Control Module, Driver/Passenger Outside Mirror |
| Fuse MINI 10A | F47 (Sensor1) Inlet Metering Valve |
| Fuse MINI 10A | F49 (Sensor5) RLY.4, RLY.5, RLY11, RLY14, Camshaft Position Sensor, Stop Lamp Switch |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 Main Relay Relay |
| Relay | R2 IG2 Relay |
| Relay | R3 IG1 Relay |
| Relay | R4 Fuel Heater Relay |
| Relay | R5 C/FAN-LO Relay |
| Relay | R6 Wiper-HI Relay |
| Relay | R7 Wiper-LO Relay |
| Relay | R9 Start Relay |
| Relay | R10 ACC Relay |
| Relay | R11 C/FAN-HI Relay |
| Relay | R12 Blower Relay |
| Relay | R13 Horn Relay |
| Relay | R14 A/C Relay |
| Relay | R15 RR HTD Relay |
| Relay | R16 B/Alarm Relay |
| Relay | R18 Fuel Pump Relay |
