Hyundai Creta (2015 – 2020) Fuse Box Location & Diagrams
Finding the correct fuse box in your Hyundai Creta (2015–2020) is essential for diagnosing and fixing electrical issues. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments to help you identify the correct fuse for various electrical components quickly and accurately.
Fuse Box Location

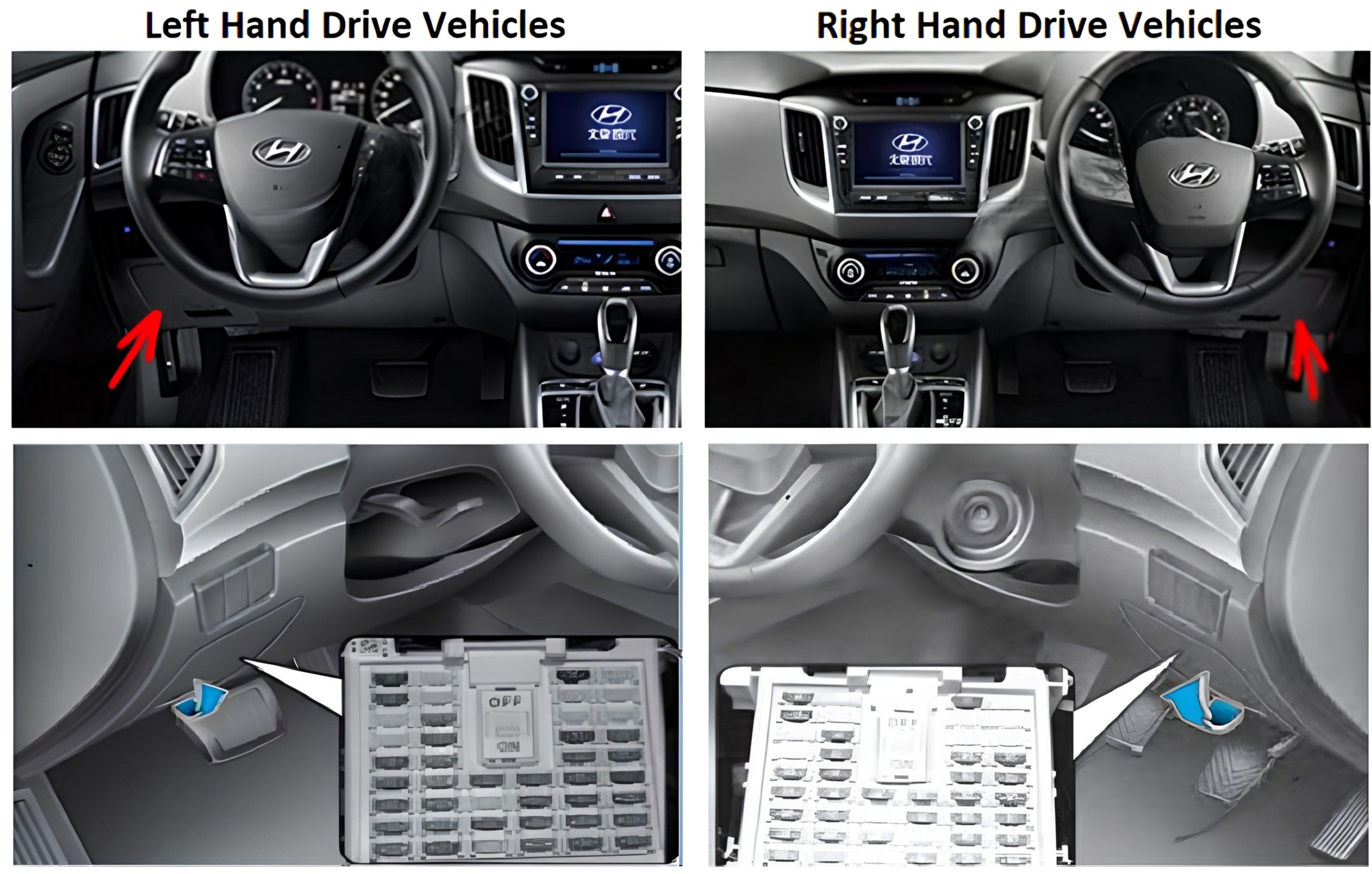

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

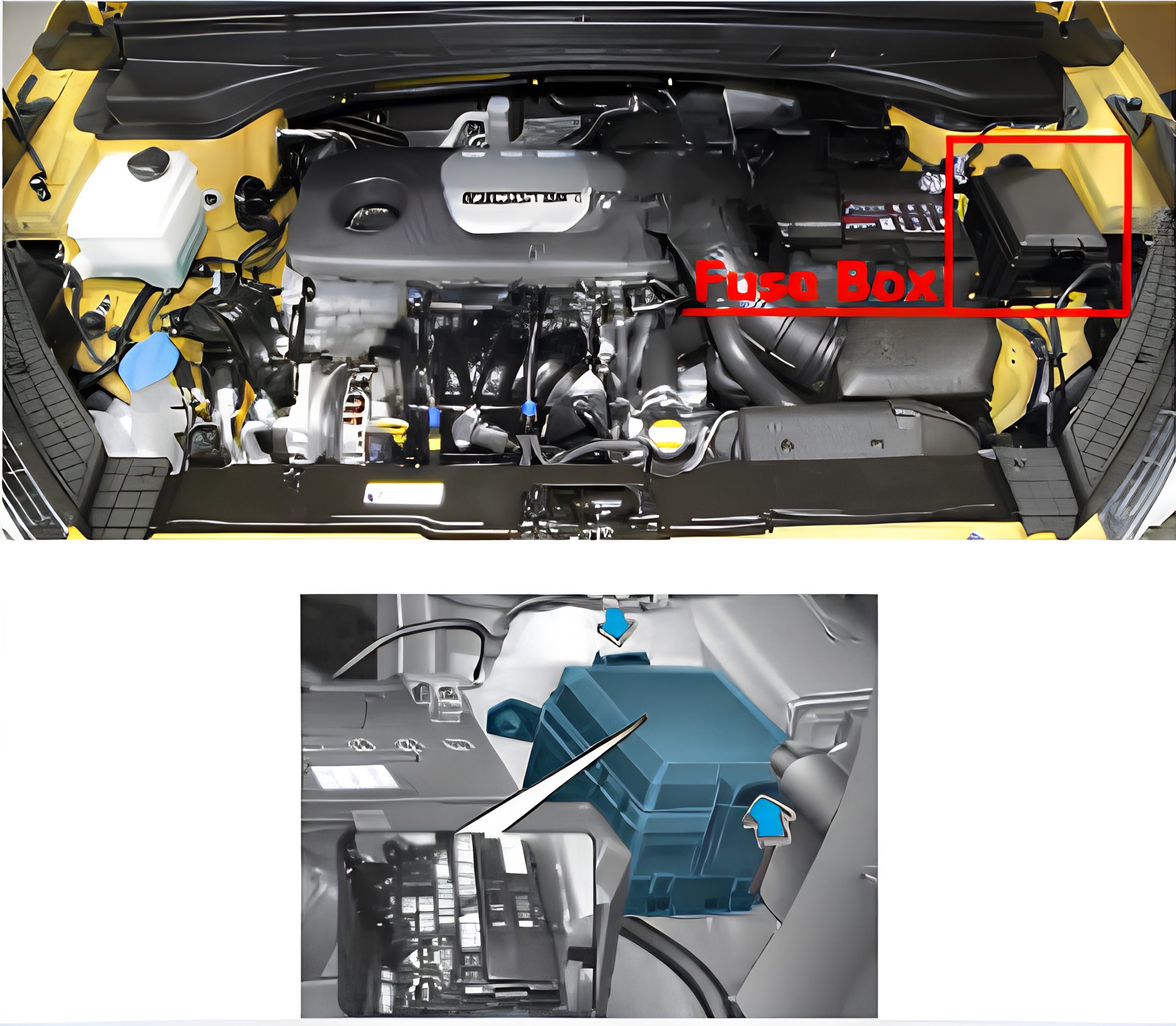

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams

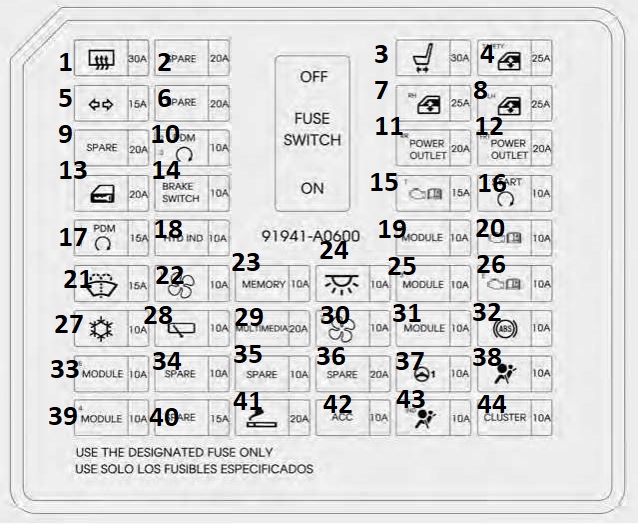

Passenger Compartment Fuse Box
| S.No. | Name | Fuse Rating | Circuit Protected |
| 1 | RR HTD | 30A | Rear Defogger Relay, Rear Defogger |
| 2 | TURN | 15A | Body Control Module |
| 3 | SPARE | 20A | – 2017- 2020: Sunroof module |
| 4 | DOOR LOCK | 20A | Door Lock/Unlock Relay, Door Actuator, Tail Gate Unlock Relay, Tail Gate Latch |
| 5 | PDM1 | 15A | Smart Key Control Module |
| 6 | WASHER | 15A | Multi-Function Switch |
| 7 | A/CON | 10A | Air Condition Module(Manual, Auto), Cluster Ionizer, Blower Relay |
| 8 | MODULE 5 | 10A | Electronic chromic mirror, Head lamp leveling Switch, Head Lamp LH/RH |
| 9 | MODULE 4 | 10A | Smart key Control Module, Body Control Module |
| 10 | SPARE | 20A | – |
| 11 | SPARE | 20A | – |
| 12 | PDM 2 | 10A | Smart Key Control Module |
| 13 | BRAKE SWITCH | 10A | Stop Lamp Switch, Smart Key Control Module |
| 14 | HTD IND | 10A | A/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT) |
| 15 | BLOWER | 10A | AC Control Module (Auto) |
| 16 | REAR WIPER | 10A | Rear Wiper Motor, Rear Wiper Relay |
| 17 | SPARE | 10A | – |
| 18 | SPARE | 15A | – |
| 19 | MEMORY | 10A | Digital Clock, Body Control Module, AC Control Module (Auto, Manual), Cluster, Outside Mirror Folding, OBD |
| 20 | MULTIMEDIA | 20A | Audio |
| 21 | SPARE | 10A | – |
| 22 | C_LIGHTER | 20A | Cigar lighter (Export only) |
| 23 | INTERIOR LP | 10A | Room Lamp, MAP Lamp, Luggage Lamp |
| 24 | BLOWER SIGNAL | 10A | AC Control Module (Manual) |
| 25 | SPARE | 20A | – |
| 26 | ACC | 10A | Audio, Body Control Module, P/OUTLET Relay, Digital Clock, Smart Key Module, Outside Mirror Switch |
| 27 | P/Seat | 30A | Power Seat(Export only) |
| 28 | P/WINDOW RH | 25A | Power Window Main Switch RH(Front, Rear) |
| 29 | POWER OUTLET | 20A | Front Power Outlet |
| 30 | TCU | 15A | M/T : Vehicle Speed Sensor, Back Up Lamp Fuse A/T : Inhibitor Switch, TCU |
| 31 | MODULE 2 | 10A | Body Control Module, Sports Mode Switch(A/T), Stop Switch (NC) |
| 32 | MODULE 3 | 10A | A/C Control Module(Manual/Auto), Body Control Module(Static Bending LP Power), ATM Lever Indicator (A/T) |
| 33 | MODULE 1 | 10A | Rear Parking Sensor |
| 34 | MDPS | 10A | MDPS Unit |
| 35 | AIRBAG IND | 10A | Instrumental Cluster |
| 36 | SAFETY P/WINDOW | 25A | Driver Safety Power Window Module |
| 37 | P/WINDOW LH | 25A | Power Window Main Switch LH(Front Rear) |
| 38 | POWER OUTLET | 20A | Power Outlet Rear |
| 39 | START | 10A | PCU/ECU, Inhibitor Switch, Clutch Pedal Assy, Start Relay, Start Inhibitor Relay |
| 40 | SENSOR | 10A | D4FC, D4FB : Fuel HTR Relay, Fuel Water Sensor |
| 41 | ENG | 10A | Airflow Sensor(D4FB), Smart key Control Module, ECU/PCU(G4FC,D4FC,D4FB) |
| 42 | ABS | 10A | ABS/ ESC Control Module, Rheostat & ESC Switch, Engine Room Diagnosis Connector |
| 43 | AIRBAG | 10A | Airbag Control Unit |
| 44 | CLUSTER | 10A | Instrument Cluster |

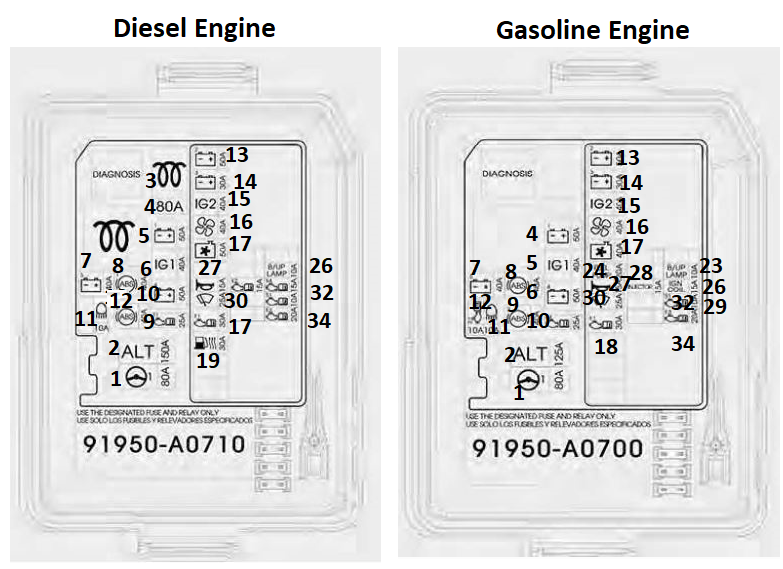

Engine Compartment Fuse Box
Gasoline & Diesel
| S.No. | Item | Name | Fuse Rating | Circuit Protected |
| 1 | MULTI FUSE | MDPS | 80A | MDPS (Motor Power Steering) |
| 2 | MULTI FUSE | ALT | 125A / 150A | G4FC (125A): Alternator, Battery, All Fuses connected to Alternator fuse D4FC/D4FB (150A): Alternator, Battery, All Fuses connected to Alternator fuse |
| 3 | FUSE | ECU 5 | 15A | G4FC (15A): ECU (M/T), PCU(A/T) |
| 4 | FUSE | HEAD LAMP HIGH BEAM | 10A | Head Lamp High Solenoid Relay (Bi-Functional Type) |
| 5 | FUSE | ABS 2 | 40A | ABS / ESC Control Module |
| 6 | FUSE | ECU 4 | 25A / 15A | G4FC (25A): ECU (M/T), PCU(A/T) D4FC (15A): Inlet Meter Valve D4FB (15A): Glow Plug Relay, Fuel Meter Unit |
| 7 | FUSE | TCU 1 | 25A | D4FB: TCU (A/T) |
| 8 | FUSE | B+5 | 40A | Instrument Panel Fuse Block Fuse: FS01 |
| 9 | FUSE | ABS 1 | 40A | ABS / ESC Control Module, Engine Room Diagnosis |
| 10 | FUSE | B+4 | 40A | W/o Button start: Ignition SW With Button start: PDM Relay Block |
| 11 | FUSE | IG1 | 50A | Instrument Panel Fuse Block Fuse: FS14, FS05, FS13, FS17, FS10, FS02, FS09, IOD relay (Leakage Current Auto cut) |
| 12 | FUSE | B+1 | 80A | D4FC/D4FB: Glow Relay, Glow Plug |
| 13 | FUSE | Glow | 30A | D4FC/D4FB: Fuel heater |
| 14 | FUSE | FUEL HEATER | 30A | (Engine Control) Main Relay |
| 15 | FUSE | ECU 1 | 25A | Wiper Motor (Front) |
| 16 | FUSE | FRONT WIPER | 15A | Horn (Dual), Burglar Alarm Horn |
| 17 | FUSE | HORN | 20A | G4FC: Fuel Pump Relay, Fuel Pump Motor |
| 18 | FUSE | FUEL PUMP | 40A / 50A | G4FC (40A): Radiator Fan Motor D4FC/D4FB (50A): Radiator Fan Motor |
| 19 | FUSE | C/FAN | 40A | Blower Motor |
| 20 | FUSE | BLOWER | 40A | W/o Button Start: Start Relay, Start Solenoid, Ignition SW With Button Start: Start Relay, Start Solenoid, PDM Relay Block |
| 21 | FUSE | IG2 | 40A | W/o Button Start: Start Relay, Start Solenoid, Ignition SW With Button Start: Start Relay, Start Solenoid, PDM Relay Block |
| 22 | FUSE | B+3 | 30A | Instrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5 |
| 23 | FUSE | B+2 | 50A | Instrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay |
| 24 | FUSE | INJECTOR | 15A | G4FC: Injector (#1, #2, #3, #4) |
| 25 | FUSE | BACK UP LAMP | 10A | Back up switch (MT Only), Rear Combination Lamp LH/RH |
| 26 | FUSE | IGN COIL | 15A | G4FC: Condenser, Ignition Coil Extn. |
| 27 | FUSE | SENSOR 1 | 10A | G4FC: Variable Intake System Solenoid, Output Variable Cam (IN, EX), Purge Control Solenoid Valve, Oxygen Sensor (UP, DN), IMMO D4FB: Lambda Sensor, Stop SW, EGR Actuator D4FC: Stop SW |
| 28 | FUSE | ECU 3 | 20A | D4FC/D4FB: ECU G4FC: ECU (M/T), PCU(A/T) |
| 29 | Relay | Glow | — | D4FC/D4FB: Glow Plug |
