Hyundai Ioniq 5 (2022 – 2026) Fuse Box Location & Diagrams
The Hyundai Ioniq 5 (2022 – 2026) Fuse Box Location & Diagrams guide helps you quickly identify fuse box locations, understand fuse assignments, and locate the correct fuse for different electrical systems. Whether troubleshooting an electrical issue or replacing a blown fuse, this reference makes the process easier and more convenient.
Fuse Box Locations

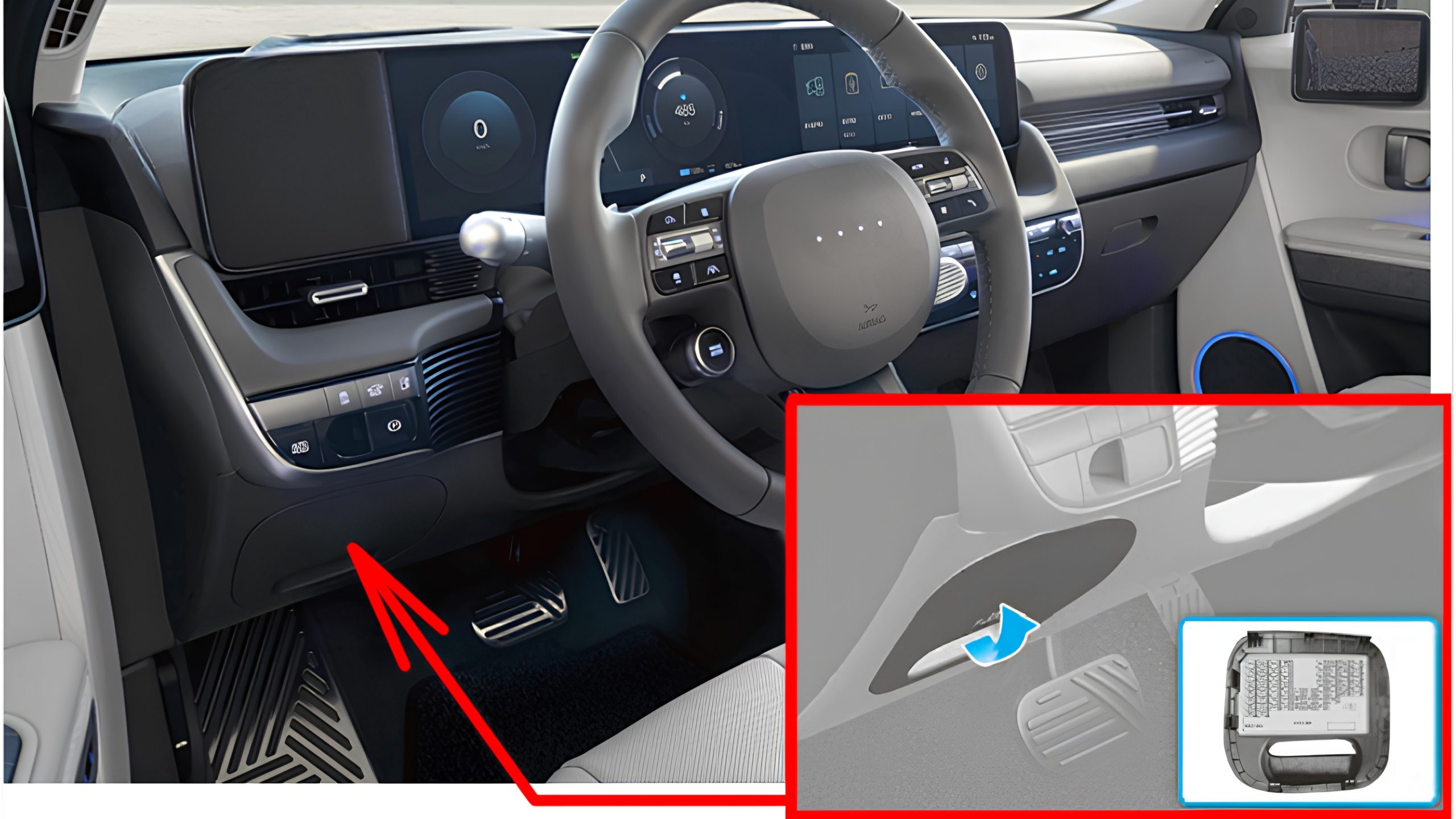

Passenger Compartment Fuse Box
Open the fuse panel cover to access.

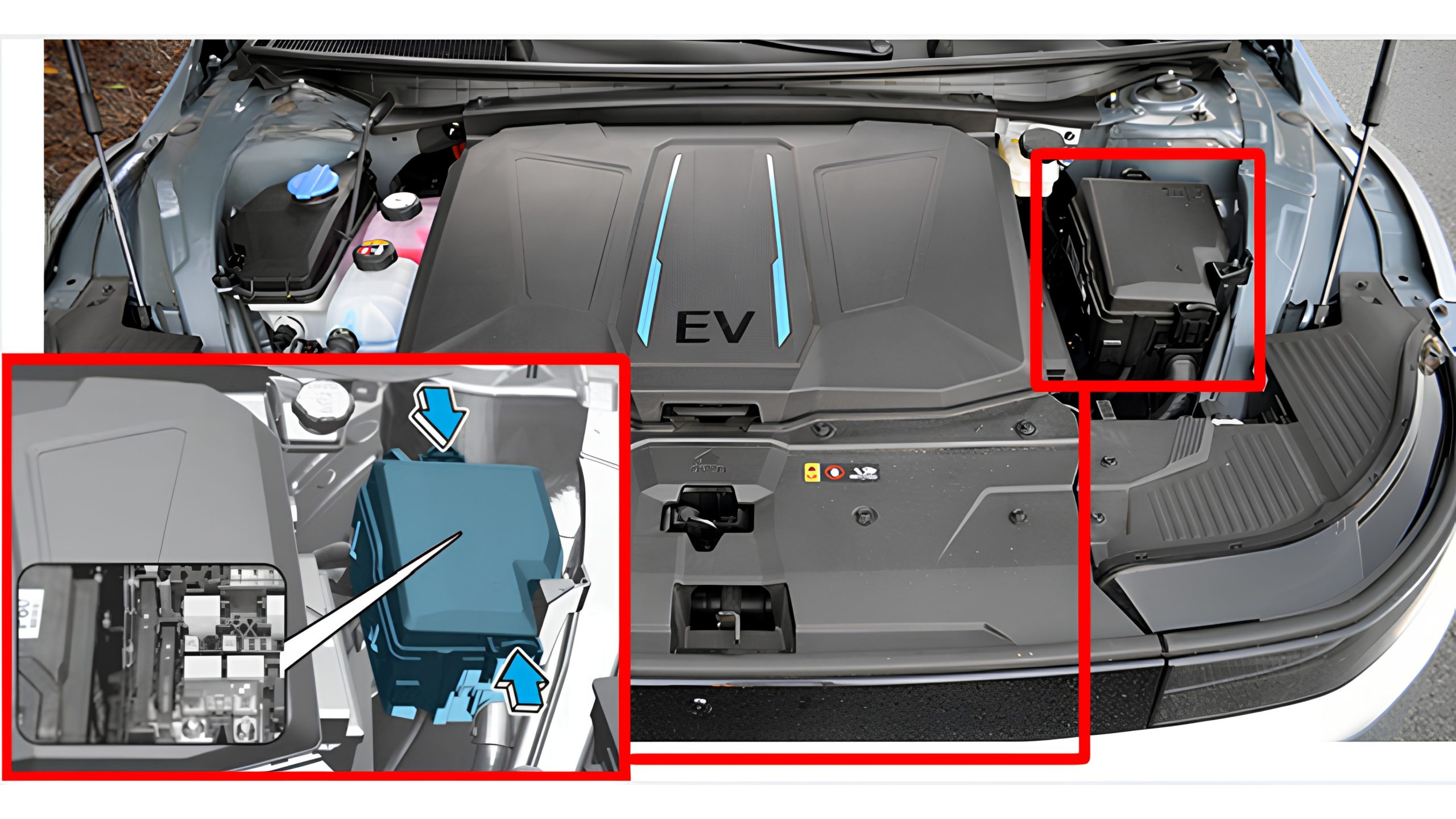

Engine Compartment Fuse Box
Remove the fuse panel cover by pressing the tabs and pulling up.
Fuse Box Diagrams
Passenger Compartment Fuse Box

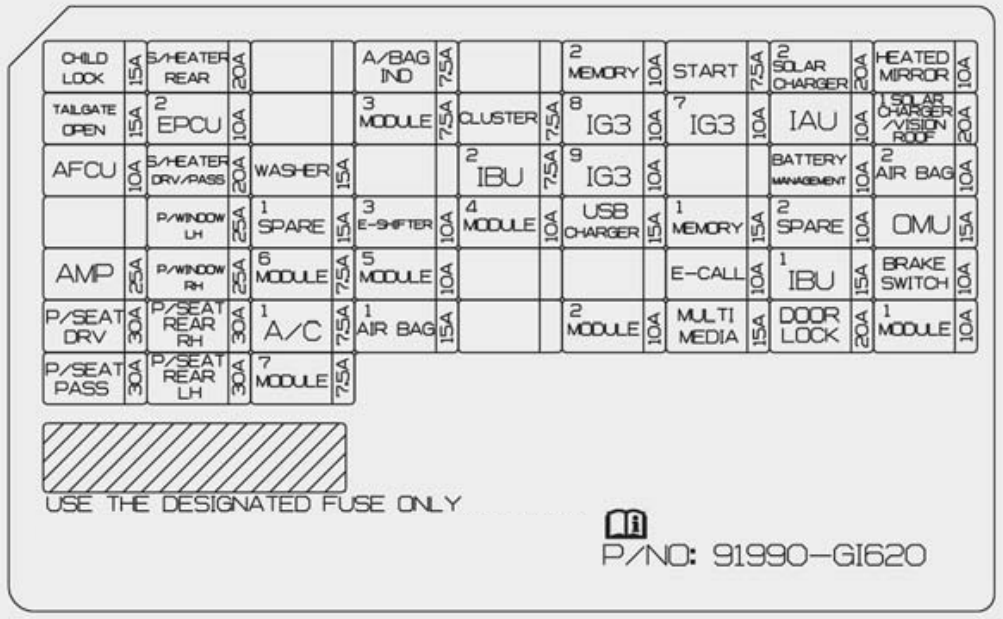

Hyundai Ioniq 5 (2022 – 2024)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| Child Lock | 15A | Child Lock Relay, Child Unlock Relay |
| A/BAG IND | 7.5A | Overhead Console |
| MEMORY2 | 10A | Head-Up Display |
| START | 7.5A | VCU, IBU |
| S/CHARGER2 | 20A | SDC |
| MIRR HTR | 10A | Driver Outside Mirror Unit, Passenger Outside Mirror Unit |
| T/GATE | 15A | Liftgate Release Relay |
| EPCU2 | 10A | Rear Inverter |
| MODULE3 | 7.5A | Multifunction Switch, IBU, Stop Lamp Switch, Driver Door Module |
| CLUSTER | 7.5A | Head-Up Display, Instrument Cluster |
| IG3 8 | 10A | V2L Unit, ICCU, VCMS, Rear Electronic Oil Pump, CDM |
| IG3 7 | 10A | Incar Temperature Sensor, A/V & Navigation Head Unit, A/C PTC Heater, A/C Control Module, Instrument Cluster, High-Voltage Charging Lamp |
| IAU | 10A | IAU, BLEUNIT |
| S/CHARGER/VISION ROOF | 20A | SDC, Vison Roof |
| AFCU | 10A | AFCU, Driver/Passenger Door Outside Handle |
| FRT SEAT HEATER | 20A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
| IBU2 | 7.5 A | IBU |
| IG3 9 | 10A | SCU, Rear Inverter, BMU |
| BMS | 10A | BMU |
| A/BAG2 | 10A | SRS Control Module |
| WIN LH | 25A | Driver Safety Power Window Module, Passenger Safety Power, Rear Power Window Switch LH |
| SPARE1 | 15A | Not Used |
| E-SHIFTER3 | 10A | Electronic ATM Shift Lever |
| MODULE4 | 10A | Front/Rear Corner Radar LH/RH, Front/Rear Inverter, Crash Pad Switch, ADAS Driving ECU, VESS Unit, Front Radar, Front View Camera, ADAS Parking ECU |
| USB CHARGER | 15A | Front USB Charger #1, Front USB Charger #2 |
| MEM0RY1 | 15A | ICU Junction Block (Fuse F6), Instrument Cluster, A/C Control Module, Mood Lamp Unit |
| SPARE2 | 10A | Not Used |
| OMU | 15A | Driver/Passenger Outside Mirror Unit, Driver Door Module |
| AMP | 25A | AMP |
| WIN RH | 25A | Passenger Safety Power Window Module, Driver Safety Power, Rear Power Window Switch RH |
| MODULE6 | 7.5A | IBU, IAU |
| MODULE5 | 10A | Data Link Connector, Electro Chromic Mirror, E-CALL Unit, A/V & Navigation Head Unit, Crash Pad Switch, Head Lamp LH/RH, SDC, AMP, Smart Phone Wireless Charger, Driver/Passenger Power Seat Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control, Module, Rear Power Seat LH/RH Module |
| E-CALL | 10A | Not Used |
| IBU1 | 15A | IBU |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver Power Seat Module (With IMS) |
| P/SEAT RR RH | 30A | Rear Power Seat RH Module |
| A/C1 | 7.5A | A/C Control Module |
| A/BAG1 | 15A | SRS Control Module |
| M0DULE2 | 10A | AMP, P/E Junction Block (Power Outlet Relay (RLY.11)), IBU, ADAS Unit (Parking), A/V & Navigation Keyboard, A/V & Navigation Head Unit |
| MULTIMEDIA | 15A | A/V & Navigation Head Unit |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay |
| MODULE1 | 10A | Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor, P/R Junction Block (Blower Relay (RLY.9)), Driver/Passenger Door Speaker Mood Lamp, Driver/ Passenger Door Arm Rest Mood Lamp, Rear Door Mood Lamp LH/RH, PTG Unit, Rear Power Seat LH/RH Module, Driver/Passenger Power Seat Module |
| P/SEAT PASS | 30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| P/SEAT RR LH | 30A | Rear Power Seat LH Module |

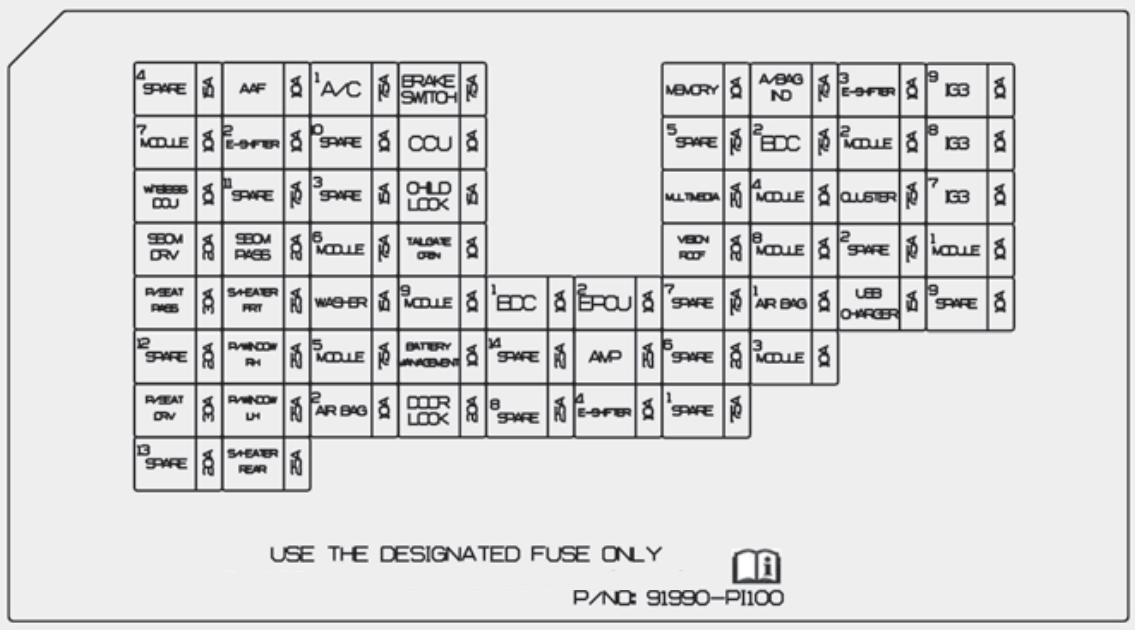

Hyundai Ioniq 5 (2025 & 2026)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| AAF | 10A | AAF UNIT UPR/LH/RH |
| A/C1 | 7.5A | FATC |
| BRAKE SWITCH | 7.5A | BDC, STOP LAMP SWITCH |
| MEMORY | 10A | FATC, HUD UNIT, MOOD LAMP(MASTER UNIT, DOOR), WPC, USB JACK, CLUSTER, ADAS PRK ECU, BDC, ADP UNIT, REAR CORNER RADAR |
| AIRBAG IND | 7.5A | OVERHEAD CONSOLE PAB LAMP |
| E-SHIFTER3 | 10A | SCU, SBW LEVER COMPLETE |
| IG3 9 | 10A | BMS, REAR INVERTER |
| MODULE 7 | 10A | P/WDW MAIN SW, AFCU PASS, AFCU DRV, ICC UNIT |
| 2 E-SHIFTER | 10A | SBW LEVER COMPLETE |
| CCU | 10A | CCU |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | CCU, STOP LAMP SWITCH |
| IG3 8 | 10A | ICCU, V2L, SEAT SW SCU, VCMS, REAR EOP, CCU |
| WIRELESS DCU | 10A | DCU |
| CHILD LOCK | 15A | REAR DOOR LATCH LH/RH |
| MULTIMEDIA | 25A | CCNC |
| MODULE 4 | 10A | ICCJJNIT, CCNC, ECM(DCM), WPC, ADP, PSM, AMP |
| CLUSTER | 7.5A | CLUSTER, HUD UNIT |
| IG3 7 | 10A | INCAR SNSR, CCNC, FATC, PTC HTR |
| SBCM DRV | 20A | SBCM DRIV UNIT |
| SBCM PASS | 20A | SBCM PASS UNIT |
| MODULE 6 | 7.5A | – |
| TAILGATE OPEN | 10A | TAILGATE LATCH |
| VISION ROOF | 20A | VISION ROOF ECU |
| MODULE 8 | 7.5A | MULTI FUNCTION SW, P/WDW MAIN SW |
| MODULE 1 | 10A | CCU, ADAR PRK ECU, BDC, CCNC, KEYBOARD, DCU, PE ROOM J/B P/OUTLET RLY COIL, AMP, ADP |
| P/SEAT PASS | 30A | P/SEAT PASS |
| S/HEATER FRT | 25A | FR PASS SEAT HEATER ECU |
| WASHER | 15A | MULTI FUNCTION SW |
| MODULE 9 | 10A | RAIN SNSR, HAZARD SW, MULTI FUNCTION SW, CHARGE DR, PSM, PTG UNIT |
| BDC 1 | 10A | UWB BLE MASTER/SLAVE, BDC, UWB REAR LH/RH, UWB FR LH/RH |
| EPCU2 | 10A | RRINVERTER |
| AIRBAG 1 | 10A | AIRBAG CONTROL UNIT, ODS |
| USB CHARGER | 15A | USB CHARGER |
| P/WINDOW RH | 25A | FR PASS SAFETY ECU, FR PASS P/WDW SW, RR RH P/WDW SW |
| MODULE 5 | 7.5A | BDC |
| BATTERY MANAGEMENT | 10A | BMS |
| AMP | 25A | AMP |
| MODULE 3 | 10A | C/PAD SW, ADAS DRV ECU, FR CAMERA(W/S GLASS) ADAS PRK ECU, RR INVERTER, RR C/RADAR, SCC RADAR FR INVERTER, FR C/RADAR |
| P/SEAT DRV | 30A | P/SEAT DRV |
| P/WINDOW LH | 25A | FR DRIV SAFETY ECU, FR DRIV P/WDW SW, RR LH P/WDW SW |
| AIRBAG 2 | 10A | AIRBAG CONTROL UNIT |
| DOOR LOCK | 20A | FR DOOR ACTR DRIV/PASS RR DOOR ACTR LH/RH |
| E-SHIFTER 4 | 10A | SCU |
| S/HEATER RR | 25A | REAR SEAT RH HEATER ECU |
Engine Compartment Fuse Box

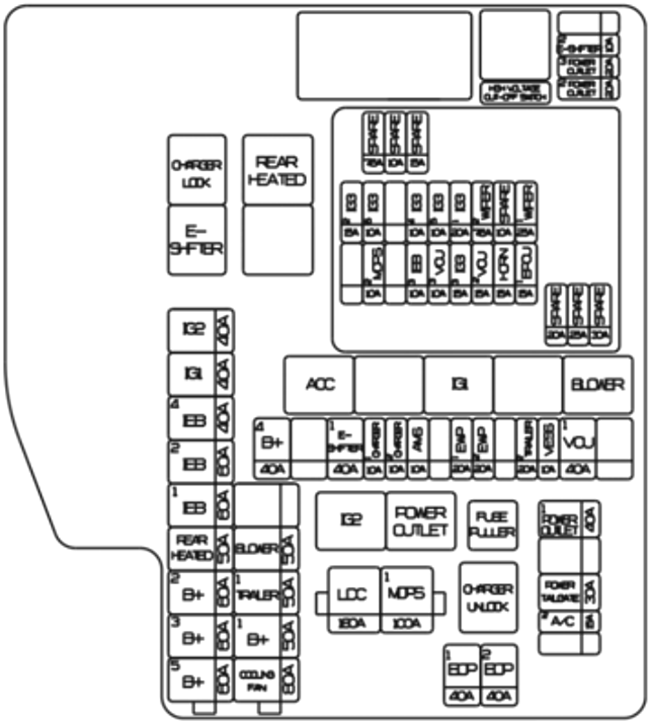

Hyundai Ioniq 5 (2022 – 2024)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| LDC | 180A | P/R Junction Block (Fuse : F15, F17, F20, F21) |
| MDPS1 | 100A | MDPS Unit |
| B+5 | 60A | PCB Block (IG3 Main Relay, Fuse : F1, F2, F3, F4, F6) |
| B+3 | 60A | ICU Junction Block (Fuse : F1, F2, F10, F11, F19, F20, F29, F37, F38, F46, F47, F55, F56) |
| B+2 | 60A | ICU Junction Block (IPS1, IPS4, IPS6, IPS8, IPS9, IPS10) |
| RR HTD | 50A | P/R Junction Block (RLY.3) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| IEB4 | 40A | Multipurpose Check Connector |
| IG1 | 40A | P/R Junction Block (RLY.5, RLY.7) |
| IG2 | 40A | P/R Junction Block (RLY.10) |
| C/FAN | 80A | Cooling Fan Motor |
| B+1 | 50A | ICU Junction Block (IPS2, IPS3, IPS4, IPS5) |
| TRAILER1 | 50A | Trailer Connector Unit |
| BLOWER | 50A | P/R Junction Block (RLY.9) |
| B+4 | 40A | ICU Junction Block (Long Term Load Latch Relay, Fuse : F8, F17, F18, F26, F27, F35, F36, F45, F44, F53, F54) |
| E-SHIFTER1 | 40A | P/R Junction Block (RLY.2, Fuse : F22) |
| CHARGER1 | 10A | P/R Junction Block (RLY.1, RLY.12), ICCU, VCMS |
| CHARGER2 | 10A | CDM |
| AMS | 10A | 12V Battery Sensor |
| EWP1 | 20A | Electronic Water Pump #1 |
| EWP2 | 20A | Electronic Water Pump #2 |
| TRAILER2 | 20A | Trailer Connector Unit |
| VESS | 10A | VESS Unit |
| VCU1 | 40A | VCU |
| P/OUTLET1 | 40A | P/R Junction Block (RLY.11) |
| T/GATE | 30A | PTG Unit |
| A/C2 | 15A | A/C Control Module |
| E0P1 | 40A | Rear Electronic Oil Pump |
| E0P2 | 40A | Front Electronic Oil Pump (AWD) |
| E-SHIFTER2 | 10A | P/R Junction Block (RLY.2), SOU, Electronic ATM Shift Lever |
| P/OUTLET3 | 20A | Rear Power Outlet |
| P/OUTLET2 | 20A | Front Power Outlet |
| WIPER1 | 25A | PCB Block (Wiper Main Relay) |
| EPCU1 | 15A | Front Inverter (AWD) |
| HORN | 15A | PCB Block (Horn Relay), PCB Block (Burglar Alarm Horn Relay) |
| WIPER2 | 7.5A | IBU |
| VCU2 | 15A | VCU |
| IG3 1 | 20A | ICU Junction Block (Fuse : F14, F16, F24) |
| IG3 3 | 15A | Electronic Water Pump |
| IG3 5 | 10A | BMS Coolant 3Way Valve |
| VCU3 | 10A | VCU |
| IG3 4 | 10A | A/C Coolant Valve, Electronic Water Pump #1, #2, Electronic A/C Compressor |
| IEB3 | 10A | Multipurpose Check Connector, IEB Unit |
| IG3 6 | 10A | Cooling Fan Motor, Front Electronic Oil Pump (AWD) |
| MDPS2 | 10A | MDPS Unit |
| IG3 2 | 15A | Front Inverter (AWD), VCU |

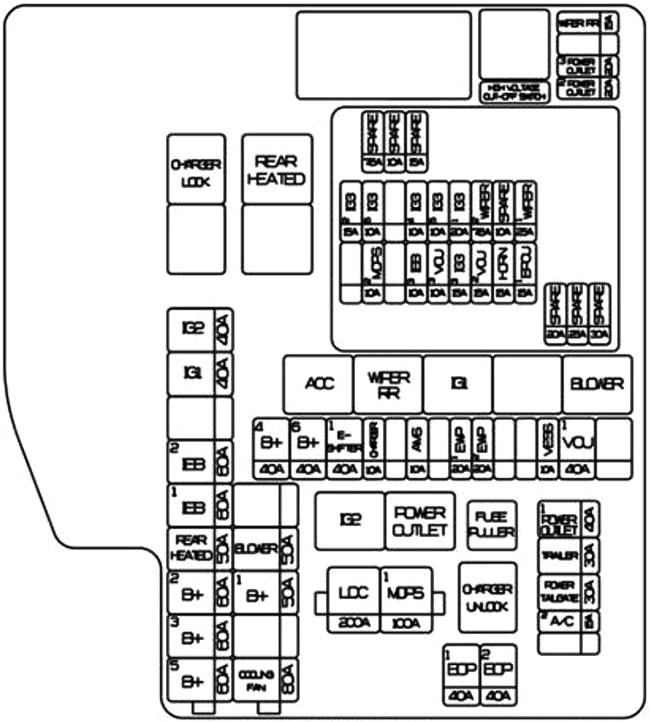

Hyundai Ioniq 5 (2025 & 2026)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| LDC | 200A | P/R Junction Block (Fuse: F15, F17, F20, F21) |
| MDPS1 | 100A | MDPS Unit |
| IG2 | 40A | IG2 RELAY |
| IG1 | 40A | ACC RELAY, IG1 RELAY |
| IEB2 | 60A | IEB Unit |
| IEB1 | 60A | IEB Unit |
| RR HTD | 50A | RR HTD RELAY |
| B+2 | 60A | PDC (FS21, FS05, FS13, FS20, FS37, FS04, FS12, FS55, FS47, FS54, FS28) |
| B+3 | 60A | PDC (FS01, FS58, FS51, FS33, FS59, FS43, FS34, FS02, FS52, FS44, FS25, FS26, FS18, FS10, FS17, FS09) |
| B+5 | 60A | PCB BLOCK |
| BLOWER | 50A | BLOWER RELAY |
| B+1 | 50A | PDC (FS48, FS38, FS36, FS46, FS56, FS53, FS29, FS49) |
| COOLING FAN | 80A | COOLING FAN UNIT |
| RR WIPER | 15A | RR WIPER RELAY |
| POWER OUTLET3 | 20A | RR POWER OUTLET |
| POWER OUTLET2 | 20A | FR POWER OUTLET |
| B+4 | 40A | PDC (IPS9, IPS12, IPS11, IPS8, IPS10) |
| B+6 | 40A | PDC (IPS3, IPS7, IPS2, IPS6, IPS5, IPS1, IPS4) |
| E-SHIFTER1 | 40A | E-SHIFTER1 RELAY |
| CHARGER | 10A | CHARGER LOCK/UNLOCK RELAY, ICCU, VCMS |
| AMS | 10A | BATT SENSOR |
| EWP1 | 20A | EWP BATT 1 |
| EWP2 | 20A | EWP BATT 2 |
| IG310 | 20A | IG3 RELAY |
| VESS | 10A | VESS UNIT |
| VCU1 | 40A | VCU |
| POWER OUTLET1 | 40A | P/OUTLET RELAY |
| TRAILER | 30A | TRAILER |
| POWER TAILGATE | 30A | POWER TAILGATE MODULE |
| A/C2 | 15A | A/C CONTROL MODULE |
| EOP1 | 40A | RR EOP |
| EOP2 | 40A | FRT EOP |
| IG3 2 | 15A | VCU |
| IG3 6 | 10A | COOLING FAN, FRT EOP |
| IG3 4 | 10A | COOL VALVE, FRT INVERTER, EWP1, EWP2, E_COMP |
| IG3 5 | 10A | 3WAY VALVE |
| IG3 1 | 20A | PDC (FS24, FS16, FS08) |
| WIPER2 | 7.5A | FRT WIPER MOTOR |
| WIPER1 | 25A | FRT WIPER MOTOR |
| MDPS2 | 10A | MDPS |
| IEB 3 | 10A | IEB UNIT |
| VCU3 | 10A | VCU |
| IG3 3 | 15A | RR PE EWP |
| VCU 2 | 15A | VCU |
| HORN | 15A | HORN RELAY |
| EPCU1 | 15A | FRT INVERTER |
