Hyundai Ioniq 6 (2023 – 2025) Fuse Box Location & Diagrams
The Hyundai Ioniq 6 (2023 – 2025) Fuse Box Location & Diagrams guide provides clear fuse box locations, detailed fuse layouts, and fuse assignment information. It helps you quickly identify the correct fuse for electrical components, making troubleshooting, maintenance, and fuse replacement simpler and more efficient.
Fuse Box Location

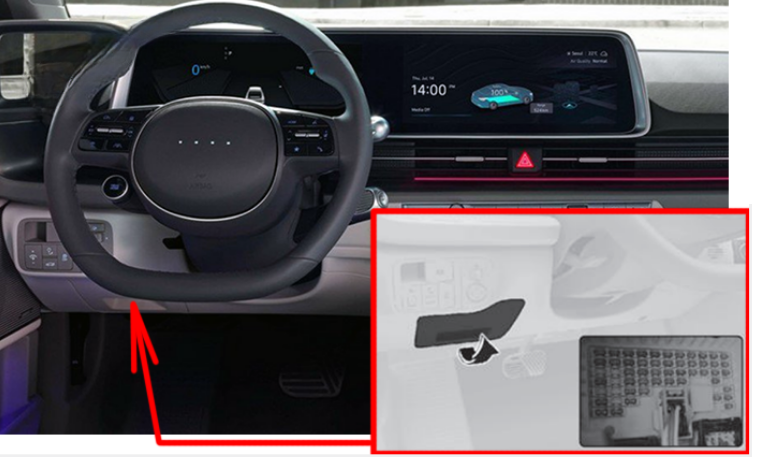

Passenger Compartment Fuse Box

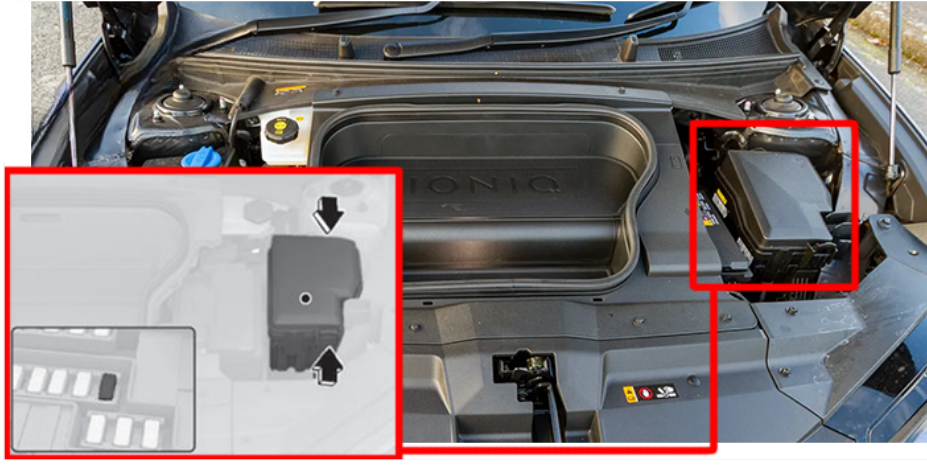

Engine Compartment Fuse Box
Fuse Box Diagram

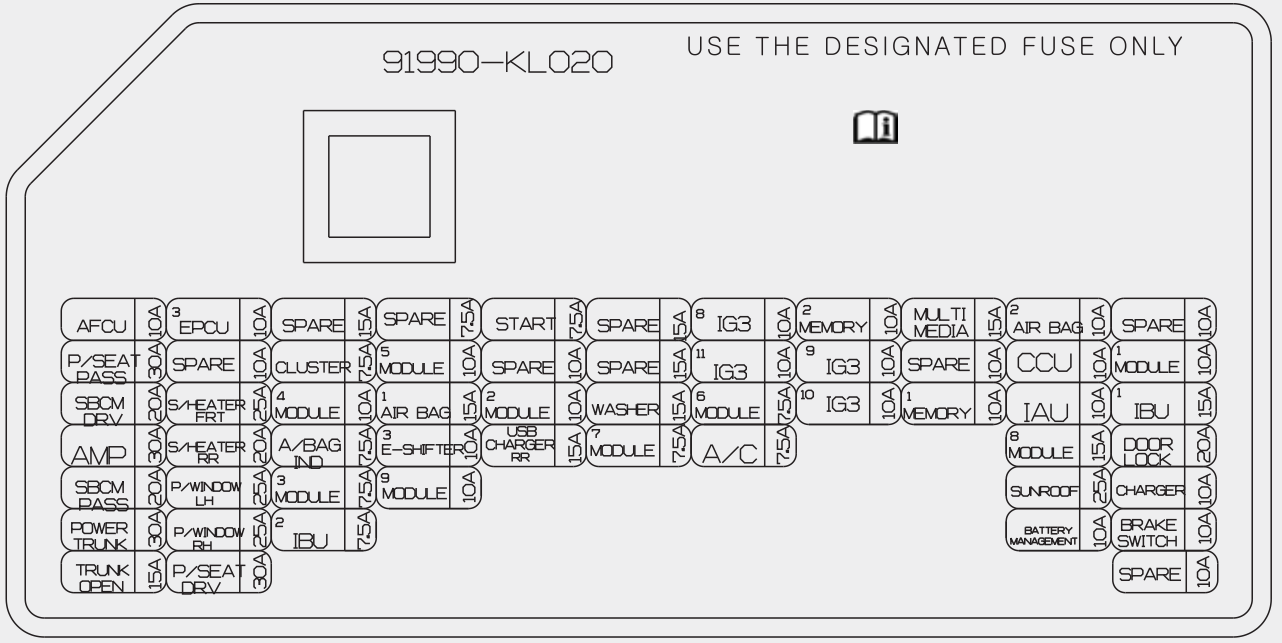

Passenger Compartment Fuse Box
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| AFCU | 10A | Driver/Passenger Door Outside Handle |
| EPCU3 | 10A | Rear Inverter |
| START | 7.5A | IBU.VCU |
| IG3 8 | 10A | In-car Temperature Sensor, A/C Control Module, A/C PTC Heater, Instrument Cluster, CCU, AVNT Head Unit |
| MEMORY 2 | 10A | Instrument Cluster, ADAS Unit (Parking) |
| MULTIMEDIA | 15A | AVNT Head Unit |
| AIRBAG2 | 10A | SRS Control Module |
| P/SEAT PASS | 30A | Passenger Power Seat Switch, Passenger Seat Unit |
| ADAS DRV | 10A | Not Used |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| MODULE5 | 10A | Data Link Connector, Electro Chromic Mirror, AVNT Head Unit, IFS Unit, Wireless Charger Unit, Head Light LH/RH, AMP, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Passenger Seat Unit, Rear Seat Warmer Control Module, ADP Unit (Acoustic Design Processor) |
| IG3 11 | 10A | Electronic A/C Compressor |
| IG3 9 | 10A | Rear Inverter, BMU |
| wireless DCU1 | 10A | Not Used |
| CCU | 10A | CCU |
| MODULE1 | 10A | Data Link Connector, Hazard Switch, Multifunction Switch, Rain Sensor, Driver Power Window Switch, Dashboard Mood Light, A/C Control Module, Outside Mirror Switch, UIP Sensor, UIP Siren, Power Trunk Unit, Driver/Passenger Door Mood Light #1/#2, Rear Door Mood Light LH/RH #1/#2 |
| SBCM DRV | 20A | Driver Side Body Control Module |
| S/HEATER FRT | 25A | Front Air Ventilation Seat Control Module,Front Seat Warmer Control Module |
| MODULE4 | 10A | Front/Rear Corner Radar LH/RH, Rear Inverter (System), Front View Camera, IBU, ADAS Unit (Parking/Driving), Dashboard Switch, VESS Unit, Front Radar |
| AIRBAG1 | 15A | SRS Control Module |
| MODULE2 | 10A | ADP Unit (Acoustic Design Processor), AMP, IBU, CCU, DCU, P/R Junction Block (RLY. 5), AVNT Head Unit, AVNT Keyboard, ADAS Unit (Parking), IAU (Identity Authentication Unit) |
| WASHER | 15A | Multifunction Switch |
| MODULE6 | 7.5A | IBU |
| IG3 10 | 10A | SCU, Rear Electronic Oil Pump, VCMS, V2L Unit, ICCU |
| MEMORY1 | 10A | DCU, A/C Control Module, Head-Up Display, ADP Unit (Acoustic Design Processor), Mood Lamp Unit |
| IAU | 10A | IAU (Identity Authentication Unit) |
| IBU1 | 15A | IBU |
| AMP | 30A | AMP |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | Overhead Console Assembly |
| E-SHIFTER3 | 10A | Electronic Shift Switch |
| RR USB CHARGER | 25A | Console/Rear USB Charger Connector |
| MODULE7 | 7.5A | Rear Seat Warmer Control Module |
| A/CON | 7.5A | A/C Control Module |
| MODULE8 | 15A | Driver IMS Module, Passenger Seat Unit |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, Dead Lock Relay |
| SBCM PASS | 20A | Passenger Side Body Control Module |
| P/WINDOW LH | 25A | Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module |
| MODULE3 | 7.5A | Stop Light Switch, Driver Power Window Switch, IAU (Identity Authentication Unit) |
| CCU2 | 10A | CCU, DCU |
| SUNROOF | 25A | Sunroof Glass Motor, Sunroof Blind Motor |
| CHARGER | 10A | VCMS, ICCU, Charger Connector Lock/Unlock Relay |
| MODULE9 | 10A | CCU |
| TRUNK OPEN | 15A | Not Used |
| PTL | 30A | Power trunk Unit |
| P/WINDOW RH | 25A | Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module |
| IBU2 | 7.5A | IBU |
| BMS | 10A | BMU |
| BRAKE SWITCH | 10A | Stop Light Switch, IBU |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver IMS Module |

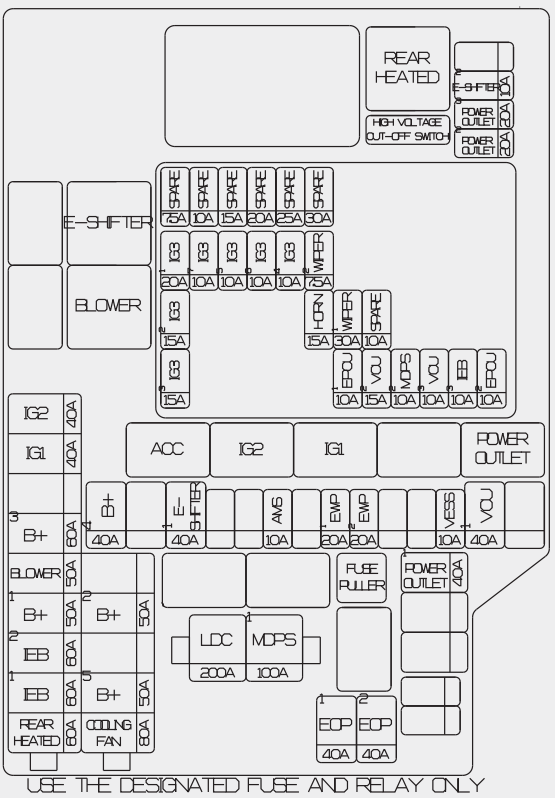

Engine Compartment Fuse Box
| Fuse Name | Amp | Circuit Protected | |
|---|---|---|
| LDC1 | 200A | ICCU (LDC), P/R Junction Block (Fuse : POWER OUTLET1, EOP1, EOP2, LDC2) |
| MDPS1 | 100A | MDPS Unit |
| COOLING FAN | 80A | Cooling Fan Motor |
| B+5 | 50A | PCB Block (Main Relay, Fuse : VCU2, EPCU1, WIPER1, B/A HORN, HORN) |
| B+2 | 50A | ICU Junction Block (Fuse : IPS5, IPS7, IPS8, IPS9) |
| RR HTD | 60A | P/R Junction Block (RLY. 10) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 50A | IEB Unit |
| B+1 | 50A | ICU Junction Block (Fuse : IPS1, IPS2, IPS3, IPS4, IPS6) |
| BLOWER | 50A | P/R Junction Block (RLY. 9) |
| B+3 | 60A | ICU Junction Block (Fuse: F1, F2, F12, F13, F23, F24, F34, F35, F43, F44, F49, F50, F55) |
| IG1 | 40A | P/R Junction Block (RLY. 1, RLY. 3) |
| IG2 | 40A | P/R Junction Block (RLY. 2) |
| B+4 | 40A | ICU Junction Block (Long Term Load Latch Relay, Fuse: F10, F11, F21, F22, F33, F41, F42, F47, F48, F52, F53) |
| E-SHIFTER1 | 40A | P/R Junction Block (RLY. 8, Fuse : F13) |
| AMS | 10A | 12 V Battery |
| EWP1 | 20A | Electronic Water Pump #1 (HV Battery) |
| EWP2 | 20A | Electronic Water Pump #2 (HV Battery) |
| VESS | 10A | VESS Unit |
| VCU1 | 40A | VCU |
| POWER OUTLET1 | 40A | P/R Junction Block (RLY. 5) |
| EOP1 | 40A | Rear Electronic Oil Pump |
| EOP2 | 40A | Front Electronic Oil Pump |
| E-SHIFTER2 | 10A | SCU, Electronic Shift Switch, P/R Junction Block (RLY. 8) |
| POWER OUTLET3 | 20A | Rear Power Outlet |
| POWER OUTLET2 | 20A | Front Power Outlet |
| IG31 | 20A | ICU Junction Block (Fuse: F7, F18, F19, F30) |
| IG3 2 | 15A | Front Inverter (AWD) |
| IG3 3 | 15A | Electronic Water Pump |
| IG3 4 | 10A | VCU |
| IG3 5 | 10A | A/C Coolant Valve, Electronic Water Pump Batt #1, #2 |
| IG3 6 | 10A | BMS Coolant 3Way Valve |
| IG3 7 | 10A | Cooling Fan Motor, Front Electronic Oil Pump (AWD) |
| EPCU1 | 10A | Front Inverter (AWD) |
| EPCU2 | 10A | Front Inverter (AWD) |
| VCU2 | 10A | VCU |
| VCU3 | 10A | VCU |
| WIPER1 | 30A | PCB Block (Wiper Main Relay) |
| WIPER2 | 7.5A | IBU |
| HORN | 10A | PCB Block (Horn Relay) |
| IEB3 | 10A | IEB Unit |
| MDPS2 | 10A | MDPS Unit |
