Isuzu Oasis (1996 – 1999) Fuse Box Location & Diagrams
The Isuzu Oasis (1996–1999) fuse box contains essential fuses that protect the vehicle’s electrical systems. This blog covers the fuse box location, fuse assignments, and diagrams, helping you identify the correct fuse for lighting, accessories, engine controls, and other electrical components when troubleshooting electrical issues.
Fuse Box Location
Passenger Compartment Fuse Box

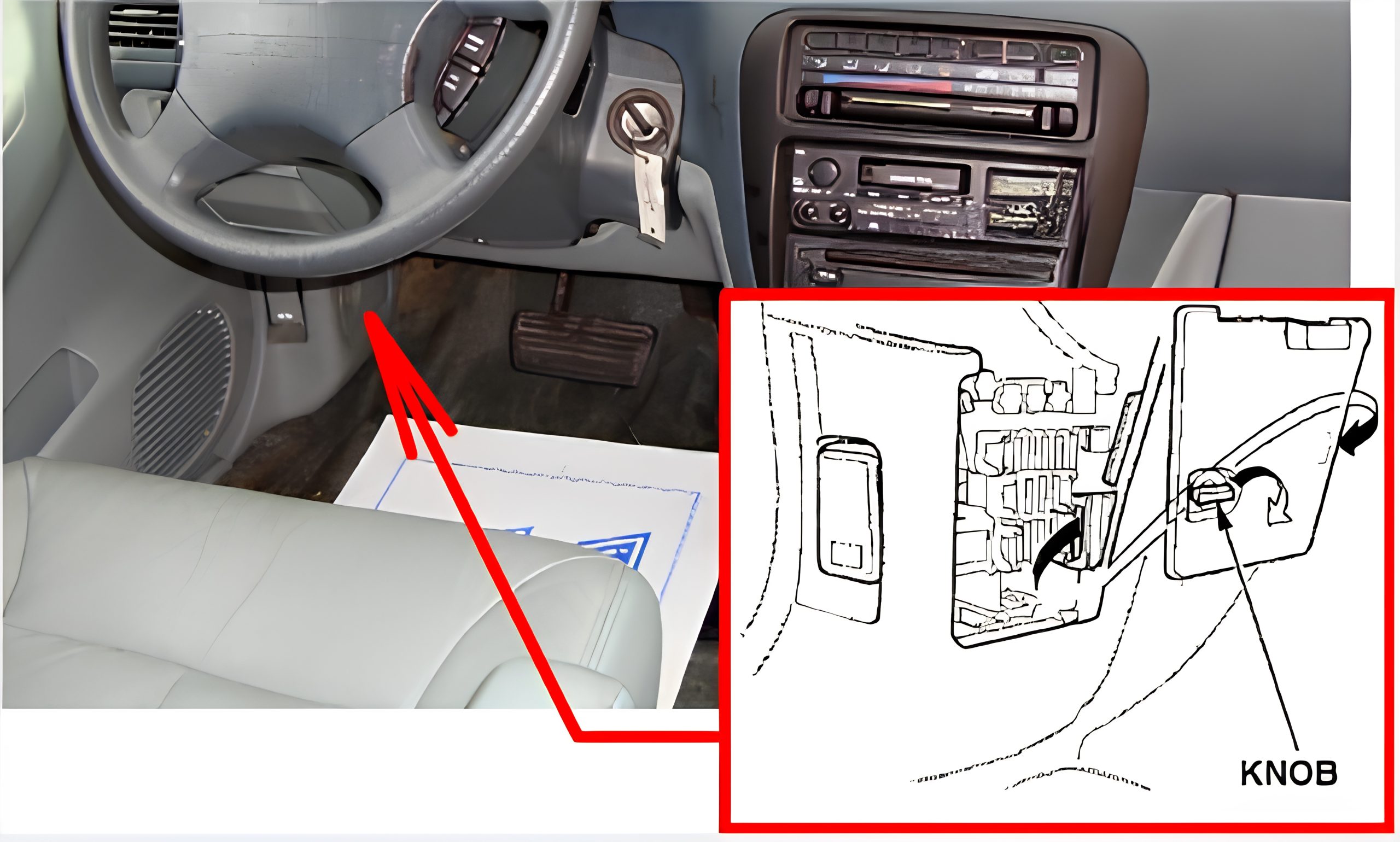

The fuse box is located on the driver’s side underneath the instrument panel. Turn the knob to open the cover.
Engine Compartment Fuse Box

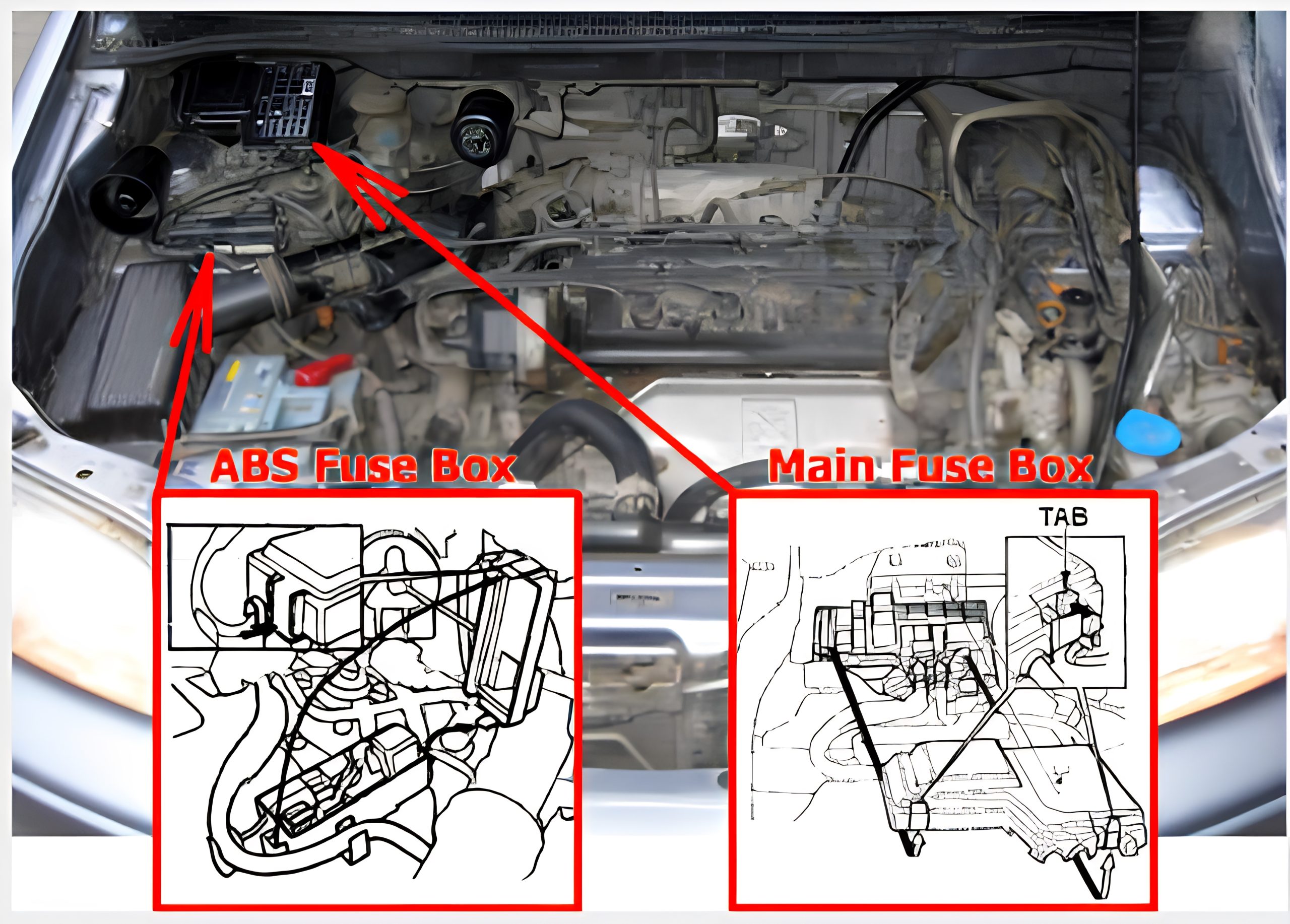

The main fuse box is located in the engine compartment on the passenger’s side. To open, push the tab as shown. Cars equipped with ABS have an additional fuse box in the engine compartment on the right side.
Fuse Box Diagrams

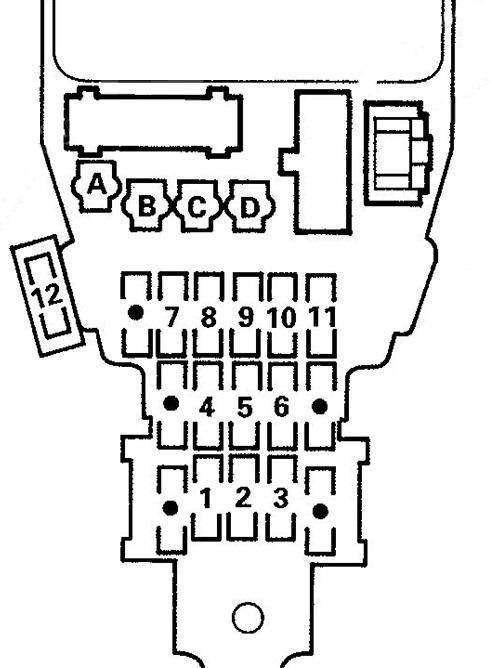

Passenger Compartment Fuse Box
| № | Amp | Description |
|---|---|---|
| 1 | 10 | Gauge assembly, turn signal/hazard relay, clock, NT reverse relay, shift lock solenoid. Integrated control unit |
| 2 | 15 | PGM-FI main relay SRS unit (VA) |
| 3 | 10 | SRS unit (VB) |
| 4 | 15 | Alternator, ELD unit, cruise control system, PCM |
| 5 | 15 | Distributor |
| 6 | 10 | Windshield wiper/washer motors, windshield wiper motor relay, intermittent wiper relay, windshield wiper high/low relays Integrated control unit |
| 7 | 7.5 | Power mirror actuator, ABS control unit Optional connector (C909) |
| 8 | 7.5 | Heater control panel, recirculation control motor, mode control motor, A/C compressor clutch relay, A/C thermostat, rear A/C unit switch, rear A/C unit blower motor |
| 9 | 7.5 | PGM-FI main relay, PCM |
| 10 | 7.5 | Daytime running lights control unit (Canada) . |
| 11 | 7.5 | Cigarette lighter relay Optional connector (C908) |
| 12 | 10 | Sunroof relays (USA), rear window wiper/washer motors, power window relay |
| • | Spare fuses |
Engine Compartment Fuse Box

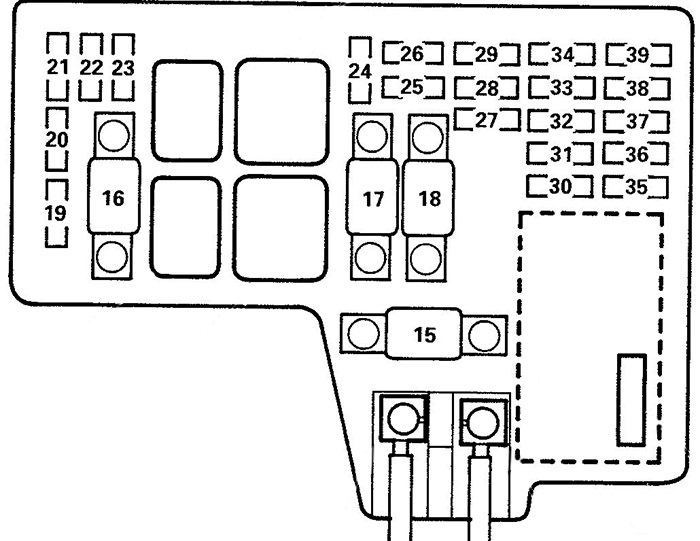

Main Fuse Box
| № | Amp | Description |
|---|---|---|
| 15 | 100 | Battery, power distribution |
| 16 | 50 | Ignition switch (BAT) |
| 17 | 40 | Blower motor |
| 18 | 40 | Windshield wiper motor |
| 19 | 15 | Left headlight, high beam indicator light |
| 20 | 15 | Right headlight |
| 21 | 20 | Radiator-fan motor |
| 22 | 30 | Rear window defogger |
| 23 | — | Not Used |
| 24 | 20 | Right rear power window motor |
| 25 | 20 | Left rear power window motor |
| 26 | 20 | Front passenger’s power window motor |
| 27 | 10 | Daytime running lights control unit (Canada) |
| 28 | 20 | Driver’s power window motor, power window control unit |
| 29 | 30 | Sunroof motor (USA) |
| 30 | 15 | Horns, key interlock solenoid, brake lights |
| 31 | 20 | Driver’s power seat up-down motor (USA) |
| 32 | 15 | Dash lights, parking lights, taillights, license plate lights |
| 33 | 15 | PGM-FI main relay |
| 34 | 20 | A/C compressor clutch, condenser fan, radiator fan control module |
| 35 | 10 | Turn signal/hazard relay |
| 36 | 15 | Cigarette lighter, data link connector |
| 37 | 7.5 | Integrated control unit, cargo area lights, ceiling lights, courtesy lights, spotlights |
| 38 | 20 | Keyless/power door lock control unit |
| 39 | 7.5 | PCM, clock, audio unit |

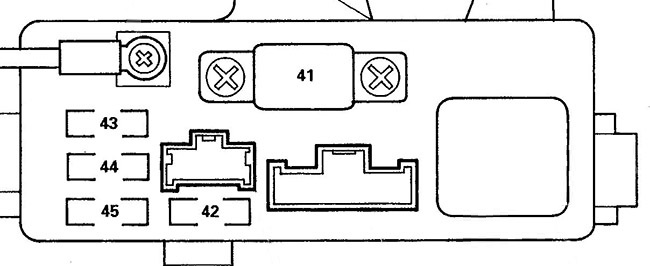

ABS Fuse Box
| № | Amp | Description |
|---|---|---|
| 41 | 30 | ABS pump motor |
| 42 | 7.5 | ABS control unit |
| 43 | 20 | ABS pump motor relay, ABS modulator unit |
| 44 | — | Not Used |
| 45 | — | Not Used |
