Isuzu Rodeo (1991 – 1997) Fuse Box Location & Diagrams
The Isuzu Rodeo (1991–1997) fuse box protects essential electrical circuits throughout the vehicle. Knowing its location and fuse layout makes it easier to identify the correct fuse for lights, accessories, ignition, and other systems. This blog provides clear fuse box locations and diagrams for these model years.
Fuse Box Location

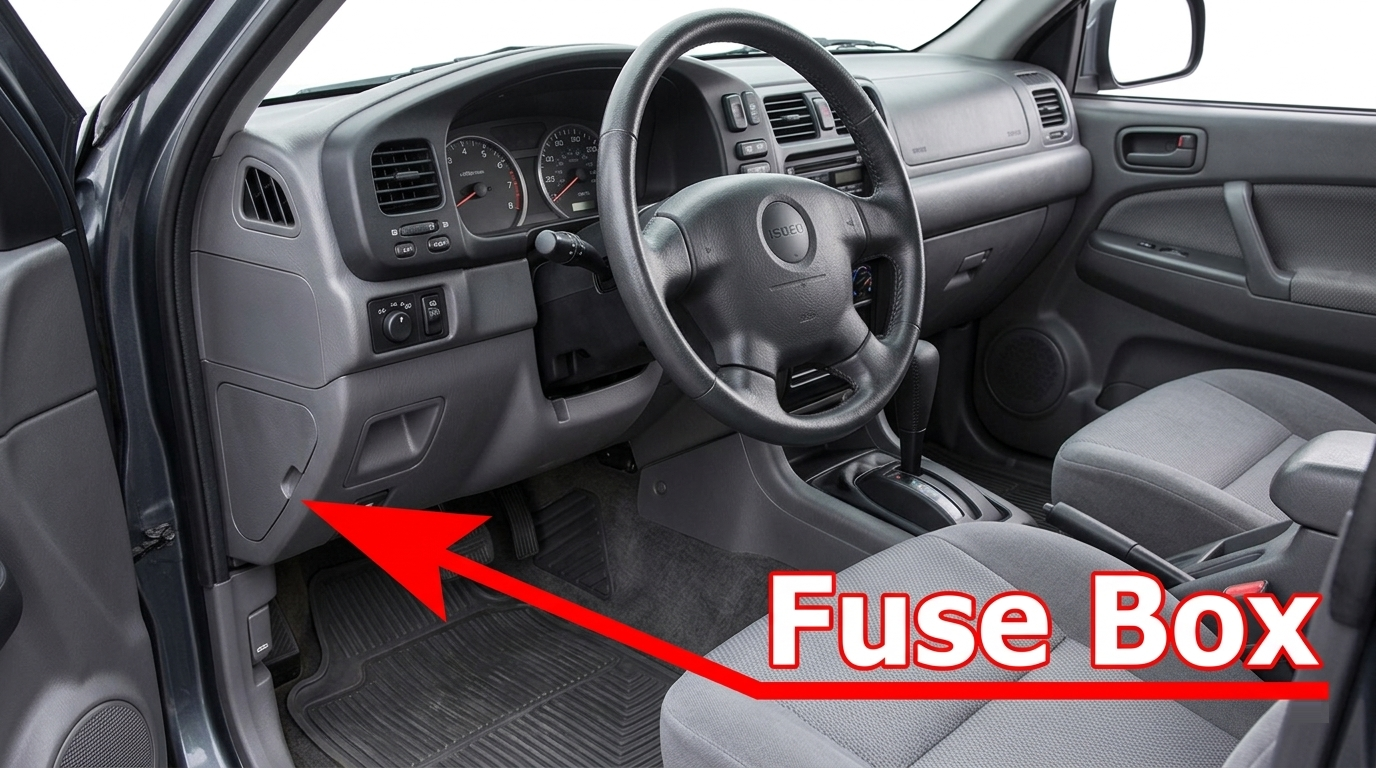

Passenger Compartment Fuse Box
Located on the left side of the lower dashboard panel.

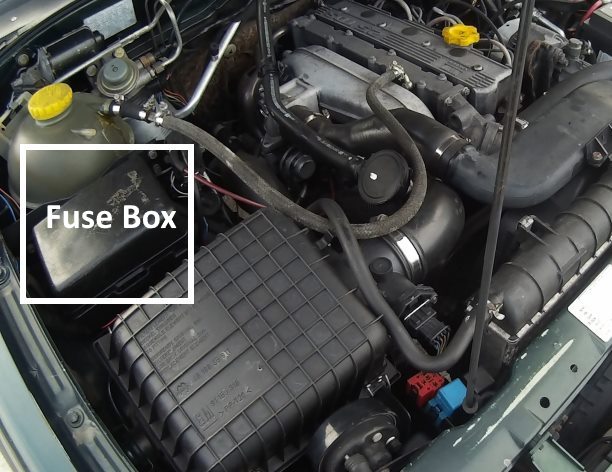

Engine Compartment Fuse Box
Located in the engine bay on the right fender wall (passenger side).
Fuse Box Diagrams
Passenger Compartment Fuse Box

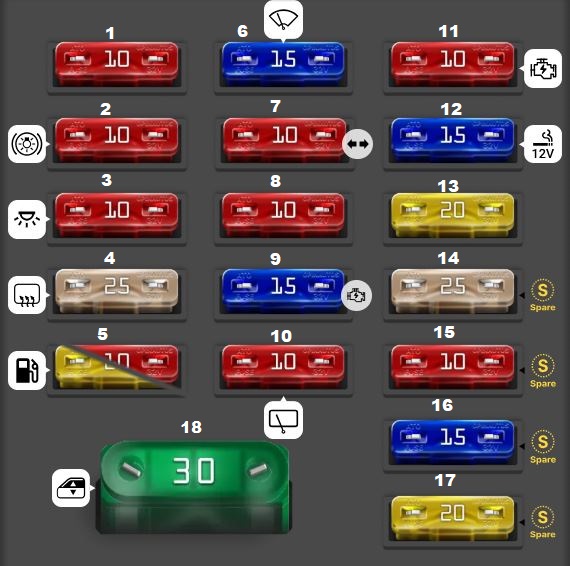

Isuzu Rodeo Pickup TF (1991 – 1995)
| Type | No. | Description |
| Fuse ATO 10A | 1 | (TAIL L ILLUMI. L) Left tail light / Left illumination |
| Fuse ATO 10A | 2 | (STOP. L) Brake light |
| Fuse ATO 10A | 3 | (ROOM. L) Cabin light / Interior |
| Fuse ATO 25A | 4 | (RR DEF) Rear defogger |
| Fuse ATO 20A | 5 | (FUEL PUMP) Fuel pump |
| Fuse ATO 10A | 5 | (TCM) Transmission control module |
| Fuse ATO 15A | 6 | (WIPER) Windshield wiper |
| Fuse ATO 10A | 7 | (GAUGE TURN L) Gauge / Turn signal |
| Fuse ATO 10A | 8 | (ENGINE BACK. L) Rear engine / Reverse |
| Fuse ATO 15A | 9 | (IGNITION) Ignition |
| Fuse ATO 10A | 10 | (RR WIPER) Rear wiper |
| Fuse ATO 10A | 11 | (START) Start |
| Fuse ATO 15A | 12 | (CIGAR RADIO) Cigarette lighter / Radio |
| Fuse ATO 20A | 13 | (RWAL) Rear wheel anti-lock / (Possibly) Wheel reverse light |
| Fuse ATO 25A | 14 | (SPARE) Spare |
| Fuse ATO 10A | 15 | (SPARE) Spare |
| Fuse ATO 15A | 16 | (SPARE) Spare |
| Fuse ATO 20A | 17 | (SPARE) Spare |
| Fuse MAXI 30A | 18 | (POWER WINDOW) Power window |

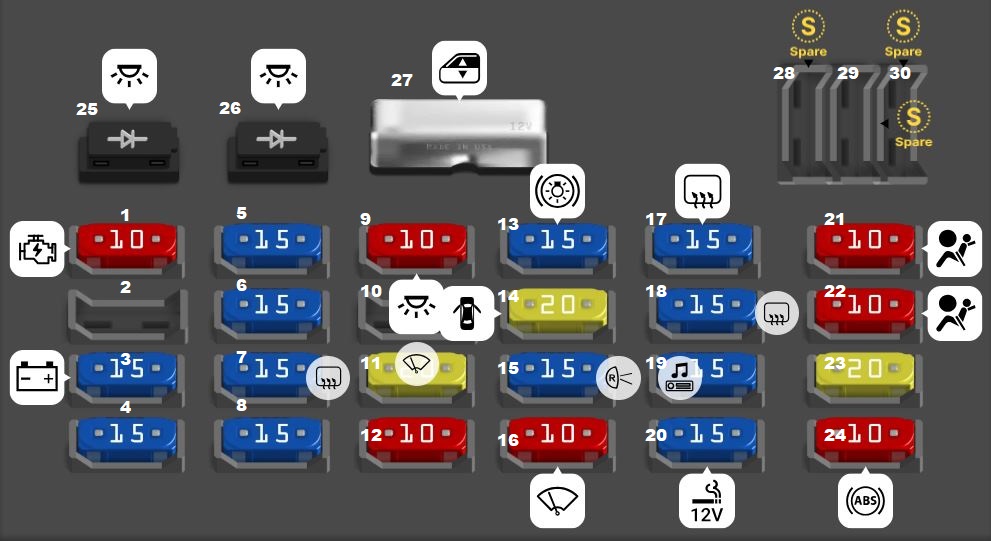

Isuzu Rodeo SUV UCS (1995 – 1997)
| Type | No. | Description |
| Fuse MINI 10A | 1 | Starter |
| Fuse MINI 15A | 3 | Generator, ECM, VSV EGR [3.2L], VSV Canister [3.2L], Shift Indicator Controller [3.2L], A/C Compressor Controls |
| Fuse MINI 15A | 4 | Ignition Coil (2.6L), Electronic Inition [3.2L], Power SW [2.6L] |
| Fuse MINI 15A | 5 | Taillight, Illumination Light, Illumination Controller |
| Fuse MINI 15A | 6 | Security System |
| Fuse MINI 15A | 7 | Meter, Rear Window Defroster Relay, Vehicle Speed Sensor, Seat Belt – Key & Light Reminder Buzzer, Cruise Indicator, Shift Lock Controller |
| Fuse MINI 15A | 8 | Security System |
| Fuse MINI 10A | 9 | Luggage Room Light, Courtesy Light, Dome Light, Map Light, Seat Belt – Key & Light Reminder Buzzer, Audio |
| Fuse MINI 20A | 11 | Front Wiper/Washer, Intermittent Wipers |
| Fuse MINI 10A | 12 | Cruise Control Unit, Shift-On-The-Fly System |
| Fuse MINI 15A | 13 | Stoplights, High Mounted Stop Light, Cruise Control Unit, Rear Wheel ABS Controller, Automatic Transmission TCM [3.2L], Shift Lock and Shift Indicator Controller [3.2L] |
| Fuse MINI 20A | 14 | Power Door Lock |
| Fuse MINI 15A | 15 | Back-Up Light, Turn Signal, Flasher, Cruise Control Unit (A/T) Power Window Relay, Mirror Heater |
| Fuse MINI 10A | 16 | Rear Wiper/Washer |
| Fuse MINI 15A | 17 | Rear Window Defroster, Hatch Gate Actuator, Defrosten Switch, Security System |
| Fuse MINI 15A | 18 | Rear Window Defroster, Hatch Gate Actuator, Defrosten Switch, Security System |
| Fuse MINI 15A | 19 | Audio, Power Mirrors |
| Fuse MINI 15A | 20 | Cigar Lighter |
| Fuse MINI 10A | 21 | SRS 1 (Airbag) – Warning Light |
| Fuse MINI 10A | 22 | SRS 2 (Airbag) – Inflator (Driver & Passenger) |
| Fuse MINI 20A | 23 | Rear ABS Controller |
| Fuse MINI 10A | 24 | ABS |
| Diode MINI | 25 | Dome Light |
| Diode MINI | 26 | Courtesy Light |
| Circuit breaker ATO | 27 | Power Window |
| Fuse MINI – | 28 | Spare |
| Fuse MINI – | 29 | Spare |
| Fuse MINI – | 30 | Spare |
Engine Compartment Fuse Box
Isuzu Rodeo Pickup TF (1991 – 1995)
| Type | No. | Description |
| Fuse ATO 10A | 1 | ((ECM) [4ZD1 CARBU]) Engine control unit |
| Fuse ATO 15A | 1 | ((ECM) [MPI MODEL]) Engine control unit |
| Fuse ATO 10A | 2 | (V.S.V) [4ZD1 CARBU] |
| Fuse ATO 20A | 2 | ((FUEL PUMP) [MPI MODEL]) Fuel pump |
| Fuse ATO 15A | 3 | ((HAZARD)) Hazard light |
| Fuse ATO 10A | 4 | ((HORN)) Horn |
| Fuse ATO 10A | 5 | ((CHARGE)) Battery and charging system |
| Fuse ATO 10A | 6 | (CHOKE) [4ZD1 CARBU] |
| Fuse ATO 10A | 6 | ((O2 SENSOR) [MPI MODEL]) Oxygen sensor |
| Fuse ATO 20A | 7 | ((HEATER)) Air conditioning system |
| Fuse ATO 10A | 8 | ((AIR CON)) Air conditioning |
| Fuse ATO 10A | 9 | ((H/LAMP RH)) Right-hand headlight |
| Fuse ATO 10A | 10 | ((H/LAMP LH)) Left-hand headlight |
| Fuse FLB/PAL 295 60A | A | ((MAIN 1)) Main fuse |
| Fuse FLF/PAL 293 30A | B | ((MAIN 2)) Main fuse |
| Relay | R1 | ((HEAD LAMP) [US]) Headlights |
| Relay | R2 | ((HEATER)) Air conditioning system |
| Relay | R3 | (STARTER A/T) |
| Relay | R4 | ((A/C THERMO) [4ZD1 CARBU, IF EQUIPPED]) Air conditioning |
| Relay | R4 | (OD CANCEL) [4ZE1 MOTOR, A/T] |
| Relay | R5 | ((CHARGE)) Battery and charging system |
| Relay | R6 | ((FUEL PUMP) [MPI MODEL]) Fuel pump |
| Relay | R7 | (EFE HEATER) [4ZD1 CARBU] |
| Relay | R8 | ((WIPER) [IF EQUIPPED]) Wipers |

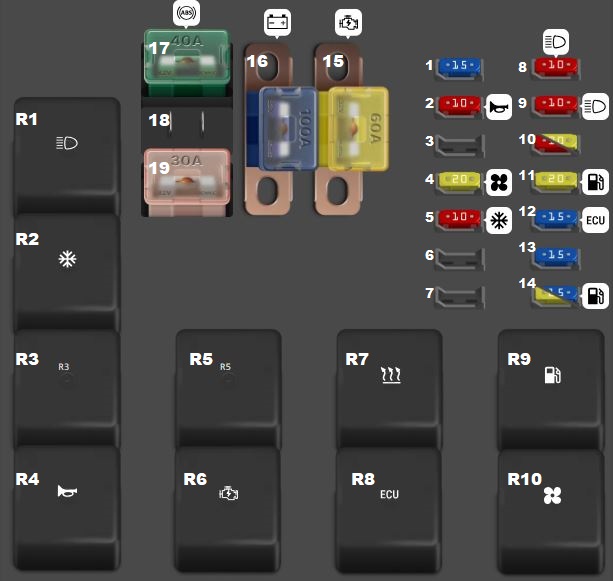

Isuzu Rodeo SUV UCS (1995 – 1997)
| Type | No. | Description |
| Fuse MINI 15A | 1 | Hazard Warning Light, Flasher Unit |
| Fuse MINI 10A | 2 | Horn, Data Link Connector (DLC) |
| Fuse MINI 20A | 4 | Blower Motor |
| Fuse MINI 10A | 5 | Air Conditioner Compressor Clutch, A/C Compressor [3.2L], Fast Idle Control Device [2.6L] |
| Fuse MINI 10A | 8 | Headlamp – LH, High Beam Indicator Lamp |
| Fuse MINI 10A | 9 | Headlamp – RH |
| Fuse MINI 10A | 10 | O2 Sensor (Oxygen Sensor) |
| Fuse MINI 20A | 10 | O2 Sensor (Oxygen Sensor) [3.2L] |
| Fuse MINI 20A | 11 | Fuel Pump 1 |
| Fuse MINI 15A | 12 | ECM, Fuel Injector, VSV, EGR [2.6L], VSV Canister [2.6L], EGR Duty Solenoid [2.6L], VSV Power Regulator [2.6L] |
| Fuse MINI 15A | 13 | Electronic Brake Control Module (EBCM) |
| Fuse MINI 20A | 14 | Fuel Pump 2 [2.6L] |
| Fuse MINI 15A | 14 | ABS Hydraulic Unit |
| Fuse FLD/PAL 283 60A | 15 | Fuel Injection System, Starting System |
| Fuse FLD/PAL 283 100A | 16 | Power Distribution, Charging System |
| Fuse FLF/PAL 293 40A | 17 | ABS |
| Fuse FLF/PAL 293 30A | 19 | Condensor Fan |
| Relay | R1 | Headlight |
| Relay | R2 | A/C – Compressor [3.2L] |
| Relay | R3 | Charge |
| Relay | R4 | Horn |
| Relay | R5 | Thermo |
| Relay | R6 | Starter |
| Relay | R7 | Heater |
| Relay | R8 | Engine Control Module (ECM) |
| Relay | R9 | Fuel Pump |
| Relay | R10 | Air Conditioner Fan [3.2L] |
