Jeep Wrangler (2023 – 2024) Fuse Box Location and Diagrams
Struggling with electrical issues in your 2023-2024 Jeep Wrangler? Discover the precise fuse box locations and comprehensive circuit diagrams you need to troubleshoot effectively. Our detailed guide makes identifying and replacing your vehicle’s fuses simple, ensuring you stay safely on the road.
Fuse Box Location
Engine Compartment Fuse box

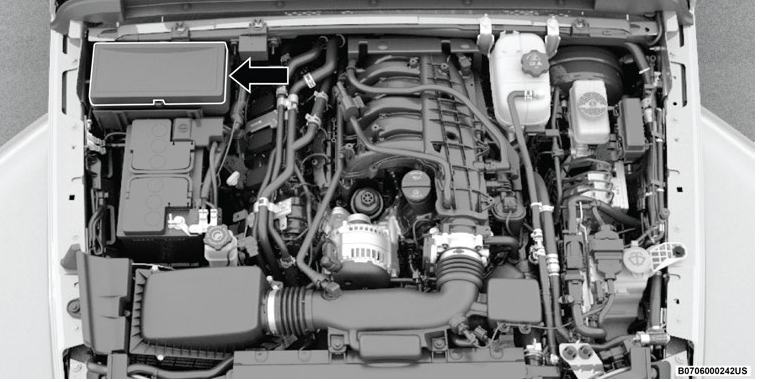

Power Distribution Center Location – Gasoline Engine

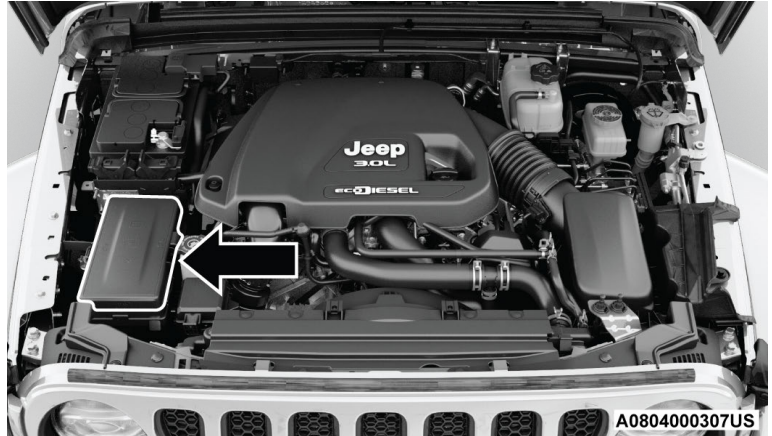

Power Distribution Center Location – Diesel Engine
Fuse Box Diagrams

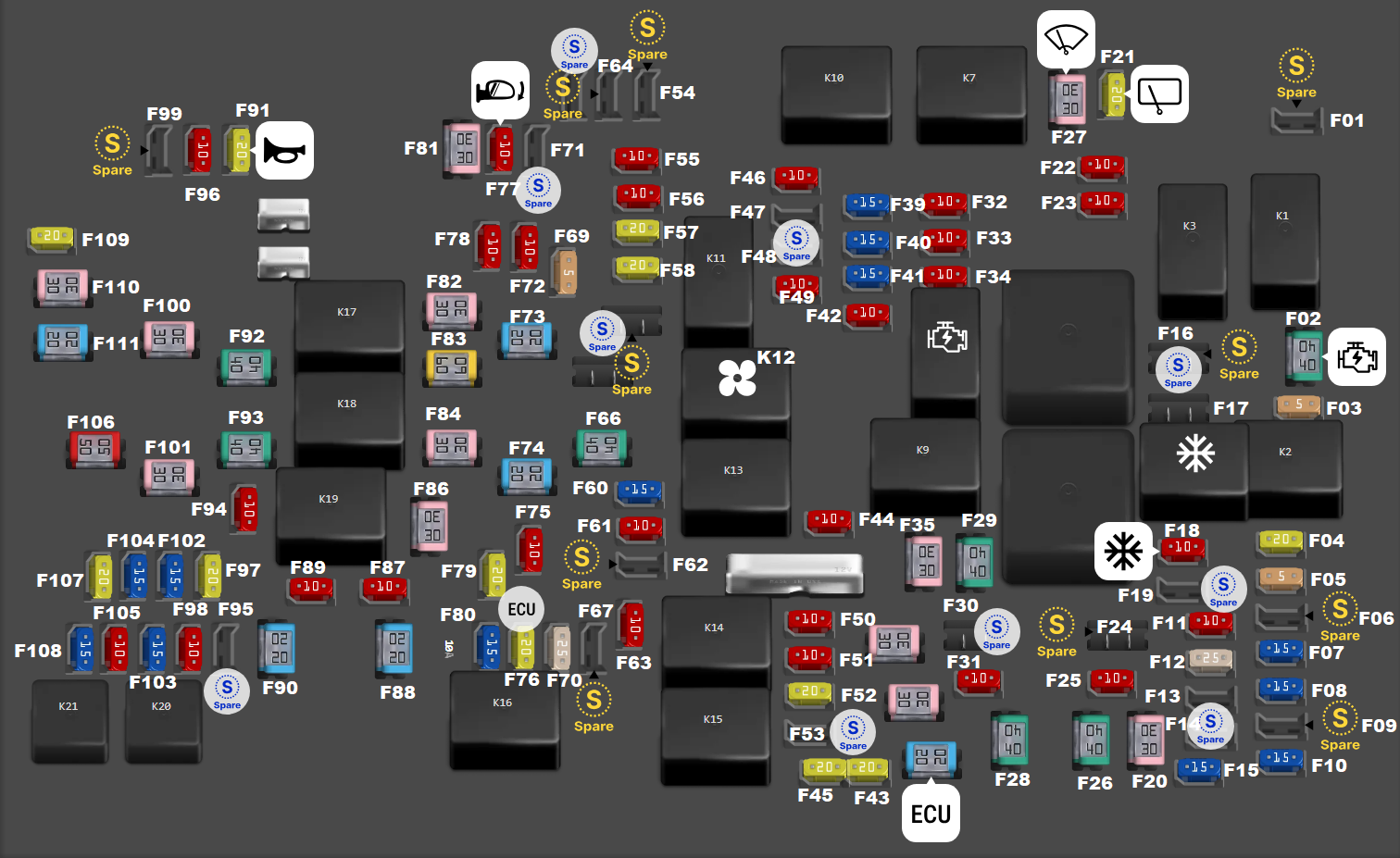

Engine Compartment Fuse Box
| Cavity | Cartridge Fuse | Micro Fuse | Description |
| F01 | – | – | Spare * |
| F02 | 40 Amp Green | – | Starter |
| F03 | – | 5 Amp Tan | Intelligent Battery Sensor (IBS) |
| F04 | – | 20 Amp Yellow / 25 Amp Clear * | Fuel Pump MTR/FPCM / Fuel Pmp (6.4) * |
| F05 | – | 5 Amp Tan | Security Gateway |
| F06 | – | – | Spare * |
| F07 | – | 15 Amp Blue | LTR Coolant Pump * |
| F08 | – | 15 Amp Blue | TCM-8HP CYGNUS |
| F09 | – | – | Spare * |
| F10 | – | 15 Amp Blue
| KIN / RF HUB / ESCL 2024: ESCL |
| F11 | – | 10 Amp Red | UCI Port (USB & AUX) |
| F12 | – | 25 Amp Clear | HIFI Amplifier |
| F13 | – | – | Spare * |
| F14 | – | – | Spare * |
| F15 | – | 15 Amp Blue | IPC / Switch Bank-HD Elec |
| F16 | – | – | Spare * |
| F17 | – | – | Spare * |
| F18 | – | 10 Amp Red | Air Conditioning Clutch (AC CLUTCH) |
| F19 | – | – | Spare * |
| F20 | 30 Amp Pink | – | Central Body Controller (CBC) 1-INTERIOR LIGHTS |
| F21 | – | 20 Amp Yellow | REAR WIPER |
| F22 | – | 10 Amp Red | Engine Control Module (ECM)/Powertrain Control Module (PCM)/Motor Generator Unit (MGU) WAKE UP/Power Pack Unit (PPU) WAKE UP 2024: ECM / ETC |
| F23 | – | 10 Amp Red | ECM / PCM |
| F24 | – | – | Spare * 2024: Pass Pwr Sea |
| F25 | – | 10 Amp Red | Module Shift By Wire (MOD_SBW) 2024: MOD_SBW |
| F26 | 40 Amp Green | – | Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1 |
| F27 | 30 Amp Pink | – | Front Wipers |
| F28 | 40 Amp Green | – | Central Body Controller (CBC) 3-POWER LOCKS |
| F29 | 40 Amp Green | – | Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2 |
| F30 | – | – 2024: 30 Amp Pink | Spare * 2024: Power Step/Slider |
| F31 | – | 10 Amp Red | DIAGNOSTIC PORT |
| F32 | – | 10 Amp Red | Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/Driver Presence Detection Module (DPDM) 2024: HVAC CTRL MOD / SCL / OCM / DPDM |
| F33 | – | 10 Amp Red | ParkTronics System (PTS)/Infrared Camera Module (IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS) |
| F34 | – | 10 Amp Red | Electronic Stability Control (ESC)/Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP 2024: ESC / EHPS / SBCM Wake Up |
| F35 | 30 Amp Pink | – | BRAKE VAC PMP* |
| F36 | 30 Amp Pink | – | TRAILER TOW ELEC BRK MOD* |
| F37 | 30 Amp Pink | – | TRAILER TOW CONN 7W* |
| F38 | 20 Amp Blue | – | Engine Control Module (ECM) 2024: ECM |
| F39 | – | 15 Amp Blue | MGU Coolant Pump (3.6)* 2024: DTCM / Axle Lock FT_RR |
| F40 | – | 15 Amp Blue | DriveTrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR 2024: DTCM / Axle Lock FT_RR |
| F41 | – | 15 Amp Blue | Instrument Cluster (IC)/Security Gateway (SGW) WAKE UP 2024: IC / SGW Wake Up |
| F42 | – | 10 Amp Red | PCR Ctrl Feed (ESS) * |
| F43 | – | 20 Amp Yellow | PWR OUTLET (CARGO) BATT |
| F44 | – | 10 Amp Red | InfraRed Camera (IRCAM) HEATERS 2024: IRCAM HEATERS |
| F45 | – | 20 Amp Yellow | PWR OUTLET (CARGO) IGN |
| F46 | – | 10 Amp Red | AUTO HDLP LVL MOD/LVL MTR/HDLP SW |
| F47 | – | – | Spare * |
| F48 | – | – | Spare * |
| F49 | – | 10 Amp Red | Occupant Restraint Controller (ORC) |
| F50 | – | 10 Amp Red | HD ACC* |
| F51 | – | 10 Amp Red | Digital TV Inline / USB / ISRVM / Compass Mod |
| F52 | – | 20 Amp Yellow | CIGAR LTR |
| F53 | – | – | Spare * |
| F54 | – | – | Spare * |
| F55 | – | 10 Amp Red | Central Vision Processing Module (CVPM) |
| F56 | – | 10 Amp Red | IN-CAR TEMP SENSOR/PTC HTR COIL FEED |
| F57 | – | 20 Amp Yellow | Driver Heated Seat |
| F58 | – | 20 Amp Yellow | Pass Heated Seat |
| F59 | – | – 2024: 15 Amp Blue | Spar *e 2024: Driver Pwr Seat |
| F60 | – | 15 Amp Blue | Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL) |
| F61 | – | 10 Amp Red | Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS) 2024: LBSS / RBSS / CADM-LO * |
| F62 | – | 10 Amp Red * | Exhaust Sol */ Spare * 2024: Exhaust Sol * |
| F63 | – | 10 Amp Red | Occupant Restraint Controller (ORC) |
| F64 | – | – | Spare * |
| F65 | – | – | Spare * |
| F66 | 40 Amp Green | – | HVAC BLOWER MTR Front |
| F67 | – | – | Spare * |
| F68 | – | – | Spare * |
| F69 | – | 5 Amp Tan | Motor Generator Unit MGU Belt Starter Generator (BSG)* 2024: KIN / RF Hu |
| F70 | – | 25 Amp Clear | INJ/IGN COIL (GAS)/GLO PLUG MOD (DSL) |
| F71 | – | – | Spare * |
| F72 | – | 10 Amp Red | HD ELEC ACC PKG* |
| F73 | 20 Amp Blue | – | PWR TOP LT |
| F74 | 20 Amp Blue | – | PWR TOP RT |
| F75 | – | 10 Amp Red | Power Pack Unit – Battery Pack Control Module & Auxiliary Power Module (PPU-BPCM & APM) Belt Starter Generator (BSG)* 2024: Spare * |
| F76 | – | 20 Amp Yellow | ECM (GAS)/PCM (DSL) 2024: ECM |
| F77 | – | 10 Amp Red | HEATED MIRRORS |
| F78 | – | 10 Amp Red | INTRUSION MOD/SIREN/INTRUSION SENSORS |
| F79 | – | 20 Amp Yellow | SMART BAR CTRL MOD |
| F80 | – | 15 Amp Blue / 10 Amp Red * | Powertrain Control Module (PCM) / SOL 1,2 BLOCK SHIFT * / Vapor Blocking Valve (BSG) * 2024: SOL 1,2 BLOCK SHIFT * |
| F81 | 30 Amp Pink | – | Rear Defrost (EBL) |
| F82 | 30 Amp Pink | – | FUEL HTR* 2024: Spare * |
| F83 | 60 Amp Yellow | – | GLOW PLUG5 2024: Spare * |
| F84 | 30 Amp Pink | – | UREA HTR CTRL UNIT* 2024: Spare * |
| F85 | – | 10 Amp Red | PM SENSOR* 2024: Spare * |
| F86 | 30 Amp Pink | – | BRAKE VAC PMP 2* 2024 : Spare * |
| F87 | – | 10 Amp Red | SUPPLY/PURGING PMP* 2024; Spare * |
| F88 | 20 Amp Blue | – | NOx SENSOR #1/ #2* 2024: Spare * |
| F89 | – | 10 Amp Red | Steering Column Control Module (SCCM)/ Cruise Control (CRUISE CTL)/Digital TV (DTV) / EVIC / Airbag Disable Lamp |
| F90 | 20 Amp Blue | – | TRAILER TOW PARK LMP* |
| F91 | – | 20 Amp Yellow | HORN |
| F92 | 40 Amp Green | – | HD ACCY #2* |
| F93 | 40 Amp Green | – | HD ACCY #1* |
| F94 | – | – | Spare * 2024: Dual USB Port |
| F95 | – | – | Spare * |
| F96 | – | 10 Amp Red | PWR MIRROR SW |
| F97 | – | 20 Amp Yellow | RADIO/TBM |
| F98 | – | 10 Amp Red | SW BANK-HD ELEC/OFF ROAD |
| F99 | – | – | Spare * |
| F100 | 30 Amp Pink | – | ESC-ECU & VALVES |
| F101 | 30 Amp Pink | – | DriveTrain Control Module (DTCM) |
| F102 | – | 15 Amp Blue | DUAL USB PORT |
| F103 | – | 15 Amp Blue | HD ACCY #3* |
| F104 | – | 15 Amp Blue | PPU COOL PUMP* |
| F105 | – | 10 Amp Red | Integrated Center Stack (ICS)/Heat Ventilation Air Conditioning (HVAC) 2024: ICS / HVAC / ETC |
| F106 | 50 Amp Red | – | ESC -PUMP MTR |
| F107 | – | 20 Amp Yellow | TRAILER TOW STOP/TURN LT* |
| F108 | – | 15 Amp Blue | HD ACCY #4* |
| F109 | – | 20 Amp Yellow | TRAILER TOW STOP/TURN RT* |
| F110 | 30 Amp Pink | – | POWER INVERTER |
| F111 | 20 Amp Blue | – | TRAILER TOW BACKUP* |
