Volkswagen Golf VII GTI (2013 – 2020) Fuse Box Location & Diagrams
Finding the fuse boxes in your Volkswagen Golf VII GTI is essential for diagnosing electrical issues and replacing blown fuses. This article provides fuse box locations, detailed diagrams, and fuse assignments for 2013–2020 models, helping owners quickly identify and troubleshoot electrical components.
Fuse Box Location

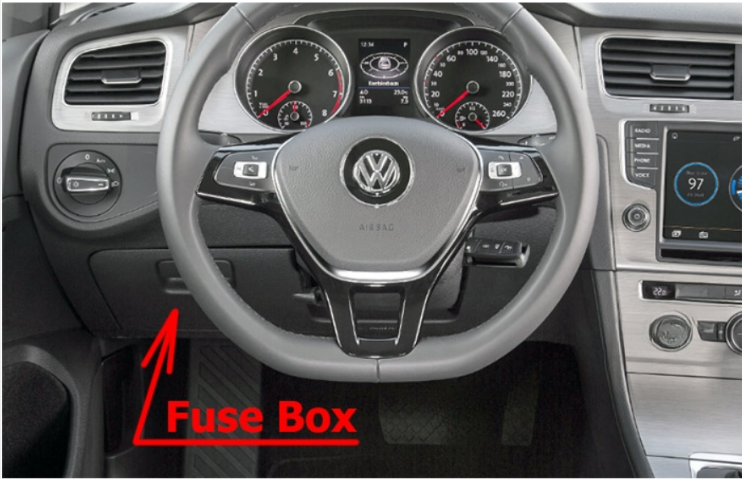

Passenger Compartment Fuse Box
The fuse box is located behind the storage compartment on the driver’s side of the dashboard (LHD). Open the storage compartment, squeeze from the sides, and pull it towards you to access the fuses. On right-hand drive cars, this fuse box is most likely located behind the cover on the left side of the glove box.

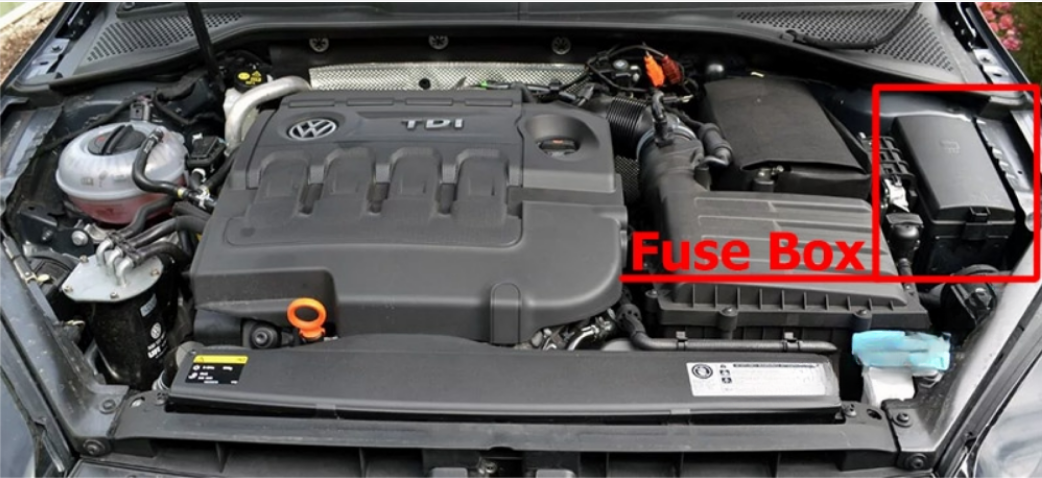

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box
Volkswagen Golf VII GTI (2013 – 2020)
| № | Description |
|---|---|
| 1 | Reducing heater control module |
| 2 | Not Used |
| 3 | Not Used |
| 4 | Vehicle electrical system control module, Anti-theft alarm system |
| 5 | Data bus onboard diagnostic interface |
| 6 | Selector lever, Anti-theft alarm sensor |
| 7 | HVAC controls, Heated rear window relay |
| 8 | Rottary light switch, Rain/Light sensor, Diagnostic connector, Alarm sensor |
| 9 | Steering column electronics control module |
| 10 | Infotainment screen (front) |
| 11 | Left front seat belt tensioner control module, wheel drive control module |
| 12 | Information electronics control module |
| 13 | Electronic damping control module |
| 14 | Fresh air blower control module |
| 15 | Electronic steering column lock control module |
| 16 | USB ports, Phone |
| 17 | Instrument cluster, Emergency call control module |
| 18 | Rear view camera, Release button rear lid |
| 19 | Access Start system interface |
| 20 | Reducing agent metering system relay |
| 21 | Wheel drive control module |
| 22 | Not Used |
| 23 | Vehicle electrical system control module, Right front headlamp MX2 |
| 24 | Power sunroof |
| 25 | Driver/Passenger door module, Rear windows regulator |
| 26 | Vehicle electrical system control module, Front heated seat |
| 27 | Sound system |
| 28 | Towing hitch |
| 29 | Not Used |
| 30 | Left front seat belt tensioner control module |
| 31 | Vehicle electrical system control module, Left front headlamp MX1 |
| 32 | Front camera, Distance regulation, Parking aid, Blind spot detection |
| 33 | Airbag control module, Passenger airbag disable light, Passenger occupant sensor |
| 34 | Rottary light switch, interior rearview mirror, Sockets relay, Back-up lamp switch, Refrigerant pressure sensor, Air quality sensor, Center console switch, Parking brake button |
| 35 | Diagnostic connector, Headlamp range control and Instrument panel illumination regulator, Automatic dimming interior rearview mirror, Cornering lamp and headlamp range control module, Right/Left headlamp beam adjust. motor |
| 36 | Right daytime running lamp and parking lamp control module |
| 37 | Left daytime running lamp and parking lamp control module |
| 38 | Towing hitch |
| 39 | Front doors control module, Left/Right rear windows regulator motor |
| 40 | Cigarette lighter, 12-volt power outlets |
| 41 | Steering column electronics control module, Right front seat belt tensioner control module |
| 42 | Vehicle electrical system control module, Central locking system |
| 43 | Vehicle electrical system control module, Interior illumination |
| 44 | Towing hitch |
| 45 | Front seats adjustment |
| 46 | AC-DC converter (230-Volt power socket) |
| 47 | Rear window wiper |
| 48 | Not Used |
| 49 | Clutch pedal position sensor, Starter relay 1, Starter relay 2 |
| 50 | Not Used |
| 51 | Right front seat belt tensioner control module |
| 52 | Not Used |
| 53 | Heated rear window |

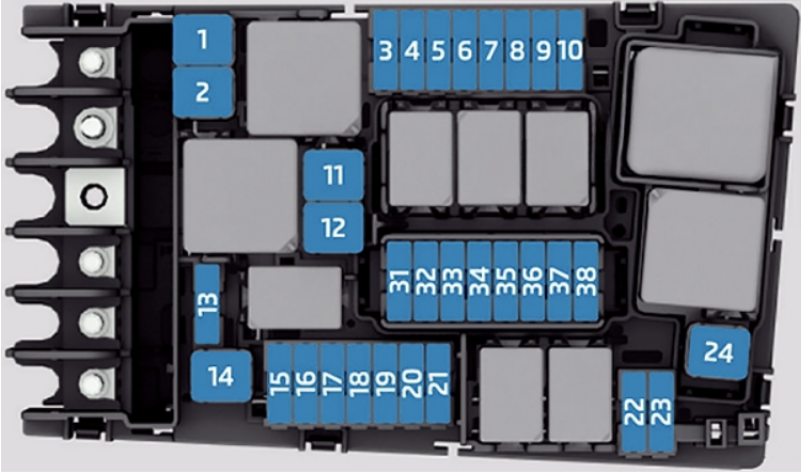

Engine Compartment Fuse Box
Volkswagen Golf VII GTI (2013 – 2020)
| № | Description |
|---|---|
| 1 | ABS control module |
| 2 | ABS control module, hydraulic pump |
| 3 | Engine control unit (ECU) |
| 4 | Oil level sensor, Coolant fan module, EVAP regulator valve, Camshaft adjust. valve, Exhaust camshaft adjust. Valve, Oil pressure valve, High/Low heat output relay, EGR cooler switch-over valve, Wastegate bypass reg.valve #75, Ethanol concentration sensor, Cylinders intake, Exhaust camshaft adjust. |
| 5 | Fuel pressure reg. valve #276, Fuel metering valve #290 |
| 6 | Brake light switch |
| 7 | Fuel pressure reg. valve, Charge air cooling pump, Oil pressure reg. valve, Cooling circuit solenoid valve, Heater support pump |
| 8 | O2 sensors, MAF sensor |
| 9 | Ignition coils, Glow time control module, fuel evap. Heating |
| 10 | Fuel pump control module |
| 11 | Electrical auxiliary heating element |
| 12 | Electrical auxiliary heating element |
| 13 | Automatic gearbox (DSG) |
| 14 | Heated windscreen (front) |
| 15 | Horn relay |
| 16 | Not Used |
| 17 | ECU, ABS control module, Terminal 30 relay |
| 18 | Battery monitoring control module, Data bus interface J533 |
| 19 | Windscreen wipers (front) |
| 20 | Anti-theft alarm horn |
| 21 | Not Used |
| 22 | Engine control unit (ECU) |
| 23 | Starter |
| 24 | Electrical auxiliary heating system |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Not Used |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Not Used |
| 37 | Auxiliary heater control module |
| 38 | Not Used |
