Lancia Ypsilon (2015 – 2020) Fuse Box Location & Diagrams
The Lancia Ypsilon (2015–2020) fuse box protects essential electrical systems in the vehicle. Knowing its location and fuse diagram makes it easier to identify the correct fuse for lights, accessories, engine controls, and other electrical components when troubleshooting common electrical problems.
Fuse Box Location
Passenger Compartment Fuse Box

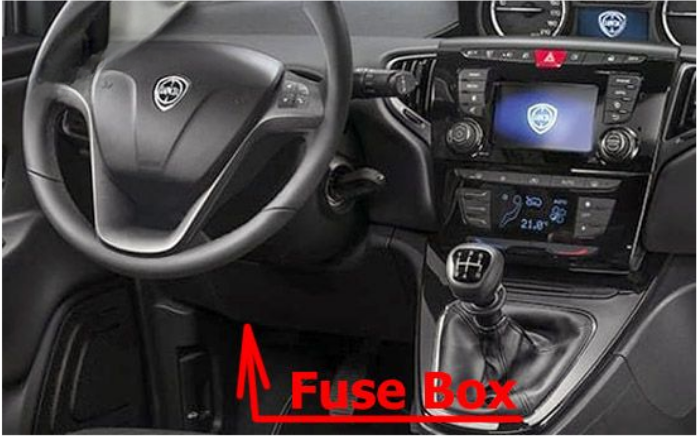

The control unit is located near the left side of the steering column and the fuses can be accessed easily from the lower part of the dashboard. To facilitate fuse replacement, use the pliers hooked inside the fuse box lid on the dashboard left-hand side.
Engine Compartment Fuse Box

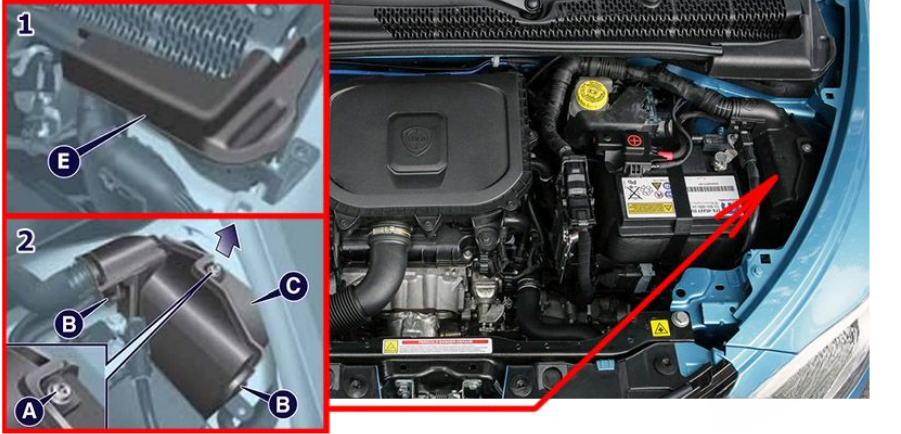

This is located by the side of the battery. To access the fuses, proceed as follows: move the cover E, undo the screw A, release the tabs B and pull the cover C upwards.
Luggage Compartment Fuse Box

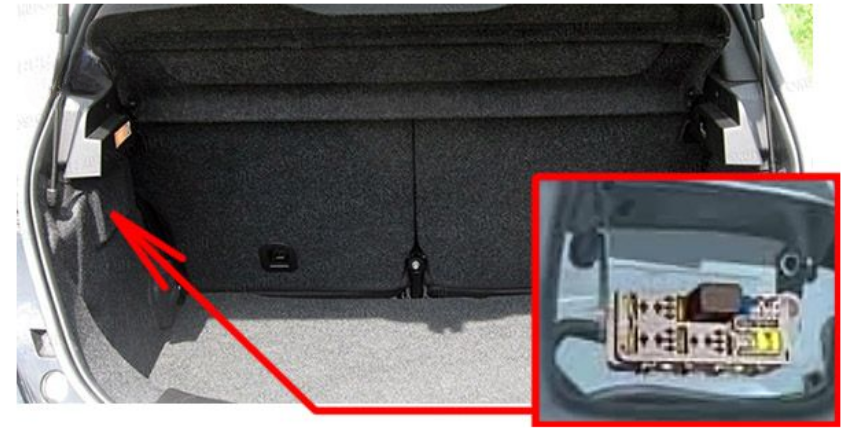

The fuse box is located on the left side of the luggage compartment, underneath the side cover.
Fuse Box Diagrams

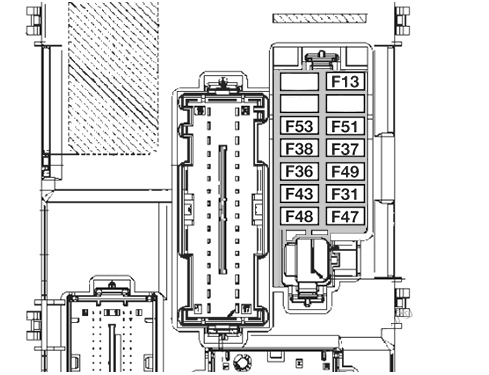

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F13 | 5A | +15 Headlight alignment corrector |
| F31 | 5A | +15 ignition-operated control with inhibition during engine starting. |
| F36 | 15A | +30 Climate control unit, control unit, EOBD socket, radio setup |
| F37 | 7.5A | +15 switch on brake pedal (NO) |
| F38 | 20A | Central door locking |
| F43 | 20A | Two-way windscreen washer pump |
| F47 | 20A | Front electric window (driver side) |
| F48 | 20A | Front electric window (passenger side) |
| F49 | 7.5A | +15 Sun roof, rain/dusk sensor, electric mirror control, control lighting, AUX socket |
| F51 | 5A | +15 Radio setup, climate control system control unit, sun roof, parking control unit, brake pedal switch (NC), clutch pedal switch (NC), reversing lights. |
| F53 | 7.5A | +30 Instrument panel |
+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not ignition-operated)

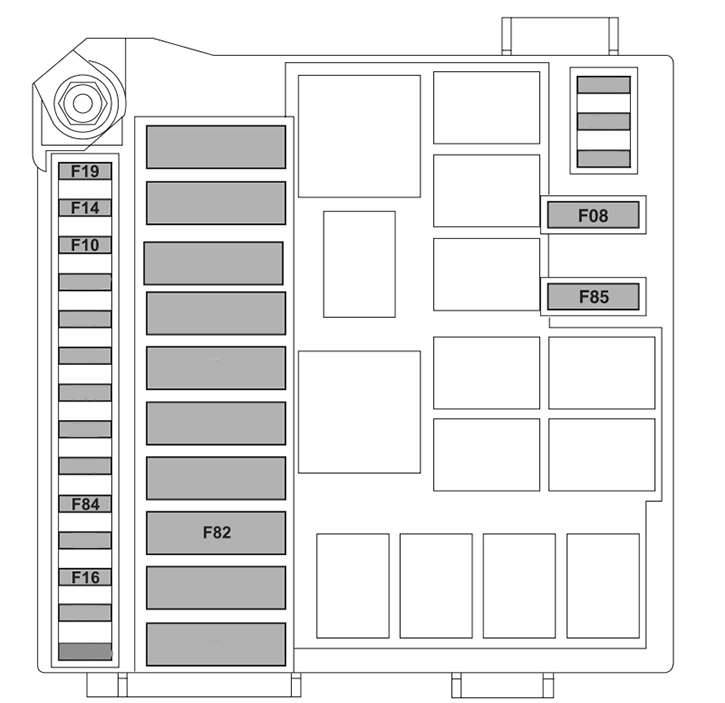

Engine Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F08 | 15A | Front fog lights |
| F10 | 15A | Horns |
| F14 | 15A | Main beam headlights |
| F15 | 20A | Sun roof motor |
| F16 | 7.5A | Dual FuNction System gearbox control unit power supply (+ignition) |
| F82 | 40A | Passenger compartment fan |
| F84 | 10A | Dual Function System gearbox control unit |
| F85 | 20A | Front power socket (with or without cigar lighter) |

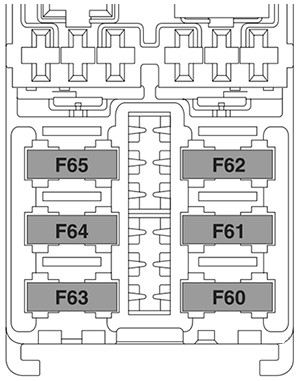

Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F60 | 20A | BOSE HI-FI system |
| F61 | – | – |
| F63 | 20A | Rear right electric window |
| F64 | 20A | Rear left electric window |
