Lancia Delta (2009 – 2014) Fuse Box Location & Diagrams
The Lancia Delta (2009–2014) fuse box protects essential electrical systems, including lighting, engine controls, interior features, and power accessories. Knowing the fuse box locations and diagrams helps owners locate specific fuses, understand their functions, and troubleshoot electrical problems efficiently for dependable vehicle operation.
Fuse Box Location

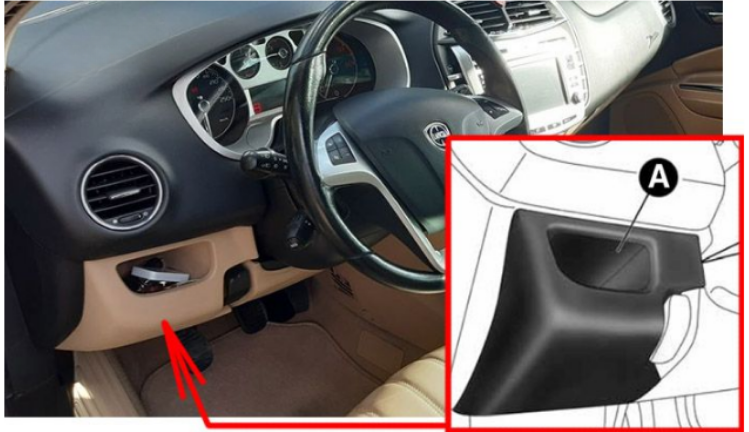

Passenger Compartment Fuse Box
To access the fuses you must remove the press-fitted cover A. The fuse box is located in the lower area next to the pedal unit.

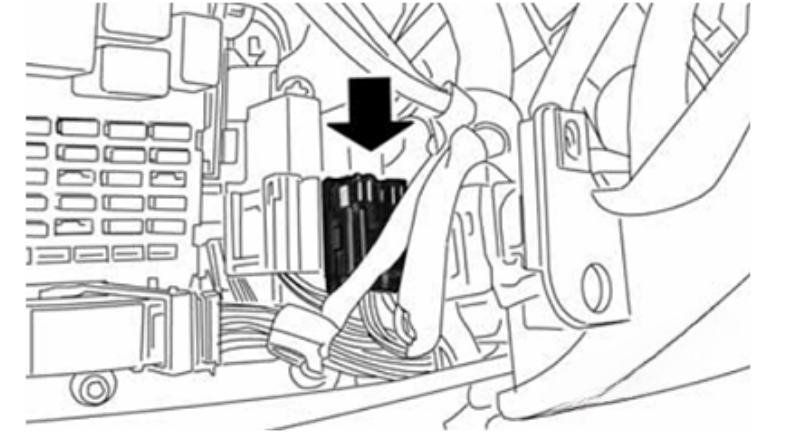

On the 1.4 Turbo Multi Air versions there are four additional fuses next to the dashboard junction unit (P036-P039).

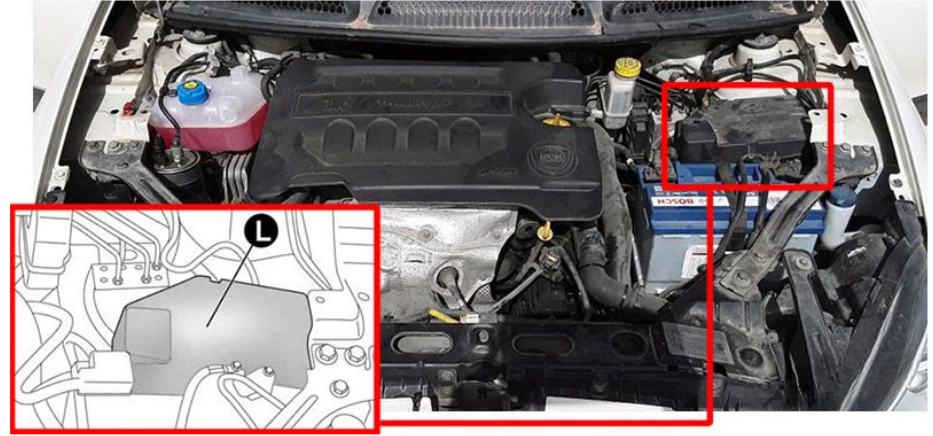

Engine Compartment Fuse Box
The fuse box is located on the right side of the engine compartment, next to the battery. To access this fuse box release the side tabs and remove cover L. The ID number of the electrical component corresponding to each fuse can be found on the back of the cover.

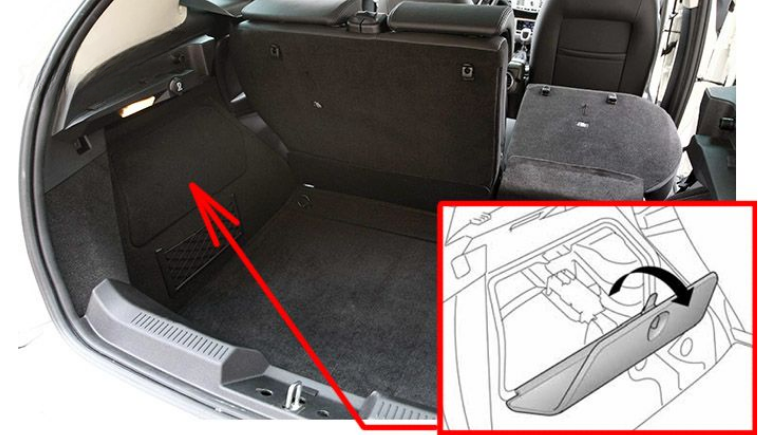

Luggage Compartment Fuse Box
To gain access to the fuse box located on the left side of luggage compartment open the relevant inspection lid.
Fuse Box Diagrams

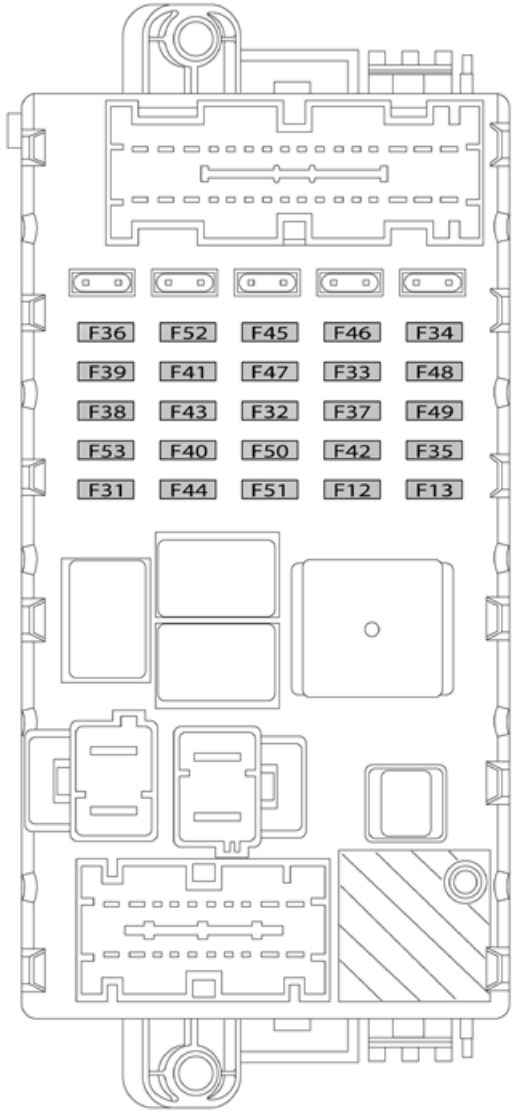

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F12 | 7.5A | Right dipped beam headlight |
| F12 | 15A | Right dipped beam headlight (Xenon gas discharge bulb) |
| F13 | 7.5A | Left dipped beam headlight, headlight alignment corrector |
| F13 | 15A | Left dipped beam headlight (Xenon gas discharge bulb) |
| F31 | 5A | Climate control system fan relay coil, body computer |
| F33 | 20A | Rear left electric window |
| F34 | 20A | Rear right electric window |
| F35 | 5A | Reversing lights, engine compartment junction unit relay coils, brake light pedal control (normally closed contact), water in diesel sensor, air flow meter / control on clutch pedal and brake servo pressure sensor (1.4 Turbo Multi Air versions) |
| F36 | 20A | Central locking system control unit, fuel flap, dead lock, tailgate release |
| F37 | 7.5A | Third brake light, instrument panel, Adaptive Headlights Node (1.4 Turbo Multi Air versions excluded), control unit on left hand gas discharge headlight (1.4 Turbo Multi Air versions excluded) |
| F38 | 10A | Front rear and central roof light, courtesy light on driver’s side and passenger’s side, luggage compartment light and gfove compartment light |
| F39 | 10A | Car radio and Radio navigator (1.4 Turbo Multi Air versions excluded), Blue&Me Node, alarm siren, alarm system on roof light, climate control unit, tyre pressure monitoring system control unit, diagnosis socket connector, rear roof lights, voltage stabiliser (1.4 Turbo Multi Air versions without HI-FI option) |
| F40 | 30A | Heated rear window |
| F41 | 7.5A | Electric door mirror demisters, demisters on windscreen jets |
| F42 | 5A | Brake Node, yaw sensor (2009-2011) |
| F43 | 30A | Windscreen wiper system on steering column stalk, bi-directional windscreen / rear window washer pump system on steering column stalk |
| F44 | 15A | Cigar lighter / power socket on tunnel, luggage compartment power socket |
| F46 | 20A | Sunroof motor |
| F47 | 20A | Driver’s front electric window |
| F48 | 20A | Passenger side front electric window |
| F49 | 5A | Hazard, right, left and centre control panels on radio/ radio-navigator (lighting), steering wheel controls (lighting) controls on front roof light (lighting), volumetric alarm control unit, electric sun roof system (control unit, control lighting), rain/dusk sensor, electrochromic mirror, heated front seat controls, AUX socket (lighting) |
| F50 | 7.5A | Air Bag Node (2009-2011) |
| F51 | 5A/7.5A | Cigar lighter (lighting), radio setup, Cruise Control system control, Blue&Me Node, Parking Sensor Node, AQS sensor, climate control unit, door mirror adjustment, tyre pressure monitoring system control unit, lane assistance Node, controlled damping suspension Node, control unit on right hand gas discharge headlight (1.4 Turbo Multi Air versions excluded) voltage stabiliser (1.4 Turbo Multi Air versions), Eco button (versions with automatic transmission), automatic transmission control light guide |
| F52 | 15A | Rear wiper system on steering column stalk |
| F53 | 7.5A | Instrument panel, rear direction indicators |
| P036 | 5A | DRLs / Left side light |
| P037 | 5A | DRLs / Right side light |
| P038 | 10A | Car Radio / Radio Navigator |
| P039 | 5A | Adaptive Headlamps Node / Control units on right and left hand gas discharge headlights |

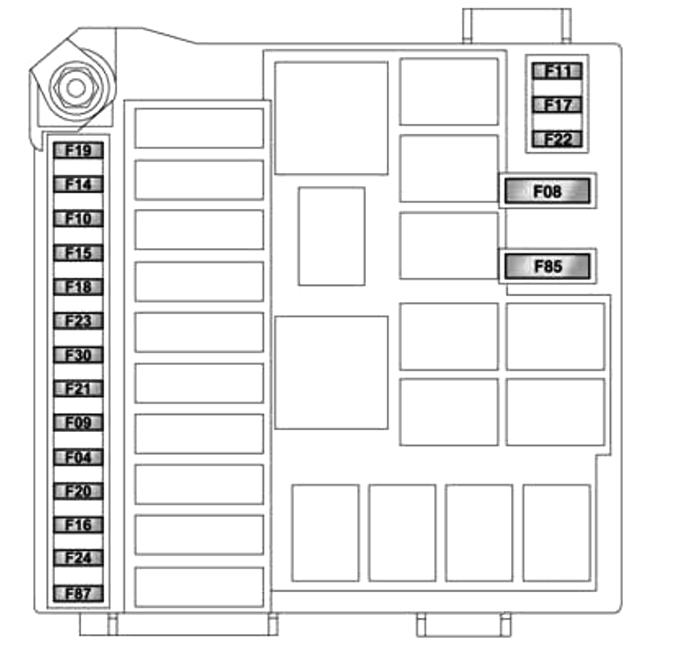

Engine Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F08 | 40A | Climate control fan |
| F09 | 20A/30A | Headlight washer pump |
| F10 | 10A | Horn |
| F14 | 15A | Main beam headlights |
| F15 | 30A | PTC1 additional heater |
| F16 | 7.5A | Engine Management Node |
| F17 | 10A | Electronic injection primary loads |
| F18 | 7.5A | Engine Management Node |
| F19 | 7.5A | Air conditioning compressor |
| F22 | 15A/20A | Electronic injection primary loads |
| F23 | 20A | Brake Node (valves) |
| F30 | 15A | Fog/cornering lights |
| F85 | 15A | Fuel pump |
| F87 | 5A | Battery charge status sensor (1.4 Turbo Multi Air version) |

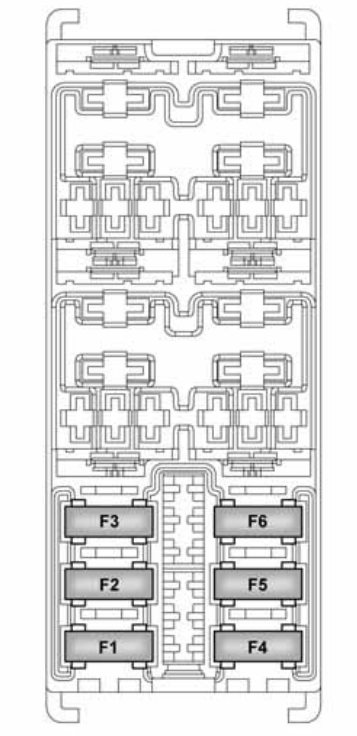

Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| F1 | 30A | Right front seat adjustment node |
| F2 | 30A | Left front seat adjustment node |
| F3 | 10A | Left front seat heating |
| F4 | 15A | Audio Hi-Fi control unit (1.4 Turbo Multi Air version excluded) |
| F4 | 20A | Voltage stabiliser (1.4 Turbo Multi Air version with HI-FI option) |
| F5 | 10A | BASSBOX speaker (HI-FI system, 1.4 Turbo Multi Air version excluded) |
| F6 | 10A | Right front seat heating |
