Jaguar XK (2006 – 2014) Fuse Box Location & Diagrams
The Jaguar XK (2006–2014) fuse box protects essential electrical systems, including lighting, engine controls, comfort features, and power accessories. Knowing the fuse box locations and diagrams helps owners identify fuse positions, understand circuit functions, and troubleshoot electrical problems efficiently for dependable vehicle performance.
Fuse Box Location
Passenger Compartment Fuse Box

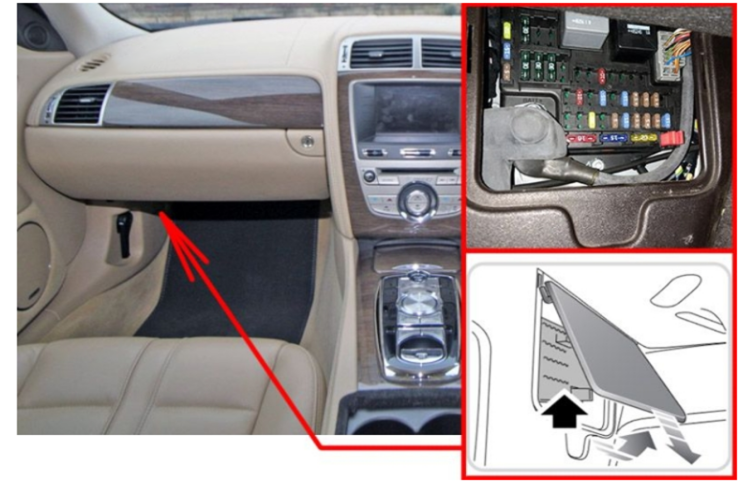

The passenger compartment fuse box is located under the left-hand side trim panel in the footwell. To access the fuse box remove the left-hand side trim panel fuse box cover.
Engine Compartment Fuse Box

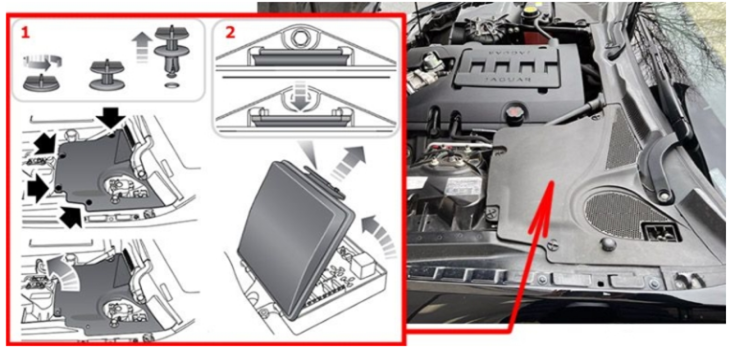

The fuse box is located in the engine compartment on the left-hand side underneath the engine compartment left-hand cover.
- Remove the engine compartment left-hand
- Remove the fuse box lid by pressing the retaining lugs and lifting.
Luggage Compartment Fuse Box

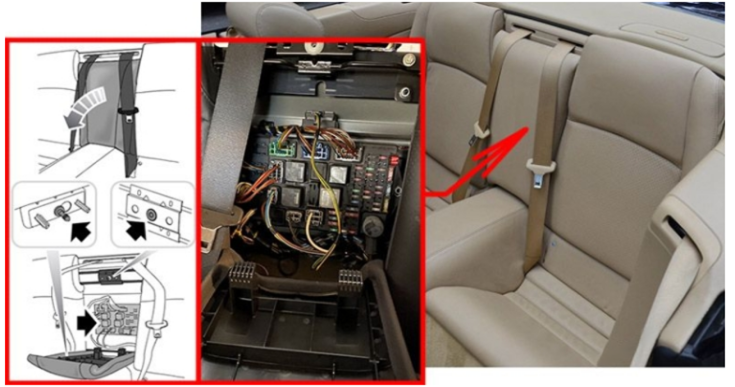

The fuse box is located behind the rear seat centre section. To remove the rear seat centre section, grasp the sides of the section and pull sharply.
Fuse Box Diagrams

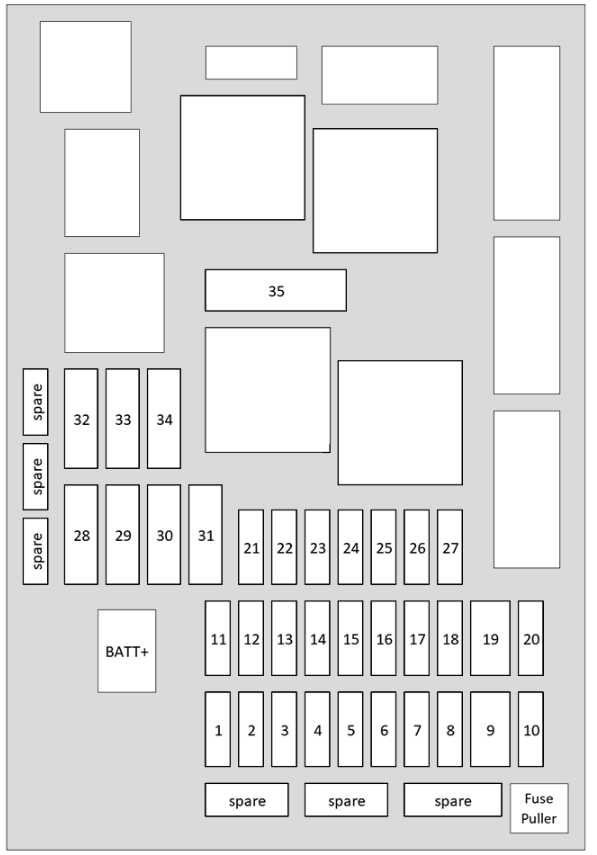

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | 20A | Climate seats. |
| F2 | 10A | ETS, Electric Parking Brake logic. |
| F3 | 20A | Keyless vehicle module. |
| F4 | 20A | Climate seats. |
| F5 | 5A | Instrument panel logic. |
| F6 | 15A | Air conditioning. |
| F7 | 5A | Passive Anti-Theft System (PATS) transmitter/receiver. |
| F8 | 5A | Foot brake switch. |
| F9 | 5A | Passenger seat memory switch, Passenger seat module, Sunload sensor. |
| F10 | 15A | Instrument panel (column adjust). |
| F11 | – | Not used. |
| F12 | 10A | Interior lamp switched power comprises – map, courtesy, footwell, sun visor, glove box. In-car aspirator. |
| F13 | – | Not used. |
| F14 | 15A | Adaptive dynamic ride control power. |
| F15 | – | Not used. |
| F16 | 15A | Front power point, premium audio amplifier, cooling fan. |
| F17 | 5A | OBD II. |
| F18 | 5A | Driver’s seat module, Singapore Road Pricing, Driver’s seat memory, Driver’s window and mirror switchpack. |
| F19 | 5A | RF receiver. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | 10A | Cabin accessory power. |
| F24 | – | Not used. |
| F25 | – | Not used. |
| F26 | – | Not used. |
| F27 | – | Not used. |
| F28 | 30A | Passenger seat motor (2). |
| F29 | 30A | Passenger seat motor (1). |
| F30 | 30A | Driver’s seat module (1). |
| F31 | – | Not used. |
| F32 | 30A | Driver’s seat module (2). |
| F33 | – | Not used. |
| F34 | – | Not used. |
| F35 | – | Not used. |

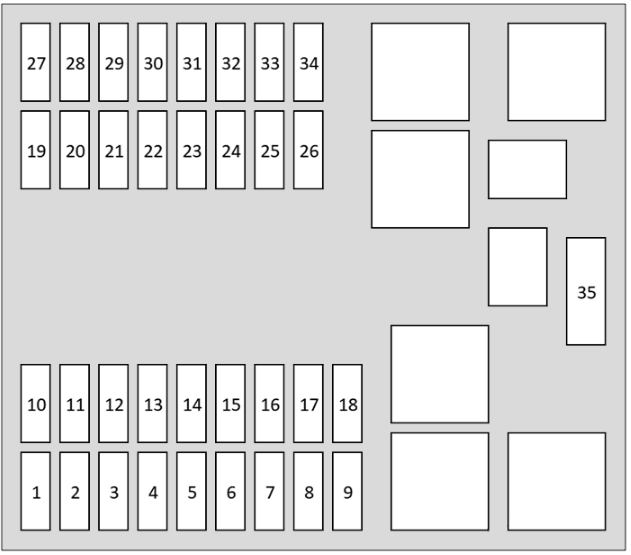

Engine Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | – | Not used. |
| F2 | 5A | Adaptive front lighting system – LH. |
| F3 | 5A | DSC ECU. |
| F4 | 30A | Powerwash pump. |
| F5 | – | Not used. |
| F6 | 5A | Adaptive cruise control. |
| F7 | 40A | Front left screen heater. |
| F8 | – | Not used. |
| F9 | 15A | Cigar lighter. |
| F10 | 15A | Florn. |
| F11 | – | Not used. |
| F12 | 10A | Cluster VAPS. |
| F13 | 5A | Adaptive front lighting system – RH. |
| F14 | 15A | Ignition coils. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | 15A | ECM, TCM memory. |
| F18 | 20A | EMS main, EMS secondary control. |
| F19 | 30A | Starter. |
| F20 | 40A | DSC pump. |
| F21 | – | Not used. |
| F22 | 20A | DSC valves. |
| F23 | – | Not used. |
| F24 | 15A | Intercooler water pump (Supercharged engines only). |
| F25 | – | Not used. |
| F26 | 40A | Wiper motor. |
| F27 | – | Not used. |
| F28 | 15A | VVT diode. |
| F29 | 5A | Oil temperature. |
| F30 | 10A | Throttle motor. |
| F31 | 10A | Radiator fan, ECM cooling fan. |
| F32 | 40A | Front right screen heater. |
| F33 | 20A | UHEGO – A bank heaters. |
| F34 | 15A | UHEGO – B bank heaters. |
| F35 | 80A/100A | Radiator fan. |

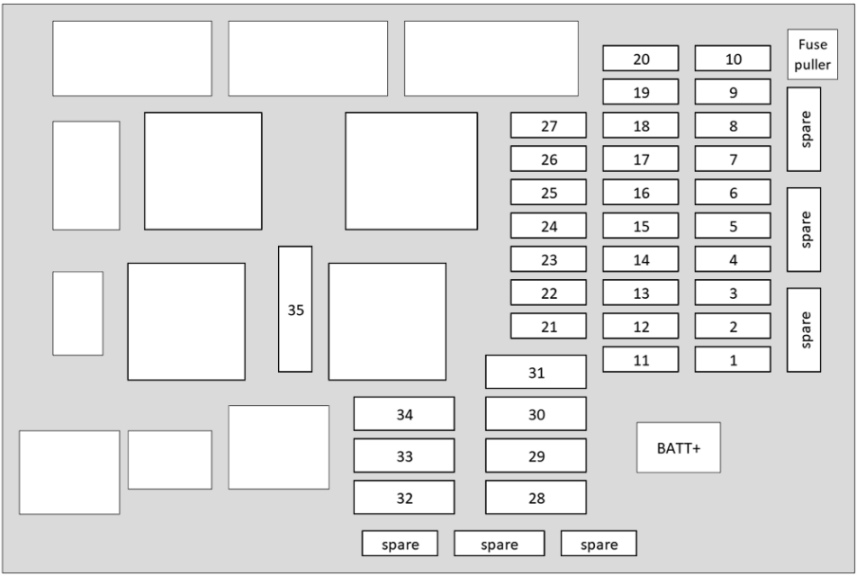

Luggage Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | 25A | Passenger door zone ECM. |
| F2 | 5A | Tyre Pressure Monitoring System. |
| F3 | – | Not used. |
| F4 | – | Not used. |
| F5 | – | Not used. |
| F6 | – | Not used. |
| F7 | – | Not used. |
| F8 | 5A | Power roof logic. |
| F9 | – | Not used. |
| F10 | 10A | Accessory connector B+. |
| F11 | – | Not used. |
| F12 | – | Not used. |
| F13 | 25A | Driver’s door zone ECM, OBD2. |
| F14 | 10A | Navigation, VICS, power. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | 10A | Restraints control module, Instrument pack, Occupancy classification sensor. |
| F18 | 30A | Electric Parking Brake (EPB). |
| F19 | 10A | Supercharged active exhaust. |
| F20 | – | Not used. |
| F21 | 15A | IHU, supply (IAV, ICM, ICP). |
| F22 | 5A | Phone, VEMS, power. |
| F23 | 30A | Heated rear screen. |
| F24 | 10A | AUU. |
| F25 | 10A | DVD, power. |
| F26 | – | Not used. |
| F27 | 10A | Pedestrian impact sensor. |
| F28 | 40A | E-Diff. |
| F29 | – | Not used. |
| F30 | 40A | Power roof rear quarters. |
| F31 | 30A | Power Amp supply. |
| F32 | 40A | Power roof supply. |
| F33 | 30A | Fuel pump module. |
| F34 | 40A | Blower motor. |
| F35 | – | Not used. |
