Jaguar X-Type (2001 – 2009) Fuse Box Location & Diagrams
The Jaguar X-Type (2001–2009) fuse box location and diagrams help you identify fuse panels and understand their functions. This blog covers fuse box locations, layouts, and fuse information for the X-Type, making it easier to troubleshoot electrical issues and replace faulty fuses safely with confidence.
Fuse Box Location

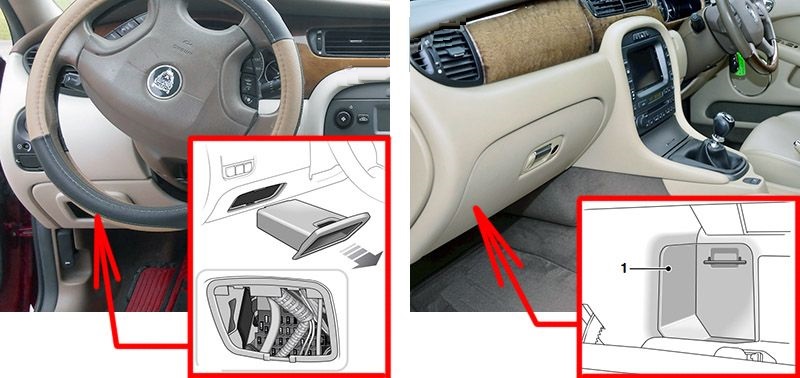

Passenger Compartment Fuse Box
The passenger compartment fuse box is located on the left-hand side of the vehicle, against the bulkhead.
Left-hand drive vehicles: For fuse box visual access, remove, by unclipping/pulling, the sunglasses stowage compartment, to the left of the steering column. Remove the lower panel on the knee bolster below the sunglasses stowage compartment to gain hand access to the fuse box.
Right-hand drive vehicles: To gain access to the fuse box, open the glove compartment and remove the panel at the front of the compartment.

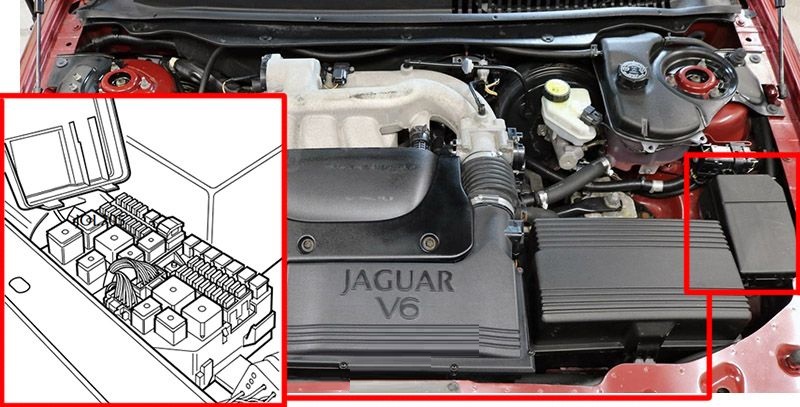

Engine Compartment Fuse Box
The fuse box is located in the engine compartment on the left-hand side adjacent to the battery. Remove the fuse box lid by pressing the retaining lugs and lifting.
Fuse Box Diagrams
Passenger Compartment Fuse Box

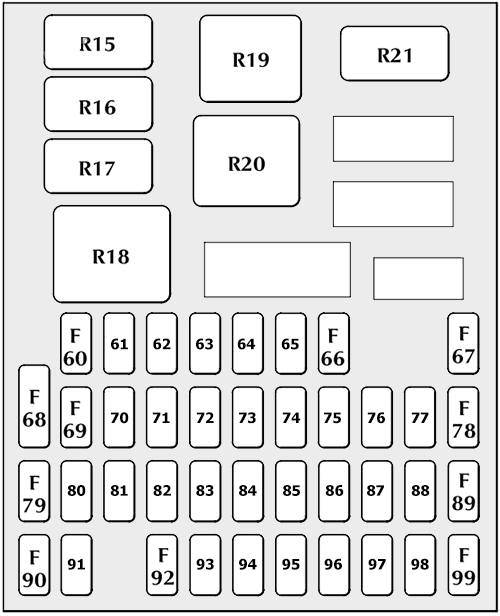

Jaguar X-Type (2001 – 2004)
| № | Amps | Circuit |
|---|---|---|
| F60 | 20A | Power windows left-hand. |
| F61 | 20A | Power windows right-hand. |
| F62 | 7.5A/10A | Rear fog lights. |
| F63 | 7.5A/10A | Right-hand – front side light, side markers, rear tail lights. |
| F64 | 7.5A/10A | Left-hand – front side light, side markers, rear tail lights. |
| F65 | – | Not used. |
| F66 | 30A | Left-hand power seat switches and heater module. |
| F67 | 5A | Battery back-up sounder, transit relay, HID/dip relay, auxiliary vacuum pump control. |
| F68 | 15A | Cigar lighter. |
| F69 | 10A | In-car entertainment head unit, antenna module, navigation module, V1CS, tuner, voice module, parking aid, amplifier premium 1 system, phone handset, phone power supply module, Trafficmaster, instrument cluster, PATS module. |
| F70 | 30A | Right-hand power seat switches and heater module. |
| F71 | 15A | VICS (Japan), Trafficmaster, voice module, telephone transceiver, telephone handset. |
| F72 | 15A | Radio head unit, CD player, navigation electronic control module, Jaguar diagnostic connector/OBD2 connector. |
| F73 | 15A | Sunroof unit/module. |
| F74 | 15A | Instrument cluster, Premium ICE amplifier unit. |
| F75 | 7.5A/10A | Mirror fold-back module, battery back-up sounder, air conditioning ECU. |
| F76 | – | Not used. |
| F77 | 7.5A/10A | 2001: Screenwash pump, rain sense. 2002-2003: Left-hand and right-hand heated seats modules. |
| F78 | 5A | Phone power supply, VEMS. |
| F79 | 10A | Reverse lights, reverse light switch, reverse park aid, electrochromic mirror, instrument cluster. |
| F80 | 7.5A/10A | Park interlock, heater switch, OBD2, blower relay. |
| F81 | 20A | Fuel pump. |
| F82 | 10A/20A | Manual transmission reverse lights, variable power steering, alternator, TCM. |
| F83 | 10A | 2001: Left-hand and right-hand heated seats modules. |
| F84 | 5A | Instrument cluster, pad light, seat weight sensor. |
| F85 | 7.5A/10A | Right-hand high beam light. |
| F86 | 7.5A/10A | Left-hand high beam light. |
| F87 | 15A | Front fog lights, master light switch. |
| F88 | – | Not used. |
| F89 | – | Not used. |
| F90 | 7.5A/15A | Stop lights, cruise control. |
| F91 | 10A | Sunroof, electrochromic mirror, left and right-hand power windows, power mirrors. |
| F92 | 10A | Manual transmission cruise control switch, ignition coils, automatic transmission rotary switch. |
| F93 | 30A | Windscreen wipers. |
| F94 | 20A | HID module. |
| F95 | 10A | Airbag restraints module. |
| F96 | 7.5A/10A | ABS module. |
| F97 | 7.5A/10A | Glove compartment light, instrument cluster lights, licence plate lights. |
| F98 | 10A | Mirror heaters. |
| F99 | 10A | Footwell lights, luggage compartment light, puddle lights, vanity mirror lights, interior lights, aircon control unit, roof console unit. |
| Relays | ||
| R15 | High beam/front fog lights relay. | |
| R16 | Not used. | |
| R17 | Reverse lights. | |
| R18 | Ignition relay. | |
| R19 | Heated rear window relay. | |
| R20 | Blower relay. | |
| R21 | Battery saver relay. |

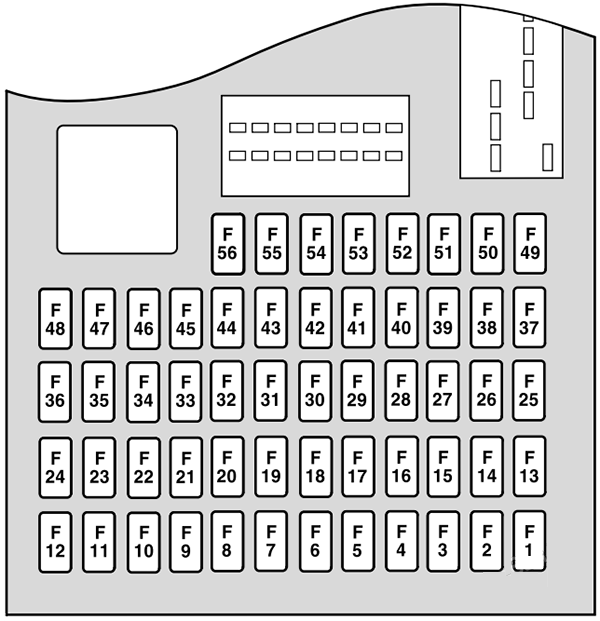

Jaguar X-Type (2004 – 2009)
| № | Amps | Circuit |
|---|---|---|
| F1 | – | Not used. |
| F2 | 10A | Instrument panel, electrochromic mirror, reverse light switch, reverse lights. |
| F3 | 30A | Passenger seat adjustment motors. |
| F4 | 20A | Accessory connectors. |
| F5 | 20A | Rear wiper (Estate only). |
| F6 | – | Not used. |
| F7 | 10A | On board diagnostics, heated front seat modules, rain sensing system, JaguarVoice. |
| F8 | 20A | Heated front seat modules. |
| F9 | 10A | Driver’s seat memory function. |
| F10 | 15A | Sunroof module, SRX antenna. |
| F11 | 20A | Left-hand (front and rear) electric window motors. |
| F12 | 10A | VICS (Japan), JaguarVoice. |
| F13 | – | Not used. |
| F14 | 30A | Heated rear screen. |
| F15 | 10A | Heated door mirrors. |
| F16 | 30A | Driver’s seat adjustment motors. |
| F17 | 20A | Fuel pump driver module and relay. |
| F18 | 15A | Rear accessory socket (Estate only). |
| F19 | 30A | Tow-bar module. Rear accessory socket (Estate only). |
| F20 | 30A | Premium ICE amplifier unit. |
| F21 | 20A | Right-hand (front and rear) electric window motors. |
| F22 | 15A | Door lock module. |
| F23 | 20A | Rear screenwash pump (Estate only). |
| F24 | 20A | Screenwash pump. |
| F25 | 5A | On board diagnostics. |
| F26 | 10A | Manual transmission cruise control clutch switch, rotary switch. |
| F27 | 5A | Touch-screen. |
| F28 | 15A | Front and rear accessory sockets. |
| F29 | 7.5A | Rear fog lights. |
| F30 | 5A | In-car telephone, PSE. |
| F31 | 15A | Ignition switch. |
| F32 | 5A | On board diagnostics. |
| F33 | 5A | Park aid. |
| F34 | 10A | Reverse switch. |
| F35 | 15A | Direction power module. |
| F36 | 20A | Throttle motor relay (2.5L and 3.0L). Fuel pump (2.0L petrol only). |
| F37 | 30A | Climate control blower motor. |
| F38 | 15A | Exterior light switch. |
| F39 | 10A | HID module, air conditioning ECU, blower motor relay coil. |
| F40 | 5A | Sunroof module, electrochromic mirror, power window motors and switches. |
| F41 | 5A | Passenger airbag light, passenger seat weight sensor. |
| F42 | 5A | Power steering module. |
| F43 | 10A | Instrument panel, telematics display, ICE head unit, antenna module, VICS (Japan), navigation system, park aid, JaguarVoice, In-car telephone, accessory relay coil. |
| F44 | 15A | Navigation system ECU, CD player, ICE head unit. |
| F45 | 10A | Air conditioning ECU. |
| F46 | 7.5A | Power fold back door mirrors. |
| F47 | 7.5A | Left-hand side (parking) lights. |
| F48 | 7.5A | Right-hand side (parking) lights. |
| F49 | 10A | Air conditioning ECU, interior courtesy lights, roof console, in-car sensor. |
| F50 | 5A | Automatic transmission control module. |
| F51 | 7.5A | Manual transmission cruise control clutch switch, brake switch. |
| F52 | 15A | Cigar lighter. |
| F53 | 10A | Airbag module ignition supply. |
| F54 | 5A | Instrument panel ignition supply. |
| F55 | 5A | Number plate lights, glove compartment light, Instrument panel. |
| F56 | – | Not used. |
Engine Compartment Fuse Box

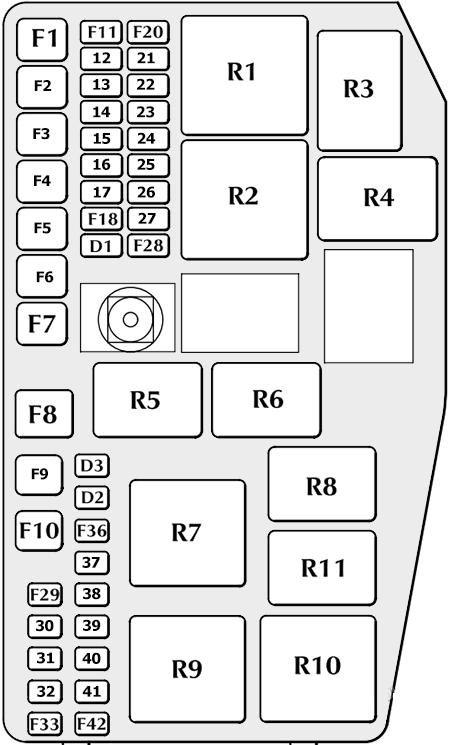

Jaguar X-Type (2001 – 2004)
| № | Amps | Circuit |
|---|---|---|
| F1 | 20A | Dip beam, High Intensity Discharge (HID) light relay. |
| F2 | 50A | Ignition relay feed. |
| F3 | 60A | ABS. |
| F4 | 30A | Rear window heater relay, heated mirrors. |
| F5 | 30A | Auxiliary vacuum pump, transmission control module. |
| F6 | 30A | Heater blower relay. |
| F7 | 50A | Power supply to passenger compartment fuse box. |
| F8 | 80A | Fan module. |
| F9 | 50A | Engine management system power relay, headlight power wash. |
| F10 | 20A | Headlight power wash relay. |
| F11 | – | Not used. |
| F12 | – | Not used. |
| F13 | 30A | Heated front screen right-hand side. |
| F14 | – | Not used. |
| F15 | 30A | Heated front screen left-hand side. |
| F16 | 20A | Left-hand dip beam, DTRL, autolights. |
| F17 | 20A | Right-hand dip beam, HID lights. |
| F18 | 15A | Screenwash pump, rain sensing system. |
| F19 | – | Not used. |
| F20 | 5A | Navigation display. |
| F21 | 15A | Master lighting (Park lights). |
| F22 | 20A | Accessory relay. |
| F23 | 10A | Air conditioning compressor clutch relay. |
| F24 | 15A | Door lock power. |
| F25 | 15A | Direction indicators (GEM). |
| F26 | 15A | Horns relay. |
| F27 | 10A | Transmission control module, transit relay. |
| F28 | 30A | Ignition switch. |
| F29 | 30A | Starter motor relay. |
| F30 | 30A | Accessory sockets. |
| F31 | 10A | Engine management relay coil. |
| F32 | 5A | Engine management control. |
| F33 | 20A | Throttle motor relay. |
| F34 | – | Not used. |
| F35 | – | Diode EMS relay. |
| F36 | 10A | Canister purge valve, canister close valve, airflow meter, throttle motor relay, power wash relay coil, air conditioning relay coil. |
| F37 | 15A | Engine management system, fan speed controller, speed controller. |
| F38 | 30A | Oxygen sensor heaters A. |
| F39 | 5A | Variable intake valves. |
| F40 | 15A | Automatic transmission control module. |
| F41 | 10A | Injectors. |
| F42 | 30A | Oxygen sensor heaters B. |
| Relays | ||
| R1 | Windscreen wipers. | |
| R2 | Heated front windscreen. | |
| R3 | Horn. | |
| R4 | Accessories. | |
| R5 | Headlight powerwash. | |
| R6 | Air conditioning compressor clutch. | |
| R7 | Engine management system. | |
| R8 | Transmission control module. | |
| R9 | Dip beam/HID. | |
| R10 | Starter motor. | |
| R11 | Throttle motor. |

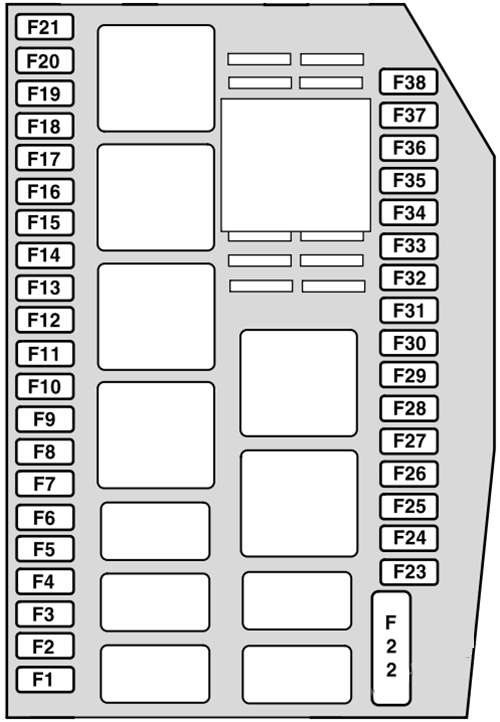

Jaguar X-Type (2004 – 2009)
| № | Amps | Circuit |
|---|---|---|
| F1 | 10A | Right-hand high beam. |
| F2 | 15A | Front fog lamps, master lamp switch. |
| F3 | 20A | Horns (diesel only). |
| F4 | 10A | Left-hand high beam. |
| F5 | 10A | Air conditioning compressor clutch. |
| F6 | 7.5A | Alternator (petrol only). |
| F7 | 5A | Fuel-fired heater relay coil (diesel only). |
| F8 | 30A | Wiper switch. |
| F9 | 30A | Wiper switch, windscreen washer pump, wiper motor. |
| F10 | 15A | Ignition coils (petrol only). |
| F11 | 15A | Automatic transmission control module. |
| F12 | 7.5A | Supplementary heater relay coil (diesel only). |
| F13 | 5A | Anti-lock Braking System (ABS), Dynamic Stability Control (DSC) system. |
| F14 | 30A | Heated front screen left-hand side. |
| F15 | 30A | Heated front screen right-hand side. |
| F16 | 5A | Radiator fans speed control. |
| F17 | 10A | Fuel injectors (petrol only). Exhaust gas recirculation, variable geometry turbocharger control (diesel only). |
| F18 | 10A | Canister purge valve, airflow meter, inlet manifold tuning valve, canister close valve, vacuum module (petrol only). Cruise control module (2.0L petrol only). Glow plug relay coil (diesel only). |
| F19 | 10A | Engine Control Module (ECM) (petrol only). Throttle motor relay (2.5L and 3.0L). Fuel pump relay (2.0L petrol). |
| F20 | 30A (petrol) / 7.5A (diesel) | Oxygen sensor heaters B (petrol only). Inlet manifold valve (diesel only). |
| F21 | 30A (petrol) / 15A (diesel) | Oxygen sensor heaters A (petrol only). Airflow meter, Engine Control Module (ECM) (diesel only). |
| F22 | 60A | Glow plugs (diesel only. This fuse should only be replaced by a Jaguar Dealer/Authorised Repairer). |
| F23 | – | Not used. |
| F24 | 30A | Power wash pump. |
| F25 | – | Not used. |
| F26 | – | Not used. |
| F27 | 15A | Transit relay, vacuum module, battery backed sounder. |
| F28 | Not used. | |
| F29 | 10A/20A | Left-hand dip beam, master lamp switch (autolamps), headlamp levelling, instrument pack. Note: This fuse is rated at 20 A for diesel models fitted with HID headlamps, and for all petrol models. For diesel models that are not fitted with HID headlamps, a 10 A fuse is required. |
| F30 | 10A/20A | Right-hand dipped beam. Note: This fuse is rated at 20 A for diesel models fitted with HID headlamps, and for all petrol models. For diesel models that are not fitted with HID headlamps, a 10 A fuse is required. |
| F31 | 15A | Fuel-fired heater (diesel only). |
| F32 | 15A | Automatic transmission control module. |
| F33 | – | Not used. |
| F34 | 30A | Starter motor solenoid. |
| F35 | 5A | Ignition relay coil. |
| F36 | 5A (petrol) / 7.5A (diesel) | Engine control module (petrol only). Battery sense to alternator (diesel only). |
| F37 | – | Not used. |
| F38 | 20A (petrol) / 30A (diesel) | Horns (petrol only). Auxiliary heater (diesel only). |
