Jaguar XE (2015 – 2019) Fuse Box Location & Diagrams
The Jaguar XE (2015–2019) fuse box contains essential fuses and relays that protect the vehicle’s electrical systems. This blog covers the fuse box locations and diagrams, helping you identify fuse positions, functions, and electrical components for easier troubleshooting and maintenance.
Fuse Box Location

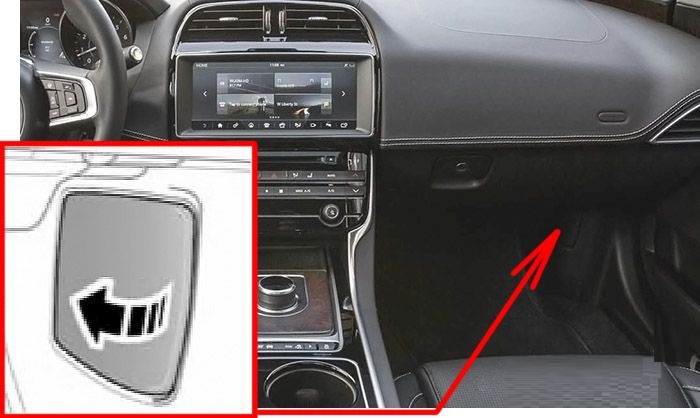

Passenger Compartment Fuse Box
The fuse panel is located on the right-side A-pillar, below the fascia. Use a suitable tool to unclip and release the rearward edge of the panel, and then pull to remove.

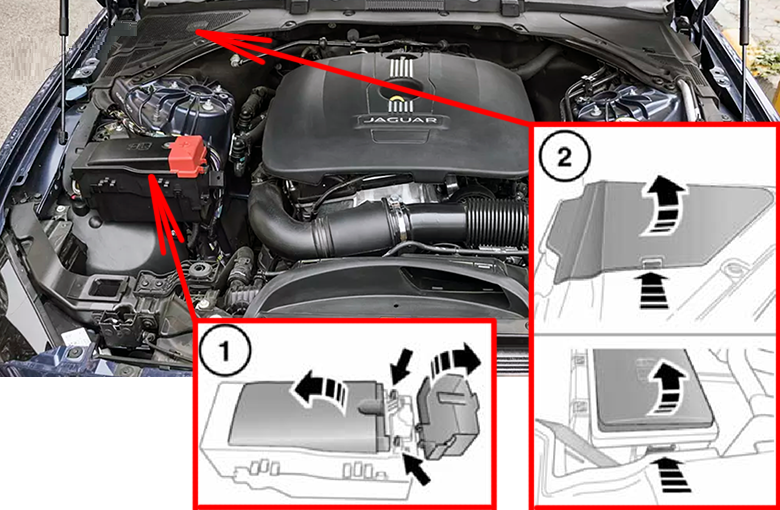

Engine Compartment Fuse Box
Front fuse box: lift up the positive booster terminal cover. Press and hold the fuse box cover retaining clips and then lift to open the cover.
Rear fuse box: Remove the under bonnet cover by lightly pressing and holding the retaining clip, then lift to release and pull to remove. Press and hold the fuse box cover retaining clip to lift and pull to remove.

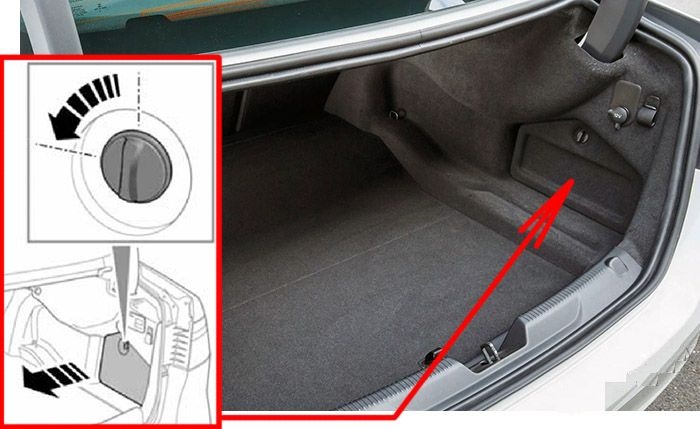

Luggage Compartment Fuse Box
The fuse boxes are accessed by removing the right-side luggage compartment access panel. Turn the retaining lug 90 degrees counter-clockwise to release and remove the access panel.
Fuse Box Diagrams

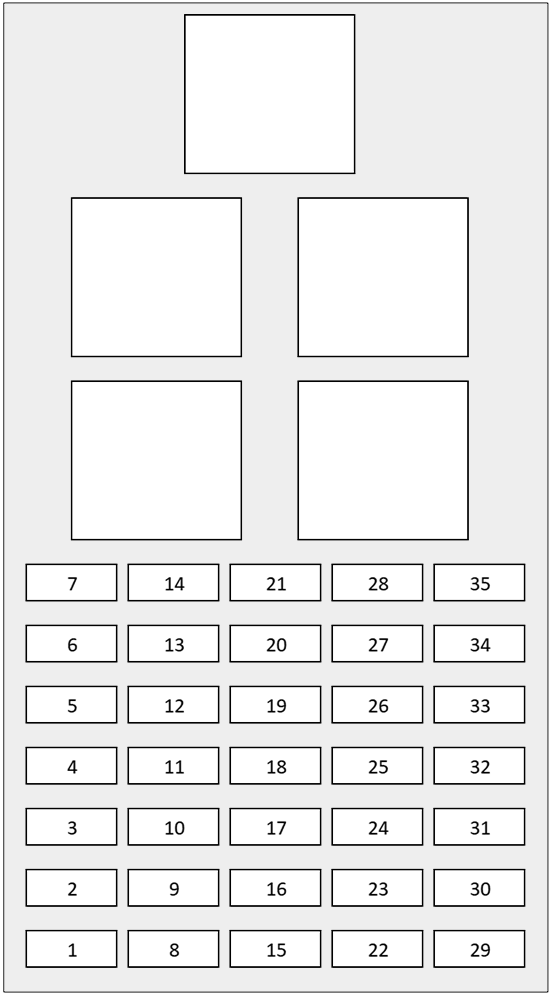

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| 1 | 20A | Sunroof. |
| 2 | 5A | Brake pedal switch. |
| 3 | 5A | Immobilizer antenna unit. |
| 4 | 5A | Diagnostic connector. |
| 5 | 5A | Battery back-up sounder. |
| 6 | 20A | Second row auxiliary power socket. |
| 7 | 20A | Cubby box auxiliary power socket. |
| 8 | 20A | Left front seat. |
| 9 | 20A | Right front seat. |
| 10 | 30A | Left front seat. |
| 11 | 30A | Right front seat. |
| 12 | – | – |
| 13 | 20A | Front auxiliary power socket. |
| 14 | – | – |
| 15 | – | – |
| 16 | 5A | 2016-2017: Battery voltage feed. 2018-2019: Steering wheel module. |
| 17 | 5A | Door handles antenna. |
| 18 | 15A | Horns. |
| 19 | – | – |
| 20 | 20A | Driver’s Heated / Climate seat. |
| 21 | 20A | Front passenger’s Heated / Climate seat. |
| 22 | 25A | Right front door module. |
| 23 | 25A | Left rear door module. |
| 24 | 25A | Right rear door module. |
| 25 | 25A | Left front door module. |
| 26 | – | – |
| 27 | – | – |
| 28 | 10A | Steering angle sensor. |
| 29 | 5A | Keyless vehicle logic module. |
| 30 | 20A | Keyless vehicle latch module. |
| 31 | – | – |
| 32 | 5A | Tire Pressure Monitoring System (TPMS). |
| 33 | 15A | Air Conditioning (A/C) compressor clutch. |
| 34 | – | – |
| 35 | – | – |
Engine Compartment Fuse Box

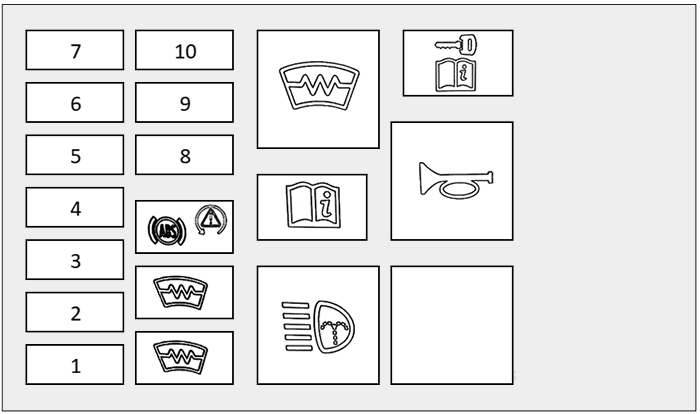

Front Fuse Box
| № | Amps | Circuit |
| 1 | 5A | Left-side headlamp motor. |
| 2 | 5A | Headlamps. |
| 3 | 5A | Right-side headlamp motor. |
| 4 | – | – |
| 5 | – | – |
| 6 | 30A | Headlamp power wash. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | 15A | Intercooler water pump. |

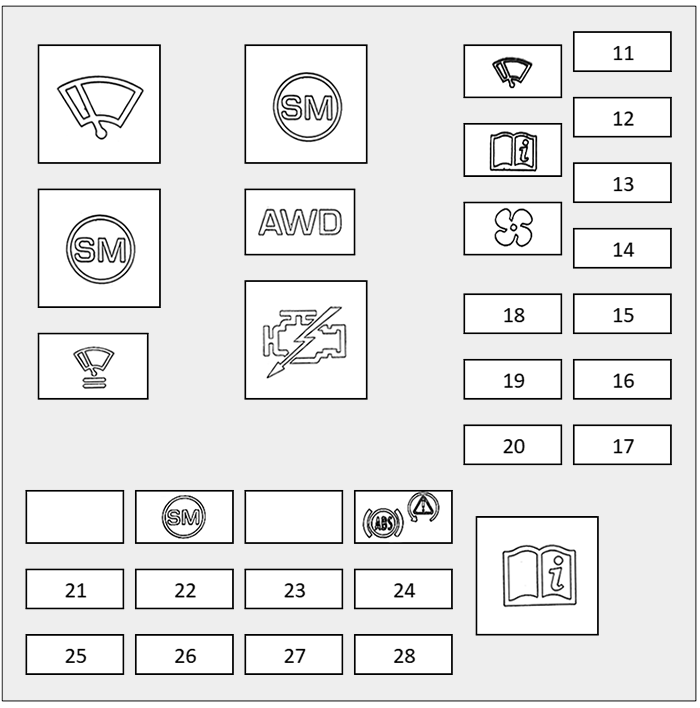

Rear Fuse Box
| № | Amps | Circuit |
| 11 | 15A | Engine management system (2.0L diesel, 3.0L gasoline). |
| 12 | 15A | Engine management system (2.0L diesel, 3.0L gasoline). |
| 13 | 10A | Gear selector. Fuel system. Engine management system. |
| 14 | 10A/15A | Engine management system. |
| 15 | 10A | Engine cooling. Engine mounts. Fuel system. |
| 16 | 25A | Engine management system (2.0L gasoline, 3.0L gasoline). |
| 17 | 10A/20A | Exhaust sensors. |
| 18 | 20A | Exhaust sensors (2.0L diesel, 3.0L gasoline). |
| 19 | 20A | Exhaust sensors (3.0L gasoline). |
| 20 | – | – |
| 21 | – | – |
| 22 | 5A | Intercooler water pump (2.0L diesel, 3.0L gasoline). |
| 23 | 5A | Engine management system. Starter monitor. Electrical power management. |
| 24 | 15A | Automatic transmission. |
| 25 | 30A | Starter motor. |
| 26 | 5A | Engine management system (3.0L gasoline). |
| 27 | 25A | Transfer case. |
| 28 | – | – |
Luggage Compartment Fuse Box

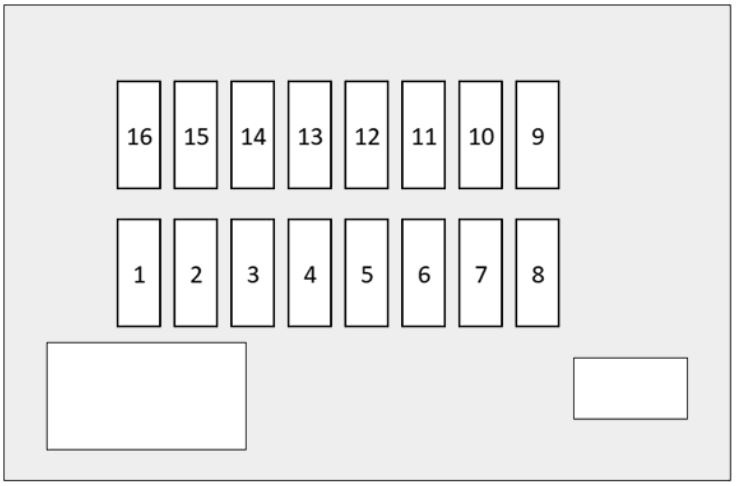

Upper Fuse Box
| № | Amps | Circuits protected |
| 1 | 15A | Touch screen. Climate control panel. |
| 2 | 10A | Audio amplifier. |
| 3 | – | – |
| 4 | 10A | Navigation system. Television tuner. |
| 5 | 15A | Audio head unit. |
| 6 | 15A | Portable media connector panel. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15A | Heating and ventilation system. |
| 16 | – | – |

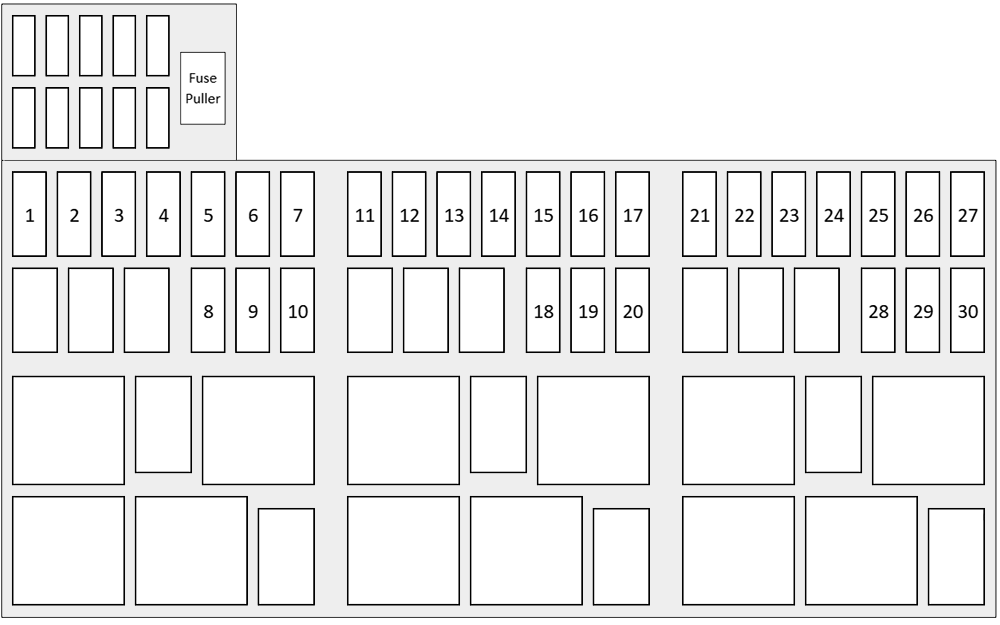

Lower Fuse Box
| № | Amps | Circuits protected |
| 1 | 20A | Luggage compartment auxiliary power socket. |
| 2 | 5A | Rear heated seats. |
| 3 | 20A | Left heated rear seat. |
| 4 | 20A | Right heated rear seat. |
| 5 | 10A | Dynamic Stability Control (DSC). Electronic differential. |
| 6 | 10A | Message center module. |
| 7 | – | – |
| 8 | – | – |
| 9 | 10A | Diesel Exhaust Fluid (DEF). |
| 10 | 25A | Diesel Exhaust Fluid (DEF). |
| 11 | 10A | Rear-view mirror. Blind Spot Monitoring (BSM) system. Camera. |
| 12 | 10A | Entertainment system. |
| 13 | 10A | Heated steering wheel. |
| 14 | 10A | Head-Up Display (HUD). |
| 15 | 5A | Camera. |
| 16 | – | – |
| 17 | 5A | Adaptive Cruise Control (ACC). |
| 18 | – | – |
| 19 | – | – |
| 20 | 10A | Telematics. |
| 21 | – | – |
| 22 | 15A | Driver’s door switches. Driver’s seat. Driver’s seat switches. Front passenger seat. |
| 23 | 10A | Rear sun blind. |
| 24 | 20A | Rear auxiliary power socket. |
| 25 | – | – |
| 26 | – | – |
| 27 | – | – |
| 28 | 30A | Fuel system. |
| 29 | 30A | Powered luggage compartment lid. |
| 30 | 5A | Diesel pump. |
