Jaguar XE (2020 – 2024) Fuse Box Location & Diagrams
The Jaguar XE (2020–2024) fuse box contains essential fuses and relays that protect the vehicle’s electrical systems. Knowing the fuse box locations and diagrams makes it easier to identify fuse assignments and understand which circuits control lighting, power accessories, engine systems, and other electrical components.
Fuse Box Location

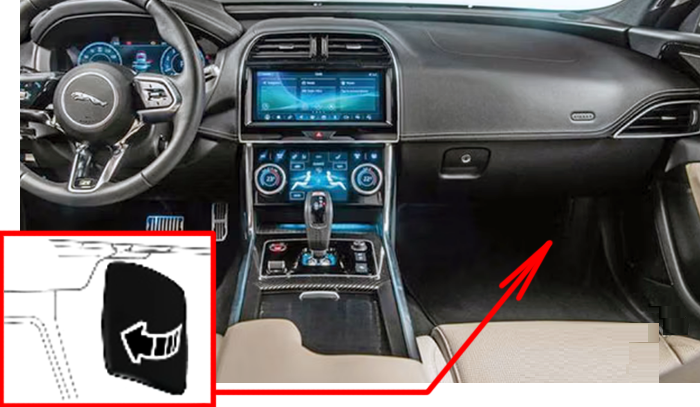

Passenger Compartment Fuse Box
The fuse panel is located on the right-side A-pillar, below the fascia. Use a suitable tool to unclip and release the rearward edge of the panel, and then pull to remove.

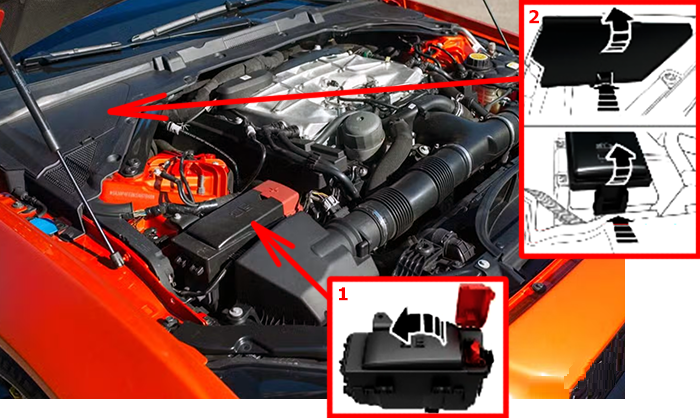

Engine Compartment Fuse Box
- Engine compartment front fuse box: Lift up the positive booster terminal cover. Press and hold the fuse box cover’s securing clips. Lift to open the cover.
- Engine compartment rear fuse box: Remove the under-bonnet cover by lightly pressing and holding the securing clip, then lift to release and pull to remove. Press and hold the fuse box cover’s securing clip. Lift to open the cover and pull to remove.

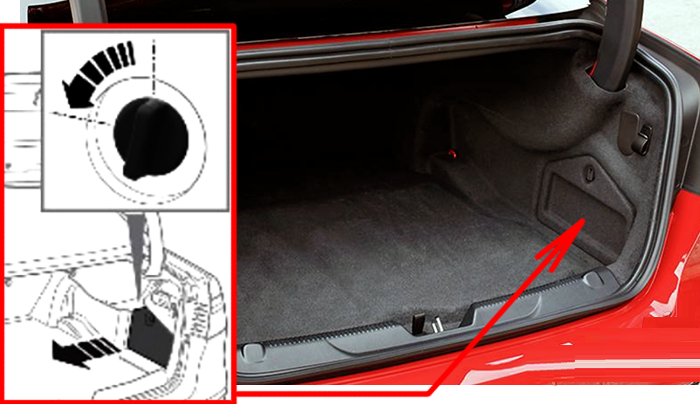

Luggage Compartment Fuse Box
Remove the right-side luggage compartment access panel. To do this, turn the securing clip 90 degrees counter-clockwise to release the panel.
Fuse Box Diagrams

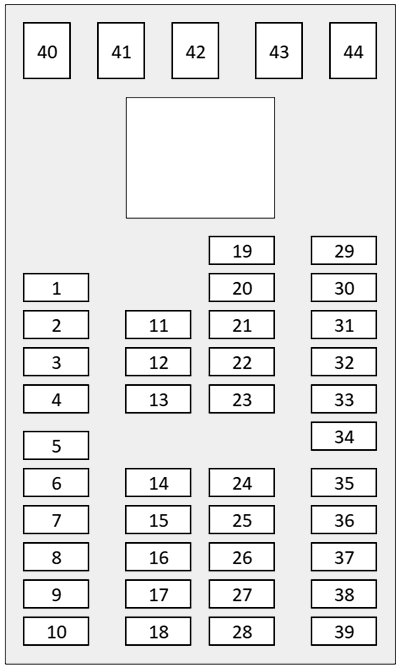

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | 25A | Right-side rear door. |
| 4 | 25A | Right-side front door. |
| 5 | 20A | Sunroof. |
| 6 | 5A | – |
| 7 | 5A | Vehicle imobiliser. |
| 8 | 5A | Diagnostic socket. |
| 9 | 5A | Battery back-up sounder. |
| 10 | – | – |
| 11 | 5A | Tyre Pressure Monitoring System (TPMS). |
| 12 | – | – |
| 13 | 25A | Left-side front door module. |
| 14 | – | – |
| 15 | 30A | Right-side front seat. |
| 16 | 30A | Left-side front seat. |
| 17 | 20A | Right-side front seat. |
| 18 | 20A | Left-side front seat. |
| 19 | 20A | Cubby box auxiliary power socket. |
| 20 | 20A | Second row auxiliary power socket. |
| 21 | 20A | Auxiliary power socket. |
| 22 | 10A | Wireless phone charging. |
| 23 | 25A | Left-side rear door. |
| 24 | 15A | Horns. |
| 25 | 5A | Radio Frequency (RF) receiver. |
| 26 | 5A | Steering wheel module. |
| 27 | – | – |
| 28 | 5A | Road pricing. |
| 29 | – | – |
| 30 | – | – |
| 31 | 10A | Heated steering wheel. |
| 32 | 20A | Left-side front heated/climate seat. |
| 33 | 20A | Right-side front heated/climate seat. |
| 34 | 5A | Ioniser. |
| 35 | 5A | Keyless entry. |
| 36 | – | – |
| 37 | – | – |
| 38 | 20A | Keyless locking. |
| 39 | 5A | Driver assistance systems. |
| 40 | 40A | Climate and comfort systems. |
| 41 | – | – |
| 42 | 40A | Body control systems. |
| 43 | – | – |
| 44 | 40A | Body control systems. |
Engine Compartment Fuse Box

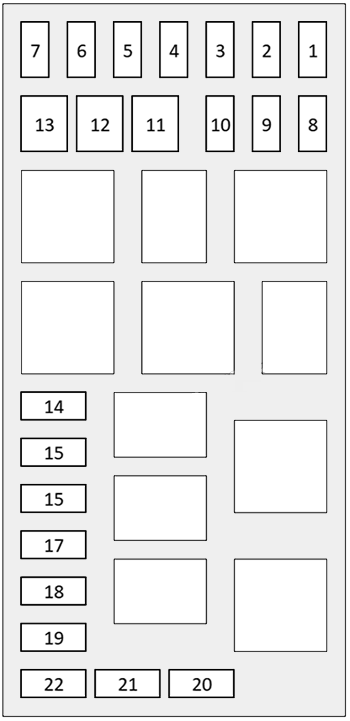

Fuse Box No 1
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 25A | Left-side headlight. |
| 2 | 25A | Right-side headlight. |
| 3 | 5A | Driver assistance systems. |
| 4 | 5A | Hybrid system. |
| 5 | – | – |
| 6 | – | – |
| 7 | – | – |
| 8 | 30A | Headlight power wash. |
| 9 | – | – |
| 10 | 15A | Intercooler water pump. |
| 11 | 60A | Anti-lock Braking System (ABS). |
| 12 | 40A | Heated front wind screen (right side). |
| 13 | 40A | Heated front wind screen (left side). |
| 14 | – | – |
| 15 | – | – |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
| 19 | – | – |
| 20 | 40A | Glow plugs. |
| 21 | 40A | Glow plugs. |
| 22 | – | – |

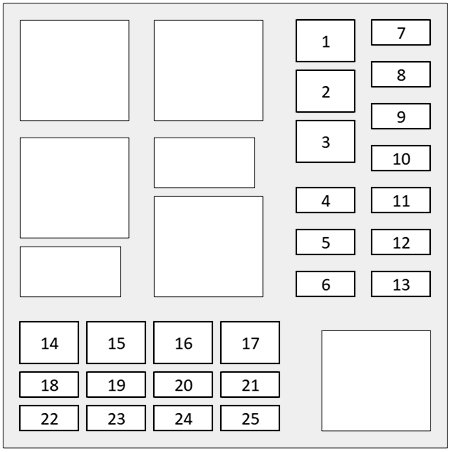

Fuse Box No 2
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 30A | Wiper motor (front). |
| 2 | 40A | Engine control module. |
| 3 | – | – |
| 4 | – | – |
| 5 | 20A | Engine management system. |
| 6 | – | – |
| 7 | 10A | Engine management system. |
| 8 | 10A | Engine management system. |
| 9 | 10A | Engine management system. |
| 10 | 10A | Engine management system. |
| 11 | 10A | Engine management system. |
| 12 | 25A | Ignition coils. |
| 13 | 20A | Engine management system (diesel only). |
| 14 | – | – |
| 15 | 40A | Starter motor. |
| 16 | – | – |
| 17 | 60A | Anti-lock Braking System (ABS). |
| 18 | – | – |
| 19 | 5A | Intercooler water pump. |
| 20 | – | – |
| 21 | 15A | Gear selector. |
| 22 | – | – |
| 23 | – | – |
| 24 | 25A | All Wheel Drive (AWD system). |
| 25 | – | – |

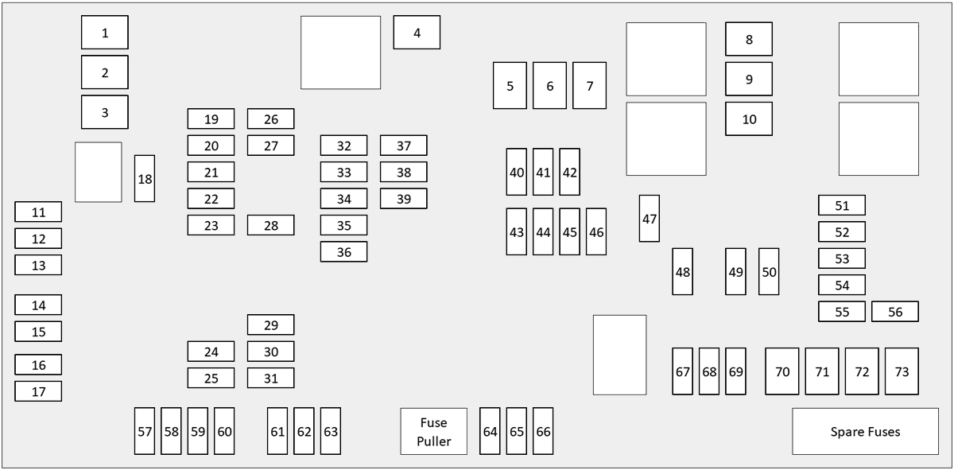

Luggage Compartment Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | – | – |
| 4 | 30A | Heated rear screen. |
| 5 | – | – |
| 6 | – | – |
| 7 | 40A | Infotainment amplifier. |
| 8 | – | – |
| 9 | 40A | Auxiliary heater. |
| 10 | 40A | Auxiliary heater. |
| 11 | – | – |
| 12 | 20A | Left-side heated rear seat. |
| 13 | 20A | Right-side heated rear seat. |
| 14 | 15A | Chassis control module. |
| 15 | 5A | Rear seat switches. |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
| 19 | 5A | Blindspot monitoring, Exit detection. |
| 20 | 5A | ClearSight rear-view mirror. |
| 21 | 15A | Seat switch packs. |
| 22 | – | – |
| 23 | 10A | Rear sunblind. |
| 24 | 5A | Telematics. |
| 25 | – | – |
| 26 | 20A | Loadspace USB socket. |
| 27 | 20A | Centre console rear USB socket. |
| 28 | 5A | Adaptive cruise control radar. |
| 29 | 15A | Climate and comfort systems. |
| 30 | 20A | Auxiliary heater. |
| 31 | – | – |
| 32 | – | – |
| 33 | 2A | Electronic toll charge. |
| 34 | 10A | ClearSight rear-view mirror camera. |
| 35 | – | – |
| 36 | 5A | Forward-facing camera. |
| 37 | – | – |
| 38 | 10A | Instrument panel. |
| 39 | 10A | Head-Up Display (HUD). |
| 40 | 10A | Gesture tailgate. |
| 41 | – | – |
| 42 | 10A | Climate control. |
| 43 | – | – |
| 44 | 15A | Infotainment module. |
| 45 | 10A | Audio/video input/output. |
| 46 | 10A | Touchscreen. |
| 47 | 30A | Fuel pump. |
| 48 | 25A | Vehicle emissions. |
| 49 | 5A | Fuel pump. |
| 50 | – | – |
| 51 | – | – |
| 52 | – | – |
| 53 | – | – |
| 54 | – | – |
| 55 | – | – |
| 56 | – | – |
| 57 | – | – |
| 58 | 10A | Near field sensing module. |
| 59 | 30A | Powered tailgate. |
| 60 | – | – |
| 61 | 10A | Hybrid system. |
| 62 | – | – |
| 63 | 15A | Hybrid system. |
| 64 | – | – |
| 65 | – | – |
| 66 | – | – |
| 67 | 15A | Trailer socket. |
| 68 | 15A | Trailer socket. |
| 69 | – | – |
| 70 | – | – |
| 71 | 30A | Electrically deployable tow bar. Legal lighting. |
| 72 | – | – |
| 73 | – | – |
