Jaguar XF (2007 – 2015) Fuse Box Location & Diagrams
The Jaguar XF (2007–2015) features strategically placed fuse boxes that protect essential electrical systems throughout the vehicle. Knowing the fuse box locations and understanding the diagrams makes it easier to identify individual fuses, check circuits, and troubleshoot common electrical issues efficiently.
Fuse Box Location
Passenger Compartment Fuse Box

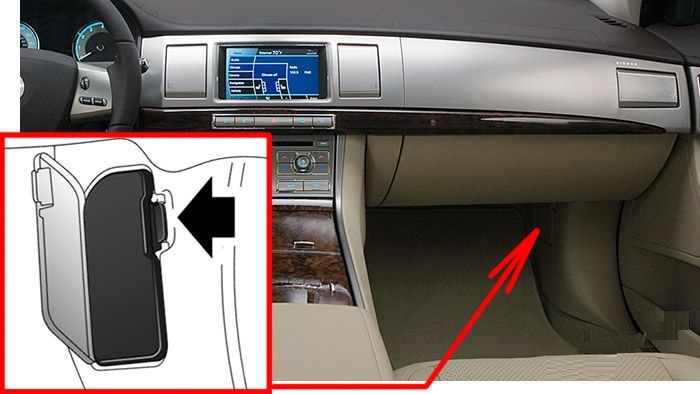

The passenger compartment fuse box is located behind an access hatch in the right-hand footwell. Press the release catch to access the fuse box.
Engine Compartment Fuse Box

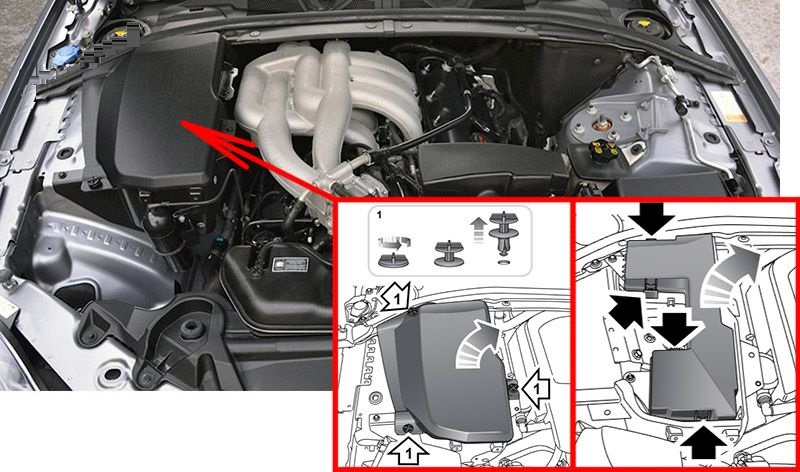

The fuse box is located underneath a cover on the right-hand side of the engine compartment. To access the fuses remove the engine compartment right-hand cover by releasing the turnbuckles (1). Remove the fuse box lid by pressing the retaining lugs (solid arrows) and lifting.
Luggage Compartment Fuse Box

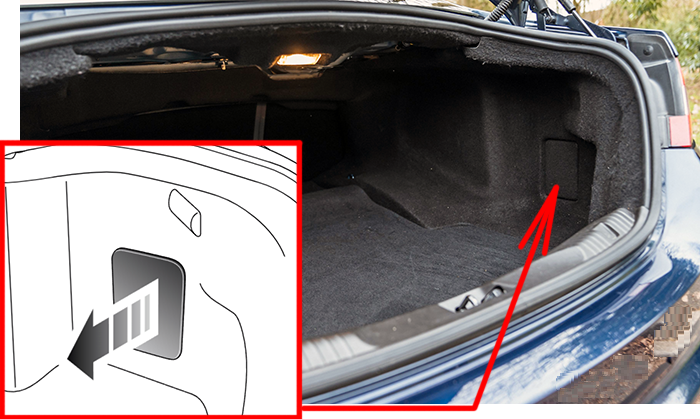

The fuse box is located behind an access hatch on the right-hand side of the luggage compartment. Push down on the top of the hatch and pull away from the side of the vehicle, to access the fuse box.
Fuse Box Diagrams

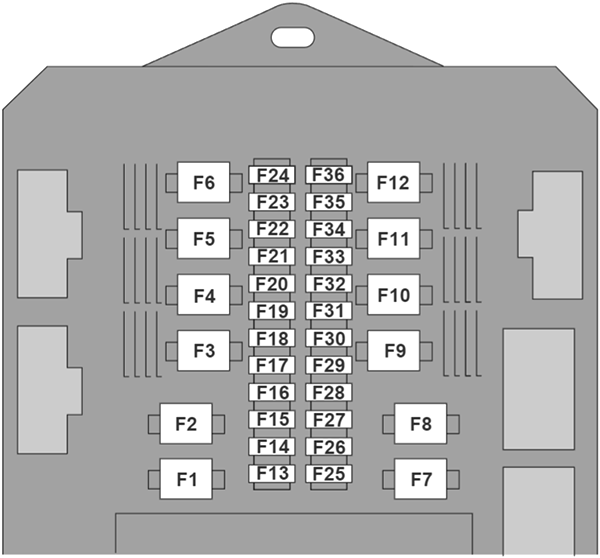

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | – | Not used. |
| F2 | – | Not used. |
| F3 | 20A | Driver’s seat adjustment. |
| F4 | 20A | Driver’s seat adjustment. |
| F5 | – | Not used. |
| F6 | – | Not used. |
| F7 | – | Not used. |
| F8 | 20A | Front passenger’s seat adjustment. |
| F9 | 20A | Front passenger’s seat adjustment. |
| F10 | 20A | Left-hand rear door controls. |
| F11 | 20A | Right-hand rear door controls. |
| F12 | – | Not used. |
| F13 | 10A | Steering column adjust. |
| F14 | – | Not used. |
| F15 | – | Not used. |
| F16 | 5A | Sunblind. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | 5A | Remote control receiver. |
| F21 | 5A | Foot brake. |
| F22 | 5A | Electric parking brake. |
| F23 | 5A | Driver’s seat. Audio system. Auto headlamps. Upper centre console switches. |
| F24 | 10A | Front passenger seat. Electric windows. Mirror adjustment. |
| F25 | 20A | Driver’s heated/climate seat |
| F26 | 15A | Trailer power connector. Road pricing system. |
| F27 | 20A | Front passenger’s heated/climate seat. |
| F28 | 15A | Auxiliary power socket. |
| F29 | 20A | Keyless entry system. |
| F30 | 10A | Air conditioning. |
| F31 | 15A | Sunroof. |
| F32 | 5A | 2007-2011: Jaguar Smart Key docking station. 2011-2015: Starter control unit. |
| F33 | 5A | Diagnostic connector. |
| F34 | 5A | Instrument pack. |
| F35 | 15A | Interior lamps. |
| F36 | 10A | Suspension system. |

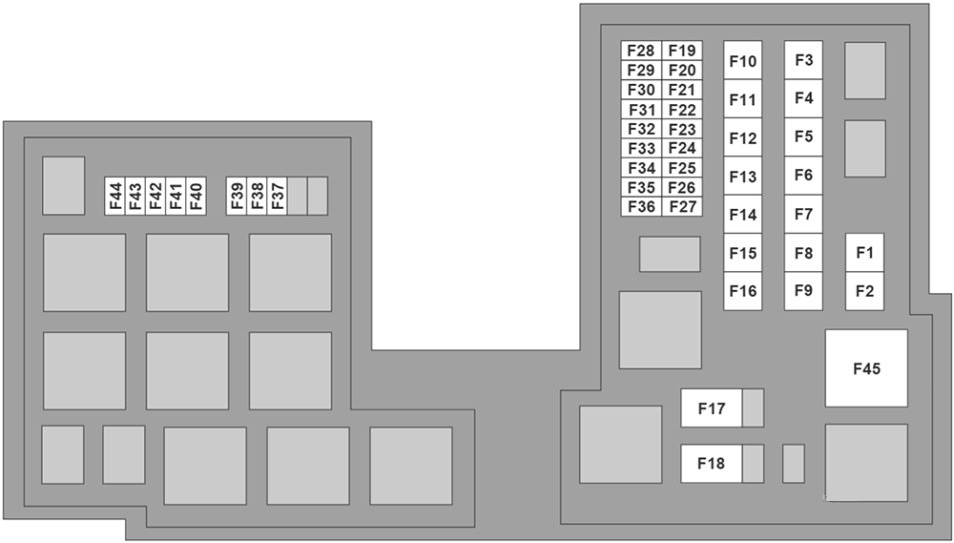

Engine Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | – | Not used. |
| F2 | – | Not used. |
| F3 | 20A | Petrol: Emissions system. |
| F4 | 20A | Petrol: Emissions system. |
| F5 | 40A | Anti-lock brake pump (ABS). |
| F6 | 30A | Power wash pump. |
| F7 | 50A | 2011-2015: Cigar lighter. |
| F8 | – | Not used. |
| F9 | 50A | Engine management. |
| F10 | – | Not used. |
| F11 | – | Not used. |
| F12 | 50A | Petrol: Secondary air injection. |
| F13 | 30A | Wipers. |
| F14 | 30A | Starter solenoid. |
| F15 | 40A | Front screen heater – RH. |
| F16 | 40A | Front screen heater – LH. |
| F17 | 80A | V6 petrol: Radiator fan. |
| F18 | 60A | Diesel: Glow plugs. |
| F19 | 5A | 2011-2015: Adaptive cruise control. FLS. |
| F20 | 15A | Horn. |
| F21 | 25A | Anti-lock brake valves (ABS). |
| F22 | 15A | 2007-2011: Cigar lighter. |
| F23 | – | Not used. |
| F24 | 5A | 2007-2011: Adaptive cruise control. |
| F25 | 10A | Anti-lock brake ECM (ABS). |
| F26 | 10A | Engine management. JaguarDrive selector. Transmission control module. |
| F27 | 5A | Diesel (2007-2011): Engine management. Petrol: Secondary air injection. |
| F28 | 5A | 2011-2015: Adaptive front lighting – LH. |
| F29 | 5A | 2011-2015: Adaptive front lighting – RH. |
| F30 | – | Not used. |
| F31 | 20A | 2011-2015: Auxiliary power socket – rear. |
| F32 | 20A | 2011-2015: Cigar lighter. |
| F33 | – | Not used. |
| F34 | – | Not used. |
| F35 | 5A | Air conditioning compressor clutch. |
| F36 | 15A/20A | Diesel: Engine management system (15A). V8 petrol: Engine management system (20A). |
| F37 | 15A | Petrol: Ignition system. |
| F38 | 5A | Power steering. |
| F39 | 5A | Headlamp levelling system. |
| F40 | 15A | Water pump (Supercharged vehicles only). |
| F41 | 5A/10A | Diesel (2007-2011): Emissions system (5A). Diesel (2011-2015): Engine management system (5A). Petrol: Engine management system (10A). |
| F42 | 30A/10A/20A | Diesel (2007-2011): Engine management system. Ignition supply. Petrol (2007-2011): Engine management system. Ignition supply. Radiator fan. 2011-2015: Engine management system. |
| F43 | 5A/10A | Diesel (2007-2011): Fuel system. Petrol (2007-2011): Engine management system. Emission control. 2011-2015: Engine management system. |
| F44 | 5A/10A/15A | Diesel: Engine management system. Petrol (2007-2011): Fuel injectors. Petrol (2011-2015): Engine management system. |
| F45 | 100A | Radiator fan (diesel and V8 petrol only). |

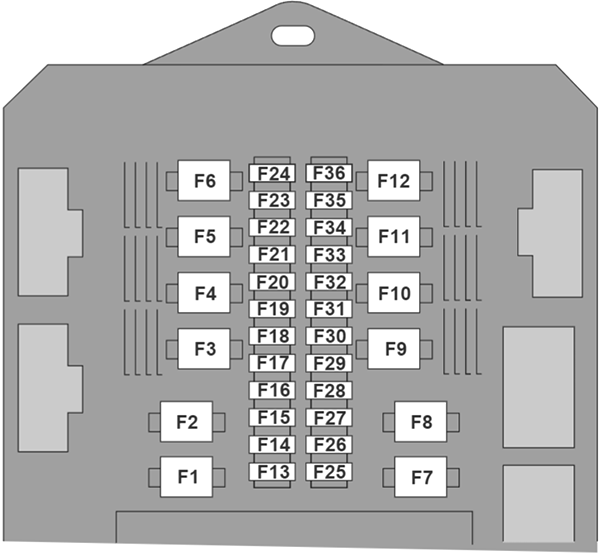

Luggage Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| F1 | 30A | Air blower. |
| F2 | 30A | Electric parking brake. |
| F3 | – | Not used. |
| F4 | – | Not used. |
| F5 | – | Not used. |
| F6 | – | Not used. |
| F7 | 30A | Heated rear screen. |
| F8 | 30A | Audio system (Premium audio only). |
| F9 | 50A | RBD link. |
| F10 | 40A | Rear electronic differential (e-Diff). |
| F11 | – | Not used. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | 5A | Telephone. |
| F15 | 10A | TV, DVD, DAB radio. |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | – | Not used. |
| F24 | – | Not used. |
| F25 | 25A | Fuel pump. |
| F26 | 15A | Audio system. Portable audio interface. |
| F27 | 10A | Navigation. Voice recognition. Touch-screen. |
| F28 | 15A | Trailer power connector. Road pricing system. |
| F29 | 15A | Trailer power connector. |
| F30 | 25A | Driver’s door module. |
| F31 | 25A | Front passenger door module. |
| F32 | – | Not used. |
| F33 | 5A | Tyre pressure monitoring system. |
| F34 | – | Not used. |
| F35 | 10A | Supplementary restraint system. |
| F36 | 10A | Pedestrian protection system. |
