Land Rover Range Rover (2002 – 2012) Fuse Box Location & Diagrams
This blog covers the Land Rover Range Rover (2002–2012) fuse box locations and diagrams, helping you quickly identify the fuse panels and understand their layout. Find the relevant fuse box positions for different model years and use the diagrams to locate fuses efficiently when troubleshooting electrical issues.
Fuse Box Location
Passenger Compartment Fuse Box

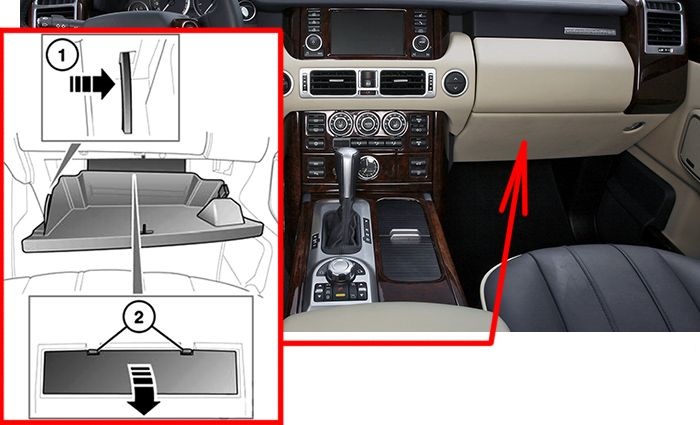

To access the passenger compartment fuse box, open the lower glove box, push the retaining rod (1) to the right and lower the glove box to the service position. Push on the catches on the fuse box cover (2) and pull towards you. Put the lid in a safe place. The label on the back of the cover shows fuse and circuit information.
Luggage Compartment Fuse Box

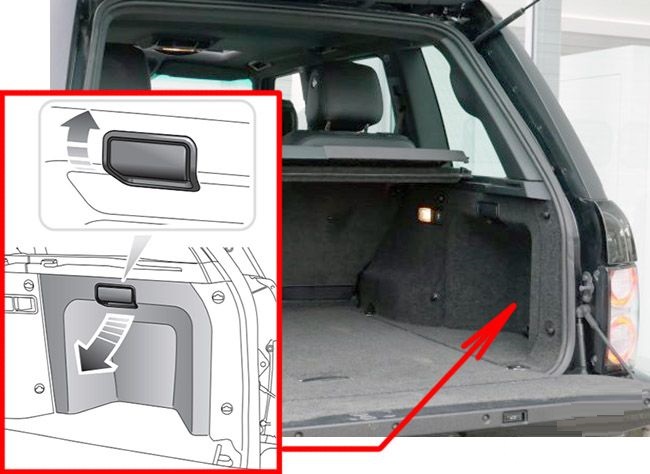

The fuse box is situated on the right-hand side of the loadspace behind the rear loadspace access hatch. Lift the catch (upper inset) and pull the hatch away from the side of the vehicle.
Fuse Box Diagrams
Passenger Compartment Fuse Box

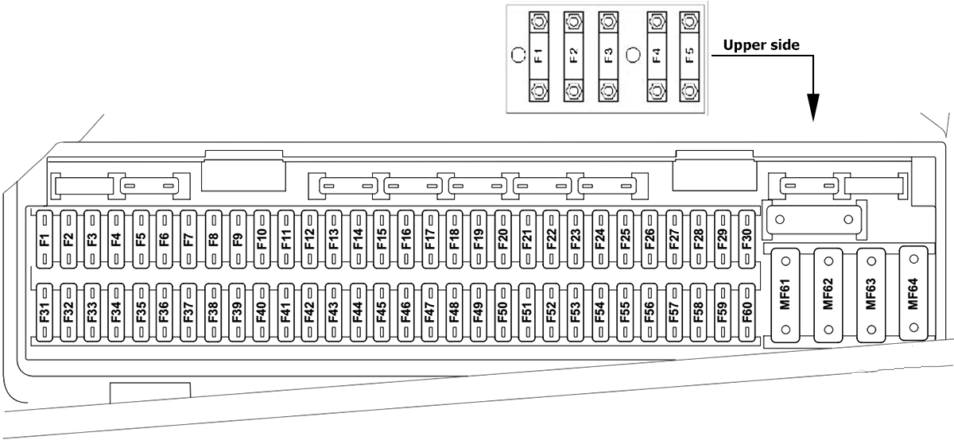

Land Rover Range Rover (2002 – 2005)
| № | Amps | Function |
|---|---|---|
| FL1 | 80 A | Heated front screen relay. |
| FL2 | 60 A | Td6: Ignition switch. V8: Engine immobilisation ECU, header 499. |
| FL3 | 50 A | Light Check Module. |
| FL4 | 50 A | Light Check Module. |
| FL5 | 100 A | MF17, MF18, MF19, F1, F2, F3, F4, F6, F7, F9, F10, F11, F12, F13, F14, F15 and F16 of the rear fuse box. |
| F1 | 5 A | Instrument pack |
| F2 | 5 A | Heated rear screen relay, rear blower motor relay seat heat relay relay 2, F5 and F8 of the rear fuse box. |
| F3 | 7.5 A | Fuel cooling fan motor. |
| F4 | 5 A | Light Check Module, Door lamp module. |
| F5 | 7.5 A | Diagnostic socket, EAT ECU. |
| F6 | 5 A | Tyre Pressure Monitoring ECU, Interior mirror, Park Distance Control ECU. |
| F7 | 5 A | Not used. |
| F8 | 5 A | On-board computer, Audio system. |
| F9 | 5 A | Light Check Module, Brake pedal switch, Rotary coupler. |
| F10 | 15 A | Horn relay |
| F11 | 30 A | Drivers door module, Central locking, External mirrors, Electric windows – front |
| F12 | 10 A | Air conditioning, Heated seats – front |
| F13 | 5 A | Transmission selector indicator lamp, Steering angle sensor, Clock, ABS, Dynamic Stability Control. |
| F14 | 5 A | – |
| F15 | 5 A | Diagnostic socket, BCU, Central locking, Electric windows – front |
| F16 | 5 A | Tyre Pressure Monitoring ECU. |
| F17 | 5 A | Door lamp module, Exterior mirrors, Interior lights |
| F18 | 10 A | Engine immobilisation ECU, Steering column interlock ECU. |
| F19 | – | – |
| F20 | 30 A | LH seat switch pack, Steering column |
| F21 | 30 A | RH seat switch pack. |
| F22 | 7.5 A | Telephone module. |
| F23 | 15 A | Steering wheel relay. |
| F24 | 30 A | Passenger door module, Central locking, Exterior mirrors Electric windows – front |
| F25 | 5 A | Ignition switch / Immobilisation. |
| F26 | 30 A | Windscreen wiper delay ECU. |
| F27 | 20 A | BCU, Glove box light, Interior lights, Windshield washers. |
| F28 | 30 A | Headlamp wash/wipe relay. |
| F29 | 10 A | Steering wheel heater ECU. |
| F30 | 15 A | Electronic damper control |
| F31 | 5 A | ECM, Steering column interlock ECU. |
| F32 | 5 A | LH Xenon headlamp, RH Xenon headlamp. |
| F33 | 5 A | Transfer box ECU. |
| F34 | 7.5 A | Air conditioning, Blower |
| F35 | 5 A | Centre console switch pack, Hill Descent Control switch, ABS, Dynamic Stability Control |
| F36 | 5 A | – |
| F37 | 5 A | Transfer box ECU – Only fitted for towing purposes. |
| F38 | 5 A | – |
| F39 | 5 A | Steering column lighting switch / Immobilisation. |
| F40 | 5 A | CD autochanger. |
| F41 | 5 A | BCU, Rain sensor, Rear screen wiper ECU. |
| F42 | 5 A | LH vanity mirror, RH vanity mirror. |
| F43 | 5 A | Tilt sensor, Alarm, Interior mirror, BBUS, Volumetric sensor. |
| F44 | 5 A | SRS DCU, occupancy detector, LH seat belt buckle, RH seat belt buckle. Airbag SRS – DO NOT REMOVE |
| F45 | 5 A | Instrument pack. |
| F46 | 5 A | Instrument pack. |
| F47 | 30 A | Heated washer jet relay. |
| F48 | 15 A | – |
| F49 | 30 A | Navigation system, On-board computer, On-board monitor, Audio system |
| F50 | – | – |
| F51 | 10 A | Td6: Steering angle sensor, ABS ECU, fuel pump relay. V8: Steering angle sensor, Secondary Air Injection pump relay, Secondary Air Injection pump, ABS ECU, fuel pump relay. |
| F52 | 25 A | HeVAC control module / Heated seats – front. |
| F53 | 30 A | Ignition switch. |
| F54 | 15 A | EAT ECU. |
| F55 | 30 A | ABS ECU. |
| F56 | 7.5 A | Relay 6. |
| F57 | 15 A | Air suspension ECU. |
| F58 | 20 A | Sunroof ECU. |
| F59 | 20 A | Fuel burning heater, Fuel burning heater receiver. |
| F60 | 30 A | BCU, Central locking, Electric windows – rear. |
| MF61 | 50 A | Cooling fan control unit. |
| MF62 | 50 A | V8: Secondary Air Injection pump relay. |
| MF63 | 50 A | ABS ECU. |
| MF64 | 50 A | Front blower motor control unit. |
| Upper side: | ||
| F1 | 80 A | Heated windscreen |
| F2 | 60 A | Ignition switch (Diesel), immobilizer (petrol) |
| F3 | 50 A | Bulb failure warning module |
| F4 | 50 A | Bulb failure warning module |
| F5 | 100 A | Fascia fuse box/relay plate (F1-F4/F6-F15), load area fuse box/relay plate |

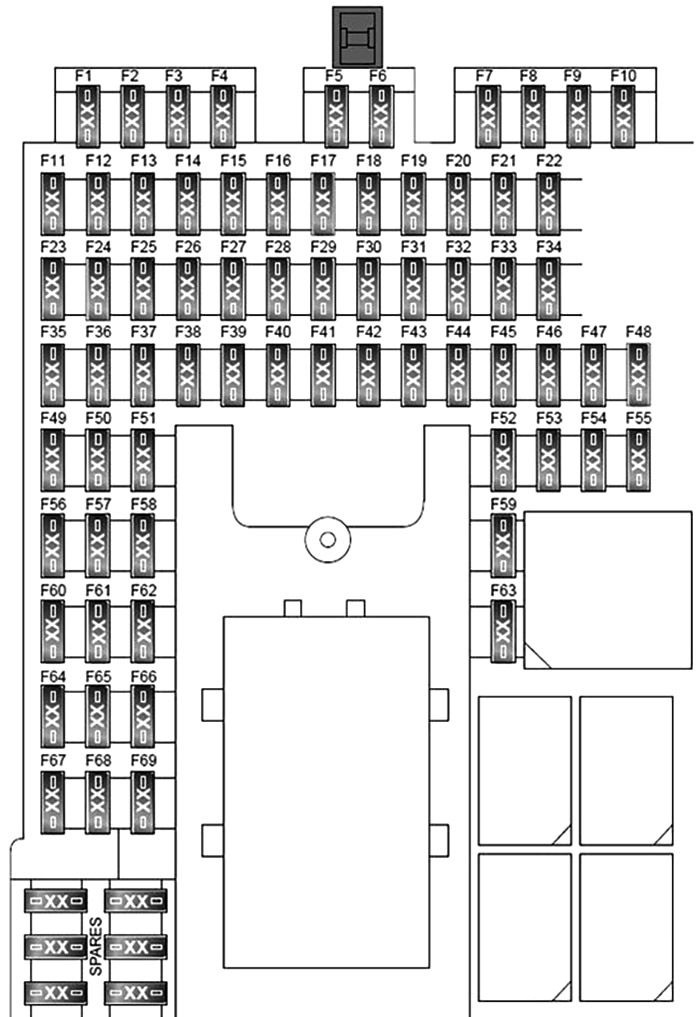

Land Rover Range Rover (2006 – 2012)
| № | Amp | |
|---|---|---|
| 1 | 5A | Occupancy Sensor, RF Receiver, TPMS Receiver |
| 2 | – | – |
| 3 | 10A | Fog lights |
| 4 | – | – |
| 5 | 5A | Dynamic stability control, steering angle sensor |
| 6 | 5A | Adaptive cruise control, brake light switch |
| 7 | 20A | Rear seats ventilation |
| 8 | 30A | Power passenger seat, rear power seats |
| 9 | 5A | Electric parking brake |
| 10 | 5A | Air suspension |
| 11 | 10A | Trailer reversing lights |
| 12 | 5A | Reversing lights |
| 13 | – | – |
| 14 | 5A | Brake lights, Engine Management System (EMS) (diesel only) |
| 15 | 30A | Heated rear window |
| 16 | 5A | Spare fuse |
| 17 | 5A | Keyless entry/start |
| 18 | – | – |
| 19 | 5A | Engine control module |
| 20 | 10A | Steering wheel heating |
| 21 | 10A | Center console switches, rear climate control, heated seats |
| 22 | 5A | Transmission, transfer case, rear differential, center console switches |
| 23 | 5A | Adaptive front lighting system |
| 24 | 10A | Side marker lights and taillights (right hand side) |
| 25 | 10A | Side marker lights, taillights (left hand side), license plate lights |
| 26 | – | – |
| 27 | 10A | Trailer marker lights |
| 28 | 20A | Rear seats ventilation |
| 29 | 20A | Heated/climatized seat, driver’s side |
| 30 | 25A | Passenger door |
| 31 | 5A | Rain sensor |
| 32 | 25A | Driver’s door |
| 33 | 20A | Heated/climatized seat, passenger side |
| 34 | 10A | Electric fuel filler flap actuator |
| 35 | – | – |
| 36 | 5A | Battery back-up sounder |
| 37 | 20A | Spare fuse |
| 38 | 15A | Windshield washer |
| 39 | 25A | Left rear door |
| 40 | 5A | Driver’s window switch group, seat switch groups, front seat lumbar support, clock |
| 41 | 5A | Phone |
| 42 | 30A | Driver’s power seat, rear power seats |
| 43 | 15A | Rear window washer |
| 44 | 25A | Right rear door |
| 45 | 30A | Power passenger seat, rear power seats |
| 46 | 30A | Driver’s power seat, rear power seats |
| 47 | 20A | Sunroof |
| 48 | 30A | Trailer connector (battery powered) |
| 49 | 5A | Adaptive front lighting system (right headlight) |
| 50 | 5A | Adaptive front lighting system (left headlight) |
| 51 | 5A | Steering wheel switches |
| 52 | 20A | Front cigarette lighter, center console auxiliary power socket |
| 53 | – | – |
| 54 | – | – |
| 55 | 20A | Auxiliary power socket (rear) |
| 56 | 10A | Airbag Supplemental Restraint System (SRS) |
| 57 | 10A | Interior lights, battery saver circuits |
| 58 | 30A | Drop down stirrup |
| 59 | – | – |
| 60 | – | – |
| 61 | 10A | Instrument panel |
| 62 | 10A | Electronic control unit of the climate control system |
| 63 | 20A | Rear cigarette lighter, front auxiliary power socket |
| 64 | 15A | Audio unit, DVD player, touch screen |
| 65 | 5A | Peripheral camera system, VentureCam |
| 66 | 5A | Diagnostic connector |
| 67 | 15A | Rear multimedia system |
| 68 | 10A | Touch screen, infotainment system |
| 69 | 5A | CD changer |
Luggage Compartment Fuse Box

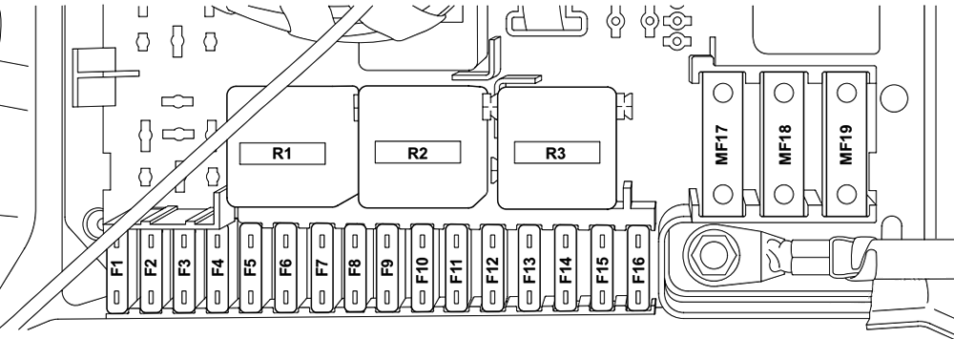

Land Rover Range Rover (2002 – 2005)
| № | Amps | Function |
|---|---|---|
| F1 | 20 A | Front cigar lighter, Rear cigar lighter, Front accessory socket. |
| F2 | 25 A | Relay 4. |
| F3 | 25 A | Relay 2. |
| F4 | 15 A | Trailer pick-up. |
| F5 | – | – |
| F6 | 20 A | Trailer pick-up. |
| F7 | 20 A | Rear accessory socket. |
| F8 | – | – |
| F9 | 30 A | Heated rear window relay. |
| F10 | 20 A | Rear screen wiper motor. |
| F11 | 20 A | Seat heat relay. |
| F12 | 15 A | Rear blower motor relay. |
| F13 | – | – |
| F14 | 5 A | RF receiver. |
| F15 | 25 A | Fuel pump relay. |
| F16 | 10 A | Central locking system, tailgate |
| MF17 | 50 A | Trailer ECU. |
| MF18 | 50 A | Air suspension relay / Trailer socket. |
| MF19 | 50 A | Not used. |

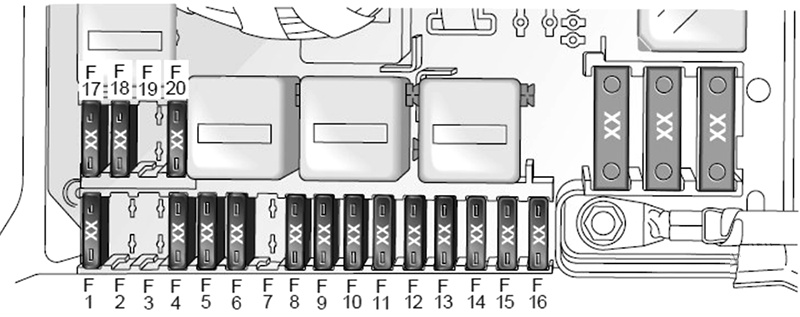

Land Rover Range Rover (2006 – 2012)
| № | Amps | Description |
|---|---|---|
| 1 | 30A | Amplifier |
| 2 | 15A | Adaptive dynamics |
| 3 | 5A | Parking aid system, blind spot control, rear view camera |
| 4 | 10A | Air conditioner (rear) |
| 5 | 20A | Air suspension |
| 6 | 30A | Electric parking brake |
| 7 | 40A | Heated rear seats |
| 8 | 15A | Trailer |
| 9 | – | – |
| 10 | – | – |
| 11 | 5A | Glove box |
| 12 | – | – |
| 13 | 5A | Air Suspension Compressor |
| 14 | 15A | Rear fan motor |
| 15 | 15A | Rear window wiper |
| 16 | 5A | – |
| 17 | – | – |
| 18 | – | – |
| 19 | – | – |
| 20 | 30A | Rear seat heating |
