Land Rover Range Rover (2016 – 2022) Fuse Box Location & Diagrams
The Land Rover Range Rover (2016–2022) features several fuse boxes that protect essential electrical systems throughout the vehicle. Knowing their locations and fuse layouts makes it easier to identify and replace a blown fuse. This blog provides clear fuse box locations and diagrams for Range Rover models from 2016 through 2022.
Fuse Box Location

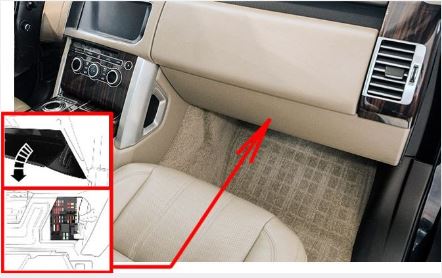

Passenger Compartment Fuse Box
To access the passenger compartment fuse box, open the glovebox. Press the top of the support stay at each end, and lower the glovebox into the footwell. Remove the panel to gain access to the fuses.

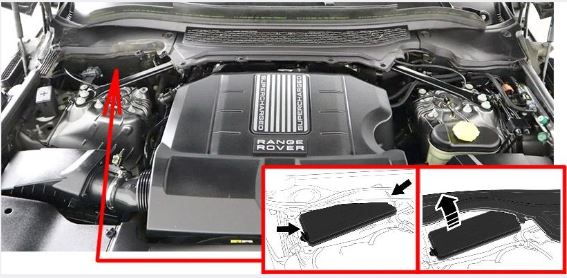

Engine Compartment Fuse Box
- Lift up the edge of the leaf screen panel, just enough to allow removal of the fuse box cover.
- Remove the fuse box cover by releasing the clips on each end. A label on the inside of the cover shows the circuits protected and the fuse locations.

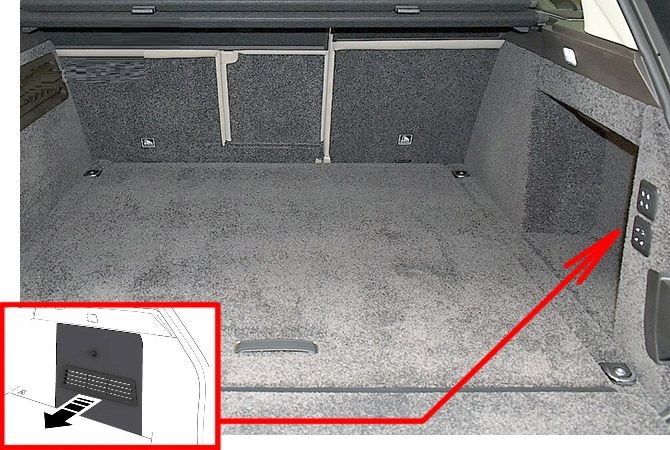

Luggage Compartment Fuse Box
Remove the right-side access panel by grasping the top of the panel and pulling sharply.
Fuse Box Diagrams

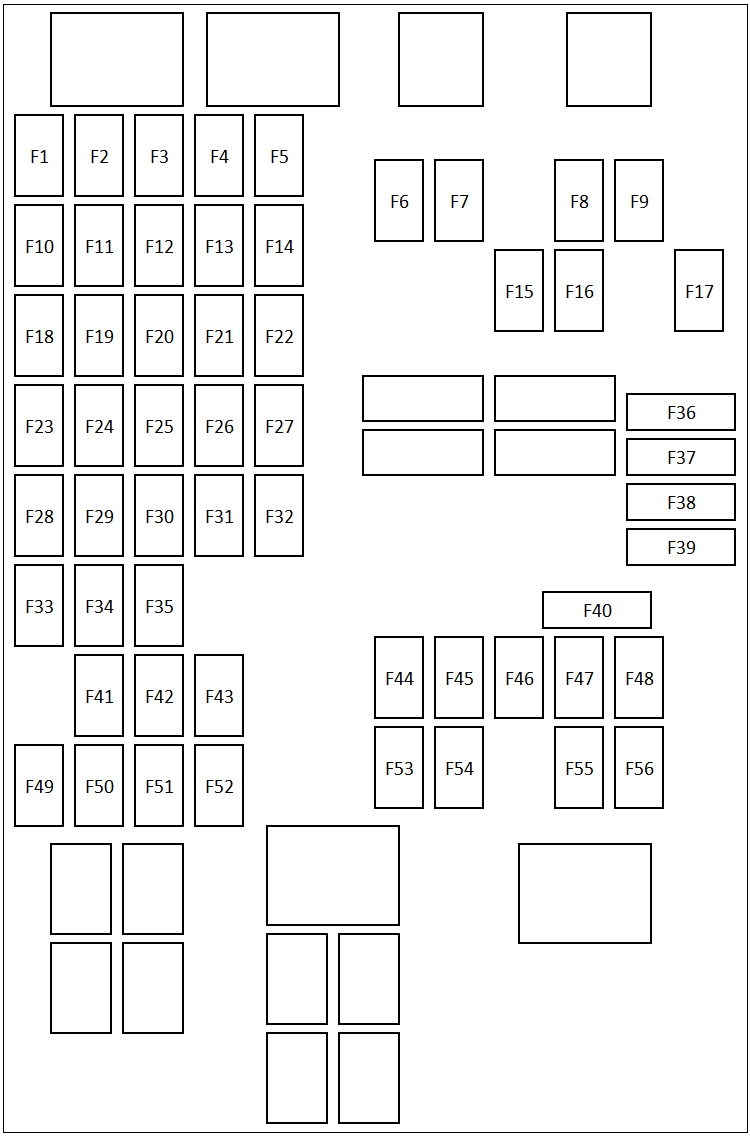

Passenger Compartment Fuse Box
| № | Amps | Circuit protected |
|---|---|---|
| 1 | 20 | Front cigar lighter |
| 2 | 20 | 2016-2017: Rear accessory socket 2018-2022: Front accessory socket. Rear accessory socket |
| 3 | 20 | Rear accessory socket |
| 4 | 10/20 | 2016-2017: Heated wiper park. 2018-2020: Rear accessory socket. USB sockets. Executive armrest USB. 2021-2022: Cubby box USB. |
| 5 | 10 | 2016: Exhaust tuning valve |
| 6 | 10 | 2018-2022: Climate control (hybrid vehicles only) |
| 7 | 5 | 2018-2022: Battery back-up sounder |
| 8 | 15 | 2018-2022: Auxiliary heater (hybrid vehicles only) |
| 9 | — | — |
| 10 | 20 | 2016-2017: Panoramic roof. 2018-2022: Accessory sockets |
| 11 | 25/30 | 2016-2017: Left-side rear door switches. 2018-2022: Right-side rear seats |
| 12 | 20 | Panoramic roof |
| 13 | 5/20 | 2016-2017: Terrain response. 2018-2022: Panoramic roof |
| 14 | 5 | 2018-2022: All Terrain Progress Control (ATPC) |
| 15 | — | — |
| 16 | — | — |
| 17 | — | — |
| 18 | 30 | 2016-2017: Passenger seat switches. 2018-2022: Passenger seat. Left-side rear seat. |
| 19 | — | — |
| 20 | 25 | 2018-2022: Left-side rear door |
| 21 | 10 | 2016-2018: Cool box. 2019-2022: Cool box. 240v plug socket. |
| 22 | 5 | 2021-2022: MHEV cooling fan. |
| 23 | 20 | 2016-2017: Passenger seat. 2018-2022: Front passenger’s seat. Left-side rear seat |
| 24 | 25 | Driver’s door switches. Driver’s door soft close. Driver’s door power-close |
| 25 | 15 | 2016-2017: Active cornering. 2018-2022: Dynamic Stability Control (DSC) |
| 26 | 10 | Front passenger seat switches |
| 27 | 5 | Tire Pressure Monitoring System (TPMS). Front overhead console |
| 28 | 20 | Driver’s seat |
| 29 | 25 | Right-side rear door switches |
| 30 | 20 | 2016-2018: Panoramic roof |
| 31 | — | — |
| 32 | 10 | 2018-2022: Hybrid vehicle charging port flap |
| 33 | 30 | Driver’s seat |
| 34 | 25 | Passenger door switches. Passenger door soft close. Passenger’s door power-close |
| 35 | 5 | Brake pedal switch |
| 36 | — | — |
| 37 | — | — |
| 38 | — | — |
| 39 | 5 | 2017: Battery back-up sounder |
| 40 | — | — |
| 41 | 5 | Telematics |
| 42 | — | — |
| 43 | 10 | Heated steering wheel |
| 44 | 10 | Steering wheel module |
| 45 | 5 | Touch screen buttons. Rear climate control |
| 46 | 15 | Heating and ventilation |
| 47 | — | — |
| 48 | — | — |
| 49 | 5 | Vehicle immobilizer |
| 50 | — | — |
| 51 | — | — |
| 52 | 5 | 2018-2022: Air ionizer |
| 53 | — | — |
| 54 | 5 | Diagnostic socket |
| 55 | 10 | 2016: Instrument panel |
| 56 | 10 | Heating and ventilation |

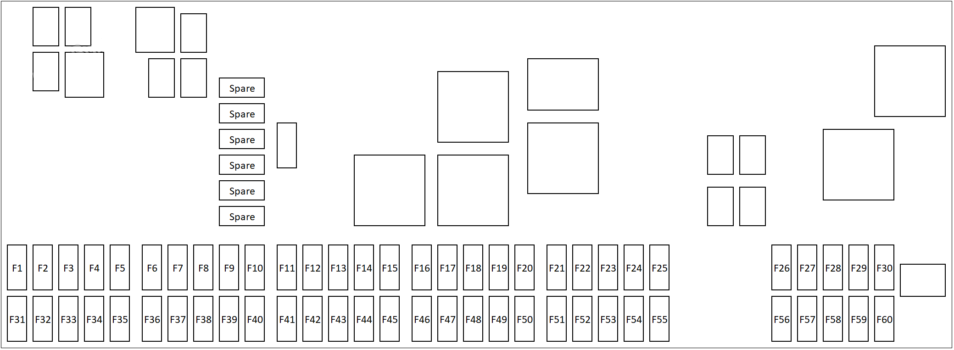

Engine Compartment Fuse Box
| № | Amps | Circuit protected |
|---|---|---|
| 1 | 10 | 2018-2022: Auto stop/start (hybrid vehicles only) |
| 2 | 25 | 2019-2020: Fuel pump |
| 3 | 15/25 | 2018-2020: Hybrid vehicle powertrain. 2021-2022: Fuel pump. |
| 4 | 15 | 2018-2022: Hybrid vehicle powertrain |
| 5 | 10/15 | 2018-2022: Hybrid vehicle powertrain |
| 6 | 10 | 2021-2022: Hybrid vehicle powertrain. |
| 7 | — | — |
| 8 | 5 | 2016: Anti-lock Braking System (ABS) module |
| 9 | 25 | 2016: Windshield washer. Rear screen washer. 2017-2022: Rear window washer |
| 10 | 15 | Front fog lamps |
| 11 | 15 | Horn |
| 12 | 30 | Headlamp washer pump |
| 13 | 30 | Headlamp washer pump |
| 14 | 25 | 2016: Windshield washer. Rear screen washer 2017: Windshield washer 2018-2022: Auto stop/start |
| 15 | 15 | Supercharger cooling |
| 16 | 10/25 | 2016-2017: Diesel Exhaust Fluid (DEF) (diesel only). Engine cooling fan (gasoline only). 2018-2022: Windshield washer jets |
| 17 | 5 | Engine management system |
| 18 | 20 | Engine management system (gasoline only) |
| 19 | 15 | Engine management system |
| 20 | 25 | Engine management system |
| 21 | 20 | 2016: Engine management system (gasoline only). DEF (diesel only). 2017-2022: Engine management system |
| 22 | 10 | Engine management system. Engine cooling fan (gasoline only) |
| 23 | 10 | Engine management system (diesel only). Fuel tank leak detection (gasoline only) |
| 24 | 15 | Engine management system |
| 25 | 10 | Engine management system (diesel only) |
| 26 | — | — |
| 27 | — | — |
| 28 | — | — |
| 29 | 5 | Engine management system (gasoline only). Starter motor. Electrical power management |
| 30 | 10 | 2018-2022: Heated wiper park |
| 31 | 10 | 2017: Steering wheel module |
| 32 | 5/10 | 2016-2017: Left-side Adaptive Front lighting System (AFS). 2018-2022: Steering wheel |
| 33 | 5 | 2017-2022: Transfer box control module |
| 34 | 5 | 2016-2020: Right-side Adaptive Front lighting System (AFS). 2021-2022: MHEV system. |
| 35 | 5 | Headlamp leveling |
| 36 | 5 | 2016: Engine management system (gasoline only). 2018: Left-side Adaptive Front lighting System (AFS) |
| 37 | — | — |
| 38 | — | — |
| 39 | 5 | 2018-2022: Hybrid vehicle powertrain |
| 40 | 15 | Transmission. Terrain response rotary control. Gear selector |
| 41 | — | — |
| 42 | 25 | 2018-2022: Left-side headlight |
| 43 | 5 | 2018-2022: Hybrid vehicle powertrain |
| 44 | 25 | 2018-2022: Right-side headlight |
| 45 | — | — |
| 46 | — | — |
| 47 | — | — |
| 48 | — | — |
| 49 | 5 | 2018-2022: Engine management system |
| 50 | 10 | 2016: Engine management system |
| 51 | 10 | 2016-2017: Engine cooling. 2018-2022: Engine management system |
| 52 | — | — |
| 53 | — | — |
| 54 | — | — |
| 55 | — | — |
| 56 | — | — |
| 57 | — | — |
| 58 | — | — |
| 59 | — | — |
| 60 | 5 | 2018-2022: Heated wiper park |

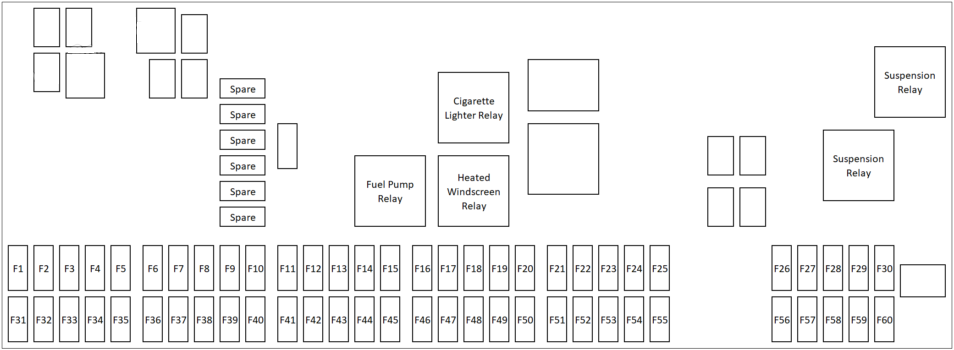

Luggage Compartment Fuse Box
| № | Amps | Circuit protected |
|---|---|---|
| 1 | 15 | 2018-2020: Hybrid vehicle powertrain. 2021-2022: Hybrid vehicle powertrain / MHEV cooling fan. |
| 2 | — | — |
| 3 | — | — |
| 4 | 10 | 2018-2022: Lett-side rear seat armrest. Calf rest heater. |
| 5 | 15/10 | 2016-2017: Rear console. 2018-2022: Right-side rear seat armrest. Calf rest heater. |
| 6 | — | — |
| 7 | 5 | 2018: Electrical power management. 2019-2022: Blind spot monitoring. |
| 8 | 20 | 2018-2022: Driver’s heated seat |
| 9 | 15 | Driver’s and front passenger seat switches |
| 10 | 25/20 | 2016-2017: Driver’s and front passenger Heated seats. 2018-2022: Front passenger’s heated seat |
| 11 | 20 | 2018-2022: Right-side rear heated seat |
| 12 | 25/15 | 2016-2017: Rear Heated seats. 2018: Flashlight. 2019-2022: Torch. Rear seat switches. |
| 13 | 15/20 | 2016-2017: Rear seats. Rear seat switches. Rear seat leg rest Flashlight. 2018-2022: Lett-side rear heated seat |
| 14 | 20 | 2018: Rear wiper |
| 15 | 15/30 | 2016-2017: Trailer socket. 2018-2022: Fuel system |
| 16 | 15 | 2018-2022: Trailer socket |
| 17 | 20/10 | 2016-2017: Middle accessory power socket. 2018-2022: Diesel Exhaust Fluid (DEF) |
| 18 | 20 | Loadspace accessory power socket |
| 19 | 20 | 2016-2018: Cigar lighter. 2019-2022: Rear accessory socket and USB. |
| 20 | 30/20 | 2016-2017: Heated rear screen. 2018-2022: Cubby box accessory socket |
| 21 | 20 | 2018-2022: Loadspace accessory socket |
| 22 | 15/20 | 2016-2017: Integrated control panel. 2018: Hybrid vehicle powertrain. Accessory socket (long wheelbase vehicles only). 2019-2022: Accessory socket (long wheelbase vehicles only) |
| 23 | 10 | 2016-2017: Instrument panel. 2018-2022: Lower touchscreen |
| 24 | 20/10 | 2016-2017: Loadspace accessory power socket. 2018-2022: Instrument panel |
| 25 | 20/5 | 2016-2017: Accessory power socket. 2018-2022: Air suspension |
| 26 | 2 | 2016: Rear camera. 2019-2022: Electronic toll collection. |
| 27 | 10 | Blind Spot Monitor (BSM). Parking aid. Rear-view mirror. Cameras |
| 28 | 10 | Head-Up Display (HUD) |
| 29 | 5 | Adaptive Cruise Control (ACC) |
| 30 | 10/30 | 2016-2017: Diesel Exhaust Fluid (DEF). 2018-2022: Heated rear window. RF filter |
| 31 | — | — |
| 32 | 5 | 2016: Battery monitoring |
| 33 | 5/15 | 2016: Battery monitoring. 2018-2022: Rear wiper |
| 34 | 30/5 | 2016-2017: Rear seat leg rest. 2021-2022: MHEV battery. |
| 35 | 15 | Rear console |
| 36 | 5 | Rear differential |
| 37 | 20 | Driver’s seat |
| 38 | — | — |
| 39 | 30 | Deployable side steps |
| 40 | 10 | 2018-2022: External sound generator (hybrid vehicles only) |
| 41 | 5 | Rear console. Clock |
| 42 | 20 | Rear seat leg rest |
| 43 | 20 | 2018-2022: Keyless locking |
| 44 | 15 | 2016-2017: Rear wiper. 2018-2022: Trailer socket |
| 45 | 15 | Engine management system. Fuel system |
| 46 | 30 | Fuel system |
| 47 | 15 | 2016-2017: Fuel system |
| 48 | 20/10 | 2016-2017: Passive locking. 2018-2022: Touchscreen |
| 49 | 10 | Gesture tailgate |
| 50 | 15 | Entertainment system |
| 51 | 15 | Entertainment system |
| 52 | 10 | Portable media |
| 53 | 10 | Portable media |
| 54 | 15/5 | 2016-2017: Trailer socket. 2018: Occupant sensor. |
| 55 | 15 | Suspension system |
| 56 | 10 | 2016-2018: Air suspension system. 2019-2022: Air suspension. Continuous variable dampers. |
| 57 | 5 | Passive locking |
| 58 | 20/30 | 2016-2017: Front passenger seat. 2018-2022: Front passenger’s seat. Left-side rear seat |
| 59 | 5 | 2016-2017: Air suspension system. 2018-2022: Rear-view camera. |
| 60 | 30/10 | 2016-2017: DEF. 2018: Adaptive cruise control |
