Land Rover Range Rover Velar (2018 – 2020) Fuse Box Location & Diagrams
The Land Rover Range Rover Velar (2018–2020) features several fuse boxes that protect essential electrical systems throughout the vehicle. Knowing their locations and fuse assignments makes it easier to identify electrical issues, replace blown fuses, and maintain important vehicle functions safely and efficiently when troubleshooting common electrical problems.
Fuse Box Location

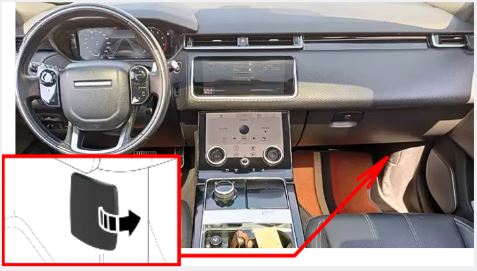

Passenger Compartment Fuse Box
The passenger compartment fuse box is located behind a trim panel at the base of the right-side A pillar. To access: Unclip the rear edge of the trim panel using a suitable tool. When released, pull the trim panel to remove.

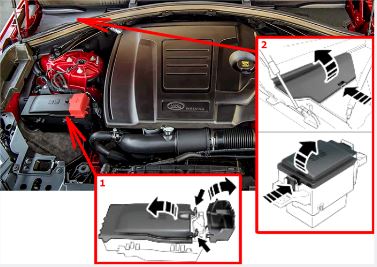

Engine Compartment Fuse Box
- Engine compartment front fuse box: Move the positive boost terminal cover to one side. Press and hold the fuse box cover securing clips while lifting the lid.
- Engine compartment rear fuse box: Lightly push back and hold the rear securing clip. While holding the clip, lift the lid to release it, then pull forward to remove.

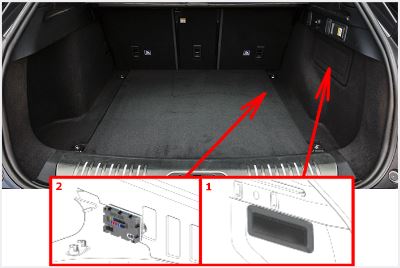

Luggage Compartment Fuse Box
- The loadspace upper fuse box is located behind an access panel on the right side of the loadspace. To access: Pull on the rear edge of the access panel and remove.
- The loadspace lower fuse box is located beneath the loadspace floor. To access: Remove the spare wheel and tool kit.
Fuse Box Diagrams

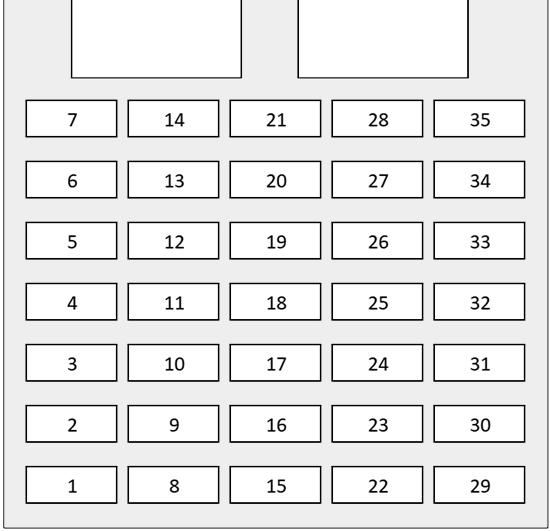

Passenger Compartment Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 20 | Sunroof. |
| 2 | 5 | Brake pedal switch. |
| 3 | 5 | Vehicle immobilizer. |
| 4 | 5 | Diagnostic socket. |
| 5 | 5 | Battery back-up sounder. |
| 6 | 20 | Second row auxiliary power socket. |
| 7 | 20 | Cubby box auxiliary power socket. |
| 8 | 20 | Left-side front seat. |
| 9 | 20 | Right-side front seat. |
| 10 | 30 | Left-side front seat. |
| 11 | 30 | Right-side front seat. |
| 12 | 30 | Side steps. |
| 13 | 20 | Front auxiliary power socket. |
| 14 | 20 | Rear seat recline. |
| 15 | – | – |
| 16 | 5 | Electrical supply. |
| 17 | 5 | Door handle antennas. |
| 18 | 15 | Horns. |
| 19 | – | – |
| 20 | 20 | Driver’s heated seat. Driver’s climate seat. |
| 21 | 20 | Front passenger’s heated seat. Front passenger’s climate seat. |
| 22 | 25 | Right-side front door module. |
| 23 | 25 | Left-side rear door module. |
| 24 | 25 | Right-side rear door module. |
| 25 | 25 | Left-side front door module. |
| 26 | – | – |
| 27 | 5 | Climate system ionizer. |
| 28 | 10 | Steering angle sensor. |
| 29 | 5 | Keyless entry. |
| 30 | 20 | Keyless entry. |
| 31 | – | – |
| 32 | 5 | Tire Pressure Monitoring System (TPMS). |
| 33 | 15 | Air Conditioning (A/C). |
| 34 | 10 | USB socket. |
| 35 | – | – |
Engine Compartment Fuse Box

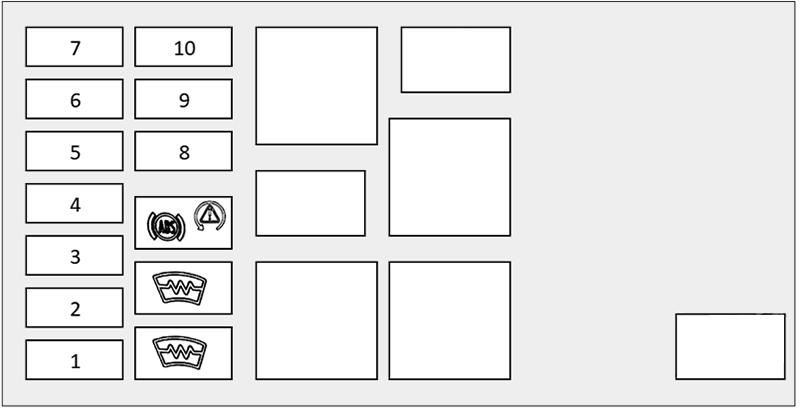

Front Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 5 | Left-side headlight motor. |
| 2 | 5 | Headlights. |
| 3 | 5 | Right-side headlight motor. |
| 4 | – | – |
| 5 | – | – |
| 6 | 30 | Headlight power wash. |
| 7 | 25 | Left-side headlight. |
| 8 | 25 | Right-side headlight. |
| 9 | 10 | Front fog lights. |
| 10 | 15 | Intercooler water pump. |

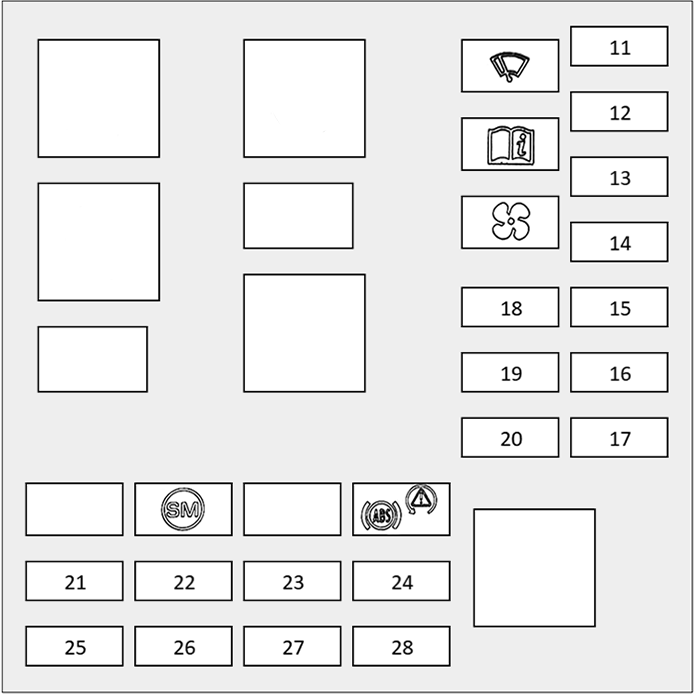

Rear Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 11 | 15 | Engine management system. |
| 12 | 15 | Engine management system. |
| 13 | 10 | Gear selector. Fuel system. Engine management system. |
| 14 | 10 | Engine management system (2.0L gasoline). |
| 15 | Engine management system (2.0L diesel). | |
| 15 | 10 | Engine cooling. Engine mounts. Engine management system. |
| 16 | 25 | Engine management system. |
| 17 | 10 | Exhaust sensors (2.0L gasoline). |
| 20 | Exhaust sensors (2.0L diesel). | |
| 18 | 20 | Exhaust sensors (2.0L diesel, 3.0L gasoline). |
| 19 | 20 | Exhaust sensors (3.0L gasoline). |
| 20 | 15 | Engine management system. |
| 21 | – | – |
| 22 | 5 | Intercooler water pump. |
| 23 | 5 | Engine management system. Starter motor. Electrical power management. |
| 24 | 15 | Transmission control module. |
| 25 | 30 | Starter motor. |
| 26 | – | – |
| 27 | 25 | Transfer box. |
| 28 | 30 | Fuel pump. |
Luggage Compartment Fuse Box

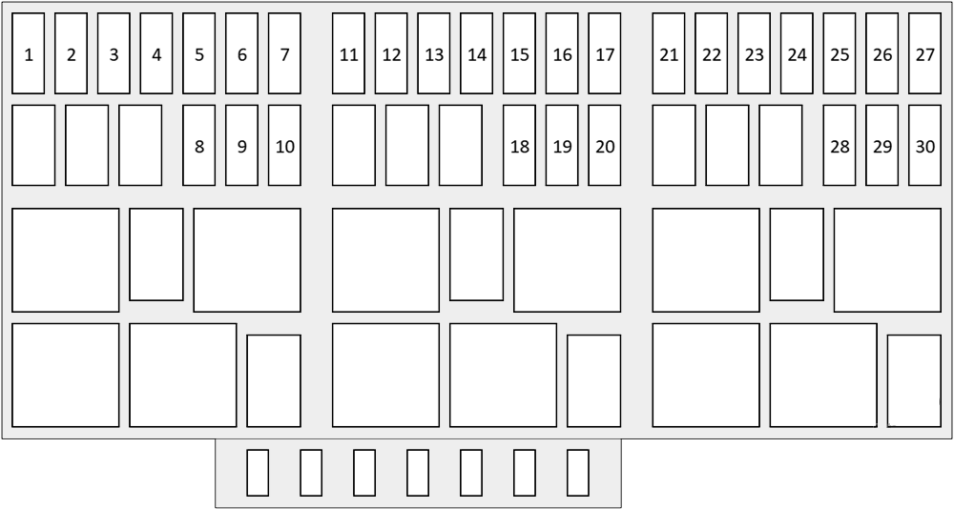

Upper Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 20 | Loadspace auxiliary power socket. |
| 2 | 5 | Heated rear seats. |
| 3 | 20 | Left-side heated rear seat. |
| 4 | 20 | Right-side heated rear seat. |
| 5 | 10 | Dynamic Stability Control (DSC). Electronic differential. |
| 6 | 10 | Instrument panel. |
| 7 | 5 | Electrical power management. |
| 8 | 25 | Trailer socket. |
| 9 | 10 | Diesel Exhaust Fluid (DEF). |
| 10 | 25 | DEF. |
| 11 | 10 | Rear-view mirror. Camera. |
| 12 | 10 | Entertainment system. |
| 13 | 10 | Heated steering wheel. |
| 14 | – | – |
| 15 | 5 | Camera. |
| 16 | 5 | Adaptive Surface Response (AdSR). |
| 17 | 5 | Adaptive cruise control. |
| 18 | 20 | Trailer socket. |
| 19 | 15 | AdSR. |
| 20 | 5/10 | Telematics. |
| 21 | – | – |
| 22 | 15 | Driver’s door switches. Driver’s seat. Driver’s seat switches. Front passenger’s seat. |
| 23 | 10 | Rear sunblind. |
| 24 | 20 | Rear auxiliary power socket. |
| 25 | – | – |
| 26 | 15 | Rear wiper. |
| 27 | 30 | Trailer. |
| 28 | 30 | Fuel system. |
| 29 | 30 | Powered tailgate. |
| 30 | 5 | Fuel pump (2.0L diesel). |

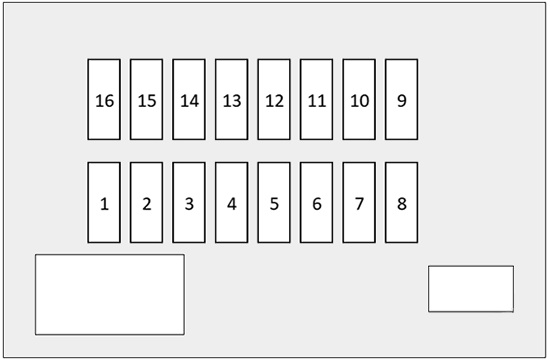

Lower Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 15 | Touch screen. Climate control panel. |
| 2 | 10 | Audio amplifier. |
| 3 | 10 | Gesture tailgate. |
| 4 | 10 | Navigation. Television tuner. |
| 5 | 15 | Audio head unit. |
| 6 | 15 | Portable media connector panel. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15 | Heating and ventilation. |
| 16 | 20 | Auxiliary heater. |
