Land Rover Range Rover Sport (2014 – 2022) Fuse Box Location & Diagrams
Fuse Box Location

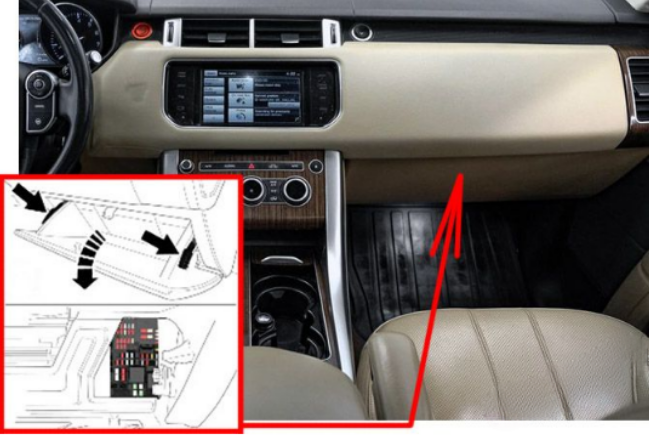

Passenger Compartment Fuse Box
Firmly press the top of the support stay at each end, and lower the glovebox into the footwell. A label on the front of the fuse access panel shows the circuits protected and the fuse locations. Remove the panel to gain access to the fuses.

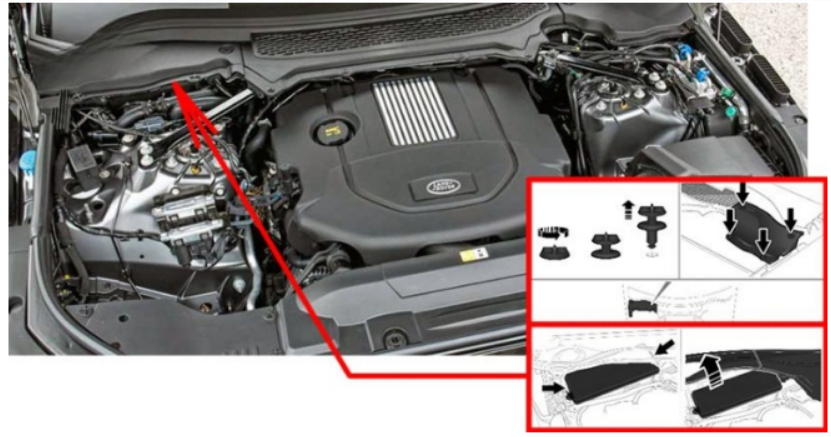

Engine Compartment Fuse Box
- Remove the under-bonnet cover: release and remove the turnbuckle clips securing the cover. Lift the front edge of the cover and slide forward to remove.
- Lift up the edge of the leaf screen panel just enough to allow removal of the fuse box cover.
- To remove the fuse box cover, release the clips on each end. A label on the inside of the cover shows the circuits protected and the fuse locations.

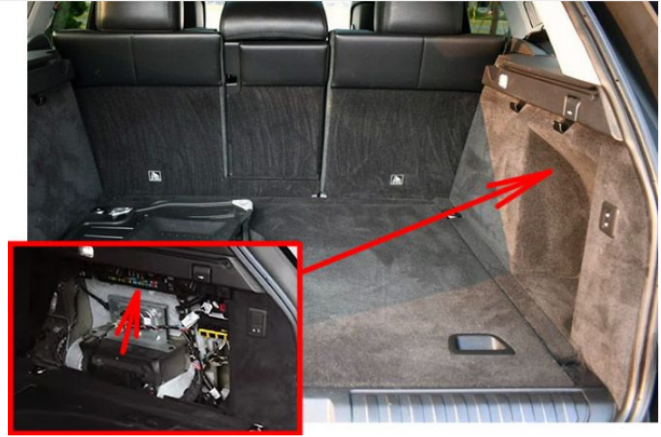

Luggage Compartment Fuse Box
To remove the right-side access panel, grasp the top of the panel and pull sharply. A label, located in a slot under the fuse box, shows the circuits protected and the fuse locations.
Fuse Box Diagrams

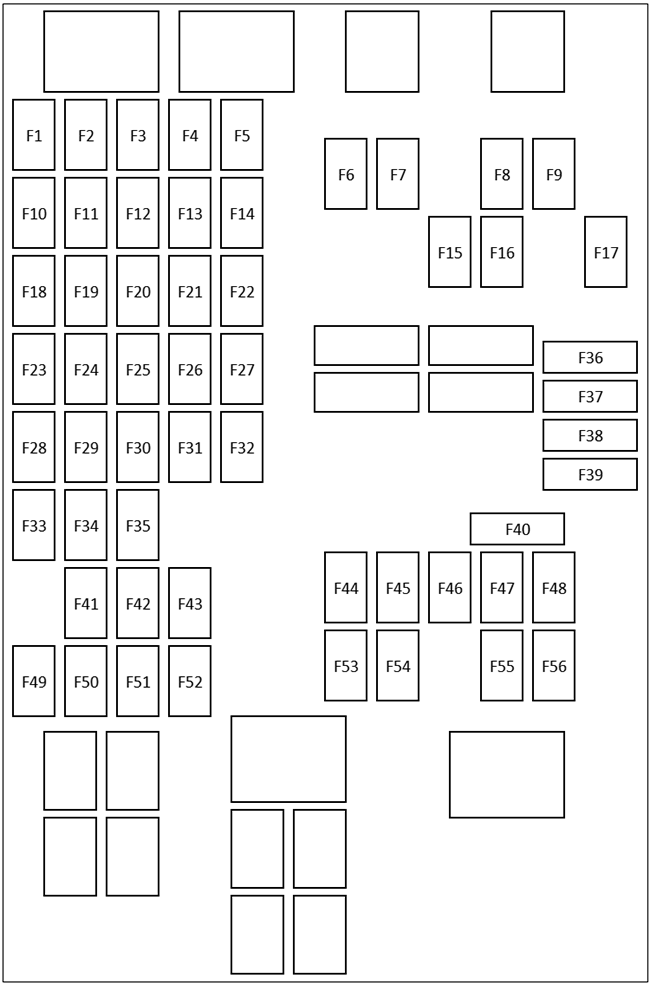

Passenger Compartment Fuse Box
| № | Amps | Circuits Protected |
|---|---|---|
| 1 | 20 | Front cigar lighter. |
| 2 | 20 | 2014–2017: Rear accessory socket.2018–2022: Front accessory socket. Rear accessory socket. |
| 3 | 20 | Rear accessory socket. |
| 4 | 10/20 | 2014 & 2017: Heated wiper park position.2018: Rear accessory socket. USB sockets.2019–2022: Executive armrest USB. |
| 5 | 10 | Exhaust tuning valve. 2014–2017. |
| 6 | 10 | 2018–2022: Climate control, hybrid vehicles only. |
| 7 | 10/5 | 2014–2017: Air Conditioning (A/C), hybrid vehicles only.2018–2022: Battery back-up sounder. |
| 8 | 15 | 2018–2022: Auxiliary heater, hybrid vehicles only. |
| 9 | — | — |
| 10 | 20 | 2014–2017: Panoramic roof.2018–2022: Accessory sockets. |
| 11 | 25/30 | 2014–2017: Left-side rear door switches.2018–2022: Right-side rear seats. |
| 12 | 20 | Panoramic roof. |
| 13 | 5/20 | 2014–2017: Terrain response.2018–2022: Panoramic roof. |
| 14 | 5 | 2018–2022: All Terrain Progress Control (ATPC). |
| 15 | — | — |
| 16 | — | — |
| 17 | — | — |
| 18 | 30 | 2014–2017: Passenger seat switches.2018: Left-side rear seat.2019–2022: Passenger seat. Left-side rear seat. |
| 19 | — | — |
| 20 | 25 | 2018–2022: Left-side rear door. |
| 21 | 10 | Cool box. 2014–2018.2019–2022: Cool box. 240V plug socket. |
| 22 | 5 | 2020: Auto stop/start, hybrid vehicles.2021–2022: MHEV cooling fan. |
| 23 | 20 | 2014–2017: Passenger seat.2018–2022: Front passenger’s seat. Left-side rear seat. |
| 24 | 25 | Driver’s door switches. Driver’s door soft close. |
| 25 | 15 | 2014–2017: Active cornering.2018–2022: Dynamic Stability Control (DSC). |
| 26 | 10 | Front passenger seat switches. |
| 27 | 5 | 2014–2017: Fuel burning heater. TPMS. Front overhead console.2018–2022: Timed climate. TPMS. Front overhead console. |
| 28 | 20 | Driver’s seat. |
| 29 | 25 | Right-side rear door switches. |
| 30 | 20 | 2014–2016 & 2018: Panoramic roof. |
| 31 | 5 | Singapore road pricing. |
| 32 | 10 | 2018–2022: Charging port flap. |
| 33 | 30 | Driver’s seat. |
| 34 | 25 | Passenger door switches. Passenger door soft close.2014: Passenger’s door power-close. |
| 35 | 5 | Brake pedal switch. |
| 36 | — | — |
| 37 | — | — |
| 38 | — | — |
| 39 | 5 | 2014–2017: Battery back-up sounder. |
| 40 | 20 | 2014–2017: Fuel burning heater. |
| 41 | 5 | Telematics. |
| 42 | — | — |
| 43 | 10 | Heated steering wheel. |
| 44 | 10 | Steering wheel module. |
| 45 | 5 | Touchscreen buttons. Rear climate control. |
| 46 | 15 | 2014: Heating and ventilation.2016–2022: Climate control. |
| 47 | — | — |
| 48 | — | — |
| 49 | 5 | Vehicle immobiliser. |
| 50 | — | — |
| 51 | — | — |
| 52 | 5 | 2014: Deployable tow bar.2016–2017: Electrically deployable tow bar.2018–2022: Air ioniser. |
| 53 | — | — |
| 54 | 5 | Diagnostic socket. |
| 55 | 10 | 2014–2016: Instrument panel. |
| 56 | 10 | 2014: Heating and ventilation.2016–2022: Climate control. |

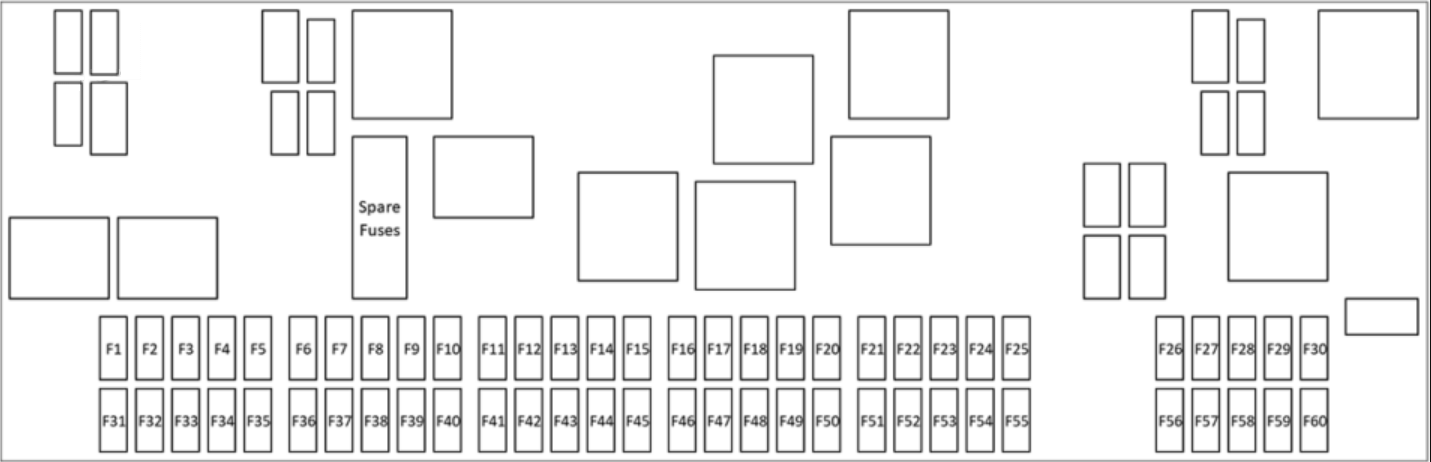

Engine Compartment Fuse Box
| № | Amps | Circuits Protected |
|---|---|---|
| 1 | 10 | 2018–2022: Auto stop/start (hybrid vehicles only). |
| 2 | 25 | 2018–2019: Fuel pump. |
| 3 | 15/25 | 2014–2019: Hybrid system. 2020–2022: Fuel pump. |
| 4 | 15 | 2014–2022: Hybrid system. |
| 5 | 10/15 | 2014–2022: Hybrid system. |
| 6 | 10 | 2020–2022: Hybrid system. |
| 7 | 5 | 2014–2017: Hybrid system. |
| 8 | 5 | 2014–2016: Anti-lock Braking System (ABS) module. |
| 9 | 25 | 2014–2016: Windscreen washer and rear screen washer. 2017–2022: Rear screen washer. |
| 10 | 15 | 2014–2022: Front fog lamps. |
| 11 | 15 | 2014–2022: Horn. |
| 12 | 30 | 2014–2017: Headlamp washer pump. 2018–2022: Right-side headlight washer pump. |
| 13 | 30 | 2014–2017: Headlamp washer pump. 2018–2022: Left-side headlight washer pump. |
| 14 | 15/25 | 2014–2016: Windscreen washer and rear screen washer. 2017: Windscreen washer. 2018–2022: Auto stop/start. |
| 15 | 15 | 2014–2022: Supercharger cooling. |
| 16 | 10/25 | 2014–2017: Diesel Exhaust Fluid (DEF) (diesel only) and engine cooling fan (petrol only). 2018–2022: Windscreen washer jets. |
| 17 | 5 | 2014–2022: Engine management system. |
| 18 | 20 | 2014–2022: Engine management system (petrol only). |
| 19 | 15 | 2014–2022: Engine management system. |
| 20 | 25 | 2014–2022: Engine management system. |
| 21 | 20 | 2014–2017: Engine management system (petrol only) and DEF (diesel only). 2018–2022: Engine management system. |
| 22 | 10 | 2014–2022: Engine management system. Engine cooling fan (petrol only). |
| 23 | 10 | 2014–2019: Engine management system (diesel only). 2020–2022: Engine management system. |
| 24 | 15 | 2014–2022: Engine management system. |
| 25 | 10 | 2014–2019: Engine management system (diesel only). 2020–2022: Engine management system. |
| 26 | — | — |
| 27 | — | — |
| 28 | — | — |
| 29 | 5 | 2014–2022: Engine management system (petrol only), starter motor, and electrical power management. |
| 30 | 10 | 2018–2022: Heated wiper park. |
| 31 | 10 | 2014–2017: Wade sensing. 2017: Steering wheel module. |
| 32 | 5/10 | 2014–2017: Left-side Adaptive Front lighting System (AFS). 2018–2022: Wade sensing and steering wheel. |
| 33 | 5 | 2017–2022: Transfer case control module. |
| 34 | 5 | 2014–2019: Right-side Adaptive Front lighting System (AFS). 2020: Auto stop/start (hybrid vehicles). 2021–2022: MHEV system. |
| 35 | 5 | 2014–2022: Headlamp levelling. |
| 36 | 5 | 2014–2016: Engine management system (petrol only). 2018–2019: Left-side Adaptive Front lighting System (AFS). |
| 37 | — | — |
| 38 | — | — |
| 39 | 5 | 2018–2022: Hybrid vehicle powertrain. |
| 40 | 15 | 2014–2022: Transmission/gearbox, terrain response switch, and gear selector/rotary selector. |
| 41 | 25 | 2018–2019: Left-side headlight. |
| 42 | 5/25 | 2018–2019: Hybrid vehicle powertrain. 2020–2022: Left-side headlight. |
| 43 | 5/25 | 2018–2019: Right-side headlight. 2020–2022: Hybrid vehicle powertrain. |
| 44 | 25 | 2020–2022: Right-side headlight. |
| 45 | — | — |
| 46 | — | — |
| 47 | — | — |
| 48 | — | — |
| 49 | 5 | 2018–2022: Engine management system. |
| 50 | 10 | 2014–2016: Engine management system. |
| 51 | 10 | 2014–2017: Engine cooling. 2018–2022: Engine management system. |
| 52 | — | — |
| 53 | — | — |
| 54 | — | — |
| 55 | — | — |
| 56 | — | — |
| 57 | — | — |
| 58 | — | — |
| 59 | — | — |
| 60 | 5 | 2018–2022: Heated wiper park. |

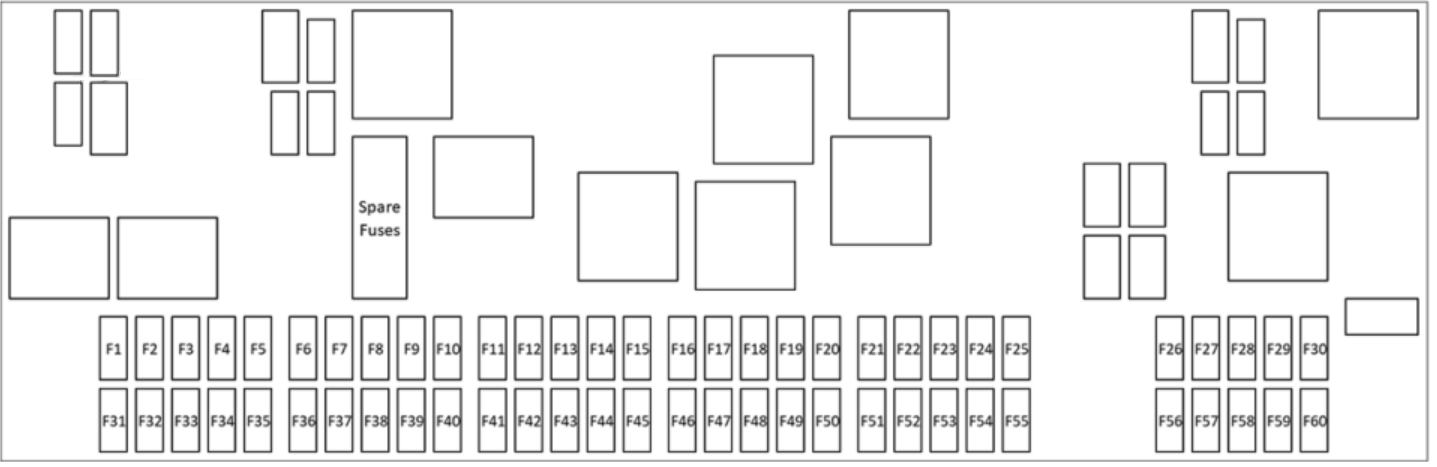

Luggage Compartment Fuse Box
| No. | Amps | Circuits Protected |
|---|---|---|
| 1 | 15A | 2017: Third row seat switches. 2018–2020: Hybrid vehicle powertrain. 2021–2022: Hybrid vehicle powertrain / MHEV cooling fan. |
| 2 | 25A | 2018–2022: Third row heated seats. |
| 3 | 25/15A | 2017: Third row heated seats. 2018–2022: Third row seat switches. |
| 5 | 15A | 2014–2017: Rear console. |
| 7 | 5A | 2018: Electrical power management. 2019–2022: Blind spot monitoring. |
| 8 | 20A | 2018–2022: Driver’s heated seat. |
| 9 | 15A | Driver’s and front passenger seat switches. |
| 10 | 25/20A | 2014–2017: Driver’s and front passenger heated seats. 2018–2022: Front passenger’s heated seat. |
| 11 | 5/20A | 2017: Third row seats. 2018–2022: Right-side rear heated seat. |
| 12 | 25/15A | 2014–2017: Rear heated seats. 2018: Torch. 2019–2022: Torch / rear seat switches. |
| 13 | 15/20A | 2014: Rear seats, rear seat switches, rear seat leg rest (except Sport), torch. 2016–2017: Rear seats, rear seat switches, torch. 2018–2022: Left-side rear heated seat. |
| 15 | 15/30A | 2014–2017: Trailer socket. 2018–2022: Fuel system. |
| 17 | 20A | 2014–2017: Middle accessory power socket. 2018–2022: Diesel Exhaust Fluid (DEF). |
| 18 | 20A | 2014–2017: Loadspace accessory power socket. 2018–2022: Accessory power socket. |
| 19 | 20A | 2014–2017: Cigar lighter. 2018: Rear cigar lighter. 2019–2022: Rear accessory socket and USB. |
| 20 | 30/20A | 2014–2017: Heated rear screen. 2018–2022: Cubby accessory socket / third row USB socket. |
| 21 | 20A | 2018–2022: Loadspace accessory socket. |
| 22 | 15/20A | 2014–2017: Integrated control panel / touch screen. 2018: Hybrid vehicle powertrain. |
| 23 | 10A | 2014–2017: Instrument panel. 2018–2022: Lower touchscreen. |
| 24 | 20/10A | 2014–2017: Loadspace accessory power socket. 2018–2022: Instrument panel. |
| 25 | 20/5A | 2014–2016: Accessory power socket. 2018–2022: Air suspension. |
| 26 | 2A | 2014–2016: Rear camera. 2019–2022: Electronic toll collection. |
| 27 | 10A | Blind Spot Monitor (BSM), parking aid, rear-view mirror, cameras. |
| 28 | 10A | Head-Up Display (HUD). |
| 29 | 5A | Adaptive Cruise Control (ACC). |
| 30 | 10/30A | 2014–2017: Diesel Exhaust Fluid (DEF). 2018–2022: Heated rear screen / radio frequency filter. |
| 32 | 5A | 2014–2016: Battery monitoring. |
| 33 | 5/15A | 2014–2016: Battery monitoring. 2018–2022: Rear wiper. |
| 34 | 30/5A | 2014: Rear seat leg rest (except Sport). 2020: Auto stop-start – hybrid vehicles. 2021–2022: MHEV battery. |
| 35 | 15A | 2014–2017: Rear console. |
| 36 | 5A | 2014–2017: Rear differential. |
| 37 | 20A | Driver’s seat. |
| 39 | 30A | Deployable side steps. |
| 40 | 10A | 2014–2016: Hybrid system. 2018–2022: External sound generator (hybrid vehicles only). |
| 41 | 5A | 2014–2017: Rear console. |
| 42 | 20A | 2014: Rear seat leg rest (except Sport). 2018–2022: Right-side rear seat. |
| 43 | 20A | 2018–2022: Keyless locking. |
| 44 | 15A | 2014–2017: Rear wiper. 2018–2022: Trailer socket. |
| 45 | 15A | Engine management system / fuel system. |
| 46 | 30/15A | Fuel system. |
| 47 | 15A | 2014–2017: Fuel system. |
| 48 | 20/10A | 2014–2017: Keyless locking. 2018–2022: Touchscreen. |
| 49 | 10A | Gesture tailgate. |
| 50 | 15A | Entertainment system. |
| 51 | 15A | Entertainment system. |
| 52 | 10A | Portable media. |
| 53 | 10A | Portable media. |
| 54 | 15A | 2014–2017: Trailer socket. |
| 55 | 15A | Air suspension system. |
| 56 | 10A | 2014–2018: Air suspension system. 2019–2022: Air suspension / continuous variable dampers. |
| 57 | 5A | Keyless locking. |
| 58 | 20/30A | 2014–2017: Front passenger seat. 2018–2022: Front passenger’s seat / left-side rear seat. |
| 59 | 5A | 2014–2017: Air suspension system. 2018–2022: Rear-view camera. |
| 60 | 30/10A | 2014–2017: DEF. 2018: Adaptive cruise control. |
| Relay | Function |
|---|---|
| R2 | Cigarette lighter |
| R4 | Suspension |
| R8 | Fuel pump |
| R9 | Heated windscreen |
| R11 | Suspension |
