Land Rover Range Rover Sport (2005 – 2013) Fuse Box Location & Diagrams
Fuse Box Location
Passenger Compartment Fuse Box

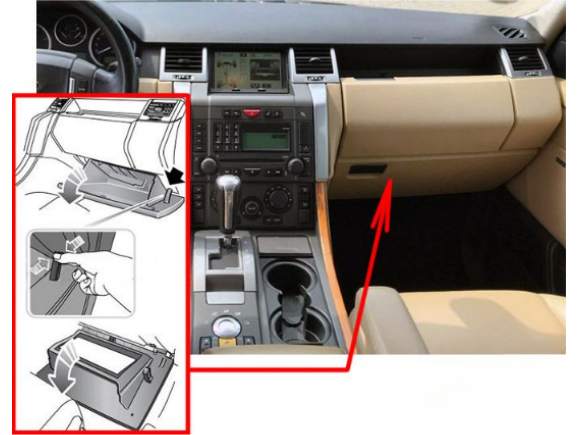

The passenger compartment fuse box is located behind the glovebox. To access the fuses, open the glovebox to the service position.
Engine Compartment Fuse Box

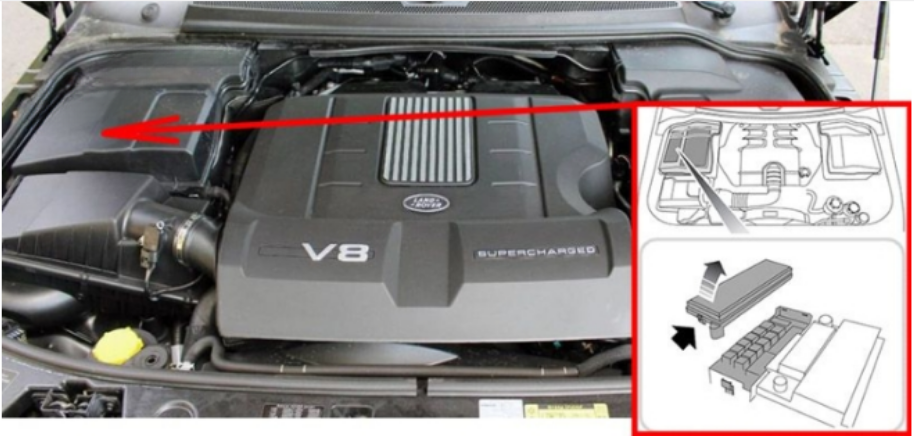

The fuse box is under the right engine cover.
Luggage Compartment Fuse Box

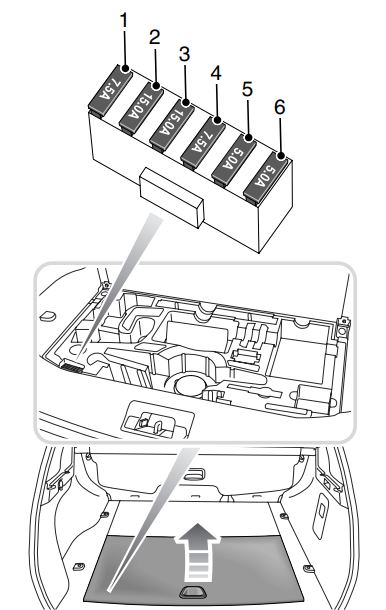

The supplementary fuse box that protects the tow hitch circuits, is located under the cover in the luggage compartment.
Fuse Box Diagrams
Passenger Compartment Fuse Box

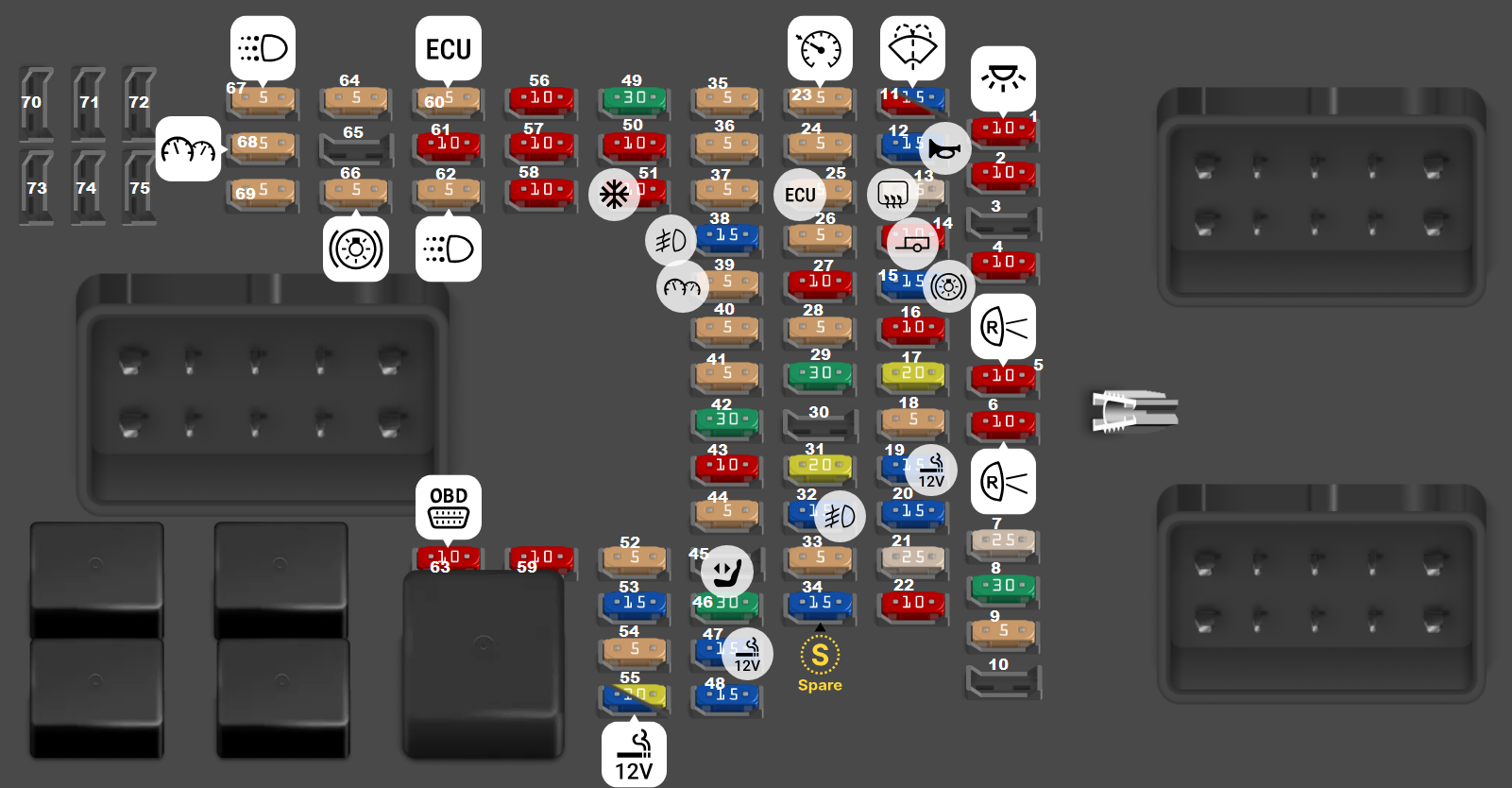

Range Rover Sport (2005-2010)
| Fuse No. | Fuse Rating | Description |
|---|---|---|
| 1 | 10A | Interior lamps |
| 2 | 10A | Side lamps, right |
| 4 | 10A | Side lamps, left |
| 5 | 10A | Reversing lamps |
| 6 | 10A | Reversing lamps (trailer) |
| 7 | 25A | Electric window motor, driver |
| 8 | 30A | Trailer socket |
| 9 | 5A | Supplementary restraint system (SRS) |
| 11 | 10A / 15A | Windscreen washers / Washer pump |
| 12 | 15A | Horns |
| 13 | 25A | Heated rear window |
| 14 | 10A | Side lamps – trailer |
| 15 | 15A | Stop lamps |
| 16 | 10A | Retractable door mirrors |
| 17 | 20A | Electric window motor, rear right |
| 18 | 5A | Windscreen wiper rain sensor / Ambient light sensor |
| 19 | 15A | Auxiliary power socket – centre console |
| 20 | 15A | Sunroof |
| 21 | 25A | Electric window motor, passenger |
| 22 | 10A | Trailer socket |
| 23 | 5A | Cruise control |
| 24 | 5A | Transfer box control module |
| 25 | 5A | Engine control module (ECM) |
| 26 | 5A | Alarm system siren |
| 27 | 10A | Adaptive driving lights / Headlamp direction control module |
| 28 | 5A | Engine bay fuse box / Relay plate |
| 29 | 30A | Electric seat, passenger |
| 31 | 20A | Electric window motor, rear left |
| 32 | 15A | Rear fog lamps |
| 33 | 5A | Door mirror adjustment / Transmission control module / Front electric seats |
| 34 | 15A | Spare |
| 35 | 5A | Suspension control module / Variable power steering |
| 36 | 5A | Parking aid control module |
| 37 | 5A | Electronic stability program (ESP) |
| 38 | 15A | Front fog lamps |
| 39 | 5A | Instrument panel |
| 40 | 5A | Ignition key-in warning buzzer |
| 41 | 5A | Parking brake |
| 42 | 30A | Audio unit output amplifier |
| 43 | 10A | Alarm system signal sensor |
| 44 | 5A | Transmission gear position sensor |
| 46 | 30A | Driver’s seat |
| 47 | 15A | Auxiliary power socket – load area |
| 48 | 15A | Rear screen wiper motor |
| 49 | 30A | Central locking |
| 50 | 10A | Fuel filler flap release |
| 51 | 10A | AC / Heater system |
| 52 | 5A | Telephone control module |
| 53 | 15A | Multimedia control module (front) |
| 54 | 5A | Seat adjustment memory control module |
| 55 | 15A / 20A | Cigarette lighter |
| 56 | 10A | Headlamp direction motor, left |
| 57 | 10A | Multimedia control module (rear) |
| 58 | 10A | Digital multifunction display / Multimedia control module / Telephone |
| 59 | 10A | Coolbox |
| 60 | 5A | Engine control module (ECM) start signal |
| 61 | 10A | Headlamp direction motor, right |
| 62 | 5A | Daytime running lamps |
| 63 | 10A | Data link connector (DLC) |
| 64 | 5A | Transmission control module (TCM) |
| 66 | 5A | Hill descent control switch / Steering position sensor / Stop lamps |
| 67 | 5A | Daytime running lamps |
| 68 | 5A | Instrument panel |
| 69 | 5A | Auto-dimming rearview mirror / Garage door opener |
| Fuse Puller | — | Fuse extraction tool for fuse replacement |

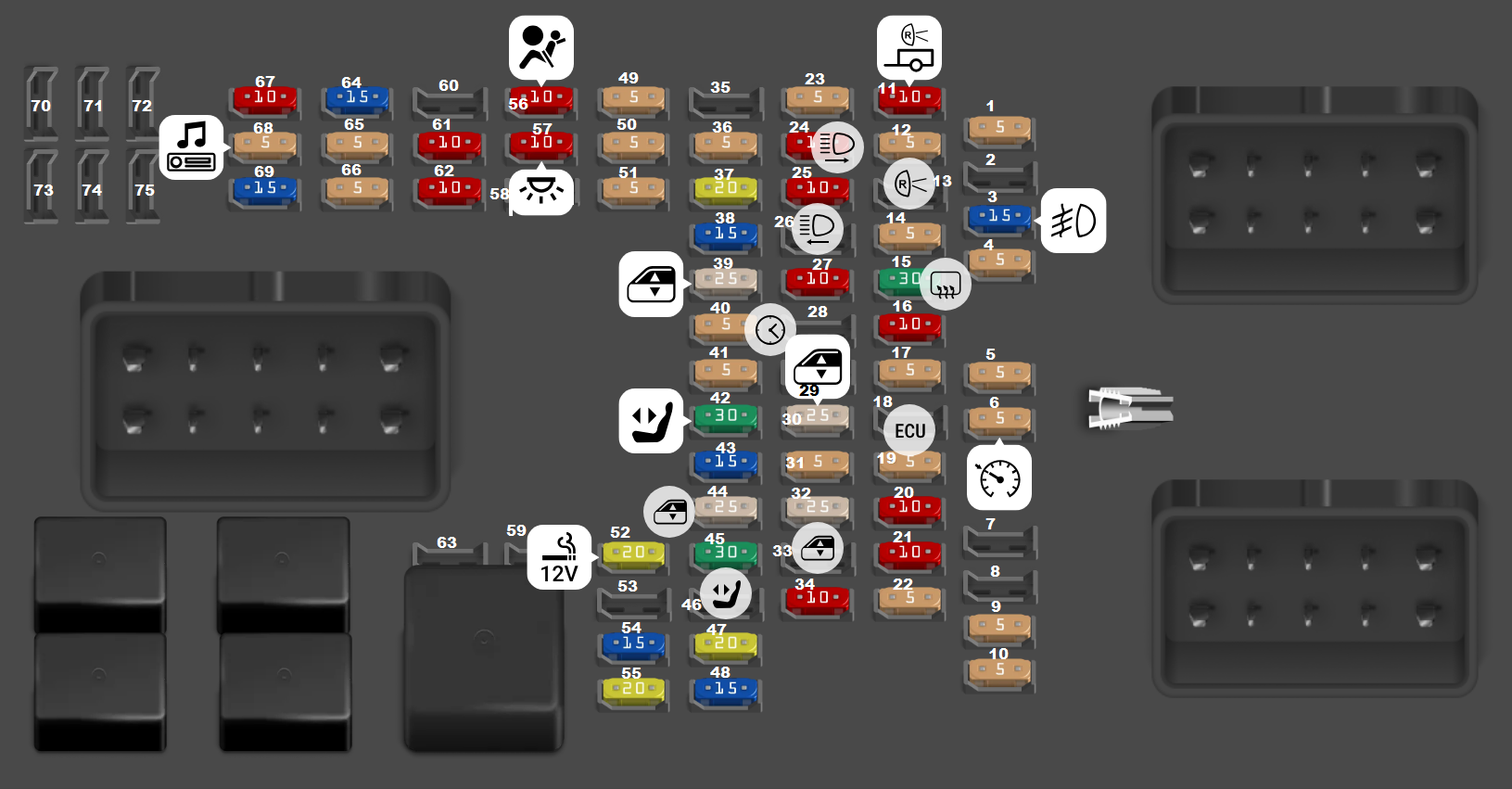

Range Rover Sport (2011-2013)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 5A | 1 | Radio frequency receiver, TPM system |
| Fuse MINI 15A | 3 | Front fog lights |
| Fuse MINI 5A | 4 | Automatic dimming interior mirror |
| Fuse MINI 5A | 5 | Dynamic Stability Control (DSC), Anti-lock Braking System (ABS), steering angle sensor |
| Fuse MINI 5A | 6 | Adaptive Cruise Control (ACC) |
| Fuse MINI 5A | 9 | Electric Parking Brake (EPB) |
| Fuse MINI 5A | 10 | Air suspension ECU |
| Fuse MINI 10A | 11 | Trailer reverse lamp |
| Fuse MINI 5A | 12 | Reverse lamps |
| Fuse MINI 5A | 14 | Brake lamps, brake switch |
| Fuse MINI 30A | 15 | Heated rear window |
| Fuse MINI 10A | 16 | Cubby box cooler |
| Fuse MINI 5A | 17 | Keyless entry/start, central door locking |
| Fuse MINI 5A | 19 | Engine Control Module (ECM) |
| Fuse MINI 10A | 20 | Heated steering wheel |
| Fuse MINI 10A | 21 | Center console switches (transfer box, HDC, DSC), headlamp leveling, smog sensor |
| Fuse MINI 5A | 22 | Automatic transmission, transfer box, rear differential |
| Fuse MINI 5A | 23 | Headlamp leveling |
| Fuse MINI 10A | 24 | Right-hand side lamps, tail lamps |
| Fuse MINI 10A | 25 | Left-hand side lamps, tail lamps |
| Fuse MINI 10A | 27 | Trailer side lamps |
| Fuse MINI 25A | 30 | Front passenger window, central door locking |
| Fuse MINI 5A | 31 | Rain sensor, rear view camera |
| Fuse MINI 25A | 32 | Driver’s window, exterior mirrors, central door locking |
| Fuse MINI 10A | 34 | Electric fuel flap actuator |
| Fuse MINI 5A | 36 | Battery back-up sounder |
| Fuse MINI 20A | 37 | Keyless entry, central door locking |
| Fuse MINI 15A | 38 | Front screen washer |
| Fuse MINI 25A | 39 | Rear left-hand window, central door locking |
| Fuse MINI 5A | 40 | Seat memory, clock, driver’s door switch pack (mirrors, windows) |
| Fuse MINI 5A | 41 | Power amplifier |
| Fuse MINI 30A | 42 | Driver’s electric seat |
| Fuse MINI 15A | 43 | Rear glass washer |
| Fuse MINI 25A | 44 | Rear right-hand window, central door locking |
| Fuse MINI 30A | 45 | Passenger electric seat |
| Fuse MINI 20A | 47 | Sunroof |
| Fuse MINI 15A | 48 | Trailer connector (battery feed) |
| Fuse MINI 5A | 49 | Adaptive front lighting (right-hand unit) |
| Fuse MINI 5A | 50 | Adaptive front lighting (left-hand unit) |
| Fuse MINI 5A | 51 | Steering wheel switches |
| Fuse MINI 20A | 52 | Cigar lighter |
| Fuse MINI 15A | 54 | Trailer connector (ignition feed) |
| Fuse MINI 20A | 55 | Auxiliary power socket center and rear |
| Fuse MINI 10A | 56 | Airbag SRS |
| Fuse MINI 10A | 57 | Interior lamps |
| Fuse MINI 10A | 61 | Instrument pack, message center |
| Fuse MINI 10A | 62 | Climate control ECU |
| Fuse MINI 15A | 64 | Audio unit, telephone, touch screen |
| Fuse MINI 5A | 65 | Surround camera system |
| Fuse MINI 5A | 66 | Diagnostic socket |
| Fuse MINI 10A | 67 | Rear seat entertainment module |
| Fuse MINI 5A | 68 | Multimedia module, radio |
| Fuse MINI 15A | 69 | IAM, HLDF, CD |
| Fuse Puller | Fuse Puller | Extraction tool for fuse replacement |
Engine Compartment Fuse Box

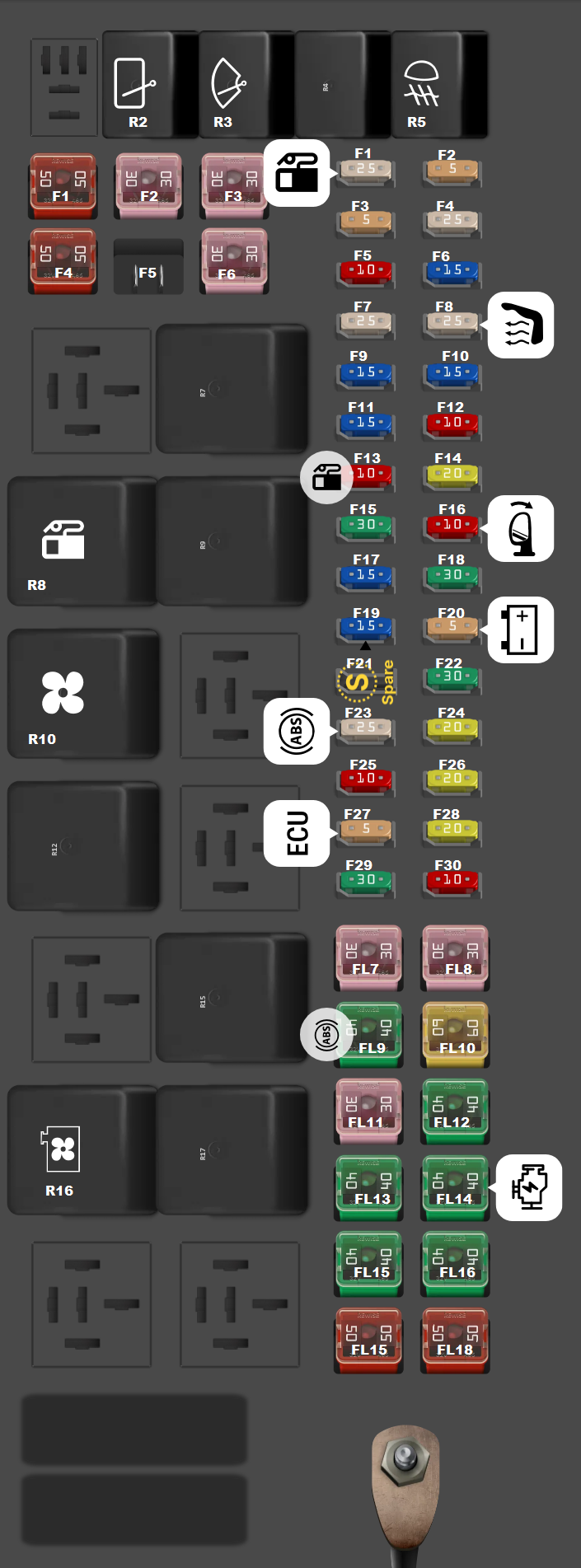

Range Rover Sport (2005-2010)
| Type | No. | Rating | Description / Function |
|---|---|---|---|
| Fuse MINI | F1 | 25A | Fuel pump (FP) |
| Fuse MINI | F2 | 5A | Fuel system leak detection pump |
| Fuse MINI | F3 | 5A | Air suspension control module |
| Fuse MINI | F4 | 25A | Supercharger (SC) coolant pump motor |
| Fuse MINI | F5 | 10A | Engine management (petrol) |
| Fuse MINI | F6 | 15A | Ignition coils |
| Fuse MINI | F7 | 25A | Driver seat heater |
| Fuse MINI | F8 | 25A | Rear seat heater control module |
| Fuse MINI | F9 | 15A | Suspension roll correction valve |
| Fuse MINI | F10 | 15A | Engine management and engine coolant blower motors (petrol) |
| Fuse MINI | F11 | 15A | Heated oxygen sensors (HO2S) |
| Fuse MINI | F12 | 10A | Heated windscreen washer jets |
| Fuse MINI | F13 | 10A | Engine management, variable valve lift control module, fuel pump relay |
| Fuse MINI | F14 | 20A | Heated oxygen sensors (HO2S) |
| Fuse MINI | F15 | 30A | Heated windscreen |
| Fuse MINI | F16 | 10A | Heated door mirrors |
| Fuse MINI | F17 | 15A | Engine management (petrol) |
| Fuse MINI | F18 | 30A | Heated windscreen |
| Fuse MINI | F19 | 15A | Spare |
| Fuse MINI | F20 | 5A | Alternator |
| Fuse MINI | F23 | 25A | ABS system |
| Fuse MINI | F24 | 20A | Brake system vacuum pump (petrol) |
| Fuse MINI | F25 | 10A | Headlamp switch |
| Fuse MINI | F26 | 20A | Air suspension |
| Fuse MINI | F27 | 5A | Engine control module (ECM) |
| Fuse MINI | F28 | 20A | Auxiliary heater |
| Fuse MINI | F29 | 30A | Windscreen wash/wipe system |
| Fuse MINI | F30 | 10A | Automatic transmission (AT) |
| Fuse FMX/JCase | FL1 | 50A | Glow plugs |
| Fuse FMX/JCase | FL2 | 30A | Fog lamp switch |
| Fuse FMX/JCase | FL3 | 30A | Transfer box range selection motor |
| Fuse FMX/JCase | FL4 | 50A | Glow plugs |
| Fuse FMX/JCase | FL6 | 30A | Trailer socket |
| Fuse FMX/JCase | FL7 | 30A | Headlamp washers |
| Fuse FMX/JCase | FL8 | 30A | Parking brake |
| Fuse FMX/JCase | FL9 | 40A | ABS system |
| Fuse FMX/JCase | FL10 | 60A | Air suspension |
| Fuse FMX/JCase | FL11 | 30A | Immobilizer |
| Fuse FMX/JCase | FL12 | 40A | Engine coolant blower motor |
| Fuse FMX/JCase | FL13 | 40A | Differential lock actuator |
| Fuse FMX/JCase | FL14 | 40A | Starter motor |
| Fuse FMX/JCase | FL15 | 40A | Multifunction control module |
| Fuse FMX/JCase | FL16 | 40A | Multifunction control module |
| Fuse FMX/JCase | FL17 | 50A | Fascia fuse box/relay plate |
| Fuse FMX/JCase | FL18 | 50A | Fascia fuse box/relay plate |
| Relay | R2 | — | Rear wipers |
| Relay | R3 | — | Front wipers |
| Relay | R4 | — | Mirror heater |
| Relay | R5 | — | Front fog lights |
| Relay | R7 | — | Air suspension |
| Relay | R8 | — | Fuel pump |
| Relay | R9 | — | Heated front windshield |
| Relay | R10 | — | Rear blower |
| Relay | R12 | — | Headlamp washer system |
| Relay | R15 | — | Glow plugs A |
| Relay | R16 | — | Cooling fan |
| Relay | R17 | — | Glow plugs B |

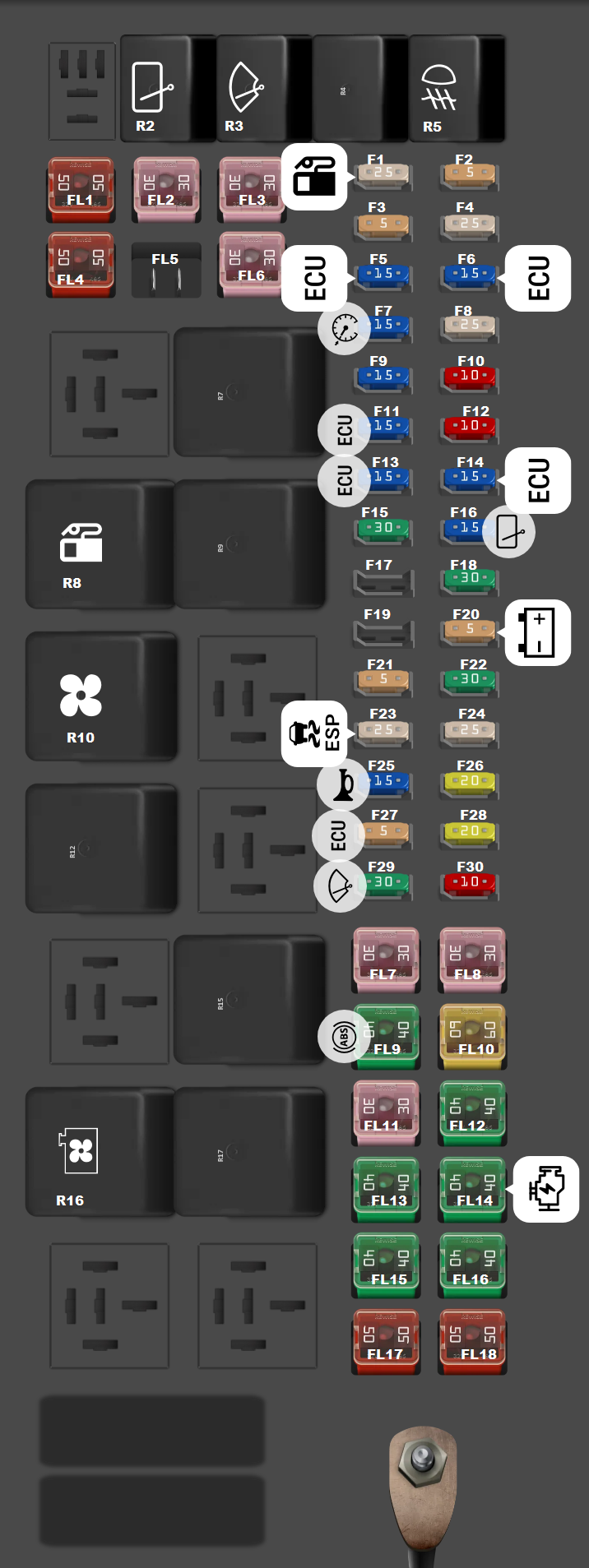

Range Rover Sport (2011-2013)
| Type | No. | Rating | Description |
|---|---|---|---|
| MINI Fuse | F1 | 25A | Fuel Pump |
| MINI Fuse | F2 | 5A | EMS (MAGF, Oil Sensor) |
| MINI Fuse | F3 | 5A | Air Suspension ECU |
| MINI Fuse | F4 | 25A | EMS (ECM, Fuel Pump Relay Control) |
| MINI Fuse | F5 | 15A | EMS |
| MINI Fuse | F6 | 15A | EMS (Ignition Coils) |
| MINI Fuse | F7 | 15A | Adaptive Dynamics, Adaptive Cruise Control |
| MINI Fuse | F8 | 25A | Rear Seat Heaters |
| MINI Fuse | F9 | 15A | Dynamic Response |
| MINI Fuse | F10 | 10A | EMS (Throttle Motor) |
| MINI Fuse | F11 | 15A | EMS (Oxygen Sensors) |
| MINI Fuse | F12 | 10A | Heated Washer Jets |
| MINI Fuse | F13 | 15A | EMS |
| MINI Fuse | F14 | 15A | EMS (Oxygen Sensors) |
| MINI Fuse | F15 | 30A | Heated Front Screen |
| MINI Fuse | F16 | 15A | Rear Wiper |
| MINI Fuse | F18 | 30A | Heated Front Screen |
| MINI Fuse | F20 | 5A | Alternator |
| MINI Fuse | F21 | 5A | Dynamic Stability Control (DSC), Anti-Lock Braking System (ABS) |
| MINI Fuse | F23 | 25A | Traction Control |
| MINI Fuse | F24 | 25A | Front Seat Heaters |
| MINI Fuse | F25 | 15A | Horn |
| MINI Fuse | F26 | 20A | Air Suspension ECU |
| MINI Fuse | F27 | 5A | Engine Control Module (ECM) |
| MINI Fuse | F28 | 20A | V8 Supercharged Intercooler Water Pump |
| MINI Fuse | F29 | 30A | Front Wipers |
| MINI Fuse | F30 | 10A | Automatic Transmission ECU |
| FMX/JCase Fuse | FL1 | 50A | Glow Plugs |
| FMX/JCase Fuse | FL2 | 30A | Fog Lamp Switch |
| FMX/JCase Fuse | FL3 | 30A | Transfer Box Range Selection Motor |
| FMX/JCase Fuse | FL4 | 50A | Glow Plugs |
| FMX/JCase Fuse | FL6 | 30A | Trailer Socket |
| FMX/JCase Fuse | FL7 | 30A | Headlamp Washers |
| FMX/JCase Fuse | FL8 | 30A | Parking Brake |
| FMX/JCase Fuse | FL9 | 40A | Anti-Lock Braking System (ABS) |
| FMX/JCase Fuse | FL10 | 60A | Air Suspension |
| FMX/JCase Fuse | FL11 | 30A | Immobilizer |
| FMX/JCase Fuse | FL12 | 40A | Engine Coolant Blower Motor |
| FMX/JCase Fuse | FL13 | 40A | Differential Lock Actuator |
| FMX/JCase Fuse | FL14 | 40A | Starter Motor |
| FMX/JCase Fuse | FL15 | 40A | Multifunction Control Module |
| FMX/JCase Fuse | FL16 | 40A | Multifunction Control Module |
| FMX/JCase Fuse | FL17 | 50A | Fascia Fuse Box / Relay Plate |
| FMX/JCase Fuse | FL18 | 50A | Fascia Fuse Box / Relay Plate |
| Relay | R2 | — | Rear Wipers |
| Relay | R3 | — | Front Wipers |
| Relay | R4 | — | Mirror Heater |
| Relay | R5 | — | Front Fog Lights |
| Relay | R7 | — | Air Suspension |
| Relay | R8 | — | Fuel Pump |
| Relay | R9 | — | Heated Front Windshield |
| Relay | R10 | — | Rear Blower |
| Relay | R12 | — | Lamp Washer |
| Relay | R15 | — | Glow Plugs A |
| Relay | R16 | — | Cooling Fan |
| Relay | R17 | — | Glow Plugs B |
Luggage Compartment Fuse Box
Range Rover Sport (2005-2010)
| Type | No. | Description |
|---|---|---|
| Fuse ATO 7.5A | 1 | Brake lamp |
| Fuse ATO 15A | 2 | Ignition feed |
| Fuse ATO 15A | 3 | Battery feed |
| Fuse ATO 7.5A | 4 | Rear fog lamps |
| Fuse ATO 5A | 5 | Right-hand tail lamp |
| Fuse ATO 5A | 6 | Number plate and left-hand tail lamp |
