Mahindra e2o (2013 – 2019) Fuse Box Location & Diagrams
The Mahindra e2o (2013–2019) is a compact electric car with essential electrical systems protected by fuses. This blog covers the fuse box location and diagrams, helping you identify fuse positions, functions, and related electrical circuits for easier troubleshooting and maintenance.
Fuse Box Location
Engine Compartment Fuse Box

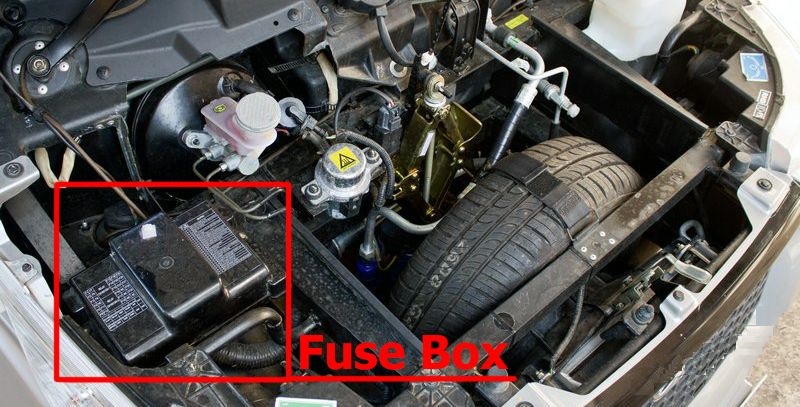

The fuse box is located under the bonnet, below the right-side close-out cover. Open the fuse box cover by pulling it up.
Fuse Box Diagrams

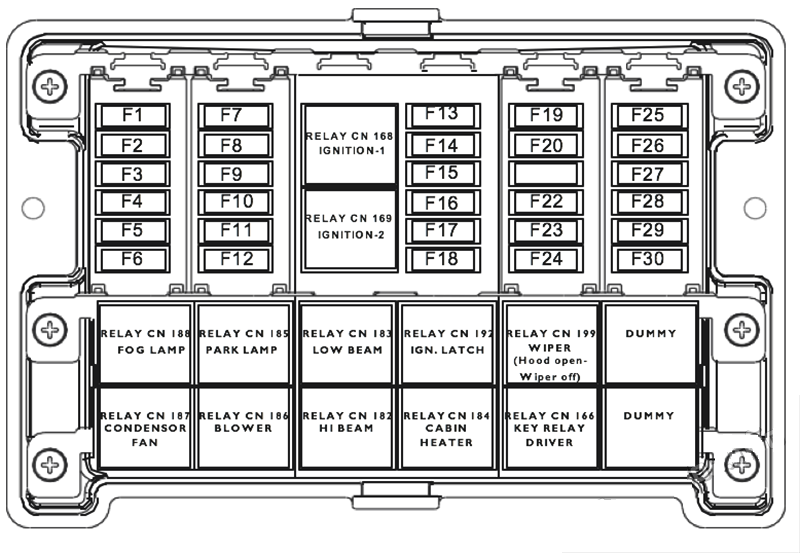

Engine Compartment Fuse Box
| № | Amps | Circuit protected |
|---|---|---|
| F1 | 15A | Head lamp low beam LH and RH |
| F2 | 3A | P2, P4, P6: Relay coil- position lamp, H/L low and high beam Plus P8: Relay coil- position lamp, H/L low and high beam Brake lamp, HMSL and Hazard |
| F3 | 3A/20A | P2, P4, P6: Brake lamp and HMSL Plus P8: Brake lamp, HMSL and Hazard |
| F4 | 7.5A/5A | Horn |
| F5 | 15A | P2, P4, P6: LH and RH door lock and rear hatch release Plus P8: Front wiper |
| F6 | 15A | P2, P4, P6: Front wiper Plus P8: LH and RH door lock and rear hatch release |
| F7 | 15A | Head lamp high beam LH and RH |
| F8 | 5A | Position, roof, license lamps and back illumination |
| F9 | 3A/5A | P2, P4, P6: Relay coil- Remote blower & A/C heater Plus P8: Relay coil- Remote blower & BLDC controller fan |
| F10 | – | – |
| F11 | 15A | Remote & normal condensor, BLDC controller fan |
| F12 | 15A/20A | Blower fan and speed regulator module (SRM) |
| F13 | 30A | Power window motor LH and RH |
| F14 | 20A | Electric vacuum pump (EVP) |
| F15 | 15A | Rear hatch defroster |
| F16 | 7.5A | P2, P4, P6: Front fog lamp |
| F17 | 3A | Relay key ON/OFF (ignition) |
| F18 | 3A | P2, P4, P6: OVRM, H/L adjuster LH and RH, switch Plus P8: OVRM, H/L adjuster LH and RH, blower circuit |
| F19 | 15A | P2, P4, P6: Side indicators & Hazard Plus P8: Instrument cluster |
| F20 | 7.5A/10A | Infotainment system |
| F21 | 3A | P2, P4, P6: HVAC module (hatch and hazard) and IP cluster Plus P8: HVAC module (hatch and hazard) and SIU |
| F22 | – | – |
| F23 | 20A | P2, P4, P6: Wiper & Horn ground |
| F24 | 3A | P2, P4, P6: Electric power steering (EPS) |
| F25 | 3A | Ignition I/P to BCM and IEMS |
| F26 | 7.5A | Aux 12V socket |
| F27 | 3A | Ignition I/P to KSI SSR |
| F28 | 3A | Tree switch- Wiper and washer signals |
| F29 | 3A | IGN I/P to HVAC, infotainment and OBD |
| F30 | 10A/15A | P2, P4, P6: PRNDL, reverse lamp, camera and motor fan Plus P8: PRNDL, reverse lamp, camera, motor fan and rear LH & RH power window |
| Relay | ||
| CN166 | Key relay driver | |
| CN168 | Key relay 1 | |
| CN169 | Key relay 2 | |
| CN182 | Head light high beam | |
| CN183 | Head light low beam | |
| CN184 | Air condition-heater | |
| CN185 | Park lamp | |
| CN186 | Blower | |
| CN187 | Condenser fan | |
| CN188 | Front fog lamp | |
| CN192 | Ignition latch | |
| CN199 | Wiper |
