Mahindra Marazzo (2019 – 2023) Fuse Box Location & Diagrams
The Mahindra Marazzo (2019–2023) features multiple fuse boxes that protect essential electrical systems throughout the vehicle. This blog covers the fuse box locations and diagrams, helping you identify fuse positions and understand which electrical components are protected by each fuse.
Fuse Box Location

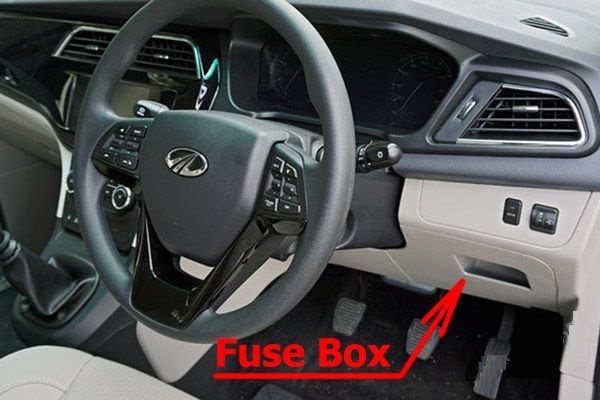

Passenger Compartment Fuse Box
This fuse box is located below the Instrument panel on the driver’s side. To access the fuse box, pull out the top panel as shown in the image.

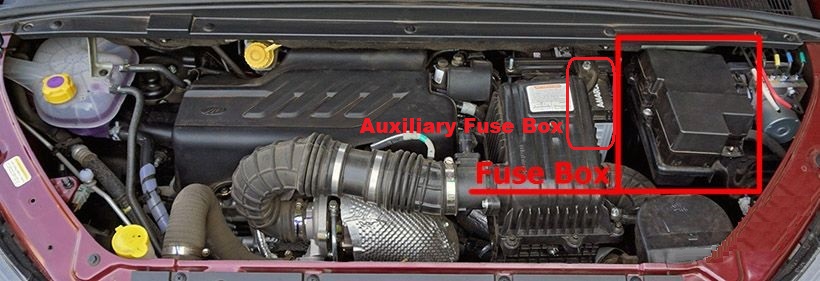

Engine Compartment Fuse Box
The engine compartment fuse box is located adjacent to the vehicle battery. To open the fuse box cover, press the lock on the engine side, push the cover back and lift it. Spare fuses are provided in the fuse box for replacement of blown fuses. Ensure the correct rating fuse is replaced with the blown fuse.
Fuse Box Diagrams

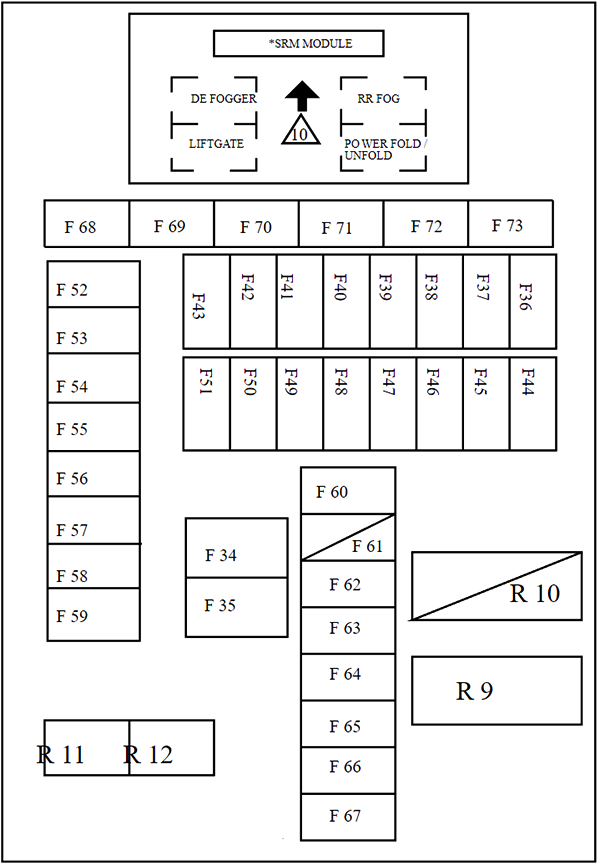

Passenger Compartment Fuse Box
| № | CIRCUIT | AMPS |
|---|---|---|
| F34 | POWER WINDOW | 40A |
| F35 | BLWR MOTOR | 40A |
| F36 | MBFM-2 | 5A |
| F37 | DIAGNOSTIC | 5A |
| F38 | INFOTAINMENT B+ | 15A |
| F39 | CRANK AMT/EMS | 5A |
| F40 | PARK | 10A |
| F41 | TAILGATE ACTUATOR | 10A |
| F42 | EPS | 5A |
| F43 | POWER FOLD/ANTI PINCH | 15A |
| F44 | MBFM-1 | 20A |
| F45 | IMMO/ ITS B+ | 5A |
| F46 | IC/FATC B+ | 10A |
| F47 | ORVM SW IP, HL COMBI IP, RR AC RL COIL IP, FR BLWR RLY COIL IP, DEMISTR RLY COIL IP | 10A |
| F48 | ITS/RVC/INFO IGN BS6: IGN ITS/RVC/INFO/FRNT & RR USB ILLUMINATION | 5A |
| F49 | AIRBAG | 10A |
| F50 | ABS | 5A |
| F51 | REAR FOG | 10A |
| F52 | REAR DEFOGGER | 20A |
| F53 | KEY IN | 5A |
| F54 | INTERIOR LAMP | 10A |
| F55 | REVERSE | 10A |
| F56 | INFOTAINMENT ACC | 5A |
| F57 | MBFM/IC/ETC/FATC IGN | 5A |
| F58 | POWER WINDOW REAR | 30A |
| F59 | REAR AC | 30A |
| F60 | MBFM-3 | 20A |
| F61 | – | – |
| F62 | POWER ECO/PAB LED | 5A |
| F63 | REAR WIPER | 10A |
| F64 | IMMO/EMS IGN | 10A |
| F65 | P/O FRONT | 15A |
| F66 | FATC/MBFM ACC | 5A |
| F67 | WIPER FRONT | 25A |
| F68 | SPARE | 5A |
| F69 | SPARE BS6: IGN AMT | 10A |
| F70 | SPARE | 15A |
| F71 | SPARE | 20A |
| F72 | SPARE | 25A |
| F73 | SPARE | 30A |
| RELAY | ||
| R9 | BLOWER RELAY | |
| R10 | – BS6: REV RELAY (AMT) / ACCESSORY CUT OFF RELAY NORMALLY CLOSED (MT) | |
| R11 | DEMISTER RELAY | |
| R12 | LIFT GATE RELAY |

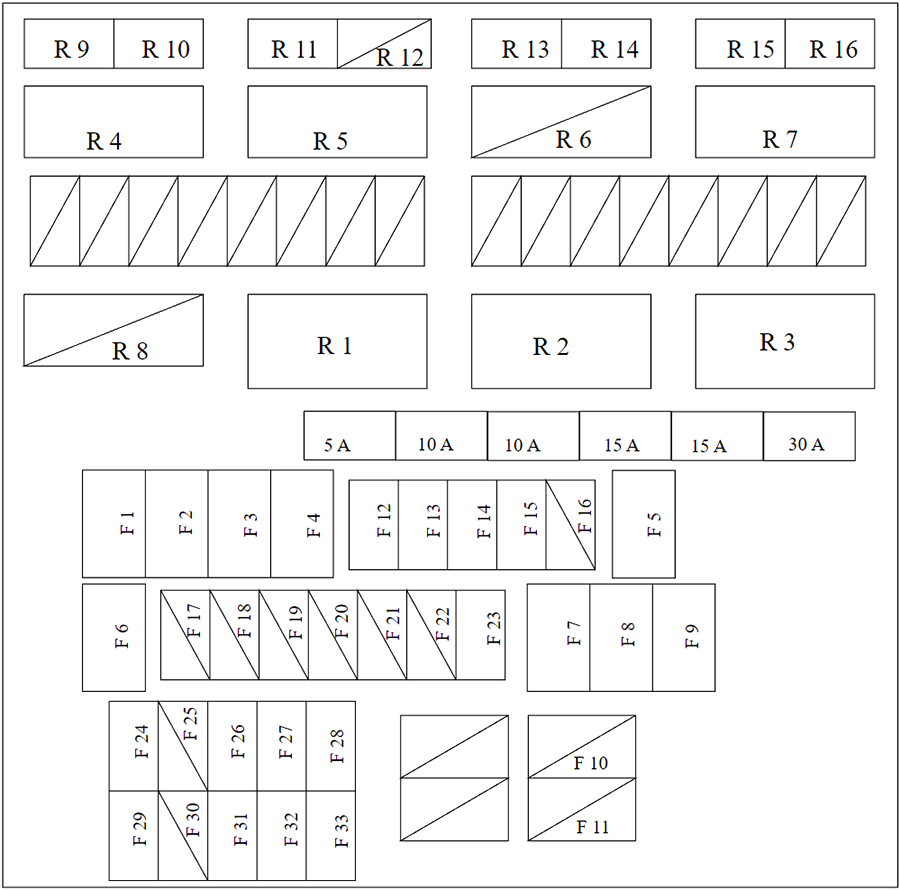

Engine Compartment Fuse Box
Main Fuse Box
| № | CIRCUIT | AMPS |
|---|---|---|
| F1 | CAB BATT. 1 | 60A |
| F2 | GLOW PLUG | 40A |
| F3 | CAB BATT. 2 | 60A |
| F4 | STARTER SOLENOID | 40A |
| F5 | ABS MOTOR | 40A |
| F6 | EMS MAIN RELAY I/P | 30A |
| F6 | BS6: EMS | 40A |
| F7 | COOLING FAN | 60A |
| F8 | ABS SOLENOID | 25A |
| F9 | CAB BATT. 3 | 60A |
| F10 | BS6: AMT BAT1 | 30A |
| F11 | – | – |
| F12 | H/L HIGH BEAM | 15A |
| F13 | H/L LOW BEAM | 15A |
| F14 | HORN | 15A |
| F15 | FOG/CORNERING LAMP | 10A |
| F16 | BS6: EMS B+ | 5A |
| F17 | – | – |
| F18 | – | – |
| F19 | – | – |
| F20 | – | – |
| F21 | BS6: SCR | 5A |
| F22 | BS6: AMT BAT2 | 15A |
| F23 | FUEL FEED PUMP | 15A |
| F24 | AC CLUTCH | 10A |
| F25 | – | – |
| F26 | EMS BATT. 1 | 10A |
| F27 | AC PR SW BS6: NOT USED | 5A |
| F28 | EGR/FMU/BPA BS6: NOT USED | 15A |
| F29 | STOP LAMP | 15A |
| F30 | – | – |
| F31 | EMS BATT. 2 | 10A/15A |
| F32 | HFM BS6: NOT USED | 10A |
| F33 | AC RELAY COIL | 10A |
| F33 | BS6: HFM Sensor, fuel temp/watr in fuel sensor, HP fuel pump, EGR cooling bypass actuator. Water pump relay control & coil SCR relay coil Cooling fan relay coil, AC comprsr relay coil, Glow plug relay coil | 15A |
| RELAY | ||
| R1 | COOLING FAN HIGH RELAY | |
| R2 | GLOW PLUG RELAY | |
| R3 | COOLING FAN LOW RELAY | |
| R4 | STARTER SOLENOID RELAY | |
| R5 | GNS RELAY BS6: BREAK LAMP RELAY | |
| R6 | – | |
| R7 | EMS ECU RELAY | |
| R8 | – | |
| R9 | HEAD LAMP LOW BEAM | |
| R10 | HORN RELAY | |
| R11 | FRONT FOG LAMP RELAY RH | |
| R12 | BS6: SCR RELAY | |
| R13 | AC COMPRESSOR RELAY | |
| R14 | FRONT FOG LAMP RELAY LH | |
| R15 | FUEL FEED PUMP RELAY | |
| R16 | HEAD LAMP HI BEAM |
Auxiliary Fuse Box
The battery-mounted fuse box is connected to the battery’s positive terminal.
| № | CIRCUIT | AMPS |
|---|---|---|
| 1 | EPS motor | 80A |
| 2 | Alternator B positive | 150A |
| 3 | Engine room fuse box | 80A |
