Mahindra XUV500 (2011 – 2020) Fuse Box Location & Diagrams
The Mahindra XUV500 (2011 – 2020) features several fuse boxes that protect essential electrical systems. This article covers their locations, fuse layouts, and diagrams, helping you identify the correct fuse for components such as lighting, accessories, engine systems, and other electrical functions.
Fuse Box Location

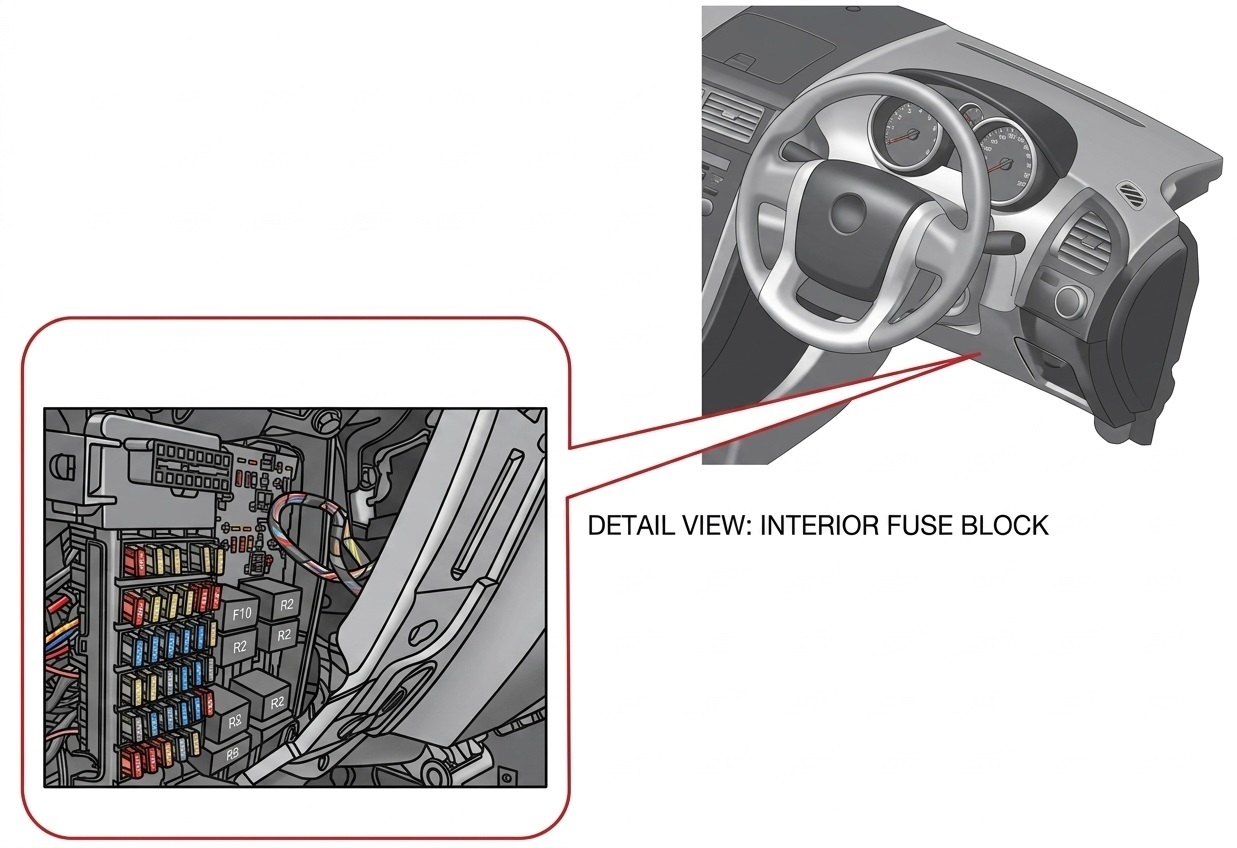

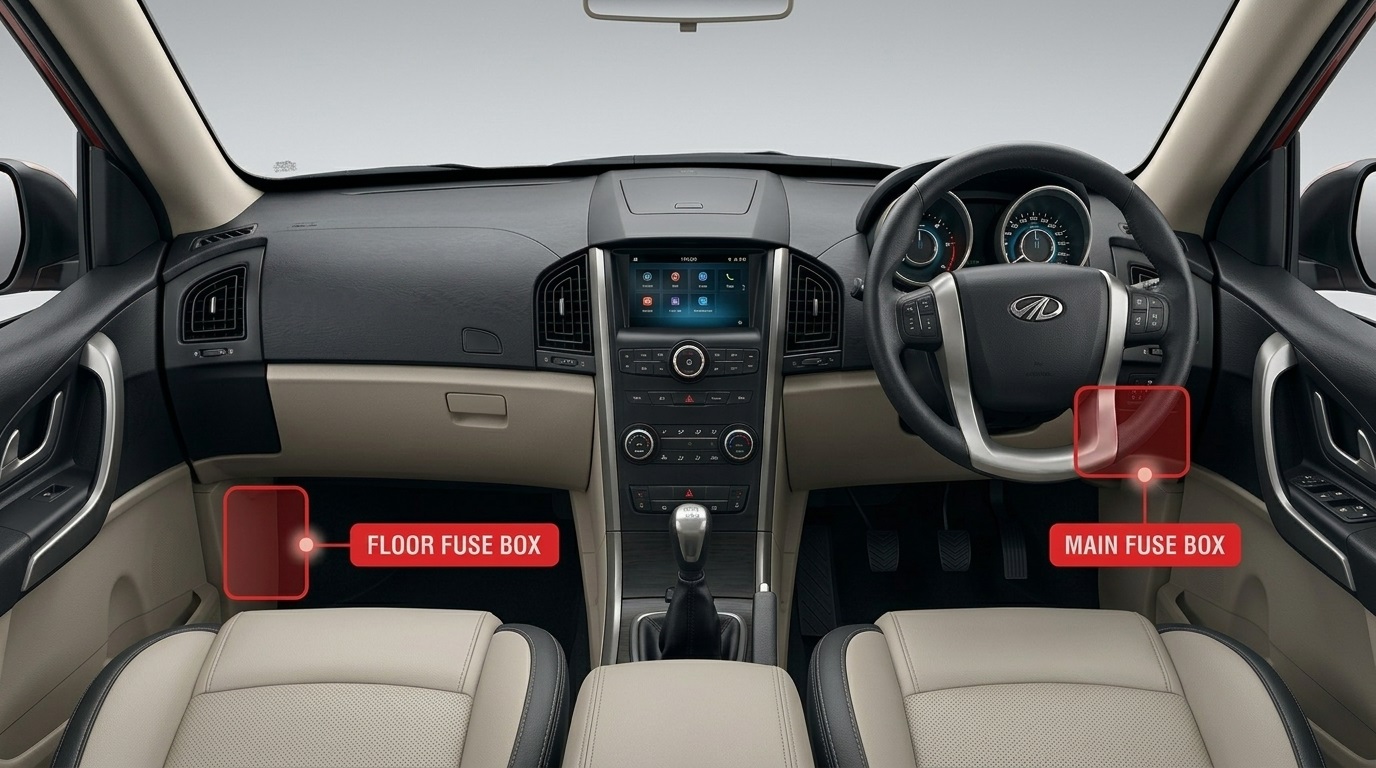

Passenger Compartment Fuse Box
Located on the right side of the instrument panel below the steering column.

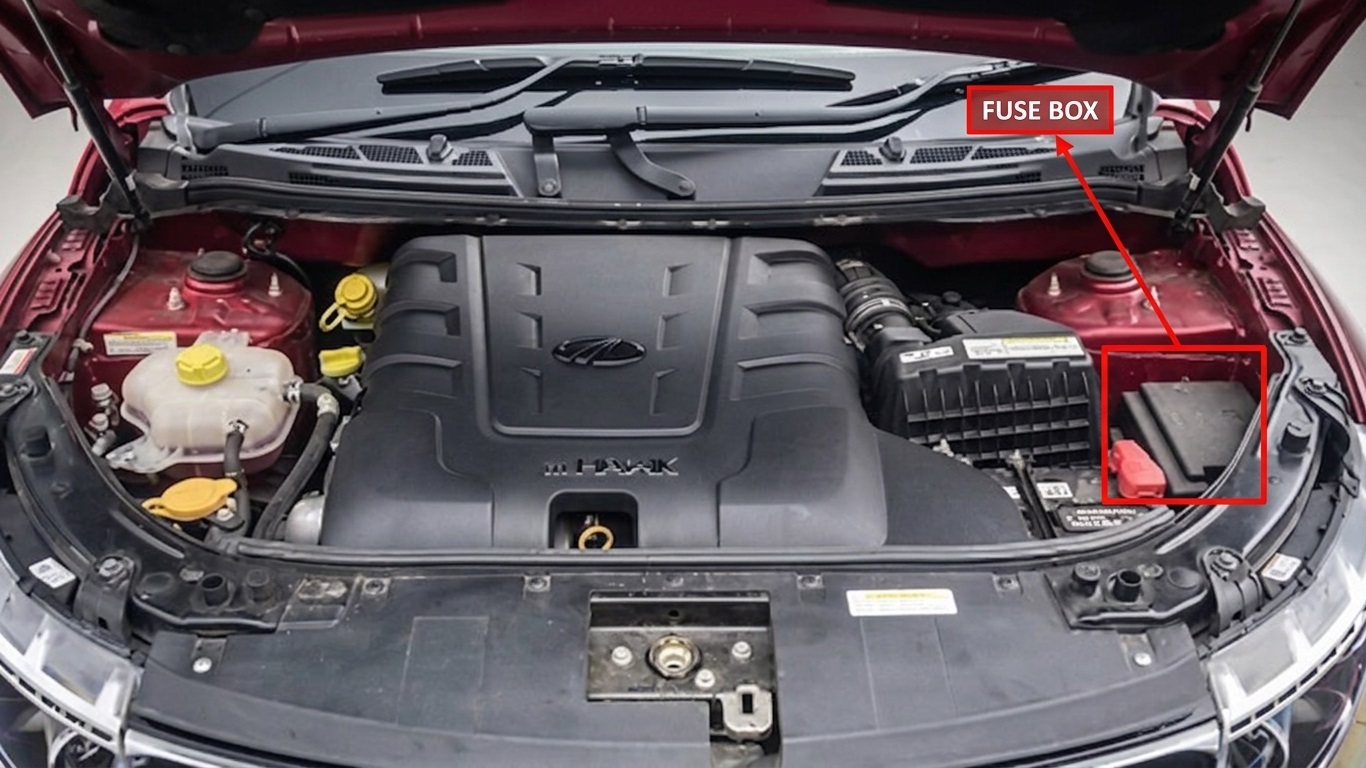

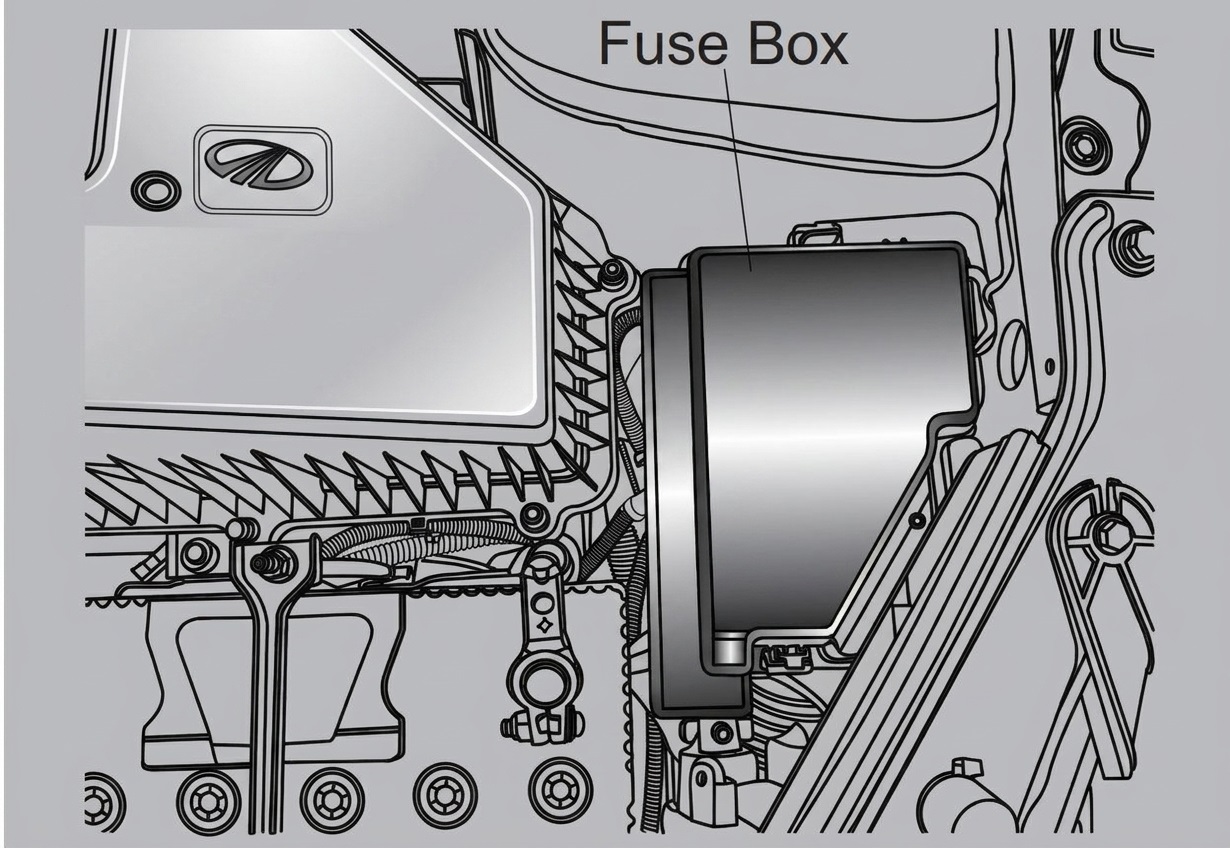

Engine Compartment Fuse Box
Located under the hood near the battery.
Fuse Box Diagrams
Passenger Compartment Fuse Box

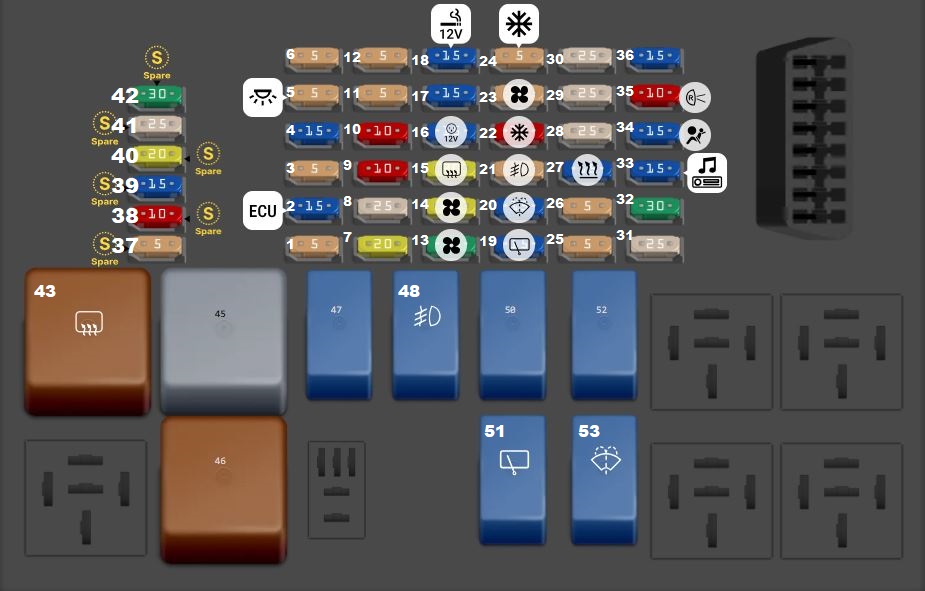

Mahindra XUV500 (2011 – 2015)
| Type | Description |
| Fuse MINI 5A | 1 (ECPS) Electronically Controlled Power Steering |
| Fuse MINI 15A | 2 (ECU) Engine Control Unit |
| Fuse MINI 5A | 3 Clutch/(ITM) Interactive Torque Management |
| Fuse MINI 15A | 4 (ACC) Audio Accessories |
| Fuse MINI 5A | 5 Courtesy light |
| Fuse MINI 5A | 6 (MBFM) Main Body Function Module ignition |
| Fuse MINI 20A | 7 (BATT) MBFM Battery 3 |
| Fuse MINI 25A | 8 (MBFM) Main Body Function Module FL-WINDOW |
| Fuse MINI 10A | 9 Mirror folding |
| Fuse MINI 10A | 10 (ACC) Rear wiper accessories |
| Fuse MINI 5A | 11 Key in ignition |
| Fuse MINI 5A | 12 Accessory |
| Fuse MINI 30A | 13 Front blower |
| Fuse MINI 20A | 14 Rear blower |
| Fuse MINI 20A | 15 Rear defogger |
| Fuse MINI 15A | 16 Rear power outlet |
| Fuse MINI 15A | 17 Intermediate power outlet |
| Fuse MINI 15A | 18 Front power outlet |
| Fuse MINI 15A | 19 Rear wiper |
| Fuse MINI 15A | 20 Rear washers |
| Fuse MINI 5A | 21 Rear fog light |
| Fuse MINI 10A | 22 (ACC HVAC) Heating, Ventilation and Air Conditioning Accessories |
| Fuse MINI 5A | 23 Blower (ACC) Accessories |
| Fuse MINI 5A | 24 (IGN HVAC) Heating, Ventilation and Air Conditioning Ignition |
| Fuse MINI 5A | 25 Rain light sensor |
| Fuse MINI 5A | 26 Dome/map lamp |
| Fuse MINI 15A | 27 Memory – Clutch/(HVAC) Heating, Ventilation and Air Conditioning |
| Fuse MINI 25A | 28 Window (MBFM FR) Front Right Main Body Function Module |
| Fuse MINI 25A | 29 Window (MBFM RR) Rear Right Main Body Function Module |
| Fuse MINI 25A | 30 Window (MBFM RL) Rear Left Main Body Function Module |
| Fuse MINI 25A | 31 Battery (MBFM 1) Main Body Function Module 1 |
| Fuse MINI 30A | 32 Battery (MBFM 2) Main Body Function Module 2 |
| Fuse MINI 15A | 33 Audio/Battery |
| Fuse MINI 15A | 34 Airbag |
| Fuse MINI 10A | 35 Reverse light |
| Fuse MINI 15A | 36 Audio (infotainment)/(IGN) Ignition |
| Fuse MINI 5A | 37 Spare |
| Fuse MINI 10A | 38 Spare |
| Fuse MINI 15A | 39 Spare |
| Fuse MINI 20A | 40 Spare |
| Fuse MINI 25A | 41 Spare |
| Fuse MINI 30A | 42 Spare |
| Relay | 43 Rear defogger relay |
| Relay | 45 Accessory relay |
| Relay | 46 Upper blower relay |
| Relay | 47 Lower blower relay |
| Relay | 48 Rear fog light |
| Relay | 50 Mirror deployment relay |
| Relay | 51 Rear wiper relay |
| Relay | 52 Mirror folding relay |
| Relay | 53 Rear washers |
| Connector OBD1 | Connector On-board diagnostic port (OBD1) |

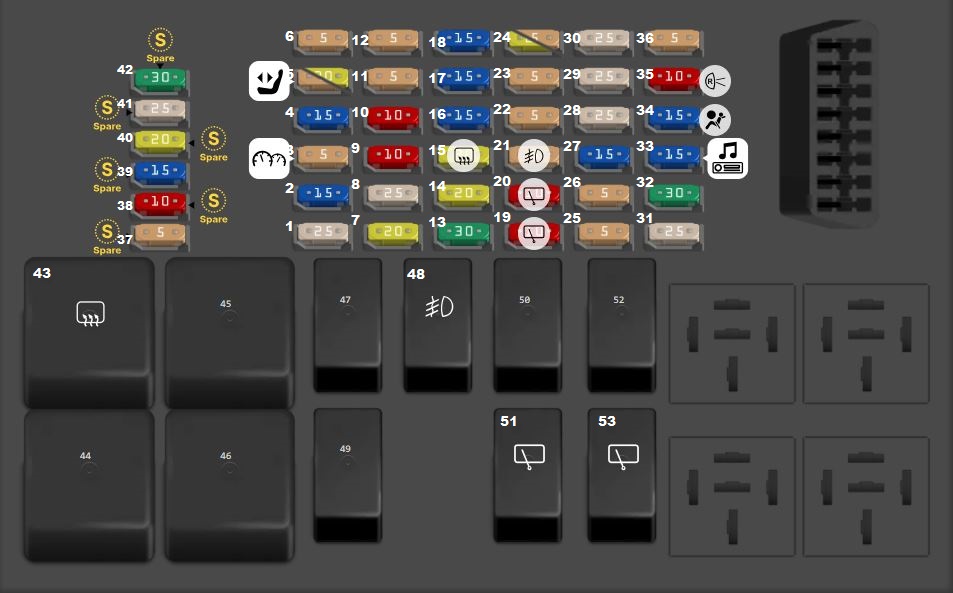

Mahindra XUV500 (2015 – 2020)
Main Fuse Box
| Type | Description |
| Fuse MINI 25A | 1 Power Seat / Sunroof |
| Fuse MINI 15A | 2 BEC |
| Fuse MINI 5A | 3 Panel / AWD / ITM |
| Fuse MINI 15A | 4 Audio ACC |
| Fuse MINI 5A | 5 Courtesy Headlight |
| Fuse MINI 20A | 5 Power Seat |
| Fuse MINI 5A | 6 MBFM Start |
| Fuse MINI 20A | 7 MBFM BATT3 |
| Fuse MINI 25A | 8 MBFM FL-Window |
| Fuse MINI 10A | 9 Mirror Folding |
| Fuse MINI 10A | 10 Rear Wiper ACC |
| Fuse MINI 5A | 11 Key Inside |
| Fuse MINI 5A | 12 Accessory |
| Fuse MINI 30A | 13 Front Fan |
| Fuse MINI 20A | 14 Rear Fan |
| Fuse MINI 20A | 15 Rear Defogger |
| Fuse MINI 15A | 16 Rear Power Outlet (Rear Socket) |
| Fuse MINI 15A | 17 Central Power Outlet (MID Socket) |
| Fuse MINI 15A | 18 Front Power Outlet (Front Socket) |
| Fuse MINI 10A | 19 Rear Wiper |
| Fuse MINI 10A | 20 Rear Washer |
| Fuse MINI 5A | 21 Rear Fog Light |
| Fuse MINI 5A | 22 Fan ACC |
| Fuse MINI 5A | 23 ACC Fan |
| Fuse MINI 20A | 24 Sunroof |
| Fuse MINI 5A | 24 ACC Climate |
| Fuse MINI 5A | 25 Rain Sensor Light |
| Fuse MINI 5A | 26 Dome / Map Lamp |
| Fuse MINI 15A | 27 Cluster Memory |
| Fuse MINI 25A | 28 MBFM Front Window |
| Fuse MINI 25A | 29 MBFM Rear Window |
| Fuse MINI 25A | 30 MBFM RL Window |
| Fuse MINI 25A | 31 MBFM Battery 1 |
| Fuse MINI 30A | 32 MBFM Battery 2 |
| Fuse MINI 15A | 33 Audio / BATT |
| Fuse MINI 15A | 34 Airbag |
| Fuse MINI 10A | 35 Reverse Light |
| Fuse MINI 5A | 36 AUD / Sunroof / HVAC IGN |
| Fuse MINI 5A | 37 Spare |
| Fuse MINI 10A | 38 Spare |
| Fuse MINI 15A | 39 Spare |
| Fuse MINI 20A | 40 Spare |
| Fuse MINI 25A | 41 Spare |
| Fuse MINI 30A | 42 Spare |
| Relay | 43 Rear Defogger Relay |
| Relay | 44 IGN Relay |
| Relay | 45 Accessory Relay |
| Relay | 46 Front Fan Relay |
| Relay | 47 Rear Fan Relay |
| Relay | 48 Rear Fog Light |
| Relay | 49 Key Lock Solenoid Relay |
| Relay | 50 Mirror Unfold Relay |
| Relay | 51 Rear Wiper Relay |
| Relay | 52 Mirror Fold Relay |
| Relay | 53 Rear Washer |
| Relay | 54 Not Used |
| Relay | 55 Not Used |
| Relay | 56 Not Used |
| Relay | 57 Not Used |
| Connector OBD1 | Connector On-board diagnostic port (OBD1) |
| Relay | 58 Reverse Light Relay |

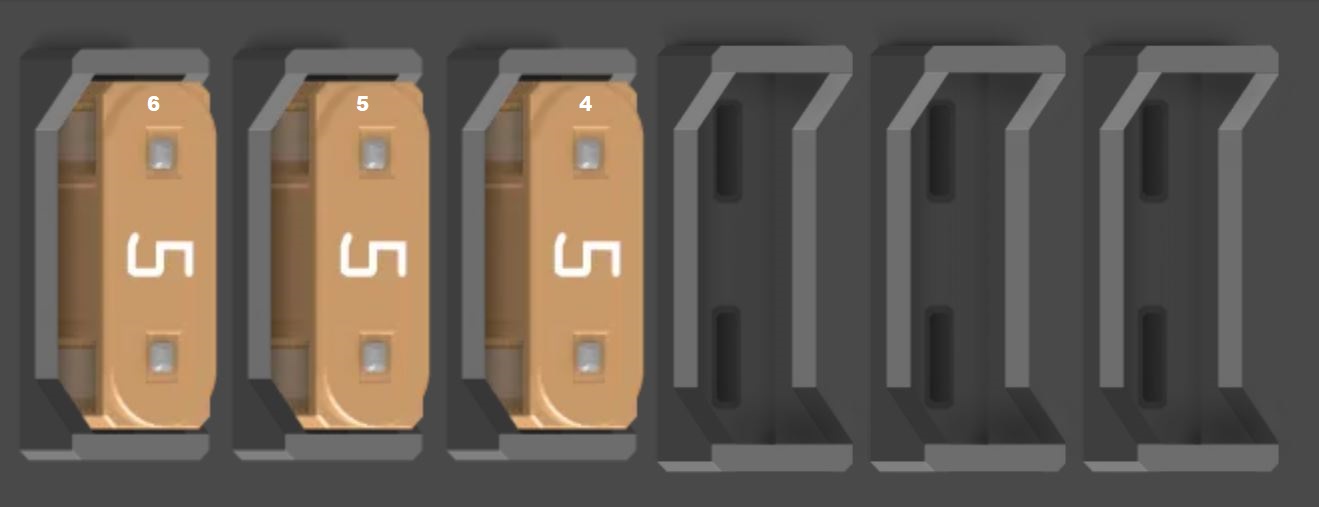

Floor Fuse Box
| Type | No. | Description |
| Fuse MINI 5A | 4 | TPMS BATT |
| Fuse MINI 5A | 5 | SSB BATT |
| Fuse MINI 5A | 6 | TIRES |
Engine Compartment Fuse Box

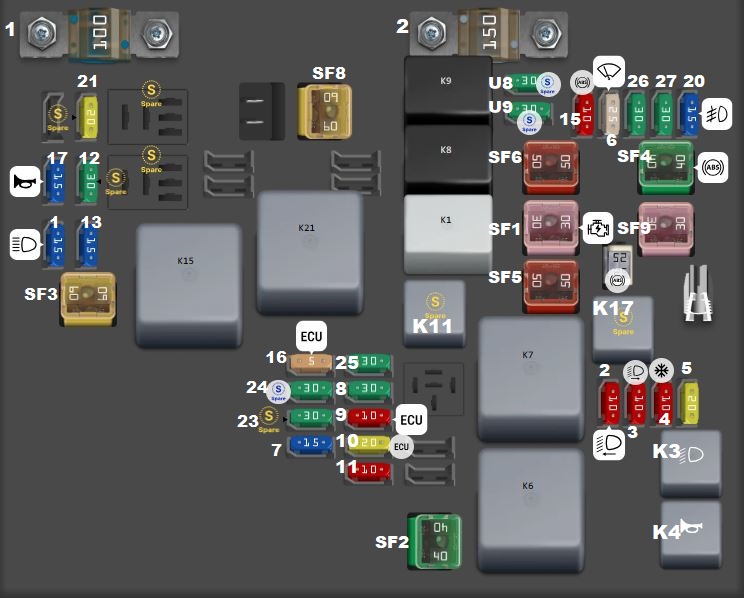

Mahindra XUV500 (2011 – 2015)
| Type | Description |
| Fuse MINI 15A | EF1 High beams |
| Fuse MINI 10A | EF2 Left low beams |
| Fuse MINI 10A | EF3 Right low beams |
| Fuse MINI 10A | EF4 AC clutch |
| Fuse MINI 20A | EF5 Static bending |
| Fuse MINI 25A | EF6 Front windshield wiper |
| Fuse MINI 15A | EF7 Sensor |
| Fuse MINI 30A | EF8 HTR hose |
| Fuse MINI 10A | EF9 ECU |
| Fuse MINI 20A | EF10 ECU |
| Fuse MINI 10A | EF11 IGN 87 |
| Fuse MINI 30A | EF12 Spare 2 |
| Fuse MINI 15A | EF13 Front jets |
| Fuse MINI 10A | EF15 ABS/ESP3 |
| Fuse MINI 5A | EF16 ECU/ENC |
| Fuse MINI 15A | EF17 Horn |
| Fuse MINI 15A | EF20 Front fog light |
| Fuse MINI 20A | EF21 Spare 5 |
| Fuse MINI 30A | EF23 Spare 8 |
| Fuse MINI 30A | EF24 Spare 9 |
| Fuse MINI 30A | EF25 Spare 10 |
| Fuse MINI 30A | EF26 Spare 11 |
| Fuse MINI 30A | EF27 Spare 12 |
| Relay | K1 Start |
| Relay | K3 Low beams |
| Relay | K4 Horn |
| Relay | K6 Upper coolant fan |
| Relay | K7 Lower coolant fan |
| Relay | K8 Front windshield wiper on |
| Relay | K9 Front windshield wiper speed |
| Relay | K11 Spare 1 |
| Relay | K12 Spare 2 |
| Relay | K15 Glow plug |
| Relay | K17 Spare 4 |
| Relay | K18 Spare 5 |
| Relay | K21 Main |
| Fuse FMX/JCase 30A | SF1 Start/BOT ENC 2 |
| Fuse FMX/JCase 40A | SF2 Coolant fan |
| Fuse FMX/JCase 60A | SF3 Glow plug |
| Fuse FMX/JCase 40A | SF4 ABS/ESP1 |
| Fuse FMX/JCase 50A | SF5 Coolant fan 2 |
| Fuse FMX/JCase 50A | SF6 IP B+2 |
| Fuse FMX/JCase 60A | SF8 IP B+I |
| Fuse FMX/JCase 30A | SF9 BOT ENC 2 |
| Fuse FMM/MCase 25A | SF10 ABS/ESP1 |
| Fuse MINI 30A | U8 Spare |
| Fuse MINI 30A | U9 Spare |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |

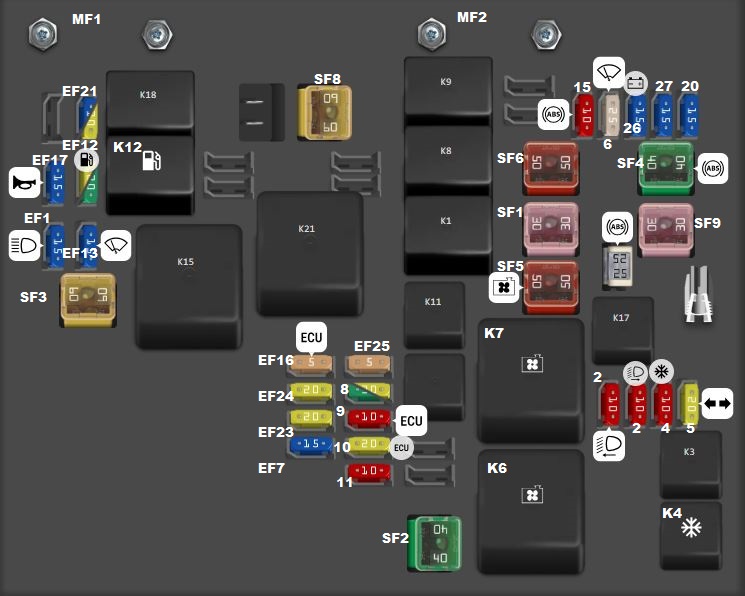

Mahindra XUV500 (2015 – 2020)
| Type | Description |
| Fuse MINI 15A | EF1 High Beam Light |
| Fuse MINI 10A | EF2 Left Side Low Beam Light |
| Fuse MINI 10A | EF3 Right Side Low Beam Light |
| Fuse MINI 10A | EF4 AC Clutch |
| Fuse MINI 20A | EF5 Turn Signal Lights |
| Fuse MINI 25A | EF6 Front Windshield Wiper |
| Fuse MINI 15A | EF7 Sensor |
| Fuse MINI 30A | EF8 HTR Hose |
| Fuse MINI 20A | EF8 Nox/Drive Coil |
| Fuse MINI 10A | EF9 ECU |
| Fuse MINI 20A | EF10 ECU |
| Fuse MINI 10A | EF11 IGN 87 |
| Fuse MINI 20A | EF12 Fuel Pump / SCR |
| Fuse MINI 30A | EF12 Fuel Pump / SCR |
| Fuse MINI 15A | EF13 Front Windshield Washer |
| Fuse MINI 10A | EF15 ABS/ESP3 |
| Fuse MINI 5A | EF16 ECU/IGN |
| Fuse MINI 15A | EF17 Horn |
| Fuse MINI 15A | EF20 Front Fog Light |
| Fuse MINI 15A | EF21 Solenoid Valve |
| Fuse MINI 20A | EF21 Solenoid Valve |
| Fuse MINI 20A | EF23 NOX / High Beam Light PWM Module |
| Fuse MINI 20A | EF24 Low Beam Light PWM Module |
| Fuse MINI 5A | EF25 LV BMS |
| Fuse MINI 15A | EF26 ITM/Battery |
| Fuse MINI 15A | EF27 TCU Battery |
| Relay | K1 Drive |
| Relay | K3 Low Beam Light |
| Relay | K4 AC Clutch |
| Relay | K6 Low Cooling Fan |
| Relay | K7 High Cooling Fan |
| Relay | K8 Front Wiper On |
| Relay | K9 Front Wiper Speed |
| Relay | K11 GNS |
| Relay | K12 Main Fuel Pump/SCR |
| Relay | K15 Glow Plug |
| Relay | K17 Front Fog Light |
| Relay | K18 Solenoid Valve |
| Relay | K21 Main |
| Fuse FMX/JCase 30A | SF1 Start/IGN SW2 |
| Fuse FMX/JCase 40A | SF2 Cooling Fan |
| Fuse FMX/JCase 60A | SF3 Glow Plug |
| Fuse FMX/JCase 40A | SF4 ABS/ESP 1 |
| Fuse FMX/JCase 50A | SF5 Cooling Fan 2 |
| Fuse FMX/JCase 50A | SF6 IP B+2 |
| Fuse FMX/JCase 60A | SF8 IP B+1 |
| Fuse FMX/JCase 30A | SF9 IGN SW 1 / HCU / Floor Fuse Box BAT |
| Fuse FMM/MCase 25A | SF10 ABS/ESP 1 |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Fuse 10A | EF19 Coolant Pump |
| K2 Daytime Running Lights | |
| K5 Turn Signal Lights | |
| K10 Horn | |
| K13 Front Windshield Washer | |
| K22 High Beam Light |
