Mazda 2 DE (2011 – 2014) Fuse Box Location & Diagrams
The Mazda 2 DE (2011–2014) fuse box houses the fuses that protect essential electrical systems and accessories. This blog provides clear fuse box locations and diagrams, helping you identify fuse positions, understand their functions, and troubleshoot common electrical issues efficiently.
Fuse Box Location

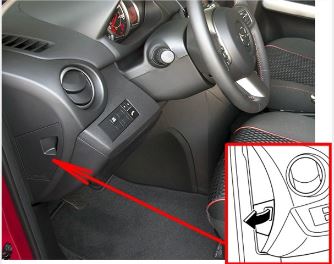

Passenger Compartment Fuse Box
The fuse box is located behind the cover on the left side of the instrument panel.

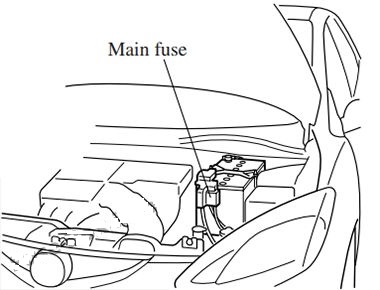

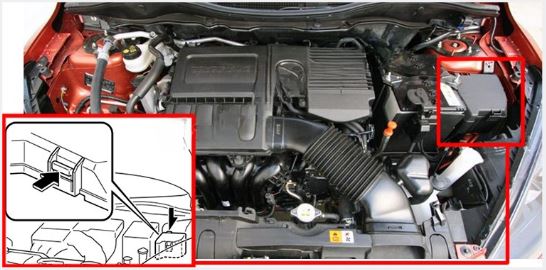

Engine Compartment Fuse Box
Fuse Box Diagrams

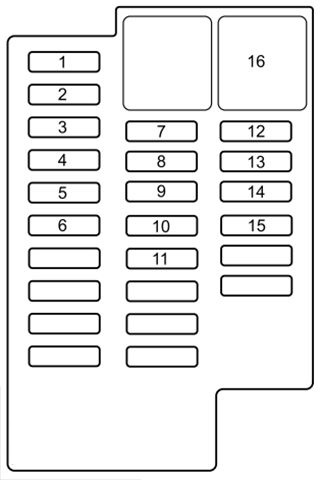

Passenger Compartment Fuse Box
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | TCM | — | — |
| 2 | ILLUMI | 7.5 A | Dashboard illumination |
| 3 | CIGAR | 15 A | Accessory Socket |
| 4 | MIRROR | 7.5 A | Power control mirror |
| 5 | M.DEF | 7.5 A | Mirror defroster (Some models) |
| 6 | S.WARM | — | — |
| 7 | A/ C | 7.5 A | Air conditioner |
| 8 | F.WIP | 20 A | Front window wiper and washer |
| 9 | R.WIP | 10 A | Rear window wiper and washer |
| 10 | STARTER | — | — |
| 11 | METER 2 | — | — |
| 12 | ENG | 10 A | Engine control system |
| 13 | METER | 10 A | Instrument cluster |
| 14 | SAS | 10 A | Air bag, DSC |
| 15 | AUDIO 3 | — | — |
| 16 | P/W | 30 A | Power windows |
Engine Compartment Fuse Box

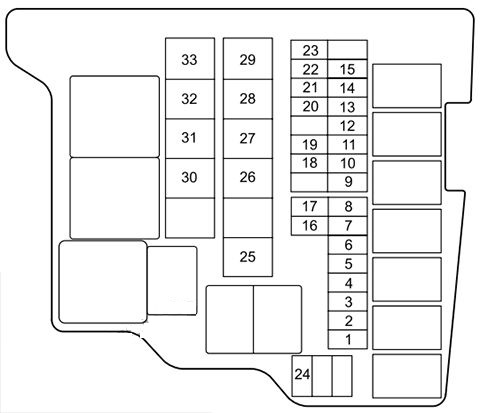

Mazda 2 DE (2011)
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | — | — | — |
| 2 | FUEL PUMP | 15 A | Fuel pump |
| 3 | F.FOG | 15 A | Fog lights (Some models) |
| 4 | P/W | 20 A | Power windows |
| 5 | HORN | 10 A | Horn |
| 6 | EGI | 10 A | Engine control system |
| 7 | DSC-P | 30 A | DSC |
| 8 | DSC-V | 20 A | DSC |
| 9 | MAG | 7.5 A | Air conditioner |
| 10 | TAIL | 15 A | Taillights, Parking lights, License plate lights |
| 11 | STOP | 10 A | Brake lights |
| 12 | SWS | 7.5 A | Air bag |
| 13 | R.DEF | 20 A | Rear window defroster |
| 14 | HAZARD | 10 A | Hazard warning flashers, Turn signal lights |
| 15 | D/L | 20 A | Power door locks |
| 16 | ENG BAR | 15 A | Air flow sensor, Engine control system |
| 17 | ENG INJ | 15 A | Engine control system |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | H/L LO RH | 15 A | Headlight (RH) |
| 21 | H/L LO LH | 15 A | Headlight (LH) |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | ROOM | 15 A | Overhead light |
| 25 | — | — | — |
| 26 | IG KEY 1 | 40 A | For protection of various circuits |
| 27 | — | — | — |
| 28 | FAN 2 | 30 A | Cooling fan |
| 29 | — | — | — |
| 30 | IG KEY 2 | 30 A | For protection of various circuits |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | BLOWER | 30 A | Blower motor |

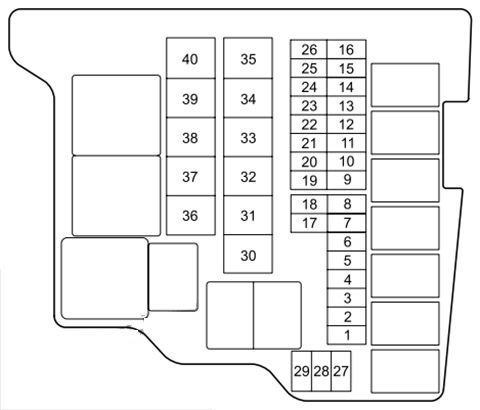

Mazda 2 DE (2012 – 2014)
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | FUEL HEAT | — | — |
| 2 | FUEL PUMP | 15 A | Fuel pump |
| 3 | F.FOG | 15 A | Fog lights (Some models) |
| 4 | P/W | 20 A | Power windows |
| 5 | HORN | 10 A | Horn |
| 6 | EGI | 10 A | Engine control system |
| 7 | DSC-P | 30 A | DSC |
| 8 | DSC-V | 20 A | DSC |
| 9 | MAG | 7.5 A | Air conditioner |
| 10 | TAIL | 15 A | Taillights, Parking lights, License plate lights |
| 11 | STOP | 10 A | Brake lights |
| 12 | SWS | 7.5 A | Air bag |
| 13 | R.DEF | 20 A | Rear window defroster |
| 14 | HAZARD | 10 A | Hazard warning flashers, Turn signal lights |
| 15 | D/L | 20 A | Power door locks |
| 16 | EOP | — | — |
| 17 | ENG BAR | 15 A | Engine control system |
| 18 | ENG INJ | 15 A | Engine control system |
| 19 | ENG INJ2 | — | — |
| 20 | H/L HI RH | — | — |
| 21 | H/L HI LH | — | — |
| 22 | DCDC3 | — | — |
| 23 | H/L LO RH | 15 A | Headlight (RH) |
| 24 | H/L LO LH | 15 A | Headlight (LH) |
| 25 | AUDI02 | — | — |
| 26 | DSC-V2 | — | — |
| 27 | HORN2 | — | — |
| 28 | METER | — | — |
| 29 | ROOM | 15 A | Overhead light |
| 30 | GLOW | — | — |
| 31 | EVVT | — | — |
| 32 | IG KEY 1 | 40 A | For protection of various circuits |
| 33 | FAN 3 | — | — |
| 34 | FAN 2 | 30 A | Cooling fan |
| 35 | FAN 1 | — | — |
| 36 | INJ | — | — |
| 37 | IG KEY 2 | 30 A | For protection of various circuits |
| 38 | 4WD | — | — |
| 39 | ABS DSC-P2 | — | — |
| 40 | BLOWER | 30 A | Air conditioner |
